TFT-ST7735S驱动笔记

Page 134

TFT1.8寸 128*160

ST7735S液晶显示屏控制器的一些常见命令：

一、系统功能命令：

1 NOP (00h)

2 SWRESET (01h): Software Reset

3 RDDID (04h): Read Display ID

4 RDDST (09h): Read Display Status

5 RDDPM (0Ah): Read Display Power Mode

6 RDDMADCTL (0Bh): Read Display MADCTL

7 RDDCOLMOD (0Ch): Read Display Pixel Format

8 RDDIM (0Dh): Read Display Image Mode

9 RDDSM (0Eh): Read Display Signal Mode

10 RDDSDR (0Fh): Read Display Self-Diagnostic Result

11 SLPIN (10h): Sleep In

12 SLPOUT (11h): Sleep Out

13 PTLON (12h): Partial Display Mode On

14 NORON (13h): Normal Display Mode On

15 INVOFF (20h): Display Inversion Off

16 INVON (21h): Display Inversion On

17 GAMSET (26h): Gamma Set

18 DISPOFF (28h): Display Off

19 DISPON (29h): Display On

20 CASET (2Ah): Column Address Set

21 RASET (2Bh): Row Address Set

22 RAMWR (2Ch): Memory Write

23 RGBSET (2Dh): Color Setting for 4K, 65K and 262K

24 RAMRD (2Eh): Memory Read

25 PTLAR (30h): Partial Area

26 SCRLAR (33h): Scroll Area Set

27 TEOFF (34h): Tearing Effect Line OFF

28 TEON (35h): Tearing Effect Line ON

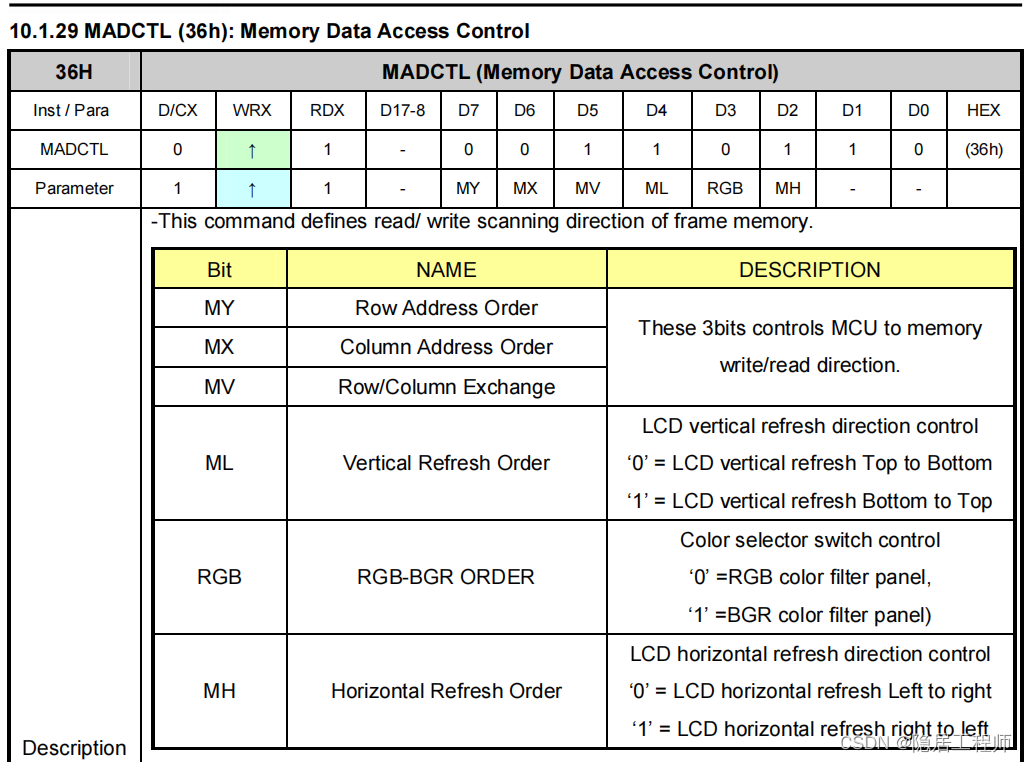

29 MADCTL (36h): Memory Data Access Control

30 VSCSAD: Vertical Scroll Start Address of RAM (37h)

31 IDMOFF (38h): Idle Mode Off

32 IDMON (39h): Idle Mode On

33 COLMOD (3Ah): Interface Pixel Format

34 RDID1 (DAh): Read ID1 Value

35 RDID2 (DBh): Read ID2 Value

36 RDID3 (DCh): Read ID3 Value

二、面板功能命令：

FRMCTR1 (B1h): Frame Rate Control (In normal mode/ Full colors)

FRMCTR2 (B2h): Frame Rate Control (In Idle mode/ 8-colors)

FRMCTR3 (B3h): Frame Rate Control (In Partial mode/ full colors)

INVCTR (B4h): Display Inversion Control

PWCTR1 (C0h): Power Control 1

PWCTR2 (C1h): Power Control 2

PWCTR3 (C2h): Power Control 3 (in Normal mode/ Full colors)

PWCTR4 (C3h): Power Control 4 (in Idle mode/ 8-colors)

PWCTR5 (C4h): Power Control 5 (in Partial mode/ full-colors)

VMCTR1 (C5h): VCOM Control 1

VMOFCTR (C7h): VCOM Offset Control

WRID2 (D1h): Write ID2 Value

WRID3 (D2h): Write ID3 Value

NVFCTR1 (D9h): NVM Control Status

NVFCTR2 (DEh): NVM Read Command

NVFCTR3 (DFh): NVM Write Command

GMCTRP1 (E0h): Gamma (‘+’polarity) Correction Characteristics Setting

GMCTRN1 (E1h): Gamma ‘-’polarity Correction Characteristics Setting

GCV(FCh): Gate Pump Clock Frequency Variable

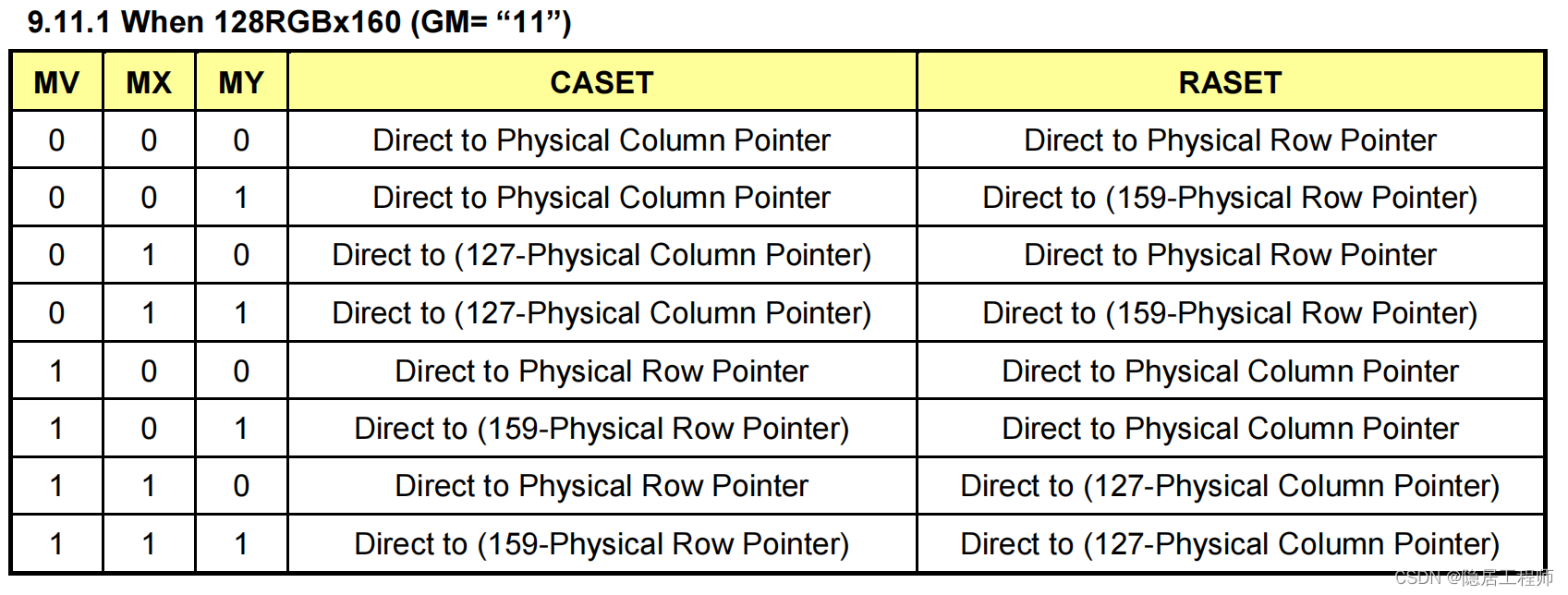

ST7735S 控制器的扫描方向设置如下：

0x00：竖屏扫描方向（默认）
0xC0：竖屏扫描方向
0x60：横屏扫描方向
0xA0：横屏扫描方向
