Arduino环境下ESP32+1.8'128X160 RGB_TFT(ST7735S)三种库的配置及示例程序效果

1.硬件信息

1.1.屏幕

分辨率：128X160

Driver IC：ST7735S

1.2.主控ESP32引脚图

2.Ucglib库示例代码

2.1.SPI接线定义

ESP32	IO	TFT	说明
VIN	VIN	VIN	VIN
GND	GND	GND	GND
D22	22	SCL	时钟线
D21	21	SDA	数据线
D25	25	RST	复位线
D14	14	DC	数据命令选择线
D15	15	CS	片选
VIN	VIN	BLK	背光

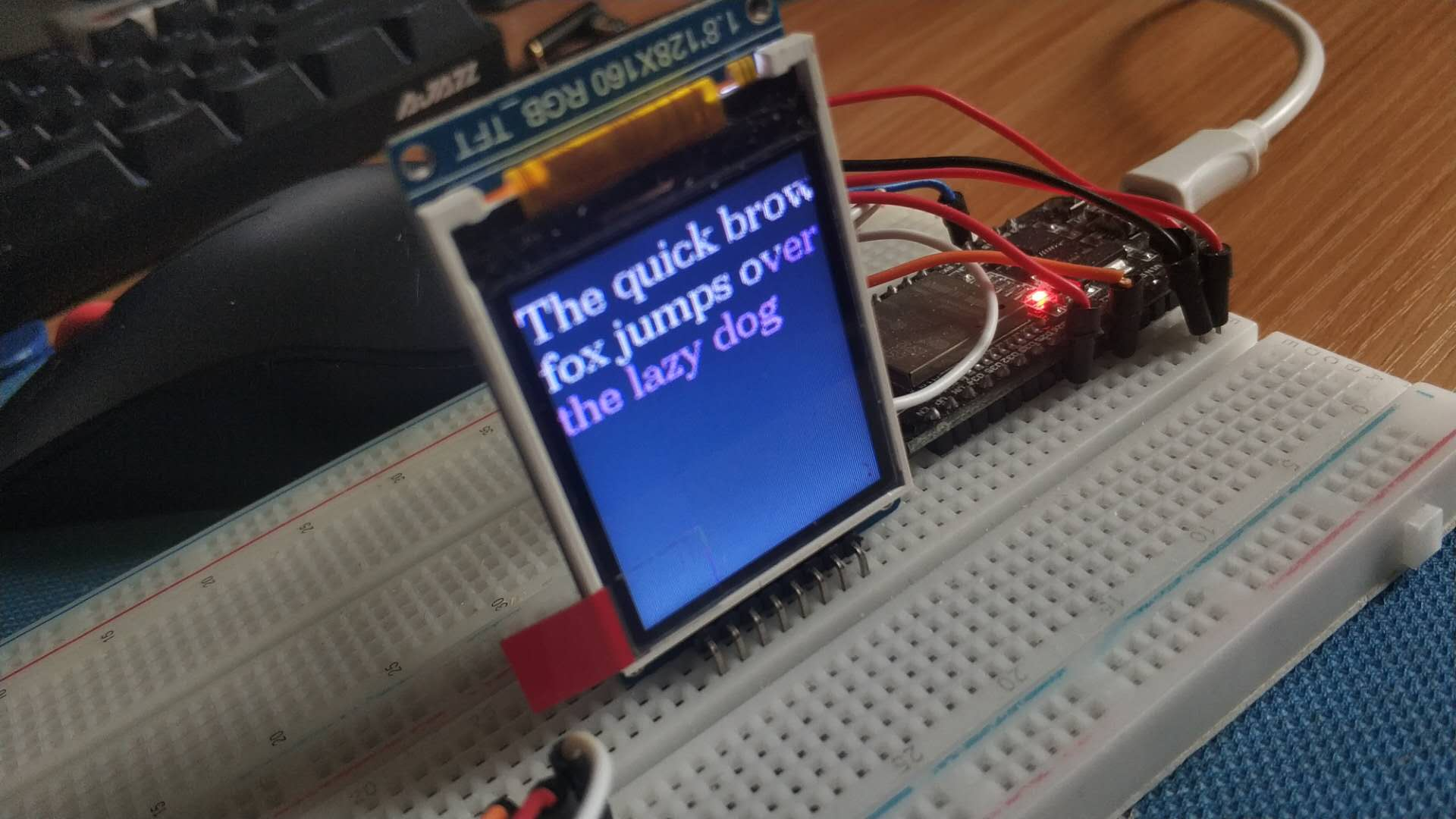

2.2.效果图

2.3.示例代码

/*

  FPS.ino

  Do some speed measurements.

  Universal uC Color Graphics Library

  Copyright (c) 2014, olikraus@gmail.com
  All rights reserved.

  Redistribution and use in source and binary forms, with or without modification,
  are permitted provided that the following conditions are met:

  * Redistributions of source code must retain the above copyright notice, this list
    of conditions and the following disclaimer.

  * Redistributions in binary form must reproduce the above copyright notice, this
    list of conditions and the following disclaimer in the documentation and/or other
    materials provided with the distribution.

  THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
  CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES,
  INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
  MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
  DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR
  CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
  SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
  NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
  LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
  CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
  STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
  ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
  ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

  1 Feb 2014
  SSD1351, Arduino Due, HW SPI	Text: 13.2  	Box: 28.6		Gradient: 17.9
  SSD1351, Arduino Due, SW SPI	Text: 11.1  	Box: 17.3		Gradient: 12.9		1 May 2014: this has been reduced to get better signal quality
  SSD1351, Arduino Uno, HW SPI	Text:  2.6  	Box: 12.8		Gradient:  4.6
  SSD1351, Arduino Uno, SW SPI	Text:  1.6  	Box:  3.4		Gradient:  2.2

  8 Feb 2014
  SSD1351, Arduino Uno, HW SPI	Text:  5.0  	Box: 15.2		Gradient:  5.3
  SSD1351, Arduino Uno, SW SPI	Text:  2.7  	Box:  3.4		Gradient:  2.2
  ILI9325, Arduino Uno, Port D		Text:  5.8		Box: 17.5		Gradient:  5.5
  ILI9341, Arduino Due, SW SPI		Text: 10.6		Box: 16.5		Gradient: 12.9		1 May 2014: this has been reduced to get better signal quality

  28 Feb 2014
  PCF8833, Arduino Uno, HW SPI	Text:  3.3  	Box: 5.6		Gradient:  3.2
  PCF8833, Arduino Due, SW SPI	Text:  1.3  	Box: 1.3		Gradient:  1.2  (display errors)

  27 Apr 2014, Issue 14 (SW SPI improvement)
  ST7735, Arduino Uno, SW SPI		Text:  2.2  	Box: 3.4		Gradient:  2.4

  1 May 2014, (SW SPI speed reduced for Due)
  ST7735, Arduino Due, SW SPI		Text:  4.9  	Box: 4.9		Gradient:  4.4

  11 Sep 2014
  ILI9341, Arduino Due, HW SPI	Text: 12.4		Box: 22.4		Gradient: 16.5
  ILI9341, Arduino Due, SW SPI		Text: 4.7		Box: 4.7		Gradient: 4.4

  12 Sep 2014
  ILI9341, Arduino Due, HW SdSpi	Text: 13.9		Box: 30.5		Gradient: 20.2		no multibyte transfer
  ILI9341, Arduino Due, HW SdSpi	Text: 13.9		Box: 38.0		Gradient: 19.7		with multibyte transfer

  1 mar 2015
  LD50T6160, Arduino Due, 6Bit	Text: 6.4		Box: 13.1		Gradient: 10.5

  23 May 2015, new font procedures
  ILI9341, Arduino Uno, SW SPI		Text:  1.9  	Box: 3.4		Gradient:  2.4
  ST7735, Arduino Uno, SW SPI		Text:  2.0  	Box: 3.4		Gradient:  2.4
  ST7735, Arduino Uno, HW SPI	Text:  3.1  	Box: 13.1		Gradient:  5.3

  19 Jul 2015
  SSD1331, Arduino Uno, SW SPI	Text:  3.8  	Box: 6.3		Gradient:  4.2
  SSD1331, Arduino Uno, HW SPI	Text:  6.0  	Box: 27.3		Gradient:  8.8

  21 Jul 2015
  SEPS225, Arduino Uno, SW SPI	Text:  1.8  	Box: 4.5		Gradient:  2.7
  SEPS225, Arduino Uno, HW SPI	Text:  2.5  	Box: 14.0		Gradient:  4.9


  25 Jul 2015 (improved speed for SEPS225)
  SEPS225, Arduino Uno, SW SPI	Text:  2.6  	Box: 5.0		Gradient:  2.9
  SEPS225, Arduino Uno, HW SPI	Text:  3.8  	Box: 17.8		Gradient:  5.3

*/

#include <SPI.h>
#include "Ucglib.h"

/*
  Hardware SPI Pins:
    Arduino Uno		sclk=13, data=11
    Arduino Due		sclk=76, data=75
    Arduino Mega	sclk=52, data=51

  >>> Please uncomment (and update) one of the following constructors. <<<
*/
//Ucglib8BitPortD ucg(ucg_dev_ili9325_18x240x320_itdb02, ucg_ext_ili9325_18, /* wr= */ 18 , /* cd= */ 19 , /* cs= */ 17, /* reset= */ 16 );
//Ucglib8Bit ucg(ucg_dev_ili9325_18x240x320_itdb02, ucg_ext_ili9325_18, 0, 1, 2, 3, 4, 5, 6, 7, /* wr= */ 18 , /* cd= */ 19 , /* cs= */ 17, /* reset= */ 16 );
Ucglib_ST7735_18x128x160_SWSPI ucg(/*sclk=*/ 22, /*data=*/ 21, /*cd=*/ 14, /*cs=*/ 15, /*reset=*/ 25);
//Ucglib4WireSWSPI ucg(ucg_dev_ili9325_18x240x320_itdb02, ucg_ext_ili9325_18, /*sclk=*/ 13, /*data=*/ 11, /*cd=*/ 9 , /*cs=*/ 10, /*reset=*/ 8);	// not working
//Ucglib4WireSWSPI ucg(ucg_dev_ili9325_spi_18x240x320, ucg_ext_ili9325_spi_18, /*sclk=*/ 13, /*data=*/ 11, /*cd=*/ 9 , /*cs=*/ 10, /*reset=*/ 8);	// not working
//Ucglib3WireILI9325SWSPI ucg(ucg_dev_ili9325_spi_18x240x320, ucg_ext_ili9325_spi_18, /*sclk=*/ 13, /*data=*/ 11, /*cs=*/ 10, /*reset=*/ 8);	// not working
//Ucglib3WireILI9325SWSPI ucg(ucg_dev_ili9325_18x240x320_itdb02, ucg_ext_ili9325_18, /*sclk=*/ 13, /*data=*/ 11, /*cs=*/ 10, /*reset=*/ 8);	// not working

//Ucglib_ST7735_18x128x160_SWSPI ucg(/*sclk=*/ 13, /*data=*/ 11, /*cd=*/ 9, /*cs=*/ 10, /*reset=*/ 8);
//Ucglib_ST7735_18x128x160_HWSPI ucg(/*cd=*/ 9, /*cs=*/ 10, /*reset=*/ 8);

//Ucglib_ILI9163_18x128x128_SWSPI ucg(/*sclk=*/ 7, /*data=*/ 6, /*cd=*/ 5, /*cs=*/ 3, /*reset=*/ 4);
//Ucglib_ILI9163_18x128x128_HWSPI ucg(/*cd=*/ 9, /*cs=*/ 10, /*reset=*/ 8);	/* HW SPI Adapter */

//Ucglib_ILI9341_18x240x320_SWSPI ucg(/*sclk=*/ 7, /*data=*/ 6, /*cd=*/ 5, /*cs=*/ 3, /*reset=*/ 4);
//Ucglib_ILI9341_18x240x320_SWSPI ucg(/*sclk=*/ 13, /*data=*/ 11, /*cd=*/ 9, /*cs=*/ 10, /*reset=*/ 8);
//Ucglib_ILI9341_18x240x320_HWSPI ucg(/*cd=*/ 9, /*cs=*/ 10, /*reset=*/ 8);
//Ucglib_ILI9341_18x240x320_SWSPI ucg(/*sclk=*/ 4, /*data=*/ 3, /*cd=*/ 6, /*cs=*/ 7, /*reset=*/ 5);	/* Elec Freaks Shield */

//Ucglib_HX8352C_18x240x400_SWSPI ucg(/*sclk=*/ 7, /*data=*/ 6, /*cd=*/ 5, /*cs=*/ 3, /*reset=*/ 4);
//Ucglib_HX8352C_18x240x400_HWSPI ucg(/*cd=*/ 9, /*cs=*/ 10, /*reset=*/ 8);

//Ucglib_ILI9486_18x320x480_SWSPI ucg(/*sclk=*/ 7, /*data=*/ 6, /*cd=*/ 5, /*cs=*/ 3, /*reset=*/ 4);
//Ucglib_ILI9486_18x320x480_HWSPI ucg(/*cd=*/ 9, /*cs=*/ 10, /*reset=*/ 8);

//Ucglib_SSD1351_18x128x128_SWSPI ucg(/*sclk=*/ 13, /*data=*/ 11, /*cd=*/ 9, /*cs=*/ 10, /*reset=*/ 8);
//Ucglib_SSD1351_18x128x128_HWSPI ucg(/*cd=*/ 9, /*cs=*/ 10, /*reset=*/ 8);
//Ucglib_SSD1351_18x128x128_FT_SWSPI ucg(/*sclk=*/ 13, /*data=*/ 11, /*cd=*/ 9, /*cs=*/ 10, /*reset=*/ 8);
//Ucglib_SSD1351_18x128x128_FT_HWSPI ucg(/*cd=*/ 9, /*cs=*/ 10, /*reset=*/ 8);

//Ucglib_PCF8833_16x132x132_SWSPI ucg(/*sclk=*/ 13, /*data=*/ 11, /*cs=*/ 9, /*reset=*/ 8);	/* linksprite board */
//Ucglib_PCF8833_16x132x132_HWSPI ucg(/*cs=*/ 9, /*reset=*/ 8);	/* linksprite board */

//Ucglib_LD50T6160_18x160x128_6Bit ucg( /*d0 =*/ d0, /*d1 =*/ d1, /*d2 =*/ d2, /*d3 =*/ d3, /*d4 =*/ d4, /*d5 =*/ d5, /*wr=*/ wr, /*cd=*/ cd, /*cs=*/ cs, /*reset=*/ reset);
//Ucglib_LD50T6160_18x160x128_6Bit ucg( /*d0 =*/ 16, /*d1 =*/ 17, /*d2 =*/ 18, /*d3 =*/ 19, /*d4 =*/ 20, /*d5 =*/ 21, /*wr=*/ 14, /*cd=*/ 15); /* S
