1.首先在导言区自定义一个颜色

\definecolor{lightblue}{RGB}{91,155,213}

2.在表格标题代码前设置标题格式

\captionsetup{labelfont={color=lightblue}}

表格标题颜色可以直接通过更改字体颜色完成

\caption{\color{lightblue}{\textbf{Computational complexities for different operations.}}}

表格内字体颜色直接在生成表格时定义

\begin{table}[H]\color{lightblue}

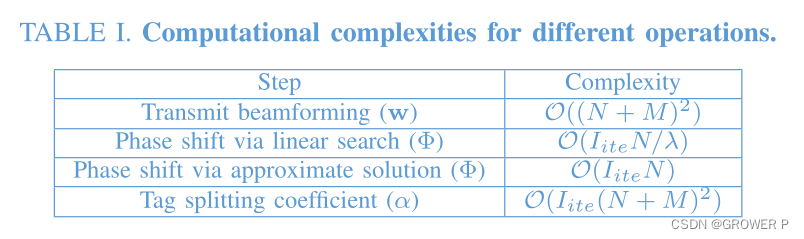

表格代码及效果如下

\begin{table}[H]\color{lightblue}
\captionsetup{labelfont={color=lightblue}}
\caption{\color{lightblue}{\textbf{Computational complexities for different operations.}}}
    \centering
    \begin{tabular}{|c|c|}
    \hline
        Step & Complexity \\ \hline
        Transmit beamforming ($\mathbf{w}$) & $\mathcal{O}({(N + M)^2})$ \\ \hline
        Phase shift via linear search ($\Phi$) & $\mathcal{O}({I_{ite}}N/\lambda)$ \\ \hline
        Phase shift via approximate solution ($\Phi$) & ${\mathcal O}( {I_{ite}}{N })$ \\ \hline
        Tag splitting coefficient ($\alpha$) & $\mathcal{O}({I_{ite}}(N + M)^2)$ \\ \hline
    \end{tabular}
\end{table}
