超声影像皮肤层次分割调研
表皮层分割

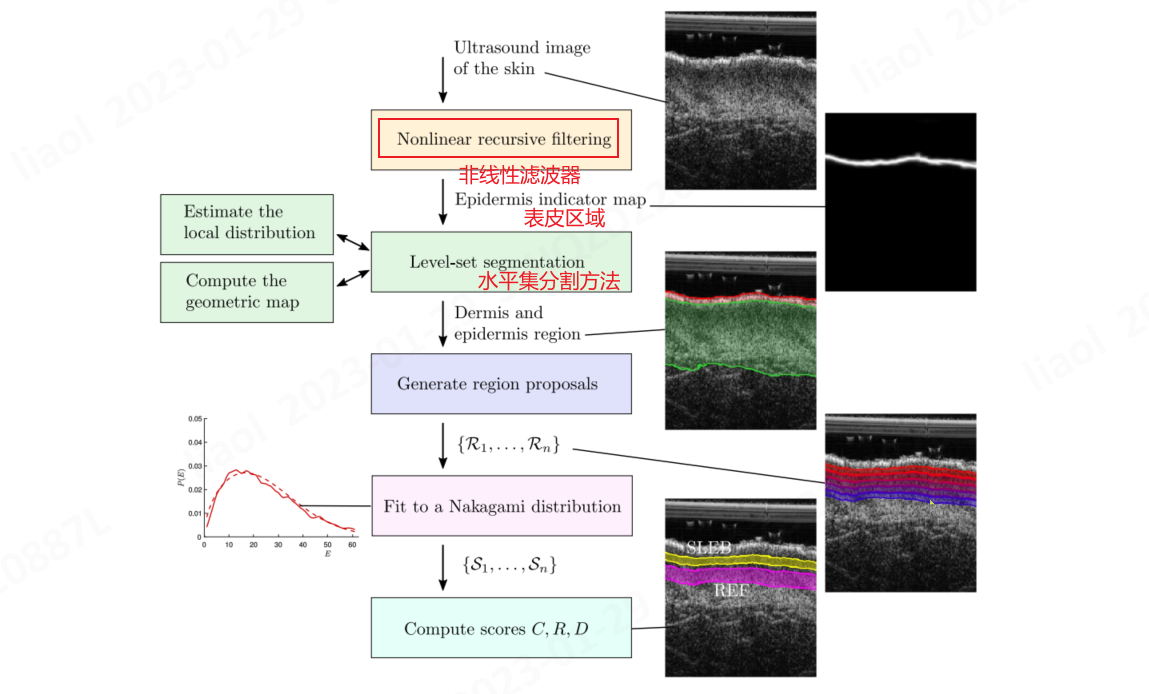

提出了一种具有非线性滤波器的递归方法来自动检测表皮,改进水平集的方法自动检测真皮层;
真皮层分割

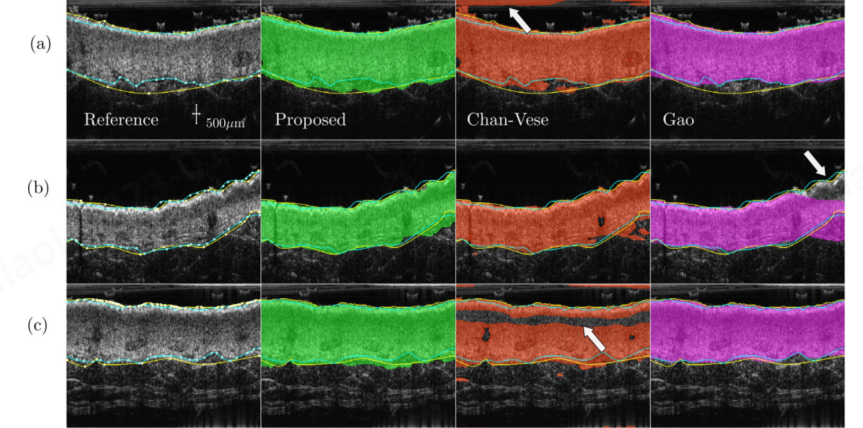

比较了三种分割真皮层的方法
-
Chan-Vese模型,基于区域的主动轮廓模型;
-
Gao method 基于Sobel边缘算子的主动轮廓,引入了一种新的双曲线方案,不能自动初始化;
-
一种多重损失水平集分割算法,结合纹理准则、表皮mask和水平连续性的几何约束,将表皮和真皮层联合分割(Proposed)。
参考文献:
1.Joint segmentation and characterization of the dermis in 50 MHz ultrasound 2D and 3D images of the skin.
2.Automated skin segmentation in ultrasonic evaluation of skin toxicity in breast cancer radiotherapy.
