C++调用GDAL实现栅格数据的读取

最新推荐文章于 2024-02-20 14:43:23 发布

三千思丶

最新推荐文章于 2024-02-20 14:43:23 发布

阅读量940

点赞数 2

文章标签： c++ 开发语言算法

本文链接：https://blog.csdn.net/weixin_45583807/article/details/129127959

版权

#include <iostream>
#include <gdal_priv.h>
#include <gdal_alg_priv.h>
#include <gdal.h>
using namespace std;

int main() {
	//注册所有的驱动
	GDALAllRegister();
	//设置支持中文路径和文件名
	//CPLSetConfigOption("GDAL_FILENAME_IS_UTF8", "NO");

	//打开文件
	string file_path_name = "H:/DEM/DEM12.5.tif";
	GDALDataset* poDataset = (GDALDataset*)GDALOpen(file_path_name.c_str(), GA_ReadOnly);
	if (poDataset == NULL)
	{
		cout << "指定的文件不能打开!" <<endl;
		return 0;
	}

	// 获取波段信息
	GDALRasterBand* poBand = poDataset->GetRasterBand(1);
	int nXSize = poDataset->GetRasterXSize();
	int nYSize = poDataset->GetRasterYSize();

	cout << "width = " << nXSize << endl;
	cout << "height = " << nYSize << endl;

	// 获取投影参考系
	string projection = poDataset->GetProjectionRef();
	cout << "Projection = " << projection << endl;

	// 获取投影坐标范围
	double geoTransform[6];
	poDataset->GetGeoTransform(geoTransform);
	double minX = geoTransform[0];
	double minY = geoTransform[3] + nXSize * geoTransform[4] + nYSize * geoTransform[5];
	double maxX = geoTransform[0] + nXSize * geoTransform[1] + nYSize * geoTransform[2];
	double maxY = geoTransform[3];
	cout.setf(ios::fixed);
	cout.precision(8);
	cout << "X-axis minimum:" << minX << ",\nY-axis minimum:" << minY << ",\nX-axis maximum:" << maxX << ",\nY-axis maximum:" << maxY << endl;

    // 读取数据
	int* pafScanline = new int[nXSize];
	for (int i = 0; i < nYSize; i++) {
		poBand->RasterIO(GF_Read, 0, i, nXSize,1, pafScanline, nXSize, 1, GDT_Int16, 0, 0);
	}

	delete[] pafScanline;

	//关闭栅格文件
	GDALClose(poDataset);

	return 0;
}

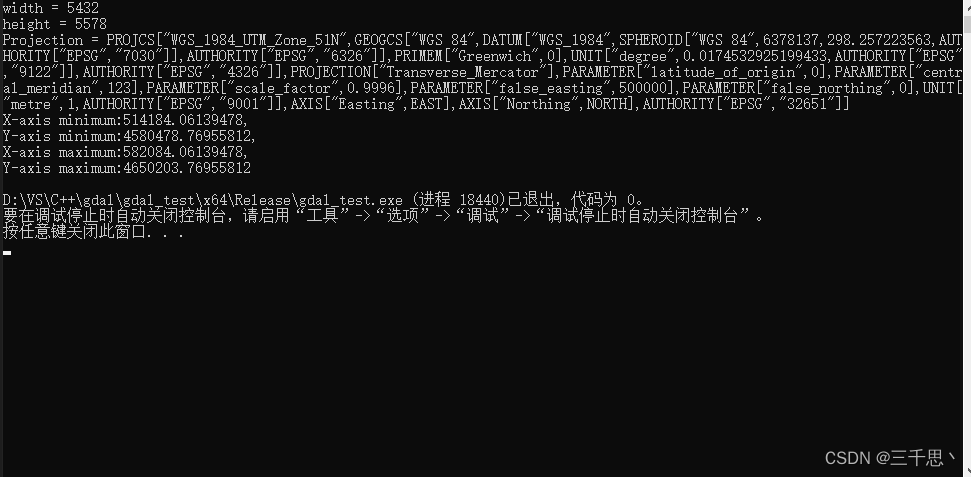

结果：
