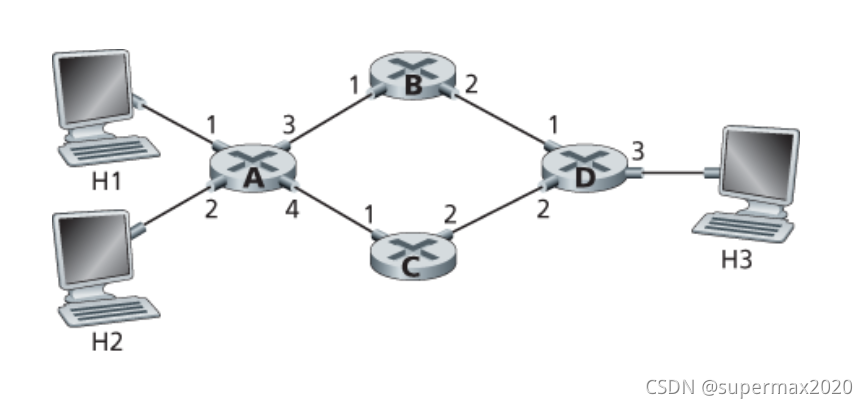

P1. Consider the network below.
a. Show the forwarding table in router A, such that all traffic destined to host H3 is forwarded through interface 3.
b. Can you write down a forwarding table in router A, such that all traffic from H1 destined to host H3 is forwarded through interface 3, while all traffic from H2 destined to host H3 is forwarded through interface 4? (Hint: This is a trick question.)
a，
| 目的地 | 端口 |
|---|---|
| Host H3 | 3 |
b, 不可以，因为不存在基于起点的转发（只存在基于目的的转发）
P2.
Suppose two packets arrive to two different input ports of a router at exactly the same time. Also suppose there are no other packets anywhere in the router.
a. Suppose the two packets are to be forwarded to two different output ports. Is it possible to forward the two packets through the switch fabric at the same time when the fabric uses a shared bus?
b. Suppose the two packets are to be forwarded to two different output ports. Is it possible to forward the two packets through the switch fabric at the same time when the fabric uses switching via memory?
c. Suppose the two packets are to be forwarded to the same output port. Is it possible to forward the two packets through the switch fabric at the same time when the fabric uses a crossbar?
a,不可以，总线一次仅能同时传输一个分组
b,不可以，内存传输也是一次仅能传输一个分组
c,不可以，因为目的端口相同，两者只能通过同一条线路到达目的端口，不可以并行传输。
P3.
In Section 4.2 , we noted that the maximum queuing delay is (n–1)D if the switching fabric is n times faster than the input line rates. Suppose that all packets are of the same length, n packets arrive at the same time to the n input ports, and all n packets want to be forwarded to different output ports. What is the maximum delay for a packet for the (a) memory, (b) bus, and © crossbar switching fabrics?
(n-1)D
(n-1)D
0
P4.

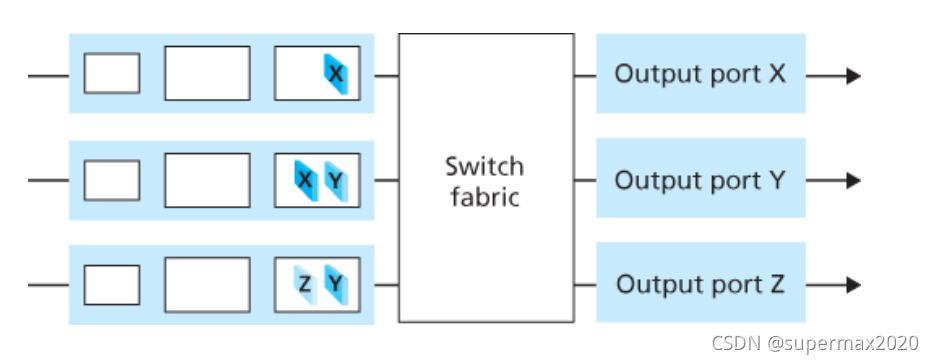

Consider the switch shown below. Suppose that all datagrams have the same fixed length, that the switch operates in a slotted, synchronous manner, and that in one time slot a datagram can be transferred from an input port to an output port. The switch fabric is a crossbar so that at most one datagram can be transferred to a given output port in a time slot, but different output ports can receive datagrams from different input ports in a single time slot. What is the minimal number of time slots needed to transfer the packets shown from input ports to their output ports, assuming any input queue scheduling order you want (i.e., it need not have HOL blocking)? What is the largest number of slots needed, assuming the worst-case scheduling order you can devise, assuming that a non-empty input queue is never idle?
P5
Consider a datagram network using 32-bit host addresses. Suppose a router has four links, numbered 0 through 3, and packets are to be forwarded to the link interfaces as follows:
| Destination Address Range | Link Interface |
|---|---|
| 11100000 00000000 00000000 00000000 through 11100000 00111111 11111111 11111111 | 0 |
| 11100000 01000000 00000000 00000000 through 11100000 01000000 11111111 11111111 | 1 |
| 11100000 01000001 00000000 00000000 through 11100001 01111111 11111111 11111111 | 2 |
| otherwise | 3 |
a. Provide a forwarding table that has five entries, uses longest prefix matching, and forwards packets to the correct link interfaces.
b. Describe how your forwarding table determines the appropriate link interface for datagrams with destination addresses:
a,
| 前缀 | 端口 |
|---|---|
| 1110000000 | 0 |
| 11100000 01000000 | 1 |
| 1110000 | 2 |
| 11100001 1 | 3 |
| 其他 | 3 |
b，
第一个啥都不匹配，送入端口3
第二个最长匹配到11100000 01000000，送入端口1
第三个最长匹配到11100001 1，送入端口3
P6.
Consider a datagram network using 8-bit host addresses. Suppose a router uses longest prefix matching and has the following forwarding table:
| Prefix Match | Interface |
|---|---|
| 00 | 0 |
| 010 | 1 |
| 011 | 2 |
| 10 | 2 |
| 11 | 3 |
For each of the four interfaces, give the associated range of destination host addresses and the number of addresses in the range.
| 范围 | 端口 |
|---|---|
| 0000 0000 到 0011 1111 | 0 |
| 0100 0000 到 0101 1111 | 1 |
| 0110 0000 到 1011 1111 | 2 |
| 1100 0000 到 11111111 | 3 |
端口0: 64个
端口1: 32个
端口2: 96个
端口3: 64个
P7.
Consider a datagram network using 8-bit host addresses. Suppose a router uses longest prefix matching and has the following forwarding table:
| Prefix Match | Interface |
|---|---|
| 1 | 0 |
| 10 | 1 |
| 111 | 2 |
| otherwise | 3 |
For each of the four interfaces, give the associated range of destination host addresses and the number of addresses in the range.
| 范围 | 端口 |
|---|---|
| 1100 0000 到 1101 1111 | 0 |
| 1000 0000 到 1011 1111 | 1 |
| 1110 0000 到 1111 1111 | 2 |
| 0000 0000 到 0111 1111 | 3 |
0、1、2、3端口分别有32、64、32、128个地址。
P8.
Consider a router that interconnects three subnets: Subnet 1, Subnet 2, and Subnet 3. Suppose all of the interfaces in each of these three subnets are required to have the prefix 223.1.17/24. Also suppose that Subnet 1 is required to support at least 60 interfaces, Subnet 2 is to support at least 90 interfaces, and Subnet 3 is to support at least 12 interfaces. Provide three network addresses (of the form a.b.c.d/x) that satisfy these constraints.
子网1: 223.1.17.128/26
子网2: 223.1.17.0/25
子网3: 223.1.17.192/28
子网1：子网掩码为/26
子网2：子网掩码为/25
子网3： 子网掩码为/28
先分配子网2: 223.1.17.0/25
再分配子网1: 223.1.17.128/26
在分配子网3: 223.1.17.192/28
P9.
In Section 4.2.2 an example forwarding table (using longest prefix matching) is given. Rewrite this forwarding table using the a.b.c.d/x notation instead of the binary string notation.
P10.
In Problem P5 you are asked to provide a forwarding table (using longest prefix matching). Rewrite this forwarding table using the a.b.c.d/x notation instead of the binary string notation.
P11.
Consider a subnet with prefix 128.119.40.128/26. Give an example of one IP address (of form xxx.xxx.xxx.xxx) that can be assigned to this network. Suppose an ISP owns the block of addresses of the form 128.119.40.64/26. Suppose it wants to create four subnets from this block, with each block having the same number of IP addresses. What are the prefixes (of form a.b.c.d/x) for the four subnets?
- 128.119.40.156
分别是128.119.40.64/28、128.119.40.80/28、128.119.40.96/28、128.119.40.112/28
P12.
Consider the topology shown in Figure 4.20 . Denote the three subnets with hosts (starting clockwise at 12:00) as Networks A, B, and C. Denote the subnets without hosts as Networks D, E, and F.
a. Assign network addresses to each of these six subnets, with the following constraints: All addresses must be allocated from 214.97.254/23; Subnet A should have enough addresses to support 250 interfaces; Subnet B should have enough addresses to support 120 interfaces; and Subnet C should have enough addresses to support 120 interfaces. Of course, subnets D, E and F should each be able to support two interfaces. For each subnet, the assignment should take the form a.b.c.d/x or a.b.c.d/x – e.f.g.h/y.
b. Using your answer to part (a), provide the forwarding tables (using longest prefix matching) for each of the three routers.
P13.
Use the whois service at the American Registry for Internet Numbers (http://www.arin.net/ whois) to determine the IP address blocks for three universities. Can the whois services be used to determine with certainty the geographical location of a specific IP address? Use www.maxmind.com to determine the locations of the Web servers at each of these universities.
P14.
Consider sending a 2400-byte datagram into a link that has an MTU of 700 bytes. Suppose the original datagram is stamped with the identification number 422. How many fragments are generated? What are the values in the various fields in the IP datagram(s) generated related to fragmentation?
4个报文段（2380/680）。
标识均为422
标志依次为1、1、1、0
偏移量分别为0、85、70、255（8字节一个偏移量）
报文大小分别为700、700、700、360
P15.
Suppose datagrams are limited to 1,500 bytes (including header) between source Host A and destination Host B. Assuming a 20-byte IP header, how many datagrams would be required to send an MP3 consisting of 5 million bytes? Explain how you computed your answer.
P16.

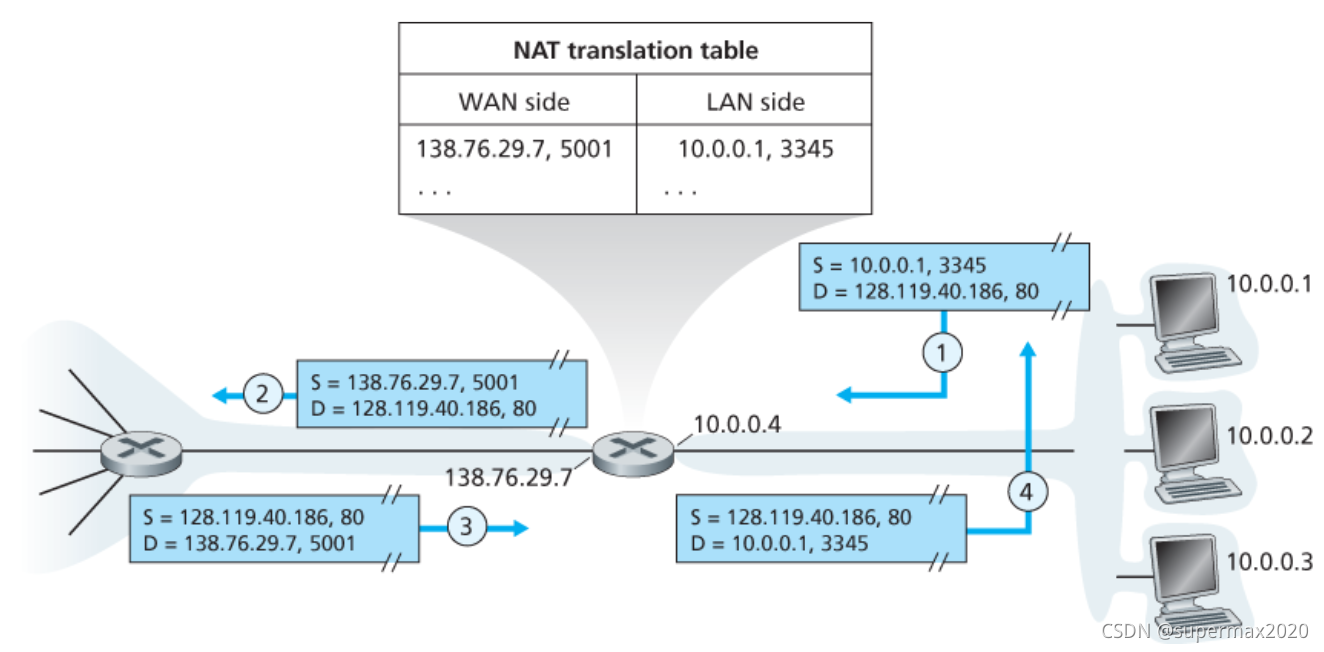

Consider the network setup in Figure 4.25 . Suppose that the ISP instead assigns the router the address 24.34.112.235 and that the network address of the home network is 192.168.1/24.
a. Assign addresses to all interfaces in the home network.

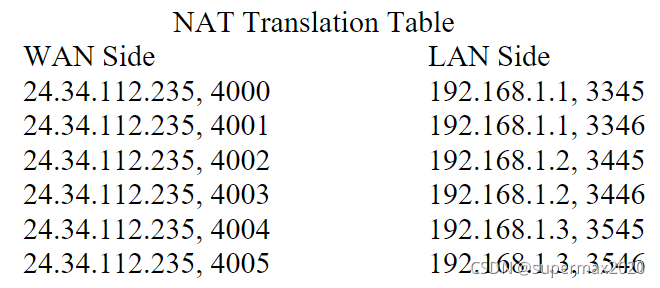

b. Suppose each host has two ongoing TCP connections, all to port 80 at host 128.119.40.86. Provide the six corresponding entries in the NAT translation table.
四个接口分别是192.168.1.1、192.168.1.2、192.168.1.3、192.168.1.4
一个可行的答案：
IP应与上表一致，而端口，只要同一IP的端口不一样就行。
P17.
Suppose you are interested in detecting the number of hosts behind a NAT. You observe that the IP layer stamps an identification number sequentially on each IP packet. The identification number of the first IP packet generated by a host is a random number, and the identification numbers of the subsequent IP packets are sequentially assigned. Assume all IP packets generated by hosts behind the NAT are sent to the outside world.
a. Based on this observation, and assuming you can sniff all packets sent by the NAT to the outside, can you outline a simple technique that detects the number of unique hosts behind a NAT? Justify your answer.
b. If the identification numbers are not sequentially assigned but randomly assigned, would your technique work? Justify your answer.
P18.
In this problem we’ll explore the impact of NATs on P2P applications. Suppose a peer with username Arnold discovers through querying that a peer with username Bernard has a file it wants to download. Also suppose that Bernard and Arnold are both behind a NAT. Try to devise a technique that will allow Arnold to establish a TCP connection with Bernard without application-specific NAT configuration. If you have difficulty devising such a technique, discuss why.
P19. Consider the SDN OpenFlow network shown in Figure 4.30 . Suppose that the desired forwarding behavior for datagrams arriving at s2 is as follows:
- any datagrams arriving on input port 1 from hosts h5 or h6 that are destined to hosts h1 or h2 should be forwarded over output port 2;
- any datagrams arriving on input port 2 from hosts h1 or h2 that are destined to hosts h5 or h6 should be forwarded over output port 1;
- any arriving datagrams on input ports 1 or 2 and destined to hosts h3 or h4 should be delivered to the host specified;
- hosts h3 and h4 should be able to send datagrams to each other
Specify the flow table entries in s2 that implement this forwarding behavior.
P20. Consider again the SDN OpenFlow network shown in Figure 4.30 . Suppose that the desired forwarding behavior for datagrams arriving from hosts h3 or h4 at s2 is as follows:
- any datagrams arriving from host h3 and destined for h1, h2, h5 or h6 should be forwarded in a clockwise direction in the network;
- any datagrams arriving from host h4 and destined for h1, h2, h5 or h6 should be forwarded in a counter-clockwise direction in the network.
Specify the flow table entries in s2 that implement this forwarding behavior.
P21.
Consider again the scenario from P19 above. Give the flow tables entries at packet switches s1 and s3, such that any arriving datagrams with a source address of h3 or h4 are routed to the destination hosts specified in the destination address field in the IP datagram. (Hint: Your forwarding table rules should include the cases that an arriving datagram is destined for a directly attached host or should be forwarded to a neighboring router for eventual host delivery there.)
P22.
Consider again the SDN OpenFlow network shown in Figure 4.30 . Suppose we want switch s2 to function as a firewall. Specify the flow table in s2 that implements the following firewall behaviors (specify a different flow table for each of the four firewalling behaviors below) for delivery of datagrams destined to h3 and h4. You do not need to specify the forwarding behavior in s2 that forwards traffic to other routers.
- Only traffic arriving from hosts h1 and h6 should be delivered to hosts h3 or h4 (i.e., that arriving traffic from hosts h2 and h5 is blocked).
- Only TCP traffic is allowed to be delivered to hosts h3 or h4 (i.e., that UDP traffic is blocked).
- Only traffic destined to h3 is to be delivered (i.e., all traffic to h4 is blocked).
- Only UDP traffic from h1 and destined to h3 is to be delivered. All other traffic is blocked.
