Reivt二开-风机与风管连接生成天圆地方

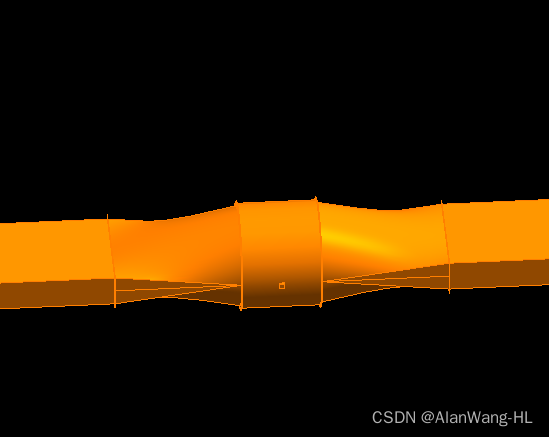

风机与风管连接生成天圆地方

  var reference = sel.PickObject(ObjectType.Element);
  var mepcurve = doc.GetElement(reference) as MEPCurve;//风管

  var reference1 = sel.PickObject(ObjectType.Element);
  var Fan= doc.GetElement(reference1) as FamilyInstance;//风机

  mepcurve.CreateTransitionSth(Fan);//风机与风管连接

 public static void CreateTransitionSth(this MEPCurve mepcurve, FamilyInstance familyInstance)
        {
            if (mepcurve is null)
                throw new ArgumentNullException(nameof(mepcurve));

            if (familyInstance is null)
                throw new ArgumentNullException(nameof(familyInstance));

            var minDistance = double.MaxValue;

            Connector connector1, connector2;

            connector1 = null; connector2 = null;

            foreach (Connector con1 in mepcurve.ConnectorManager.Connectors)
                foreach (Connector con2 in familyInstance.MEPModel.ConnectorManager.Connectors)
                {
                    var dis = con1.Origin.DistanceTo(con2.Origin);

                    if (dis < minDistance)
                    {
                        minDistance = dis;

                        connector1 = con1;

                        connector2 = con2;
                    }
                }
            var doc =  mepcurve.Document;

            if (connector1 != null && connector2 != null)
            doc.Create.NewTransitionFitting( connector1,connector2);
        }
