eNSP第二篇：Eth-trunk，链路聚合，常用命令，二层链路聚合和三层链路聚合

链路聚合，Eth-trunk，ip-trunk

链路聚合：顾名思义，就是将多条链路聚合成一条链路，这条链路的带宽等于所有有效链路的总和；属于可靠性技术。

主要作用是：提高带宽，增加可靠性

在eNSP中，交换机是只可以启用二层的链路聚合，路由器中则可以将链路切换到第三层；

常用命令：

interface Eth-trunk [id]

//创建聚合口，并进入聚合口接口视图，id范围0~63，id只在本设备中起作用

例如：interface Eth-trunk 0

mode lacp-static

//使用静态lacp模式

命令使用视图：链路聚合口接口视图

例如：[Huawei-Eth-Trunk1]mode lacp-static

trunkport [接口类型Ethernet | GigabitEthernet] [接口id] [to [接口id]]

//将接口加入聚合链路中

命令使用视图：链路聚合口接口视图

例如：[Huawei-Eth-Trunk1]trunkport GigabitEthernet 0/0/1 to 0/0/3

eth-trunk [聚合口-id]

//将接口加入聚合链路中

命令使用视图：交换机接口视图

例如：[Huawei-GigabitEthernet0/0/1]eth-trunk 1

max active-linknumber [1-8]

//配置有效链路最大数量，当聚合链路超过最大数时，将多余出来的链路作为备份链路，当有效链路中有链路down掉后，则从备用链路中选取出新的链路来替代down的链路；

命令使用视图：链路聚合口接口视图

例如：[Huawei-Eth-Trunk1]max active-linknumber 3

load-balance [负载均衡模式]

//配置链路的负载均衡模式

负载均衡模式
src-mac	源mac地址
dst-mac	目的mac地址
src-ip	源ip地址
dst-ip	目的ip地址
src-dst-mac	源和目的mac地址
src-dst-ip	源和目的ip地址（默认配置）

命令使用视图：链路聚合口接口视图

例如：[Huawei-Eth-Trunk1]load-balance src-dst-mac

undo portswitch

//切换三层路由模式

命令使用视图：链路聚合口接口视图

例如：[Huawei-Eth-Trunk1]undo portswitch



二层链路聚合配置思路：

1. 创建聚合口
2. 配置聚合链路的模式（可省略）
3. 添加物理接口
4. 配置接口模式：access，trunk，hybrid
5. 配置接口模式的pvid，TG，UT相关的参数
6. 配置负载均衡（可省略）
7. 配置最大活跃接口数量（可省略）



三层链路聚合配置思路

1. 创建聚合口
2. 将接口切换到第三层
3. 添加物理接口
4. 添加IP地址及相关配置
5. 配置负载均衡模式（可省略）
6. 配置最大活跃接口数量（可省略）



配置注意事项：配置聚合链路模式前不可以先添加物理接口，添加物理接口后才可以配置接口模式及相关参数，否则会造成添加物理接口失败！



实验

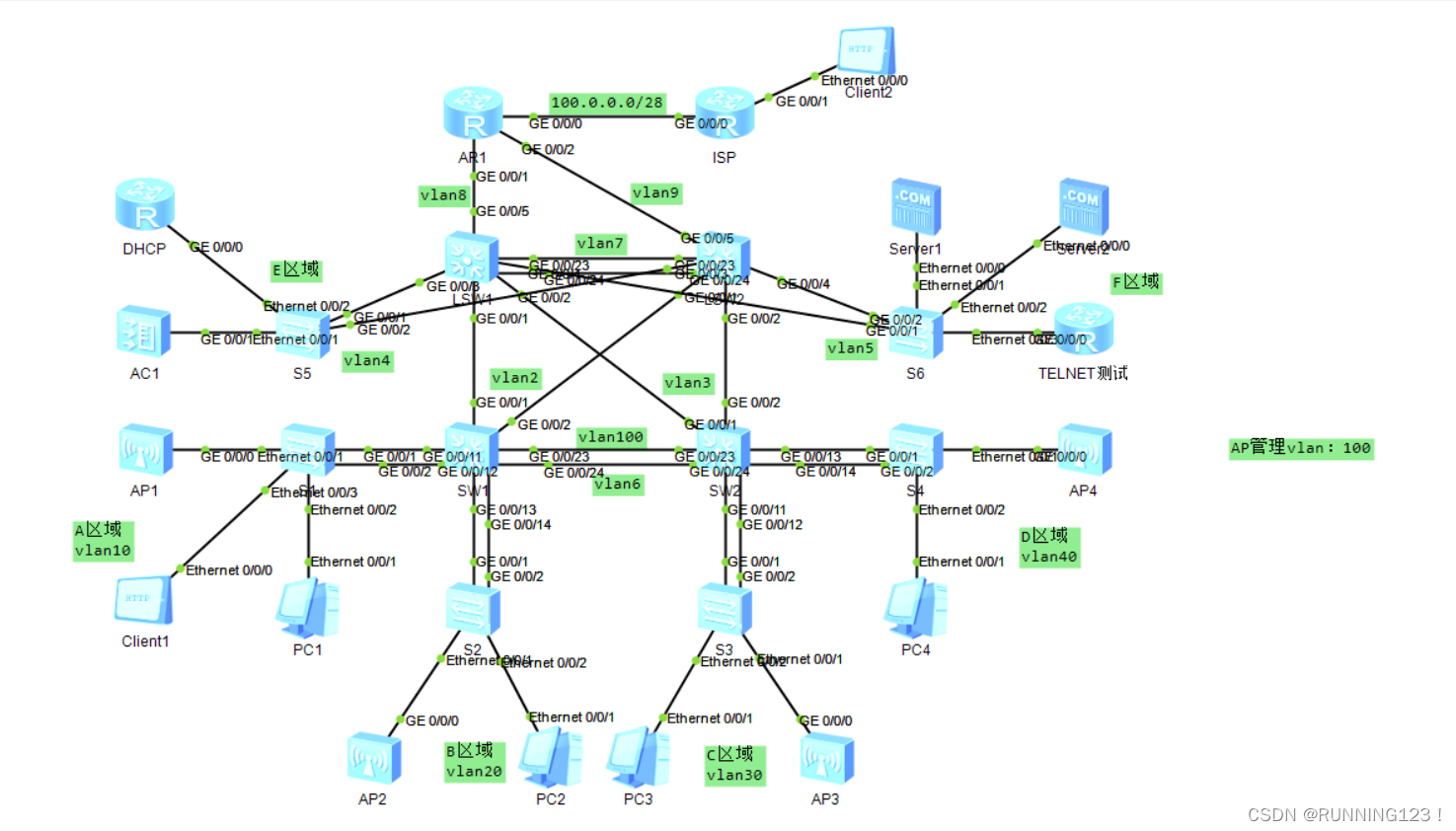

本篇只讲关于Eth-trunk的配置，本实验中不涉及三层的链路聚合

其他相关配置：https://blog.csdn.net/weixin_46678521/article/details/126472140



S1

[S1]interface Eth-trunk 1

[S1-Eth-Trunk1]trunkport g 0/0/1 to 0/0/2

Info: This operation may take a few seconds. Please wait for a moment...done.

[S1-Eth-Trunk1]port link-type trunk

[S1-Eth-Trunk1]port trunk allow-pass vlan 10 100

[S1-Eth-Trunk1]load-balance src-dst-mac

[S1-Eth-Trunk1]quit

S2

[S2]interface Eth-trunk 1

[S2-Eth-Trunk1]trunkport g 0/0/1 to 0/0/2

Info: This operation may take a few seconds. Please wait for a moment...done.

[S2-Eth-Trunk1]port link-type trunk

[S2-Eth-Trunk1]port trunk allow-pass vlan 20 100

[S2-Eth-Trunk1]load-balance src-dst-mac

[S2-Eth-Trunk1]quit

S3

[S3]interface Eth-trunk 1

[S3-Eth-Trunk1]trunkport g 0/0/1 to 0/0/2

Info: This operation may take a few seconds. Please wait for a moment...done.

[S3-Eth-Trunk1]port link-type trunk

[S3-Eth-Trunk1]port trunk allow-pass vlan 30 100

[S3-Eth-Trunk1]load-balance src-dst-mac

[S3-Eth-Trunk1]quit

S4

[S4]interface Eth-trunk 1

[S4-Eth-Trunk1]trunkport g 0/0/1 to 0/0/2

Info: This operation may take a few seconds. Please wait for a moment...done.

[S4-Eth-Trunk1]port link-type trunk

[S4-Eth-Trunk1]port trunk allow-pass vlan 40 100

[S4-Eth-Trunk1]load-balance src-dst-mac

[S4-Eth-Trunk1]quit

SW1

[SW1]interface Eth-trunk 1

[SW1-Eth-Trunk1]trunkport g 0/0/11 to 0/0/12

Info: This operation may take a few seconds. Please wait for a moment...done.

[SW1-Eth-Trunk1]port link-type trunk

[SW1-Eth-Trunk1]port trunk allow-pass vlan 10 100

[SW1-Eth-Trunk1]load-balance src-dst-mac

[SW1-Eth-Trunk1]quit

[SW1]interface Eth-trunk 2

[SW1-Eth-Trunk2]trunkport g 0/0/13 to 0/0/14

Info: This operation may take a few seconds. Please wait for a moment...done.

[SW1-Eth-Trunk2]port link-type trunk

[SW1-Eth-Trunk2]port trunk allow-pass vlan 20 100

[SW1-Eth-Trunk2]load-balance src-dst-mac

[SW1-Eth-Trunk2]quit

[SW1]interface Eth-trunk 3

[SW1-Eth-Trunk3]trunkport g 0/0/23 to 0/0/24

Info: This operation may take a few seconds. Please wait for a moment...done.

[SW1-Eth-Trunk3]port link-type trunk

[SW1-Eth-Trunk3]port trunk allow-pass vlan  6 100

[SW1-Eth-Trunk3]load-balance src-dst-ip

[SW1-Eth-Trunk3]quit

SW2

[SW2]interface Eth-trunk 1

[SW2-Eth-Trunk1]trunkport g 0/0/11 to 0/0/12

Info: This operation may take a few seconds. Please wait for a moment...done.

[SW2-Eth-Trunk1]port link-type trunk

[SW2-Eth-Trunk1]port trunk allow-pass vlan 30 100

[SW2-Eth-Trunk1]load-balance src-dst-mac

[SW2-Eth-Trunk1]quit

[SW2]interface Eth-trunk 2

[SW2-Eth-Trunk2]trunkport g 0/0/13 to 0/0/14

Info: This operation may take a few seconds. Please wait for a moment...done.

[SW2-Eth-Trunk2]port link-type trunk

[SW2-Eth-Trunk2]port trunk allow-pass vlan 40 100

[SW2-Eth-Trunk2]load-balance src-dst-mac

[SW2-Eth-Trunk2]quit

[SW2]interface Eth-trunk 3

[SW2-Eth-Trunk3]trunkport g 0/0/23 to 0/0/24

Info: This operation may take a few seconds. Please wait for a moment...done.

[SW2-Eth-Trunk3]port link-type trunk

[SW2-Eth-Trunk3]port trunk allow-pass vlan  6 100

[SW2-Eth-Trunk3]load-balance src-dst-ip

[SW2-Eth-Trunk3]quit

LSW1

[LSW1]interface Eth-trunk 1

[LSW1-Eth-Trunk1]trunkport g 0/0/23  to 0/0/24

Info: This operation may take a few seconds. Please wait for a moment...done.

[LSW1-Eth-Trunk1]port link-type trunk

[LSW1-Eth-Trunk1]port trunk allow-pass vlan 2 to 5 7

[LSW1-Eth-Trunk1]load-balance src-dst-mac

[LSW1-Eth-Trunk1]quit

LSW2

[LSW2]interface Eth-trunk 1

[LSW2-Eth-Trunk1]trunkport g 0/0/23  to 0/0/24

Info: This operation may take a few seconds. Please wait for a moment...done.

[LSW2-Eth-Trunk1]port link-type trunk

[LSW2-Eth-Trunk1]port trunk allow-pass vlan 2 to 5 7

[LSW2-Eth-Trunk1]load-balance src-dst-mac

[LSW2-Eth-Trunk1]quit
