Lecture Notes: Zigbee MAC Layer (IEEE 802.15.4)

1. Introduction

Purpose: The Zigbee MAC layer (IEEE 802.15.4) manages transmission over a single link, focusing on channel access, data/management services, and network formation.
Key Topics:
Channel access mechanisms: Unslotted CSMA-CA, Slotted CSMA-CA, Guaranteed Time Slots (GTS).
Superframe structure in slotted (beacon-enabled) mode.
Network formation and management (association, disassociation, scans).

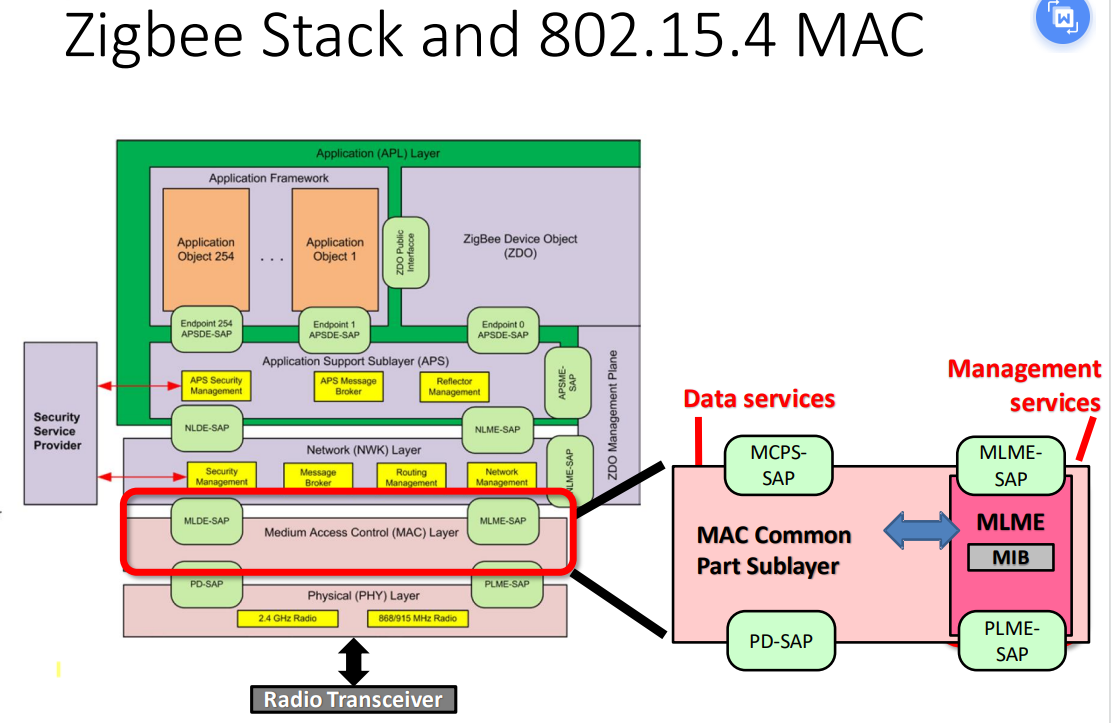

Figure 1. Zigbee Mac Layer [1].

2. Channel Access Mechanisms

Unslotted (Non-Beacon Enabled) Mode:
- Simple CSMA-CA: Nodes transmit anytime after checking channel idle status.
- No time slots; actions can start at any instant.
- Used in applications without strict timing requirements.

Slotted (Beacon-Enabled) Mode:
- Time divided into fixed-duration slots (superframe).
- Beacon frames synchronize nodes and define superframe boundaries.
- Supports Contention Access Period (CAP) and Guaranteed Time Slots (GTS).

Guaranteed Time Slots (GTS):
- Dedicated slots for low-latency or high-priority traffic.
- Located in the Contention-Free Period (CFP) of the superframe.

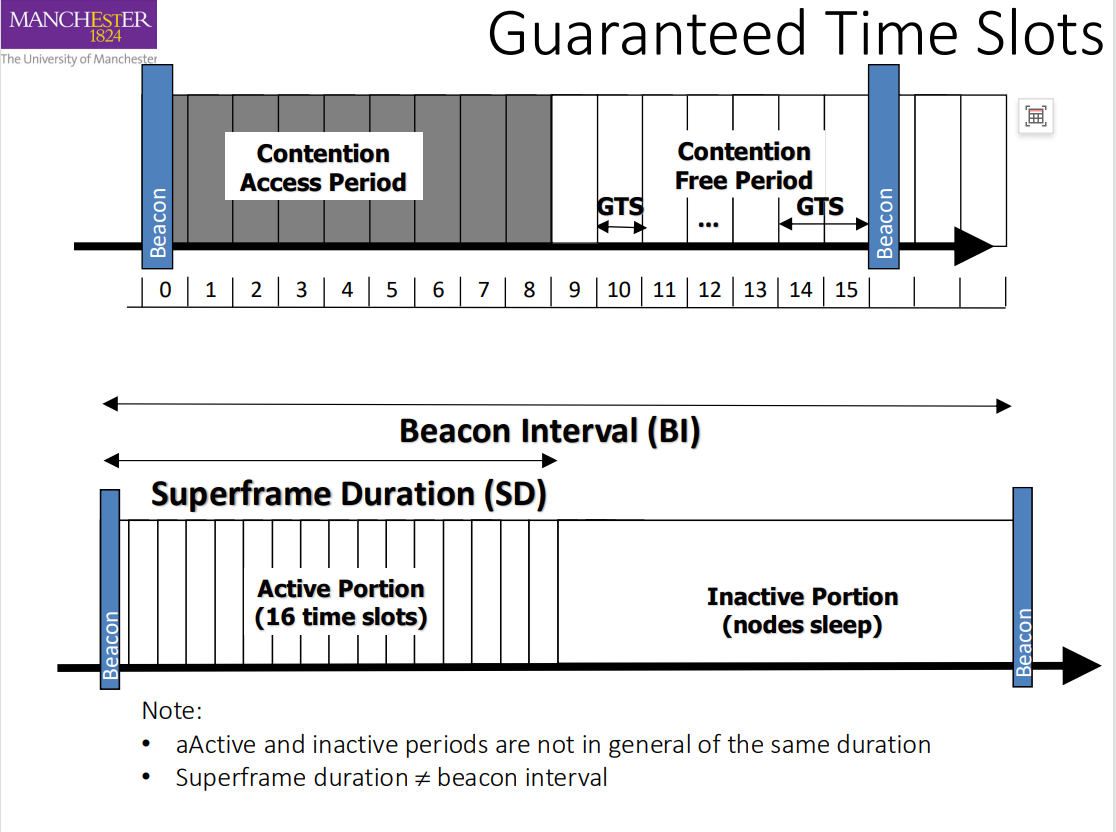

Figure 2. GTS [1].

3. Superframe Structure

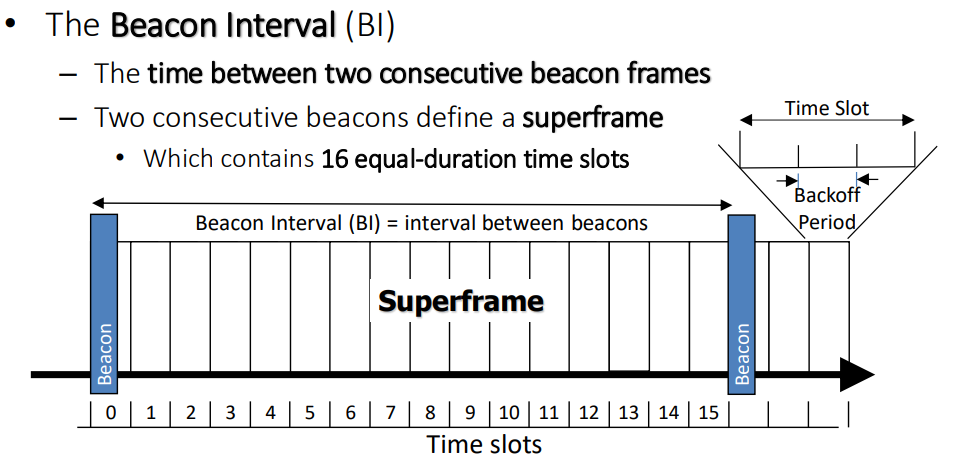

Figure 3. Superframe Structure for Slotted Mode [1].

Components:
- Beacon Interval (BI): Time between two consecutive beacons.
- Superframe Duration (SD): Active portion of the BI (16 slots).
- Inactive Period: Nodes can sleep to save energy.
Formulas:
- $SD = aBaseSuperframeDuration \times 2^{SO}$

- $BI = aBaseSuperframeDuration \times 2^{BO}$
- $\text{Duty Cycle} = \frac{SD}{BI} = \frac{2^{SO}}{2^{BO}} = 2^{SO - BO}$

BI：Beacon Interval（信标间隔），即两个信标之间的时间
aBaseSuperframDuration：基础超级帧长度（通常为 960 symbols）
BO：Beacon Order，控制信标间隔的长短
当 BO=SO 时，网络是持续活动的（non-beacon-enabled）
当 BO>SO 时，会有非活动时段（inactive period）
非活动时段长度: BI−SD

4. CSMA-CA Algorithm

Figure 4. Specific Process of CSMA-CA [1].

Process:
1. Initialize parameters: $NB = 0,\quad BE = \text{macMinBE}.$

NB：Number of Backoffs，退避尝试次数，初始化为 0
BE：Backoff Exponent，退避指数，初始化为标准中给定的 macMinBE (通常为 3)
这表示设备第一次尝试发送前的初始状态

2. Delay for random backoff period $(2^{BE} - 1)$ .

表示随机退避的最大槽数索引：设备将在区间 $[0,\ 2^{BE} - 1]$ 内随机选择一个数作为退避时长（单位为 backoff slots）
$BE$ 是当前的退避指数（Backoff Exponent）

3. Perform Clear Channel Assessment (CCA).
4. If idle, transmit; if busy, increment $NB$ and $BE$ , repeat until $NB > \text{macMaxCSMABackoffs}$ .

该过程在 $NB > \text{macMaxCSMABackoffs}$ 时终止，表示达到最大重试次数，放弃传输

Slotted vs. Unslotted:
- Slotted: Backoff aligns with slot boundaries.
- Unslotted: No alignment required.

5. Data Transfer Modes

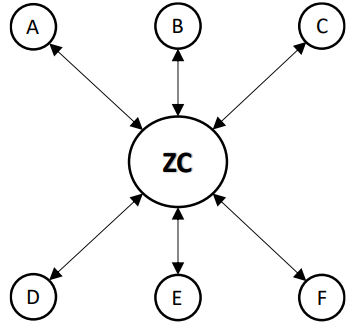

Figure 5. Star Topology Data Transfer [1].

Beacon-Enabled Mode:
- To ZC: EDs use CAP or GTS to send data.
- From ZC: Indirect transfer via beacon’s pending address list.

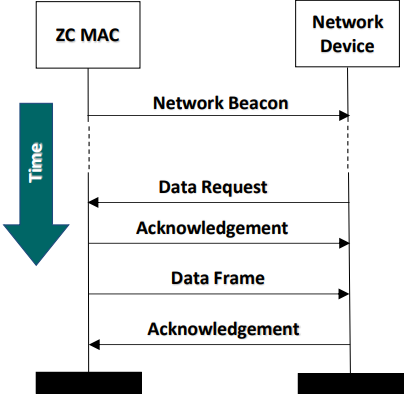

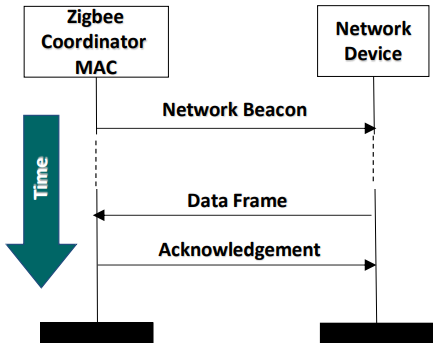

Figure 6. Data Transfer to / from ZC in Beacon-Enabled Mode [1].

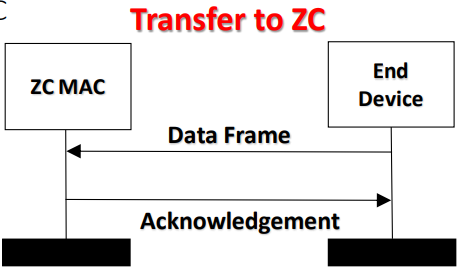

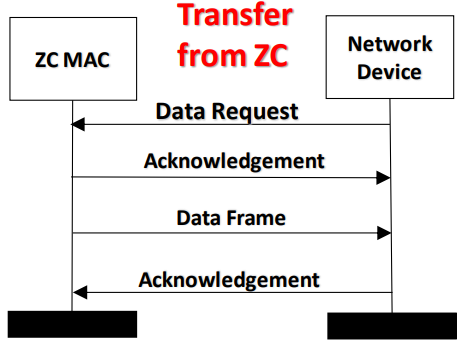

Non-Beacon Mode:
- EDs use unslotted CSMA-CA to send data.
- ZC relies on ED polling for indirect transfers.

Figure 7. Data Transfer to / from ZC in Beacon-Enabled Mode [1].

Peer-to-Peer: Requires synchronization (e.g., periodic beacons).

The key issue is synchronisation

– To enable two adjacent nodes to communicate without using the ZC

– The receiver must be listening when the sender transmits

• Options (amongst others to advertise their availability to communicate)

– Devices may be permanently in receive mode

– Devices may broadcast periodic beacons

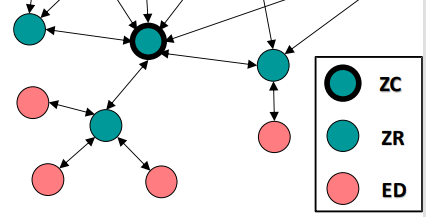

Figure 8. Data Transfer in Peer-to-Peer Mode [1].

6. Network Formation and Management

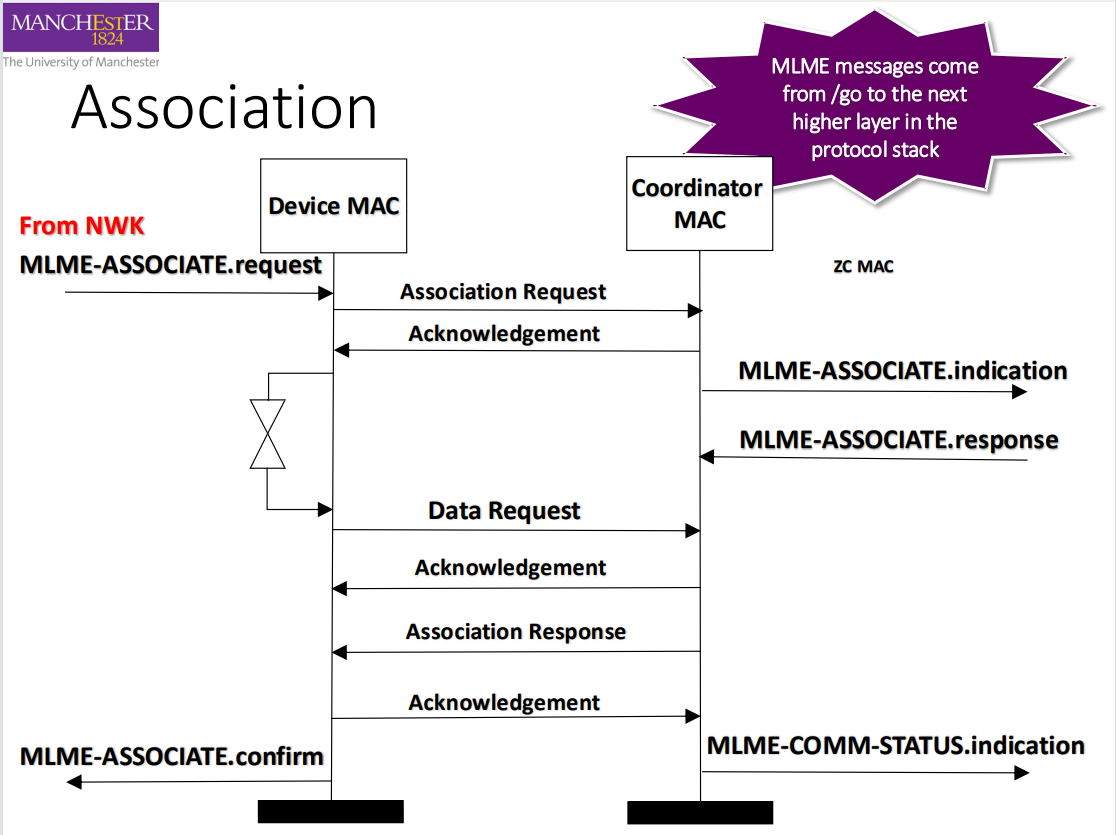

Association:
- EDs join a network via active/passive scans.
- ZC decides whether to accept the association request.

Figure 9. Association [1].

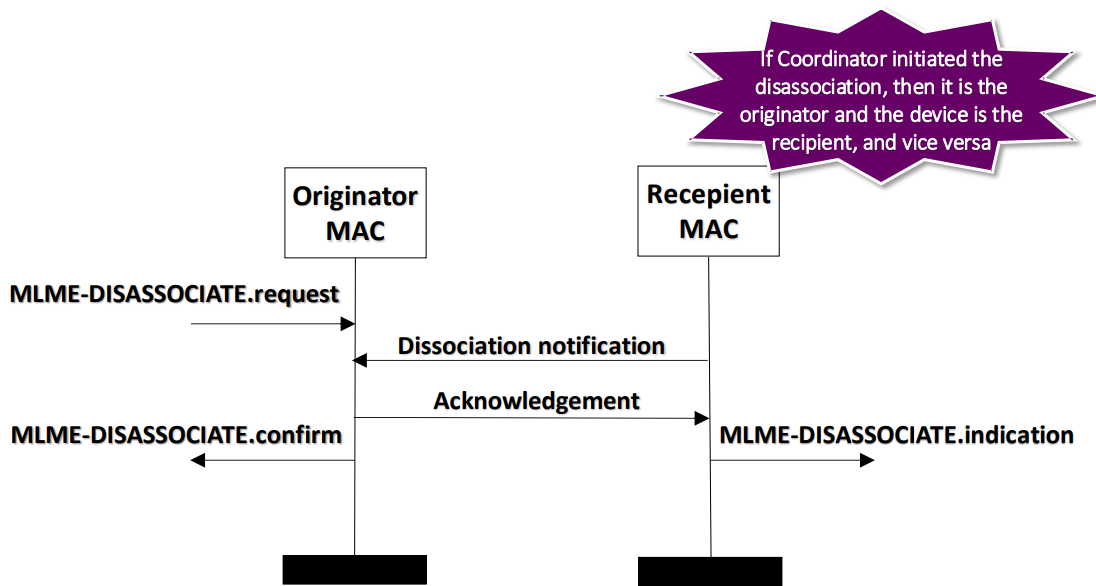

Disassociation:
- Initiated by either device or coordinator due to poor link quality or node failure.

Figure 10. Disassociation [1].

Channel Scans:
- Energy Detection: Measures RF energy.
- Active Scan: Sends Beacon Request.
- Passive Scan: Listens for beacons.
- Orphan Scan: Reconnects orphaned devices.

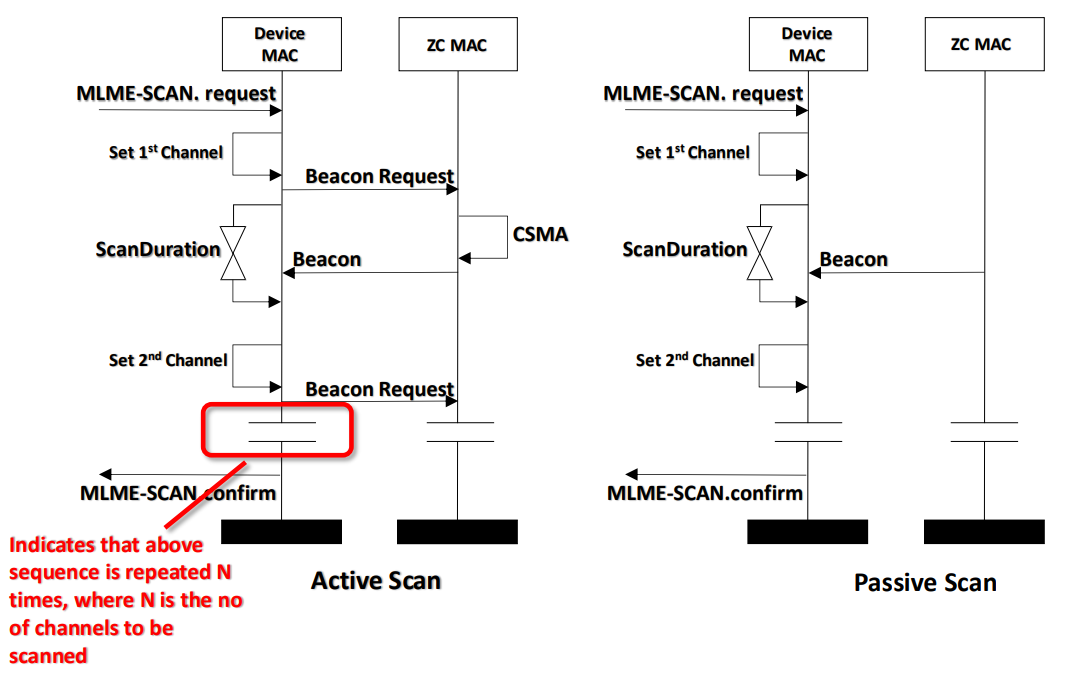

Figure 11. Channel Scans [1].

7. MAC Primitives

Data Primitives:
- `MCPS-DATA`: Handles data transmission.
- `MCPS-PURGE`: Cancels pending transmissions.
Management Primitives:
- `MLME-ASSOCIATE`: Manages network joining.
- `MLME-SCAN`: Initiates channel scans.
- `MLME-GTS`: Manages GTS allocation.

8. Transmission Scenarios

Success: Frame and ACK delivered.
Lost Message Frame (LMF): Frame not received; sender retries.
Lost ACK Frame (LAF): ACK not received; sender retries (same as LMF).

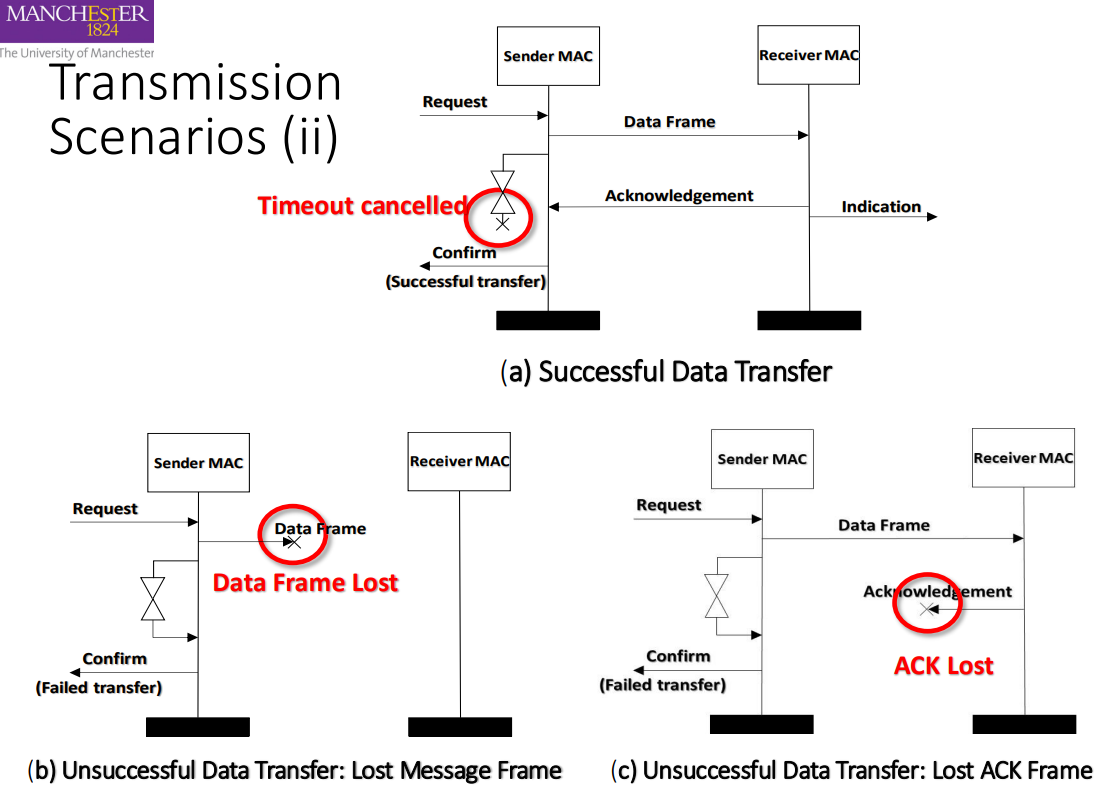

Figure 12. Transmission Scenarios [1].

9. Summary

Zigbee MAC supports two modes: beacon-enabled (complex, structured) and non-beacon (simple, flexible).
Key features: Superframes, CSMA-CA, GTS, and robust network management.
Applications: IoT, smart home, industrial automation (low-power, low-data-rate).

10. Abbreviations

CAP: Contention Access Period
GTS: Guaranteed Time Slot
ZC: Zigbee Coordinator
ED: End Device
SO/BO: Superframe/Beacon Order
CSMA-CA: Carrier Sense Multiple Access with Collision Avoidance.

Note: Numerical values (e.g., $macMinBE = 3$ ) refer to the 2.4 GHz PHY layer; other PHYs may differ.
