前端组件自动注册
前端组件自动注册
组件太多的话写一个注册一个确实有点麻烦 ,使用组件全局自动注册的方式吧。
1.创建一个js文件命名autoRegister.js
在components 里创建一个js文件命名为autoRegister.js。
当然也可以命其他名字,但最好是有语义的,方便后期维护时理解
全局自动注册组件的代码:
/**
* 全局组件自动注册
*
* 全局组件各个组件按文件夹区分,文件夹名称与组件名无关联,但建议与组件名保持一致
* 文件夹内至少保留一个文件名为 index 的组件入口,例如 index.vue
* 普通组件必须设置 name 并保证其唯一,自动注册会将组件的 name 设为组件名,可参考 SvgIcon 组件写法(图3图4)
* 如果组件是通过 js 进行调用,则确保组件入口文件为 index.js,可参考 myEchart 组件(图2)
*/
import Vue from 'vue'
const componentsContext = require.context('./', true, /index.(vue|js)$/)
componentsContext.keys().forEach(file_name => {
// 获取文件中的 default 模块
const componentConfig = componentsContext(file_name).default
if (/.vue$/.test(file_name)) {
Vue.component(componentConfig.name, componentConfig)
} else {
Vue.use(componentConfig)
}
})
2.在main.js中引入
import Vue from 'vue'
// 全局组件自动注册
import './components/autoRegister'
3.在需要的页面用标签的方式引入
- 1.创建一个名为myEchart的图表组件:
<template>
<div id="main" style="width:1500px;height:400px;"></div>
</template>
<script>
import * as echarts from "echarts";
console.log("引入了:", echarts);
export default {
name: "myEchart",
mounted() {
var mychart = echarts.init(document.getElementById("main"));
// 绘制图表
mychart.setOption({
title:{
text:"业务变动趋势",
subtext:"2021年度",
left:"center",
top:0,
textStyle:{
// fontsize:30
},
subtextStyle:{
color:"#555"
}
},
tooltip: {
trigger: "axis",
axisPointer: {
type: "cross",
crossStyle: {
color: "#999",
},
},
},
toolbox: {
feature: {
dataView: { show: true, readOnly: false },
magicType: { show: true, type: ["line", "bar"] },
restore: { show: true },
saveAsImage: { show: true },
},
},
legend: {
top:"15%",
right:0,
orient:"vertical",
data: ["新增数量", "新增金额","解除数量","解除金额", "在保数量","在保金额", "代偿数量","代偿金额", "追偿数量","追偿金额"],
},
xAxis: [
{
type: "category",
data: [
"1月",
"2月",
"3月",
"4月",
"5月",
"6月",
"7月",
"8月",
"9月",
"10月",
"11月",
"12月",
],
axisPointer: {
type: "shadow",
},
},
],
yAxis: [
{
type: "value",
name: "数量(个)",
min: 0,
max: 640,
axisLabel: {
formatter: "{value}",
},
},
{
type: "value",
name: "金额(千元)",
min: 0,
max: 50000,
axisLabel: {
formatter: function (value, index) {
return value*0.001 + 'k';
},
},
},
],
series: [
{
name: "新增数量",
type: "bar",
data: [
47,
26,
30,
26,
21,
43,
2,
0,
0,
0,
0,
0,
],
},
{
name: "新增金额",
type: "line",
yAxisIndex: 1,
data: [
3045,
932,
2391,
1550,
7194,
4062,
1710,
0,
0,
0,
0,
0,
],
},
{
name: "解除数量",
type: "bar",
data: [
0,
0,
5,
0,
1,
1,
0,
0,
0,
0,
0,
0,
],
},
{
name: "解除金额",
type: "line",
yAxisIndex: 1,
data: [
0,
0,
100,
0,
1614,
91,
0,
0,
0,
0,
0,
0,
],
},
{
name: "在保数量",
type: "bar",
data: [
218,
242,
271,
297,
316,
359,
361,
0,
0,
0,
0,
0,
],
},
{
name: "在保金额",
type: "line",
yAxisIndex: 1,
data: [
21113,
22021,
24401,
25951,
31439,
35502,
37212,
0,
0,
0,
0,
0,
],
},
{
name: "代偿数量",
type: "bar",
data: [
0,
0,
0,
0,
0,
0,
0,
0,
0,
0,
0,
0,
],
},
{
name: "代偿金额",
type: "line",
yAxisIndex: 1,
data: [
0,
0,
5,
0,
1,
1,
0,
0,
0,
0,
0,
0,
],
},
{
name: "追偿数量",
type: "bar",
data: [
0,
0,
0,
0,
0,
0,
0,
0,
0,
0,
0,
0,
],
},
{
name: "追偿金额",
type: "line",
yAxisIndex: 1,
data: [
0,
0,
5,
0,
1,
1,
0,
0,
0,
0,
0,
0,
],
},
],
});
},
};
</script>
<style scoped>
#main {
margin: 10px auto;
/* background: pink; */
}
</style>
- 2.在页面里引入图表组件
<template>
<div class="con">
<myEchart ></myEchart>
</div>
</template>
4.图解步骤
粗糙的图解:

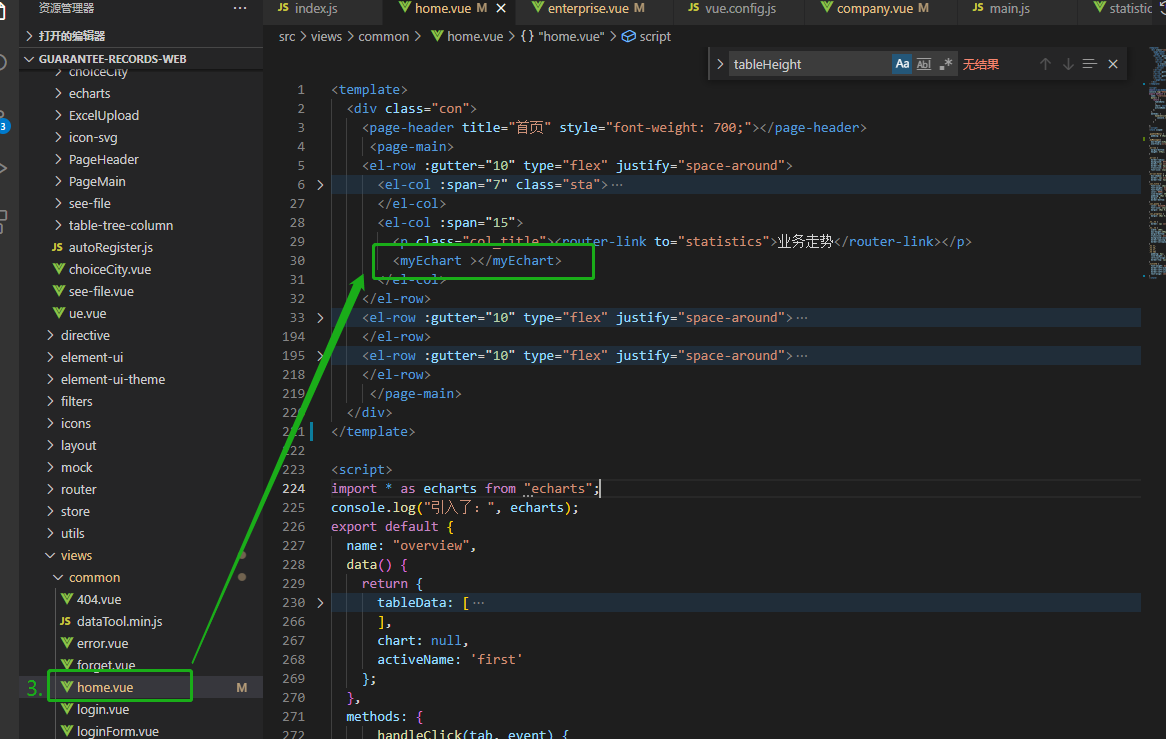

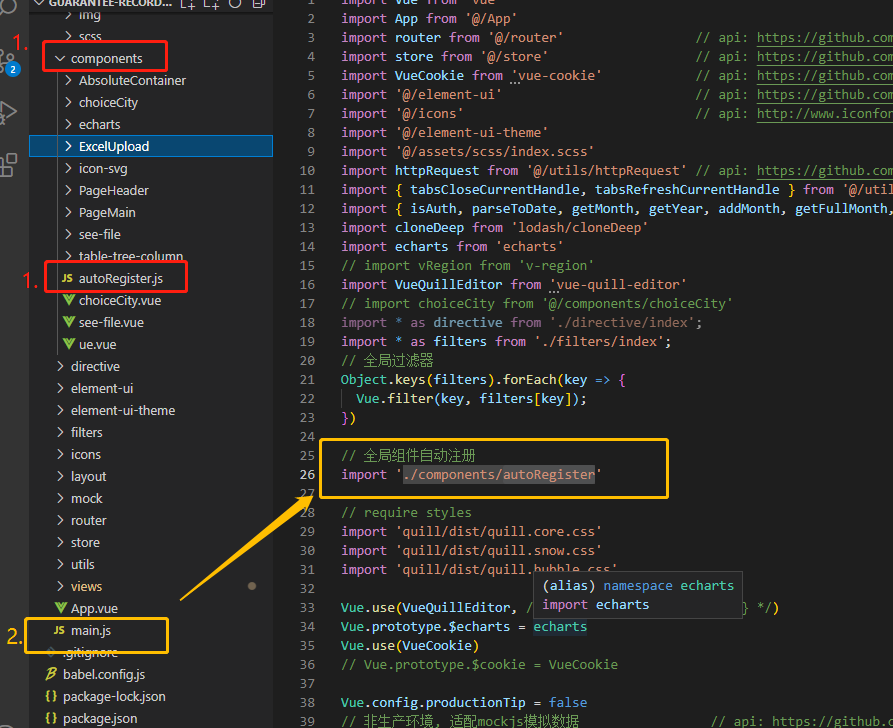

图1.
图2.
myEchart 组件
5.SvgIcon 组件(在第一段代码的注释里提到的)
SvgIcon 组件写法

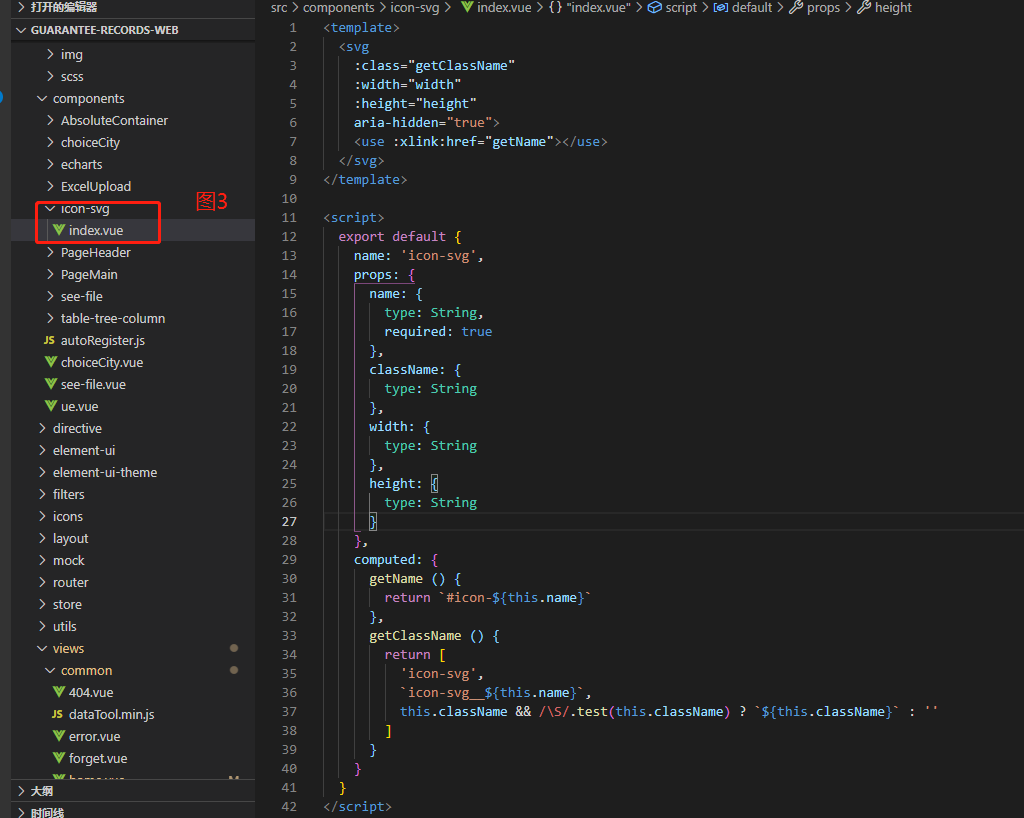

图3.

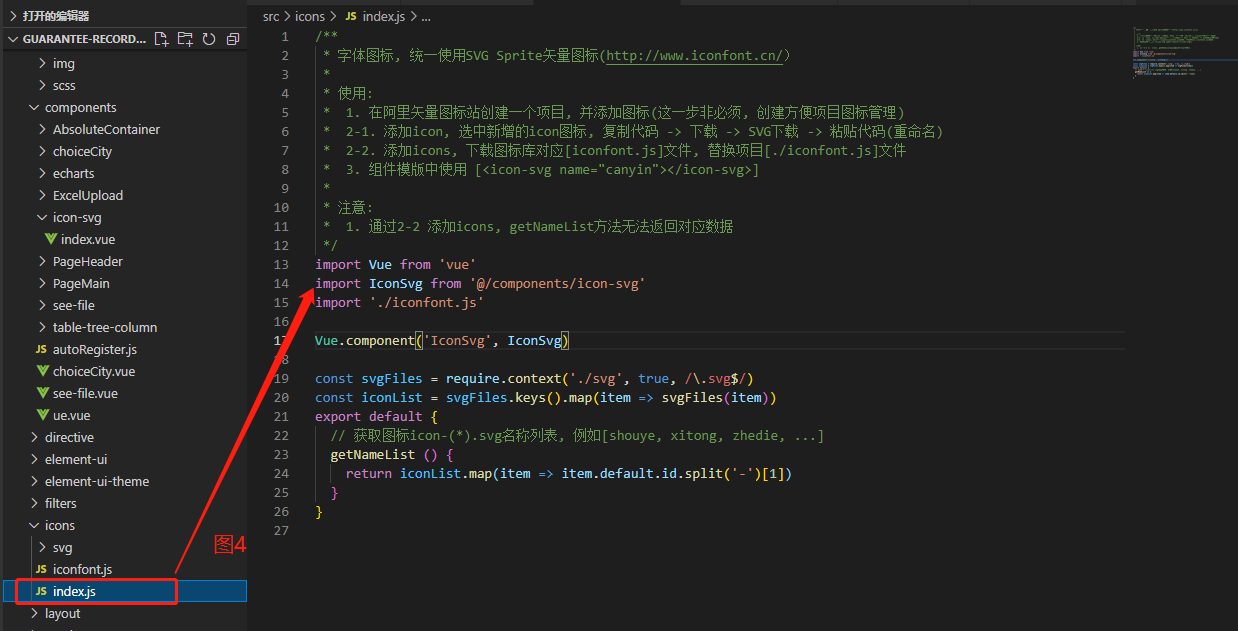

图4.
