1. 什么是队列❓
排队买票的队伍,就是一个队列。先来的先买,后来的只能站末尾,不能插队。
特点:先进者先出
同栈一样,是一种操作受限的线性表数据结构
2. 何时使用队列❓
例:当我们向一个固定大小的线程池请求一个线程时,此时线程池没有资源,但是我们又不想拒绝掉这次请求,这时候就会用到队列。
具体策略:将请求排队,等到有空闲线程时,取出排队的请求继续处理。
3. 队列的关键操作
- 入队enqueue():放一个数据到队列尾部
- 出队dequeue():从队列头部取一个元素
4. 队列的种类
- 按实现方式分为:顺序队列(用数组实现)和链式队列(用链表实现)
- 按队列结构分为:一般队列、循环队列、阻塞队列、并发队列等
5. 一般队列的实现
5.1 顺序队列
需要用到两个指针,一个是队头head,一个是队尾tail
关键:数据搬移(为了重新利用起之前申请到的空间)
Java代码:
public class ArrayQueue {
// 数组:items,数组大小:n
private String[] items;
private int n = 0;
// head表示队头下标,tail表示队尾下标
private int head = 0;
private int tail = 0;
// 申请一个大小为capacity的数组
public ArrayQueue(int capacity){
items = new String[capacity];
n = capacity;
}
// 入队
public boolean enqueue(String item){
if (tail == n){
if (head == 0) return false;
// 数据搬运
for (int i = head; i < tail; ++ i)
{
items[i - head] = items[i];
}
tail = tail - head;
head = 0;
}
items[tail] = item;
++ tail;
return true;
}
// 出队
public String dequeue(){
if (head == tail) return null; // 队头指针与队尾指针相等,表示队列为空
String ret = items[head];
++ head;
return ret;
}
}
C++代码:
#include <iostream>
#include <string>
using namespace std;
class ArrayQueue
{
public:
ArrayQueue(int capacity); // 申请数组
bool enqueue(string item); // 入队
string dequeue(); // 出队
private:
int n;
string* items;
int head = 0;
int tail = 0;
};
ArrayQueue::ArrayQueue(int capacity){
items = new string[capacity];
n = capacity;
}
bool ArrayQueue::enqueue(string item){
if (tail == n) {
if (head == 0) return false; // 队满
for (int i = head; i < tail; ++ i){ // 数据搬运
items[i - head] = items[i];
}
tail = tail - head;
head = 0;
}
items[tail] = item;
++ tail;
return true;
}
string ArrayQueue::dequeue(){
if (head == tail) return "This queue is empty!";
string ret = items[head];
++ head;
return ret;
}
int main(void)
{
ArrayQueue myQueue(3);
myQueue.enqueue("zhangsan");
myQueue.enqueue("lisi");
myQueue.enqueue("wangwu");
cout << "插入第四个元素结果:" <<myQueue.enqueue("add") << endl; // 多插一个测试失败结果
for (int i = 0; i < 4; ++ i){
cout << myQueue.dequeue() << endl;
}
}
Python代码:
from typing import Optional
class ArrayQueue:
def __init__(self, capacity: int):
self.__items = [0 for i in range(capacity)]
self.__n = capacity
self.__head = 0
self.__tail = 0
def enqueue(self, item: str) -> bool:
if self.__tail == self.__n:
if self.__head == 0: # 队列已满
return False
# 充分利用空间,进行数据搬运
for i in range(self.__head, self.__tail):
self.__items[i - self.__head] = self.__items[i]
self.__tail = self.__tail - self.__head
self.__head = 0
self.__items[self.__tail] = item
self.__tail = self.__tail + 1
return True
def dequeue(self) -> Optional[str]:
if (self.__head == self.__tail):
return None
item = self.__items[self.__head]
self.__head = self.__head + 1
return item
q = ArrayQueue(3)
q.enqueue(3)
q.enqueue(2)
q.enqueue(1)
print(q.enqueue(0)) # 数量上限,故插入失败
print(q.dequeue()) # 将元素3弹出,给元素0腾位置
print(q.enqueue(0))
print(q.dequeue())
print(q.dequeue())
print(q.dequeue())
print(q.dequeue()) # 队列为空情况
5.2 链式队列
两个指针:head指向链表的第一个结点,tail指向链表的最后一个结点
关键:入队时tail->next = new_node, tail = tail->next;出队时head = head->next
Java代码:
public class LinkedListQueue {
private Node head = null;
private Node tail = null;
private int n = 0;
private int capacity = 0;
public LinkedListQueue(int capacity){
this.n = capacity;
}
// 入队
public boolean enqueue(String item){
if (capacity == n) return false;
Node node = new Node(item, null);
if (capacity == 0){
tail = node;
head = node;
}
else {
tail.setNext(node);
tail = tail.getNext();
}
++capacity;
return true;
}
// 出队
public String dequeue(){
if (head != null)
{
--capacity;
String ret = head.getData();
head = head.getNext();
return ret;
}else return null;
}
private class Node{
private String data;
private Node next;
public Node(String data, Node next){
this.data = data;
this.next = next;
}
public void setNext(Node next){
this.next = next;
}
public String getData(){
return data;
}
public Node getNext(){
return next;
}
}
}
C++代码:
#include <iostream>
#include <string>
using namespace std;
struct Node
{
Node* next;
string data;
Node(string data){
this->data = data;
this->next = NULL;
}
};
struct LinkedListQueue
{
Node* head;
Node* tail;
int n;
int capacity;
LinkedListQueue(int capacity)
{
this->n = capacity;
this->capacity = 0;
head = NULL;
tail = NULL;
};
bool enqueue(string item){
if (capacity == n) return false;
Node* node = new Node(item);
if (capacity == 0){
tail = node;
head = node;
}else{
tail->next = node;
tail = tail->next;
}
++capacity;
return true;
};
string dequeue(){
if (head == NULL)
{
return "This queue is empty!";
}
else
{
--capacity;
string ret = head->data;
head = head->next;
return ret;
}
}
};
int main(void)
{
LinkedListQueue* myQueue = new LinkedListQueue(3);
myQueue->enqueue("zhangsan");
myQueue->enqueue("lisi");
myQueue->enqueue("wangwu");
cout << myQueue->enqueue("add") << endl; // 多加一个
for (int i = 0; i < 3; ++ i) cout << myQueue->dequeue() << endl;
cout << myQueue->dequeue() << endl;
cout << myQueue->enqueue("add") << endl;
cout << myQueue->dequeue() << endl;
return 0;
}
Python代码:
from typing import Optional
class Node:
def __init__(self, data: str):
self.__data = data
self.__next = None
def setNext(self, next):
self.__next = next
def getNext(self):
return self.__next
def setData(self, data: str):
self.__data = data
def getData(self) -> str:
return self.__data
class LinkedListQueue:
def __init__(self, capacity: int):
self.__n = capacity
self.__capacity = 0
self.__head = None
self.__tail = None
def enqueue(self, item: str) -> bool:
if self.__capacity == self.__n:
return False
node = Node(item)
if self.__capacity == 0: # 队列为空
self.__tail = node
self.__head = node
else:
self.__tail.setNext(node)
self.__tail = self.__tail.getNext()
self.__capacity = self.__capacity + 1
return True
def dequeue(self) -> Optional[str]:
if self.__capacity == 0:
return None
else:
data = self.__head.getData()
self.__head = self.__head.getNext()
self.__capacity = self.__capacity - 1
return data

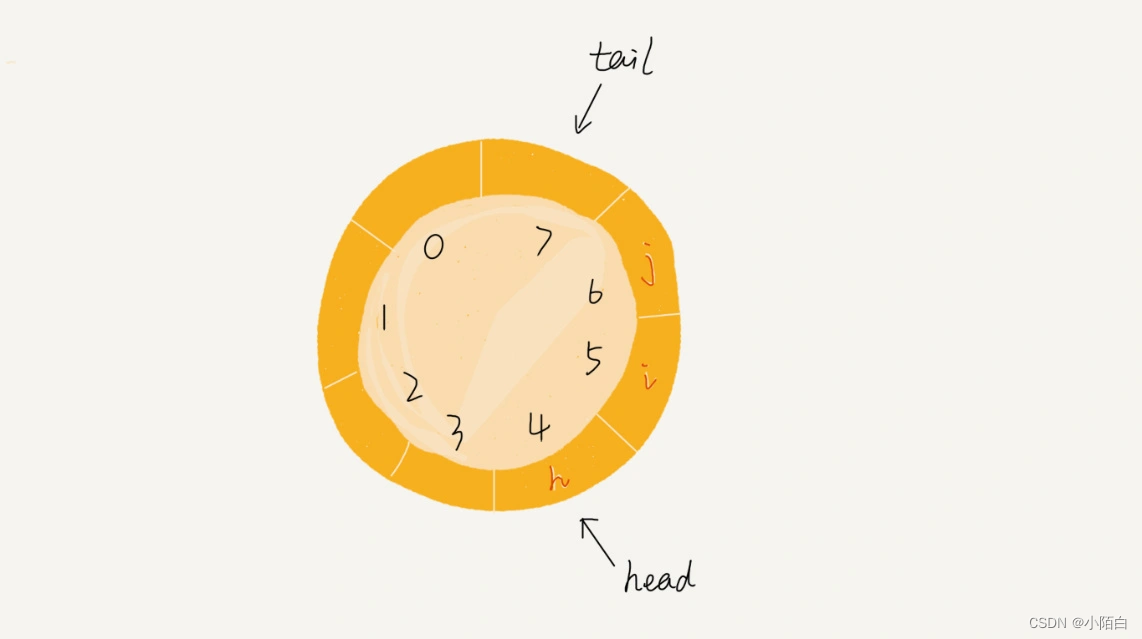

6. 循环队列
图源:王争 数据结构与算法之美
好处:免去了在使用数组实现队列时,当tail==n时的数据搬移操作,提高了入队操作性能
实现难点:队空(head = tail)和队满判断条件((tail+1)%n = head)
小小缺点:当队列满时,tail指向的位置实际上没有存储数据,会浪费一个存储空间
Java代码:
public class CircularQueue {
private String []items;
private int n = 0;
private int head = 0;
private int tail = 0;
public CircularQueue(int capacity){
items = new String[capacity];
n = capacity;
}
// 入队
public boolean enqueue(String item){
if ((tail + 1) % n == head) return false;
items[tail] = item;
tail = (tail + 1) % n;
return true;
}
// 出队
public String dequeue(){
if (head == tail) return null; // 队列为空
String ret = items[head];
head = (head + 1) % n;
return ret;
}
}
C++代码:
#include <iostream>
#include <string>
using namespace std;
class CircularQueue
{
public:
CircularQueue(int capacity);
bool enqueue(string item);
string dequeue();
private:
int n;
string* items;
int head = 0;
int tail = 0;
};
CircularQueue::CircularQueue(int capacity){
items = new string[capacity];
n = capacity;
}
bool CircularQueue::enqueue(string item){
if ((tail + 1) % n == head) return false; // 队满
items[tail] = item;
tail = (tail + 1) % n;
return true;
}
string CircularQueue::dequeue(){
if (head == tail) return "This queue is empty!";
string ret = items[head];
head = (head + 1) % n;
return ret;
}
int main(void)
{
CircularQueue myQueue(3);
myQueue.enqueue("zhangsan");
myQueue.enqueue("lisi");
cout << myQueue.enqueue("wangwu") << endl;
for (int i = 0; i < 3; ++ i){
cout << myQueue.dequeue() << endl;
}
cout << myQueue.enqueue("add") << endl;
cout << myQueue.dequeue() << endl;
return 0;
}
Python代码:
from typing import Optional
class CircularQueue:
def __init__(self, capacity: int):
self.__items = [0 for i in range(capacity)]
self.__n = capacity
self.__head = 0
self.__tail = 0
def enqueue(self, item: str) -> bool:
if (self.__tail + 1) % self.__n == self.__head: # 队满
return False
self.__items[self.__tail] = item
self.__tail = (self.__tail + 1) % self.__n
return True
def dequeue(self) -> Optional[str]:
if self.__head == self.__tail:
return None
ret = self.__items[self.__head]
self.__head = (self.__head + 1) % self.__n
return ret
7. 其他
- 阻塞队列:队列为空时,取数据的操作会被阻塞,队列满时,插入数据的操作会被阻塞。可以用于实现生产者-消费者模型
- 并发队列:一种线程安全的队列
8. END
