STM32 SPI驱动读取LSM6DSRTR

提示：通过SPI驱动读取传感器数据

---

前言

制作一个倾角传感器，通过SPI读取LSM6DSRTR的加速度数据转换为角度，不用IIC的原因是考虑IIC通讯的协议过于繁琐，且会影响后续的发包速率。

---

一、LSM6DSRTR

六轴传感器，最好用ST的芯片来读取，主要是ST在这块已经提供好驱动了，其它也行，都一样简单。其次就是，你需要配置好SPI，这个很重要，不然很容易读不出来。

二、配置步骤

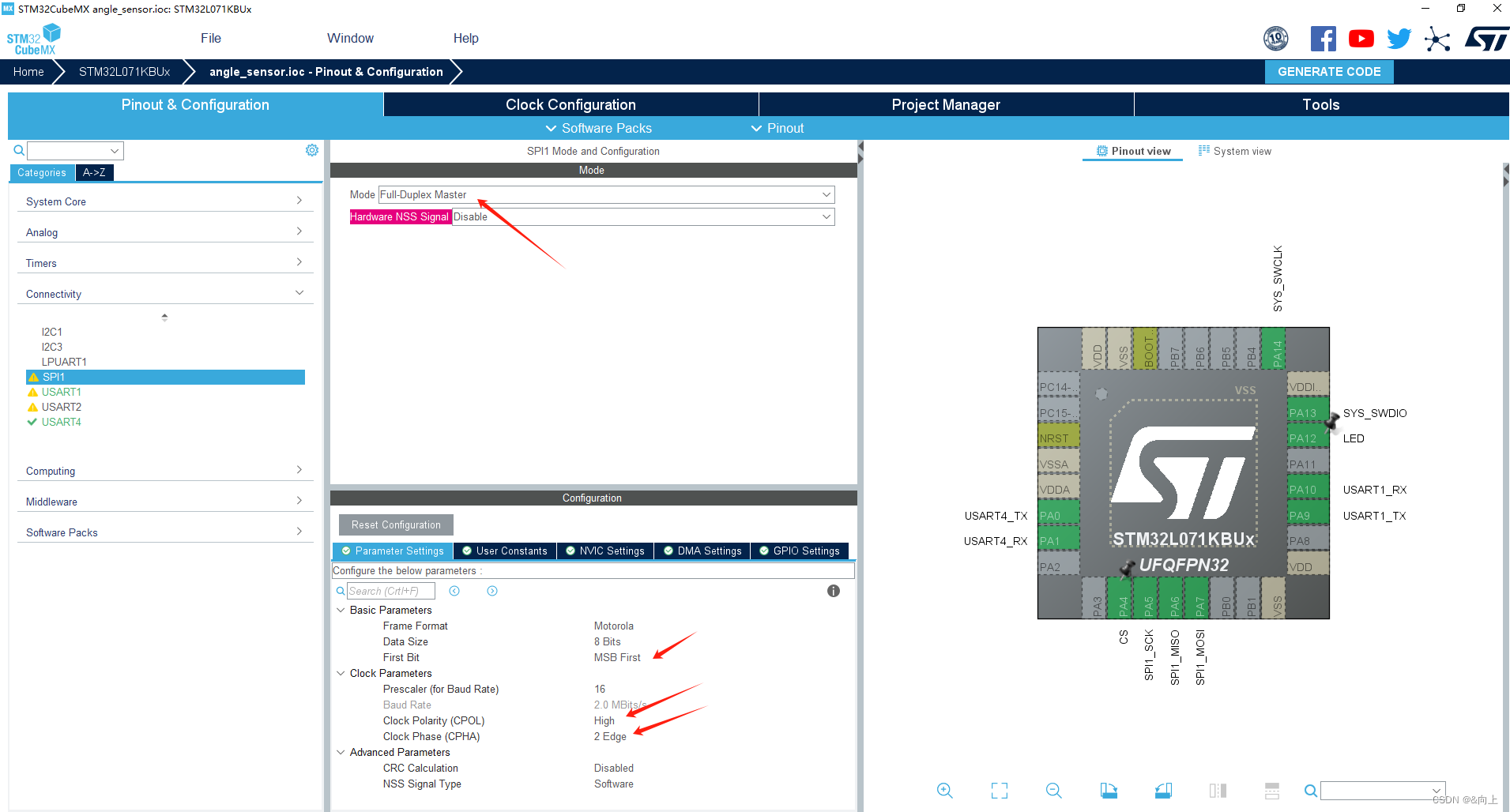

1.配置SPI

注意：通过STM32CUBEMX 来构建代码

static void MX_SPI1_Init(void)
{
  hspi1.Instance = SPI1;
  hspi1.Init.Mode = SPI_MODE_MASTER;
  hspi1.Init.Direction = SPI_DIRECTION_2LINES;
  hspi1.Init.DataSize = SPI_DATASIZE_8BIT;
  hspi1.Init.CLKPolarity = SPI_POLARITY_HIGH;
  hspi1.Init.CLKPhase = SPI_PHASE_2EDGE;
  hspi1.Init.NSS = SPI_NSS_SOFT;
  hspi1.Init.BaudRatePrescaler = SPI_BAUDRATEPRESCALER_16;
  hspi1.Init.FirstBit = SPI_FIRSTBIT_MSB;
  hspi1.Init.TIMode = SPI_TIMODE_DISABLE;
  hspi1.Init.CRCCalculation = SPI_CRCCALCULATION_DISABLE;
  hspi1.Init.CRCPolynomial = 7;
  if (HAL_SPI_Init(&hspi1) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN SPI1_Init 2 */

  /* USER CODE END SPI1_Init 2 */
}

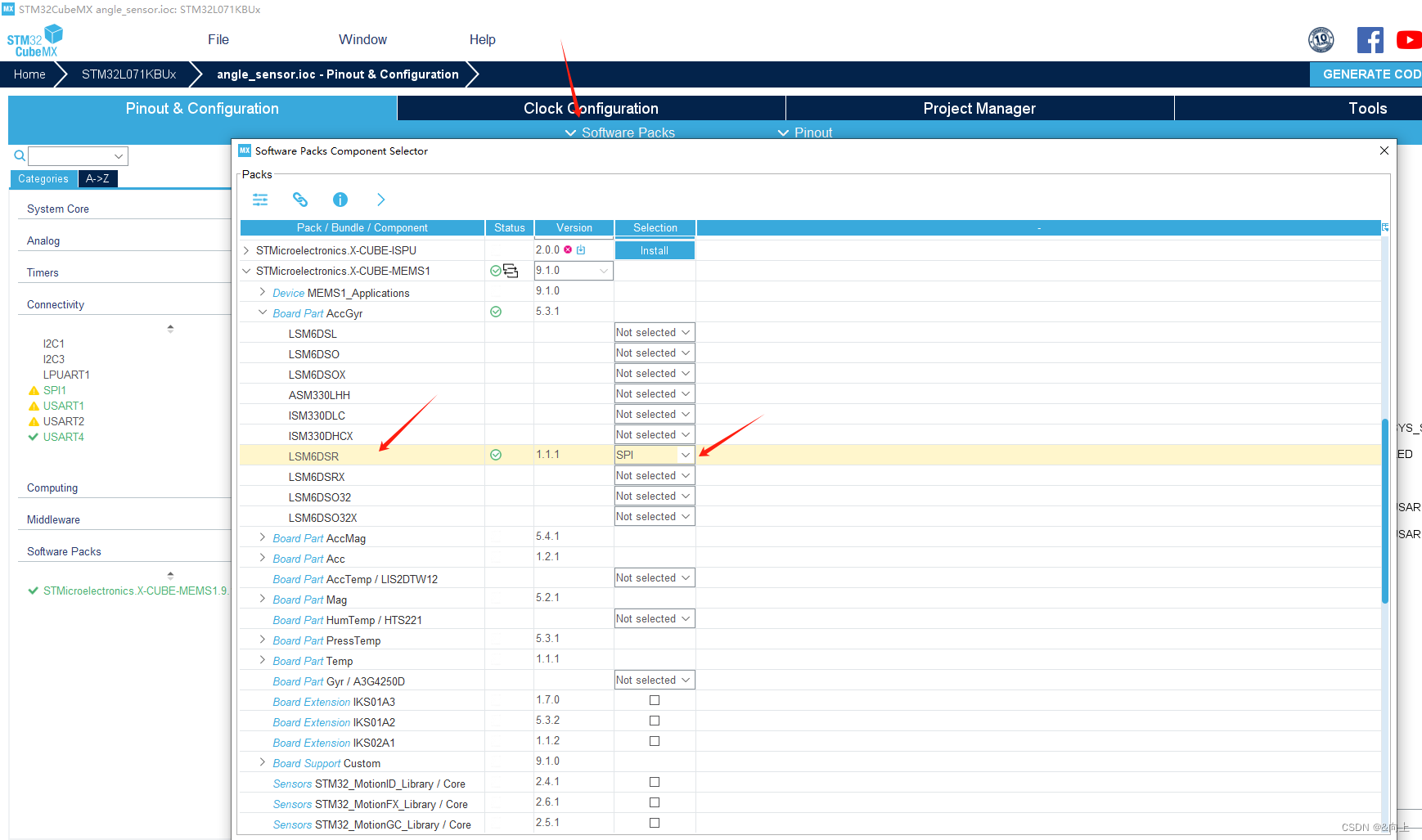

2.引入 LSM驱动库

案例代码

#include <string.h>
#include <stdio.h>
#include "lsm6dsr_reg.h"
#include "stm32l0xx_hal.h"
#include "main.h"

#define CS_Pin GPIO_PIN_4
#define CS_GPIO_Port GPIOA
#define LED_Pin GPIO_PIN_12
#define LED_GPIO_Port GPIOA
#define BOOT_TIME 10 // ms
#define PI 3.1415926
extern SPI_HandleTypeDef hspi1;

extern UART_HandleTypeDef huart1;
static stmdev_ctx_t dev_ctx;

/* Private variables ---------------------------------------------------------*/
static int16_t data_raw_acceleration[3];
static int16_t data_raw_angular_rate[3];
static int16_t data_raw_temperature;
static float acceleration_mg[3];
static float angular_rate_mdps[3];
static uint8_t whoamI, rst;
static uint8_t tx_buffer[1000];

static int32_t platform_write(void *handle, uint8_t reg, const uint8_t *bufp,
                              uint16_t len);
static int32_t platform_read(void *handle, uint8_t reg, uint8_t *bufp,
                             uint16_t len);
static void tx_com(uint8_t *tx_buffer, uint16_t len);
static void platform_delay(uint32_t ms);

/* Main Example --------------------------------------------------------------*/
//在主函数里面调用这个接口就行
void lsm6dsr_read_angle_data_polling(void)
{

    uint8_t reg;
    /* Read output only if new xl value is available */
    lsm6dsr_xl_flag_data_ready_get(&dev_ctx, &reg);

    if (reg)
    {
        /* Read acceleration field data */
        memset(data_raw_acceleration, 0x00, 3 * sizeof(int16_t));
        lsm6dsr_acceleration_raw_get(&dev_ctx, data_raw_acceleration);
        acceleration_mg[0] =
            lsm6dsr_from_fs2g_to_mg(data_raw_acceleration[0]);
        acceleration_mg[1] =
            lsm6dsr_from_fs2g_to_mg(data_raw_acceleration[1]);
        acceleration_mg[2] =
            lsm6dsr_from_fs2g_to_mg(data_raw_acceleration[2]);

        /* 注意：atan算出来的是弧度值， 然后1弧度 = 180/Π */
        float angle_x = atan(acceleration_mg[0] / sqrt(acceleration_mg[2] * acceleration_mg[2] + acceleration_mg[1] * acceleration_mg[1])) * 180 / PI;
        float angle_y = atan(acceleration_mg[1] / sqrt(acceleration_mg[0] * acceleration_mg[0] + acceleration_mg[2] * acceleration_mg[2])) * 180 / PI;
        float angle_z = atan(acceleration_mg[2] / sqrt(acceleration_mg[0] * acceleration_mg[0] + acceleration_mg[1] * acceleration_mg[1])) * 180 / PI;

        sprintf((char *)tx_buffer,
                "Acceleration [mg]:%4.2f\t%4.2f\t%4.2f\r\n",
                acceleration_mg[0], acceleration_mg[1], acceleration_mg[2]);
        //这边是计算出来的角度值
        sprintf((char *)tx_buffer,
                "Angle :x %4.2f\t y %4.2f\t z %4.2f\r\n",
                angle_x, angle_y, angle_z);
        tx_com(tx_buffer, strlen((char const *)tx_buffer));
    }

    // lsm6dsr_gy_flag_data_ready_get(&dev_ctx, &reg);

    // if (reg)
    // {
    //     /* Read angular rate field data */
    //     memset(data_raw_angular_rate, 0x00, 3 * sizeof(int16_t));
    //     lsm6dsr_angular_rate_raw_get(&dev_ctx, data_raw_angular_rate);
    //     angular_rate_mdps[0] =
    //         lsm6dsr_from_fs2000dps_to_mdps(data_raw_angular_rate[0]);
    //     angular_rate_mdps[1] =
    //         lsm6dsr_from_fs2000dps_to_mdps(data_raw_angular_rate[1]);
    //     angular_rate_mdps[2] =
    //         lsm6dsr_from_fs2000dps_to_mdps(data_raw_angular_rate[2]);
    //     sprintf((char *)tx_buffer,
    //             "Angular rate [mdps]:%4.2f\t%4.2f\t%4.2f\r\n",
    //             angular_rate_mdps[0], angular_rate_mdps[1], angular_rate_mdps[2]);
    //     tx_com(tx_buffer, strlen((char const *)tx_buffer));
    // }
    platform_delay(1000);
}

/*
 * @brief  Write generic device register (platform dependent)
 *
 * @param  handle    customizable argument. In this examples is used in
 *                   order to select the correct sensor bus handler.
 * @param  reg       register to write
 * @param  bufp      pointer to data to write in register reg
 * @param  len       number of consecutive register to write
 *
 */
static int32_t platform_write(void *handle, uint8_t reg, const uint8_t *bufp,
                              uint16_t len)
{
    HAL_GPIO_WritePin(CS_GPIO_Port, CS_Pin, GPIO_PIN_RESET);
    HAL_SPI_Transmit(handle, &reg, 1, 1000);
    HAL_SPI_Transmit(handle, (uint8_t *)bufp, len, 1000);
    HAL_GPIO_WritePin(CS_GPIO_Port, CS_Pin, GPIO_PIN_SET);

    return 0;
}

/*
 * @brief  Read generic device register (platform dependent)
 *
 * @param  handle    customizable argument. In this examples is used in
 *                   order to select the correct sensor bus handler.
 * @param  reg       register to read
 * @param  bufp      pointer to buffer that store the data read
 * @param  len       number of consecutive register to read
 *
 */
static int32_t platform_read(void *handle, uint8_t reg, uint8_t *bufp,
                             uint16_t len)
{
    reg |= 0x80;
    HAL_GPIO_WritePin(CS_GPIO_Port, CS_Pin, GPIO_PIN_RESET);
    HAL_SPI_Transmit(handle, &reg, 1, 1000);
    HAL_SPI_Receive(handle, bufp, len, 1000);
    HAL_GPIO_WritePin(CS_GPIO_Port, CS_Pin, GPIO_PIN_SET);
    return 0;
}

/*
 * @brief  Send buffer to console (platform dependent)
 *
 * @param  tx_buffer     buffer to transmit
 * @param  len           number of byte to send
 *
 */
static void tx_com(uint8_t *tx_buffer, uint16_t len)
{
    HAL_UART_Transmit(&huart1, tx_buffer, len, 1000);
}

/*
 * @brief  platform specific delay (platform dependent)
 *
 * @param  ms        delay in ms
 *
 */
static void platform_delay(uint32_t ms)
{
    HAL_Delay(ms);
}

/*
 * @brief  platform specific initialization (platform dependent)
 */
void platform_init(void)
{
    /* Initialize mems driver interface */
    dev_ctx.write_reg = platform_write;
    dev_ctx.read_reg = platform_read;
    dev_ctx.handle = &hspi1;

    /* Wait sensor boot time */
    platform_delay(BOOT_TIME);
    /* Check device ID */
    while (1)
    {
        // 考虑如何喂狗
        lsm6dsr_device_id_get(&dev_ctx, &whoamI);
        if (whoamI == LSM6DSR_ID)
        {
            sprintf((char *)tx_buffer,
                    "Read id :0x%2x\r\n",
                    whoamI);
            tx_com(tx_buffer, strlen((char const *)tx_buffer));

            break;
        }
        platform_delay(BOOT_TIME);
    }
    /* Restore default configuration */
    lsm6dsr_reset_set(&dev_ctx, PROPERTY_ENABLE);
    do
    {
        lsm6dsr_reset_get(&dev_ctx, &rst);
    } while (rst);

    /* Disable I3C interface */
    lsm6dsr_i3c_disable_set(&dev_ctx, LSM6DSR_I3C_DISABLE);
    /* Enable Block Data Update */
    lsm6dsr_block_data_update_set(&dev_ctx, PROPERTY_ENABLE);
    /* Set Output Data Rate */
    lsm6dsr_xl_data_rate_set(&dev_ctx, LSM6DSR_XL_ODR_12Hz5);
    lsm6dsr_gy_data_rate_set(&dev_ctx, LSM6DSR_GY_ODR_12Hz5);
    /* Set full scale */
    lsm6dsr_xl_full_scale_set(&dev_ctx, LSM6DSR_2g);
    lsm6dsr_gy_full_scale_set(&dev_ctx, LSM6DSR_2000dps);
    /* Configure filtering chain(No aux interface)
     * Accelerometer - LPF1 + LPF2 path
     */
    lsm6dsr_xl_hp_path_on_out_set(&dev_ctx, LSM6DSR_LP_ODR_DIV_100);
    lsm6dsr_xl_filter_lp2_set(&dev_ctx, PROPERTY_ENABLE);
}

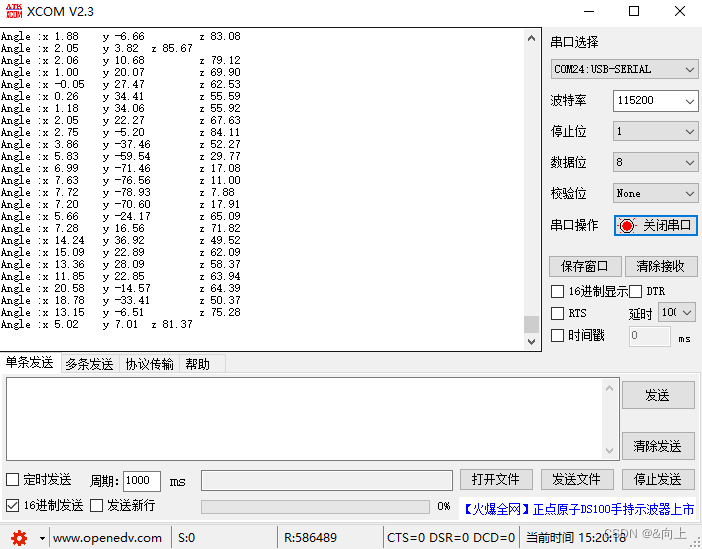

3.结果

---

总结

有什么问题，可以评论区里面提一下，看到都会帮忙解决，这个案例只是简单应用，没有涉及复杂的使用过程。
