写了一些简单的示例程序，帮助我更好地使用和了解Qt-Advanced-Docking-System

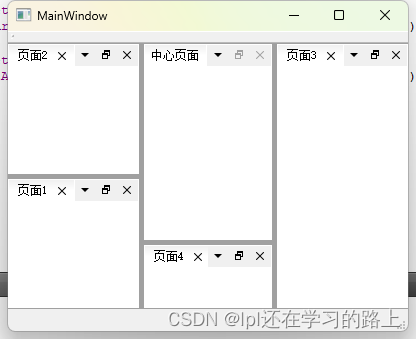

1.写一个如图页面布局的程序



    m_pDockManger=new ads::CDockManager(this);
    this->setCentralWidget(m_pDockManger);

    ads::CDockWidget* centerDockWidget=new ads::CDockWidget("中心页面");
    m_pDockManger->setCentralWidget(centerDockWidget);
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,centerDockWidget);

    ads::CDockWidget* pDockWidget1=new ads::CDockWidget("页面1");
    m_pDockManger->addDockWidget(ads::LeftDockWidgetArea,pDockWidget1);

    ads::CDockWidget* pDockWidget2=new ads::CDockWidget("页面2");
    m_pDockManger->addDockWidget(ads::TopDockWidgetArea,pDockWidget2,pDockWidget1->dockAreaWidget());

    ads::CDockWidget* pDockWidget3=new ads::CDockWidget("页面3");
    m_pDockManger->addDockWidget(ads::RightDockWidgetArea,pDockWidget3,centerDockWidget->dockAreaWidget());

    ads::CDockWidget* pDockWidget4=new ads::CDockWidget("页面4");
    m_pDockManger->addDockWidget(ads::BottomDockWidgetArea,pDockWidget4,centerDockWidget->dockAreaWidget());

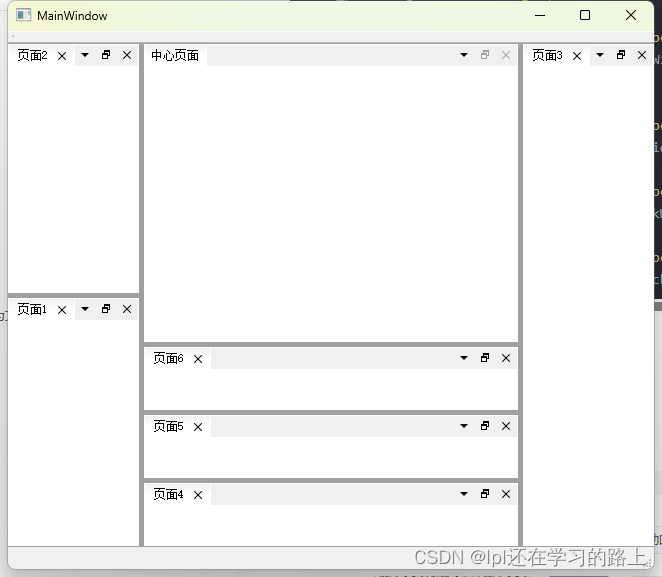

2.在centerDockWidget->dockAreaWidget()的ads::BottomDockWidgetArea添加widget

    m_pDockManger=new ads::CDockManager(this);
    this->setCentralWidget(m_pDockManger);

    ads::CDockWidget* centerDockWidget=new ads::CDockWidget("中心页面");
    m_pDockManger->setCentralWidget(centerDockWidget);
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,centerDockWidget);

    ads::CDockWidget* pDockWidget1=new ads::CDockWidget("页面1");
    m_pDockManger->addDockWidget(ads::LeftDockWidgetArea,pDockWidget1);


    ads::CDockWidget* pDockWidget2=new ads::CDockWidget("页面2");
    m_pDockManger->addDockWidget(ads::TopDockWidgetArea,pDockWidget2,pDockWidget1->dockAreaWidget());

    ads::CDockWidget* pDockWidget3=new ads::CDockWidget("页面3");
    m_pDockManger->addDockWidget(ads::RightDockWidgetArea,pDockWidget3,centerDockWidget->dockAreaWidget());

    ads::CDockWidget* pDockWidget4=new ads::CDockWidget("页面4");
    m_pDockManger->addDockWidget(ads::BottomDockWidgetArea,pDockWidget4,centerDockWidget->dockAreaWidget());

    ads::CDockWidget* pDockWidget5=new ads::CDockWidget("页面5");
    m_pDockManger->addDockWidget(ads::BottomDockWidgetArea,pDockWidget5,centerDockWidget->dockAreaWidget());

    ads::CDockWidget* pDockWidget6=new ads::CDockWidget("页面6");
    m_pDockManger->addDockWidget(ads::BottomDockWidgetArea,pDockWidget6,centerDockWidget->dockAreaWidget());

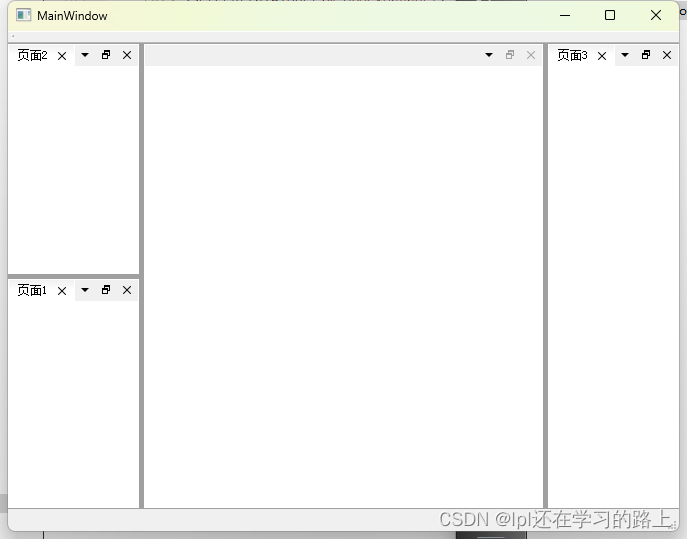

3.写一个如图所示的程序

    m_pDockManger=new ads::CDockManager(this);
    this->setCentralWidget(m_pDockManger);

    ads::CDockWidget* centerDockWidget=new ads::CDockWidget("中心页面");
    centerDockWidget->setFeature(ads::CDockWidget::NoTab,true);
    m_pDockManger->setCentralWidget(centerDockWidget);
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,centerDockWidget);

    ads::CDockWidget* pDockWidget1=new ads::CDockWidget("页面1");
    m_pDockManger->addDockWidget(ads::LeftDockWidgetArea,pDockWidget1);

    ads::CDockWidget* pDockWidget2=new ads::CDockWidget("页面2");
    m_pDockManger->addDockWidget(ads::TopDockWidgetArea,pDockWidget2,pDockWidget1->dockAreaWidget());

    ads::CDockWidget* pDockWidget3=new ads::CDockWidget("页面3");
    m_pDockManger->addDockWidget(ads::RightDockWidgetArea,pDockWidget3,centerDockWidget->dockAreaWidget());

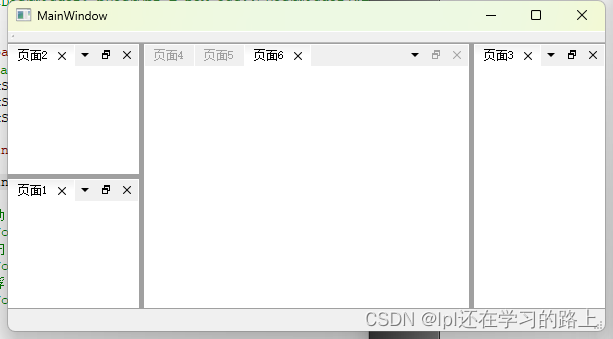

4.

    m_pDockManger=new ads::CDockManager(this);
    this->setCentralWidget(m_pDockManger);

    ads::CDockWidget* centerDockWidget=new ads::CDockWidget("中心页面");
    centerDockWidget->setFeature(ads::CDockWidget::NoTab,true);
    m_pDockManger->setCentralWidget(centerDockWidget);
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,centerDockWidget);

    ads::CDockWidget* pDockWidget1=new ads::CDockWidget("页面1");
    m_pDockManger->addDockWidget(ads::LeftDockWidgetArea,pDockWidget1);


    ads::CDockWidget* pDockWidget2=new ads::CDockWidget("页面2");
    m_pDockManger->addDockWidget(ads::TopDockWidgetArea,pDockWidget2,pDockWidget1->dockAreaWidget());

    ads::CDockWidget* pDockWidget3=new ads::CDockWidget("页面3");
    m_pDockManger->addDockWidget(ads::RightDockWidgetArea,pDockWidget3,centerDockWidget->dockAreaWidget());

    ads::CDockWidget* pDockWidget4=new ads::CDockWidget("页面4");
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,pDockWidget4,centerDockWidget->dockAreaWidget());

    ads::CDockWidget* pDockWidget5=new ads::CDockWidget("页面5");
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,pDockWidget5,centerDockWidget->dockAreaWidget());

    ads::CDockWidget* pDockWidget6=new ads::CDockWidget("页面6");
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,pDockWidget6,centerDockWidget->dockAreaWidget());

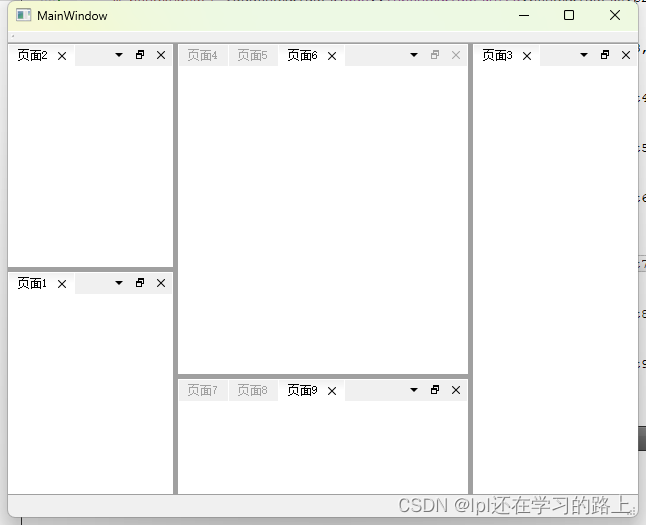

5.

    m_pDockManger=new ads::CDockManager(this);
    this->setCentralWidget(m_pDockManger);

    ads::CDockWidget* centerDockWidget=new ads::CDockWidget("中心页面");
    centerDockWidget->setFeature(ads::CDockWidget::NoTab,true);
    m_pDockManger->setCentralWidget(centerDockWidget);
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,centerDockWidget);

    ads::CDockWidget* pDockWidget1=new ads::CDockWidget("页面1");
    m_pDockManger->addDockWidget(ads::LeftDockWidgetArea,pDockWidget1);


    ads::CDockWidget* pDockWidget2=new ads::CDockWidget("页面2");
    m_pDockManger->addDockWidget(ads::TopDockWidgetArea,pDockWidget2,pDockWidget1->dockAreaWidget());

    ads::CDockWidget* pDockWidget3=new ads::CDockWidget("页面3");
    m_pDockManger->addDockWidget(ads::RightDockWidgetArea,pDockWidget3,centerDockWidget->dockAreaWidget());

    ads::CDockWidget* pDockWidget4=new ads::CDockWidget("页面4");
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,pDockWidget4,centerDockWidget->dockAreaWidget());

    ads::CDockWidget* pDockWidget5=new ads::CDockWidget("页面5");
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,pDockWidget5,centerDockWidget->dockAreaWidget());

    ads::CDockWidget* pDockWidget6=new ads::CDockWidget("页面6");
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,pDockWidget6,centerDockWidget->dockAreaWidget());


    ads::CDockWidget* pDockWidget7=new ads::CDockWidget("页面7");
    m_pDockManger->addDockWidget(ads::BottomDockWidgetArea,pDockWidget7,centerDockWidget->dockAreaWidget());

    ads::CDockWidget* pDockWidget8=new ads::CDockWidget("页面8");
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,pDockWidget8,pDockWidget7->dockAreaWidget());

    ads::CDockWidget* pDockWidget9=new ads::CDockWidget("页面9");
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,pDockWidget9,pDockWidget7->dockAreaWidget());

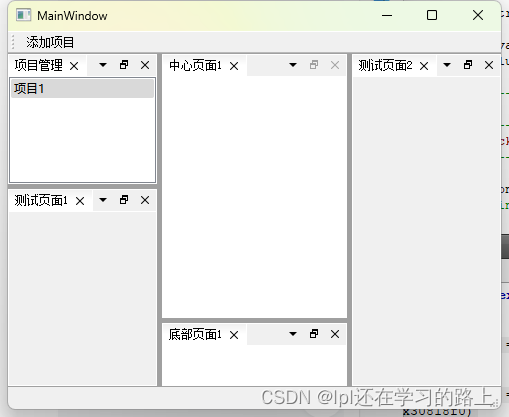

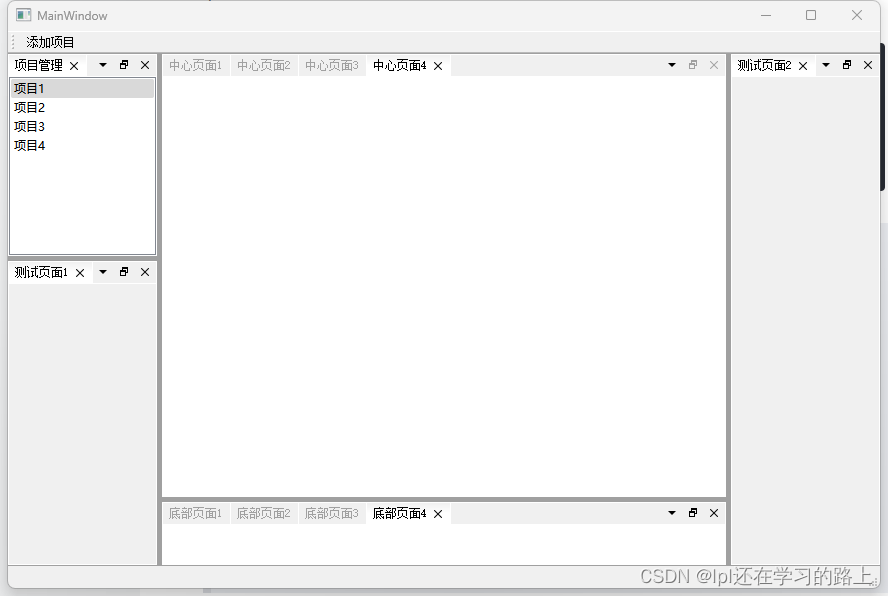

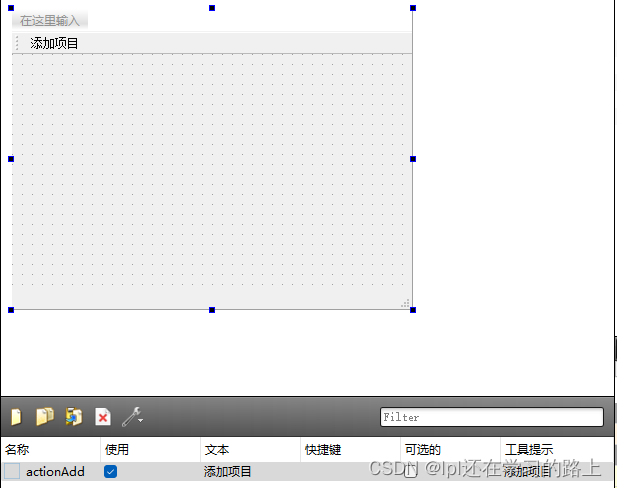

6.

#ifndef MAINWINDOW_H
#define MAINWINDOW_H

#include <QMainWindow>
#include <QListWidget>
#include <QLabel>
#include "DockManager.h"
#include "QtDock/DockAreaWidget.h"
namespace Ui {
class MainWindow;
}

class MainWindow : public QMainWindow
{
    Q_OBJECT

public:
    explicit MainWindow(QWidget *parent = 0);
    ~MainWindow();

private slots:
    void on_actionAdd_triggered();

private:
    Ui::MainWindow *ui;
    ads::CDockManager* m_pDockManger;

    ads::CDockWidget* centerDockWidget;
    ads::CDockWidget* bottomDockWidget;

    QListWidget* ListWidget;

    int mProjectNum=0;
};

#endif // MAINWINDOW_H

#include "mainwindow.h"
#include "ui_mainwindow.h"


MainWindow::MainWindow(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::MainWindow)
{
    ui->setupUi(this);
    m_pDockManger=new ads::CDockManager(this);
    this->setCentralWidget(m_pDockManger);

    centerDockWidget=new ads::CDockWidget("中心页面");
    centerDockWidget->setFeature(ads::CDockWidget::NoTab,true);
    m_pDockManger->setCentralWidget(centerDockWidget);
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,centerDockWidget);

    ads::CDockWidget* pDockWidget1=new ads::CDockWidget("测试页面1");
    m_pDockManger->addDockWidget(ads::LeftDockWidgetArea,pDockWidget1);

    ads::CDockWidget* pDockWidget2=new ads::CDockWidget("项目管理");
    m_pDockManger->addDockWidget(ads::TopDockWidgetArea,pDockWidget2,pDockWidget1->dockAreaWidget());
    ListWidget=new QListWidget(pDockWidget2);
    pDockWidget2->setWidget(ListWidget);


    ads::CDockWidget* pDockWidget3=new ads::CDockWidget("测试页面2");
    m_pDockManger->addDockWidget(ads::RightDockWidgetArea,pDockWidget3,centerDockWidget->dockAreaWidget());

    bottomDockWidget=new ads::CDockWidget("底部页面");
    bottomDockWidget->setFeature(ads::CDockWidget::NoTab,true);
    m_pDockManger->addDockWidget(ads::BottomDockWidgetArea,bottomDockWidget,centerDockWidget->dockAreaWidget());
}

MainWindow::~MainWindow()
{
    delete ui;
}

void MainWindow::on_actionAdd_triggered()
{
    mProjectNum++;
    ListWidget->addItem(QString("项目%1").arg(mProjectNum));

    ads::CDockWidget* cDockWidget=new ads::CDockWidget(QString("中心页面%1").arg(mProjectNum));
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,cDockWidget,centerDockWidget->dockAreaWidget());

    ads::CDockWidget* bDockWidget=new ads::CDockWidget(QString("底部页面%1").arg(mProjectNum));
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,bDockWidget,bottomDockWidget->dockAreaWidget());
}

7.dockWidgetsMap()

        QMap<QString, ads::CDockWidget*> map=m_pDockManger->dockWidgetsMap();
        qDebug()<<map.keys();
        for(auto key:map.keys())
        {
            qDebug()<<key.toStdString().c_str();
        }

中心页面

中心页面1

中心页面2

中心页面3

中心页面4

底部页面

底部页面1

底部页面2

底部页面3

底部页面4

测试页面1

测试页面2

项目管理

qDebug()<<"centralWidget():"<<m_pDockManger->centralWidget()->objectName().toStdString().c_str();

centralWidget(): 中心页面

8.

        QMap<QString, ads::CDockWidget*> map=m_pDockManger->dockWidgetsMap();
        for(auto key:map.keys())
        {
            qDebug()<<key.toStdString().c_str();
            auto value = map[key];
            qDebug()<<"ads::CDockWidget:"<<value;
            qDebug()<<"dockAreaWidget:"<<value->dockAreaWidget();
        }

中心页面

ads::CDockWidget: ads::CDockWidget(0x3052108, name = "\u4E2D\u5FC3\u9875\u9762")

dockAreaWidget: ads::CDockAreaWidget(0x30818f0)

中心页面1

ads::CDockWidget: ads::CDockWidget(0x41f25a8, name = "\u4E2D\u5FC3\u9875\u97621")

dockAreaWidget: ads::CDockAreaWidget(0x30818f0)

底部页面

ads::CDockWidget: ads::CDockWidget(0x30f8f68, name = "\u5E95\u90E8\u9875\u9762")

dockAreaWidget: ads::CDockAreaWidget(0x30f90a8)

底部页面1

ads::CDockWidget: ads::CDockWidget(0x41f26c0, name = "\u5E95\u90E8\u9875\u97621")

dockAreaWidget: ads::CDockAreaWidget(0x30f90a8)

测试页面1

ads::CDockWidget: ads::CDockWidget(0x3092060, name = "\u6D4B\u8BD5\u9875\u97621")

dockAreaWidget: ads::CDockAreaWidget(0x3091ea8)

测试页面2

ads::CDockWidget: ads::CDockWidget(0x30eca80, name = "\u6D4B\u8BD5\u9875\u97622")

dockAreaWidget: ads::CDockAreaWidget(0x30ecad0)

项目管理

ads::CDockWidget: ads::CDockWidget(0x30d81b0, name = "\u9879\u76EE\u7BA1\u7406")

dockAreaWidget: ads::CDockAreaWidget(0x30d84a8)

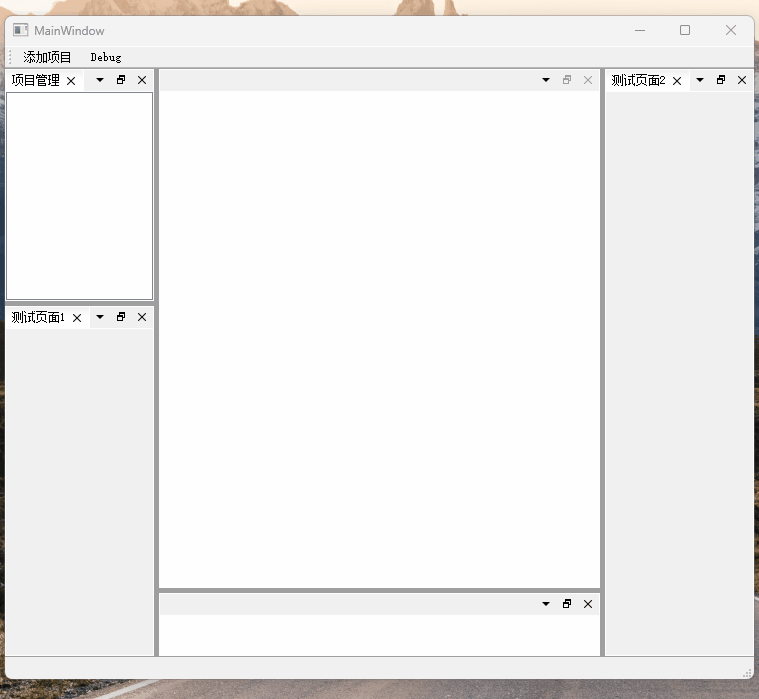

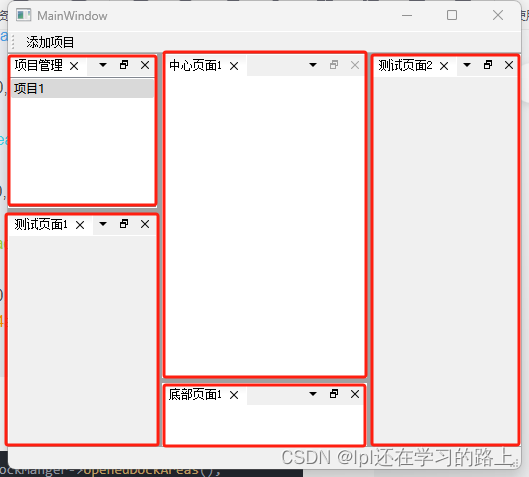

9.

        QList<ads::CDockAreaWidget*> areas=m_pDockManger->openedDockAreas();
        qDebug()<<areas;

 (ads::CDockAreaWidget(0x3071828), ads::CDockAreaWidget(0x3082448), ads::CDockAreaWidget(0x30c81b0), ads::CDockAreaWidget(0x30dd250), ads::CDockAreaWidget(0x30e8fb8))

对应5块区域

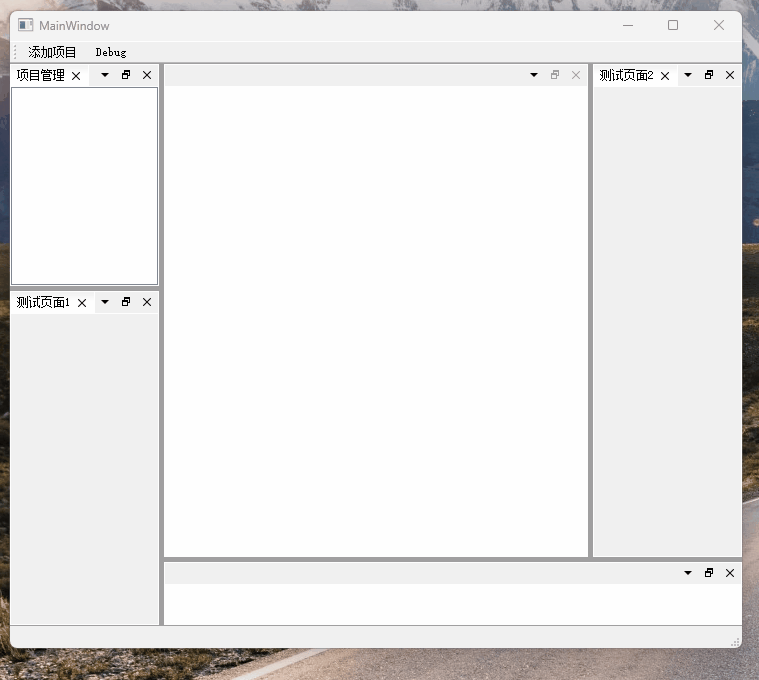

10.

        QMap<QString, ads::CDockWidget*> map=m_pDockManger->dockWidgetsMap();
        for(auto key:map.keys())
        {
            qDebug()<<key.toStdString().c_str();
            auto value = map[key];
            qDebug()<<"ads::CDockWidget:"<<value;
            qDebug()<<"dockAreaWidget:"<<value->dockAreaWidget();
        }

area: ads::CDockAreaWidget(0x31118a0) count: 5

area: ads::CDockAreaWidget(0x3122128) count: 1

area: ads::CDockAreaWidget(0x3168458) count: 1

area: ads::CDockAreaWidget(0x317c440) count: 1

area: ads::CDockAreaWidget(0x3189440) count: 5

相关函数：

QList<CDockWidget*> CDockAreaWidget::dockWidgets() const

 这个信号也比较好用

ads::CDockAreaWidget::currentChanged

11.

#ifndef MAINWINDOW_H
#define MAINWINDOW_H

#include <QMainWindow>
#include <QListWidget>
#include <QLabel>
#include "DockManager.h"
#include "QtDock/DockAreaWidget.h"
namespace Ui {
class MainWindow;
}

class MainWindow : public QMainWindow
{
    Q_OBJECT

public:
    explicit MainWindow(QWidget *parent = 0);
    ~MainWindow();

private slots:
    void on_actionAdd_triggered();

private:
    Ui::MainWindow *ui;
    ads::CDockManager* m_pDockManger;

    ads::CDockWidget* centerDockWidget;
    QHash<int,ads::CDockWidget*> centerHash;
    QHash<int,ads::CDockWidget*> bottomHash;
    ads::CDockWidget* bottomDockWidget;

    QListWidget* ListWidget;

    int mProjectNum=0;

    QLabel * mLabelOne;
    QLabel * mLabelTwo;
};

#endif // MAINWINDOW_H

#include "mainwindow.h"
#include "ui_mainwindow.h"
#include <QDebug>

MainWindow::MainWindow(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::MainWindow)
{
    ui->setupUi(this);
    m_pDockManger=new ads::CDockManager(this);
    this->setCentralWidget(m_pDockManger);

    centerDockWidget=new ads::CDockWidget("中心页面");
    centerDockWidget->setFeature(ads::CDockWidget::NoTab,true);

    m_pDockManger->setCentralWidget(centerDockWidget);
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,centerDockWidget);

    ads::CDockWidget* pDockWidget1=new ads::CDockWidget("测试页面1");
    m_pDockManger->addDockWidget(ads::LeftDockWidgetArea,pDockWidget1);
    mLabelOne=new QLabel(pDockWidget1);
    pDockWidget1->setWidget(mLabelOne);

    ads::CDockWidget* pDockWidget2=new ads::CDockWidget("项目管理");
    m_pDockManger->addDockWidget(ads::TopDockWidgetArea,pDockWidget2,pDockWidget1->dockAreaWidget());
    ListWidget=new QListWidget(pDockWidget2);
    connect(ListWidget,&QListWidget::currentItemChanged,this,[=](QListWidgetItem *current, QListWidgetItem *previous){
        int index=current->data(Qt::UserRole).toInt();
        ads::CDockAreaWidget* centerArea=centerDockWidget->dockAreaWidget();
        centerArea->setCurrentDockWidget(centerHash[index]);

        ads::CDockAreaWidget* bottomArea=bottomDockWidget->dockAreaWidget();
        bottomArea->setCurrentDockWidget(bottomHash[index]);

        QString msg=QString("当时是项目%1").arg(index);
        mLabelOne->setText(msg);
        mLabelTwo->setText(msg);
    });
    pDockWidget2->setWidget(ListWidget);


    ads::CDockWidget* pDockWidget3=new ads::CDockWidget("测试页面2");
    m_pDockManger->addDockWidget(ads::RightDockWidgetArea,pDockWidget3,centerDockWidget->dockAreaWidget());
    mLabelTwo=new QLabel(pDockWidget3);
    pDockWidget3->setWidget(mLabelTwo);

    bottomDockWidget=new ads::CDockWidget("底部页面");
    bottomDockWidget->setFeature(ads::CDockWidget::NoTab,true);
    m_pDockManger->addDockWidget(ads::BottomDockWidgetArea,bottomDockWidget,centerDockWidget->dockAreaWidget());
}

MainWindow::~MainWindow()
{
    delete ui;
}

void MainWindow::on_actionAdd_triggered()
{
    mProjectNum++;
    QListWidgetItem *item;
    item=new QListWidgetItem(ListWidget);
    item->setText(QString("项目%1").arg(mProjectNum));
    item->setData(Qt::UserRole,mProjectNum);
    ListWidget->addItem(item);
    ListWidget->setCurrentItem(item);

    ads::CDockWidget* cDockWidget=new ads::CDockWidget(QString("中心页面%1").arg(mProjectNum));
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,cDockWidget,centerDockWidget->dockAreaWidget());
    centerHash.insert(mProjectNum,cDockWidget);

    ads::CDockWidget* bDockWidget=new ads::CDockWidget(QString("底部页面%1").arg(mProjectNum));
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,bDockWidget,bottomDockWidget->dockAreaWidget());
    bottomHash.insert(mProjectNum,bDockWidget);

    QString msg=QString("当时是项目%1").arg(mProjectNum);
    mLabelOne->setText(msg);
    mLabelTwo->setText(msg);
}

12.

#ifndef MAINWINDOW_H
#define MAINWINDOW_H

#include <QMainWindow>
#include <QListWidget>
#include <QLabel>
#include "DockManager.h"
#include "QtDock/DockAreaWidget.h"
namespace Ui {
class MainWindow;
}

class MainWindow : public QMainWindow
{
    Q_OBJECT

public:
    explicit MainWindow(QWidget *parent = 0);
    ~MainWindow();

private slots:
    void on_actionAdd_triggered();

    void onProjectChanged(int index);
private:
    Ui::MainWindow *ui;
    ads::CDockManager* m_pDockManger;

    ads::CDockWidget* centerDockWidget;
    ads::CDockWidget* bottomDockWidget;
    QListWidget* ListWidget;
    QHash<int,ads::CDockWidget*> centerHash;
    QHash<int,ads::CDockWidget*> bottomHash;
    QHash<int,QListWidgetItem*>  itemHash;

    int mProjectNum=0;

    QLabel * mLabelOne;
    QLabel * mLabelTwo;
};

#endif // MAINWINDOW_H

#include "mainwindow.h"
#include "ui_mainwindow.h"
#include <QDebug>

MainWindow::MainWindow(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::MainWindow)
{
    ui->setupUi(this);
    m_pDockManger=new ads::CDockManager(this);
    qDebug()<<"m_pDockManger:"<<m_pDockManger;
    this->setCentralWidget(m_pDockManger);

    centerDockWidget=new ads::CDockWidget("中心页面");
    centerDockWidget->setFeature(ads::CDockWidget::NoTab,true);
    m_pDockManger->setCentralWidget(centerDockWidget);
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,centerDockWidget);
    ads::CDockAreaWidget* centerArea=centerDockWidget->dockAreaWidget();
    connect(centerArea,&ads::CDockAreaWidget::currentChanged,this,&MainWindow::onProjectChanged);

    bottomDockWidget=new ads::CDockWidget("底部页面");
    bottomDockWidget->setFeature(ads::CDockWidget::NoTab,true);
    m_pDockManger->addDockWidget(ads::BottomDockWidgetArea,bottomDockWidget,centerDockWidget->dockAreaWidget());
    ads::CDockAreaWidget* bottomArea=bottomDockWidget->dockAreaWidget();
    connect(bottomArea,&ads::CDockAreaWidget::currentChanged,this,&MainWindow::onProjectChanged);


    ads::CDockWidget* pDockWidget1=new ads::CDockWidget("测试页面1");
    m_pDockManger->addDockWidget(ads::LeftDockWidgetArea,pDockWidget1);
    mLabelOne=new QLabel(pDockWidget1);
    pDockWidget1->setWidget(mLabelOne);

    ads::CDockWidget* pDockWidget2=new ads::CDockWidget("项目管理");
    m_pDockManger->addDockWidget(ads::TopDockWidgetArea,pDockWidget2,pDockWidget1->dockAreaWidget());
    ListWidget=new QListWidget(pDockWidget2);
    pDockWidget2->setWidget(ListWidget);
    connect(ListWidget,&QListWidget::currentItemChanged,this,[=](QListWidgetItem *current, QListWidgetItem *previous){
        int index=current->data(Qt::UserRole).toInt();
        onProjectChanged(index);
    });


    ads::CDockWidget* pDockWidget3=new ads::CDockWidget("测试页面2");
    m_pDockManger->addDockWidget(ads::RightDockWidgetArea,pDockWidget3,centerDockWidget->dockAreaWidget());
    mLabelTwo=new QLabel(pDockWidget3);
    pDockWidget3->setWidget(mLabelTwo);
}

MainWindow::~MainWindow()
{
    delete ui;
}

void MainWindow::on_actionAdd_triggered()
{
    mProjectNum++;
    QListWidgetItem *item;
    item=new QListWidgetItem(ListWidget);
    item->setText(QString("项目%1").arg(mProjectNum));
    item->setData(Qt::UserRole,mProjectNum);
    ListWidget->addItem(item);

    itemHash.insert(mProjectNum,item);
    ListWidget->setCurrentItem(item);

    ads::CDockWidget* cDockWidget=new ads::CDockWidget(QString("中心页面%1").arg(mProjectNum));
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,cDockWidget,centerDockWidget->dockAreaWidget());
    centerHash.insert(mProjectNum,cDockWidget);

    ads::CDockWidget* bDockWidget=new ads::CDockWidget(QString("底部页面%1").arg(mProjectNum));
    m_pDockManger->addDockWidget(ads::CenterDockWidgetArea,bDockWidget,bottomDockWidget->dockAreaWidget());
    bottomHash.insert(mProjectNum,bDockWidget);

    QString msg=QString("当时是项目%1").arg(mProjectNum);
    mLabelOne->setText(msg);
    mLabelTwo->setText(msg);
}

void MainWindow::onProjectChanged(int index)
{
    ListWidget->setCurrentItem(itemHash[index]);

    ads::CDockAreaWidget* centerArea=centerDockWidget->dockAreaWidget();
    centerArea->setCurrentDockWidget(centerHash[index]);

    ads::CDockAreaWidget* bottomArea=bottomDockWidget->dockAreaWidget();
    bottomArea->setCurrentDockWidget(bottomHash[index]);

    QString msg=QString("当时是项目%1").arg(index);
    mLabelOne->setText(msg);
    mLabelTwo->setText(msg);
}

lpl还在学习的路上
关注
  • 26
    点赞
  • 踩
  • 13
    收藏
    觉得还不错? 一键收藏
  • 打赏
    打赏
  • 0
    评论
Qt强大控件：Qt-Advanced-Docking-System介绍及使用教程
muyiliu的博客
02-24 3858
QT自带的Dock布局管理大家都用过，中规中矩，但是满足不了现在ui强大的人机交互需求。而Qt-Advanced-Docking-System在Dock的基础上进一步完善功能，具有更高的自由度、灵活性和可扩展性，满足程序员对人机交互的自由定义。这个开源控件类似于Devexpress中的DockPanel。
qt Qt-Advanced-Docking-System 使用教程 示例代码
02-24
总的来说，Qt-Advanced-Docking-System是Qt开发中一个非常实用的工具，它可以让你的应用程序拥有更专业、更灵活的用户界面。掌握其使用方法不仅可以提升用户体验，也是提升开发者技能的重要一步。在实践中，不断尝试...
Qt-Advanced-Docking-System：Qt的高级扩展坞系统
02-02
Qt-Advanced-Docking-System：Qt的高级扩展坞系统
Visual Studio Qt Qt-Advanced-Docking-System 新建停靠窗口+布局记录+布局载入
u011826081的博客
06-15 2401
最近在使用visual studio 2022和qt开发项目时，涉及到制作大数据可视化界面的工作。为了完成这一功能，查询了现有的实现方案，最终选择使用：Qt-Advanced-Docking-System作为布局方案的实现方式。如何下载Qt-Advanced-Docking-System如何在visual studio中载入Qt-Advanced-Docking-System插件如何使用Qt-Advanced-Docking-System接下来将根据这几个问题，完成本文叙述。
Qt 引用Qt-Advanced-Docking-System库
最新发布
sxy的博客
04-17 1306
Qt-Advanced-Docking-System: Qt-Advanced-Docking-System镜像仓库这是使用的是尘中远大佬的分支库，不是最原版的库。使用步骤是没有差别的。
Qt 下结合SARibbon、Dock 开发Opencascade应用的基础框架
Robot 离线编程 PDPS Opencascade
05-17 2894
Qt 下结合SARibbon、Qt-Advanced-Docking-System开发Opencascade应用的基础框架
Qt-Advanced-Docking-System使用说明
Liuyifei35的博客
04-28 1816
qt第三方库Qt-Advanced-Docking-System使用说明
Qt开源VS Dock项目Qt-Advanced-Docking-System简单使用
https://ligo100.cn 小何博客欢迎访问。
11-24 6256
前言 最近项目忙完了，一直在写文档，趁有点时间多找一点开源项目为下个项目做准备。今天分享的项目是Qt的一个开源项目：Qt-Advanced-Docking-System 。这个项目是对QDockWidget的增强版本，体验了一把这个项目瞬间不想用Qt的QDockWidget了。下面就一起体验吧！ 项目使用 1. 解压项目 2. 新建一个我们自己的项目，记住需要新建一个子项目工程 输入项目名称和项目存放路径 3. 添加一个子项目 4. 复制：Qt-Advanced-Do...
Qt扩展-Advanced-Docking 简介及配置
洪源兄
10-06 2304
Advanced-Docking 是类似QDockWidget 功能的多窗口停靠功能的库。很像visual stdio 的 停靠功能，这个库对于停靠使用的比较完善。很多的软件都使用了这个框架。Qt Creator从4.12版本开始，Qt Creator在其Qt Designer 中使用了该框架。CETONI Elements软件是一款全面的、基于插件的模块化实验室自动化软件，用于使用联合图形用户界面控制CETONI设备。该软件具有强大的脚本系统，可自动执行流程。
Qt-Advanced-Docking-System-master
08-12
Qt-Advanced-Docking-System-master
Qt开发技巧(4)Advanced Docking System使用方法
11-14
ads:qt_advanced_dockwighet_system源码和使用这个库函数创建的一个小的应用工程
Qt-Advanced-Docking-System
06-23
在`Qt-Advanced-Docking-System-master`压缩包中，你将找到源代码和相关资源文件，包括示例应用程序和文档。通过学习和使用这些资源，开发者可以快速理解和集成这个高级停靠系统到自己的Qt项目中。此外，项目的源...
Qt-Advanced-Docking-System使用方法
FourJin的博客
10-16 978
Qt-Advanced-Docking-System开源项目，dock窗口完美布局。
Qt开源库-顶级浮动窗口系统-Advanced-Docking-System【01】
iriczhao的博客
10-10 5834
一、序言 顶级浮动窗口是大型软件中的常备组件，例如Visual Studio Code软件界面： 在上图中，将软件界面划分为不同的功能区，每个功能区负责显示软件的一部分功能。在上图中有项目工程管理窗口、文本编辑窗口、控制台命令行窗口、左侧的代码缩略图窗口等。 还有的大型软件，他的这些功能区域下将会包含多个浮动子窗口，这些子窗口可以使用鼠标拖动、停靠或者随意组合成一个较大的浮动窗口。 那么，在Qt开发工具下，提供了QDockWidget用于停靠窗口的设计和开发。本文将分享一个浮动窗口的增强版：【Advanc
【Qt开源项目推荐】完美的Dock窗口布局解决方案 Qt-Advanced-Docking-System
热门推荐
专注Qt与C++开发
10-22 1万+
【Qt开源项目推荐】完美的Dock窗口布局解决方案 Qt-Advanced-Docking-System
QT高级扩展坞2
qq_42866659的博客
06-02 362
QT高级扩展坞
Qt基于开源Qt-Advanced-Docking-System实现高级窗口停靠系统
ever__ever的博客
12-29 1045
"Qt-Advanced-Docking-System" 是一个用于 Qt 框架的高级窗口停靠系统。它为应用程序提供了强大的窗口管理和停靠功能，允许用户轻松地组织和调整应用程序中的各个窗口。
qt-advanced-docking-system
04-30
Qt-Advanced-Docking-System (QADS) 是一款基于 Qt 框架的高级停靠系统。它能够快速创建自定义的布局和停靠功能，并支持将窗口停靠到主窗口的各个部分。QADS 具有良好的可扩展性和灵活性，用户可以根据自己的需求进行定制，而无需去修改框架内部实现。 QADS 提供了基于 C++ 的 API，同时也支持 QML 编写界面，因此用户可以根据自己的编程习惯和需求来选择合适的编程方式。QADS 中的停靠区域可以是嵌入式的 widget 或者是动态生成的 QML Item。这个特性使得 QADS 非常适合构建复杂的窗口系统，尤其是在需要用户进行多任务操作的场景中。 QADS 不仅在 UI 布局上提供了支持，它还具有各种高级功能，例如可以快速的保存和还原窗口布局，支持各种动画效果以及快速的关闭、停靠和新建窗口等。而 QADS 的实现还兼容了多种平台，包括 Windows、MacOS 和 Linux。 简而言之，Qt-Advanced-Docking-System 是 QT 框架下一款高级的 UI 布局库，拥有出色的可扩展性和灵活性，为开发者提供了丰富且定制化的停靠区域功能。它的多平台兼容性和高级功能，使得它成为开发多任务操作窗口的理想工具。
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

lpl还在学习的路上

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
