数码管的动态显示

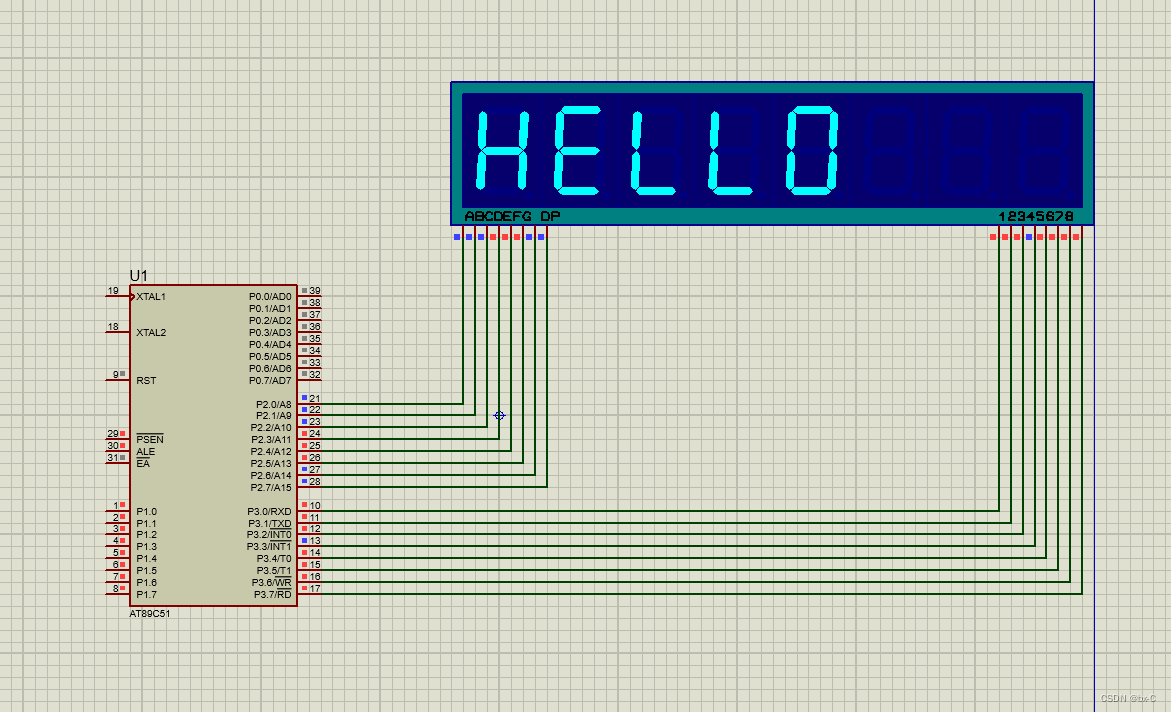

1.共阴极数码管实现HELLO



#include<reg51.h>
char str[]={0x76,0x79,0x38,0x38,0x3F}; //HELLO
char wei[]={0x01,0x02,0x04,0x08,0x10,0x20,0x40,0x80};
void delay(int n)
{
	int i=0,j=0;
	for(i=0;i<n;i++)
	{
		for(j=0;j<120;j++);
	}
}
void seg()
{
	int i;
	for(i=0;i<5;i++)
	{
		 P3=~wei[i];	//0011 1111
		 P2=str[i];
		 delay(5);
	}

}
void main()
{
	while(1)
	{
		seg();
	}
}

2.共阴极数码管的动态显示（使用74s138译码器）

#include<reg51.h>
char str[]={0x76,0x79,0x38,0x38,0x3F}; //HELLO
char wei[]={0x00,0x01,0x02,0x03,0x04,0x05,0x06,0x07};
void delay(int n)
{
	int i=0,j=0;
	for(i=0;i<n;i++)
	{
		for(j=0;j<120;j++);
	}
}
void seg()
{
	int i;
	for(i=0;i<5;i++)
	{
		 P3=wei[i];	//0011 1111
		 P2=str[i];
		 delay(5);
	}

}
void main()
{
	while(1)
	{
		seg();
	}
}

---

每天学一点点单片机，还要继续看C和linux，一起加油！
