这种页面可能是大家常用的,但重写比较费时间,之前没有搜到完整的,在这里自己总结一下,方面复用
代码:
<LoginForm
formRef={formRef}
initialValues={{
autoLogin: false
}}
onFinish={async values => {
await handleSubmit(values as LoginParams)
}}
>
<Tabs activeKey={type} onChange={setType} style={{ color: '#999999', fontSize: '16px' }}>
<Tabs.TabPane key='account' tab={'账号登陆'} />
<Tabs.TabPane key='mobile' tab={'手机登陆'} />
</Tabs>

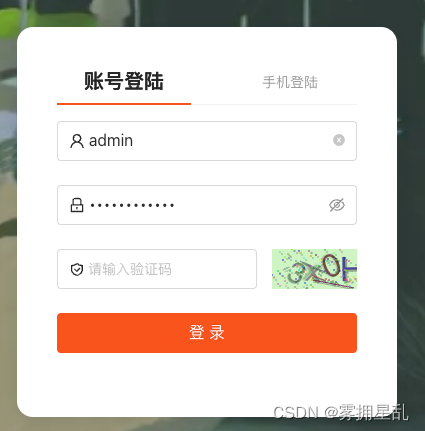

账号登陆:
{type === 'account' && (
<>
<ProFormText
style={{ width: '60%' }}
name='account'
fieldProps={{
size: 'large',
prefix: <UserOutlined className={styles.prefixIcon} />
}}
placeholder={'用户名:admin'}
rules={[
{
required: true,
message: '请输入用户名'
}
]}
/>
<ProFormText.Password
name='password'
fieldProps={{
size: 'large',
prefix: <LockOutlined className={styles.prefixIcon} />
}}
placeholder={'输入密码'}
rules={[
{
required: true,
message: '请输入密码'
}
]}
/>
<div style={{ display: 'flex' }} className={styles.inputThree}>
<ProForm.Item
name='captimg'
rules={[
{
required: true,
message: '验证码不能为空!'
},
{
validator(_, value) {
if (!value) {
return new Promise((resolve, reject) => {
reject('')
})
} else {
const status = childRef.current.validate(value)
return status
? Promise.resolve()
: Promise.reject(new Error('验证码不正确'))
}
}
}
]}
>
<Input
style={{ width: '200px', height: '40px', paddingLeft: '30px' }}
width='xs'
placeholder={'请输入验证码'}
className='site-form-item-icon'
/>
</ProForm.Item>
<CaptchaInput cRef={childRef} />
// 验证码画布组件,注意不能写到ProForm组件内,会有影响
<IconFont type='icon-yanzhengma' className={styles.verify} />
</div>
</>
)}
验证码画布组件:
import * as React from 'react'
const size = 4
const verifycode = {
width: '32%',
height: '40px',
marginLeft: '5%',
display: 'inline-block',
top: '0',
right: '0'
}
export default ({ cRef }) => {
const [options, setOptions] = React.useState({
id: 'verifycode', // 容器Id
canvasId: 'verifyCanvas', // canvas的ID
width: 150, // 默认canvas宽度
height: 47, // 默认canvas高度
type: 'blend', // 图形验证码默认类型blend:数字字母混合类型、number:纯数字、letter:纯字母
code: '',
numArr: '0,1,2,3,4,5,6,7,8,9'.split(','),
letterArr: getAllLetter() })
React.useImperativeHandle(cRef, () => ({
validate: (value: any) => {
const vcode = value?.toLowerCase()
const v_code = options.code?.toLowerCase()
if (vcode === v_code) {
return true
} else {
return false
}
}
}))
React.useEffect(() => {
_init()
refresh()
})
function _init() {
const con = document.getElementById(options.id)
const canvas: any = document.createElement('canvas')
options.width = con.offsetWidth > 0 ? con.offsetWidth : 150
options.height = con.offsetHeight > 0 ? con.offsetHeight : 47
canvas.id = options.canvasId
canvas.width = options.width
canvas.height = options.height
canvas.style.cursor = 'pointer'
canvas.innerHTML = '您的浏览器版本不支持canvas'
con.appendChild(canvas)
canvas.onclick = function() {
refresh()
}
}
function refresh() {
options.code = ''
const canvas: any = document.getElementById(options.canvasId)
let ctx = null
if (canvas.getContext) {
ctx = canvas.getContext('2d')
} else {
return
}
ctx.clearRect(0, 0, options.width, options.height)
ctx.textBaseline = 'middle'
ctx.fillStyle = randomColor(180, 240)
ctx.fillStyle = 'rgba(206, 244, 196)'// 背景色
ctx.fillRect(0, 0, options.width, options.height)
if (options.type == 'blend') { // 判断验证码类型
var txtArr = options.numArr.concat(options.letterArr)
} else if (options.type == 'number') {
var txtArr = options.numArr
} else {
var txtArr = options.letterArr
}
for (let i = 1; i <= size; i++) {
const txt = txtArr[randomNum(0, txtArr.length)]
options.code += txt
ctx.font = randomNum(options.height / 2, options.height) + 'px SimHei' // 随机生成字体大小
ctx.fillStyle = randomColor(50, 160) // 随机生成字体颜色
// ctx.fillStyle = "rgb(46, 137, 255)";//固定字体颜色
ctx.shadowOffsetX = randomNum(-3, 3)
ctx.shadowOffsetY = randomNum(-3, 3)
ctx.shadowBlur = randomNum(-3, 3)
ctx.shadowColor = 'rgba(0, 0, 0, 0.3)'
const x = options.width / (size + 1) * i
const y = options.height / 2
const deg = randomNum(-30, 30)
/** 设置旋转角度和坐标原点**/
ctx.translate(x, y)
ctx.rotate(deg * Math.PI / 180)
ctx.fillText(txt, 0, 0)
/** 恢复旋转角度和坐标原点**/
ctx.rotate(-deg * Math.PI / 180)
ctx.translate(-x, -y)
}
/** 绘制干扰线**/
for (let i = 0; i < 4; i++) {
ctx.strokeStyle = randomColor(40, 180)
ctx.beginPath()
ctx.moveTo(randomNum(0, options.width), randomNum(0, options.height))
ctx.lineTo(randomNum(0, options.width), randomNum(0, options.height))
ctx.stroke()
}
// 绘制干扰点
// for (let i = 0; i < 100; i++) {
// ctx.fillStyle = randomColor(0, 255)
// ctx.beginPath()
// ctx.arc(randomNum(0, options.width), randomNum(0, options.height), 1, 0, 2 * Math.PI)
// ctx.fill()
// }
}
/** 生成字母数组**/
function getAllLetter() {
const letterStr = 'a,b,c,d,e,f,g,h,i,j,k,l,m,n,o,p,q,r,s,t,u,v,w,x,y,z,A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,W,X,Y,Z'
return letterStr.split(',')
}
/** 生成一个随机数**/
function randomNum(min: number, max: number) {
return Math.floor(Math.random() * (max - min) + min)
}
/** 生成一个随机色**/
function randomColor(min: number, max: number) {
const r = randomNum(min, max)
const g = randomNum(min, max)
const b = randomNum(min, max)
return 'rgb(' + r + ',' + g + ',' + b + ')'
}
return (
<div id='verifycode' style={verifycode} />
)
}

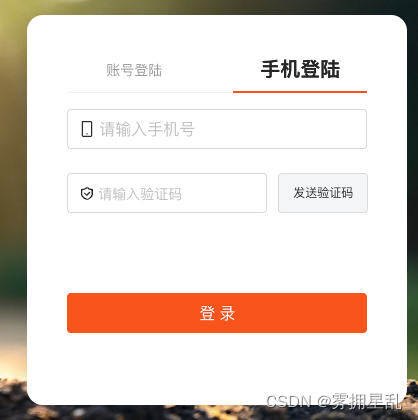

手机号登陆
方法:
const sendFn = () => {
(formRef.current as any).validateFields(['mobile']).then((value) => {
pchildref.current._childFn()
loginCodeRun.run({
mobile: value.mobile,
event: 'admin:login_by_mobile'
})
}).catch(() => {
return
})
}
渲染:
{type === 'mobile' && (
<>
<ProFormText
fieldProps={{
size: 'large',
prefix: <MobileOutlined className={styles.prefixIcon} />
}}
name='mobile'
placeholder={'请输入手机号'}
rules={[
{
required: true,
message: '请输入手机号'
},
{
pattern: /^1\d{10}$/,
message: '手机号格式错误'
}
]}
/>
<div style={{ display: 'flex' }} className={styles.inputThree}>
<ProForm.Item
name='captcha'
rules={[
{
required: true,
message: '请输入验证码'
}
]}
>
<Input
style={{ width: '200px', height: '40px', paddingLeft: '30px' }}
width='xs'
placeholder={'请输入验证码'}
className='site-form-item-icon'
/>
</ProForm.Item>
<div onClick={sendFn}>
<CountDown ref={pchildref} codeStyle={codeStyle} />
// 倒计时计数器组件
</div>
<IconFont type='icon-yanzhengma' className={styles.verify} />
</div>
<ProForm.Item />
</>
)}
倒计时计数器组件
import React, { useState, useEffect, useRef, forwardRef, useImperativeHandle } from 'react'
import { Button } from 'antd'
type selfProps = {
codeStyle: object;
};
const CountDown: React.FC<selfProps> = (props, ref) => {
const intervalRef = useRef<any>(null)
const [count, changeCount] = useState(0)
const { codeStyle } = props // 样式
// 组件卸载时清除计时器
useEffect(() => {
return () => {
clearInterval(intervalRef.current)
}
}, [])
useEffect(() => {
if (count === 59) {
intervalRef.current = setInterval(() => {
changeCount((preCount) => preCount - 1)
}, 1000)
} else if (count === 0) {
clearInterval(intervalRef.current)
}
}, [count])
// 暴露的子组件方法,给父组件调用
useImperativeHandle(ref, () => {
return {
_childFn() {
changeCount(59)
}
}
})
return (
<Button disabled={!!count} style={ codeStyle }>
{count ? `${count} s后重新发送` : '发送验证码'}
</Button>
)
}
export default forwardRef(CountDown)
