Wallys//routerboard,QCN9074,QUECTEL,RM500Q-GL,WiFi6ECard,802.11ax,IPQ6010,IPQ6000,IPQ6018

QCN9074,QUECTEL,RM500Q-GL,QCN9074,WiFi6ECard,802.11ax,IPQ6010,IPQ6000https://www.wallystech.com/Routerboard/DR6018V4-wifi6-Qualcomm-IPQ6010-IPQ6018-FAMILY-2T2R-2.5G-ETH-port-supporting-5G-celluar-Modem-802-11AX-MU-MIMO-OFDMA.html,IPQ6018

MT7915/MT7975/IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/ipq4018/IPQ4028/IPQ8072/IPQ8072A/IPQ8074/IPQ8074A/QCN6024/QCN9074/QCN9072/QCN9024/IPQ5018/AR9223/QCA9880/QCA9882 /AR9582/AR9531/AR9344 /AX200NGW/ AP9342

In the complex market, Wallys products stand out and are affirmed by partners. From 802.11 a - ax, Wallys always keeps up with the most cutting-edge wireless technology, aimed to help customers take the preemptive opportunities to occupy the market and lead a win -win cooperation.

BY:Wallys Communications (Suzhou ) Co., LTD

EMAIL:​sales3@wallystech.com

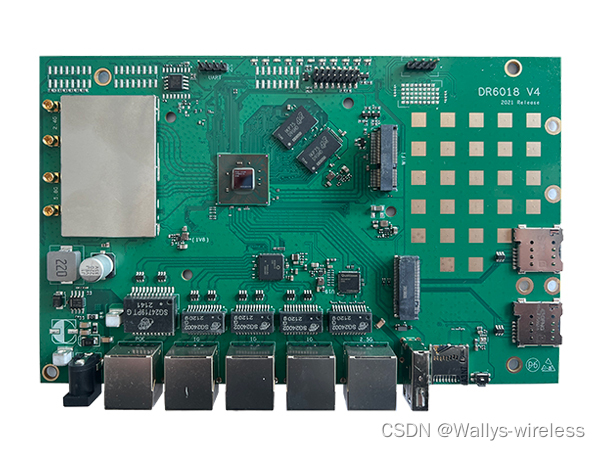

1. DR6018
2.



PRODUCTS_Wallys Communications (Suzhou ) Co., LTD

https://www.youtube.com/watch?v=RPk_6fZbHZU

Qualcomm-Atheros IPQ6010

Quad-core ARM 64bit A53 @1.8GHz Processor

1GB DDRL3L System Memory

32MB NOR Flash, 256MB NAND Flash

Supports Dynamic Frequency Selection (DFS)

2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate

2x2 On-board 5GHz radio, up to 1201Mbps physical Data Rate

Support: QUECTEL RM500Q-GL

Support: QCN9074 WiFi 6E Card

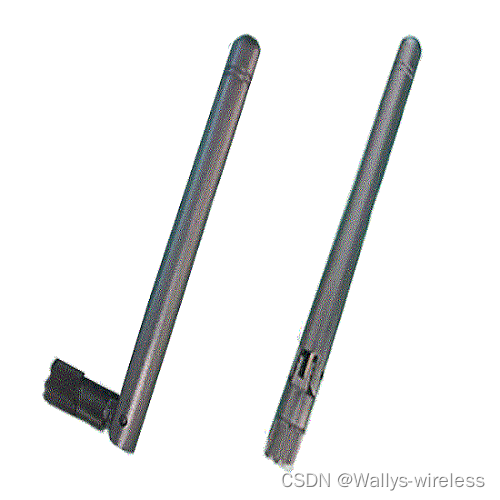

2.DRA24126ESBE



PRODUCTS_Wallys Communications (Suzhou ) Co., LTD

1. Feature

*External type dipole antenna

* 2.4~2.5&5.15~7.15GHz of frequency

* Plastic rod of Black

* RoHS compliance

2. Application

* Wi-Fi 6E Wireless Communication

* WLAN device, WLAN Router, e.g., AP,PIC Wireless Card

3. Description

Suzhou Wallys Communication Co., Ltd, this miniature antenna is designed for Wi-Fi 6E applications

and can be easily built-in portable devices for SMA Plug. It has excellent stability and sensitivity to

consistently provide high signal reception efficiency

Suzhou Wallys Communication Co., Ltd, this miniature antenna is designed for Wi-Fi 6E applications

and can be easily built-in portable devices for SMA Plug. It has excellent stability and sensitivity to

consistently provide high signal reception efficiency

We'll start with a quick review of how Wi-Fi has changed over the years.

In fact, the earliest generation of 802.11 standard can be traced back to 1997, when the wireless speed is very low, only 2Mbps, it is an original standard of the first generation .

With the introduction of 802.11b in 1999, the physical layer speed was increased to 11Mbps and there were very few commercial applications. At that time, Wi-Fi was still far away from people's lives

In 2003, the third generation of the standard, 802.11a/ g. Laptop began to configure wireless network card and home wireless router appeared in large quantity .  Wi-fi comes into ordinary family.

For Wi-fi 4, in 2007 we saw the second peak of growth in Wi-Fi, with the advent of the 802.11n standard.

In 2012, the fifth generation comes that is 802.11AC.While 802.11AC Wave2, the new standard which is the second phase of 802.11AC appear in 2015.

For WiFi 6, it's the sixth generation of wireless communication technology, known as 802.11ax.

The most important feature of the WiFi 6E is that it supports the 6GHz band. After all, compared to previous generations, it only supports the 5GHz band up.

Wallys keeps up with Qualcomm pace and is constantly releasing new products
