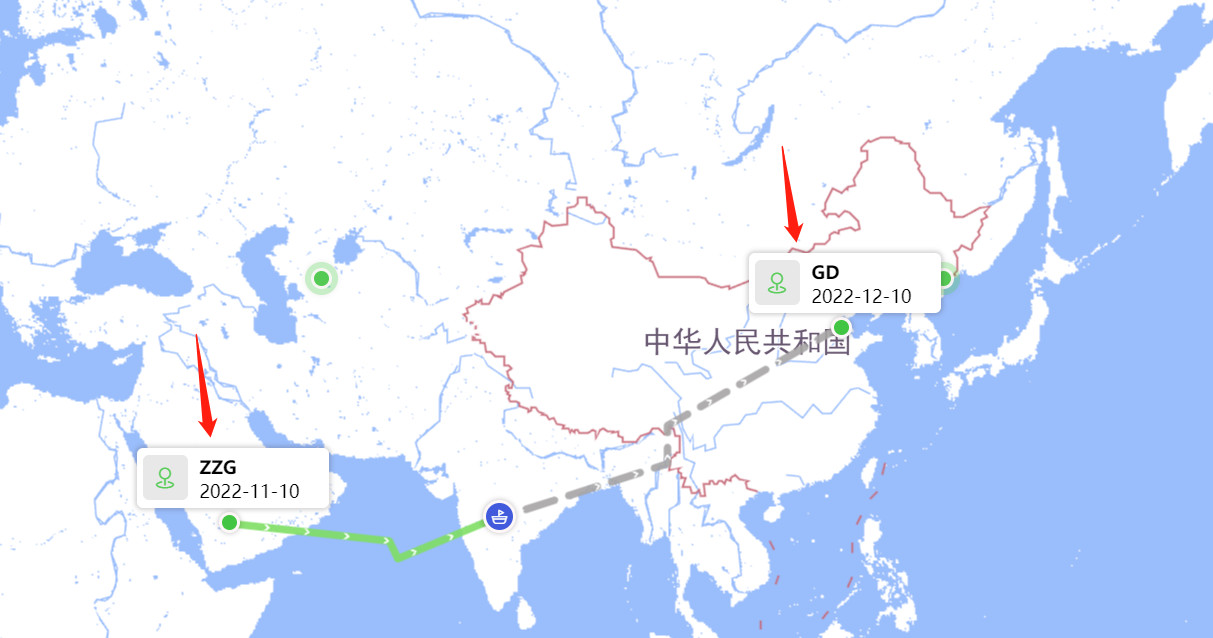

效果如下图:
众所周知,高德的 Infowindow 只能同时显示一个,想要通过Infowindow来实现图中的效果是不行的。但是覆盖物是可以显示多个的,比如说marker。所以下面的思路就是,给定一个点的坐标,用两个marker来显示这个点,上面的marker其实就是信息弹框的实现。
下面是实现代码:
定义两个标记点,一个是marker(用来表示坐标位置的标记点),另外一个是markerUpon(通过自定义标记内容来实现Infowindow的效果)
pointBE(point) {
let marker = new AMap.Marker({ // 标记点
position: new AMap.LngLat(point.pos[0], point.pos[1]),
content: '<div id="circle_route_bot"></div>'+ '<div id="circle_route_mid"></div>',
offset: new AMap.Pixel(-5, -7) // 偏移位置
});
let markerUpon = new AMap.Marker({ // 信息窗体
position: new AMap.LngLat(point.pos[0], point.pos[1]),
content: '<div class="route_ticket">' + ' <div class="route_t_name">' + ' <div class="route_t_icon">' + ' <i class="el-icon-place" style="color: #5acc5a"></i>' + ' </div>' + ' </div>' + ' <div class="route_t_ticket">' + ' <div style="font-weight: 600;">' + point.local + ' </div>' + ' <div >' + point.time + ' </div>' + ' </div>' + ' </div>', // 自定义信息窗体内容
offset: new AMap.Pixel(-60, -50) // 偏移位置
});
let markers = [marker, markerUpon];
this.map.add(markers);
}
下面是样式
#circle_route_bot{
background-color: rgb(253, 247, 247);
width: 14px;
height: 14px;
margin: 0;
border-radius: 50%;
box-shadow: 0px 0px 3px 1px rgba(40, 32, 32, 0.2)
}
#circle_route_mid {
background-color: rgb(66, 197, 66);
width: 10px;
height: 10px;
margin: -12px 0 0 2px;
border-radius: 50%;
}
.route_ticket {
width: 120px;
height: 30px;
padding: 5px 4px;
text-align: left;
background-color: #ffffff;
box-shadow: 0px 0px 3px 1px rgba(40, 32, 32, 0.2);
border-radius: 4px;
}
.route_t_name {
background-color: #e8e8e8;
width: 30px;
height: 100%;
float: left;
margin-right: 8px;
border-radius: 4px;
}
.route_t_icon{
width: 100%;
height: 100%;
display:flex;
justify-content:center;
align-items:center;
border-radius: 4px;
}
.route_t_ticket {
background-color: #ffffff;
width: 60%;
float: left;
font-size: 12px;
}
然后是方法的参数:
{
"pos":[ , ], // 坐标位置 eg:[1,1]
"local": "", // 显示信息
"time": "" // 显示信息
}
思路就是这样,效果是我自己想要的效果了。
支持原创!!
=======================================================================

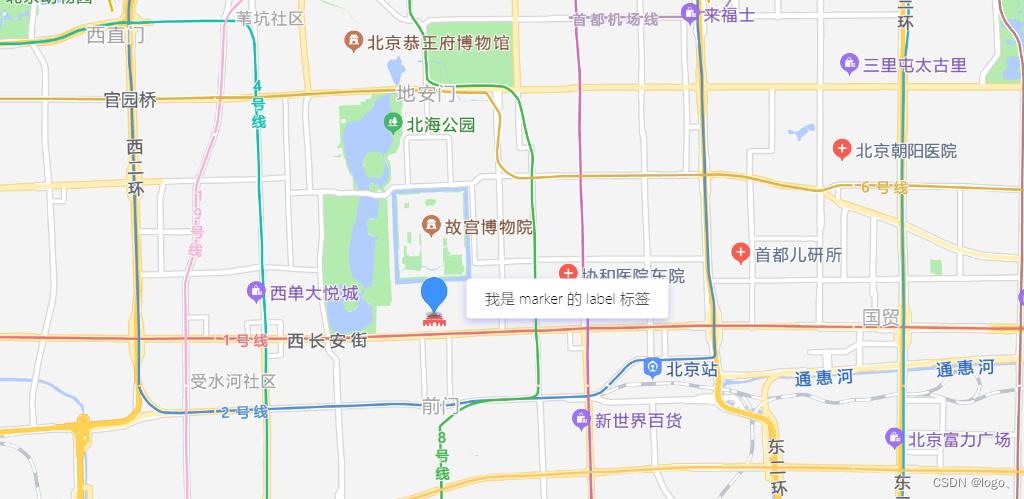

今天发现高德原来有可以直接使用的方法,直接调用 setLabel 方法就可以了。😅
// 设置label标签
// label默认蓝框白底左上角显示,样式className为:amap-marker-label
marker.setLabel({
direction:'right',
offset: new AMap.Pixel(10, 0), //设置文本标注偏移量
content: "<div class='info'>我是 marker 的 label 标签</div>", //设置文本标注内容
});
