制作提交反馈信息的布局

#!/usr/bin/python3
# -*- coding: utf-8 -*-

"""
ZetCode PyQt5 tutorial

In this example, we create a more
complicated window layout using
the QGridLayout manager.

Author: Jan Bodnar
Website: zetcode.com
Last edited: August 2017
"""

import sys
from PyQt5.QtWidgets import (QWidget, QLabel, QLineEdit,
    QTextEdit, QGridLayout, QApplication)

class Example(QWidget):

    def __init__(self):
        super().__init__()

        self.initUI()


    def initUI(self):

        title = QLabel('Title')
        author = QLabel('Author')
        review = QLabel('Review')

        titleEdit = QLineEdit()
        authorEdit = QLineEdit()
        reviewEdit = QTextEdit()

        grid = QGridLayout()
        grid.setSpacing(10)

        grid.addWidget(title, 1, 0)
        grid.addWidget(titleEdit, 1, 1)

        grid.addWidget(author, 2, 0)
        grid.addWidget(authorEdit, 2, 1)

        grid.addWidget(review, 3, 0)
        grid.addWidget(reviewEdit, 3, 1, 5, 1)

        self.setLayout(grid)

        self.setGeometry(300, 300, 350, 300)
        self.setWindowTitle('Review')
        self.show()


if __name__ == '__main__':

    app = QApplication(sys.argv)
    ex = Example()
    sys.exit(app.exec_())

我们创建了一个有三个标签的窗口。两个行编辑和一个文版编辑，这是用 QGridLayout 模块搞定的。

text

grid = QGridLayout()
grid.setSpacing(10)

创建标签之间的空间。

text

grid.addWidget(reviewEdit, 3, 1, 5, 1)

我们可以指定组件的跨行和跨列的大小。这里我们指定这个元素跨 5 行显示。

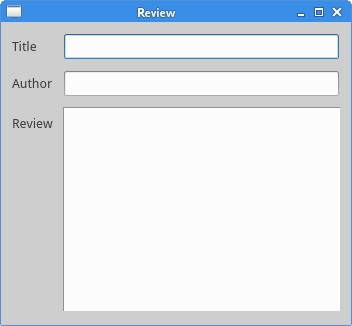

程序预览：
