Qt第三十七章：自定义标题+自由缩放（插件）

本文链接：https://blog.csdn.net/wenxingchen/article/details/128289261

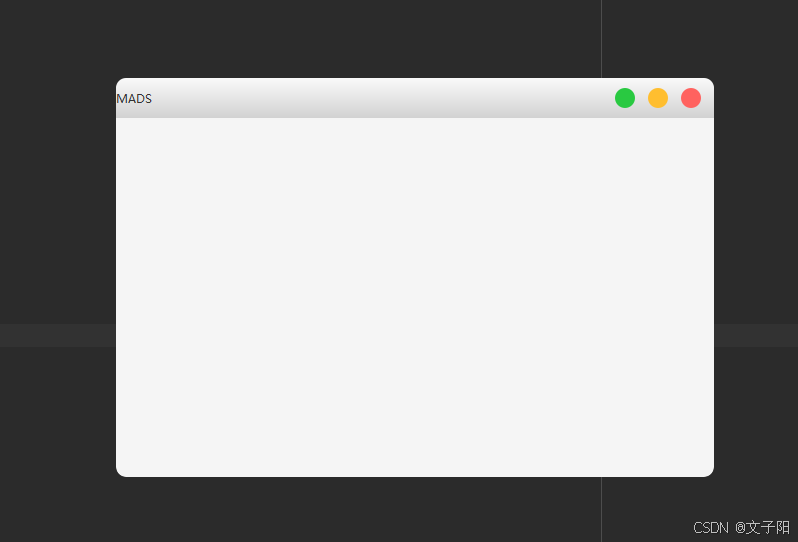

效果：

插件：

import PySide6
from PySide6 import QtGui, QtCore, QtWidgets
from PySide6.QtCore import Qt, QSize, QObject
from PySide6.QtGui import QPainter, QColor
from PySide6.QtWidgets import QWidget, QApplication, QPushButton, QLabel, QDialog, QMainWindow


# 标题组件
class QCustomTitleBar(QWidget):
    def __init__(self, parent: QObject, windowTitle: str, title_bar_height: int = 40):
        super(QCustomTitleBar, self).__init__(parent)
        self.parent = parent
        self.DEFAULT_TITLE_BAR_HEIGHT = title_bar_height

        self.mouseDoubleClickEvent_parent = self.parent.mouseDoubleClickEvent
        self.parent.mouseDoubleClickEvent = self.mouseDoubleClickEvent

        self.resizeEvent_parent = self.parent.resizeEvent
        self.parent.resizeEvent = self.resizeEvent

        self.parent.setContentsMargins(0, self.DEFAULT_TITLE_BAR_HEIGHT, 0, 0)
        self.parent.setWindowFlags(
            Qt.WindowType.Window
            | Qt.WindowType.FramelessWindowHint
            | Qt.WindowType.WindowSystemMenuHint
            | Qt.WindowType.WindowMinimizeButtonHint
            | Qt.WindowType.WindowMaximizeButtonHint
        )

        self.title = QLabel(windowTitle, self.parent)
        self.setStyle()

        self.close_btn = QPushButton("", self.parent)
        self.max_btn = QPushButton("", self.parent)
        self.min_btn = QPushButton("", self.parent)

        self.setupButtons()
        self.window_max_size = None
        self.title.setMouseTracking(True)

    def setupButtons(self):
        self.close_btn.setGeometry(self.parent.width() - 34, 10, 20, 20)
        self.max_btn.setGeometry(self.parent.width() - 67, 10, 20, 20)
        self.min_btn.setGeometry(self.parent.width() - 100, 10, 20, 20)

        self.close_btn.setStyleSheet(
            "QPushButton{border-image:url('./images/close.png');background:#ff625f;border-radius:10px;}"
            "QPushButton:hover{background:#eb4845;}"
            "QPushButton:pressed{background:#d33e3b;}"
        )
        self.max_btn.setStyleSheet(
            "QPushButton{border-image:url('./images/max.png');background:#ffbe2f;border-radius:10px;}"
            "QPushButton:hover{background:#ecae27;}"
            "QPushButton:pressed{background:#d49d24;}"
        )
        self.min_btn.setStyleSheet(
            "QPushButton{border-image:url('./images/min.png');background:#29c941;border-radius:10px;}"
            "QPushButton:hover{background:#1ac033;}"
            "QPushButton:pressed{background:#17a82d;}"
        )

        self.close_btn.clicked.connect(self.parent.close)
        self.max_btn.clicked.connect(self.setMaxEvent)
        self.min_btn.clicked.connect(self.parent.showMinimized)
        # 连接 pressed 和 released 信号到自定义槽函数
        self.close_btn.pressed.connect(lambda: self.buttonPressed(self.close_btn))
        self.close_btn.released.connect(lambda: self.buttonReleased(self.close_btn))
        self.max_btn.pressed.connect(lambda: self.buttonPressed(self.max_btn))
        self.max_btn.released.connect(lambda: self.buttonReleased(self.max_btn))
        self.min_btn.pressed.connect(lambda: self.buttonPressed(self.min_btn))
        self.min_btn.released.connect(lambda: self.buttonReleased(self.min_btn))

    def setMaxEvent(self):
        if self.parent.isMaximized():
            self.parent.showNormal()
        else:
            self.parent.showMaximized()

    def setStyle(self):
        DEFAULT_STYLE = """
                            background-color: qlineargradient(x1:0, y1:0, x2:0, y2:1, stop:0 #fafafa, stop:1 #d1d1d1);
                            color: #333333; border:1px solid #c6c6c6;padding:10px;
                            border-top-left-radius: 10px;
                            border-top-right-radius: 10px;
                            border-bottom-left-radius: 0;
                            border-bottom-right-radius: 0;
                        """
        self.title.setAlignment(Qt.AlignmentFlag.AlignLeft | Qt.AlignmentFlag.AlignVCenter)
        self.title.setStyleSheet(DEFAULT_STYLE)
        self.title.setGeometry(1, 0, self.parent.width() - 2, self.DEFAULT_TITLE_BAR_HEIGHT)

    def mouseDoubleClickEvent(self, a0: QtGui.QMouseEvent) -> None:
        if a0.button() == Qt.MouseButton.LeftButton and a0.position().y() < self.title.height():
            self.setMaxEvent()
        return self.mouseDoubleClickEvent_parent(a0)

    def resizeEvent(self, a0: QtGui.QResizeEvent) -> None:
        self.close_btn.move(self.parent.width() - 34, 10)
        self.max_btn.move(self.parent.width() - 67, 10)
        self.min_btn.move(self.parent.width() - 100, 10)
        self.title.resize(self.parent.width() - 2, self.DEFAULT_TITLE_BAR_HEIGHT)
        return self.resizeEvent_parent(a0)

    def buttonPressed(self, button: QPushButton):
        button.move(button.x() + 1, button.y() + 2)  # 向下移动2个像素

    def buttonReleased(self, button: QPushButton):
        button.move(button.x() - 1, button.y() - 2)  # 向上移动2个像素


# 缩放组件
class WindowResizer:
    def __init__(self, window):
        self.window = window
        self.window.setMouseTracking(True)
        self._startPos = None
        self._isResizing = False
        self._resizeMargins = 10  # 缩放检测区域的大小
        self.window.setMinimumSize(160, 80)  # 设置最小尺寸

        self.window.mousePressEvent = self.mousePressEvent
        self.window.mouseMoveEvent = self.mouseMoveEvent
        self.window.mouseReleaseEvent = self.mouseReleaseEvent
        self.window.setAttribute(QtCore.Qt.WidgetAttribute.WA_TranslucentBackground, True)
        self.window.setWindowFlags(Qt.WindowType.FramelessWindowHint)
        self.window.paintEvent = self.paintEvent

    def mousePressEvent(self, event: QtGui.QMouseEvent) -> None:
        if event.button() == Qt.MouseButton.LeftButton:
            self._resizeDirection = self.getResizeDirection(event.position().toPoint())
            if self._resizeDirection:
                self._isResizing = True
                self._startPos = event.globalPosition().toPoint()
                self._startSize = self.window.size()
            else:
                self._startPos = event.globalPosition().toPoint() - self.window.frameGeometry().topLeft()

    def mouseMoveEvent(self, event: QtGui.QMouseEvent) -> None:
        if self._isResizing:
            delta = event.globalPosition().toPoint() - self._startPos
            newSize = QSize(self._startSize.width(), self._startSize.height())

            if 'left' in self._resizeDirection:
                newSize.setWidth(self._startSize.width() - delta.x())
            if 'right' in self._resizeDirection:
                newSize.setWidth(self._startSize.width() + delta.x())
            if 'top' in self._resizeDirection:
                newSize.setHeight(self._startSize.height() - delta.y())
            if 'bottom' in self._resizeDirection:
                newSize.setHeight(self._startSize.height() + delta.y())

            self.window.resize(newSize)
        elif event.buttons() == Qt.MouseButton.LeftButton and self._startPos:
            self.window.move(event.globalPosition().toPoint() - self._startPos)
        else:
            self.updateCursorShape(event.position().toPoint())

    def mouseReleaseEvent(self, event: QtGui.QMouseEvent) -> None:
        self._isResizing = False
        self._startPos = None
        self._resizeDirection = None

    def updateCursorShape(self, pos):
        resizeDirection = self.getResizeDirection(pos)
        if resizeDirection:
            if resizeDirection in ['left', 'right']:
                self.window.setCursor(Qt.CursorShape.SizeHorCursor)
            elif resizeDirection in ['top', 'bottom']:
                self.window.setCursor(Qt.CursorShape.SizeVerCursor)
            elif resizeDirection == 'top-left' or resizeDirection == 'bottom-right':
                self.window.setCursor(Qt.CursorShape.SizeFDiagCursor)
            elif resizeDirection == 'top-right' or resizeDirection == 'bottom-left':
                self.window.setCursor(Qt.CursorShape.SizeBDiagCursor)
        else:
            self.window.setCursor(Qt.CursorShape.ArrowCursor)

    def getResizeDirection(self, pos):
        margins = self._resizeMargins
        if pos.x() < margins:
            if pos.y() < margins:
                return 'top-left'
            elif pos.y() > self.window.height() - margins:
                return 'bottom-left'
            else:
                return 'left'
        elif pos.x() > self.window.width() - margins:
            if pos.y() < margins:
                return 'top-right'
            elif pos.y() > self.window.height() - margins:
                return 'bottom-right'
            else:
                return 'right'
        elif pos.y() < margins:
            return 'top'
        elif pos.y() > self.window.height() - margins:
            return 'bottom'
        return None

    def isAtResizeEdge(self, pos):
        return pos.x() >= self.window.width() - self._resizeMargins and pos.y() >= self.window.height() - self._resizeMargins

    def paintEvent(self, event: PySide6.QtGui.QPaintEvent) -> None:
        painter = QPainter(self.window)
        painter.setRenderHint(QPainter.RenderHint.Antialiasing)

        # 创建更精细的圆角路径
        path = QtGui.QPainterPath()
        rect = self.window.rect().adjusted(1, 1, -1, -1)
        path.addRoundedRect(rect, 10, 10)

        # 设置剪辑路径
        painter.setClipPath(path)

        # 绘制背景
        painter.setBrush(QColor(245, 245, 245))
        painter.setPen(Qt.PenStyle.NoPen)
        painter.drawPath(path)

        QWidget.paintEvent(self.window, event)


class ExistingWindow(QMainWindow):
    def __init__(self, parent=None):
        super(ExistingWindow, self).__init__(parent)
        self.setWindowTitle("Existing Window")
        self.resize(600, 400)
        self.title_bar = QCustomTitleBar(self, windowTitle="配置")
        self.resizer = WindowResizer(self)
        # 其他初始化代码


if __name__ == '__main__':
    app = QApplication([])
    main = ExistingWindow()
    main.show()
    app.exec()

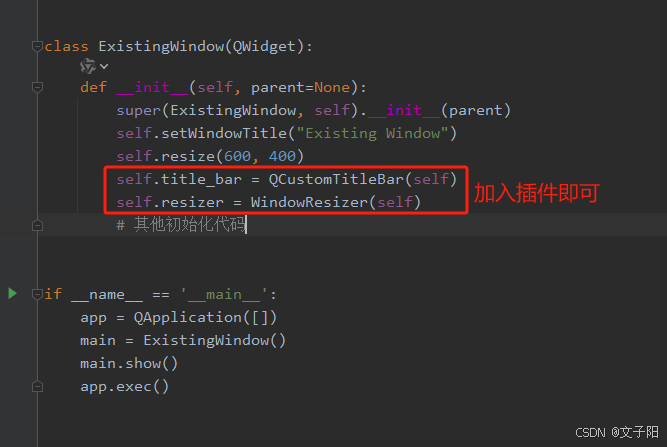

使用：

class ExistingWindow(QWidget):
    def __init__(self, parent=None):
        super(ExistingWindow, self).__init__(parent)
        self.setWindowTitle("Existing Window")
        self.resize(600, 400)
        self.title_bar = QCustomTitleBar(self)
        self.resizer = WindowResizer(self)
        # 其他初始化代码


if __name__ == '__main__':
    app = QApplication([])
    main = ExistingWindow()
    main.show()
    app.exec()
