Android-自定义PopupWindow

2014年5月12日
PopupWindow在应用中应该是随处可见的,很常用到,比如在旧版本的微信当中就用到下拉的PopupWindow,那是自定义的。新版微信5.2的ActionBar,有人已经模仿了它,但微信具体是使用了ActionBar还是其他的笔者倒是不太清楚,本篇博客主要介绍如何自定义一个PopupWindow来供自己在开发应用时使用。因为笔者最近在开发一款应用时用到这个知识点,所以自己实现了类似新版微信的效果。

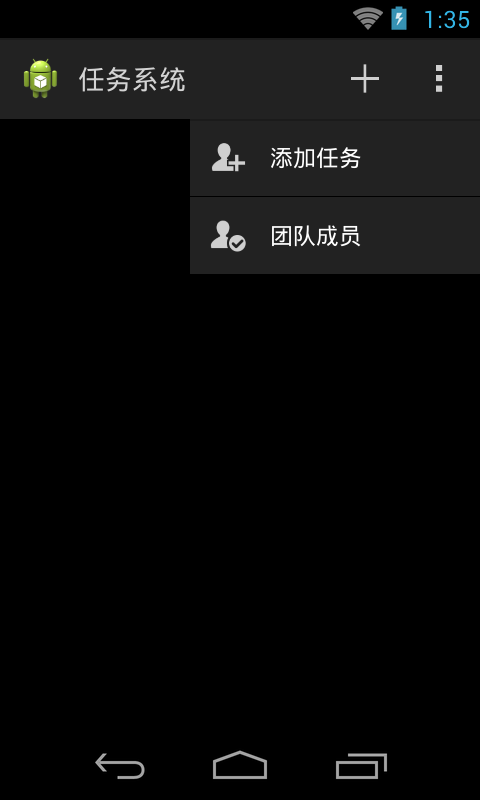

效果图如下:




首先从布局开始
/14_CustomPopupWindow/res/layout/activity_swipe.xml
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/animation_layout_content"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:clickable="true"
    android:orientation="vertical" >

    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:background="@drawable/abc_ab_bottom_solid_dark_holo"
        android:padding="12dip" >

        <LinearLayout
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_alignParentLeft="true"
            android:gravity="center"
            android:orientation="horizontal" >

            <ImageView
                android:layout_width="30dp"
                android:layout_height="30dp"
                android:src="@drawable/ic_launcher" />

            <TextView
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_marginLeft="10dip"
                android:text="任务系统"
                android:textColor="@color/lightgray"
                android:textSize="18sp" />
        </LinearLayout>

        <LinearLayout
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_alignParentRight="true"
            android:gravity="center"
            android:orientation="horizontal" >

            <Button
                android:id="@+id/btnSearch"
                android:layout_width="30dp"
                android:layout_height="30dp"
                android:layout_marginRight="20dip"
                android:background="@drawable/actionbar_search_icon"
                android:visibility="gone" />

            <Button
                android:id="@+id/btnAdd"
                android:layout_width="30dp"
                android:layout_height="30dp"
                android:layout_marginRight="20dip"
                android:background="@drawable/actionbar_add_icon" />

            <Button
                android:id="@+id/btnSet"
                android:layout_width="30dp"
                android:layout_height="30dp"
                android:background="@drawable/actionbar_more_icon" />
        </LinearLayout>
    </RelativeLayout>


</LinearLayout>

/14_CustomPopupWindow/res/layout/add_popup_dialog.xml
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:gravity="center_horizontal"
    android:orientation="vertical" >

    <LinearLayout
        android:id="@+id/pop_layout2"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:layout_alignParentRight="true"
        android:layout_alignParentTop="true"
        android:background="@drawable/abc_ab_bottom_solid_dark_holo"
        android:gravity="center_horizontal"
        android:orientation="vertical" >

        <LinearLayout
            android:id="@+id/add_task_layout"
            android:layout_width="fill_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:padding="8dp" >

            <ImageView
                android:layout_width="35dp"
                android:layout_height="35dp"
                android:scaleType="fitCenter"
                android:src="@drawable/ofm_add_icon" />

            <TextView
                android:layout_width="wrap_content"
                android:layout_height="fill_parent"
                android:layout_marginLeft="10dp"
                android:gravity="center"
                android:text="添加任务"
                android:textColor="@color/white"
                android:textSize="15dip" />
        </LinearLayout>

        <TextView
            android:layout_width="fill_parent"
            android:layout_height="0.2dp"
            android:background="@color/black" />

        <LinearLayout
            android:id="@+id/team_member_layout"
            android:layout_width="fill_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:padding="8dp" >

            <ImageView
                android:layout_width="35dp"
                android:layout_height="35dp"
                android:scaleType="fitCenter"
                android:src="@drawable/ofm_profile_icon" />

            <TextView
                android:layout_width="wrap_content"
                android:layout_height="fill_parent"
                android:layout_marginLeft="10dp"
                android:gravity="center"
                android:text="团队成员"
                android:textColor="@color/white"
                android:textSize="15dip" />
        </LinearLayout>

    </LinearLayout>

</RelativeLayout>



/14_CustomPopupWindow/res/layout/more_popup_dialog.xml
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:gravity="center_horizontal"
    android:orientation="vertical" >

    <LinearLayout
        android:id="@+id/pop_layout"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:layout_alignParentRight="true"
        android:layout_alignParentTop="true"
        android:background="@drawable/abc_ab_bottom_solid_dark_holo"
        android:gravity="center_horizontal"
        android:orientation="vertical" >

        <LinearLayout
            android:layout_width="fill_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:padding="8dp" >

            <ImageView
                android:layout_width="50dp"
                android:layout_height="50dp"
                android:src="@drawable/defalt_head" />

            <LinearLayout
                android:layout_width="fill_parent"
                android:layout_height="wrap_content"
                android:gravity="left|center_horizontal"
                android:orientation="vertical"
                android:padding="5dp" >

                <TextView
                    android:layout_width="fill_parent"
                    android:layout_height="wrap_content"
                    android:text="wwj"
                    android:textColor="@color/white"
                    android:textSize="15sp" />

                <TextView
                    android:layout_width="fill_parent"
                    android:layout_height="wrap_content"
                    android:text="whatswwj"
                    android:textColor="@color/green"
                    android:textSize="15sp" />
            </LinearLayout>
        </LinearLayout>

        <TextView
            android:layout_width="fill_parent"
            android:layout_height="0.2dp"
            android:background="@color/black" />

        <LinearLayout
            android:layout_width="fill_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:padding="8dp" >

            <ImageView
                android:layout_width="35dp"
                android:layout_height="35dp"
                android:scaleType="fitCenter"
                android:src="@drawable/ofm_photo_icon" />

            <TextView
                android:layout_width="wrap_content"
                android:layout_height="fill_parent"
                android:layout_marginLeft="10dp"
                android:gravity="center"
                android:text="我的相册"
                android:textColor="@color/white"
                android:textSize="15sp" />
        </LinearLayout>

        <TextView
            android:layout_width="fill_parent"
            android:layout_height="0.2dp"
            android:background="@color/black" />

        <LinearLayout
            android:layout_width="fill_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:padding="8dp"
            android:visibility="gone" >

            <ImageView
                android:layout_width="35dp"
                android:layout_height="35dp"
                android:scaleType="fitCenter"
                android:src="@drawable/ofm_collect_icon" />

            <TextView
                android:layout_width="wrap_content"
                android:layout_height="fill_parent"
                android:layout_marginLeft="10dp"
                android:gravity="center"
                android:text="我的收藏"
                android:textColor="@color/white"
                android:textSize="15sp" />
        </LinearLayout>

        <TextView
            android:layout_width="fill_parent"
            android:layout_height="0.2dp"
            android:background="@color/black" />

        <LinearLayout
            android:layout_width="fill_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:padding="8dp"
            android:visibility="gone" >

            <ImageView
                android:layout_width="35dp"
                android:layout_height="35dp"
                android:scaleType="fitCenter"
                android:src="@drawable/ofm_card_icon" />

            <TextView
                android:layout_width="wrap_content"
                android:layout_height="fill_parent"
                android:layout_marginLeft="10dp"
                android:gravity="center"
                android:text="我的银行卡"
                android:textColor="@color/white"
                android:textSize="15sp" />
        </LinearLayout>

        <TextView
            android:layout_width="fill_parent"
            android:layout_height="0.2dp"
            android:background="@color/black"
            android:visibility="gone" />

        <LinearLayout
            android:layout_width="fill_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:padding="8dp" >

            <ImageView
                android:layout_width="35dp"
                android:layout_height="35dp"
                android:scaleType="fitCenter"
                android:src="@drawable/ofm_setting_icon" />

            <TextView
                android:layout_width="wrap_content"
                android:layout_height="fill_parent"
                android:layout_marginLeft="10dp"
                android:gravity="center"
                android:text="设置"
                android:textColor="@color/white"
                android:textSize="15sp" />
        </LinearLayout>

        <TextView
            android:layout_width="fill_parent"
            android:layout_height="0.2dp"
            android:background="@color/black" />

        <LinearLayout
            android:layout_width="fill_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:padding="8dp" >

            <ImageView
                android:layout_width="35dp"
                android:layout_height="35dp"
                android:scaleType="fitCenter"
                android:src="@drawable/ofm_blacklist_icon" />

            <Button
                android:id="@+id/btn_cancel"
                android:layout_width="wrap_content"
                android:layout_height="fill_parent"
                android:layout_marginLeft="10dp"
                android:background="@null"
                android:gravity="center"
                android:text="退出登录"
                android:textColor="@color/white"
                android:textSize="15sp" />
        </LinearLayout>
    </LinearLayout>

</RelativeLayout>

以上分别是主页面和两个popupWindow布局

下面自定义两个PopupWindow,自己封装自己想要的PopuoWindow,这里只是给出示例


/14_CustomPopupWindow/src/com/wwj/popupwindow/AddPopWindow.java
package com.wwj.popupwindow;

import android.app.Activity;
import android.content.Context;
import android.graphics.drawable.ColorDrawable;
import android.view.LayoutInflater;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.ViewGroup.LayoutParams;
import android.widget.LinearLayout;
import android.widget.PopupWindow;

/**
 * 自定义popupWindow
 *
 * @author wwj
 *
 *
 */
public class AddPopWindow extends PopupWindow {
	private View conentView;

	public AddPopWindow(final Activity context) {
		LayoutInflater inflater = (LayoutInflater) context
				.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
		conentView = inflater.inflate(R.layout.add_popup_dialog, null);
		int h = context.getWindowManager().getDefaultDisplay().getHeight();
		int w = context.getWindowManager().getDefaultDisplay().getWidth();
		// 设置SelectPicPopupWindow的View
		this.setContentView(conentView);
		// 设置SelectPicPopupWindow弹出窗体的宽
		this.setWidth(w / 2 + 50);
		// 设置SelectPicPopupWindow弹出窗体的高
		this.setHeight(LayoutParams.WRAP_CONTENT);
		// 设置SelectPicPopupWindow弹出窗体可点击
		this.setFocusable(true);
		this.setOutsideTouchable(true);
		// 刷新状态
		this.update();
		// 实例化一个ColorDrawable颜色为半透明
		ColorDrawable dw = new ColorDrawable(0000000000);
		// 点back键和其他地方使其消失,设置了这个才能触发OnDismisslistener ,设置其他控件变化等操作
		this.setBackgroundDrawable(dw);
		// mPopupWindow.setAnimationStyle(android.R.style.Animation_Dialog);
		// 设置SelectPicPopupWindow弹出窗体动画效果
		this.setAnimationStyle(R.style.AnimationPreview);
		LinearLayout addTaskLayout = (LinearLayout) conentView
				.findViewById(R.id.add_task_layout);
		LinearLayout teamMemberLayout = (LinearLayout) conentView
				.findViewById(R.id.team_member_layout);
		addTaskLayout.setOnClickListener(new OnClickListener() {

			@Override
			public void onClick(View arg0) {
				AddPopWindow.this.dismiss();
			}
		});

		teamMemberLayout.setOnClickListener(new OnClickListener() {

			@Override
			public void onClick(View v) {
				AddPopWindow.this.dismiss();
			}
		});
	}

	/**
	 * 显示popupWindow
	 *
	 * @param parent
	 */
	public void showPopupWindow(View parent) {
		if (!this.isShowing()) {
			// 以下拉方式显示popupwindow
			this.showAsDropDown(parent, parent.getLayoutParams().width / 2, 18);
		} else {
			this.dismiss();
		}
	}
}


/14_CustomPopupWindow/src/com/wwj/popupwindow/MorePopWindow.java
package com.wwj.popupwindow;

import android.app.Activity;
import android.content.Context;
import android.graphics.drawable.ColorDrawable;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup.LayoutParams;
import android.widget.PopupWindow;

public class MorePopWindow extends PopupWindow {
	private View conentView;

	public MorePopWindow(final Activity context) {
		LayoutInflater inflater = (LayoutInflater) context
				.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
		conentView = inflater.inflate(R.layout.more_popup_dialog, null);
		int h = context.getWindowManager().getDefaultDisplay().getHeight();
		int w = context.getWindowManager().getDefaultDisplay().getWidth();
		// 设置SelectPicPopupWindow的View
		this.setContentView(conentView);
		// 设置SelectPicPopupWindow弹出窗体的宽
		this.setWidth(w / 2 + 50);
		// 设置SelectPicPopupWindow弹出窗体的高
		this.setHeight(LayoutParams.WRAP_CONTENT);
		// 设置SelectPicPopupWindow弹出窗体可点击
		this.setFocusable(true);
		this.setOutsideTouchable(true);
		// 刷新状态
		this.update();
		// 实例化一个ColorDrawable颜色为半透明
		ColorDrawable dw = new ColorDrawable(0000000000);
		// 点back键和其他地方使其消失,设置了这个才能触发OnDismisslistener ,设置其他控件变化等操作
		this.setBackgroundDrawable(dw);
		// mPopupWindow.setAnimationStyle(android.R.style.Animation_Dialog);
		// 设置SelectPicPopupWindow弹出窗体动画效果
		this.setAnimationStyle(R.style.AnimationPreview);

	}

	public void showPopupWindow(View parent) {
		if (!this.isShowing()) {
			this.showAsDropDown(parent, parent.getLayoutParams().width / 2, 18);
		} else {
			this.dismiss();
		}
	}
}


上面用到一个动画样式效果:
/14_CustomPopupWindow/res/values/styles.xml
 <style name="AnimationPreview">
        <item name="android:windowEnterAnimation">@anim/fade_in</item>
        <item name="android:windowExitAnimation">@anim/fade_out</item>
    </style>

用到两个动画资源
/14_CustomPopupWindow/res/anim/fade_in.xml
<?xml version="1.0" encoding="utf-8"?>
<!-- 左上角扩大-->
  <scale   xmlns:android="http://schemas.android.com/apk/res/android"
        android:interpolator="@android:anim/accelerate_decelerate_interpolator"
        android:fromXScale="0.001"
        android:toXScale="1.0"
        android:fromYScale="0.001"
        android:toYScale="1.0"
        android:pivotX="100%"
        android:pivotY="10%"
        android:duration="200" />


/14_CustomPopupWindow/res/anim/fade_out.xml
<?xml version="1.0" encoding="utf-8"?>
<!-- 左上角缩小 -->
  <scale   xmlns:android="http://schemas.android.com/apk/res/android"
        android:interpolator="@android:anim/accelerate_decelerate_interpolator"
        android:fromXScale="1.0"
        android:toXScale="0.001"
        android:fromYScale="1.0"
        android:toYScale="0.001"
        android:pivotX="100%"
        android:pivotY="10%"
        android:duration="200" />







/14_CustomPopupWindow/src/com/wwj/popupwindow/MainActivity.java
package com.wwj.popupwindow;

import android.app.Activity;
import android.os.Bundle;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;

public class MainActivity extends Activity implements OnClickListener{
	private Button setButton;
	private Button addButton;

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_swipe);

		setButton = (Button) findViewById(R.id.btnSet);
		addButton = (Button) findViewById(R.id.btnAdd);
		setButton.setOnClickListener(this);
		addButton.setOnClickListener(this);;
	}

	@Override
	public void onClick(View v) {
		switch (v.getId()) {
		case R.id.btnSet:
			MorePopWindow morePopWindow = new MorePopWindow(MainActivity.this);
			morePopWindow.showPopupWindow(setButton);
			break;
		case R.id.btnSearch:

			break;
		case R.id.btnAdd:
			AddPopWindow addPopWindow = new AddPopWindow(MainActivity.this);
			addPopWindow.showPopupWindow(addButton);
			break;
		default:
			break;
		}
	}
}

以上是代码实现,具体可以下载源码参考。






阅读更多
想对作者说点什么?

博主推荐

换一批

没有更多推荐了,返回首页
