make am64x_evm_r5_defconfig O=./testbuild V=1make -C /home/wzx/ti-processor-sdk-linux-am64xx-evm-08.06.00.42/board-support/u-boot-2021.01/testbuild KBUILD_SRC=/home/wzx/ti-processor-sdk-linux-am64xx-evm-08.06.00.42/board-support/u-boot-2021.01 \
-f /home/wzx/ti-processor-sdk-linux-am64xx-evm-08.06.00.42/board-support/u-boot-2021.01/Makefile am64x_evm_r5_defconfig
make[1]: Entering directory '/home/wzx/ti-processor-sdk-linux-am64xx-evm-08.06.00.42/board-support/u-boot-2021.01/testbuild'make -f ../scripts/Makefile.build obj=scripts/basic
rm -f .tmp_quiet_recordmcount
ln -fsn ..source
/bin/bash ../scripts/mkmakefile \...2021 01
GEN ./Makefile
make -f ../scripts/Makefile.build obj=scripts/kconfig am64x_evm_r5_defconfig
scripts/kconfig/conf --defconfig=arch/../configs/am64x_evm_r5_defconfig Kconfig
## configuration written to .config#
make[1]: Leaving directory '/home/wzx/ti-processor-sdk-linux-am64xx-evm-08.06.00.42/board-support/u-boot-2021.01/testbuild'
顶层Makefile简单分析记录
# SPDX-License-Identifier: GPL-2.0+#/*版本号*/
VERSION =2021#主版本号
PATCHLEVEL = 01#补丁版本号
SUBLEVEL =
EXTRAVERSION =
NAME =# *DOCUMENTATION*# To see a list of typical targets execute "make help"# More info can be located in ./README# Comments in this file are targeted only to the developer, do not# expect to learn how to build the kernel reading this file.# o Do not use make's built-in rules and variables# (this increases performance and avoids hard-to-debug behaviour);# o Look for make include files relative to root of kernel src#SHELL和MAKEFLAGS，除非使用unexport声明，否则他们的值自动传递给下级Makefile# = :最基本的赋值# += :给变量追加值# := :覆盖之前的值# ?= :如果没有赋值过就赋予当前的值
MAKEFLAGS += -rR --include-dir=$(CURDIR)#-rR表示禁止使用内置的隐含规则和变量定义# Determine host architecture
include include/host_arch.h
MK_ARCH="${shell uname -m}"//MK_ARCH=x86_64
unexport HOST_ARCH
ifeq ("x86_64", $(MK_ARCH))exportHOST_ARCH=$(HOST_ARCH_X86_64)#执行else ifneq (,$(findstring $(MK_ARCH), "i386""i486""i586""i686"))exportHOST_ARCH=$(HOST_ARCH_X86)else ifneq (,$(findstring $(MK_ARCH), "aarch64""armv8l"))exportHOST_ARCH=$(HOST_ARCH_AARCH64)else ifeq ("armv7l", $(MK_ARCH))exportHOST_ARCH=$(HOST_ARCH_ARM)else ifeq ("riscv32", $(MK_ARCH))exportHOST_ARCH=$(HOST_ARCH_RISCV32)else ifeq ("riscv64", $(MK_ARCH))exportHOST_ARCH=$(HOST_ARCH_RISCV64)
endif
undefine MK_ARCH
# Avoid funny character set dependencies
unexport LC_ALLLC_COLLATE=C
LC_NUMERIC=C
export LC_COLLATE LC_NUMERIC# Avoid interference with shell env settings
unexport GREP_OPTIONS
# We are using a recursive build, so we need to do a little thinking# to get the ordering right.## Most importantly: sub-Makefiles should only ever modify files in# their own directory. If in some directory we have a dependency on# a file in another dir (which doesn't happen often, but it's often# unavoidable when linking the built-in.o targets which finally# turn into vmlinux), we will call a sub make in that other dir, and# after that we are sure that everything which is in that other dir# is now up to date.## The only cases where we need to modify files which have global# effects are thus separated out and done before the recursive# descending is started. They are now explicitly listed as the# prepare rule.# Beautify output# ---------------------------------------------------------------------------## Normally, we echo the whole command before executing it. By making# that echo $($(quiet)$(cmd)), we now have the possibility to set# $(quiet) to choose other forms of output instead, e.g.## quiet_cmd_cc_o_c = Compiling $(RELDIR)/$@# cmd_cc_o_c = $(CC) $(c_flags) -c -o $@ $<## If $(quiet) is empty, the whole command will be printed.# If it is set to "quiet_", only the short version will be printed.# If it is set to "silent_", nothing will be printed at all, since# the variable $(silent_cmd_cc_o_c) doesn't exist.## A simple variant is to prefix commands with $(Q) - that's useful# for commands that shall be hidden in non-verbose mode.## $(Q)ln $@ :<## If KBUILD_VERBOSE equals 0 then the above command will be hidden.# If KBUILD_VERBOSE equals 1 then the above command is displayed.## To put more focus on warnings, be less verbose as default# Use 'make V=1' to see the full commands#当使用V=1,KBUILD_VERBOSE=1,quiet=空，Q=空,使用变量quiet和Q来控制编译时是否完整输出命令#在命令前加上@,就不会在终端输出命令
ifeq ("$(origin V)", "command line")
KBUILD_VERBOSE =$(V)
endif
ifndef KBUILD_VERBOSE
KBUILD_VERBOSE =0
endif
ifeq ($(KBUILD_VERBOSE),1)
quiet =
Q =elsequiet=quiet_
Q = @
endif
# If the user is running make -s (silent mode), suppress echoing of# commands#静默输出，不定义V,编译U-Boot时在终端中显示短命令，make -s即可实现静默输出
ifneq ($(filter 4.%,$(MAKE_VERSION)),)# make-4
ifneq ($(filter %s ,$(firstword x$(MAKEFLAGS))),)quiet=silent_
endif
else# make-3.8x
ifneq ($(filter s% -s%,$(MAKEFLAGS)),)quiet=silent_
endif
endif
export quiet Q KBUILD_VERBOSE
#设置编译输出目录# kbuild supports saving output files in a separate directory.# To locate output files in a separate directory two syntaxes are supported.# In both cases the working directory must be the root of the kernel src.# 1) O=# Use "make O=dir/to/store/output/files/"## 2) Set KBUILD_OUTPUT# Set the environment variable KBUILD_OUTPUT to point to the directory# where the output files shall be placed.# export KBUILD_OUTPUT=dir/to/store/output/files/# make## The O= assignment takes precedence over the KBUILD_OUTPUT environment# variable.# KBUILD_SRC is set on invocation of make in OBJ directory# KBUILD_SRC is not intended to be used by the regular user (for now)
ifeq ($(KBUILD_SRC),)# OK, Make called in directory where kernel src resides# Do we want to locate output files in a separate directory?
ifeq ("$(origin O)", "command line")
KBUILD_OUTPUT :=$(O)
endif
# That's our default target when none is given on the command line
PHONY := _all
_all:
# Cancel implicit rules on top Makefile$(CURDIR)/Makefile Makefile: ;
ifneq ($(KBUILD_OUTPUT),)# Invoke a second make in the output directory, passing relevant variables# check that the output directory actually exists
saved-output :=$(KBUILD_OUTPUT)
KBUILD_OUTPUT :=$(shell mkdir -p $(KBUILD_OUTPUT)&&cd$(KBUILD_OUTPUT)\&& /bin/pwd)$(if$(KBUILD_OUTPUT),, \$(error failed to create output directory "$(saved-output)"))
PHONY +=$(MAKECMDGOALS) sub-make
$(filter-out _all sub-make $(CURDIR)/Makefile, $(MAKECMDGOALS)) _all: sub-make
@:
sub-make: FORCE
$(Q)$(MAKE) -C $(KBUILD_OUTPUT)KBUILD_SRC=$(CURDIR)\
-f $(CURDIR)/Makefile $(filter-out _all sub-make,$(MAKECMDGOALS))# Leave processing to above invocation of make
skip-makefile :=1
endif # ifneq ($(KBUILD_OUTPUT),)
endif # ifeq ($(KBUILD_SRC),)# We process the rest of the Makefile if this is the final invocation of make
ifeq ($(skip-makefile),)# Do not print "Entering directory ...",# but we want to display it when entering to the output directory# so that IDEs/editors are able to understand relative filenames.
MAKEFLAGS += --no-print-directory
# Call a source code checker (by default, "sparse") as part of the# C compilation.#代码检查# Use 'make C=1' to enable checking of only re-compiled files.# Use 'make C=2' to enable checking of *all* source files, regardless# of whether they are re-compiled or not.## See the file "doc/sparse.txt" for more details, including# where to get the "sparse" utility.
ifeq ("$(origin C)", "command line")
KBUILD_CHECKSRC =$(C)
endif
ifndef KBUILD_CHECKSRC
KBUILD_CHECKSRC =0
endif
#模块编译，允许单独编译某个模块# Use make M=dir to specify directory of external module to build# Old syntax make ... SUBDIRS=$PWD is still supported# Setting the environment variable KBUILD_EXTMOD take precedence
ifdef SUBDIRS
KBUILD_EXTMOD ?=$(SUBDIRS)
endif
ifeq ("$(origin M)", "command line")
KBUILD_EXTMOD :=$(M)
endif
# If building an external module we do not care about the all: rule# but instead _all depend on modules
PHONY += all
ifeq ($(KBUILD_EXTMOD),)
_all: all
else
_all: modules
endif
ifeq ($(KBUILD_SRC),)# building in the source tree
srctree :=.else
ifeq ($(KBUILD_SRC)/,$(dir$(CURDIR)))# building in a subdirectory of the source tree
srctree :=..else
srctree :=$(KBUILD_SRC)
endif
endif
objtree :=.
src :=$(srctree)
obj :=$(objtree)
VPATH :=$(srctree)$(if$(KBUILD_EXTMOD),:$(KBUILD_EXTMOD))export srctree objtree VPATH
# Make sure CDPATH settings don't interfere
unexport CDPATH
##########################################################################获取主机架构和系统
HOSTARCH :=$(shell uname -m |\sed -e s/i.86/x86/ \
-e s/sun4u/sparc64/ \
-e s/arm.*/arm/ \
-e s/sa110/arm/ \
-e s/ppc64/powerpc/ \
-e s/ppc/powerpc/ \
-e s/macppc/powerpc/\
-e s/sh.*/sh/)
HOSTOS :=$(shell uname -s |tr'[:upper:]''[:lower:]'|\sed -e 's/\(cygwin\).*/cygwin/')export HOSTARCH HOSTOS
##########################################################################设置目标架构、交叉编译器和配置文件# set default to nothing for native builds
ifeq ($(HOSTARCH),$(ARCH))
CROSS_COMPILE ?=
endif
#配置文件.config默认是没有的，需要使用make xxx_defconfig对U-Boot进行配置
KCONFIG_CONFIG ?= .config
export KCONFIG_CONFIG
# SHELL used by kbuild
CONFIG_SHELL :=$(shell if[ -x "$$BASH"];thenecho $$BASH;\elseif[ -x /bin/bash ];thenecho /bin/bash;\elseechosh;fi;fi)
HOST_LFS_CFLAGS :=$(shell getconf LFS_CFLAGS 2>/dev/null)
HOST_LFS_LDFLAGS :=$(shell getconf LFS_LDFLAGS 2>/dev/null)
HOST_LFS_LIBS :=$(shell getconf LFS_LIBS 2>/dev/null)
HOSTCC = cc
HOSTCXX = c++
KBUILD_HOSTCFLAGS := -Wall -Wstrict-prototypes -O2 -fomit-frame-pointer \$(HOST_LFS_CFLAGS)$(HOSTCFLAGS)
KBUILD_HOSTCXXFLAGS := -O2 $(HOST_LFS_CFLAGS)$(HOSTCXXFLAGS)
KBUILD_HOSTLDFLAGS :=$(HOST_LFS_LDFLAGS)$(HOSTLDFLAGS)
KBUILD_HOSTLDLIBS :=$(HOST_LFS_LIBS)$(HOSTLDLIBS)# With the move to GCC 6, we have implicitly upgraded our language# standard to GNU11 (see https://gcc.gnu.org/gcc-5/porting_to.html).# Some Linux distributions (including RHEL7, SLES13, Debian 8) still# have older compilers as their default, so we make it explicit for# these that our host tools are GNU11 (i.e. C11 w/ GNU extensions).
CSTD_FLAG := -std=gnu11
ifeq ($(HOSTOS),linux)
KBUILD_HOSTCFLAGS +=$(CSTD_FLAG)
endif
ifeq ($(HOSTOS),cygwin)
KBUILD_HOSTCFLAGS += -ansi
endif
# Mac OS X / Darwin's C preprocessor is Apple specific. It# generates numerous errors and warnings. We want to bypass it# and use GNU C's cpp. To do this we pass the -traditional-cpp# option to the compiler. Note that the -traditional-cpp flag# DOES NOT have the same semantics as GNU C's flag, all it does# is invoke the GNU preprocessor in stock ANSI/ISO C fashion.## Apple's linker is similar, thanks to the new 2 stage linking# multiple symbol definitions are treated as errors, hence the# -multiply_defined suppress option to turn off this error.#
ifeq ($(HOSTOS),darwin)# get major and minor product version (e.g. '10' and '6' for Snow Leopard)
DARWIN_MAJOR_VERSION =$(shell sw_vers -productVersion |cut -f 1 -d '.')
DARWIN_MINOR_VERSION =$(shell sw_vers -productVersion |cut -f 2 -d '.')
os_x_before =$(shell if[$(DARWIN_MAJOR_VERSION) -le $(1) -a \$(DARWIN_MINOR_VERSION) -le $(2)];thenecho"$(3)";elseecho"$(4)";fi;)
os_x_after =$(shell if[$(DARWIN_MAJOR_VERSION) -ge $(1) -a \$(DARWIN_MINOR_VERSION) -ge $(2)];thenecho"$(3)";elseecho"$(4)";fi;)# Snow Leopards build environment has no longer restrictions as described above
HOSTCC =$(call os_x_before, 10, 5, "cc", "gcc")
KBUILD_HOSTCFLAGS +=$(call os_x_before, 10, 4, "-traditional-cpp")
KBUILD_HOSTLDFLAGS +=$(call os_x_before, 10, 5, "-multiply_defined suppress")# since Lion (10.7) ASLR is on by default, but we use linker generated lists# in some host tools which is a problem then ... so disable ASLR for these# tools
KBUILD_HOSTLDFLAGS +=$(call os_x_before, 10, 7, "", "-Xlinker -no_pie")# macOS Mojave (10.14.X) # Undefined symbols for architecture x86_64: "_PyArg_ParseTuple"
KBUILD_HOSTLDFLAGS +=$(call os_x_after, 10, 14, "-lpython -dynamclib", "")
endif
# Decide whether to build built-in, modular, or both.# Normally, just do built-in.
KBUILD_MODULES :=
KBUILD_BUILTIN :=1# If we have only "make modules", don't compile built-in objects.# When we're building modules with modversions, we need to consider# the built-in objects during the descend as well, in order to# make sure the checksums are up to date before we record them.
ifeq ($(MAKECMDGOALS),modules)
KBUILD_BUILTIN :=$(if$(CONFIG_MODVERSIONS),1)
endif
# If we have "make <whatever> modules", compile modules# in addition to whatever we do anyway.# Just "make" or "make all" shall build modules as well# U-Boot does not need modules#ifneq ($(filter all _all modules,$(MAKECMDGOALS)),)# KBUILD_MODULES := 1#endif#ifeq ($(MAKECMDGOALS),)# KBUILD_MODULES := 1#endif# Check ths size of a binary:# Args:# $1: File to check# #2: Size limit in bytes (decimal or 0xhex)
define size_check
actual=$$(wc -c $1 |awk'{print $$1}');\limit=$$(printf"%d" $2 );\iftest$$actual -gt $$limit;then\echo"$1 exceeds file size limit:">&2;\echo" limit: $$(printf %#x $$limit) bytes">&2;\echo" actual: $$(printf %#x $$actual) bytes">&2;\echo" excess: $$(printf %#x $$((actual - limit))) bytes">&2;\exit1;\fi
endef
export size_check
export KBUILD_MODULES KBUILD_BUILTIN
export KBUILD_CHECKSRC KBUILD_SRC KBUILD_EXTMOD
# We need some generic definitions (do not try to remake the file).#里边定义了很多变量
scripts/Kbuild.include: ;
include scripts/Kbuild.include
# Make variables (CC, etc...)#交叉编译工具变量设置
AS =$(CROSS_COMPILE)as
# Always use GNU ld
ifneq ($(shell $(CROSS_COMPILE)ld.bfd -v 2> /dev/null),)
LD =$(CROSS_COMPILE)ld.bfd
else
LD =$(CROSS_COMPILE)ld
endif
CC =$(CROSS_COMPILE)gcc
CPP =$(CC) -E
AR =$(CROSS_COMPILE)ar
NM =$(CROSS_COMPILE)nm
LDR =$(CROSS_COMPILE)ldr
STRIP =$(CROSS_COMPILE)strip
OBJCOPY =$(CROSS_COMPILE)objcopy
OBJDUMP =$(CROSS_COMPILE)objdump
LEX = flex
YACC = bison
AWK =awk
PERL = perl
PYTHON ?= python
PYTHON2 = python2
PYTHON3 = python3
DTC ?=$(objtree)/scripts/dtc/dtc
CHECK = sparse
CHECKFLAGS := -D__linux__ -Dlinux -D__STDC__ -Dunix -D__unix__ \
-Wbitwise -Wno-return-void -D__CHECK_ENDIAN__ $(CF)
KBUILD_CPPFLAGS := -D__KERNEL__ -D__UBOOT__
KBUILD_CFLAGS := -Wall -Wstrict-prototypes \
-Wno-format-security \
-fno-builtin -ffreestanding $(CSTD_FLAG)
KBUILD_CFLAGS += -fshort-wchar -fno-strict-aliasing
KBUILD_AFLAGS := -D__ASSEMBLY__
KBUILD_LDFLAGS :=
ifeq ($(cc-name),clang)
ifneq ($(CROSS_COMPILE),)
CLANG_TARGET := --target=$(notdir $(CROSS_COMPILE:%-=%))
GCC_TOOLCHAIN_DIR :=$(dir$(shell which$(LD)))
CLANG_PREFIX := --prefix=$(GCC_TOOLCHAIN_DIR)
GCC_TOOLCHAIN :=$(realpath $(GCC_TOOLCHAIN_DIR)/..)
endif
ifneq ($(GCC_TOOLCHAIN),)
CLANG_GCC_TC := --gcc-toolchain=$(GCC_TOOLCHAIN)
endif
KBUILD_CFLAGS +=$(CLANG_TARGET)$(CLANG_GCC_TC)$(CLANG_PREFIX)
KBUILD_AFLAGS +=$(CLANG_TARGET)$(CLANG_GCC_TC)$(CLANG_PREFIX)
KBUILD_CFLAGS +=$(call cc-option, -no-integrated-as)
KBUILD_AFLAGS +=$(call cc-option, -no-integrated-as)
endif
# Don't generate position independent code
KBUILD_CFLAGS +=$(call cc-option,-fno-PIE)
KBUILD_AFLAGS +=$(call cc-option,-fno-PIE)# Read UBOOTRELEASE from include/config/uboot.release (if it exists)
UBOOTRELEASE =$(shell cat include/config/uboot.release 2> /dev/null)
UBOOTVERSION =$(VERSION)$(if$(PATCHLEVEL),.$(PATCHLEVEL)$(if $(SUBLEVEL),.$(SUBLEVEL)))$(EXTRAVERSION)export VERSION PATCHLEVEL SUBLEVEL UBOOTRELEASE UBOOTVERSION
export ARCH CPU BOARD VENDOR SOC CPUDIR BOARDDIR
export CONFIG_SHELL HOSTCC KBUILD_HOSTCFLAGS CROSS_COMPILE AS LD CC
export CPP AR NM LDR STRIP OBJCOPY OBJDUMP KBUILD_HOSTLDFLAGS KBUILD_HOSTLDLIBS
export MAKE LEX YACC AWK PERL PYTHON PYTHON2 PYTHON3
export HOSTCXX KBUILD_HOSTCXXFLAGS CHECK CHECKFLAGS DTC DTC_FLAGS
export KBUILD_CPPFLAGS NOSTDINC_FLAGS UBOOTINCLUDE OBJCOPYFLAGS KBUILD_LDFLAGS
export KBUILD_CFLAGS KBUILD_AFLAGS
export CC_VERSION_TEXT :=$(shell $(CC) --version |head -n 1)# When compiling out-of-tree modules, put MODVERDIR in the module# tree rather than in the kernel tree. The kernel tree might# even be read-only.export MODVERDIR :=$(if$(KBUILD_EXTMOD),$(firstword $(KBUILD_EXTMOD))/).tmp_versions
# Files to ignore in find ... statementsexport RCS_FIND_IGNORE :=\( -name SCCS -o -name BitKeeper -o -name .svn -o \
-name CVS -o -name .pc -o -name .hg -o -name .git \)\
-prune -o
export RCS_TAR_IGNORE := --exclude SCCS --exclude BitKeeper --exclude .svn \
--exclude CVS --exclude .pc --exclude .hg --exclude .git
# ===========================================================================# Rules shared between *config targets and build targets# Basic helpers built in scripts/
PHONY += scripts_basic
scripts_basic:
$(Q)$(MAKE)$(build)=scripts/basic
$(Q)rm -f .tmp_quiet_recordmcount
# To avoid any implicit rule to kick in, define an empty command.
scripts/basic/%: scripts_basic ;
PHONY += outputmakefile
# outputmakefile generates a Makefile in the output directory, if using a# separate output directory. This allows convenient use of make in the# output directory.
outputmakefile:
ifneq ($(KBUILD_SRC),)$(Q)ln -fsn $(srctree)source$(Q)$(CONFIG_SHELL)$(srctree)/scripts/mkmakefile \$(srctree)$(objtree)$(VERSION)$(PATCHLEVEL)
endif
# To make sure we do not include .config for any of the *config targets# catch them early, and hand them over to scripts/kconfig/Makefile# It is allowed to specify more targets when calling make, including# mixing *config targets and build targets.# For example 'make oldconfig all'.# Detect when mixed targets is specified, and make a second invocation# of make so .config is not included in this case either (for *config).
version_h := include/generated/version_autogenerated.h
timestamp_h := include/generated/timestamp_autogenerated.h
defaultenv_h := include/generated/defaultenv_autogenerated.h
dt_h := include/generated/dt.h
no-dot-config-targets := clean clobber mrproper distclean \help %docs check% coccicheck \
ubootversion backup tests check qcheck tcheck
config-targets :=0
mixed-targets :=0
dot-config :=1
ifneq ($(filter $(no-dot-config-targets), $(MAKECMDGOALS)),)
ifeq ($(filter-out $(no-dot-config-targets), $(MAKECMDGOALS)),)
dot-config :=0
endif
endif
ifeq ($(KBUILD_EXTMOD),)
ifneq ($(filter config %config,$(MAKECMDGOALS)),)
config-targets :=1
ifneq ($(words $(MAKECMDGOALS)),1)
mixed-targets :=1
endif
endif
endif
ifeq ($(mixed-targets),1)# ===========================================================================# We're called with mixed targets (*config and build targets).# Handle them one by one.
PHONY +=$(MAKECMDGOALS) __build_one_by_one
$(filter-out __build_one_by_one, $(MAKECMDGOALS)): __build_one_by_one
@:
__build_one_by_one:
$(Q)set -e;\foriin$(MAKECMDGOALS);do\$(MAKE) -f $(srctree)/Makefile $$i;\doneelse
ifeq ($(config-targets),1)# ===========================================================================# *config targets only - make sure prerequisites are updated, and descend# in scripts/kconfig to make the *config target
KBUILD_DEFCONFIG := sandbox_defconfig
export KBUILD_DEFCONFIG KBUILD_KCONFIG

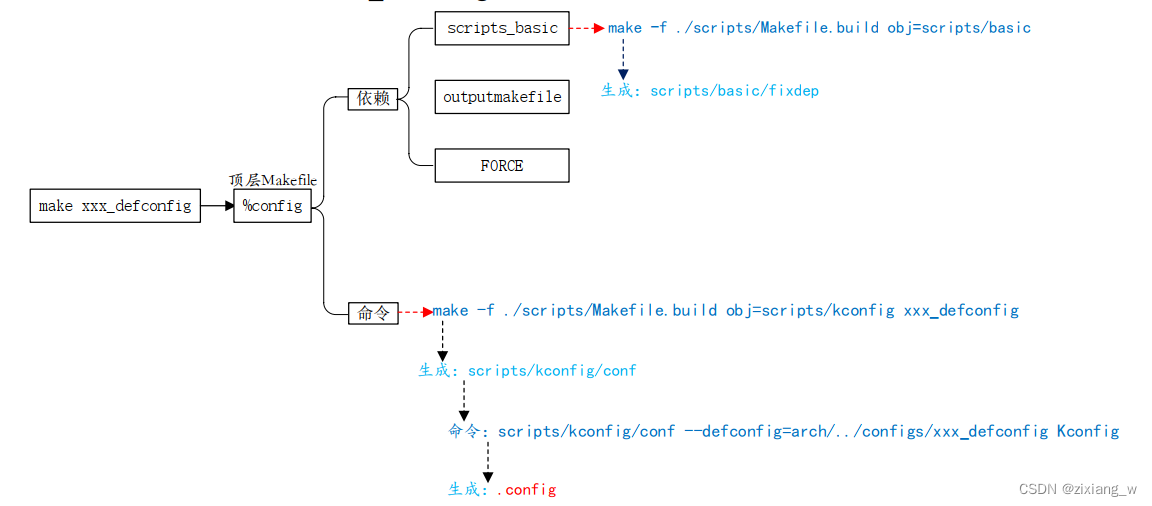

config: scripts_basic outputmakefile FORCE
$(Q)$(MAKE)$(build)=scripts/kconfig $@
%config: scripts_basic outputmakefile FORCE
$(Q)$(MAKE)$(build)=scripts/kconfig $@else# ===========================================================================# Build targets only - this includes vmlinux, arch specific targets, clean# targets and others. In general all targets except *config targets.# Additional helpers built in scripts/# Carefully list dependencies so we do not try to build scripts twice# in parallel
PHONY += scripts
scripts: scripts_basic include/config/auto.conf
$(Q)$(MAKE)$(build)=$(@)
ifeq ($(dot-config),1)# Read in config
-include include/config/auto.conf
# Read in dependencies to all Kconfig* files, make sure to run# oldconfig if changes are detected.
-include include/config/auto.conf.cmd
# To avoid any implicit rule to kick in, define an empty command$(KCONFIG_CONFIG) include/config/auto.conf.cmd: ;# If .config is newer than include/config/auto.conf, someone tinkered# with it and forgot to run make oldconfig.# if auto.conf.cmd is missing then we are probably in a cleaned tree so# we execute the config step to be sure to catch updated Kconfig files
include/config/%.conf: $(KCONFIG_CONFIG) include/config/auto.conf.cmd
$(Q)$(MAKE) -f $(srctree)/Makefile syncconfig
@# If the following part fails, include/config/auto.conf should be
@# deleted so "make silentoldconfig" will be re-run on the next build.$(Q)$(MAKE) -f $(srctree)/scripts/Makefile.autoconf ||\{rm -f include/config/auto.conf;false;}
@# include/config.h has been updated after "make silentoldconfig".
@# We need to touch include/config/auto.conf so it gets newer
@# than include/config.h.
@# Otherwise, 'make silentoldconfig' would be invoked twice.$(Q)touch include/config/auto.conf
u-boot.cfg spl/u-boot.cfg tpl/u-boot.cfg:
$(Q)$(MAKE) -f $(srctree)/scripts/Makefile.autoconf $(@)
-include include/autoconf.mk
-include include/autoconf.mk.dep
# We want to include arch/$(ARCH)/config.mk only when include/config/auto.conf# is up-to-date. When we switch to a different board configuration, old CONFIG# macros are still remaining in include/config/auto.conf. Without the following# gimmick, wrong config.mk would be included leading nasty warnings/errors.
ifneq ($(wildcard $(KCONFIG_CONFIG)),)
ifneq ($(wildcard include/config/auto.conf),)
autoconf_is_old :=$(shell find. -path ./$(KCONFIG_CONFIG) -newer \
include/config/auto.conf)
ifeq ($(autoconf_is_old),)
include config.mk
include arch/$(ARCH)/Makefile
endif
endif
endif
# These are set by the arch-specific config.mk. Make sure they are exported# so they can be used when building an EFI application.export EFI_LDS # Filename of EFI link script in arch/$(ARCH)/libexport EFI_CRT0 # Filename of EFI CRT0 in arch/$(ARCH)/libexport EFI_RELOC # Filename of EFU relocation code in arch/$(ARCH)/libexport CFLAGS_EFI # Compiler flags to add when building EFI appexport CFLAGS_NON_EFI # Compiler flags to remove when building EFI appexport EFI_TARGET # binutils target if EFI is natively supported# If board code explicitly specified LDSCRIPT or CONFIG_SYS_LDSCRIPT, use# that (or fail if absent). Otherwise, search for a linker script in a# standard location.
ifndef LDSCRIPT
#LDSCRIPT := $(srctree)/board/$(BOARDDIR)/u-boot.lds.debug
ifdef CONFIG_SYS_LDSCRIPT
# need to strip off double quotes
LDSCRIPT :=$(srctree)/$(CONFIG_SYS_LDSCRIPT:"%"=%)
endif
endif
# If there is no specified link script, we look in a number of places for it
ifndef LDSCRIPT
ifeq ($(wildcard $(LDSCRIPT)),)
LDSCRIPT :=$(srctree)/board/$(BOARDDIR)/u-boot.lds
endif
ifeq ($(wildcard $(LDSCRIPT)),)
LDSCRIPT :=$(srctree)/$(CPUDIR)/u-boot.lds
endif
ifeq ($(wildcard $(LDSCRIPT)),)
LDSCRIPT :=$(srctree)/arch/$(ARCH)/cpu/u-boot.lds
endif
endif
else# Dummy target needed, because used as prerequisite
include/config/auto.conf: ;
endif # $(dot-config)## Xtensa linker script cannot be preprocessed with -ansi because of# preprocessor operations on strings that don't make C identifiers.#
ifeq ($(CONFIG_XTENSA),)
LDPPFLAGS += -ansi
endif
ifdef CONFIG_CC_OPTIMIZE_FOR_SIZE
KBUILD_CFLAGS += -Os
else
KBUILD_CFLAGS += -O2
endif
KBUILD_CFLAGS +=$(call cc-option,-fno-stack-protector)
KBUILD_CFLAGS +=$(call cc-option,-fno-delete-null-pointer-checks)# disable stringop warnings in gcc 8+
KBUILD_CFLAGS +=$(call cc-disable-warning, stringop-truncation)# Enabled with W=2, disabled by default as noisy
KBUILD_CFLAGS +=$(call cc-disable-warning, maybe-uninitialized)# change __FILE__ to the relative path from the srctree
KBUILD_CFLAGS +=$(call cc-option,-fmacro-prefix-map=$(srctree)/=)
KBUILD_CFLAGS += -g
# $(KBUILD_AFLAGS) sets -g, which causes gcc to pass a suitable -g<format># option to the assembler.
KBUILD_AFLAGS += -g
# Report stack usage if supported# ARC tools based on GCC 7.1 has an issue with stack usage# with naked functions, see commit message for more details
ifndef CONFIG_ARC
ifeq ($(shell $(CONFIG_SHELL)$(srctree)/scripts/gcc-stack-usage.sh $(CC)),y)
KBUILD_CFLAGS += -fstack-usage
endif
endif
KBUILD_CFLAGS +=$(call cc-option,-Wno-format-nonliteral)
KBUILD_CFLAGS +=$(call cc-disable-warning, address-of-packed-member)
ifeq ($(cc-name),clang)
KBUILD_CPPFLAGS +=$(call cc-option,-Qunused-arguments,)
KBUILD_CFLAGS +=$(call cc-disable-warning, format-invalid-specifier)
KBUILD_CFLAGS +=$(call cc-disable-warning, gnu)
KBUILD_CFLAGS +=$(call cc-disable-warning, address-of-packed-member)# Quiet clang warning: comparison of unsigned expression < 0 is always false
KBUILD_CFLAGS +=$(call cc-disable-warning, tautological-compare)# CLANG uses a _MergedGlobals as optimization, but this breaks modpost, as the# source of a reference will be _MergedGlobals and not on of the whitelisted names.# See modpost pattern 2
KBUILD_CFLAGS +=$(call cc-option, -mno-global-merge,)
KBUILD_CFLAGS +=$(call cc-option, -fcatch-undefined-behavior)else# These warnings generated too much noise in a regular build.# Use make W=1 to enable them (see scripts/Makefile.extrawarn)
KBUILD_CFLAGS +=$(call cc-disable-warning, unused-but-set-variable)
endif
# Prohibit date/time macros, which would make the build non-deterministic
KBUILD_CFLAGS +=$(call cc-option,-Werror=date-time)
include scripts/Makefile.extrawarn
# Add user supplied CPPFLAGS, AFLAGS and CFLAGS as the last assignments
KBUILD_CPPFLAGS +=$(KCPPFLAGS)
KBUILD_AFLAGS +=$(KAFLAGS)
KBUILD_CFLAGS +=$(KCFLAGS)
KBUILD_HOSTCFLAGS +=$(if$(CONFIG_TOOLS_DEBUG),-g)# Use UBOOTINCLUDE when you must reference the include/ directory.# Needed to be compatible with the O= option
UBOOTINCLUDE :=\
-Iinclude \$(if$(KBUILD_SRC), -I$(srctree)/include)\$(if$(CONFIG_$(SPL_)SYS_THUMB_BUILD), \$(if$(CONFIG_HAS_THUMB2), \$(if $(CONFIG_CPU_V7M), \
-I$(srctree)/arch/arm/thumb1/include), \
-I$(srctree)/arch/arm/thumb1/include))\
-I$(srctree)/arch/$(ARCH)/include \
-include $(srctree)/include/linux/kconfig.h
NOSTDINC_FLAGS += -nostdinc -isystem $(shell $(CC) -print-file-name=include)# FIX ME
cpp_flags :=$(KBUILD_CPPFLAGS)$(PLATFORM_CPPFLAGS)$(UBOOTINCLUDE)\$(NOSTDINC_FLAGS)
c_flags :=$(KBUILD_CFLAGS)$(cpp_flags)########################################################################## U-Boot objects....order is important (i.e. start must be first)
HAVE_VENDOR_COMMON_LIB =$(if$(wildcard $(srctree)/board/$(VENDOR)/common/Makefile),y,n)
libs-y += lib/
libs-$(HAVE_VENDOR_COMMON_LIB)+= board/$(VENDOR)/common/
libs-$(CONFIG_OF_EMBED)+= dts/
libs-y += fs/
libs-y += net/
libs-y += disk/
libs-y += drivers/
libs-y += drivers/dma/
libs-y += drivers/gpio/
libs-y += drivers/i2c/
libs-y += drivers/net/
libs-y += drivers/net/phy/
libs-y += drivers/power/ \
drivers/power/domain/ \
drivers/power/fuel_gauge/ \
drivers/power/mfd/ \
drivers/power/pmic/ \
drivers/power/battery/ \
drivers/power/regulator/
libs-y += drivers/spi/
libs-$(CONFIG_FMAN_ENET)+= drivers/net/fm/
libs-$(CONFIG_SYS_FSL_DDR)+= drivers/ddr/fsl/
libs-$(CONFIG_SYS_FSL_MMDC)+= drivers/ddr/fsl/
libs-$(CONFIG_$(SPL_)ALTERA_SDRAM)+= drivers/ddr/altera/
libs-y += drivers/serial/
libs-y += drivers/usb/cdns3/
libs-y += drivers/usb/dwc3/
libs-y += drivers/usb/common/
libs-y += drivers/usb/emul/
libs-y += drivers/usb/eth/
libs-$(CONFIG_USB_GADGET)+= drivers/usb/gadget/
libs-$(CONFIG_USB_GADGET)+= drivers/usb/gadget/udc/
libs-y += drivers/usb/host/
libs-y += drivers/usb/mtu3/
libs-y += drivers/usb/musb/
libs-y += drivers/usb/musb-new/
libs-y += drivers/usb/phy/
libs-y += drivers/usb/ulpi/
libs-y += cmd/
libs-y += common/
libs-y += env/
libs-$(CONFIG_API)+= api/
ifdef CONFIG_POST
libs-y += post/
endif
libs-$(CONFIG_UNIT_TEST)+= test/
libs-$(CONFIG_UT_ENV)+= test/env/
libs-$(CONFIG_UT_OPTEE)+= test/optee/
libs-$(CONFIG_UT_OVERLAY)+= test/overlay/
libs-y +=$(if$(BOARDDIR),board/$(BOARDDIR)/)
libs-y :=$(sort$(libs-y))
u-boot-dirs :=$(patsubst %/,%,$(filter %/, $(libs-y))) tools examples
u-boot-alldirs :=$(sort$(u-boot-dirs)$(patsubst %/,%,$(filter %/, $(libs-))))
libs-y :=$(patsubst %/, %/built-in.o, $(libs-y))
u-boot-init :=$(head-y)
u-boot-main :=$(libs-y)# Add GCC lib
ifeq ($(CONFIG_USE_PRIVATE_LIBGCC),y)
PLATFORM_LIBGCC = arch/$(ARCH)/lib/lib.a
else
PLATFORM_LIBGCC := -L $(shell dirname `$(CC)$(c_flags) -print-libgcc-file-name`) -lgcc
endif
PLATFORM_LIBS +=$(PLATFORM_LIBGCC)
ifdef CONFIG_CC_COVERAGE
KBUILD_CFLAGS += --coverage
PLATFORM_LIBGCC += -lgcov
endif
export PLATFORM_LIBS
export PLATFORM_LIBGCC
# Special flags for CPP when processing the linker script.# Pass the version down so we can handle backwards compatibility# on the fly.
LDPPFLAGS +=\
-include $(srctree)/include/u-boot/u-boot.lds.h \
-DCPUDIR=$(CPUDIR)\$(shell $(LD) --version |\sed -ne 's/GNU ld version \([0-9][0-9]*\)\.\([0-9][0-9]*\).*/-DLD_MAJOR=\1 -DLD_MINOR=\2/p')##################################################################################################################################################
ifneq ($(CONFIG_BOARD_SIZE_LIMIT),)BOARD_SIZE_CHECK= @ $(call size_check,$@,$(CONFIG_BOARD_SIZE_LIMIT))else
BOARD_SIZE_CHECK =
endif
ifneq ($(CONFIG_SPL_SIZE_LIMIT),0x0)
SPL_SIZE_CHECK = @$(call size_check,$@,$$(tools/spl_size_limit))else
SPL_SIZE_CHECK =
endif
ifneq ($(CONFIG_TPL_SIZE_LIMIT),0x0)
TPL_SIZE_CHECK = @$(call size_check,$@,$(CONFIG_TPL_SIZE_LIMIT))else
TPL_SIZE_CHECK =
endif
# Statically apply RELA-style relocations (currently arm64 only)# This is useful for arm64 where static relocation needs to be performed on# the raw binary, but certain simulators only accept an ELF file (but don't# do the relocation).
ifneq ($(CONFIG_STATIC_RELA),)# $(1) is u-boot ELF, $(2) is u-boot bin, $(3) is text base
quiet_cmd_static_rela = RELOC $@
cmd_static_rela =\start=$$($(NM)$(2)|grep __rel_dyn_start |cut -f 1 -d ' ');\end=$$($(NM)$(2)|grep __rel_dyn_end |cut -f 1 -d ' ');\
tools/relocate-rela $(3)$(4)$$start $$end
else
quiet_cmd_static_rela =
cmd_static_rela =true
endif
# Always append INPUTS so that arch config.mk's can add custom ones
INPUTS-y += u-boot.srec u-boot.bin u-boot.sym System.map binary_size_check
INPUTS-$(CONFIG_ONENAND_U_BOOT)+= u-boot-onenand.bin
ifeq ($(CONFIG_SPL_FSL_PBL),y)
INPUTS-$(CONFIG_RAMBOOT_PBL)+= u-boot-with-spl-pbl.bin
else
ifneq ($(CONFIG_NXP_ESBC), y)# For Secure Boot The Image needs to be signed and Header must also# be included. So The image has to be built explicitly
INPUTS-$(CONFIG_RAMBOOT_PBL)+= u-boot.pbl
endif
endif
INPUTS-$(CONFIG_SPL)+= spl/u-boot-spl.bin
ifeq ($(CONFIG_MX6)$(CONFIG_IMX_HAB), yy)
INPUTS-$(CONFIG_SPL_FRAMEWORK)+= u-boot-ivt.img
else
ifeq ($(CONFIG_MX7)$(CONFIG_IMX_HAB), yy)
INPUTS-$(CONFIG_SPL_FRAMEWORK)+= u-boot-ivt.img
else
INPUTS-$(CONFIG_SPL_FRAMEWORK)+= u-boot.img
endif
endif
INPUTS-$(CONFIG_TPL)+= tpl/u-boot-tpl.bin
INPUTS-$(CONFIG_OF_SEPARATE)+= u-boot.dtb
ifeq ($(CONFIG_SPL_FRAMEWORK),y)
INPUTS-$(CONFIG_OF_SEPARATE)+= u-boot-dtb.img
endif
INPUTS-$(CONFIG_OF_HOSTFILE)+= u-boot.dtb
ifneq ($(CONFIG_SPL_TARGET),)
INPUTS-$(CONFIG_SPL)+=$(CONFIG_SPL_TARGET:"%"=%)
endif
INPUTS-$(CONFIG_REMAKE_ELF)+= u-boot.elf
INPUTS-$(CONFIG_EFI_APP)+= u-boot-app.efi
INPUTS-$(CONFIG_EFI_STUB)+= u-boot-payload.efi
# Generate this input file for binman
ifeq ($(CONFIG_SPL),)
INPUTS-$(CONFIG_ARCH_MEDIATEK)+= u-boot-mtk.bin
endif
# Add optional build target if defined in board/cpu/soc headers
ifneq ($(CONFIG_BUILD_TARGET),)
INPUTS-y +=$(CONFIG_BUILD_TARGET:"%"=%)
endif
ifeq ($(CONFIG_INIT_SP_RELATIVE)$(CONFIG_OF_SEPARATE),yy)
INPUTS-y += init_sp_bss_offset_check
endif
ifeq ($(CONFIG_MPC85xx)$(CONFIG_OF_SEPARATE),yy)
INPUTS-y += u-boot-with-dtb.bin
endif
ifeq ($(CONFIG_ARCH_ROCKCHIP),y)# On ARM64 this target is produced by binman so we don't need this dep
ifeq ($(CONFIG_ARM64),y)
ifeq ($(CONFIG_SPL),y)# TODO: Get binman to generate this too
INPUTS-y += u-boot-rockchip.bin
endif
else
ifeq ($(CONFIG_SPL),y)# Generate these inputs for binman which will create the output files
INPUTS-y += idbloader.img u-boot.img
endif
endif
endif
INPUTS-$(CONFIG_X86)+= u-boot-x86-start16.bin u-boot-x86-reset16.bin \$(if$(CONFIG_SPL_X86_16BIT_INIT),spl/u-boot-spl.bin)\$(if$(CONFIG_TPL_X86_16BIT_INIT),tpl/u-boot-tpl.bin)
LDFLAGS_u-boot +=$(LDFLAGS_FINAL)# Avoid 'Not enough room for program headers' error on binutils 2.28 onwards.
LDFLAGS_u-boot +=$(call ld-option, --no-dynamic-linker)
ifeq ($(CONFIG_ARC)$(CONFIG_NIOS2)$(CONFIG_X86)$(CONFIG_XTENSA),)
LDFLAGS_u-boot += -Ttext $(CONFIG_SYS_TEXT_BASE)
endif
# insure the checker run with the right endianness
CHECKFLAGS +=$(if$(CONFIG_CPU_BIG_ENDIAN),-mbig-endian,-mlittle-endian)# the checker needs the correct machine size
CHECKFLAGS +=$(if$(CONFIG_64BIT),-m64,-m32)# Normally we fill empty space with 0xff
quiet_cmd_objcopy = OBJCOPY $@
cmd_objcopy =$(OBJCOPY) --gap-fill=0xff $(OBJCOPYFLAGS)\$(OBJCOPYFLAGS_$(@F)) $<$@# Provide a version which does not do this, for use by EFI
quiet_cmd_zobjcopy = OBJCOPY $@
cmd_zobjcopy =$(OBJCOPY)$(OBJCOPYFLAGS)$(OBJCOPYFLAGS_$(@F)) $<$@
quiet_cmd_efipayload = OBJCOPY $@
cmd_efipayload =$(OBJCOPY) -I binary -O $(EFIPAYLOAD_BFDTARGET) -B $(EFIPAYLOAD_BFDARCH) $<$@
MKIMAGEOUTPUT ?= /dev/null
quiet_cmd_mkimage = MKIMAGE $@
cmd_mkimage =$(objtree)/tools/mkimage $(MKIMAGEFLAGS_$(@F)) -d $<$@\>$(MKIMAGEOUTPUT)$(if$(KBUILD_VERBOSE:0=), &&cat$(MKIMAGEOUTPUT))
quiet_cmd_mkfitimage = MKIMAGE $@
cmd_mkfitimage =$(objtree)/tools/mkimage $(MKIMAGEFLAGS_$(@F))\
-f $(U_BOOT_ITS) -p $(CONFIG_FIT_EXTERNAL_OFFSET)$@\>$(MKIMAGEOUTPUT)$(if$(KBUILD_VERBOSE:0=), &&cat$(MKIMAGEOUTPUT))
quiet_cmd_cat = CAT $@
cmd_cat =cat$(filter-out $(PHONY), $^)>$@
append =cat$(filter-out $<$(PHONY), $^)>>$@
quiet_cmd_pad_cat = CAT $@
cmd_pad_cat =$(cmd_objcopy)&&$(append)||rm -f $@
quiet_cmd_lzma = LZMA $@
cmd_lzma = lzma -c -z -k -9 $<>$@
cfg: u-boot.cfg
quiet_cmd_cfgcheck = CFGCHK $2
cmd_cfgcheck =$(srctree)/scripts/check-config.sh $2\$(srctree)/scripts/config_whitelist.txt $(srctree)
PHONY += inputs
inputs: $(INPUTS-y)
all: .binman_stamp inputs
ifeq ($(CONFIG_BINMAN),y)$(call if_changed,binman)
endif
# Timestamp file to make sure that binman always runs
.binman_stamp: FORCE
@touch $@
ifeq ($(CONFIG_DEPRECATED),y)$(warning "You have deprecated configuration options enabled in your .config! Please check your configuration.")
ifeq ($(CONFIG_SPI),y)
ifneq ($(CONFIG_DM_SPI)$(CONFIG_OF_CONTROL),yy)$(warning "The relevant config item with associated code will remove in v2019.07 release.")
endif
endif
endif
ifneq ($(CONFIG_DM),y)
@echo >&2"===================== WARNING ======================"
@echo >&2"This board does not use CONFIG_DM. CONFIG_DM will be"
@echo >&2"compulsory starting with the v2020.01 release."
@echo >&2"Failure to update may result in board removal."
@echo >&2"See doc/driver-model/migration.rst for more info."
@echo >&2"===================================================="
endif
ifeq ($(CONFIG_MMC),y)
ifneq ($(CONFIG_DM_MMC)$(CONFIG_BLK),yy)
@echo >&2"===================== WARNING ======================"
@echo >&2"This board does not use CONFIG_DM_MMC. Please update"
@echo >&2"the board to use CONFIG_DM_MMC before the v2019.04 release."
@echo >&2"Failure to update by the deadline may result in board removal."
@echo >&2"See doc/driver-model/migration.rst for more info."
@echo >&2"===================================================="
endif
endif
ifeq ($(CONFIG_USB),y)
ifneq ($(CONFIG_DM_USB)$(CONFIG_OF_CONTROL)$(CONFIG_BLK),yyy)
@echo >&2"===================== WARNING ======================"
@echo >&2"This board does not use CONFIG_DM_USB. Please update"
@echo >&2"the board to use CONFIG_DM_USB before the v2019.07 release."
@echo >&2"Failure to update by the deadline may result in board removal."
@echo >&2"See doc/driver-model/migration.rst for more info."
@echo >&2"===================================================="
endif
endif
ifeq ($(CONFIG_MVSATA_IDE),y)
@echo >&2"===================== WARNING ======================"
@echo >&2"This board does use CONFIG_MVSATA_IDE which is not"
@echo >&2"ported to driver-model (DM) yet. Please update the storage"
@echo >&2"controller driver to use CONFIG_AHCI before the v2019.07"
@echo >&2"release."
@echo >&2"Failure to update by the deadline may result in board removal."
@echo >&2"See doc/driver-model/migration.rst for more info."
@echo >&2"===================================================="
endif
ifeq ($(CONFIG_LIBATA),y)
ifneq ($(CONFIG_AHCI),y)
@echo >&2"===================== WARNING ======================"
@echo >&2"This board does use CONFIG_LIBATA but has CONFIG_AHCI not"
@echo >&2"enabled. Please update the storage controller driver to use"
@echo >&2"CONFIG_AHCI before the v2019.07 release."
@echo >&2"Failure to update by the deadline may result in board removal."
@echo >&2"See doc/driver-model/migration.rst for more info."
@echo >&2"===================================================="
endif
endif
ifeq ($(CONFIG_PCI),y)
ifneq ($(CONFIG_DM_PCI),y)
@echo >&2"===================== WARNING ======================"
@echo >&2"This board does not use CONFIG_DM_PCI Please update"
@echo >&2"the board to use CONFIG_DM_PCI before the v2019.07 release."
@echo >&2"Failure to update by the deadline may result in board removal."
@echo >&2"See doc/driver-model/migration.rst for more info."
@echo >&2"===================================================="
endif
endif
ifneq ($(CONFIG_LCD)$(CONFIG_VIDEO),)
ifneq ($(CONFIG_DM_VIDEO),y)
@echo >&2"===================== WARNING ======================"
@echo >&2"This board does not use CONFIG_DM_VIDEO Please update"
@echo >&2"the board to use CONFIG_DM_VIDEO before the v2019.07 release."
@echo >&2"Failure to update by the deadline may result in board removal."
@echo >&2"See doc/driver-model/migration.rst for more info."
@echo >&2"===================================================="
endif
endif
ifeq ($(CONFIG_OF_EMBED),y)
@echo >&2"===================== WARNING ======================"
@echo >&2"CONFIG_OF_EMBED is enabled. This option should only"
@echo >&2"be used for debugging purposes. Please use"
@echo >&2"CONFIG_OF_SEPARATE for boards in mainline."
@echo >&2"See doc/README.fdt-control for more info."
@echo >&2"===================================================="
endif
ifeq ($(CONFIG_SPI_FLASH),y)
ifneq ($(CONFIG_DM_SPI_FLASH)$(CONFIG_OF_CONTROL),yy)
@echo >&2"===================== WARNING ======================"
@echo >&2"This board does not use CONFIG_DM_SPI_FLASH. Please update"
@echo >&2"the board to use CONFIG_SPI_FLASH before the v2019.07 release."
@echo >&2"Failure to update by the deadline may result in board removal."
@echo >&2"See doc/driver-model/migration.rst for more info."
@echo >&2"===================================================="
endif
endif
ifneq ($(CONFIG_WATCHDOG)$(CONFIG_HW_WATCHDOG),)
ifneq ($(CONFIG_WDT),y)
@echo >&2"===================== WARNING ======================"
@echo >&2"This board does not use CONFIG_WDT (DM watchdog support)."
@echo >&2"Please update the board to use CONFIG_WDT before the"
@echo >&2"v2019.10 release."
@echo >&2"Failure to update by the deadline may result in board removal."
@echo >&2"See doc/driver-model/migration.rst for more info."
@echo >&2"===================================================="
endif
endif
ifneq ($(CONFIG_NET),)
ifneq ($(CONFIG_DM_ETH),y)
@echo >&2"===================== WARNING ======================"
@echo >&2"This board does not use CONFIG_DM_ETH (Driver Model"
@echo >&2"for Ethernet drivers). Please update the board to use"
@echo >&2"CONFIG_DM_ETH before the v2020.07 release. Failure to"
@echo >&2"update by the deadline may result in board removal."
@echo >&2"See doc/driver-model/migration.rst for more info."
@echo >&2"===================================================="
endif
endif
ifneq ($(CONFIG_SPL_FIT_GENERATOR),)
@echo >&2"===================== WARNING ======================"
@echo >&2"This board uses CONFIG_SPL_FIT_GENERATOR. Please migrate"
@echo >&2"to binman instead, to avoid the proliferation of"
@echo >&2"arch-specific scripts with no tests."
@echo >&2"===================================================="
endif
@# Check that this build does not use CONFIG options that we do not
@# know about unless they are in Kconfig. All the existing CONFIG
@# options are whitelisted, so new ones should not be added.$(call cmd,cfgcheck,u-boot.cfg)
PHONY += dtbs
dtbs: dts/dt.dtb
@:
dts/dt.dtb: u-boot
$(Q)$(MAKE)$(build)=dts dtbs
quiet_cmd_copy = COPY $@
cmd_copy =cp $<$@
ifeq ($(CONFIG_MULTI_DTB_FIT),y)
ifeq ($(CONFIG_MULTI_DTB_FIT_LZO),y)
FINAL_DTB_CONTAINER = fit-dtb.blob.lzo
else ifeq ($(CONFIG_MULTI_DTB_FIT_GZIP),y)
FINAL_DTB_CONTAINER = fit-dtb.blob.gz
else
FINAL_DTB_CONTAINER = fit-dtb.blob
endif
fit-dtb.blob.gz: fit-dtb.blob
@gzip -kf9 $<>$@
fit-dtb.blob.lzo: fit-dtb.blob
@lzop -f9 $<>$@
fit-dtb.blob: dts/dt.dtb FORCE
$(call if_changed,mkimage)
ifneq ($(SOURCE_DATE_EPOCH),)touch -d @$(SOURCE_DATE_EPOCH) fit-dtb.blob
chmod 0600 fit-dtb.blob
endif
MKIMAGEFLAGS_fit-dtb.blob = -f auto -A $(ARCH) -T firmware -C none -O u-boot \
-a 0 -e 0 -E \$(patsubst %,-b arch/$(ARCH)/dts/%.dtb,$(subst ",,$(CONFIG_OF_LIST))) -d /dev/null
ifneq ($(EXT_DTB),)
u-boot-fit-dtb.bin: u-boot-nodtb.bin $(EXT_DTB)$(call if_changed,cat)else
u-boot-fit-dtb.bin: u-boot-nodtb.bin $(FINAL_DTB_CONTAINER)$(call if_changed,cat)
endif
u-boot.bin: u-boot-fit-dtb.bin FORCE
$(call if_changed,copy)
u-boot-dtb.bin: u-boot-nodtb.bin dts/dt.dtb FORCE
$(call if_changed,cat)else ifeq ($(CONFIG_OF_SEPARATE),y)
u-boot-dtb.bin: u-boot-nodtb.bin dts/dt.dtb FORCE
$(call if_changed,cat)
u-boot.bin: u-boot-dtb.bin FORCE
$(call if_changed,copy)else
u-boot.bin: u-boot-nodtb.bin FORCE
$(call if_changed,copy)
endif
# we call Makefile in arch/arm/mach-imx which# has targets which are dependent on targets defined# here. make could not resolve them and we must ensure# that they are finished before calling imx targets
ifeq ($(CONFIG_MULTI_DTB_FIT),y)
IMX_DEPS = u-boot-fit-dtb.bin
endif
%.imx: $(IMX_DEPS) %.bin
$(Q)$(MAKE)$(build)=arch/arm/mach-imx $@$(BOARD_SIZE_CHECK)
%.vyb: %.imx
$(Q)$(MAKE)$(build)=arch/arm/cpu/armv7/vf610 $@
quiet_cmd_copy = COPY $@
cmd_copy =cp $<$@
u-boot.dtb: dts/dt.dtb
$(call cmd,copy)
OBJCOPYFLAGS_u-boot.hex := -O ihex
OBJCOPYFLAGS_u-boot.srec := -O srec
u-boot.hex u-boot.srec: u-boot FORCE
$(call if_changed,objcopy)
OBJCOPYFLAGS_u-boot-elf.srec :=$(OBJCOPYFLAGS_u-boot.srec)
u-boot-elf.srec: u-boot.elf FORCE
$(call if_changed,objcopy)
OBJCOPYFLAGS_u-boot-spl.srec =$(OBJCOPYFLAGS_u-boot.srec)
spl/u-boot-spl.srec: spl/u-boot-spl FORCE
$(call if_changed,objcopy)
%.scif: %.srec
$(Q)$(MAKE)$(build)=arch/arm/mach-rmobile $@
OBJCOPYFLAGS_u-boot-nodtb.bin := -O binary \$(if$(CONFIG_X86_16BIT_INIT),-R .start16 -R .resetvec)\$(if$(CONFIG_MPC85XX_HAVE_RESET_VECTOR),-R .bootpg -R .resetvec)
OBJCOPYFLAGS_u-boot-spl.hex =$(OBJCOPYFLAGS_u-boot.hex)
spl/u-boot-spl.hex: spl/u-boot-spl FORCE
$(call if_changed,objcopy)
binary_size_check: u-boot-nodtb.bin FORCE
@file_size=$(shell wc -c u-boot-nodtb.bin |awk'{print $$1}');\map_size=$(shell cat u-boot.map |\awk'/_image_copy_start/ {start = $$1} /_image_binary_end/ {end = $$1} END {if (start != "" && end != "") print "ibase=16; " toupper(end) " - " toupper(start)}'\|sed's/0X//g'\|bc);\if[""!="$$map_size"];then\iftest$$map_size -ne $$file_size;then\echo"u-boot.map shows a binary size of $$map_size">&2;\echo" but u-boot-nodtb.bin shows $$file_size">&2;\exit1;\fi\fi
ifeq ($(CONFIG_INIT_SP_RELATIVE)$(CONFIG_OF_SEPARATE),yy)
ifneq ($(CONFIG_SYS_MALLOC_F_LEN),)
subtract_sys_malloc_f_len =space=$$(($${space} - $(CONFIG_SYS_MALLOC_F_LEN)))else
subtract_sys_malloc_f_len =true
endif
# The 1/4 margin below is somewhat arbitrary. The likely initial SP usage is# so low that the DTB could probably use 90%+ of the available space, for# current values of CONFIG_SYS_INIT_SP_BSS_OFFSET at least. However, let's be# safe for now and tweak this later if space becomes tight.# A rejected alternative would be to check that some absolute minimum stack# space was available. However, since CONFIG_SYS_INIT_SP_BSS_OFFSET is# deliberately build-specific, to take account of build-to-build stack usage# differences due to different feature sets, there is no common absolute value# to check against.
init_sp_bss_offset_check: u-boot.dtb FORCE
@dtb_size=$(shell wc -c u-boot.dtb |awk'{print $$1}');\space=$(CONFIG_SYS_INIT_SP_BSS_OFFSET);\$(subtract_sys_malloc_f_len);\quarter_space=$$(($${space} /4));\if[ $${dtb_size} -gt $${quarter_space}];then\echo"u-boot.dtb is larger than 1 quarter of ">&2;\echo"(CONFIG_SYS_INIT_SP_BSS_OFFSET - CONFIG_SYS_MALLOC_F_LEN)">&2;\exit1;\fi
endif
shell_cmd ={$(call echo-cmd,$(1))$(cmd_$(1));}
quiet_cmd_objcopy_uboot = OBJCOPY $@
cmd_objcopy_uboot =$(cmd_objcopy)&&$(call shell_cmd,static_rela,$<,$@,$(CONFIG_SYS_TEXT_BASE))||rm -f $@
u-boot-nodtb.bin: u-boot FORCE
$(call if_changed,objcopy_uboot)$(BOARD_SIZE_CHECK)
u-boot.ldr: u-boot
$(CREATE_LDR_ENV)$(LDR) -T $(CONFIG_CPU) -c $@ $<$(LDR_FLAGS)$(BOARD_SIZE_CHECK)# binman# ---------------------------------------------------------------------------# Use 'make BINMAN_DEBUG=1' to enable debugging
ifneq ($(ATF),)
BL31 =$(ATF)
endif
default_dt :=$(if$(DEVICE_TREE),$(DEVICE_TREE),$(CONFIG_DEFAULT_DEVICE_TREE))
quiet_cmd_binman = BINMAN $@
cmd_binman =$(srctree)/tools/binman/binman $(if$(BINMAN_DEBUG),-D)\
--toolpath $(objtree)/tools \$(if$(BINMAN_VERBOSE),-v$(BINMAN_VERBOSE))\
build -u -d u-boot.dtb -O . -m --allow-missing \
-I . -I $(srctree) -I $(srctree)/board/$(BOARDDIR)\
-I arch/$(ARCH)/dts -a of-list=$(CONFIG_OF_LIST)\
-a atf-bl31-path=${BL31}\
-a tee-os-path=${TEE}\
-a ti-secure-dev-pkg-path=${TI_SECURE_DEV_PKG}\
-a default-dt=$(default_dt)\
-a scp-path=$(SCP)\$(BINMAN_$(@F))
OBJCOPYFLAGS_u-boot.ldr.hex := -I binary -O ihex
OBJCOPYFLAGS_u-boot.ldr.srec := -I binary -O srec
u-boot.ldr.hex u-boot.ldr.srec: u-boot.ldr FORCE
$(call if_changed,objcopy)## U-Boot entry point, needed for booting of full-blown U-Boot# from the SPL U-Boot version.#
ifndef CONFIG_SYS_UBOOT_START
CONFIG_SYS_UBOOT_START :=$(CONFIG_SYS_TEXT_BASE)
endif
# Boards with more complex image requirements can provide an .its source file# or a generator script# NOTE: Please do not use this. We are migrating away from Makefile rules to use# binman instead.
ifneq ($(CONFIG_SPL_FIT_SOURCE),"")
U_BOOT_ITS := u-boot.its
$(U_BOOT_ITS):$(subst ",,$(CONFIG_SPL_FIT_SOURCE))$(call if_changed,copy)else
ifneq ($(CONFIG_USE_SPL_FIT_GENERATOR),)
U_BOOT_ITS := u-boot.its
ifeq ($(CONFIG_SPL_FIT_GENERATOR),"arch/arm/mach-imx/mkimage_fit_atf.sh")
U_BOOT_ITS_DEPS += u-boot-nodtb.bin
endif
ifeq ($(CONFIG_SPL_FIT_GENERATOR),"arch/arm/mach-rockchip/make_fit_atf.py")
U_BOOT_ITS_DEPS += u-boot
endif
$(U_BOOT_ITS):$(U_BOOT_ITS_DEPS) FORCE
$(srctree)/$(CONFIG_SPL_FIT_GENERATOR)\$(patsubst %,arch/$(ARCH)/dts/%.dtb,$(subst ",,$(CONFIG_OF_LIST)))>$@
endif
endif
ifdef CONFIG_SPL_LOAD_FIT
MKIMAGEFLAGS_u-boot.img = -f auto -A $(ARCH) -T firmware -C none -O u-boot \
-a $(CONFIG_SYS_TEXT_BASE) -e $(CONFIG_SYS_UBOOT_START)\
-p $(CONFIG_FIT_EXTERNAL_OFFSET)\
-n "U-Boot $(UBOOTRELEASE) for $(BOARD) board" -E \$(patsubst %,-b arch/$(ARCH)/dts/%.dtb,$(subst ",,$(CONFIG_OF_LIST)))\$(patsubst %,-b arch/$(ARCH)/dts/%.dtbo,$(subst ",,$(CONFIG_OF_OVERLAY_LIST)))else
MKIMAGEFLAGS_u-boot.img = -A $(ARCH) -T firmware -C none -O u-boot \
-a $(CONFIG_SYS_TEXT_BASE) -e $(CONFIG_SYS_UBOOT_START)\
-n "U-Boot $(UBOOTRELEASE) for $(BOARD) board"
MKIMAGEFLAGS_u-boot-ivt.img = -A $(ARCH) -T firmware_ivt -C none -O u-boot \
-a $(CONFIG_SYS_TEXT_BASE) -e $(CONFIG_SYS_UBOOT_START)\
-n "U-Boot $(UBOOTRELEASE) for $(BOARD) board"
u-boot-ivt.img: MKIMAGEOUTPUT = u-boot-ivt.img.log
endif
MKIMAGEFLAGS_u-boot-dtb.img =$(MKIMAGEFLAGS_u-boot.img)# Some boards have the kwbimage.cfg file written in advance, while some# other boards generate it on the fly during the build in the build tree.# Let's check if the file exists in the build tree first, otherwise we# fall back to use the one in the source tree.
KWD_CONFIG_FILE =$(shell \if[ -f $(objtree)/$(CONFIG_SYS_KWD_CONFIG:"%"=%)];then\echo -n $(objtree)/$(CONFIG_SYS_KWD_CONFIG:"%"=%);\else\echo -n $(srctree)/$(CONFIG_SYS_KWD_CONFIG:"%"=%);\fi)
MKIMAGEFLAGS_u-boot.kwb = -n $(KWD_CONFIG_FILE)\
-T kwbimage -a $(CONFIG_SYS_TEXT_BASE) -e $(CONFIG_SYS_TEXT_BASE)
MKIMAGEFLAGS_u-boot-spl.kwb = -n $(KWD_CONFIG_FILE)\
-T kwbimage -a $(CONFIG_SYS_TEXT_BASE) -e $(CONFIG_SYS_TEXT_BASE)\$(if$(KEYDIR),-k $(KEYDIR))
MKIMAGEFLAGS_u-boot.pbl = -n $(srctree)/$(CONFIG_SYS_FSL_PBL_RCW:"%"=%)\
-R $(srctree)/$(CONFIG_SYS_FSL_PBL_PBI:"%"=%) -T pblimage
ifeq ($(CONFIG_MPC85xx)$(CONFIG_OF_SEPARATE),yy)
UBOOT_BIN := u-boot-with-dtb.bin
else
UBOOT_BIN := u-boot.bin
endif
MKIMAGEFLAGS_u-boot-lzma.img = -A $(ARCH) -T standalone -C lzma -O u-boot \
-a $(CONFIG_SYS_TEXT_BASE) -e $(CONFIG_SYS_UBOOT_START)\
-n "U-Boot $(UBOOTRELEASE) for $(BOARD) board"
u-boot.bin.lzma: u-boot.bin FORCE
$(call if_changed,lzma)
u-boot-lzma.img: u-boot.bin.lzma FORCE
$(call if_changed,mkimage)
u-boot-dtb.img u-boot.img u-boot.kwb u-boot.pbl u-boot-ivt.img: \$(if$(CONFIG_SPL_LOAD_FIT),u-boot-nodtb.bin \$(if $(CONFIG_OF_SEPARATE)$(CONFIG_OF_EMBED)$(CONFIG_OF_HOSTFILE),dts/dt.dtb)\
,$(UBOOT_BIN)) FORCE
$(call if_changed,mkimage)$(BOARD_SIZE_CHECK)
ifeq ($(CONFIG_SPL_LOAD_FIT_FULL),y)
MKIMAGEFLAGS_u-boot.itb =else
MKIMAGEFLAGS_u-boot.itb = -E
endif
ifdef U_BOOT_ITS
u-boot.itb: u-boot-nodtb.bin \$(if$(CONFIG_OF_SEPARATE)$(CONFIG_OF_EMBED)$(CONFIG_OF_HOSTFILE),dts/dt.dtb)\$(U_BOOT_ITS) FORCE
$(call if_changed,mkfitimage)$(BOARD_SIZE_CHECK)
endif
u-boot-spl.kwb: u-boot.img spl/u-boot-spl.bin FORCE
$(call if_changed,mkimage)
u-boot.sha1: u-boot.bin
tools/ubsha1 u-boot.bin
u-boot.dis: u-boot
$(OBJDUMP) -d $<>$@
ifneq ($(CONFIG_SPL_PAYLOAD),)
SPL_PAYLOAD :=$(CONFIG_SPL_PAYLOAD:"%"=%)else
SPL_PAYLOAD := u-boot.bin
endif
SPL_IMAGE :=$(CONFIG_SPL_IMAGE:"%"=%)
OBJCOPYFLAGS_u-boot-with-spl.bin = -I binary -O binary \
--pad-to=$(CONFIG_SPL_PAD_TO)
u-boot-with-spl.bin: $(SPL_IMAGE)$(SPL_PAYLOAD) FORCE
$(call if_changed,pad_cat)
ifeq ($(CONFIG_ARCH_ROCKCHIP),y)# TPL + SPL
ifeq ($(CONFIG_SPL)$(CONFIG_TPL),yy)
MKIMAGEFLAGS_u-boot-tpl-rockchip.bin = -n $(CONFIG_SYS_SOC) -T rksd
tpl/u-boot-tpl-rockchip.bin: tpl/u-boot-tpl.bin FORCE
$(call if_changed,mkimage)
idbloader.img: tpl/u-boot-tpl-rockchip.bin spl/u-boot-spl.bin FORCE
$(call if_changed,cat)else
MKIMAGEFLAGS_idbloader.img = -n $(CONFIG_SYS_SOC) -T rksd
idbloader.img: spl/u-boot-spl.bin FORCE
$(call if_changed,mkimage)
endif
ifeq ($(CONFIG_ARM64),y)
OBJCOPYFLAGS_u-boot-rockchip.bin = -I binary -O binary \
--pad-to=$(CONFIG_SPL_PAD_TO) --gap-fill=0xff
u-boot-rockchip.bin: idbloader.img u-boot.itb FORCE
$(call if_changed,pad_cat)
endif # CONFIG_ARM64
endif # CONFIG_ARCH_ROCKCHIP
ifeq ($(CONFIG_ARCH_LPC32XX)$(CONFIG_SPL),yy)
MKIMAGEFLAGS_lpc32xx-spl.img = -T lpc32xximage -a $(CONFIG_SPL_TEXT_BASE)
lpc32xx-spl.img: spl/u-boot-spl.bin FORCE
$(call if_changed,mkimage)
OBJCOPYFLAGS_lpc32xx-boot-0.bin = -I binary -O binary --pad-to=$(CONFIG_SPL_PAD_TO)
lpc32xx-boot-0.bin: lpc32xx-spl.img FORCE
$(call if_changed,objcopy)
OBJCOPYFLAGS_lpc32xx-boot-1.bin = -I binary -O binary --pad-to=$(CONFIG_SPL_PAD_TO)
lpc32xx-boot-1.bin: lpc32xx-spl.img FORCE
$(call if_changed,objcopy)
lpc32xx-full.bin: lpc32xx-boot-0.bin lpc32xx-boot-1.bin u-boot.img FORCE
$(call if_changed,cat)
endif
OBJCOPYFLAGS_u-boot-with-tpl.bin = -I binary -O binary \
--pad-to=$(CONFIG_TPL_PAD_TO)
tpl/u-boot-with-tpl.bin: tpl/u-boot-tpl.bin u-boot.bin FORCE
$(call if_changed,pad_cat)
SPL: spl/u-boot-spl.bin FORCE
$(Q)$(MAKE)$(build)=arch/arm/mach-imx $@
ifeq ($(CONFIG_ARCH_IMX8M)$(CONFIG_ARCH_IMX8), y)
ifeq ($(CONFIG_SPL_LOAD_IMX_CONTAINER), y)
u-boot.cnt: u-boot.bin FORCE
$(Q)$(MAKE)$(build)=arch/arm/mach-imx $@
flash.bin: spl/u-boot-spl.bin u-boot.cnt FORCE
$(Q)$(MAKE)$(build)=arch/arm/mach-imx $@else
flash.bin: spl/u-boot-spl.bin u-boot.itb FORCE
$(Q)$(MAKE)$(build)=arch/arm/mach-imx $@
endif
endif
u-boot-with-spl.imx u-boot-with-nand-spl.imx: SPL u-boot.bin FORCE
$(Q)$(MAKE)$(build)=arch/arm/mach-imx $@
MKIMAGEFLAGS_u-boot.ubl = -n $(UBL_CONFIG) -T ublimage -e $(CONFIG_SYS_TEXT_BASE)
u-boot.ubl: u-boot-with-spl.bin FORCE
$(call if_changed,mkimage)
MKIMAGEFLAGS_u-boot-spl.ais = -s -n $(if$(CONFIG_AIS_CONFIG_FILE), \$(srctree)/$(CONFIG_AIS_CONFIG_FILE:"%"=%),"/dev/null")\
-T aisimage -e $(CONFIG_SPL_TEXT_BASE)
spl/u-boot-spl.ais: spl/u-boot-spl.bin FORCE
$(call if_changed,mkimage)
OBJCOPYFLAGS_u-boot.ais = -I binary -O binary --pad-to=$(CONFIG_SPL_PAD_TO)
u-boot.ais: spl/u-boot-spl.ais u-boot.img FORCE
$(call if_changed,pad_cat)
u-boot-signed.sb: u-boot.bin spl/u-boot-spl.bin
$(Q)$(MAKE)$(build)=arch/arm/cpu/arm926ejs/mxs u-boot-signed.sb
u-boot.sb: u-boot.bin spl/u-boot-spl.bin
$(Q)$(MAKE)$(build)=arch/arm/cpu/arm926ejs/mxs u-boot.sb
# On x600 (SPEAr600) U-Boot is appended to U-Boot SPL.# Both images are created using mkimage (crc etc), so that the ROM# bootloader can check its integrity. Padding needs to be done to the# SPL image (with mkimage header) and not the binary. Otherwise the resulting image# which is loaded/copied by the ROM bootloader to SRAM doesn't fit.# The resulting image containing both U-Boot images is called u-boot.spr
MKIMAGEFLAGS_u-boot-spl.img = -A $(ARCH) -T firmware -C none \
-a $(CONFIG_SPL_TEXT_BASE) -e $(CONFIG_SPL_TEXT_BASE) -n XLOADER
spl/u-boot-spl.img: spl/u-boot-spl.bin FORCE
$(call if_changed,mkimage)
OBJCOPYFLAGS_u-boot.spr = -I binary -O binary --pad-to=$(CONFIG_SPL_PAD_TO)\
--gap-fill=0xff
u-boot.spr: spl/u-boot-spl.img u-boot.img FORCE
$(call if_changed,pad_cat)
ifneq ($(CONFIG_ARCH_SOCFPGA),)
quiet_cmd_gensplx4 = GENSPLX4 $@
cmd_gensplx4 =cat spl/u-boot-spl.sfp spl/u-boot-spl.sfp \
spl/u-boot-spl.sfp spl/u-boot-spl.sfp >$@||rm -f $@
spl/u-boot-splx4.sfp: spl/u-boot-spl.sfp FORCE
$(call if_changed,gensplx4)
quiet_cmd_socboot = SOCBOOT $@
cmd_socboot =cat spl/u-boot-splx4.sfp u-boot.img >$@||rm -f $@
u-boot-with-spl.sfp: spl/u-boot-splx4.sfp u-boot.img FORCE
$(call if_changed,socboot)
quiet_cmd_gensplpadx4 = GENSPLPADX4 $@
cmd_gensplpadx4 =ddif=/dev/zero of=spl/u-boot-spl.pad bs=64count=1024;\cat spl/u-boot-spl.sfp spl/u-boot-spl.pad \
spl/u-boot-spl.sfp spl/u-boot-spl.pad \
spl/u-boot-spl.sfp spl/u-boot-spl.pad \
spl/u-boot-spl.sfp spl/u-boot-spl.pad >$@||\rm -f $@ spl/u-boot-spl.pad
u-boot-spl-padx4.sfp: spl/u-boot-spl.sfp FORCE
$(call if_changed,gensplpadx4)
quiet_cmd_socnandboot = SOCNANDBOOT $@
cmd_socnandboot =cat u-boot-spl-padx4.sfp u-boot.img >$@||rm -f $@
u-boot-with-nand-spl.sfp: u-boot-spl-padx4.sfp u-boot.img FORCE
$(call if_changed,socnandboot)
endif
ifeq ($(CONFIG_MPC85xx)$(CONFIG_OF_SEPARATE),yy)
u-boot-with-dtb.bin: u-boot.bin u-boot.dtb \$(if$(CONFIG_MPC85XX_HAVE_RESET_VECTOR), u-boot-br.bin) FORCE
$(call if_changed,binman)
ifeq ($(CONFIG_MPC85XX_HAVE_RESET_VECTOR),y)
OBJCOPYFLAGS_u-boot-br.bin := -O binary -j .bootpg -j .resetvec
u-boot-br.bin: u-boot FORCE
$(call if_changed,objcopy)
endif
endif
quiet_cmd_ldr = LD $@
cmd_ldr =$(LD)$(LDFLAGS_$(@F))\$(filter-out FORCE,$^) -o $@
ifdef CONFIG_X86
OBJCOPYFLAGS_u-boot-x86-start16.bin := -O binary -j .start16
u-boot-x86-start16.bin: u-boot FORCE
$(call if_changed,objcopy)
OBJCOPYFLAGS_u-boot-x86-reset16.bin := -O binary -j .resetvec
u-boot-x86-reset16.bin: u-boot FORCE
$(call if_changed,objcopy)
endif # CONFIG_X86
OBJCOPYFLAGS_u-boot-app.efi :=$(OBJCOPYFLAGS_EFI)
u-boot-app.efi: u-boot FORCE
$(call if_changed,zobjcopy)
u-boot.bin.o: u-boot.bin FORCE
$(call if_changed,efipayload)
u-boot-payload.lds: $(LDSCRIPT_EFI) FORCE
$(call if_changed_dep,cpp_lds)# Rule to link the EFI payload which contains a stub and a U-Boot binary
quiet_cmd_u-boot_payload ?= LD $@
cmd_u-boot_payload ?=$(LD)$(LDFLAGS_EFI_PAYLOAD) -o $@\
-T u-boot-payload.lds arch/x86/cpu/call32.o \
lib/efi/efi.o lib/efi/efi_stub.o u-boot.bin.o \$(addprefix arch/$(ARCH)/lib/,$(EFISTUB))
u-boot-payload: u-boot.bin.o u-boot-payload.lds FORCE
$(call if_changed,u-boot_payload)
OBJCOPYFLAGS_u-boot-payload.efi :=$(OBJCOPYFLAGS_EFI)
u-boot-payload.efi: u-boot-payload FORCE
$(call if_changed,zobjcopy)
u-boot-img.bin: spl/u-boot-spl.bin u-boot.img FORCE
$(call if_changed,cat)#Add a target to create boot binary having SPL binary in PBI format#concatenated with u-boot binary. It is need by PowerPC SoC having#internal SRAM <= 512KB.
MKIMAGEFLAGS_u-boot-spl.pbl = -n $(srctree)/$(CONFIG_SYS_FSL_PBL_RCW:"%"=%)\
-R $(srctree)/$(CONFIG_SYS_FSL_PBL_PBI:"%"=%) -T pblimage \
-A $(ARCH) -a $(CONFIG_SPL_TEXT_BASE)
spl/u-boot-spl.pbl: spl/u-boot-spl.bin FORCE
$(call if_changed,mkimage)
ifeq ($(ARCH),arm)
UBOOT_BINLOAD := u-boot.img
else
ifeq ($(CONFIG_MPC85xx)$(CONFIG_OF_SEPARATE),yy)
UBOOT_BINLOAD := u-boot-with-dtb.bin
else
UBOOT_BINLOAD := u-boot.bin
endif
endif
OBJCOPYFLAGS_u-boot-with-spl-pbl.bin = -I binary -O binary --pad-to=$(CONFIG_SPL_PAD_TO)\
--gap-fill=0xff
u-boot-with-spl-pbl.bin: spl/u-boot-spl.pbl $(UBOOT_BINLOAD) FORCE
$(call if_changed,pad_cat)# PPC4xx needs the SPL at the end of the image, since the reset vector# is located at 0xfffffffc. So we can't use the "u-boot-img.bin" target
# and need to introduce a new build target with the full blown U-Boot
# at the start padded up to the start of the SPL image. And then concat
# the SPL image to the end.
OBJCOPYFLAGS_u-boot-img-spl-at-end.bin := -I binary -O binary \
--pad-to=$(CONFIG_UBOOT_PAD_TO) --gap-fill=0xff
u-boot-img-spl-at-end.bin: u-boot.img spl/u-boot-spl.bin FORCE
$(call if_changed,pad_cat)
quiet_cmd_u-boot-elf ?= LD $@
cmd_u-boot-elf ?= $(LD) u-boot-elf.o -o $@ \
-T u-boot-elf.lds --defsym=$(CONFIG_PLATFORM_ELFENTRY)=$(CONFIG_SYS_TEXT_BASE) \
-Ttext=$(CONFIG_SYS_TEXT_BASE)
u-boot.elf: u-boot.bin u-boot-elf.lds
$(Q)$(OBJCOPY) -I binary $(PLATFORM_ELFFLAGS) $< u-boot-elf.o
$(call if_changed,u-boot-elf)
u-boot-elf.lds: arch/u-boot-elf.lds prepare FORCE
$(call if_changed_dep,cpp_lds)
# MediaTek's ARM-based u-boot needs a header to contains its load address
# which is parsed by the BootROM.
# If the SPL build is enabled, the header will be added to the spl binary,
# and the spl binary and the u-boot.img will be combined into one file.
# Otherwise the header will be added to the u-boot.bin directly.
ifeq ($(CONFIG_SPL),y)
spl/u-boot-spl-mtk.bin: spl/u-boot-spl
else
MKIMAGEFLAGS_u-boot-mtk.bin = -T mtk_image \
-a $(CONFIG_SYS_TEXT_BASE) -e $(CONFIG_SYS_TEXT_BASE) \
-n "$(patsubst "%",%,$(CONFIG_MTK_BROM_HEADER_INFO))"
u-boot-mtk.bin: u-boot.bin FORCE
$(call if_changed,mkimage)
endif
quiet_cmd_endian_swap = SWAP $@
cmd_endian_swap = $(srctree)/tools/endian-swap.py $< $@
u-boot-swap.bin: u-boot.bin FORCE
$(call if_changed,endian_swap)
ARCH_POSTLINK := $(wildcard $(srctree)/arch/$(ARCH)/Makefile.postlink)
# Rule to link u-boot
# May be overridden by arch/$(ARCH)/config.mk
quiet_cmd_u-boot__ ?= LD $@
cmd_u-boot__ ?= $(LD)$(KBUILD_LDFLAGS)$(LDFLAGS_u-boot) -o $@ \
-T u-boot.lds $(u-boot-init) \
--start-group $(u-boot-main) --end-group \
$(PLATFORM_LIBS) -Map u-boot.map; \
$(if$(ARCH_POSTLINK), $(MAKE) -f $(ARCH_POSTLINK) $@, true)
quiet_cmd_smap = GEN common/system_map.o
cmd_smap = \
smap=`$(call SYSTEM_MAP,u-boot)|\awk'$$2 ~ /[tTwW]/ {printf $$1 $$3 "\\\\000"}'` ; \
$(CC)$(c_flags) -DSYSTEM_MAP="\"$${smap}\"" \
-c $(srctree)/common/system_map.c -o common/system_map.o
u-boot: $(u-boot-init)$(u-boot-main) u-boot.lds FORCE
+$(call if_changed,u-boot__)
ifeq ($(CONFIG_KALLSYMS),y)
$(call cmd,smap)$(call cmd,u-boot__) common/system_map.o
endif
ifeq ($(CONFIG_RISCV),y)
@tools/prelink-riscv $@ 0
endif
quiet_cmd_sym ?= SYM $@
cmd_sym ?= $(OBJDUMP) -t $< > $@
u-boot.sym: u-boot FORCE
$(call if_changed,sym)
# The actual objects are generated when descending,
# make sure no implicit rule kicks in
$(sort$(u-boot-init)$(u-boot-main)): $(u-boot-dirs) ;
# Handle descending into subdirectories listed in $(u-boot-dirs)
# Preset locale variables to speed up the build process. Limit locale
# tweaks to this spot to avoid wrong language settings when running
# make menuconfig etc.
# Error messages still appears in the original language
PHONY += $(u-boot-dirs)$(u-boot-dirs): prepare scripts
$(Q)$(MAKE)$(build)=$@
tools: prepare
# The "tools" are needed early
$(filter-out tools, $(u-boot-dirs)): tools
# The "examples" conditionally depend on U-Boot (say, when USE_PRIVATE_LIBGCC
# is "yes"), so compile examples after U-Boot is compiled.
examples: $(filter-out examples, $(u-boot-dirs))
define filechk_uboot.release
echo "$(UBOOTVERSION)$$($(CONFIG_SHELL)$(srctree)/scripts/setlocalversion $(srctree))"
endef
# Store (new) UBOOTRELEASE string in include/config/uboot.release
include/config/uboot.release: include/config/auto.conf FORCE
$(call filechk,uboot.release)
# Things we need to do before we recursively start building the kernel
# or the modules are listed in "prepare".
# A multi level approach is used. prepareN is processed before prepareN-1.
# archprepare is used in arch Makefiles and when processed asm symlink,
# version.h and scripts_basic is processed / created.
# Listed in dependency order
PHONY += prepare archprepare prepare0 prepare1 prepare2 prepare3
# prepare3 is used to check if we are building in a separate output directory,
# and if so do:
# 1) Check that make has not been executed in the kernel src $(srctree)
prepare3: include/config/uboot.release
ifneq ($(KBUILD_SRC),)
@$(kecho) ' Using $(srctree) as source for U-Boot'
$(Q)if [ -f $(srctree)/.config -o -d $(srctree)/include/config ]; then \
echo >&2 "$(srctree) is not clean, please run 'make mrproper'"; \
echo >&2 "in the '$(srctree)' directory.";\
/bin/false; \
fi;
endif
# prepare2 creates a makefile if using a separate output directory
prepare2: prepare3 outputmakefile cfg
prepare1: prepare2 $(version_h)$(timestamp_h)$(dt_h) \
include/config/auto.conf
ifeq ($(wildcard $(LDSCRIPT)),)
@echo >&2 " Could not find linker script."
@/bin/false
endif
ifeq ($(CONFIG_USE_DEFAULT_ENV_FILE),y)
prepare1: $(defaultenv_h)
endif
archprepare: prepare1 scripts_basic
prepare0: archprepare FORCE
$(Q)$(MAKE)$(build)=.
# All the preparing..
prepare: prepare0
# Generate some files
# ---------------------------------------------------------------------------
define filechk_version.h
(echo \#define PLAIN_VERSION \"$(UBOOTRELEASE)\"; \
echo \#define U_BOOT_VERSION \"U-Boot \" PLAIN_VERSION; \
echo \#define CC_VERSION_STRING \"$$(LC_ALL=C $(CC) --version |head -n 1)\"; \
echo \#define LD_VERSION_STRING \"$$(LC_ALL=C $(LD) --version |head -n 1)\"; )
endef
# The SOURCE_DATE_EPOCH mechanism requires a date that behaves like GNU date.
# The BSD date on the other hand behaves different and would produce errors
# with the misused '-d' switch. Respect that and search a working date with
# well known pre- and suffixes for the GNU variant of date.
define filechk_timestamp.h
(if test -n "$${SOURCE_DATE_EPOCH}"; then \
SOURCE_DATE="@$${SOURCE_DATE_EPOCH}"; \
DATE="";\fordatein gdate date.gnu date;do\
$${date} -u -d "$${SOURCE_DATE}">/dev/null 2>&1&&DATE="$${date}";\done;\iftest -n "$${DATE}";then\LC_ALL=C $${DATE} -u -d "$${SOURCE_DATE}" +'#define U_BOOT_DATE "%b %d %C%y"';\LC_ALL=C $${DATE} -u -d "$${SOURCE_DATE}" +'#define U_BOOT_TIME "%T"';\LC_ALL=C $${DATE} -u -d "$${SOURCE_DATE}" +'#define U_BOOT_TZ "%z"';\LC_ALL=C $${DATE} -u -d "$${SOURCE_DATE}" +'#define U_BOOT_DMI_DATE "%m/%d/%Y"';\LC_ALL=C $${DATE} -u -d "$${SOURCE_DATE}" +'#define U_BOOT_BUILD_DATE 0x%Y%m%d';\LC_ALL=C $${DATE} -u -d "$${SOURCE_DATE}" +'#define U_BOOT_EPOCH %s';\else\return42;\fi;\else\LC_ALL=C date +'#define U_BOOT_DATE "%b %d %C%y"';\LC_ALL=C date +'#define U_BOOT_TIME "%T"';\LC_ALL=C date +'#define U_BOOT_TZ "%z"';\LC_ALL=C date +'#define U_BOOT_DMI_DATE "%m/%d/%Y"';\LC_ALL=C date +'#define U_BOOT_BUILD_DATE 0x%Y%m%d';\LC_ALL=C date +'#define U_BOOT_EPOCH %s';\fi)
endef
define filechk_defaultenv.h
(grep -v '^#'|\grep -v '^$$'|\tr'\n''\0'|\sed -e 's/\\\x0\s*//g'|\
xxd -i ;echo", 0x00";)
endef
define filechk_dt.h
(if test -n "$${DEVICE_TREE}";then\echo\#define DEVICE_TREE \"$(DEVICE_TREE)\";\else\echo\#define DEVICE_TREE CONFIG_DEFAULT_DEVICE_TREE;\fi)
endef
$(version_h): include/config/uboot.release FORCE
$(call filechk,version.h)$(timestamp_h):$(srctree)/Makefile FORCE
$(call filechk,timestamp.h)$(dt_h):$(srctree)/Makefile FORCE
$(call filechk,dt.h)$(defaultenv_h):$(CONFIG_DEFAULT_ENV_FILE:"%"=%) FORCE
$(call filechk,defaultenv.h)# ---------------------------------------------------------------------------
quiet_cmd_cpp_lds = LDS $@
cmd_cpp_lds =$(CPP) -Wp,-MD,$(depfile)$(cpp_flags)$(LDPPFLAGS)\
-D__ASSEMBLY__ -x assembler-with-cpp -std=c99 -P -o $@ $<
u-boot.lds: $(LDSCRIPT) prepare FORCE
$(call if_changed_dep,cpp_lds)
spl/u-boot-spl.bin: spl/u-boot-spl
@:
$(SPL_SIZE_CHECK)
spl/u-boot-spl: tools prepare \$(if$(CONFIG_OF_SEPARATE)$(CONFIG_OF_EMBED)$(CONFIG_SPL_OF_PLATDATA),dts/dt.dtb)\$(if$(CONFIG_OF_SEPARATE)$(CONFIG_OF_EMBED)$(CONFIG_TPL_OF_PLATDATA),dts/dt.dtb)$(Q)$(MAKE)obj=spl -f $(srctree)/scripts/Makefile.spl all
spl/sunxi-spl.bin: spl/u-boot-spl
@:
spl/sunxi-spl-with-ecc.bin: spl/sunxi-spl.bin
@:
spl/u-boot-spl.sfp: spl/u-boot-spl
@:
spl/boot.bin: spl/u-boot-spl
@:
tpl/u-boot-tpl.bin: tools prepare \$(if$(CONFIG_OF_SEPARATE)$(CONFIG_OF_EMBED)$(CONFIG_SPL_OF_PLATDATA),dts/dt.dtb)$(Q)$(MAKE)obj=tpl -f $(srctree)/scripts/Makefile.spl all
$(TPL_SIZE_CHECK)
TAG_SUBDIRS :=$(patsubst %,$(srctree)/%,$(u-boot-dirs) include)
FIND :=find
FINDFLAGS := -L
tags ctags:
ctags -w -o ctags `$(FIND)$(FINDFLAGS)$(TAG_SUBDIRS)\
-name '*.[chS]' -print`ln -s ctags tags
etags:
etags -a -o etags `$(FIND)$(FINDFLAGS)$(TAG_SUBDIRS)\
-name '*.[chS]' -print`
cscope:
$(FIND)$(FINDFLAGS)$(TAG_SUBDIRS) -name '*.[chS]' -print >\
cscope.files
@find $(TAG_SUBDIRS) -name '*.[chS]' -type l -print |\grep -xvf - cscope.files > cscope.files.no-symlinks;\mv cscope.files.no-symlinks cscope.files
cscope -b -q -k
SYSTEM_MAP =\$(NM)$1|\grep -v '\(compiled\)\|\(\.o$$\)\|\( [aUw] \)\|\(\.\.ng$$\)\|\(LASH[RL]DI\)'|\LC_ALL=C sort
System.map: u-boot
@$(call SYSTEM_MAP,$<)>$@########################################################################## ARM relocations should all be R_ARM_RELATIVE (32-bit) or# R_AARCH64_RELATIVE (64-bit).
checkarmreloc: u-boot
@RELOC="`$(CROSS_COMPILE)readelf -r -W $<|cut -d ' ' -f 4|\grep R_A |sort -u`";\iftest"$$RELOC"!="R_ARM_RELATIVE" -a \"$$RELOC"!="R_AARCH64_RELATIVE";then\echo"$< contains unexpected relocations: $$RELOC";\false;\fi
tools/version.h: include/version.h
$(Q)mkdir -p $(dir $@)$(call if_changed,copy)
envtools: scripts_basic $(version_h)$(timestamp_h) tools/version.h
$(Q)$(MAKE)$(build)=tools/env
tools-only: exportTOOLS_ONLY=y
tools-only: scripts_basic $(version_h)$(timestamp_h) tools/version.h
$(Q)$(MAKE)$(build)=tools
tools-all: exportHOST_TOOLS_ALL=y
tools-all: envtools tools ;
cross_tools: exportCROSS_BUILD_TOOLS=y
cross_tools: tools ;
.PHONY : CHANGELOG
CHANGELOG:
git log --no-merges U-Boot-1_1_5..|\unexpand -a |sed -e 's/\s\s*$$//'>$@############################################################################# Cleaning is done on three levels.# make clean Delete most generated files# Leave enough to build external modules# make mrproper Delete the current configuration, and all generated files# make distclean Remove editor backup files, patch leftover files and the like# Directories & files removed with 'make clean'
CLEAN_DIRS +=$(MODVERDIR)\$(foreach d, spl tpl, $(patsubst %,$d/%, \$(filter-out include, $(shell ls -1 $d 2>/dev/null))))
CLEAN_FILES += include/bmp_logo.h include/bmp_logo_data.h tools/version.h \
boot* u-boot* MLO* SPL System.map fit-dtb.blob* \
u-boot-ivt.img.log u-boot-dtb.imx.log SPL.log u-boot.imx.log \
lpc32xx-* bl31.c bl31.elf bl31_*.bin image.map tispl.bin* \
idbloader.img flash.bin flash.log defconfig
# Directories & files removed with 'make mrproper'
MRPROPER_DIRS += include/config include/generated spl tpl \
.tmp_objdiff doc/output
MRPROPER_FILES += .config .config.old include/autoconf.mk* include/config.h \
ctags etags tags TAGS cscope* GPATH GTAGS GRTAGS GSYMS \
drivers/video/fonts/*.S
# clean - Delete most, but leave enough to build external modules#
clean: rm-dirs :=$(CLEAN_DIRS)
clean: rm-files :=$(CLEAN_FILES)
clean-dirs :=$(foreach f,$(u-boot-alldirs),$(if $(wildcard $(srctree)/$f/Makefile),$f))
clean-dirs :=$(addprefix _clean_, $(clean-dirs))
PHONY +=$(clean-dirs) clean archclean
$(clean-dirs):$(Q)$(MAKE)$(clean)=$(patsubst _clean_%,%,$@)
clean: $(clean-dirs)$(call cmd,rmdirs)$(call cmd,rmfiles)
@find $(if$(KBUILD_EXTMOD), $(KBUILD_EXTMOD), .)$(RCS_FIND_IGNORE)\\( -name '*.[oas]' -o -name '*.ko' -o -name '.*.cmd'\
-o -name '*.ko.*' -o -name '*.su' -o -name '*.pyc'\
-o -name '.*.d' -o -name '.*.tmp' -o -name '*.mod.c'\
-o -name '*.lex.c' -o -name '*.tab.[ch]'\
-o -name '*.asn1.[ch]'\
-o -name '*.symtypes' -o -name 'modules.order'\
-o -name modules.builtin -o -name '.tmp_*.o.*'\
-o -name 'dsdt.aml' -o -name 'dsdt.asl.tmp' -o -name 'dsdt.c'\
-o -name '*.efi' -o -name '*.gcno' -o -name '*.so'\)\
-type f -print |xargsrm -f
# mrproper - Delete all generated files, including .config#
mrproper: rm-dirs :=$(wildcard $(MRPROPER_DIRS))
mrproper: rm-files :=$(wildcard $(MRPROPER_FILES))
mrproper-dirs :=$(addprefix _mrproper_,scripts)
PHONY +=$(mrproper-dirs) mrproper archmrproper
$(mrproper-dirs):$(Q)$(MAKE)$(clean)=$(patsubst _mrproper_%,%,$@)
mrproper: clean $(mrproper-dirs)$(call cmd,rmdirs)$(call cmd,rmfiles)
@rm -f arch/*/include/asm/arch
# distclean#
PHONY += distclean
distclean: mrproper
@find $(srctree)$(RCS_FIND_IGNORE)\\( -name '*.orig' -o -name '*.rej' -o -name '*~'\
-o -name '*.bak' -o -name '#*#' -o -name '.*.orig'\
-o -name '.*.rej' -o -name '*%' -o -name 'core'\
-o -name '*.pyc'\)\
-type f -print |xargsrm -f
@rm -f boards.cfg CHANGELOG
backup:
F=`basename$(srctree)`;cd..;\
gtar --force-local -zcvf `LC_ALL=C date"+$$F-%Y-%m-%d-%T.tar.gz"`$$F
help:
@echo 'Cleaning targets:'
@echo ' clean - Remove most generated files but keep the config'
@echo ' mrproper - Remove all generated files + config + various backup files'
@echo ' distclean - mrproper + remove editor backup and patch files'
@echo ''
@echo 'Configuration targets:'
@$(MAKE) -f $(srctree)/scripts/kconfig/Makefile help
@echo ''
@echo 'Test targets:'
@echo ''
@echo ' check - Run all automated tests that use sandbox'
@echo ' qcheck - Run quick automated tests that use sandbox'
@echo ' tcheck - Run quick automated tests on tools'
@echo ''
@echo 'Other generic targets:'
@echo ' all - Build all necessary images depending on configuration'
@echo ' tests - Build U-Boot for sandbox and run tests'
@echo '* u-boot - Build the bare u-boot'
@echo ' dir/ - Build all files in dir and below'
@echo ' dir/file.[oisS] - Build specified target only'
@echo ' dir/file.lst - Build specified mixed source/assembly target only'
@echo ' (requires a recent binutils and recent build (System.map))'
@echo ' tags/ctags - Generate ctags file for editors'
@echo ' etags - Generate etags file for editors'
@echo ' cscope - Generate cscope index'
@echo ' ubootrelease - Output the release version string (use with make -s)'
@echo ' ubootversion - Output the version stored in Makefile (use with make -s)'
@echo " cfg - Don't build, just create the .cfg files"
@echo " envtools - Build only the target-side environment tools"
@echo ''
@echo 'Static analysers'
@echo ' checkstack - Generate a list of stack hogs'
@echo ' coccicheck - Execute static code analysis with Coccinelle'
@echo ''
@echo 'Documentation targets:'
@$(MAKE) -f $(srctree)/doc/Makefile dochelp
@echo ''
@echo ' make V=0|1 [targets] 0 => quiet build (default), 1 => verbose build'
@echo ' make V=2 [targets] 2 => give reason for rebuild of target'
@echo ' make O=dir [targets] Locate all output files in "dir", including .config'
@echo ' make C=1 [targets] Check all c source with $$CHECK (sparse by default)'
@echo ' make C=2 [targets] Force check of all c source with $$CHECK'
@echo ' make RECORDMCOUNT_WARN=1 [targets] Warn about ignored mcount sections'
@echo ' make W=n [targets] Enable extra gcc checks, n=1,2,3 where'
@echo ' 1: warnings which may be relevant and do not occur too often'
@echo ' 2: warnings which occur quite often but may still be relevant'
@echo ' 3: more obscure warnings, can most likely be ignored'
@echo ' Multiple levels can be combined with W=12 or W=123'
@echo ''
@echo 'Execute "make" or "make all" to build all targets marked with [*] '
@echo 'For further info see the ./README file'
tests check:
$(srctree)/test/run
qcheck:
$(srctree)/test/run quick
tcheck:
$(srctree)/test/run tools
# Documentation targets# ---------------------------------------------------------------------------
DOC_TARGETS := xmldocs latexdocs pdfdocs htmldocs epubdocs cleandocs \
linkcheckdocs dochelp refcheckdocs
PHONY +=$(DOC_TARGETS)$(DOC_TARGETS): scripts_basic FORCE
$(Q)$(MAKE)$(build)=doc $@
endif #ifeq ($(config-targets),1)
endif #ifeq ($(mixed-targets),1)
PHONY += checkstack ubootrelease ubootversion
checkstack:
$(OBJDUMP) -d u-boot $$(find. -name u-boot-spl)|\$(PERL)$(src)/scripts/checkstack.pl $(ARCH)
ubootrelease:
@echo "$(UBOOTVERSION)$$($(CONFIG_SHELL)$(srctree)/scripts/setlocalversion $(srctree))"
ubootversion:
@echo $(UBOOTVERSION)# Single targets# ---------------------------------------------------------------------------# Single targets are compatible with:# - build with mixed source and output# - build with separate output dir 'make O=...'# - external modules## target-dir => where to store outputfile# build-dir => directory in kernel source tree to use
ifeq ($(KBUILD_EXTMOD),)
build-dir =$(patsubst %/,%,$(dir $@))
target-dir =$(dir $@)else
zap-slash=$(filter-out .,$(patsubst %/,%,$(dir $@)))
build-dir =$(KBUILD_EXTMOD)$(if$(zap-slash),/$(zap-slash))
target-dir =$(if$(KBUILD_EXTMOD),$(dir $<),$(dir $@))
endif
%.s: %.c prepare scripts FORCE
$(Q)$(MAKE)$(build)=$(build-dir)$(target-dir)$(notdir $@)
%.i: %.c prepare scripts FORCE
$(Q)$(MAKE)$(build)=$(build-dir)$(target-dir)$(notdir $@)
%.o: %.c prepare scripts FORCE
$(Q)$(MAKE)$(build)=$(build-dir)$(target-dir)$(notdir $@)
%.lst: %.c prepare scripts FORCE
$(Q)$(MAKE)$(build)=$(build-dir)$(target-dir)$(notdir $@)
%.s: %.S prepare scripts FORCE
$(Q)$(MAKE)$(build)=$(build-dir)$(target-dir)$(notdir $@)
%.o: %.S prepare scripts FORCE
$(Q)$(MAKE)$(build)=$(build-dir)$(target-dir)$(notdir $@)
%.symtypes: %.c prepare scripts FORCE
$(Q)$(MAKE)$(build)=$(build-dir)$(target-dir)$(notdir $@)# Modules
/: prepare scripts FORCE
$(cmd_crmodverdir)$(Q)$(MAKE)KBUILD_MODULES=$(if$(CONFIG_MODULES),1)\$(build)=$(build-dir)
%/: prepare scripts FORCE
$(cmd_crmodverdir)$(Q)$(MAKE)KBUILD_MODULES=$(if$(CONFIG_MODULES),1)\$(build)=$(build-dir)
%.ko: prepare scripts FORCE
$(cmd_crmodverdir)$(Q)$(MAKE)KBUILD_MODULES=$(if$(CONFIG_MODULES),1)\$(build)=$(build-dir)$(@:.ko=.o)$(Q)$(MAKE) -f $(srctree)/scripts/Makefile.modpost
quiet_cmd_genenv = GENENV $@
cmd_genenv =$(OBJCOPY) --dump-section .rodata.default_environment=$@ env/common.o;\sed --in-place -e 's/\x00/\x0A/g'$@
u-boot-initial-env: u-boot.bin
$(call if_changed,genenv)# Consistency checks# ---------------------------------------------------------------------------
PHONY += coccicheck
coccicheck:
$(Q)$(CONFIG_SHELL)$(srctree)/scripts/$@# FIXME Should go into a make.lib or something# ===========================================================================
quiet_cmd_rmdirs =$(if$(wildcard $(rm-dirs)),CLEAN $(wildcard $(rm-dirs)))
cmd_rmdirs =rm -rf $(rm-dirs)
quiet_cmd_rmfiles =$(if$(wildcard $(rm-files)),CLEAN $(wildcard $(rm-files)))
cmd_rmfiles =rm -f $(rm-files)# read all saved command lines
cmd_files :=$(wildcard .*.cmd $(foreach f,$(sort $(targets)),$(dir$(f)).$(notdir $(f)).cmd))
ifneq ($(cmd_files),)$(cmd_files):;# Do not try to update included dependency files
include $(cmd_files)
endif
endif # skip-makefile
PHONY += FORCE
FORCE:
# Declare the contents of the PHONY variable as phony. We keep that# information in a variable so we can use it in if_changed and friends.
.PHONY: $(PHONY)
扫一扫
1862
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
