一、背景
我们可以使用 shiro 进行认证操作,下面粘贴的是 LoginController 的代码,模拟用户登录的请求操作:
@Controller
@Slf4j
public class LoginController {
@RequestMapping("/login")
public String login(User user) {
if (StringUtils.isEmpty(user.getUserName()) || StringUtils.isEmpty(user.getPassword())) {
return "error";
}
//用户认证信息
Subject subject = SecurityUtils.getSubject();
UsernamePasswordToken usernamePasswordToken = new UsernamePasswordToken(
user.getUserName(),
user.getPassword());
usernamePasswordToken.setRememberMe(true);
try {
//进行验证,这里可以捕获异常,然后返回对应信息
subject.login(usernamePasswordToken);
} catch (UnknownAccountException e) {
log.error("用户名不存在!", e);
return "error";
} catch (AuthenticationException e) {
log.error("账号或密码错误!", e);
return "error";
} catch (AuthorizationException e) {
log.error("没有权限!", e);
return "error";
}
return "shiro_index";
}
}
二、源码追踪分析
我们先获取用户输入的 userName 和 passWord ,然后将 userName 和 passWord 这两个参数传入到 UsernamePasswordToken 中获取 token 对象,最后调用SecurityUtils.getSubject() 的 login() 方法将 token 传入做系统校验。
我们进入源码查看下 login() 方法底层是如何实现的,可以看到主要还是调用了 securityManager 安全管理器的 login() 方法。
public void login(AuthenticationToken token) throws AuthenticationException {
clearRunAsIdentitiesInternal();
// 主要是这块的方法
Subject subject = securityManager.login(this, token);
PrincipalCollection principals;
String host = null;
if (subject instanceof DelegatingSubject) {
DelegatingSubject delegating = (DelegatingSubject) subject;
//we have to do this in case there are assumed identities - we don't want to lose the 'real' principals:
principals = delegating.principals;
host = delegating.host;
} else {
principals = subject.getPrincipals();
}
if (principals == null || principals.isEmpty()) {
String msg = "Principals returned from securityManager.login( token ) returned a null or " +
"empty value. This value must be non null and populated with one or more elements.";
throw new IllegalStateException(msg);
}
this.principals = principals;
this.authenticated = true;
if (token instanceof HostAuthenticationToken) {
host = ((HostAuthenticationToken) token).getHost();
}
if (host != null) {
this.host = host;
}
Session session = subject.getSession(false);
if (session != null) {
this.session = decorate(session);
} else {
this.session = null;
}
}
我们继续进入源码查看 securityManager 安全管理器的 login() 方法是如何实现的,可以看到在这个方法中定义了 AuthenticationInfo 对象来接收从 Relam 传来的认证信息。
public Subject login(Subject subject, AuthenticationToken token) throws AuthenticationException {
AuthenticationInfo info;
try {
// 主要是这块的方法
info = authenticate(token);
} catch (AuthenticationException ae) {
try {
onFailedLogin(token, ae, subject);
} catch (Exception e) {
if (log.isInfoEnabled()) {
log.info("onFailedLogin method threw an " +
"exception. Logging and propagating original AuthenticationException.", e);
}
}
throw ae; //propagate
}
Subject loggedIn = createSubject(token, info, subject);
onSuccessfulLogin(token, info, loggedIn);
return loggedIn;
}
我们继续进入源码查看 authenticate() 方法是如何实现的,我们发现这个方法内部调用了 authenticator 对象的 authenticate() 方法。
public AuthenticationInfo authenticate(AuthenticationToken token) throws AuthenticationException {
return this.authenticator.authenticate(token);
}
我们继续进入源码查看 authenticator 对象的 authenticate() 方法是如何实现的。我们发现在这个方法的内部调用了 doAuthenticate() 方法。
public final AuthenticationInfo authenticate(AuthenticationToken token) throws AuthenticationException {
if (token == null) {
throw new IllegalArgumentException("Method argument (authentication token) cannot be null.");
}
log.trace("Authentication attempt received for token [{}]", token);
AuthenticationInfo info;
try {
// 主要看这块的代码
info = doAuthenticate(token);
if (info == null) {
String msg = "No account information found for authentication token [" + token + "] by this " +
"Authenticator instance. Please check that it is configured correctly.";
throw new AuthenticationException(msg);
}
} catch (Throwable t) {
AuthenticationException ae = null;
if (t instanceof AuthenticationException) {
ae = (AuthenticationException) t;
}
if (ae == null) {
//Exception thrown was not an expected AuthenticationException. Therefore it is probably a little more
//severe or unexpected. So, wrap in an AuthenticationException, log to warn, and propagate:
String msg = "Authentication failed for token submission [" + token + "]. Possible unexpected " +
"error? (Typical or expected login exceptions should extend from AuthenticationException).";
ae = new AuthenticationException(msg, t);
if (log.isWarnEnabled())
log.warn(msg, t);
}
try {
notifyFailure(token, ae);
} catch (Throwable t2) {
if (log.isWarnEnabled()) {
String msg = "Unable to send notification for failed authentication attempt - listener error?. " +
"Please check your AuthenticationListener implementation(s). Logging sending exception " +
"and propagating original AuthenticationException instead...";
log.warn(msg, t2);
}
}
throw ae;
}
log.debug("Authentication successful for token [{}]. Returned account [{}]", token, info);
notifySuccess(token, info);
return info;
}
我们继续进入源码查看 doAuthenticate() 方法是如何实现的。我们发现在这个方法的内部调用了 doAuthenticate() 方法。
protected AuthenticationInfo doAuthenticate(AuthenticationToken authenticationToken) throws AuthenticationException {
assertRealmsConfigured();
Collection<Realm> realms = getRealms();
if (realms.size() == 1) {
return doSingleRealmAuthentication(realms.iterator().next(), authenticationToken);
} else {
return doMultiRealmAuthentication(realms, authenticationToken);
}
}
这个 assertRealmsConfigured() 方法是判断 relam 是否存在,若不存在就会抛出异常,它会根据 relam 的个数来判断执行哪个方法,我在上一篇文章中只定义了一个 relam ,所以它会执行 doSingleRealmAuthentication() 这个方法,并且会将 relam 和 token 传入进去。
我们继续进入源码查看 doSingleRealmAuthentication() 方法是如何实现的, 我们可以看到,在这里它会先判断 realm 是否支持 token ,若支持,则接下来执行 getAuthenticationInfo() 方法。
protected AuthenticationInfo doSingleRealmAuthentication(Realm realm, AuthenticationToken token) {
if (!realm.supports(token)) {
String msg = "Realm [" + realm + "] does not support authentication token [" +
token + "]. Please ensure that the appropriate Realm implementation is " +
"configured correctly or that the realm accepts AuthenticationTokens of this type.";
throw new UnsupportedTokenException(msg);
}
AuthenticationInfo info = realm.getAuthenticationInfo(token);
if (info == null) {
String msg = "Realm [" + realm + "] was unable to find account data for the " +
"submitted AuthenticationToken [" + token + "].";
throw new UnknownAccountException(msg);
}
return info;
}
我们继续进入源码查看 getAuthenticationInfo() 方法是如何实现的, getCachedAuthenticationInfo() 方法是从 shiro 缓存中读取用户信息,如果没有,才会从 relam 中获取,如果是第一次登录,缓存中指定没有我们的认证信息,所以会执行 doGetAuthenticationInfo() 这个方法。
public final AuthenticationInfo getAuthenticationInfo(AuthenticationToken token) throws AuthenticationException {
AuthenticationInfo info = getCachedAuthenticationInfo(token);
if (info == null) {
//otherwise not cached, perform the lookup:
info = doGetAuthenticationInfo(token);
log.debug("Looked up AuthenticationInfo [{}] from doGetAuthenticationInfo", info);
if (token != null && info != null) {
cacheAuthenticationInfoIfPossible(token, info);
}
} else {
log.debug("Using cached authentication info [{}] to perform credentials matching.", info);
}
if (info != null) {
assertCredentialsMatch(token, info);
} else {
log.debug("No AuthenticationInfo found for submitted AuthenticationToken [{}]. Returning null.", token);
}
return info;
}

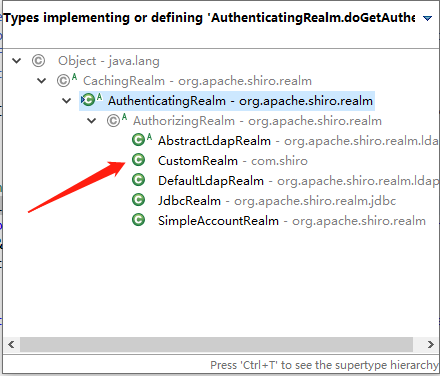

我们继续进入源码查看 doGetAuthenticationInfo() 方法是如何实现的,我们发现其实现类有如下几个,其中 CustomRealm 就是我们自定义实现的。
我们再来看一下,我们自定义的 CustomRealm 中的 doGetAuthenticationInfo() 代码 ,这个方法就是需要查询数据库中的数据并进行一个简单的校验,最后封装成 SimpleAuthorizationInfo 对象再返回去。
protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken authenticationToken) throws AuthenticationException {
if(StringUtils.isEmpty(authenticationToken.getPrincipal())) {
return null;
}
// 获取用户信息
String userName = authenticationToken.getPrincipal().toString();
User user = userService.selectByUserName(userName);
// 用户是否存在
if(user == null) {
throw new UnknownAccountException();
}
// 是否激活
if(user !=null && user.getStatus().equals("0")){
throw new DisabledAccountException();
}
// 是否锁定
if(user!=null && user.getStatus().equals("3")){
throw new LockedAccountException();
}
// 若存在将此用户存放到登录认证info中,无需做密码比对shiro会为我们进行密码比对校验
if(user !=null && user.getStatus().equals("1")){
ByteSource credentialsSalt = ByteSource.Util.bytes(user.getUserName()+ "salt");
/** 这里验证authenticationToken和simpleAuthenticationInfo的信息,构造方法支持三个或者四个参数,
* 第一个参数传入userName或者是user对象都可以。
* 第二个参数传入数据库中该用户的密码(记得是加密后的密码)
* 第三个参数传入加密的盐值,若没有则可以不加
* 第四个参数传入当前Relam的名字
**/
SimpleAuthenticationInfo simpleAuthenticationInfo = new SimpleAuthenticationInfo(userName, user.getPassword().toString(),credentialsSalt, getName());
return simpleAuthenticationInfo;
}
return null;
}
截至到目前为止,我们算是获取到了认证信息了,接下来就是看下 shiro 是怎么进行认证的,我们返回去再看下 AuthenticatingRealm 类的 getAuthenticationInfo() 方法,我们可以看到,获取完信息之后就需要进行密码匹配,会调用 assertCredentialsMatch() 方法。
public final AuthenticationInfo getAuthenticationInfo(AuthenticationToken token) throws AuthenticationException {
AuthenticationInfo info = getCachedAuthenticationInfo(token);
if (info == null) {
//otherwise not cached, perform the lookup:
info = doGetAuthenticationInfo(token);
log.debug("Looked up AuthenticationInfo [{}] from doGetAuthenticationInfo", info);
if (token != null && info != null) {
cacheAuthenticationInfoIfPossible(token, info);
}
} else {
log.debug("Using cached authentication info [{}] to perform credentials matching.", info);
}
if (info != null) {
// 进行密码匹配
assertCredentialsMatch(token, info);
} else {
log.debug("No AuthenticationInfo found for submitted AuthenticationToken [{}]. Returning null.", token);
}
return info;
}
我们进入到 assertCredentialsMatch() 方法看下它是如何实现的,首先获取一个 CredentialsMatcher 对象,翻译成汉语就是凭证匹配器,这个类的作用就是将用户输入的密码以某种方式计算加密。之后会调用 doCredentialsMatch() 方法。
protected void assertCredentialsMatch(AuthenticationToken token, AuthenticationInfo info) throws AuthenticationException {
CredentialsMatcher cm = getCredentialsMatcher();
if (cm != null) {
if (!cm.doCredentialsMatch(token, info)) {
//not successful - throw an exception to indicate this:
String msg = "Submitted credentials for token [" + token + "] did not match the expected credentials.";
throw new IncorrectCredentialsException(msg);
}
} else {
throw new AuthenticationException("A CredentialsMatcher must be configured in order to verify " +
"credentials during authentication. If you do not wish for credentials to be examined, you " +
"can configure an " + AllowAllCredentialsMatcher.class.getName() + " instance.");
}
}
我们进入到 doCredentialsMatch() 方法,我们可以看到,这里用 equals 方法对 token 中加密的密码和从数据中取出来的 info 中的密码进行对比,若相同则返回 true ,失败就返回 false ,并抛出 AuthenticationException ,并将 info 返回到 defaultSecurityManager 中。
public boolean doCredentialsMatch(AuthenticationToken token, AuthenticationInfo info) {
Object tokenHashedCredentials = hashProvidedCredentials(token, info);
Object accountCredentials = getCredentials(info);
return equals(tokenHashedCredentials, accountCredentials);
}
三、常见异常
1、DisabledAccountException:禁用的账号
2、LockedAccountException:锁定的账号
3、UnknownAccountException:错误的账号
4、ExcessiveAttemptsException:登录失败次数过多
5、IncorrectCredentialsException:错误的凭证
6、ExpiredCredentialsException:过期的凭证
