POJ~1077~八数码~双BFS解题报告

八数码：

题目描述：

The 15-puzzle has been around for over 100 years; even if you don't know it by that name, you've seen it. It is constructed with 15 sliding tiles, each with a number from 1 to 15 on it, and all packed into a 4 by 4 frame with one tile missing. Let's call the missing tile 'x'; the object of the puzzle is to arrange the tiles so that they are ordered as:
 1  2  3  4

 5  6  7  8

 9 10 11 12

13 14 15  x

where the only legal operation is to exchange 'x' with one of the tiles with which it shares an edge. As an example, the following sequence of moves solves a slightly scrambled puzzle:
 1  2  3  4    1  2  3  4    1  2  3  4    1  2  3  4

 5  6  7  8    5  6  7  8    5  6  7  8    5  6  7  8

 9  x 10 12    9 10  x 12    9 10 11 12    9 10 11 12

13 14 11 15   13 14 11 15   13 14  x 15   13 14 15  x

           r->           d->           r->

The letters in the previous row indicate which neighbor of the 'x' tile is swapped with the 'x' tile at each step; legal values are 'r','l','u' and 'd', for right, left, up, and down, respectively.

Not all puzzles can be solved; in 1870, a man named Sam Loyd was famous for distributing an unsolvable version of the puzzle, and
frustrating many people. In fact, all you have to do to make a regular puzzle into an unsolvable one is to swap two tiles (not counting the missing 'x' tile, of course).

In this problem, you will write a program for solving the less well-known 8-puzzle, composed of tiles on a three by three
arrangement.

Input：

You will receive a description of a configuration of the 8 puzzle. The description is just a list of the tiles in their initial positions, with the rows listed from top to bottom, and the tiles listed from left to right within a row, where the tiles are represented by numbers 1 to 8, plus ‘x’. For example, this puzzle
1 2 3

x 4 6

7 5 8

is described by this list:

1 2 3 x 4 6 7 5 8

Output：

You will print to standard output either the word ``unsolvable’’, if the puzzle has no solution, or a string consisting entirely of the letters ‘r’, ‘l’, ‘u’ and ‘d’ that describes a series of moves that produce a solution. The string should include no spaces and start at the beginning of the line.。

Sample Input：

 2  3  4  1  5  x  7  6  8

Sample Output：

ullddrurdllurdruldr

题目大意：

其实这道题很简单理解，就是简单的九宫格排序问题，而只能移动上下左右这四个方向，并且还要满足1 2 3 4 5 6 7 8 x这样的排序即可，所以这道题可以用双BFS+康托正向定理去解就很快解了。

思路分析：

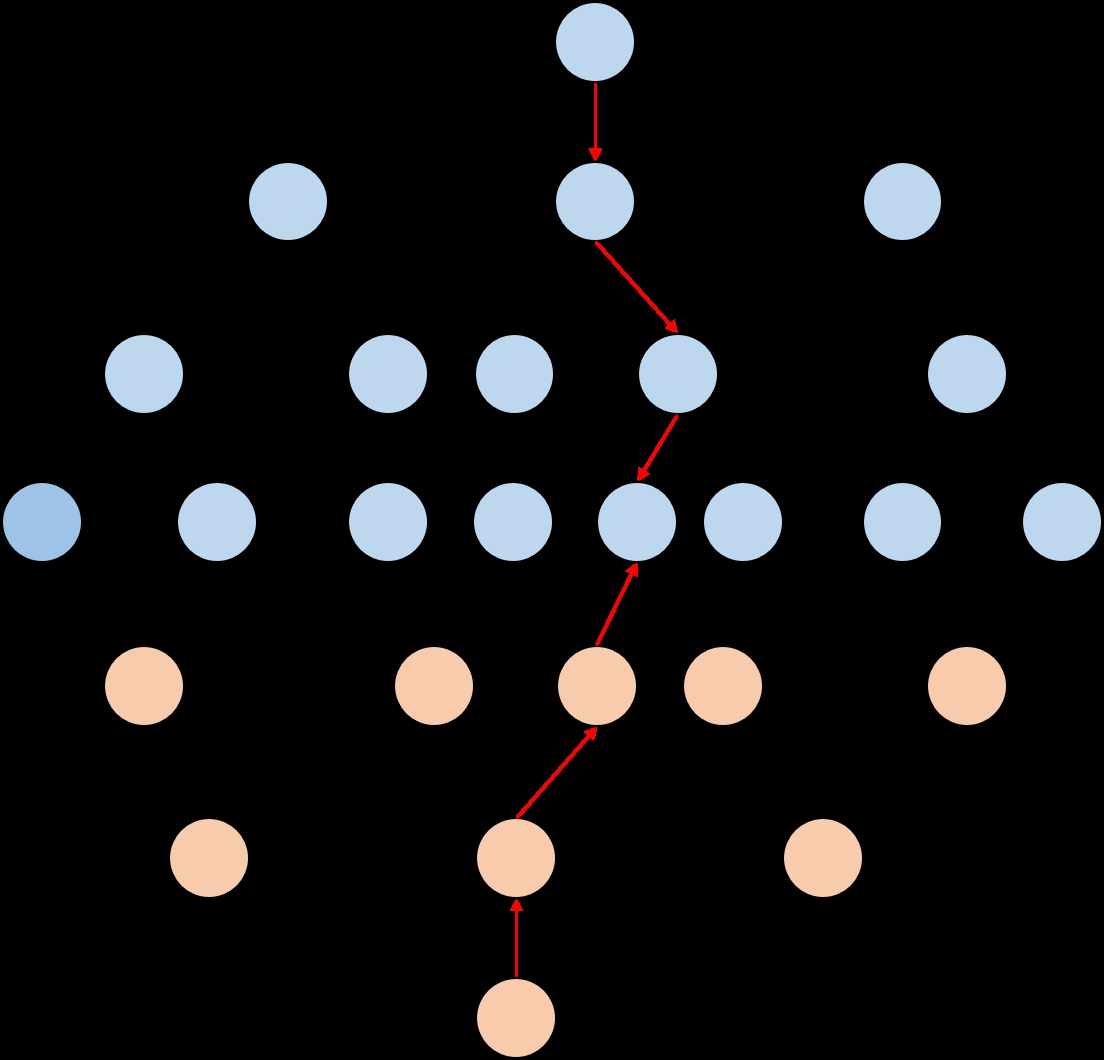

这道题有许多种解法，这里讲一下双BFS解法，这里我们可以想象有一颗搜索树，我们将其中心对称复制多一颗树，这样就有2颗树，一颗树相对于另一颗树，它所操作都是相对于是反方向的，那么就可以想象有一棵搜索树为1 2 3 4 5 6 7 8 9，一颗树是题目所给输入依次，把x当做9看待，当这2颗树所搜的Hash值被2者访问过，说明就找到了目标了（可以结合上面图来看），具体看代码，下面给出Hash（康托定理的原理）：

康托定理：

X=a[n]*(n-1)!+a[n-1]*(n-2)!+...+a[i]*(i-1)!+...+a[1]*0!，
其中a[i]为当前未出现的元素中是排在第几个（从0开始）。这就是康
托展开

 1. 举个简单的例子吧，例如（1，2，3，4）这四种数字全排列，如果要
 求2134的排在全排列第几个，可以这样算：

 2. 首位是2，比他小的有1，那么就有1*（4-1）！。
 3. 第二位是1，没有比他小，那么就有0*（4-2）！。
 4. 第三位是3，比他小的有 1和2，但是1和2都已经出现在前面了，所以
0*（4-3）!
 5. 第四位是4，比他小的有1和2和3，但是都出现在前面，所以有0*(0)!
 6. 最后将其全部相加就是该数字在全排列中的排序。

代码：

#include<iostream>
#include<map>
#include<queue>
#include<stack>
#include<cstdio>
#include<set>
#include<vector>
#include<algorithm>
#include<string.h>
#include<string>
#define me(a,b) memset((a),(b),sizeof((a)))//定义memset
using namespace std;
typedef struct Node
{
	int num;//Hash值
	int ans;//位置
	int s;//记录次数
	int c1[10];//记录九宫格元素
}Lemon;
const int maxn=364000;//最大为！9
int visit1[maxn],visit2[maxn];//分别为正方向和反方向的标记
int pre1[maxn],pre2[maxn];//分别为正方向和反方向的父节点
char pr1[maxn],pr2[maxn];//分别为正方向和反方向
int di[5][2]={{1,0},{-1,0},{0,1},{0,-1}};//正方向
char di2[5]={"durl"};//正方向符号变量
int di1[5][2]={{0,-1},{0,1},{-1,0},{1,0}};//反方向
char di3[5]={"rldu"};//反方向符号变量
int fc[]={1,1,2,6,24,120,720,5040,40320,362880};//0~9的阶乘
int Hash(int s1[])//康托定理正向解密（相当于找出Hash值）
{
	int sum=1;
	for(int i=0;i<9;i++)
	{
		int temp=0;
		for(int j=i+1;j<9;j++)
		{
			if(s1[j]<s1[i])
			{
				temp++;
			}
		}
		sum+=temp*fc[9-i-1];
	}
	return sum;
}
int LemonDoubleBFS(Lemon Frist)
{
	me(visit1,0);
	me(visit2,0);
	//这2步可以不用，因为他只要一次输出
	queue<Lemon> q;
	queue<Lemon> p;
	//创建正反队列
	//正为q，反为p
	visit1[Frist.num]=1;
	pre1[Frist.num]=-1;
	Frist.s=0;//记录所要的次数
	q.push(Frist);//将正方向的队列入队
	for(int i=0;i<9;i++)
	{
		Frist.c1[i]=i+1;//这里使得反方向从1开始
	}
	Frist.s=0;
	Frist.num=Hash(Frist.c1);
	Frist.ans=8;
	visit2[Frist.num]=1;
	pre2[Frist.num]=-1;
	p.push(Frist);//将反方向的队列入队
	int time=0;//记录次数
	Lemon now;
	while(!q.empty() || !p.empty())
	{
		time++;
		while(!q.empty())
		{
			now = q.front();
			q.pop();
			if(time == now.s)
			{
				break;
			}
			if(visit2[now.num])//如果反方向队列找过这个点，说明可以退出了
			{
				return now.num;
			}
			int x1=now.ans/3;
			int y1=now.ans%3;
			//找出位置
			for(int i=0;i<4;i++)
			{
				Lemon tp=now;
				int x2=x1+di[i][0];
				int y2=y1+di[i][1];
				if(x2<0 || y2<0 || x2>2 || y2>2)//判断边界
				{
					continue;
				}
				else
				{
					tp.ans=x2*3+y2;//改变位置
					tp.c1[now.ans]=tp.c1[tp.ans];
					tp.c1[tp.ans]=9;
					//改变2个板块的元素
					tp.num=Hash(tp.c1);//找出Hash值
					if(!visit1[tp.num])//判断是否出现过
					{
						tp.s++;
						visit1[tp.num]=1;
						pr1[tp.num]=di2[i];//记录符号变量
						pre1[tp.num]=now.num;//记录父子点
						q.push(tp);//入队
					}
				}
			}
		}
		//因为正方向和反方向是对称，所以操作几乎一样。所以下方不解释
		while(!p.empty())
		{
			now = p.front();
			p.pop();
			if(time == now.s)
			{
				break;
			}
			if(visit1[now.num])
			{
				return now.num;
			}
			int x1=now.ans/3;
			int y1=now.ans%3;
			for(int i=0;i<4;i++)
			{
				Lemon tp=now;
				int x2=x1+di1[i][0];
				int y2=y1+di1[i][1];
				if(x2<0 || y2<0 || x2>2 || y2>2)
				{
					continue;
				}
				else
				{
					tp.ans=x2*3+y2;
					tp.c1[now.ans]=tp.c1[tp.ans];
					tp.c1[tp.ans]=9;
					tp.num=Hash(tp.c1);
					if(!visit2[tp.num])
					{
						tp.s++;
						visit2[tp.num]=1;
						pr2[tp.num]=di3[i];
						pre2[tp.num]=now.num;
						p.push(tp);
					}
				}
			}
		}
	}
	return -1;
}
void print1(int g)//输出正方向
{
	if(pre1[g]==-1)
	{
		return;
}
		print1(pre1[g]);
		putchar(pr1[g]);
}
void print2(int g)//输出反方向的
{
	if(pre2[g]==-1)
	{
		return;
	}
		putchar(pr2[g]);
		print2(pre2[g]);
}
int main()
{
	Lemon Frist;
	char ch;
	for(int i=0;i<9;i++)
	{
		cin >> ch;
		if(ch=='x')
		{
			Frist.c1[i]=9;
			Frist.ans=i;
		}
		else
		{
			Frist.c1[i]=ch-'0';
		}
	}
	Frist.num=Hash(Frist.c1);
	int g=LemonDoubleBFS(Frist);
	if(g==-1)//判断是否有结果
	{
		cout << "unsolvable";
	}
	else//这里讲一下正方向和反方向的回溯是不一样的。
	{
		print1(g);
		print2(g);
	}
}
