SpringMVC原理剖析

SpringMVC原理

# 执行流程

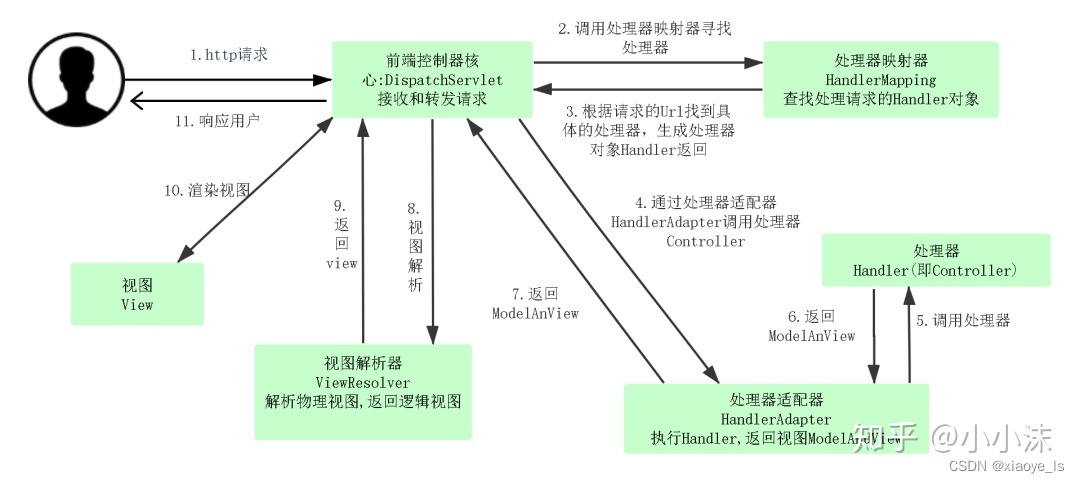

1、用户发送http请求
2、dispatchServlet解析请求头中的uri
3、通过处理器映射器(HandlerMapping)拿到对应的hanlder
4、处理器适配器(HandlerAdapter)通过拿到的hanlder处理业务逻辑，返回视图ModelAndView
5、dispatchServlet通过视图解析器(ViewResolver)将物理视图解析成逻辑视图View
6、视图渲染。

• DispatcherServlet：

  • 调用HandlerMapping拿到Handler
  • 调用HandlerAdapter拿到ModelAndView
  • 调用ViewResolver拿到View

  // 视图渲染
  protected void render(ModelAndView mv, HttpServletRequest request, HttpServletResponse response) throws Exception {
  		// Determine locale for request and apply it to the response.
  		Locale locale =
  				(this.localeResolver != null ? this.localeResolver.resolveLocale(request) : request.getLocale());
  		response.setLocale(locale);

  		View view;
  		String viewName = mv.getViewName();
  		if (viewName != null) {
  			// We need to resolve the view name.
  			view = resolveViewName(viewName, mv.getModelInternal(), locale, request);
  			if (view == null) {
  				throw new ServletException("Could not resolve view with name '" + mv.getViewName() +
  						"' in servlet with name '" + getServletName() + "'");
  			}
  		}
  		else {
  			// No need to lookup: the ModelAndView object contains the actual View object.
  			view = mv.getView();
  			if (view == null) {
  				throw new ServletException("ModelAndView [" + mv + "] neither contains a view name nor a " +
  						"View object in servlet with name '" + getServletName() + "'");
  			}
  		}

  		// Delegate to the View object for rendering.
  		if (logger.isTraceEnabled()) {
  			logger.trace("Rendering view [" + view + "] ");
  		}
  		try {
  			if (mv.getStatus() != null) {
  				response.setStatus(mv.getStatus().value());
  			}
  			view.render(mv.getModelInternal(), request, response);
  		}
  		catch (Exception ex) {
  			if (logger.isDebugEnabled()) {
  				logger.debug("Error rendering view [" + view + "]", ex);
  			}
  			throw ex;
  		}
  	}


• HandlerMapping：根据请求的url找到对应的handler

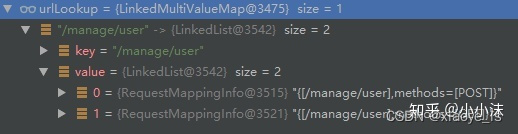

  • urlLookup

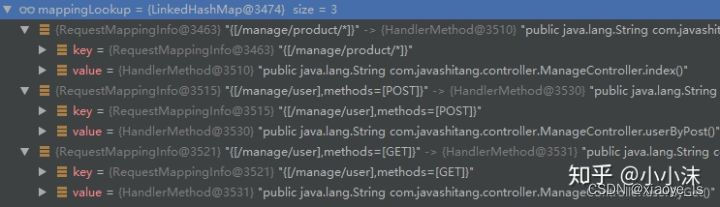

  • mappingLookup


  public interface HandlerMapping {
      @Nullable
      HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception;
  }


  public abstract class AbstractHandlerMapping extends WebApplicationObjectSupport
  		implements HandlerMapping, Ordered, BeanNameAware {
      // 实现类逻辑
      @Override
      @Nullable
      public final HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
          // 获取handler对象
          Object handler = getHandlerInternal(request);
          ...
          // Handler执行前后要执行的拦截器
          HandlerExecutionChain executionChain = getHandlerExecutionChain(handler, request);
          ...
          return executionChain;
      }

      @Nullable
  	protected abstract Object getHandlerInternal(HttpServletRequest request) throws Exception;
  }


  // 映射信息封装handler
  public abstract class AbstractUrlHandlerMapping extends AbstractHandlerMapping implements MatchableHandlerMapping {
      String LOOKUP_PATH = HandlerMapping.class.getName() + ".lookupPath";
  	@Override
  	@Nullable
  	protected Object getHandlerInternal(HttpServletRequest request) throws Exception {
  		// 从请求头中获取请求路径
          String lookupPath = getUrlPathHelper().getLookupPathForRequest(request);
          // org.springframework.web.servlet.HandlerMapping.lookupPath -> /test
  		request.setAttribute(LOOKUP_PATH, lookupPath);
  		Object handler = lookupHandler(lookupPath, request);
          ...
          return handler;
      }

      // 路径封装handler
      @Nullable
  	protected Object lookupHandler(String urlPath, HttpServletRequest request) throws Exception {
  		// Direct match?
  		Object handler = this.handlerMap.get(urlPath);
      	if (handler != null) {
  			// Bean name or resolved handler?
  			if (handler instanceof String) {
  				String handlerName = (String) handler;
  				handler = obtainApplicationContext().getBean(handlerName);
  			}
  			validateHandler(handler, request);
  			return buildPathExposingHandler(handler, urlPath, urlPath, null);
  		}
      }

      // 方法执行前后拦截器创建
      protected Object buildPathExposingHandler(Object rawHandler, String bestMatchingPattern,
  			String pathWithinMapping, @Nullable Map<String, String> uriTemplateVariables) {
  		HandlerExecutionChain chain = new HandlerExecutionChain(rawHandler);
  		chain.addInterceptor(new PathExposingHandlerInterceptor(bestMatchingPattern, pathWithinMapping));
  		if (!CollectionUtils.isEmpty(uriTemplateVariables)) {
  			chain.addInterceptor(new UriTemplateVariablesHandlerInterceptor(uriTemplateVariables));
  		}
  		return chain;
  	}

      // 相关拦截器添加
      protected HandlerExecutionChain getHandlerExecutionChain(Object handler,HttpServletRequest request) {
  		HandlerExecutionChain chain = (handler instanceof HandlerExecutionChain ?
  				(HandlerExecutionChain) handler : new HandlerExecutionChain(handler));
  		String lookupPath = this.urlPathHelper.getLookupPathForRequest(request, LOOKUP_PATH);
  		for (HandlerInterceptor interceptor : this.adaptedInterceptors) {
  			if (interceptor instanceof MappedInterceptor) {
  				MappedInterceptor mappedInterceptor = (MappedInterceptor) interceptor;
  				if (mappedInterceptor.matches(lookupPath, this.pathMatcher)) {
  					chain.addInterceptor(mappedInterceptor.getInterceptor());
  				}
  			}
  			else {
  				chain.addInterceptor(interceptor);
  			}
  		}
  		return chain;
  	}
  }


• HandlerAdapter：根据找到的handler执行对应的方法

  public interface HandlerAdapter {

      // 该适配器是否能支持指定处理器
      boolean supports(Object handler);

      // 执行处理逻辑，返回 ModelAndView
      @Nullable
      ModelAndView handle(
          HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception;

      // 请求的目标资源最近一次的修改时间
      long getLastModified(HttpServletRequest request, Object handler);

  }


  public abstract class AbstractHandlerMethodAdapter
      extends WebContentGenerator implements HandlerAdapter, Ordered {

      ...
      @Override
  	@Nullable
  	public final ModelAndView handle(
          HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
  		return handleInternal(request, response, (HandlerMethod) handler);
  	}

      @Nullable
  	protected abstract ModelAndView handleInternal(
          HttpServletRequest request,HttpServletResponse response, HandlerMethod handlerMethod)
          throws Exception;
  	...
  }


  // 通过反射业务方法执行
  public class RequestMappingHandlerAdapter
      extends AbstractHandlerMethodAdapter implements BeanFactoryAware, InitializingBean {

      @Override
  	protected ModelAndView handleInternal(
          HttpServletRequest request,HttpServletResponse response, HandlerMethod handlerMethod)
          throws Exception {
  		ModelAndView mav;
  		// Execute invokeHandlerMethod in synchronized block if required.
  		if (this.synchronizeOnSession) {
  			HttpSession session = request.getSession(false);
  			if (session != null) {
  				Object mutex = WebUtils.getSessionMutex(session);
  				synchronized (mutex) {
  					mav = invokeHandlerMethod(request, response, handlerMethod);
  				}
  			}
  			else {
  				// No HttpSession available -> no mutex necessary
  				mav = invokeHandlerMethod(request, response, handlerMethod);
  			}
  		}
  		else {
  			// No synchronization on session demanded at all...
  			mav = invokeHandlerMethod(request, response, handlerMethod);
  		}

  		if (!response.containsHeader(HEADER_CACHE_CONTROL)) {
  			if (getSessionAttributesHandler(handlerMethod).hasSessionAttributes()) {
  				applyCacheSeconds(response, this.cacheSecondsForSessionAttributeHandlers);
  			}
  			else {
  				prepareResponse(response);
  			}
  		}
  		return mav;
  	}
  }


​
