引用章节、公式和图表
如果你想在 LaTeX 文档中使用数字(或者其他引用格式)来引用文档中的公式、章节、图片等元素,本篇文章将会教给你具体的做法。
介绍

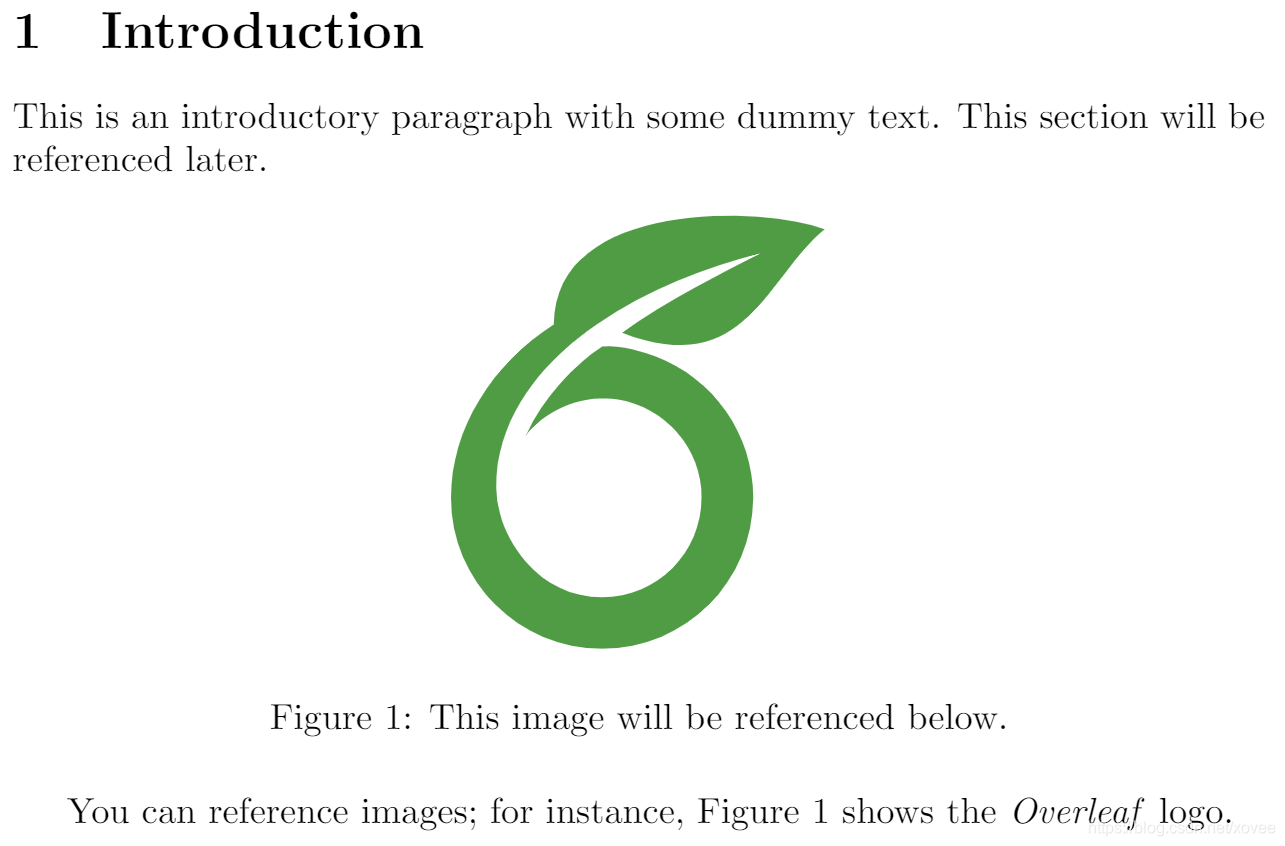

下面是一个简单的引用图片的例子:
\section{Introduction} \label{introduction}
This is an introductory paragraph with some dummy text. This section will be referenced later.
\begin{figure}[h]
\centering
\includegraphics[width=0.3\linewidth]{overleaf-logo}
\caption{This image will be referenced below.}
\label{fig:leaf}
\end{figure}
You can reference images; for instance, Figure \ref{fig:leaf} shows the \textit{Overleaf} logo.
命令\label{}
创建了一个图题之后的标识符,这个标识符随后被命令\ref{}
使用来创建引用数字(或者其他引用格式)。
引用章节

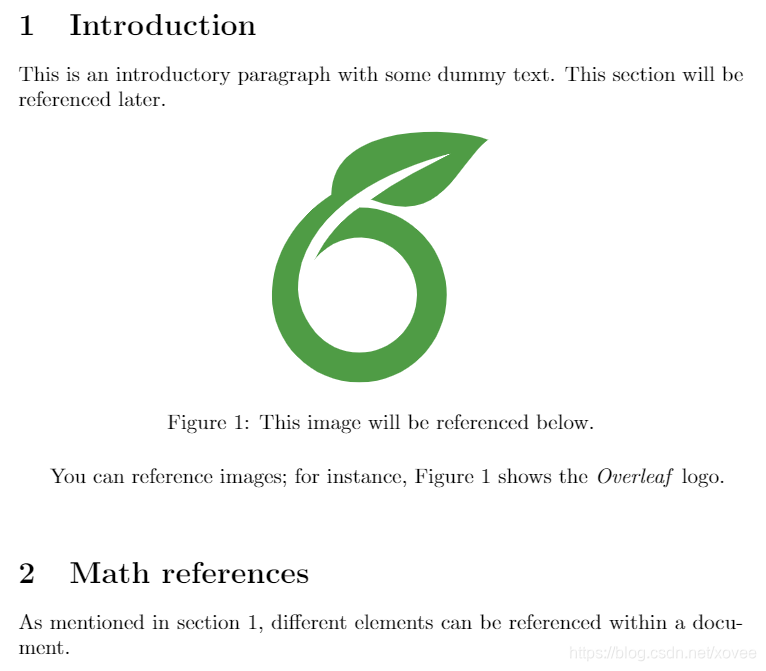

下面是一个引用章的例子:
\section{Introduction} \label{introduction}
This is an introductory paragraph with some dummy text. This section will be referenced later.
\begin{figure}[h]
\centering
\includegraphics[width=0.3\linewidth]{overleaf-logo}
\caption{This image will be referenced below.}
\label{fig:leaf}
\end{figure}
You can reference images; for instance, Figure \ref{fig:leaf} shows the \textit{Overleaf} logo.
\vspace{0.5cm}
\section{Math references} \label{mathrefs}
As mentioned in section \ref{introduction}, different elements can be referenced within a document.
与上一个例子相似,这个例子使用了\label
和\ref
命令来创建引用。在\section
命令之后使用\label
命令,也就是说,你应该在章的编号被创建之后来使用\label
命令。这个方法对chapters、subsections 以及 subsubsections 都有效。具体参考这篇文章。
引用公式、图片和表格

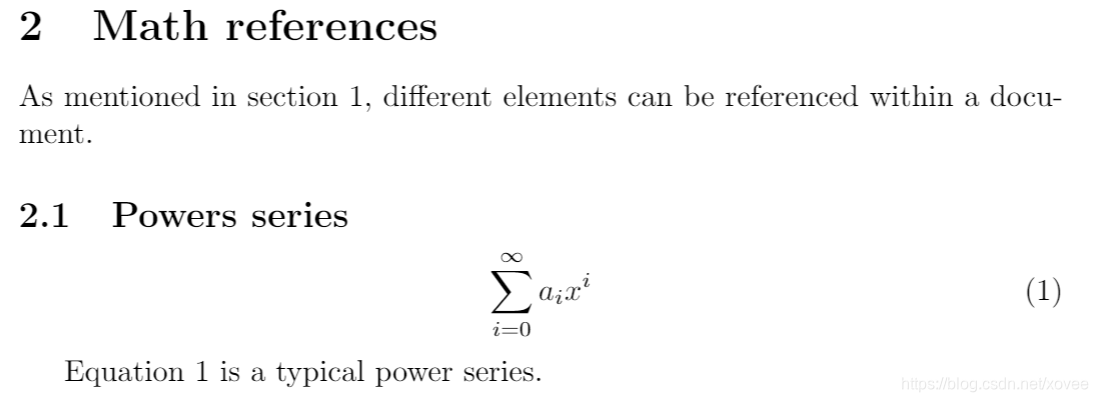

在本章的开头,我们看到了一个引用图片的例子,下面介绍如何引用公式:
\section{Math references} \label{mathrefs}
As mentioned in section \ref{introduction}, different elements can be referenced within a document.
\subsection{Powers series} \label{subsection}
\begin{equation} \label{eq:1}
\sum_{i=0}^{\infty} a_i x^i
\end{equation}
Equation \ref{eq:1} is a typical power series.
引用元素所在页
文档中的元素一般使用数字来引用它们。如果你需要的话,你也可以引用它们所在的页数字。
\section{Math references} \label{mathrefs}
As mentioned in section \ref{introduction}, different elements can be referenced within a document.
\subsection{Powers series} \label{subsection}
\begin{equation} \label{eq:1}
\sum_{i=0}^{\infty} a_i x^i
\end{equation}
Equation \ref{eq:1} is a typical power series.
\vspace{0.5cm}
%\Blindtext

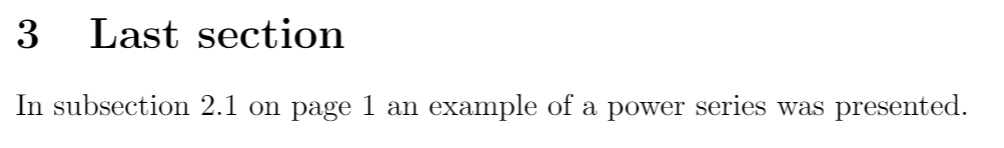

\section{Last section}
In subsection \ref{subsection} on page \pageref{eq:1} an example of a power series was presented.
命令\pageref
会插入元素(对应所使用的\label
)所在的页数。这个命令适用于本文中所有的可编号元素。
编译带有引用的文档
在 Overleaf 平台上,交叉引用是立即生效的。对于本地的 LaTeX 编译环境,你必须编译文档两次来使交叉引用生效。你也可以使用特定的命令来使所有的交叉引用生效。例如,如果你的文档是main.tex
,你可以使用下面的命令
latexmk -pdf main.tex
来生成main.pdf
文件。文件中所有的交叉引用都会生效。如果你要改变输出的格式,使用-dvi
或者-ps
参数。
