mathjax 入门（web显示数学公式，矢量的）

徐同保

已于 2022-06-24 16:31:14 修改

阅读量990

点赞数 1

分类专栏： web前端

于 2022-06-23 17:52:27 首次发布

本文链接：https://blog.csdn.net/xutongbao/article/details/125431866

版权

javascript

web前端专栏收录该内容

735 篇文章

订阅专栏

<!DOCTYPE html>
<html>
  <head>
    <meta charset="UTF-8" />
    <title>MathJax Font</title>
    <!-- <script type="text/javascript"
    src="https://cdn.mathjax.org/mathjax/latest/MathJax.js?config=AM_HTMLorMML"></script> -->
    <!-- <script
      id="MathJax-script"
      async
      src="https://cdn.jsdelivr.net/npm/mathjax@3/es5/tex-mml-chtml.js"
    ></script> -->
    <script
      id="MathJax-script"

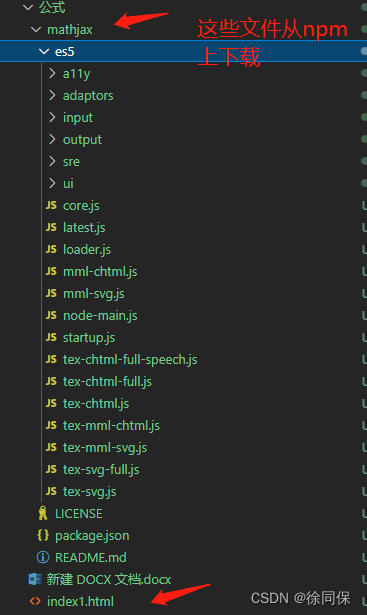

      src="./mathjax/es5/tex-mml-chtml.js"
    ></script>
    <script type="text/x-mathjax-config">
      MathJax.Hub.Config({
          "HTML-CSS" : {
              availableFonts : ["STIX"],
              preferredFont : "STIX",
              webFont : "STIX-Web",
              imageFont : null
          }
      });
    </script>
  </head>
  <body>

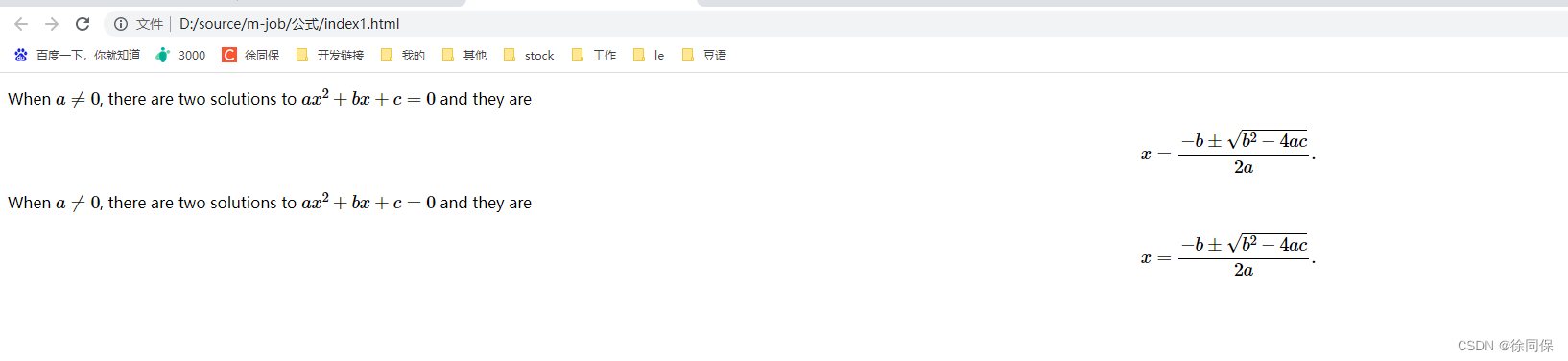

    <p>
      When \(a \ne 0\), there are two solutions to \(ax^2 + bx + c = 0\) and
      they are \[x = {-b \pm \sqrt{b^2-4ac} \over 2a}.\]
    </p>
    <p>
      When \(a \ne 0\), there are two solutions to \(ax^2 + bx + c = 0\) and
      they are \[x = {-b \pm \sqrt{b^2-4ac} \over 2a}.\]
    </p>
  </body>
</html>

在vue中数据变化后需要重新渲染一下才能更改公式：

      clearTimeout(timer);
      timer = setTimeout(() => {
        this.$nextTick(() => {
          window.MathJax.typeset();
        });
      }, 500);

https://www.mathjax.org/

https://jsbin.com/vujogafize/edit?html,output

https://www.osgeo.cn/mathjax/basic/accessibility.html

自制mathjax在线编辑器。

<template>
  <div>
    <div>mathValue：</div>
    <p v-html="mathValue"></p>
    <el-input
      :value="mathValue"
      type="textarea"
      @input="handleMathValue"
    ></el-input>
  </div>
</template>

<script>
import { MathfieldElement } from "mathlive";
let mf;
export default {
  data() {
    return {
      mathValue: "\\( x = {-b \\pm \\sqrt{b^2-4ac} \\over 2a} \\)",
    };
  },
  mounted() {
    this.formatMath();
  },

  methods: {
    formatMath() {
      window.MathJax.typeset();
    },
    handleMathValue(e) {
      this.mathValue = e;
      this.$nextTick(() => {
        this.formatMath();
      });
    },
  },
};
</script>

<style></style>

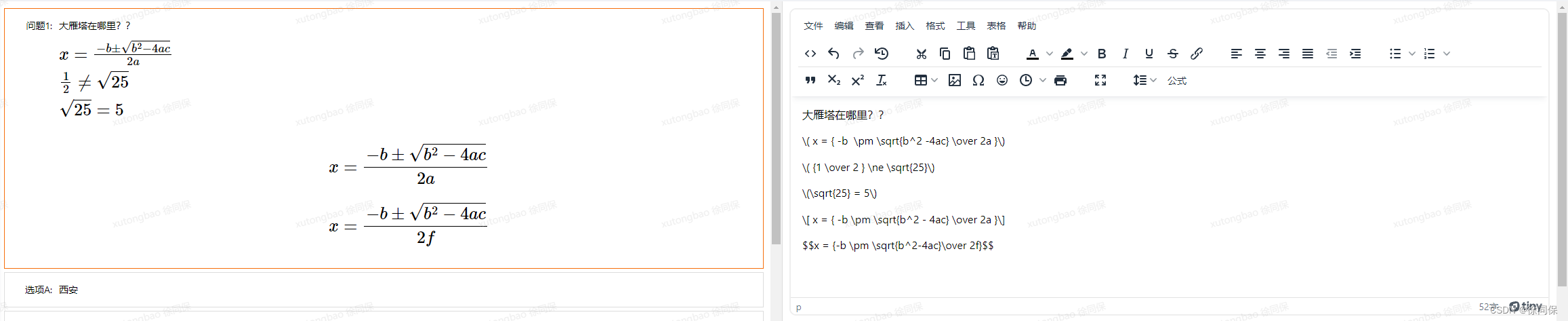

富文本里也可以：
