机器视觉halcon学习——字符识别

识别纸上的字符，并显示

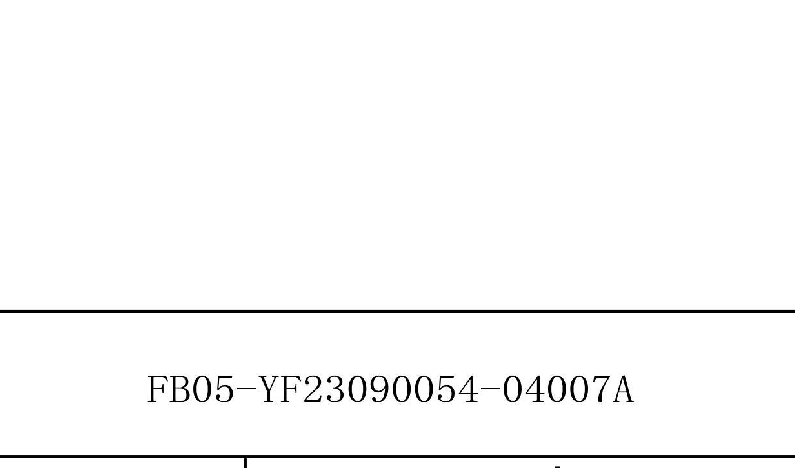

原图

放大要识别的区域

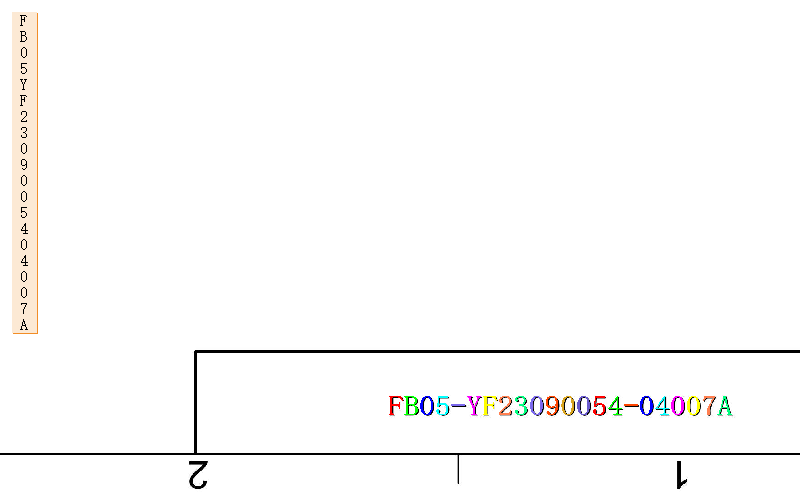

效果图

代码

dev_update_off()
dev_update_on()
dev_close_window()
dev_open_window(0,0, 800, 500, 'black', WindowHandle)
* Image Acquisition 01: Code generated by Image Acquisition 01
*'D:/halcon51/image'是图片路径
list_files ('D:/halcon51/image', ['files','follow_links'], ImageFiles)
tuple_regexp_select (ImageFiles, ['\\.(tif|tiff|gif|bmp|jpg|jpeg|jp2|png|pcx|pgm|ppm|pbm|xwd|ima|hobj)$','ignore_case'], ImageFiles)
for Index := 0 to |ImageFiles| - 1 by 1
    read_image (Image, ImageFiles[Index])
    * Image Acquisition 01: Do something
    get_image_size (Image, Width, Height)
rgb3_to_gray(Image, Image, Image, ImageGray)
*框选要识别的区域
gen_rectangle1 (ROI_0, 4662.84, 5673.69, 4791.83, 6533.15)
reduce_domain(ImageGray, ROI_0, ImageReduced)
threshold (ImageReduced, Regions, 0, 128)
connection(Regions, ConnectedRegions)
*把横杆筛掉
select_shape(ConnectedRegions, SelectedRegions, 'area', 'and', 100, 500)
*字符排序
sort_region(SelectedRegions, SortedRegions, 'first_point', 'true', 'column')
*读取内容，class存放识别到的内容，confidence存放识别度
read_ocr_class_mlp('Industrial_0-9A-Z_NoRej.omc', OCRHandle)
do_ocr_multi_class_mlp(SortedRegions, ImageReduced, OCRHandle, Class, Confidence)
disp_message(WindowHandle, Class, 'window', 12, 12, 'black', 'true')
endfor
stop()
dev_clear_window()

主要算子
sort_region(
SelectedRegions, 待排序区域
SortedRegions,输出排好了的
‘first_point’,排序模式
‘true’,递增
'column’按行排序
)

read_ocr_class_mlp(
‘Industrial_0-9A-Z_NoRej.omc’,
OCRHandle
)
do_ocr_multi_class_mlp(SortedRegions, ImageReduced, OCRHandle, Class, Confidence)
