python实现mqtt之带CA证书的连接

一、问题引入：

1、在连接MQTT时，需要携带证书的，如何用python实现？

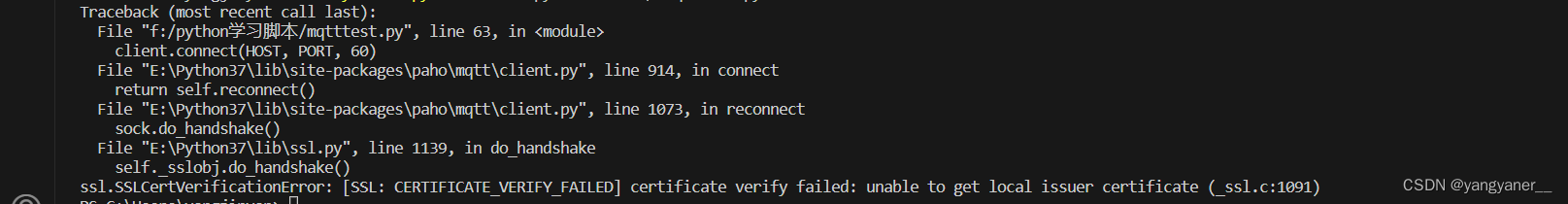

2、python连接MQTT时，报错：ssl.SSLCertVerificationError: [SSL: CERTIFICATE_VERIFY_FAILED] certificate verify failed: unable to get local issuer certificate (_ssl.c:1091)

二、python解决带证书的连接问题：

1. 配置ca证书
   cafile = “C:/Users/Desktop/cafile/ca.crt”

2. 配置ssl版本号
   tls_version=ssl.PROTOCOL_TLSv1_2

关键python代码配置如下

import ssl
cafile = "C:/Users/Desktop/cafile/ca.crt"
client.tls_set(ca_certs=cafile,cert_reqs=False,tls_version=ssl.PROTOCOL_TLSv1_2)

python全部实现代码如下：

import paho.mqtt.client as mqtt
import json
import ssl

HOST = "101.10.10.214"
PORT = 1683
client_id = "ytest001"                               #client id
Q_topic="persistent://test/topic01"          #请求的topic
D_topic="persistent://test/topic02"          #订阅topic
cafile = "C:/Users/Desktop/cafile/ca.crt"

# 连接成功回调
def on_connect(client, userdata, flags, rc):
    print("Connected with result code "+str(rc))
    client.subscribe(D_topic)  #设置订阅topic


# 消息推送回调函数
def on_message(client, userdata, msg):
    print("主题:"+msg.topic+" 消息:"+str(msg.payload.decode('utf-8')))

# 订阅回调函数
def on_subscribe(client, userdata, mid, granted_qos):
    print("On Subscribed: qos = %d" % granted_qos)

# 断开连接回调
def on_disconnect(client, userdata, rc):
    if rc==0:
        print("connect success !")
    else :
        print("connect error: rc=%s"% rc)


data = {
    "msg_id": "111",
    "type": 3,
    "topic": "topic01",
    "content": {
        "id": 1
    },
    "from": 1,
    "to": -1
}
param = json.dumps(data)

client = mqtt.Client(client_id)
client.username_pw_set("username", "password")
client.tls_set(ca_certs=cafile,cert_reqs=False,tls_version=ssl.PROTOCOL_TLSv1_2)
client.on_connect = on_connect
client.on_message = on_message
client.on_subscribe = on_subscribe
client.on_disconnect = on_disconnect
client.connect(HOST, PORT, 60)
client.publish(Q_topic, payload=param, qos=0)     # 发送消息
client.loop_forever()

首次连接mqtt内容的学习参照第一篇文章：https://blog.csdn.net/yangyaner__/article/details/132437188?spm=1001.2014.3001.5502

查看运行结果：

消息发送成功，返回回调内容：
