vue3-webchat 基于vue3.0.5开发的仿微信|QQ界面桌面端聊天实例。
运用vue3.x全家桶技术+element-plus+v3layer+v3scroll搭建的仿微信/QQ界面网页聊天实例项目。实现发送表情图文消息、图片/视频预览、链接查看、粘贴/拖拽发送图片、红包/朋友圈等功能。
技术栈
- 编码/技术:VScode + Vue3 + Vuex4 + VueRouter@4
- UI组件库:ElementPlus (饿了么桌面端vue3组件库)
- 对话框组件:V3Layer(基于vue3.x自定义对话框组件)
- 虚拟滚动条:V3Scroll(基于vue3.x自定义模拟滚动条组件)
- 字体图标:阿里iconfont图标
目录结构
既然到了vue3时代,就全部使用vue3语法实现所有页面的编码。

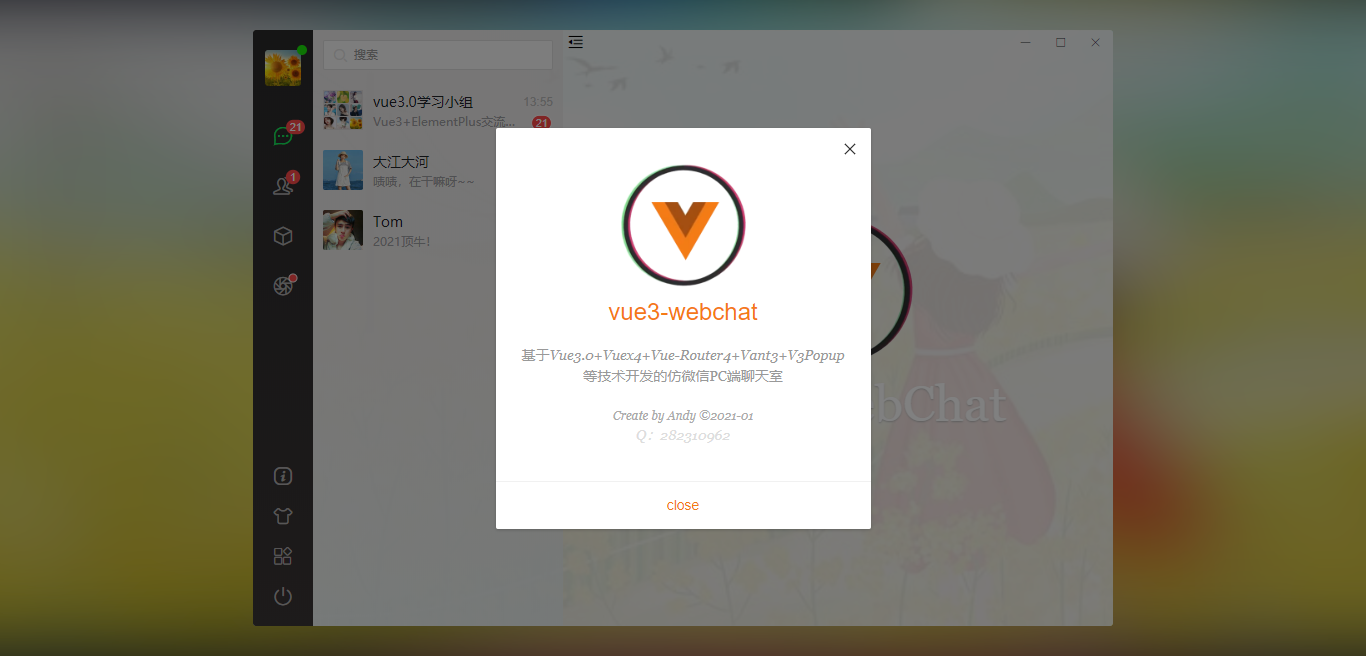

vue3全局弹窗组件
为了达到项目整体效果的一致性,所有弹窗场景都是采用vue3自定义组件实现。
v3layer 一款多功能Vue3自定义全局弹窗组件。支持组件式+函数式调用,超过30+自定义参数配置。
https://blog.csdn.net/yanxinyun1990/article/details/112131592
vue3虚拟滚动条组件
v3scroll 一款基于vue3开发的轻量级替代原生滚动条组件。
https://blog.csdn.net/yanxinyun1990/article/details/112300429
项目中的所有页面都有应用到,功能效果有些类似el-scrollbar组件。
这个是在原先的vue2版本中衍生而来,大家如果对vue2自定义滚动条感兴趣,可以去看看这篇分享。
https://blog.csdn.net/yanxinyun1990/article/details/110394287
App.vue主页面模板
整体布局分为右上角按钮、侧边栏、中间栏、主容器几个模块。
<div :class="['vui__wrapper', store.state.isWinMaximize&&'maximize']">
<div class="vui__board flexbox">
<div class="flex1 flexbox">
<!-- 右上角按钮 -->
<WinBar v-if="!route.meta.hideWinBar" />
<!-- 侧边栏 -->
<SideBar v-if="!route.meta.hideSideBar" class="nt__sidebar flexbox flex-col" />
<!-- 中间栏 -->
<Middle v-show="!route.meta.hideMiddle" />
<!-- 主内容区 -->
<router-view class="nt__mainbox flex1 flexbox flex-col"></router-view>
</div>
</div>
</div>
主入口main.js配置
主要是引入一些公共组件/样式、vuex及地址路由。
/**
* Vue3.0入口配置
*/
import { createApp } from 'vue'
import App from './App.vue'
// 引入vuex和地址路由
import store from './store'
import router from './router'
// 引入公共组件
import Plugins from './plugins'
/* 引入公共样式 */
import '@assets/fonts/iconfont.css'
import '@assets/css/reset.css'
import '@assets/css/layout.css'
const app = createApp(App)
app.use(store)
app.use(router)
app.use(Plugins)
app.mount('#app')

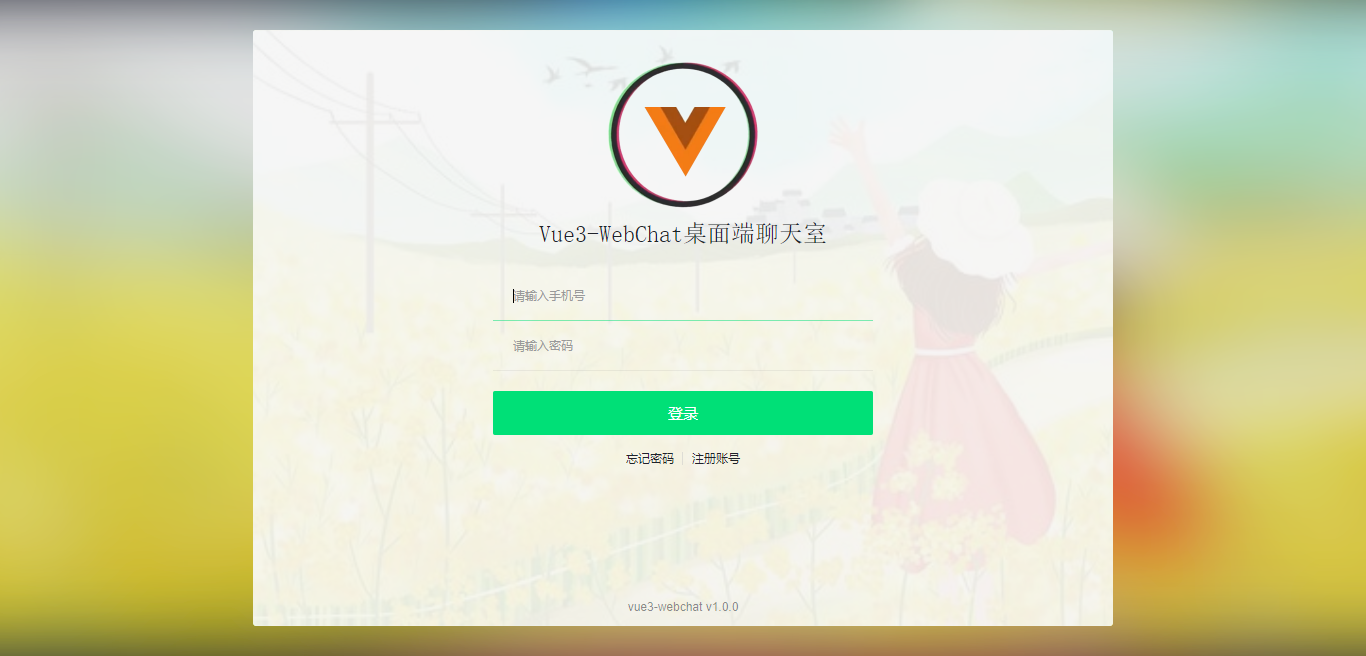

vue3表单验证+60s倒计时
<script>
import { reactive, toRefs, inject, getCurrentInstance } from 'vue'
export default {
components: {},
setup() {
const { ctx } = getCurrentInstance()
const v3layer = inject('v3layer')
const utils = inject('utils')
const formObj = reactive({})
const data = reactive({
vcodeText: '获取验证码',
disabled: false,
time: 0,
})
const VTips = (content) => {
v3layer({
content: content, layerStyle: 'background:#ff5151;color:#fff;', time: 2
})
}
const handleSubmit = () => {
if(!formObj.tel){
VTips('手机号不能为空!')
}else if(!utils.checkTel(formObj.tel)){
VTips('手机号格式不正确!')
}else if(!formObj.pwd){
VTips('密码不能为空!')
}else if(!formObj.vcode){
VTips('验证码不能为空!')
}else{
ctx.$store.commit('SET_TOKEN', utils.setToken());
ctx.$store.commit('SET_USER', formObj.tel);
// ...
}
}
// 60s倒计时
const handleVcode = () => {
if(!formObj.tel) {
VTips('手机号不能为空!')
}else if(!utils.checkTel(formObj.tel)) {
VTips('手机号格式不正确!')
}else {
data.time = 60
data.disabled = true
countDown()
}
}
const countDown = () => {
if(data.time > 0) {
data.vcodeText = '获取验证码('+ data.time +')'
data.time--
setTimeout(countDown, 1000)
}else{
data.vcodeText = '获取验证码'
data.time = 0
data.disabled = false
}
}
return {
formObj,
...toRefs(data),
handleSubmit,
handleVcode
}
}
}
</script>
vue3聊天页面
聊天页面消息滚动区使用到了v3scroll组件,底部编辑器则是采用分离公共组件。

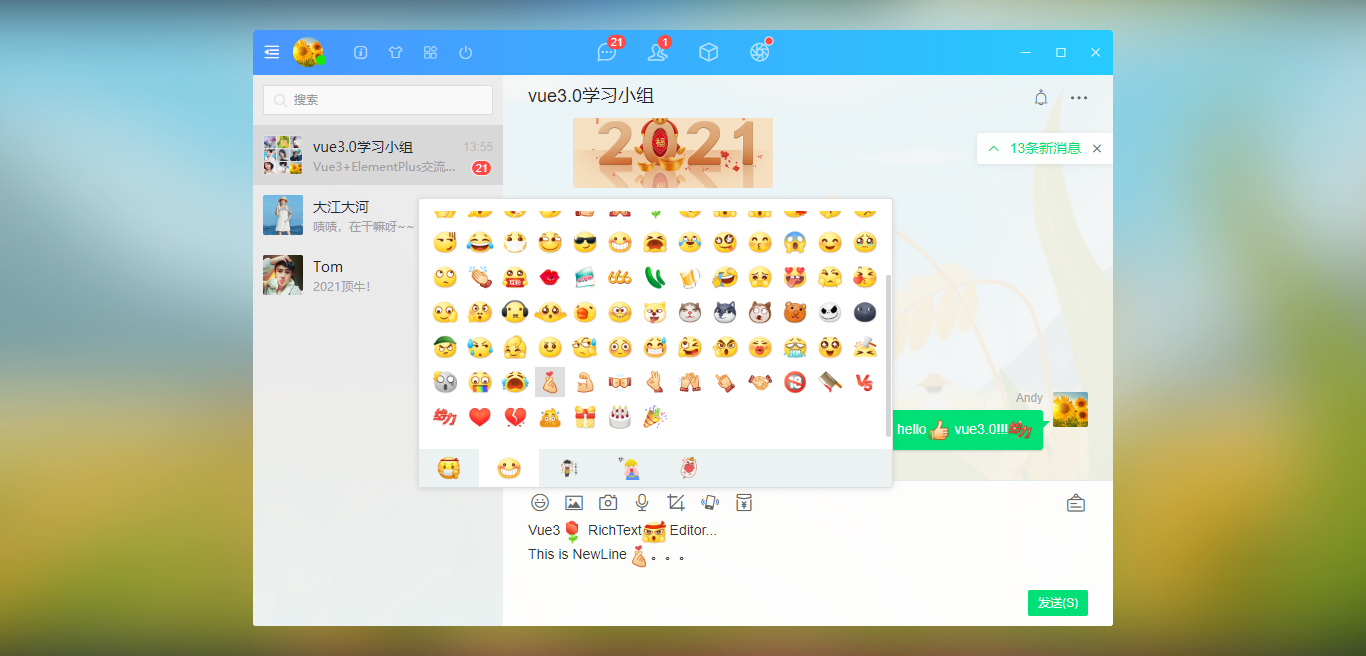

editor编辑器支持图文混排,光标处插入内容,多行文本,支持输入网址检测,粘贴截图发送等功能。
<template>
<div
ref="editorRef" class="editor" contentEditable="true" v-html="editorText"
@click="handleClick"
@input="handleInput"
@focus="handleFocus"
@blur="handleBlur"
style="user-select:text;-webkit-user-select:text;">
</div>
</template>
为大家提供了vue2.x和vue3.x两种实现方式。
/**
* @Desc vue3实现富文本编辑器
* @Time andy by 2021-01
* @About Q:282310962 wx:xy190310
*/
<script>
import { onMounted, ref, reactive, toRefs, watch } from 'vue'
export default {
props: {
modelValue: { type: String, default: '' }
},
/**
* Vue2.x写法
*/
/*
data () {
return {
editorText: this.modelValue,
isChange: true,
// 记录光标最后位置
lastCursor: null,
}
},
watch: {
modelValue() {
if(this.isChange) {
this.editorText = this.modelValue
}
}
},
mounted() {
// 处理粘贴事件
this.$refs.editor.addEventListener('paste', function(e) {
// ...
})
}
methods: {
handleInput() {
this.$emit('update:modelValue', this.$el.innerHTML)
this.lastCursor = this.getLastCursor()
},
// 删除内容
handleDel() {
let range
let sel = window.getSelection()
if(this.lastCursor) {
sel.removeAllRanges()
sel.addRange(this.lastCursor)
}
range = this.getLastCursor()
range.collapse(false)
document.execCommand('delete')
},
// 清空编辑器
handleClear() {
this.$refs.editor.innerHTML = ''
this.$refs.editor.focus()
},
// 点击编辑器
handleClick() {
this.$emit('clickFn')
this.lastCursor = this.getLastCursor()
},
// 获取焦点
handleFocus() {
this.isChange = false
this.$emit('focusFn')
this.lastCursor = this.getLastCursor()
},
// 失去焦点
handleBlur() {
this.isChange = true
this.$emit('blurFn')
},
// 获取光标最后位置
getLastCursor() {
let sel = window.getSelection()
if(sel && sel.rangeCount > 0) {
return sel.getRangeAt(0)
}
},
// 光标处插入内容 @param html 需要插入的内容
insertHtmlAtCursor(html) {
// ...
}
}
*/
/**
* Vue3.x写法
*/
setup(props, { emit }) {
const editorRef = ref(null)
const data = reactive({
editorText: props.modelValue,
isChange: true,
// 记录光标最后位置
lastCursor: null,
})
watch(() => props.modelValue, () => {
if(data.isChange) {
data.editorText = props.modelValue
}
})
onMounted(() => {
// 处理粘贴事件
editorRef.value.addEventListener('paste', function(e) {
// ...
})
})
const handleInput = () => {
emit('update:modelValue', editorRef.value.innerHTML)
data.lastCursor = getLastCursor()
}
// 删除内容
const handleDel = () => {
let range
let sel = window.getSelection()
if(data.lastCursor) {
sel.removeAllRanges()
sel.addRange(data.lastCursor)
}
range = getLastCursor()
range.collapse(false)
document.execCommand('delete')
}
// 清空编辑器
const handleClear = () => {
editorRef.value.innerHTML = ''
editorRef.value.focus()
}
// 点击编辑器
const handleClick = () => {
emit('clickFn')
data.lastCursor = getLastCursor()
}
// 获取焦点
const handleFocus = () => {
data.isChange = false
emit('focusFn')
data.lastCursor = getLastCursor()
}
// 失去焦点
const handleBlur = () => {
data.isChange = true
emit('blurFn')
}
// 获取光标最后位置
const getLastCursor = () => {
let sel = window.getSelection()
if(sel && sel.rangeCount > 0) {
return sel.getRangeAt(0)
}
}
// 光标处插入内容 @param html 需要插入的内容
const insertHtmlAtCursor = (html) => {
// ...
}
return {
...toRefs(data),
editorRef,
handleInput,
handleDel,
handleClear,
handleClick,
// ...
}
}
}
</script>
end,基于vue3.0+element-plus实现仿QQ/微信界面聊天实战项目就分享到这里。😊
