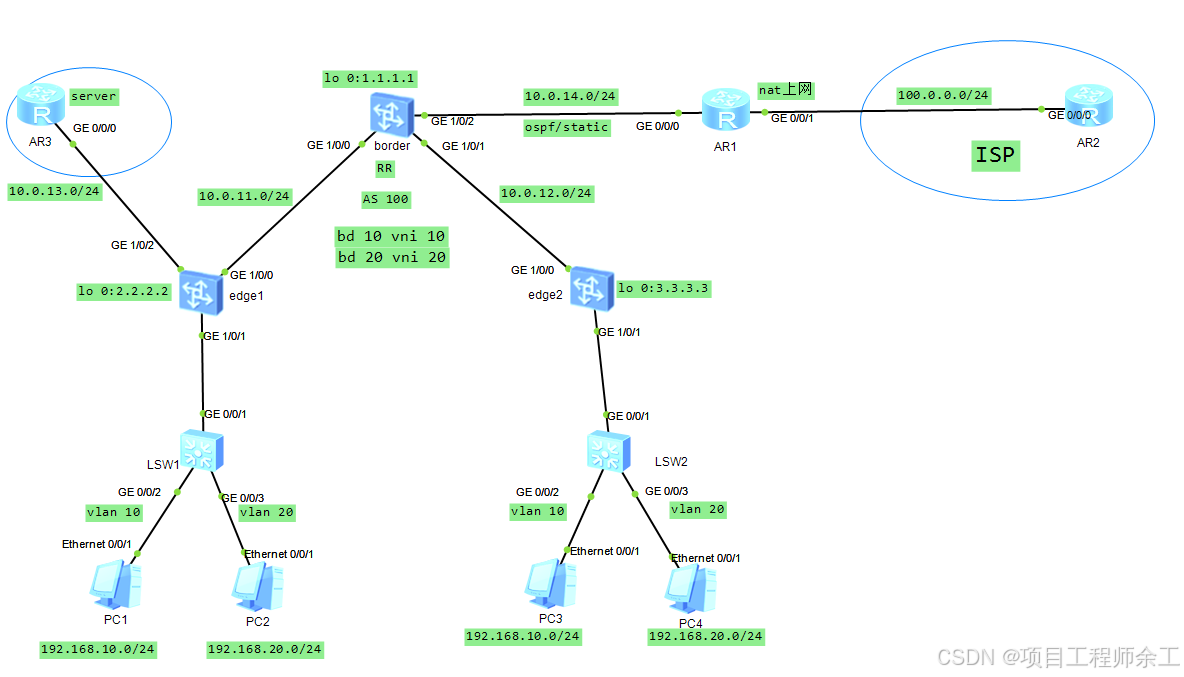

VXLAN多功能集成配置案例
需求分析(第3和第5是优化项可以不用配)
1、ospf实现underlay互通
2、路由控制使用evpn
3、配arp广播抑制功能，这个功能是把广播变成单播，而不是把广播干掉
4、pc机访问外部非vxlan网络server服务器
5、两边三层vbdif中配置相同的单播mac地址实现分布式网关下就近转发不用绕行，提高网络可靠性
6、vbdif接口中绑定，把ip vpn实例中把bd和ip vpn关联起来，一个ip vpn实例可以 绑定多个bd
7、ensp有bug需要在pc上手动添加arp -s表项
8、border做rr转发器，border和出口路由器使用静态或都ospf都可以
9、pc机能访问isp公网
9、接收端看发来的export rt与自己的import rt 二层evpn值和三层ip vpn-instanace值都不相同时，才会丢掉该路由
10、三层vni可以不同
11、两边的RD和RT设计的核心思想是：
发送
type2带的bd域中的出方向RT
type3带的bd域中的出方向RT
type5带的vpn实例下的出方向EERT
接收
TYPE2的出方向RT可以跟BD域下的入方向RT匹配，也可以跟VPN实例下的入方向RT匹配。
TYPE5的出方向RT只去跟VPN实例下的入方向RT匹配。
一条路由带着的RT值，只要能跟VPN实例对应上，不管你来自BD域下的RT还是VPN实例中的RT，都接受。
如果是来自于BD域下的RT，那是tyPE2的路由，如果是来自于VPN实例中的RT，就是type5的路由。
border
evpn-overlay enable //开启evpn功能
router id 1.1.1.1
ip vpn-instance out
ipv4-family
route-distinguisher 1:1
vpn-target 1020:12 export-extcommunity evpn
vpn-target 1020:12 import-extcommunity evpn
vxlan vni 1020 //三层vni
interface GE1/0/0
undo portswitch
undo shutdown
ip address 10.0.11.1 255.255.255.0
interface GE1/0/1
undo portswitch
undo shutdown
ip address 10.0.12.1 255.255.255.0
interface GE1/0/2
undo portswitch
undo shutdown
ip binding vpn-instance out
ip address 10.0.14.2 255.255.255.0
interface LoopBack0
ip address 1.1.1.1 255.255.255.255
interface Nve1
source 1.1.1.1
interface NULL0
bgp 100
peer 2.2.2.2 as-number 100
peer 2.2.2.2 connect-interface LoopBack0
peer 3.3.3.3 as-number 100
peer 3.3.3.3 connect-interface LoopBack0
ipv4-family unicast
peer 2.2.2.2 enable
peer 3.3.3.3 enable
ipv4-family vpn-instance out
default-route imported //真实设备bgp中默认不允许引入默认路由，得用这条允许引入默认路由，模拟器没问题
import-route static //发布静态默认路由
advertise l2vpn evpn // 开启五类ip前缀路由
l2vpn-family evpn
undo policy vpn-target
peer 2.2.2.2 enable
peer 2.2.2.2 advertise irb
peer 2.2.2.2 reflect-client //路由反射
peer 3.3.3.3 enable
peer 3.3.3.3 advertise irb //如果不做rr反射，只传evpn五类路由这个可以不用配
peer 3.3.3.3 reflect-client
ospf 1
area 0.0.0.0
network 1.1.1.1 0.0.0.0
network 10.0.11.1 0.0.0.0
network 10.0.12.1 0.0.0.0
ip route-static vpn-instance out 0.0.0.0 0.0.0.0 10.0.14.1 //上公网的默认路由
edge1
evpn-overlay enable
router id 2.2.2.2
ip vpn-instance edge1_1020
ipv4-family
route-distinguisher 100:12
vpn-target 1020:12 export-extcommunity evpn
vpn-target 1020:12 import-extcommunity evpn
vxlan vni 1020
bridge-domain 10
vxlan vni 10
evpn
route-distinguisher 100:10
vpn-target 1020:10 export-extcommunity
vpn-target 1020:12 export-extcommunity
vpn-target 1020:10 import-extcommunity
arp broadcast-suppress enable //arp广播抑制
bridge-domain 20
vxlan vni 20
evpn
route-distinguisher 100:20
vpn-target 1020:20 export-extcommunity
vpn-target 1020:12 export-extcommunity
vpn-target 1020:20 import-extcommunity
arp broadcast-suppress enable
interface Vbdif10
ip binding vpn-instance edge1_1020
ip address 192.168.10.254 255.255.255.0 //配置网关
mac-address 707b-e8be-0010 //和edge2配置相同
arp collect host enable //开启evpn二类路由学习arp功能
vxlan anycast-gateway enable //开分布式网关功能
interface Vbdif20
ip binding vpn-instance edge1_1020
ip address 192.168.20.254 255.255.255.0
mac-address 707b-e8be-0020
arp collect host enable
vxlan anycast-gateway enable
interface MEth0/0/0
undo shutdown
interface GE1/0/0
undo portswitch
undo shutdown
ip address 10.0.11.2 255.255.255.0
interface GE1/0/1
undo shutdown
interface GE1/0/1.10 mode l2
encapsulation dot1q vid 10
bridge-domain 10
interface GE1/0/1.20 mode l2
encapsulation dot1q vid 20
bridge-domain 20
interface GE1/0/2
undo portswitch
undo shutdown
ip binding vpn-instance edge1_1020
ip address 10.0.13.1 255.255.255.0
interface LoopBack0
ip address 2.2.2.2 255.255.255.255
interface Nve1
source 2.2.2.2
vni 10 head-end peer-list protocol bgp
vni 20 head-end peer-list protocol bgp
interface NULL0
bgp 100
peer 1.1.1.1 as-number 100
peer 1.1.1.1 connect-interface LoopBack0
ipv4-family unicast
peer 1.1.1.1 enable
ipv4-family vpn-instance edge1_1020
network 10.0.13.0 255.255.255.0
advertise l2vpn evpn
l2vpn-family evpn
policy vpn-target
peer 1.1.1.1 enable
peer 1.1.1.1 advertise irb
ospf 1
area 0.0.0.0
network 2.2.2.2 0.0.0.0
network 10.0.11.2 0.0.0.0
edge2
evpn-overlay enable
router id 3.3.3.3
ip vpn-instance edge2_1020
ipv4-family
route-distinguisher 200:12
vpn-target 1020:12 export-extcommunity evpn
vpn-target 1020:12 import-extcommunity evpn
vxlan vni 1020
bridge-domain 10
vxlan vni 10
evpn
route-distinguisher 200:10
vpn-target 1020:10 export-extcommunity
vpn-target 1020:12 export-extcommunity
vpn-target 1020:10 import-extcommunity
arp broadcast-suppress enable
bridge-domain 20
vxlan vni 20
evpn
route-distinguisher 200:20
vpn-target 1020:20 export-extcommunity
vpn-target 1020:12 export-extcommunity
vpn-target 1020:20 import-extcommunity
arp broadcast-suppress enable
interface Vbdif10
ip binding vpn-instance edge2_1020
ip address 192.168.10.254 255.255.255.0
mac-address 707b-e8be-0010
arp collect host enable
vxlan anycast-gateway enable
interface Vbdif20
ip binding vpn-instance edge2_1020
ip address 192.168.20.254 255.255.255.0
mac-address 707b-e8be-0020
arp collect host enable
vxlan anycast-gateway enable
interface MEth0/0/0
undo shutdown
interface GE1/0/0
undo portswitch
undo shutdown
ip address 10.0.12.2 255.255.255.0
interface GE1/0/1
undo shutdown
interface GE1/0/1.10 mode l2
encapsulation dot1q vid 10
bridge-domain 10
interface GE1/0/1.20 mode l2
encapsulation dot1q vid 20
bridge-domain 20
interface LoopBack0
ip address 3.3.3.3 255.255.255.255
interface Nve1
source 3.3.3.3
vni 10 head-end peer-list protocol bgp
vni 20 head-end peer-list protocol bgp
interface NULL0
bgp 100
peer 1.1.1.1 as-number 100
peer 1.1.1.1 connect-interface LoopBack0
ipv4-family unicast
peer 1.1.1.1 enable
ipv4-family vpn-instance edge2_1020
advertise l2vpn evpn
l2vpn-family evpn
policy vpn-target
peer 1.1.1.1 enable
peer 1.1.1.1 advertise irb
ospf 1
area 0.0.0.0
network 3.3.3.3 0.0.0.0
network 10.0.12.2 0.0.0.0
switch1
vlan batch 10 20
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password simple admin
local-user admin service-type http
interface Vlanif1
interface MEth0/0/1
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 10 20
interface GigabitEthernet0/0/2
port link-type access
port default vlan 10
interface GigabitEthernet0/0/3
port link-type access
port default vlan 20
switch2
vlan batch 10 20
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 10 20
interface GigabitEthernet0/0/2
port link-type access
port default vlan 10
interface GigabitEthernet0/0/3
port link-type access
port default vlan 20
AR3
interface GigabitEthernet0/0/0
ip address 10.0.13.3 255.255.255.0
ip route-static 0.0.0.0 0.0.0.0 10.0.13.1
AR1
acl number 2000
rule 5 permit source 192.168.0.0 0.0.255.255
interface GigabitEthernet0/0/0
ip address 10.0.14.1 255.255.255.0
interface GigabitEthernet0/0/1
ip address 100.0.0.2 255.255.255.0
nat outbound 2000
ip route-static 0.0.0.0 0.0.0.0 100.0.0.1
ip route-static 192.168.0.0 255.255.0.0 10.0.14.2
AR2
interface GigabitEthernet0/0/0
ip address 100.0.0.1 255.255.255.0
evpn邻居查看
ping网关测试
路由查看
邻居查看
pc1通pc3
pc1通pc4跨广播域
刚才手动配的mac
实例路由查看
arp广播抑制后ping 192.168.20.2捉包查看

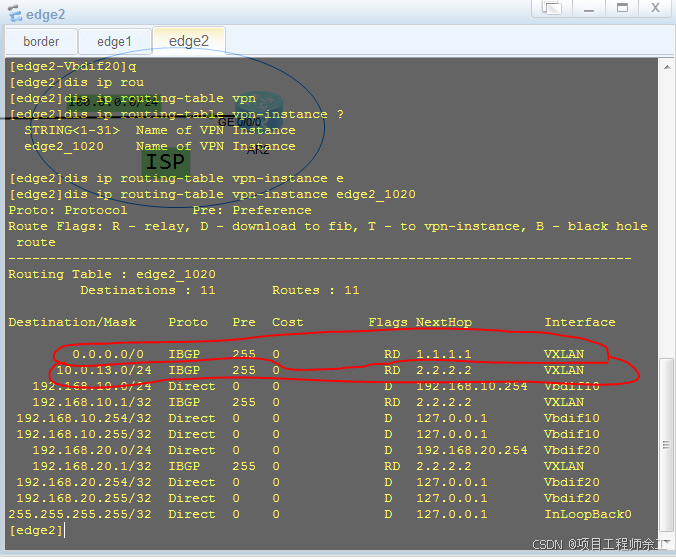

查看学到的外部路由
pc4可以 通外部网络ar3(server)

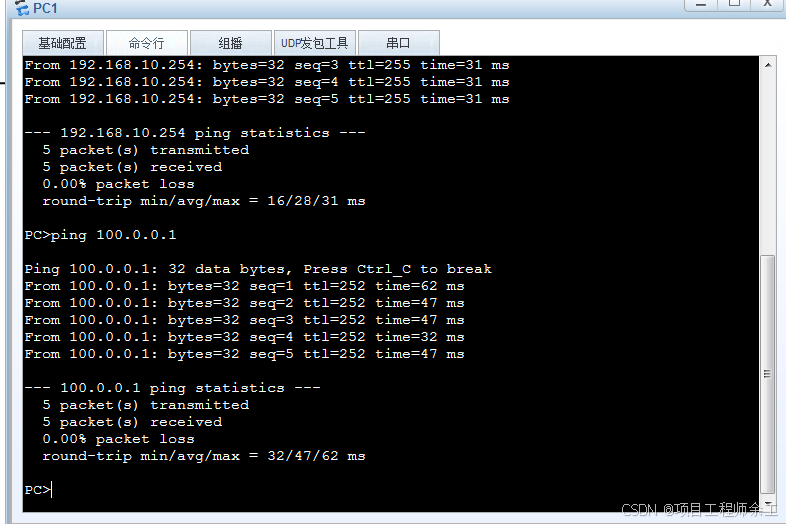

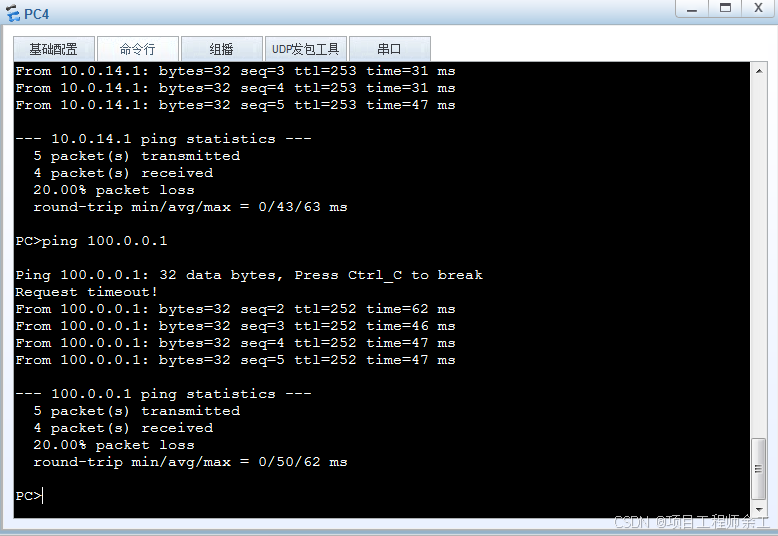

上公网测试
第二种方案
出口路由和border设备使用ospf对接，其它配置不变，和静态区别就是这两台设备的配置不一样
border
evpn-overlay enable
router id 1.1.1.1
ip vpn-instance out
ipv4-family
route-distinguisher 1:1
vpn-target 1020:12 export-extcommunity evpn
vpn-target 1020:12 import-extcommunity evpn
vxlan vni 1020
interface GE1/0/0
undo portswitch
undo shutdown
ip address 10.0.11.1 255.255.255.0
interface GE1/0/1
undo portswitch
undo shutdown
ip address 10.0.12.1 255.255.255.0
interface GE1/0/2
undo portswitch
undo shutdown
ip binding vpn-instance out
ip address 10.0.14.2 255.255.255.0
interface LoopBack0
ip address 1.1.1.1 255.255.255.255
interface Nve1
source 1.1.1.1 //没有这条报文没法封装原ip
bgp 100
peer 2.2.2.2 as-number 100
peer 2.2.2.2 connect-interface LoopBack0
peer 3.3.3.3 as-number 100
peer 3.3.3.3 connect-interface LoopBack0
ipv4-family unicast
peer 2.2.2.2 enable
peer 3.3.3.3 enable
ipv4-family vpn-instance out
default-route imported //真实环境这条不配默认五类学到的ospf默认路由传不到edge上去，因为bgp中默认不允许引入默认路由
import-route ospf 2
advertise l2vpn evpn
l2vpn-family evpn
undo policy vpn-target
peer 2.2.2.2 enable
peer 2.2.2.2 advertise irb
peer 2.2.2.2 reflect-client
peer 3.3.3.3 enable
peer 3.3.3.3 advertise irb
peer 3.3.3.3 reflect-client
ospf 1
area 0.0.0.0
network 1.1.1.1 0.0.0.0
network 10.0.11.1 0.0.0.0
network 10.0.12.1 0.0.0.0
ospf 2 vpn-instance out
import-route bgp //把内部学到的bgp实例路由传给出口路由
area 0.0.0.0
network 10.0.14.2 0.0.0.0
AR1
acl number 2000
rule 5 permit source 192.168.0.0 0.0.255.255
interface GigabitEthernet0/0/0
ip address 10.0.14.1 255.255.255.0
interface GigabitEthernet0/0/1
ip address 100.0.0.2 255.255.255.0
nat outbound 2000
ospf 1
default-route-advertise
area 0.0.0.0
network 10.0.14.1 0.0.0.0
ip route-static 0.0.0.0 0.0.0.0 100.0.0.1
