Servlet源码分析

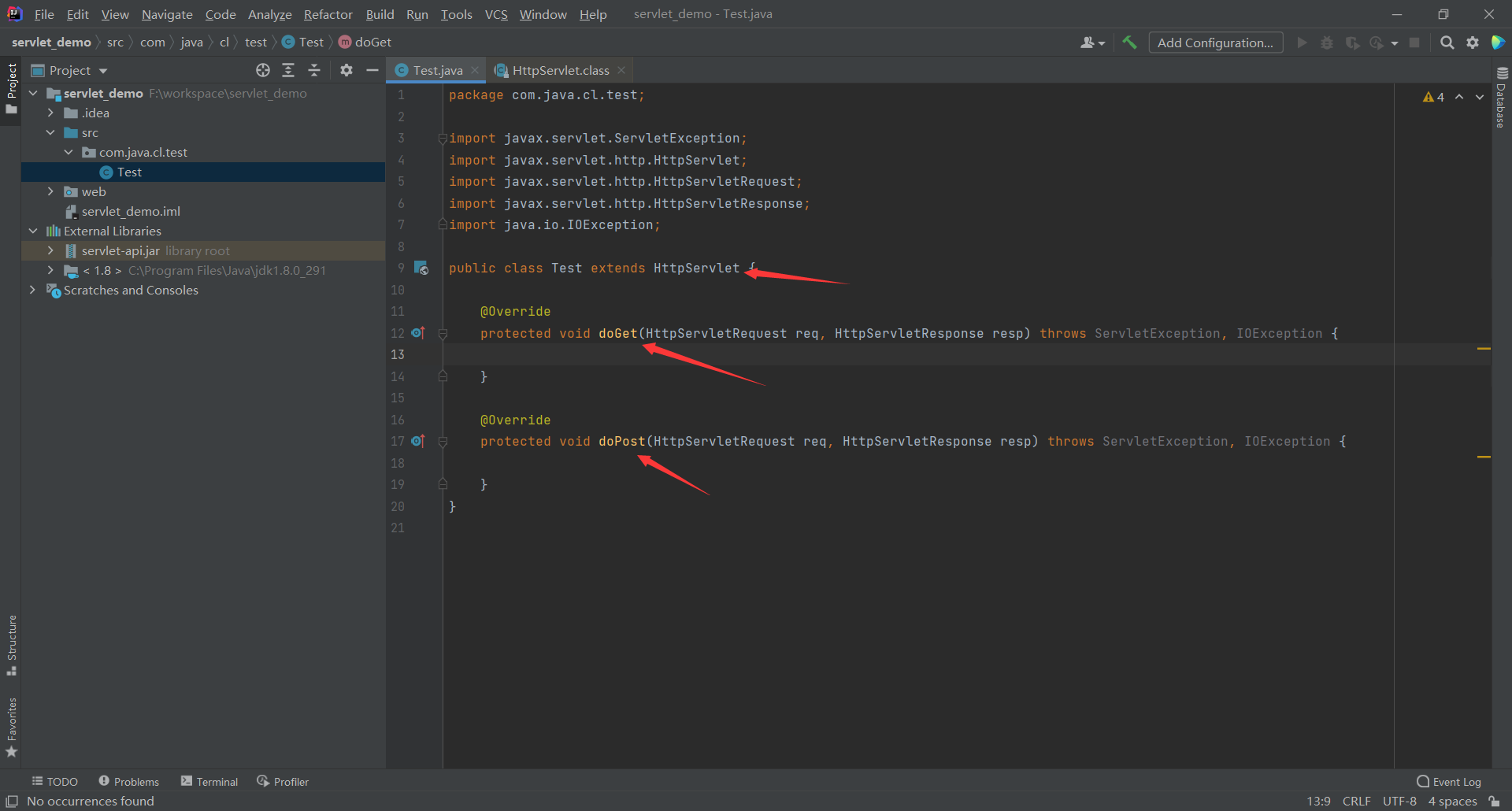

在servlet项目中,我们新建TestServlet类继承Httpservlet,重写其doPost与doGet方法,就可以接收前台的get和post请求,那么这是为什么呢?

首先通过源码我们可以发现:

        HttpServlet 继承自 GenericServlet 抽象类,

        GenericServlet 实现了 Servlet 接口,ServletConfig 接口,Serializable 接口

Servlet接口,是一个顶层接口,如下图

public interface Servlet {
    void init(ServletConfig var1) throws ServletException;

    ServletConfig getServletConfig();

    void service(ServletRequest var1, ServletResponse var2) throws ServletException, IOException;

    String getServletInfo();

    void destroy();
}

其中有三个生命周期函数:

1.init()                servlet容器一旦创建就会调用init()函数进行初始化

2.service()         前台有请求,就会调用service()方法提供服务

3.destroy()         servlet容器销毁会调用destroy()

两个获取servlet信息的方法:

        getServletConfig()            用于获取servlet的配置信息

        getServletInfo()                用于获取servlet的信息

 ServletConfig接口,也是一个顶层接口,其中的方法都是关于servlet的配置信息获取

public interface ServletConfig {
    String getServletName();

    ServletContext getServletContext();

    String getInitParameter(String var1);

    Enumeration<String> getInitParameterNames();
}

 Serializable接口,实现该接口表示该类可被序列化

public interface Serializable {
}

GenericServlet是一个抽象类,实现了servlet,servletconfig,serializable

        实现了servlet接口, servlet容器调用servlet接口的方法就会交给下游GenericServlet实现

        而GenericServlet又将方法交给下游HttpServlet方法

public abstract class GenericServlet implements Servlet, ServletConfig, Serializable {
    private static final long serialVersionUID = 1L;
    private transient ServletConfig config;

    public GenericServlet() {
    }

    public void destroy() {
    }

    public String getInitParameter(String name) {
        return this.getServletConfig().getInitParameter(name);
    }

    public Enumeration<String> getInitParameterNames() {
        return this.getServletConfig().getInitParameterNames();
    }

    public ServletConfig getServletConfig() {
        return this.config;
    }

    public ServletContext getServletContext() {
        return this.getServletConfig().getServletContext();
    }

    public String getServletInfo() {
        return "";
    }

    public void init(ServletConfig config) throws ServletException {
        this.config = config;
        this.init();
    }

    public void init() throws ServletException {
    }

    public void log(String message) {
        this.getServletContext().log(this.getServletName() + ": " + message);
    }

    public void log(String message, Throwable t) {
        this.getServletContext().log(this.getServletName() + ": " + message, t);
    }

    public abstract void service(ServletRequest var1, ServletResponse var2) throws ServletException, IOException;

    public String getServletName() {
        return this.config.getServletName();
    }
}

那么在实际应用过程中,我们一般只关心如何收到请求与返回响应

        在HttpServlet源码中的service()方法通过继承父类,父类实现父接口,实际上源自顶层接口Servlet的生命周期函数,就是Servlet对外提供服务的方法

        在方法中可以看到HttpServlet对请求按照请求类型进行分类,因此我们只需要重写其方法,就可以接收不同类型的请求

protected void service(HttpServletRequest req, HttpServletResponse resp) throws
                                                   ServletException, IOException {
        String method = req.getMethod();
        long lastModified;
        if (method.equals("GET")) {
            lastModified = this.getLastModified(req);
            if (lastModified == -1L) {
                this.doGet(req, resp);
            } else {
                long ifModifiedSince;
                try {
                    ifModifiedSince = req.getDateHeader("If-Modified-Since");
                } catch (IllegalArgumentException var9) {
                    ifModifiedSince = -1L;
                }

                if (ifModifiedSince < lastModified / 1000L * 1000L) {
                    this.maybeSetLastModified(resp, lastModified);
                    this.doGet(req, resp);
                } else {
                    resp.setStatus(304);
                }
            }
        } else if (method.equals("HEAD")) {
            lastModified = this.getLastModified(req);
            this.maybeSetLastModified(resp, lastModified);
            this.doHead(req, resp);
        } else if (method.equals("POST")) {
            this.doPost(req, resp);
        } else if (method.equals("PUT")) {
            this.doPut(req, resp);
        } else if (method.equals("DELETE")) {
            this.doDelete(req, resp);
        } else if (method.equals("OPTIONS")) {
            this.doOptions(req, resp);
        } else if (method.equals("TRACE")) {
            this.doTrace(req, resp);
        } else {
            String errMsg = lStrings.getString("http.method_not_implemented");
            Object[] errArgs = new Object[]{method};
            errMsg = MessageFormat.format(errMsg, errArgs);
            resp.sendError(501, errMsg);
        }

    }

protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        String msg = lStrings.getString("http.method_get_not_supported");
        this.sendMethodNotAllowed(req, resp, msg);
    }

    protected long getLastModified(HttpServletRequest req) {
        return -1L;
    }

    protected void doHead(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        if (DispatcherType.INCLUDE.equals(req.getDispatcherType())) {
            this.doGet(req, resp);
        } else {
            HttpServlet.NoBodyResponse response = new HttpServlet.NoBodyResponse(resp);
            this.doGet(req, response);
            if (req.isAsyncStarted()) {
                req.getAsyncContext().addListener(new HttpServlet.NoBodyAsyncContextListener(response));
            } else {
                response.setContentLength();
            }
        }

    }

    protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        String msg = lStrings.getString("http.method_post_not_supported");
        this.sendMethodNotAllowed(req, resp, msg);
    }

    protected void doPut(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        String msg = lStrings.getString("http.method_put_not_supported");
        this.sendMethodNotAllowed(req, resp, msg);
    }

    protected void doDelete(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        String msg = lStrings.getString("http.method_delete_not_supported");
        this.sendMethodNotAllowed(req, resp, msg);
    }

         也就是说,前端请求到Servlet容器,Servlet下发到GenericServlet,GenericServlet又将方法交给下游HttpServlet方法,那么我们写一个servlet继承HttpServlet,让其将请求下发,就可以接收request请求了

 总结:

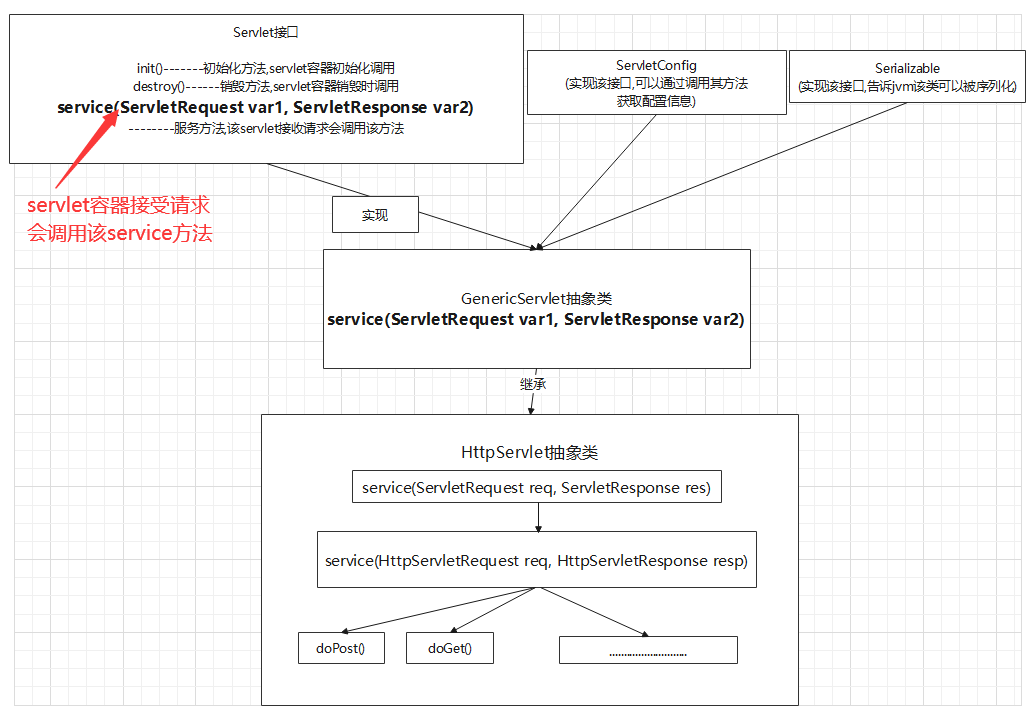

        servlet 总体结构如下:

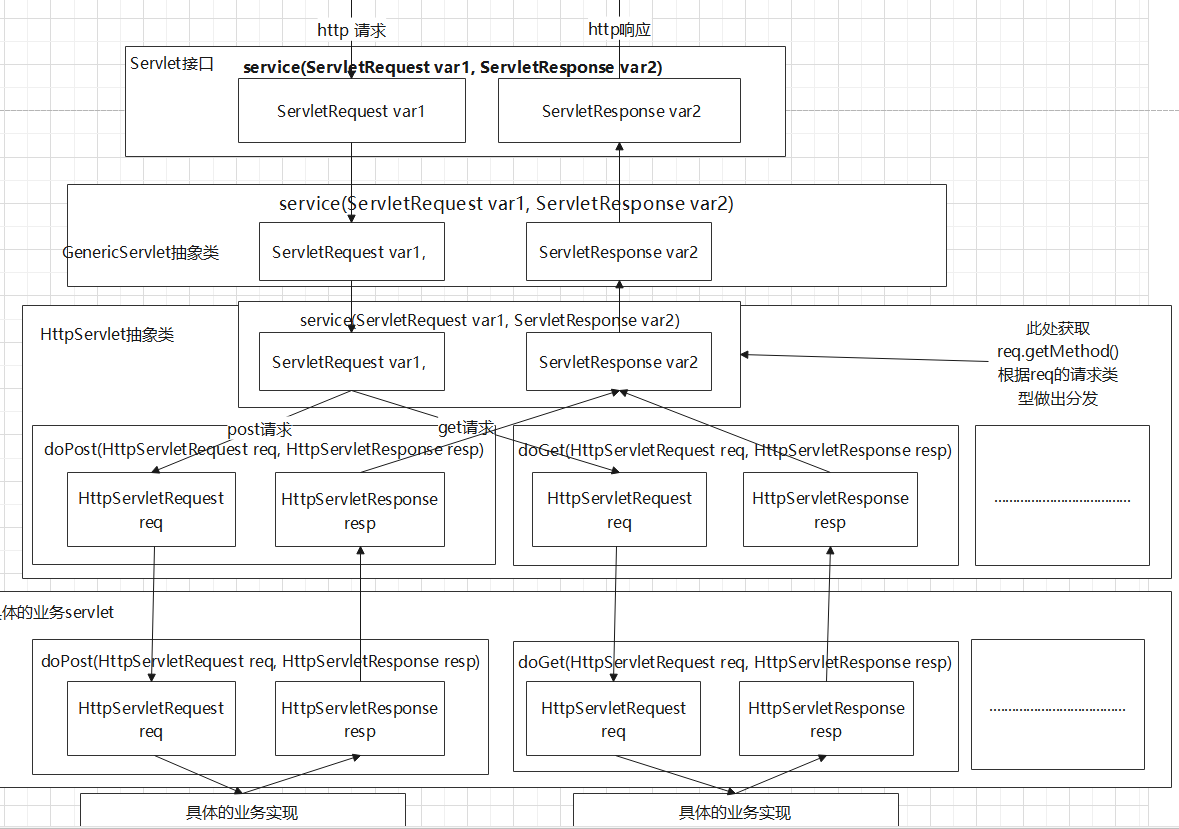

 请求与响应的下发:
