将fluent的h5文件保存为.cas和.dat的方法
目前新版的fluent默认保存为.cas.h5文件,这个文件的优势是在于可以减小文件本身所占用的大小,但是缺点也十分明显,就是不能读入旧版tecplot中,就十分的麻烦。目前一共有三种解决方法。
使用最新的tecplot的版本

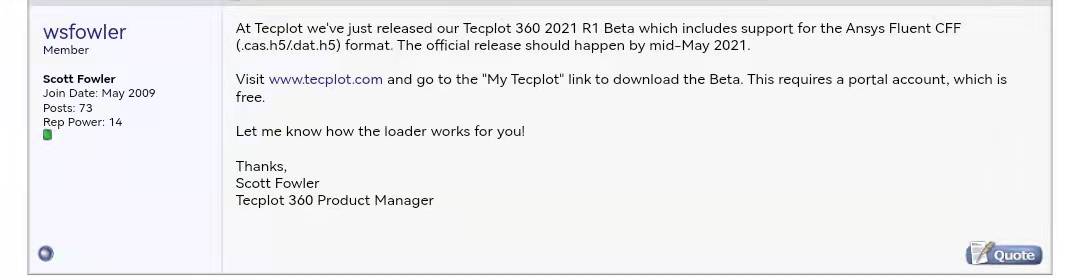

大家可以下载最新的tecplot版本,解决这个问题。根据tecplot官网描述:
At Tecplot we've just released our Tecplot 360 2021 R1 Beta which includes support for the Ansys Fluent CFF (.cas.h5/.dat.h5) format. The official release should happen by mid-May 2021.
Visit www.tecplot.com and go to the "My Tecplot" link to download the Beta. This requires a portal account, which is free.
Let me know how the loader works for you!
Thanks,
Scott Fowler
Tecplot 360 Product Manager
大家记得及时更新自己的tecplot版本就好啦。如果想要尝试这个方法的话,可以点击这里查看
使用tui命令修改保存方式

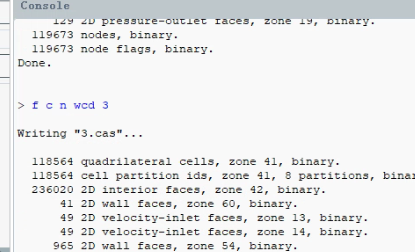

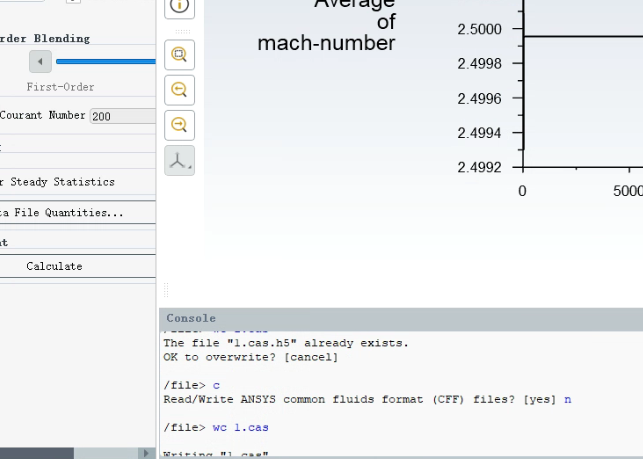

如图所示,输入tui命令就可以很好的修改保存格式。输入代码为
f c n wcd 3
就可以非常快速的得到命名为3.cas和3.dat的文件。当然啦,3大家可以自己改成别的名字,这里面只是一个演示。
使用gui点点点的方法

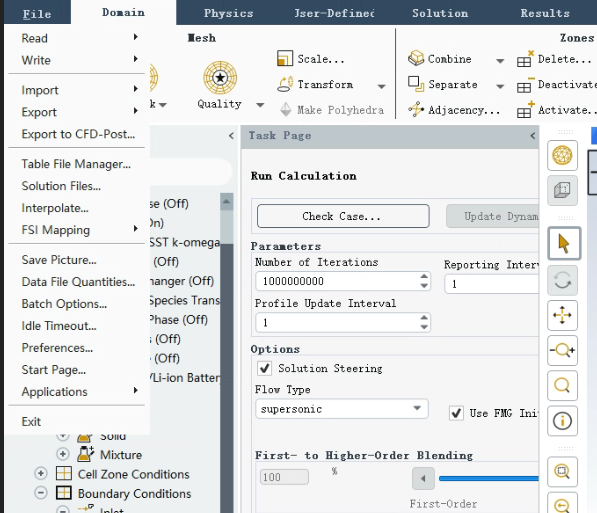

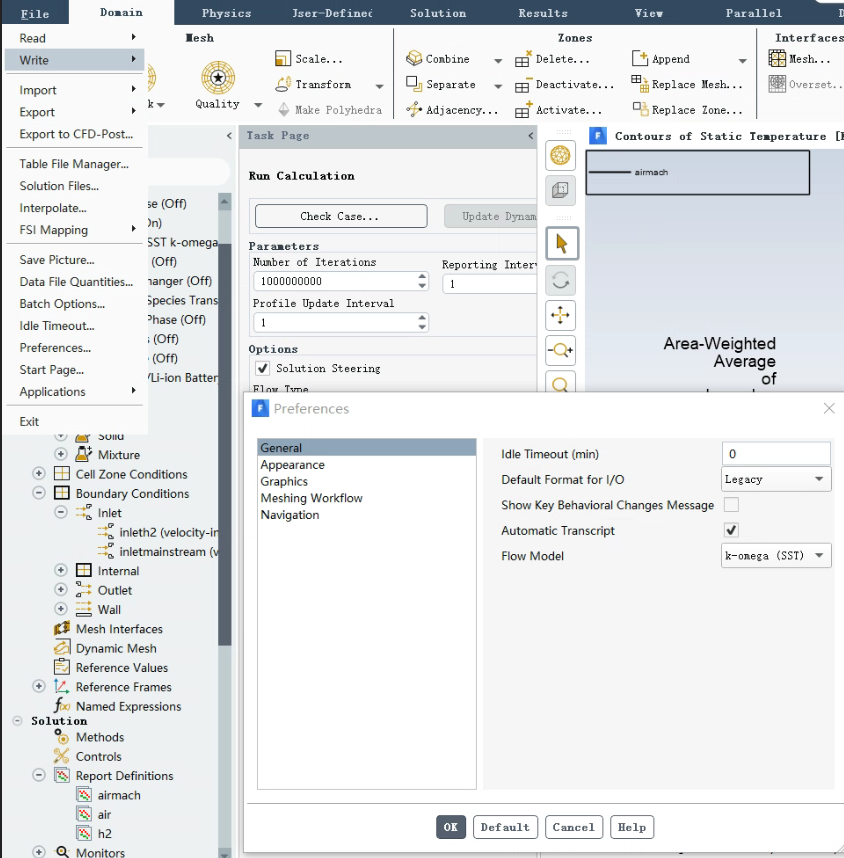

点击File -> Preference... -> Default Format for I/O -> legacy" 把CFF改成legacy即可。以后保存就默认.cas和.dat了
