Windows安装milvus和图形化管理工具attu

milvus官方网站并没有针对windows系统的安装有系统性的安装讲解，因此走了很多的弯路，为让兄弟们一路畅通，把安装过程做了如下记录。
另外有几点提醒：
1、windows无法安装milvus lite（网上大多说不支持，只有个别牛人说支持，但是我历尽千辛万苦，尝试了很多方法，依然无效。所以，权当不支持吧，有不怕苦的兄弟，也可以自己试试）
2、windows安装milvus只支持docker安装（原本我想要原生安装的，但也是无果，默哀10分钟）

一、准备工作

确保电脑上已装了python 3.8+

二、安装Docker

1、先安装Hyper-V
以此打开开：控制面板 - 程序和功能 - 启用或关闭Windows功能，选中Hyper-V，点确定安装

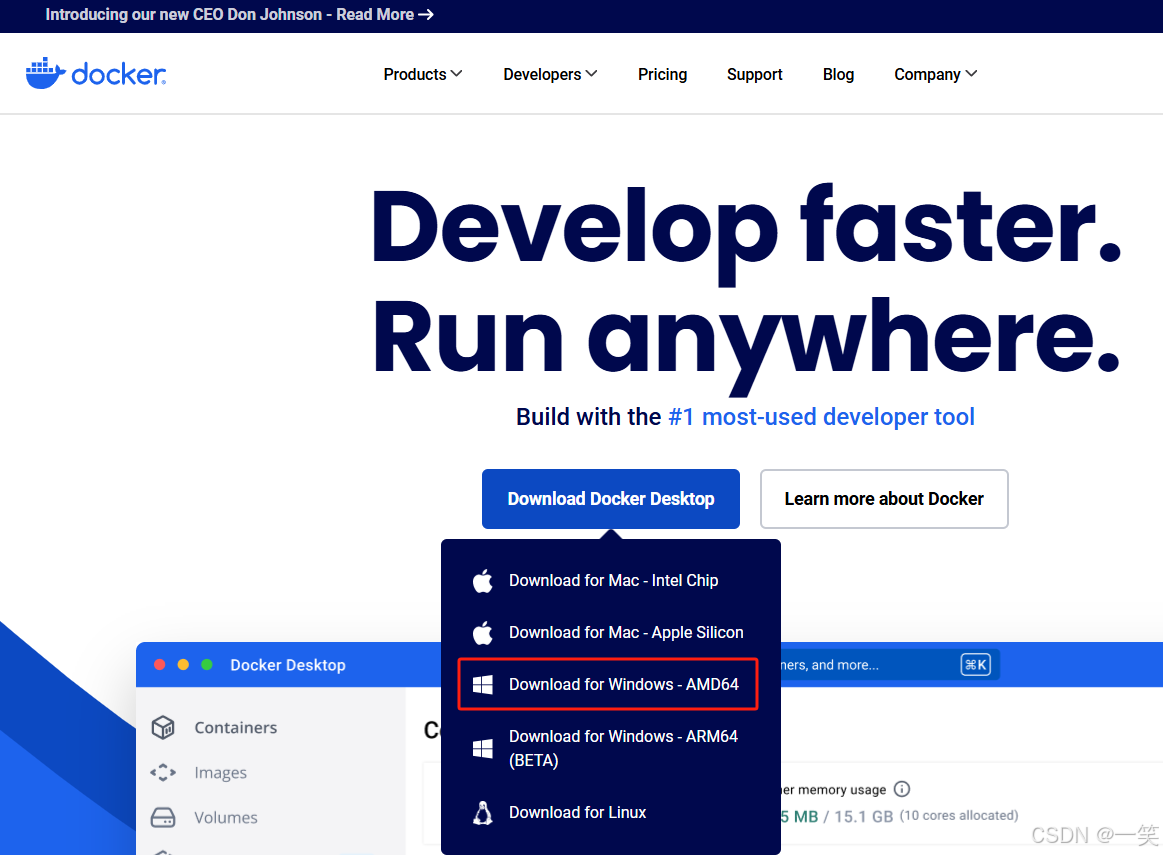

2、下载Docker桌面版
下载地址：https://www.docker.com/

3、运行一直点击下一步安装至完成

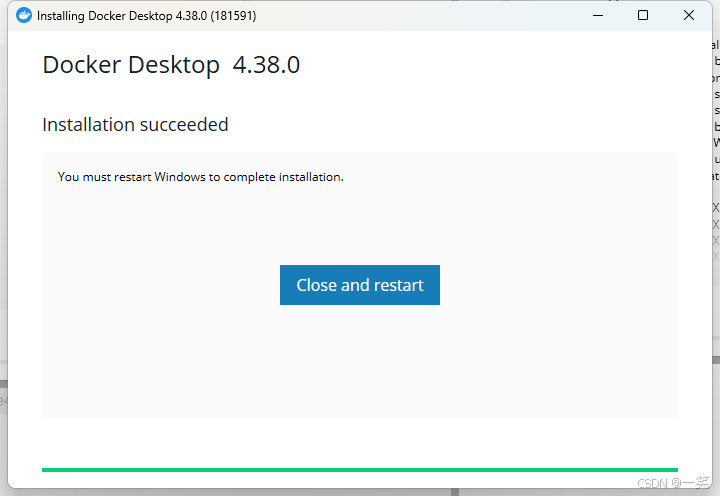

看到这个画面代表安装成功

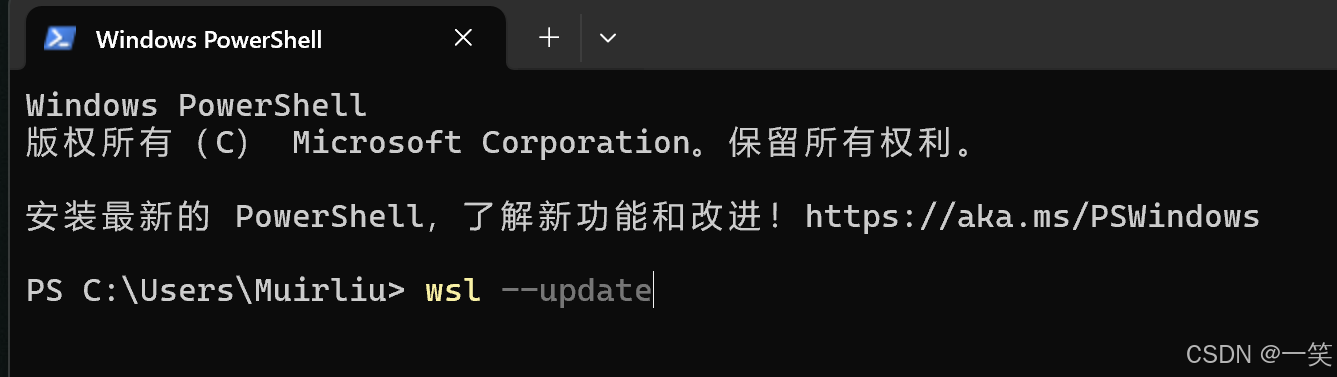

如果中途弹出安装wsl --update失败的窗口，就自己用管理员权限打开Windows PowerShell重新执行以下代码

wsl --update

三、安装Milvus

1、点击此链接下载文件并保存到本地（可能需要梯子），重命名为：standalone.bat
文件链接：https://raw.githubusercontent.com/milvus-io/milvus/refs/heads/master/scripts/standalone_embed.bat
如果无法下载，请新建standalone.bat文件，并将以下代码粘贴至standalone.bat文件中：

@REM  Licensed to the LF AI & Data foundation under one
@REM  or more contributor license agreements. See the NOTICE file
@REM  distributed with this work for additional information
@REM  regarding copyright ownership. The ASF licenses this file
@REM  to you under the Apache License, Version 2.0 (the
@REM  "License"); you may not use this file except in compliance
@REM  with the License. You may obtain a copy of the License at
@REM
@REM    http://www.apache.org/licenses/LICENSE-2.0
@REM
@REM  Unless required by applicable law or agreed to in writing, software
@REM  distributed under the License is distributed on an "AS IS" BASIS,
@REM  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
@REM  See the License for the specific language governing permissions and
@REM  limitations under the License.

@echo off
setlocal enabledelayedexpansion

:main
if "%1"=="" (
    echo Please use standalone_embed.bat restart^|start^|stop^|delete
    exit /b 1
)

if "%1"=="restart" (
    call :stop
    call :start
) else if "%1"=="start" (
    call :start
) else if "%1"=="stop" (
    call :stop
) else if "%1"=="delete" (
    call :delete
) else (
    echo Unknown command.
    echo Please use standalone_embed.bat restart^|start^|stop^|upgrade^|delete
    exit /b 1
)
goto :eof

:run_embed
(
echo listen-client-urls: http://0.0.0.0:2379
echo advertise-client-urls: http://0.0.0.0:2379
echo quota-backend-bytes: 4294967296
echo auto-compaction-mode: revision
echo auto-compaction-retention: '1000'
) > embedEtcd.yaml

(
echo # Extra config to override default milvus.yaml
) > user.yaml

if not exist "embedEtcd.yaml" (
    echo embedEtcd.yaml file does not exist. Please try to create it in the current directory.
    exit /b 1
)
if not exist "user.yaml" (
    echo user.yaml file does not exist. Please try to create it in the current directory.
    exit /b 1
)

docker run -d ^
    --name milvus-standalone ^
    --security-opt seccomp:unconfined ^
    -e ETCD_USE_EMBED=true ^
    -e ETCD_DATA_DIR=/var/lib/milvus/etcd ^
    -e ETCD_CONFIG_PATH=/milvus/configs/embedEtcd.yaml ^
    -e COMMON_STORAGETYPE=local ^
    -v "%cd%\volumes\milvus:/var/lib/milvus" ^
    -v "%cd%\embedEtcd.yaml:/milvus/configs/embedEtcd.yaml" ^
    -v "%cd%\user.yaml:/milvus/configs/user.yaml" ^
    -p 19530:19530 ^
    -p 9091:9091 ^
    -p 2379:2379 ^
    --health-cmd="curl -f http://localhost:9091/healthz" ^
    --health-interval=30s ^
    --health-start-period=90s ^
    --health-timeout=20s ^
    --health-retries=3 ^
    milvusdb/milvus:v2.5.5 ^
    milvus run standalone >nul
if %errorlevel% neq 0 (
    echo Failed to start Milvus container.
    exit /b 1
)

goto :eof

:wait_for_milvus_running
echo Wait for Milvus Starting...
:wait_loop
for /f "tokens=*" %%A in ('docker ps ^| findstr "milvus-standalone" ^| findstr "healthy"') do set running=1
if "!running!"=="1" (
    echo Start successfully.
    echo To change the default Milvus configuration, edit user.yaml and restart the service.
    goto :eof
)
timeout /t 1 >nul
goto wait_loop

:start
for /f "tokens=*" %%A in ('docker ps ^| findstr "milvus-standalone" ^| findstr "healthy"') do (
    echo Milvus is running.
    exit /b 0
)

for /f "tokens=*" %%A in ('docker ps -a ^| findstr "milvus-standalone"') do set container_exists=1
if defined container_exists (
    docker start milvus-standalone >nul
) else (
    call :run_embed
)

if %errorlevel% neq 0 (
    echo Start failed.
    exit /b 1
)

call :wait_for_milvus_running
goto :eof

:stop
docker stop milvus-standalone >nul
if %errorlevel% neq 0 (
    echo Stop failed.
    exit /b 1
)
echo Stop successfully.
goto :eof

:delete_container
for /f "tokens=*" %%A in ('docker ps ^| findstr "milvus-standalone"') do (
    echo Please stop Milvus service before delete.
    exit /b 1
)
docker rm milvus-standalone >nul
if %errorlevel% neq 0 (
    echo Delete Milvus container failed.
    exit /b 1
)
echo Delete Milvus container successfully.
goto :eof

:delete
call :delete_container
rmdir /s /q "%cd%\volumes"
del /q embedEtcd.yaml
del /q user.yaml
echo Delete successfully.
goto :eof

:EOF

2、执行安装

standalone.bat start

（可能需要梯子，请自备）

3、测试链接
在本地新建test.py文件，贴上以下代码，执行后不报错，说明已经安装成功

from pymilvus import connections

# 连接到 Milvus 服务
connections.connect(
    alias="default",
    host='localhost',
    port='19530'
)

四、安装图形化管理工具attu

1、查看docker虚拟IP
打开cmd命令行窗口，并执行以下代码

ipconfig

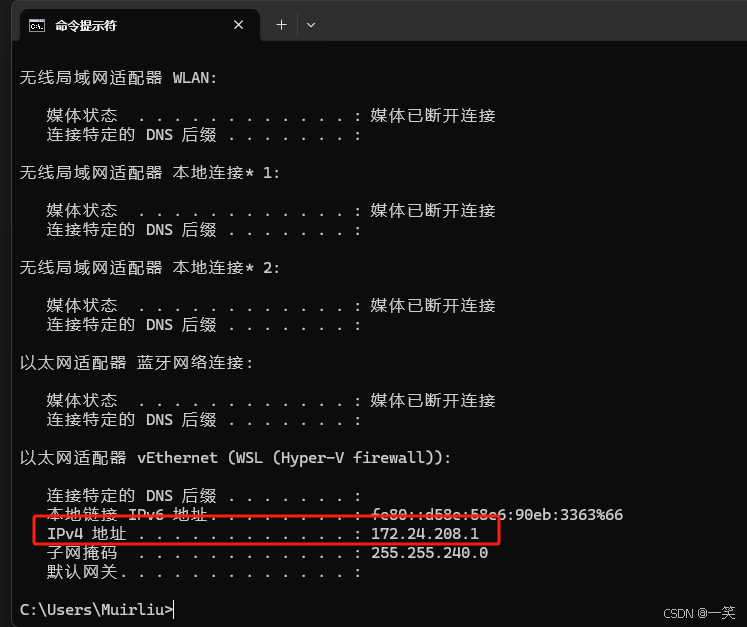

找到如下IP（WSL (Hyper-V firewall) IPv4地址），如：172.24.208.1

2、执行安装attu

将以下命令中的{milvus server IP}替换成上一步获取到的docker虚拟IP

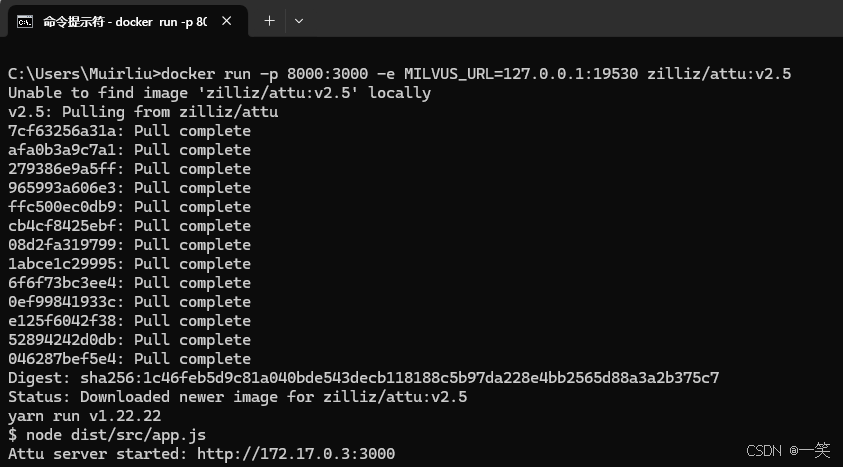

docker run -p 8000:3000 -e MILVUS_URL={milvus server IP}:19530 zilliz/attu:v2.5

如：

docker run -p 8000:3000 -e MILVUS_URL=172.24.208.1:19530 zilliz/attu:v2.5

等待执行完毕

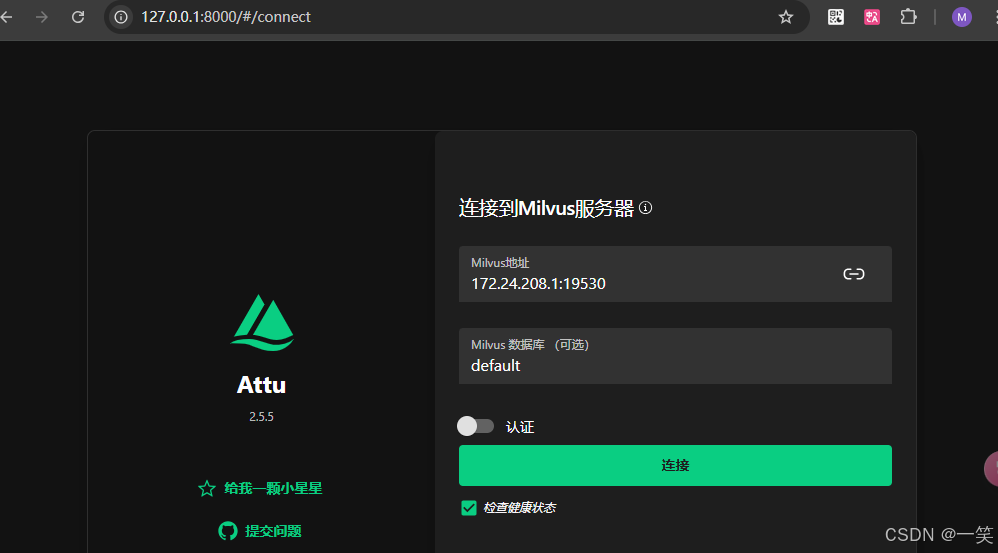

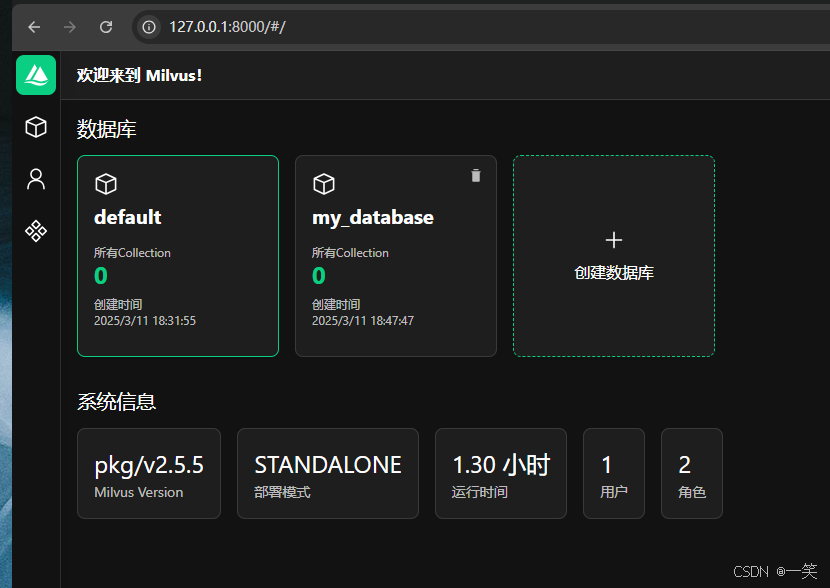

在浏览器打开：http://127.0.0.1:8000/

确保Milvus地址是docker虚拟IP，端口是19530，点击“连接”，即可看到图形化的管理界面了。

五、运行milvus

经过以上步骤安装好milvus后，第二天会发现电脑重启开启，milvus服务却不能用了。可以按照以下方式手动运行，就可以继续访问了。
步骤如下：

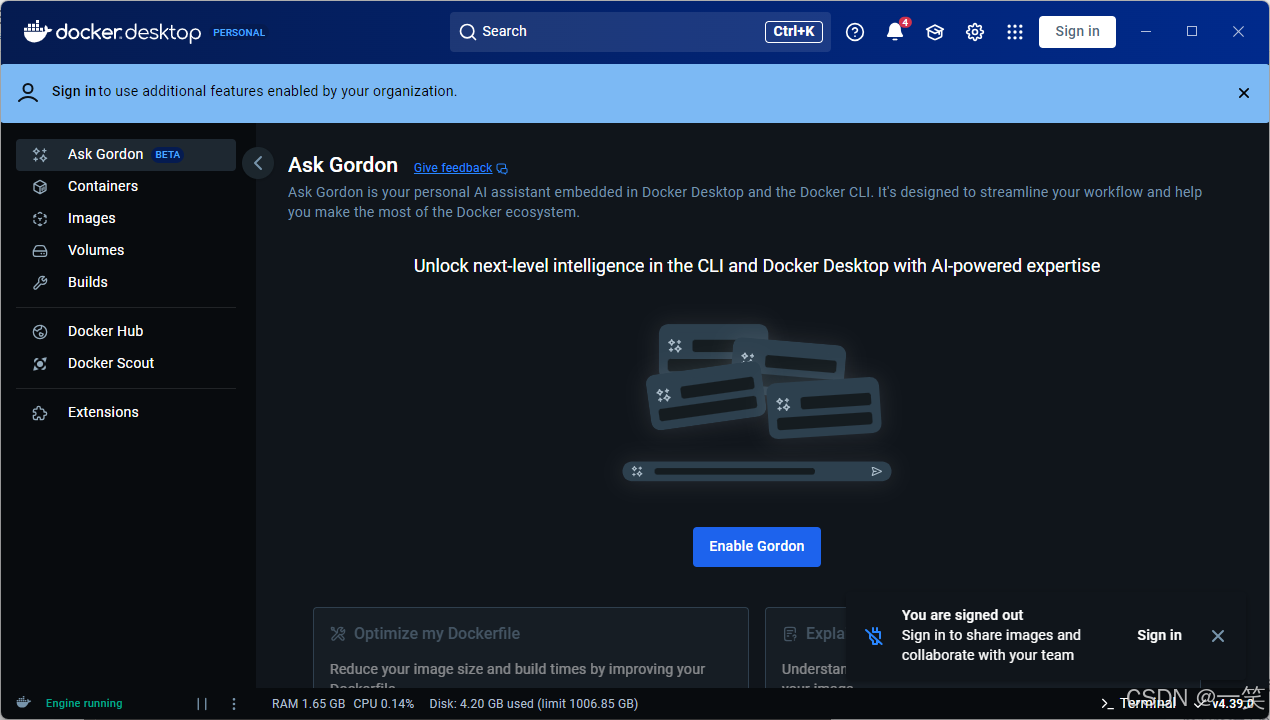

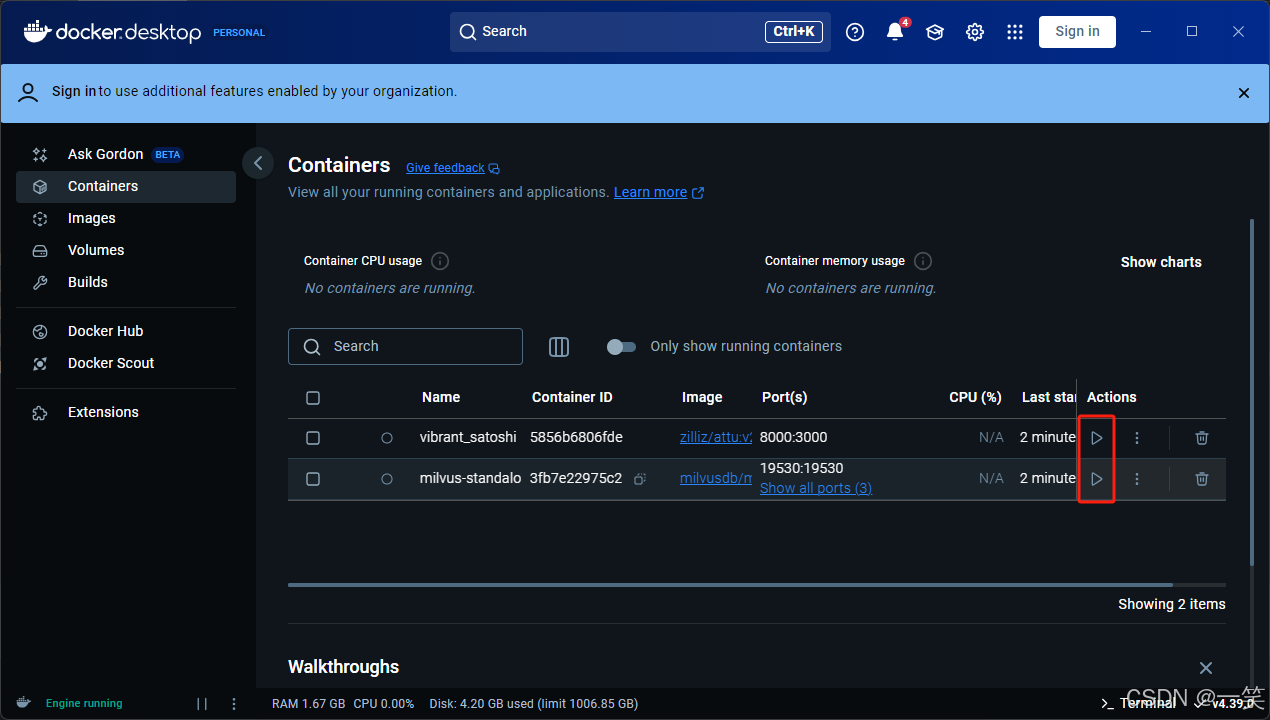

打开Docker - Containers，并选中Actions列的运行按钮（三角型按钮）

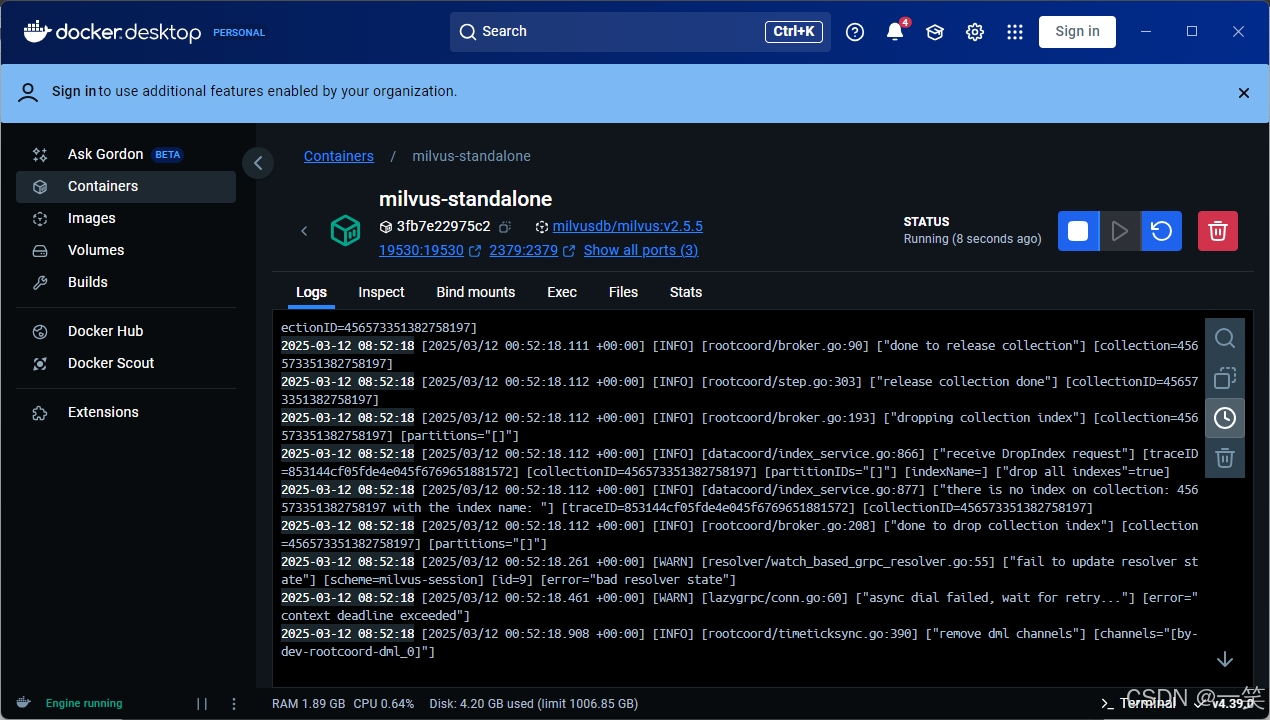

点击运行之后，需要等待一段时间，点击Name，可以查看运行进度详情

我们也可以访问http://localhost:19530，如出现下图显示，也代表milvus已运行成功
