本文通过实例展示了在Numpy, TensorFlow和PyTorch中进行深度学习基础操作的异同，包括数组初始化、数据类型转换、数学运算、索引和切片等，帮助初学者快速掌握这三个框架的基本用法。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

深度学习

在深入学习的基本单位上实施初级到高级操作。

> Excerpts

我习惯于为不同的问题创建新的深度学习架构，但选择哪个框架（Keras、Pytorch、TensorFlow）通常比较困难。

由于其中存在不确定性，因此了解这些框架的基本单元（NumPy、Torch、Tensor）的基本操作是件好事。

在这篇文章中，我跨 3 个框架执行了几个相同的操作，也尝试了大多数框架的可视化操作。

这是一个初学者友好的帖子，所以让我们开始。

1. 安装

pip install numpy
pip install tensorflow
pip install torch

2. 版本检查

import numpy as np
import tensorflow as tf
import torch

print(np.__version__)
print(tf.__version__)
print(torch.__version__)

### OUTPUT ###

2.3.0
1.18.5
1.6.0+cu101
view raw

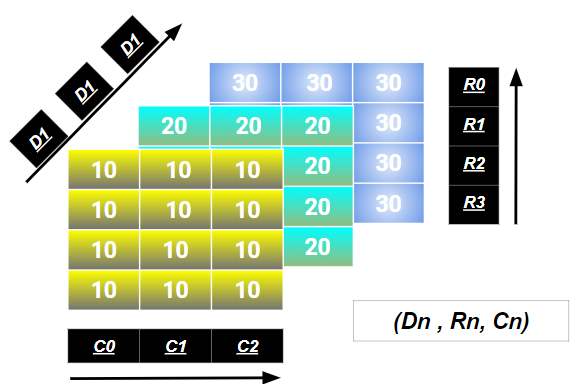

3. 阵列初始化 = 1-D、2-D、3-D

标量和一维阵列

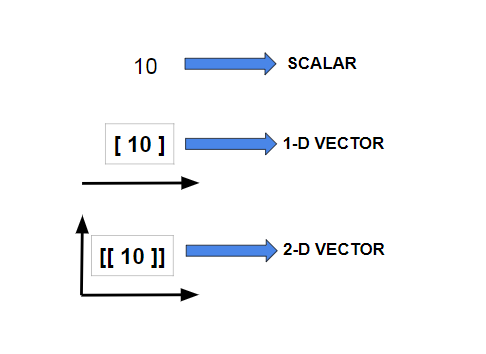

> Scalar, 1-D, 2-D arrays

Numpy

# Numpy

a = np.array(10)
print(a)
print(a.shape, a.dtype) #shape of the array and type of the elements

a = np.array([10])
print(a)
print(a.shape, a.dtype) #shape of the array and type of the elements

a = np.array([10], dtype=np.float32)
print(a)
print(a.shape, a.dtype) #shape of the array and type of the elements

############################# OUTPUT ##############################

10 () int64
[10] (1,) int64
[10.] (1,) float32

TensorFlow

# TensorFlow

b = tf.constant(10) # As Scalar
print(b)
b = tf.constant(10, shape=(1,1)) # As 1-D Vector
print(b)
b = tf.constant(10, shape=(1,1), dtype=tf.float32) # with Data-type
print(b)

############################# OUTPUT ##############################

tf.Tensor(10, shape=(), dtype=int32)
tf.Tensor([[10]], shape=(1, 1), dtype=int32)
tf.Tensor([[10.]], shape=(1, 1), dtype=float32)

Torch

# Torch

c = torch.tensor(10, ) # As Scalar
print(c)
c = torch.tensor([10]) # As 1-D Vector
print(c, c.shape, c.dtype)
c = torch.tensor([10], dtype=torch.float32) # With Data-type
print(c)

############################# OUTPUT ##############################

tensor(10)
tensor([10])torch.Size([1]) torch.int64
tensor([10.])

二维矢量阵列

> 2-D Array

Numpy

# Numpy

a = np.array([[1,2,3], [4,5,6]])
print(a)
print(a.shape, a.dtype)

############################# OUTPUT ##############################

[[1 2 3]
 [4 5 6]]
(2, 3) int64

TensorFlow

# TensorFlow

b = tf.constant([[1,2,3], [4,5,6]])
print(b)
print(b.shape)

############################# OUTPUT ##############################

tf.Tensor([[1 2 3]
           [4 5 6]], shape=(2, 3), dtype=int32)
(2, 3)

Torch

# Torch

c = torch.tensor([[1,2,3], [4,5,6]])
print(c)
print(c.shape)

############################# OUTPUT ##############################

tensor([[1, 2, 3],
        [4, 5, 6]])
torch.Size([2, 3])

4. 生成数据

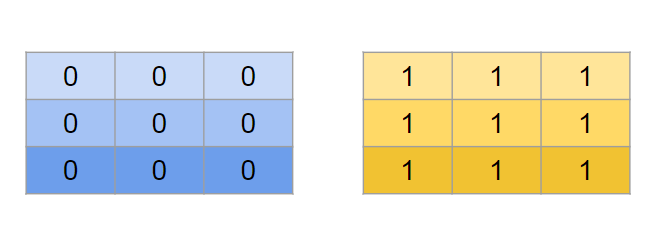

> Zeros and Ones

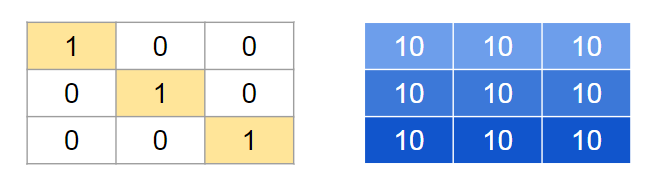

> Diagonal & Same element fill

Numpy

# Numpy

a = np.zeros((3,3))
print(a, a.shape, a.dtype)

a = np.ones((3,3))
print(a, a.shape, a.dtype)

a = np.eye(3)
print(a, a.shape, a.dtype)

a = np.full((3,3),10.0)
print(a, a.shape, a.dtype)

############################# OUTPUT ##############################

[[0. 0. 0.]
 [0. 0. 0.]
 [0. 0. 0.]] (3, 3) float64

[[1. 1. 1.]
 [1. 1. 1.]
 [1. 1. 1.]] (3, 3) float64

[[1. 0. 0.]
 [0. 1. 0.]
 [0. 0. 1.]] (3, 3) float64

[[10. 10. 10.]
 [10. 10. 10.]
 [10. 10. 10.]] (3, 3) float64

Tensorflow

# TensorFlow

b = tf.zeros((3,3))
print(b)

b = tf.ones((3,3))
print(b)

b = tf.eye(3)
print(b)

b = tf.fill([3,3], 10)
print(b)

############################# OUTPUT ##############################

tf.Tensor( [[0. 0. 0.]
            [0. 0. 0.]
            [0. 0. 0.]], shape=(3, 3), dtype=float32)

tf.Tensor( [[1. 1. 1.]
            [1. 1. 1.]
            [1. 1. 1.]], shape=(3, 3), dtype=float32)

tf.Tensor( [[1. 0. 0.]
            [0. 1. 0.]
            [0. 0. 1.]], shape=(3, 3), dtype=float32)

tf.Tensor( [[10 10 10]
            [10 10 10]
            [10 10 10]], shape=(3, 3), dtype=int32)

Torch

# Torch

c = torch.zeros((3,3))
print(c)

c = torch.ones((3,3))
print(c)

c = torch.eye(3)
print(c)

c = c.new_full([3,3], 10)
print(c)

############################# OUTPUT ##############################

tensor([[0., 0., 0.],
        [0., 0., 0.],
        [0., 0., 0.]])

tensor([[1., 1., 1.],
        [1., 1., 1.],
        [1., 1., 1.]])

tensor([[1., 0., 0.],
        [0., 1., 0.],
        [0., 0., 1.]])

tensor([[10., 10., 10.],
        [10., 10., 10.],
        [10., 10., 10.]])

从正态分布绘制随机样本

> Normal Dist'n Bell Curve

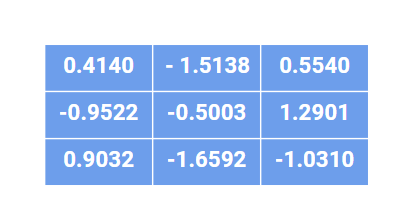

> Samples were drawn from Normal Dist'n

Numpy

# Numpy

a = np.random.randn(3,3)
print(a, a.shape, a.dtype)
print(a.mean(), a.std())

############################# OUTPUT ##############################

[[ 0.41406362 -1.51382214  0.55400531]
 [-0.95226975 -0.50038461  1.29014057]
 [ 0.90320426 -1.65923581 -1.03100388]] (3, 3) float64

-0.27725582657643905 1.0291132313341855

Tensorflow

# TensorFlow

b = tf.random.normal((3,3),mean=0, stddev=1)
print(b)
print(tf.reduce_mean(b), tf.math.reduce_std(b))

############################# OUTPUT ##############################

tf.Tensor([[0.04017716 -2.2840774 -0.3615016 ]
           [-1.9259684  1.2054121 0.02211744]
           [0.96204025 0.07906733 -2.2352242 ]], shape=(3, 3), dtype=float32)

tf.Tensor(-0.49977303, shape=(), dtype=float32)
tf.Tensor(1.2557517, shape=(), dtype=float32)

Torch

# Torch

c = torch.normal(mean=0, std=1, size=(3, 3))
print(c)
print(torch.mean(c), torch.std(c))

############################# OUTPUT ##############################

tensor([[-0.1682,  0.9610,  1.1005],
        [-1.0462,  0.4431,  0.6005],
        [-1.2714, -1.1894,  0.7221]])
tensor(0.0169) tensor(0.9595)

从均匀分布中抽取样本

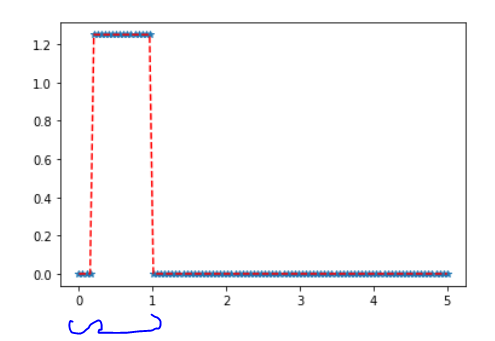

> Uniform Dist'n Curve

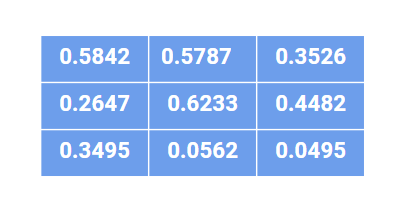

> Samples were drawn from Uniform Dist'n

Numpy

# Numpy

a = np.random.uniform(low=0, high=1, size=(3,3))
print(a, a.shape, a.dtype)
print(a.mean(), a.std())

############################# OUTPUT ##############################

[[0.00738313 0.56734768 0.92893306]
 [0.36580515 0.91986967 0.70643149]
 [0.72854485 0.73961837 0.88049091]] (3, 3) float64

0.6493804787345917 0.28317558657389263

Tensorflow

# TensorFlow

b = tf.random.uniform((3,3),minval=0,maxval=1)#Values are always > 1
print(b)
print(tf.reduce_mean(b), tf.math.reduce_std(b))

############################# OUTPUT ##############################

tf.Tensor( [[0.11186028 0.04624796 0.59104955]
           [0.5344571  0.1144793  0.8468257 ]
           [0.5247066  0.61488223 0.7592212 ]], shape=(3, 3), dtype=float32)

tf.Tensor(0.4604144, shape=(), dtype=float32)
tf.Tensor(0.2792521, shape=(), dtype=float32)

Torch

# Torch

num_samples = 3
Dim = 3
c = torch.distributions.Uniform(0, +1).sample((num_samples, Dim))
print(c)
print(torch.mean(c), torch.std(c))

############################# OUTPUT ##############################

tensor([[0.5842, 0.5787, 0.3526],
        [0.2647, 0.6233, 0.4482],
        [0.3495, 0.0562, 0.0495]])

tensor(0.3674) tensor(0.2158)

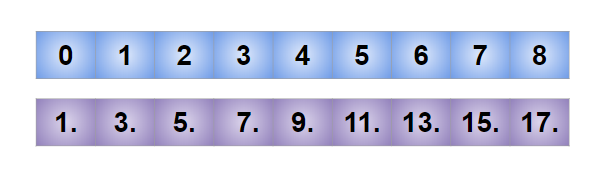

向量排列

Numpy

# Numpy

a = np.arange(0,9)
print(a)
a = np.arange(start=1, stop=20, step=2, dtype=np.float32)
print(a, a.dtype)

############################# OUTPUT ##############################

[0 1 2 3 4 5 6 7 8]
[ 1.  3.  5.  7.  9. 11. 13. 15. 17. 19.] float32

Tensorflow

# TensorFlow

b = tf.range(9)
print(b)
b = tf.range(start=1, limit=20, delta=2, dtype=tf.float64)
print(b)

############################# OUTPUT ##############################

tf.Tensor([0 1 2 3 4 5 6 7 8], shape=(9,), dtype=int32)
tf.Tensor([ 1.  3.  5.  7.  9. 11. 13. 15. 17. 19.], shape=(10,), dtype=float64)

Torch


# Torch

c = torch.arange(start=0, end=9)
print(c)
c = torch.arange(start=1, end=20, step=2, dtype=torch.float64)
print(c)

############################# OUTPUT ##############################

tensor([0, 1, 2, 3, 4, 5, 6, 7, 8])
tensor([ 1.,  3.,  5.,  7.,  9., 11., 13., 15., 17., 19.], dtype=torch.float64)

7. 数据类型 + 转换

uint8/16/32/64 ← →浮子8/16/32/64

Numpy

# Numpy

a = a.astype(np.uint8)
print(a, a.dtype)

############################# OUTPUT ##############################

[ 1  3  5  7  9 11 13 15 17 19] uint8

Tensorflow

# TensorFlow

b = tf.cast(b, dtype=tf.uint8)
print(b)

############################# OUTPUT ##############################

tf.Tensor([ 1  3  5  7  9 11 13 15 17 19], shape=(10,), dtype=uint8)

Torch

# Torch

c = torch.tensor(c)
c = c.type(torch.int64)
print(c)

############################# OUTPUT ##############################

tensor([ 1,  3,  5,  7,  9, 11, 13, 15, 17, 19])

8. 数学运算

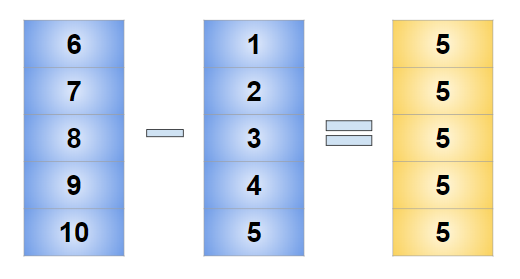

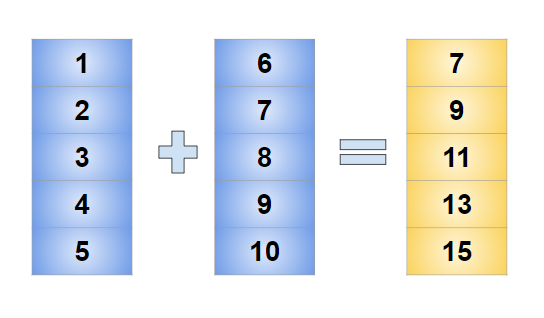

> Sum and Subtract operations

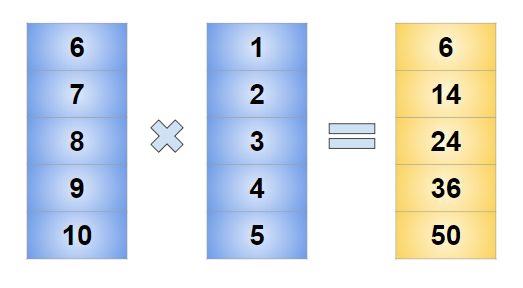

> multiply and divide operations

Numpy

# Numpy

a = np.array([1,2,3,4,5])
b = np.array([6,7,8,9,10])

c = np.add(a, b)
print(c, c.dtype)

c = np.subtract(b,a)
print(c, c.dtype)

c = np.divide(b,a)
print(c, c.dtype)

c = np.multiply(b,a)
print(c, c.dtype)

c = (a**2)
print(c)

############################# OUTPUT ##############################

[ 7  9 11 13 15] int64  [5 5 5 5 5] int64
[6.         3.5        2.66666667 2.25       2.        ] float64
[ 6 14 24 36 50] int64
[ 1  4  9 16 25]

Tensorflow

# TensorFlow

x = tf.constant([1,2,3,4,5])
y = tf.constant([6,7,8,9,10])

z = tf.add(x,y)
print(z)

z = tf.subtract(y,x)
print(z)

z = tf.divide(y,x)
print(z)

z = tf.multiply(y,x)
print(z)

z = (x **2)
print(z)
############################# OUTPUT ##############################

tf.Tensor([ 7  9 11 13 15], shape=(5,), dtype=int32)
tf.Tensor([5 5 5 5 5], shape=(5,), dtype=int32)
tf.Tensor([6.         3.5        2.66666667 2.25       2.        ], shape=(5,), dtype=float64)
tf.Tensor([ 6 14 24 36 50], shape=(5,), dtype=int32)
tf.Tensor([ 1  4  9 16 25], shape=(5,), dtype=int32)

Torch

# Torch

t = torch.tensor([1,2,3,4,5])
u = torch.tensor([6,7,8,9,10])

v = torch.add(t, u)
print(v)

v = torch.sub(u,t)
print(v)

v = torch.true_divide (u, t)
print(v)

v = torch.mul(u,t)
print(v)

v = (t **2)
print(v)

############################# OUTPUT ##############################

tensor([ 7,  9, 11, 13, 15])
tensor([5, 5, 5, 5, 5])
tensor([6.0000, 3.5000, 2.6667, 2.2500, 2.0000])
tensor([ 6, 14, 24, 36, 50])
tensor([ 1,  4,  9, 16, 25])

9. 点积

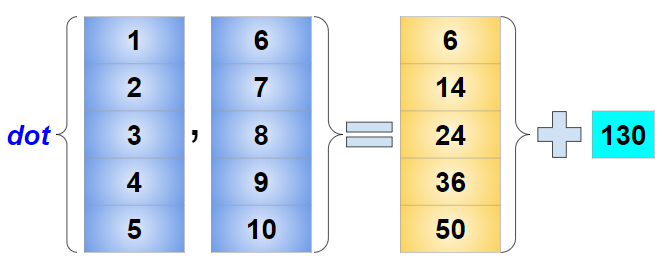

> Dot Product

Numpy

# Numpy

a = np.array([1,2,3,4,5])
b = np.array([6,7,8,9,10])
c = np.dot(a, b)
print(c, c.dtype)

############################# OUTPUT ##############################

130 int64

Tensorflow

# TensorFlow

x = tf.constant([1,2,3,4,5])
y = tf.constant([6,7,8,9,10])
z = tf.tensordot(x,y, axes=1)
print(z)

############################# OUTPUT ##############################

tf.Tensor(130, shape=(), dtype=int32)

Torch

# Torch

t = torch.tensor([1,2,3,4,5])
u = torch.tensor([6,7,8,9,10])
v = torch.dot(t,u)
print(v)

############################# OUTPUT ##############################

tensor(130)

10. 矩阵乘法

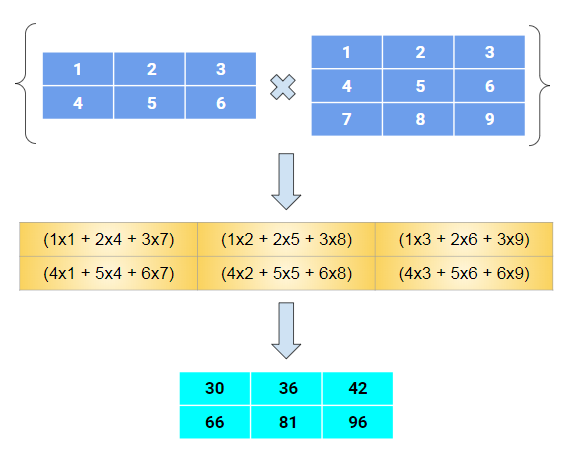

> Matrix Multiplication

Numpy

# Numpy

a = np.array([[1,2,3], [4,5,6]])
b = np.array([[1,2,3], [4,5,6], [7,8,9]])
c = np.matmul(a,b) # (2,3) @ (3,3) --> (2,3) output shape
print(c)

############################# OUTPUT ##############################

[[30 36 42]
 [66 81 96]]

Tensorflow

# TensorFlow

x = tf.constant([[1,2,3], [4,5,6]])
y = tf.constant([[1,2,3], [4,5,6], [7,8,9]])
z = tf.matmul(x,y) # (2,3) @ (3,3) --> (2,3) output shape
print(z)

############################# OUTPUT ##############################

tf.Tensor([[30 36 42]
            [66 81 96]], shape=(2, 3), dtype=int32)

Torch

# Torch

t = torch.tensor([[1,2,3], [4,5,6]])
u = torch.tensor([[1,2,3], [4,5,6], [7,8,9]])
v = torch.matmul(t,u) # (2,3) @ (3,3) --> (2,3) output shape
print(v)

############################# OUTPUT ##############################

tensor([[30, 36, 42],
        [66, 81, 96]])

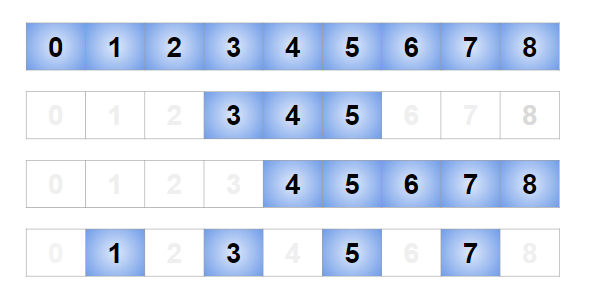

11. 索引和切片（2D）

> Indexing and Slicing

Numpy

# Numpy

a = np.array([1,2,3,4,5,6,7,8])
print(a[:])
print(a[2:-3])
print(a[3:-1])
print(a[::2])

indices = np.array([0,3,5])
x_indices = a[indices]
print(x_indices)
############################# OUTPUT ##############################

[1 2 3 4 5 6 7 8]
[3 4 5]
[4 5 6 7]
[1 3 5 7]
[1 4 6]

Tensorflow

# TensorFlow

b = tf.constant([1,2,3,4,5,6,7,8])
print(b[:])
print(b[2:-3])
print(b[3:-1])
print(b[::2])

indices = tf.constant([0,3,5])
x_indices = tf.gather(b, indices)
print(x_indices)

############################# OUTPUT ##############################

tf.Tensor([1 2 3 4 5 6 7 8], shape=(8,), dtype=int32)
tf.Tensor([3 4 5], shape=(3,), dtype=int32)
tf.Tensor([4 5 6 7], shape=(4,), dtype=int32)
tf.Tensor([1 3 5 7], shape=(4,), dtype=int32)
tf.Tensor([1 4 6], shape=(3,), dtype=int32)

Torch

# Torch

c = torch.tensor([1,2,3,4,5,6,7,8])
print(c[:])
print(c[2:-3])
print(c[3:-1])
print(c[::2])

indices = torch.tensor([0,3,5])
x_indices = c[indices]
print(x_indices)

############################# OUTPUT ##############################

tensor([1, 2, 3, 4, 5, 6, 7, 8])
tensor([3, 4, 5])
tensor([4, 5, 6, 7])
tensor([1, 3, 5, 7])
tensor([1, 4, 6])

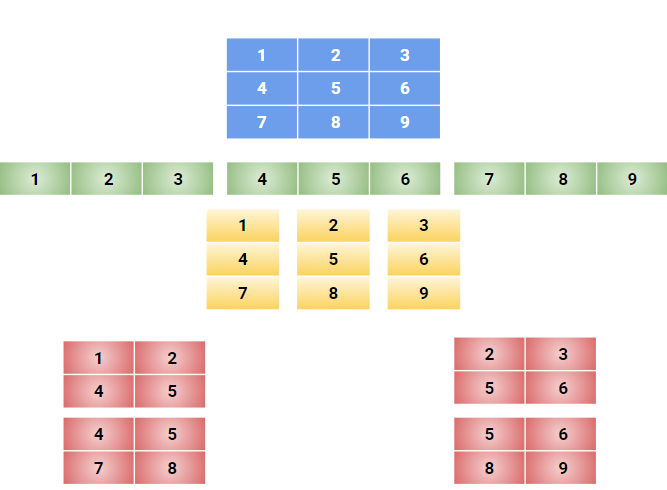

12. 索引和切片（2D + 矩阵）

> Matrix Slicing

Numpy

# Numpy

a = np.array([[1,2,3],[4,5,6],[7,8,9]])

# Matrix Indexing
# Print all individual Rows and Columns
print("Row-1",a[0, :])
print("Row-2",a[1, :])
print("Row-3",a[2, :])
print("Col-1",a[:, 0])
print("Col-2",a[:, 1])
print("Col-3",a[:, 2])

# Print the sub-diagonal matrix
print("Upper-Left",a[0:2,0:2])
print("Upper-Right",a[0:2,1:3])
print("Bottom-Left",a[1:3,0:2])
print("Bottom-Right",a[1:3,1:3])

############################# OUTPUT ##############################

Row-1 [1 2 3]
Row-2 [4 5 6]
Row-3 [7 8 9]
Col-1 [1 4 7]
Col-2 [2 5 8]
Col-3 [3 6 9]

Upper-Left [[1 2]
            [4 5]]
Upper-Right [[2 3]
             [5 6]]
Bottom-Left [[4 5]
             [7 8]]
Bottom-Right [[5 6]
              [8 9]]

Tensorflow

# TensorFlow

b = tf.constant([[1,2,3],[4,5,6],[7,8,9]])

# Matrix Indexing
# Print all individual Rows and Columns
print("Row-1",b[0, :])
print("Row-2",b[1, :])
print("Row-3",b[2, :])
print("Col-1",b[:, 0])
print("Col-2",b[:, 1])
print("Col-3",b[:, 2])

# Print the sub-diagonal matrix
print("Upper-Left",b[0:2,0:2])
print("Upper-Right",b[0:2,1:3])
print("Bottom-Left",b[1:3,0:2])
print("Bottom-Right",b[1:3,1:3])

############################# OUTPUT ##############################

Row-1 tf.Tensor([1 2 3], shape=(3,), dtype=int32)
Row-2 tf.Tensor([4 5 6], shape=(3,), dtype=int32)
Row-3 tf.Tensor([7 8 9], shape=(3,), dtype=int32)
Col-1 tf.Tensor([1 4 7], shape=(3,), dtype=int32)
Col-2 tf.Tensor([2 5 8], shape=(3,), dtype=int32)
Col-3 tf.Tensor([3 6 9], shape=(3,), dtype=int32)

Upper-Left tf.Tensor( [[1 2]  [4 5]], shape=(2, 2), dtype=int32)
Upper-Right tf.Tensor( [[2 3]  [5 6]], shape=(2, 2), dtype=int32)
Bottom-Left tf.Tensor( [[4 5]  [7 8]], shape=(2, 2), dtype=int32)
Bottom-Right tf.Tensor( [[5 6]  [8 9]], shape=(2, 2), dtype=int32)

Torch

# Torch

c = torch.tensor([[1,2,3],[4,5,6],[7,8,9]])

# Matrix Indexing
# Print all individual Rows and Columns
print("Row-1",c[0, :])
print("Row-2",c[1, :])
print("Row-3",c[2, :])
print("Col-1",c[:, 0])
print("Col-2",c[:, 1])
print("Col-3",c[:, 2])

# Print the sub-diagonal matrix
print("Upper-Left",c[0:2,0:2])
print("Upper-Right",c[0:2,1:3])
print("Bottom-Left",c[1:3,0:2])
print("Bottom-Right",c[1:3,1:3])

############################# OUTPUT ##############################

Row-1 tensor([1, 2, 3])
Row-2 tensor([4, 5, 6])
Row-3 tensor([7, 8, 9])
Col-1 tensor([1, 4, 7])
Col-2 tensor([2, 5, 8])
Col-3 tensor([3, 6, 9])

Upper-Left tensor([[1, 2],[4, 5]])
Upper-Right tensor([[2, 3],[5, 6]])
Bottom-Left tensor([[4, 5],[7, 8]])
Bottom-Right tensor([[5, 6],[8, 9]])

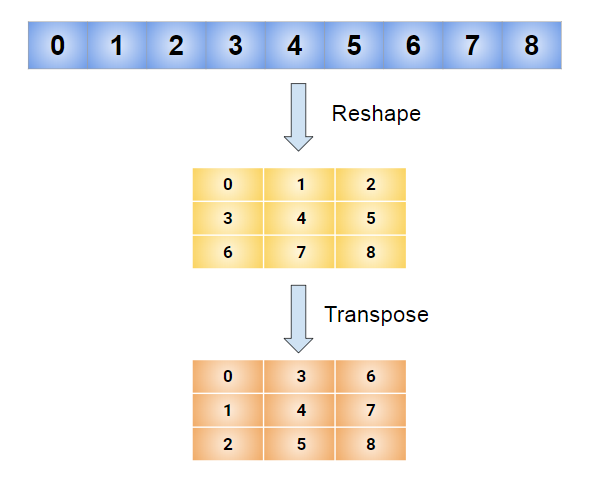

13. 轴的重塑和转置

> Reshape & Transpose

Numpy

# Numpy

a = np.arange(9)
print(a)
a = np.reshape(a, (3,3))
print(a)
a = np.transpose(a, (1,0)) # Swap axes (1,0)
print(a)

############################# OUTPUT ##############################

[0 1 2 3 4 5 6 7 8]
[[0 1 2]
 [3 4 5]
 [6 7 8]]
[[0 3 6]
 [1 4 7]
 [2 5 8]]

Tensorflow

# TensorFlow

b = tf.range(9)
print(b)
b = tf.reshape(b, (3,3))
print(b)
b = tf.transpose(b, perm=[1,0]) # Swap axes in perm (1,0)
print(b)

############################# OUTPUT ##############################

tf.Tensor([0 1 2 3 4 5 6 7 8], shape=(9,), dtype=int32)
tf.Tensor( [[0 1 2]  [3 4 5]  [6 7 8]], shape=(3, 3), dtype=int32)
tf.Tensor( [[0 3 6]  [1 4 7]  [2 5 8]], shape=(3, 3), dtype=int32)

Torch

# Torch

c = torch.arange(9)
print(c)
c = torch.reshape(c, (3,3))
print(c)
c = c.permute(1,0) # Swap axes in perm (1,0)

############################# OUTPUT ##############################

tensor([0, 1, 2, 3, 4, 5, 6, 7, 8])
tensor([[0, 1, 2],         [3, 4, 5],         [6, 7, 8]])
tensor([[0, 3, 6],         [1, 4, 7],         [2, 5, 8]])

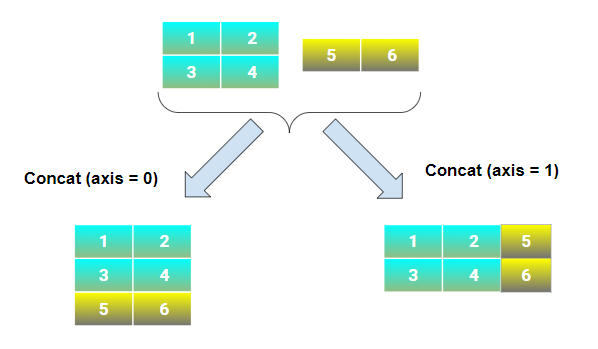

14. 串联

> Matrix Concatenation

Numpy

# Numpy

a = np.array([[1, 2], [3, 4]])
print("a",a)
b = np.array([[5, 6]])
print("b",b)

d = np.concatenate((a, b), axis=0)
print("Concat (axis=0 - Row)")
print(d)

e = np.concatenate((a, b.T), axis=1)
print("Concat (axis=1 - Column)")
print(e)

############################# OUTPUT ##############################

a [[1 2]  [3 4]]
b [[5 6]]

Concat (axis=0 - Row)
[[1 2]
 [3 4]
 [5 6]]

Concat (axis=1 - Column)
[[1 2 5]
 [3 4 6]]

Tensorflow

# TensorFlow

x = tf.constant([[1, 2], [3, 4]])
print("x",x)
y = tf.constant([[5, 6]])
print("y",y)

z = tf.concat((x, y), axis=0)
print("Concat (axis=0 - Row)")
print(z)

z = tf.concat((x, tf.transpose(y)), axis=1)
print("Concat (axis=1 - Column)")
print(z)

############################# OUTPUT ##############################

x tf.Tensor( [[1 2]  [3 4]], shape=(2, 2), dtype=int32)
y tf.Tensor([[5 6]], shape=(1, 2), dtype=int32)

Concat (axis=0 - Row)
tf.Tensor( [[1 2]  [3 4]  [5 6]], shape=(3, 2), dtype=int32)

Concat (axis=1 - Column)
tf.Tensor( [[1 2 5]  [3 4 6]], shape=(2, 3), dtype=int32)

Torch

# Torch

t = torch.tensor([[1, 2], [3, 4]])
print("x",t)
u = torch.tensor([[5, 6]])
print("y",u)

v = torch.cat((t , u), axis=0)
print("Concat (axis=0 - Row)")
print(v)

v = torch.cat((t , u.T), axis=1)
print("Concat (axis=1 - Column)")
print(v)

############################# OUTPUT ##############################

x tensor([[1, 2], [3, 4]])
y tensor([[5, 6]])

Concat (axis=0 - Row)
tensor([[1, 2],
        [3, 4],
        [5, 6]])

Concat (axis=1 - Column)
tensor([[1, 2, 5],
        [3, 4, 6]])

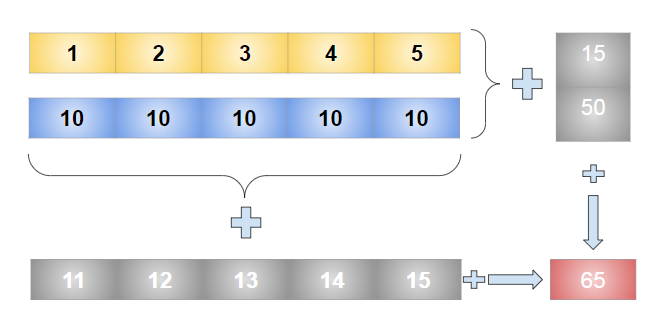

15. 跨轴求和

> Axes — Sum

Numpy

# Numpy

a = np.array([[1,2,3,4,5], [10,10,10,10,10]])
print(a)

print("Overall flattened Sum", a.sum())
print("Sum across Columns",a.sum(axis=0))
print("Sum across Rows",a.sum(axis=1))

############################# OUTPUT ##############################

[[ 1  2  3  4  5]  [10 10 10 10 10]]
Overall flattened Sum 65
Sum across Columns [11 12 13 14 15]
Sum across Rows [15 50]

Tensorflow

# TensorFlow

b = tf.constant([[1,2,3,4,5], [10,10,10,10,10]])
print(b)

print("Overall flattened Sum",tf.math.reduce_sum(b))
print("Sum across Columns",tf.math.reduce_sum(b, axis=0))
print("Sum across Rows",tf.math.reduce_sum(b, axis=1))

############################# OUTPUT ##############################

tf.Tensor([[ 1  2  3  4  5]  [10 10 10 10 10]], shape=(2, 5), dtype=int32)

Overall flattened Sum tf.Tensor(65, shape=(), dtype=int32)
Sum across Columns tf.Tensor([11 12 13 14 15], shape=(5,), dtype=int32)
Sum across Rows tf.Tensor([15 50], shape=(2,), dtype=int32)

Torch

# Torch

c = torch.tensor([[1,2,3,4,5], [10,10,10,10,10]])
#print(c)

print("Overall flattened Sum",torch.sum(c))
print("Sum across Columns",torch.sum(c, axis=0))
print("Sum across Rows",torch.sum(c, axis=1))

############################# OUTPUT ##############################

Overall flattened Sum tensor(65)
Sum across Columns tensor([11, 12, 13, 14, 15])
Sum across Rows tensor([15, 50])

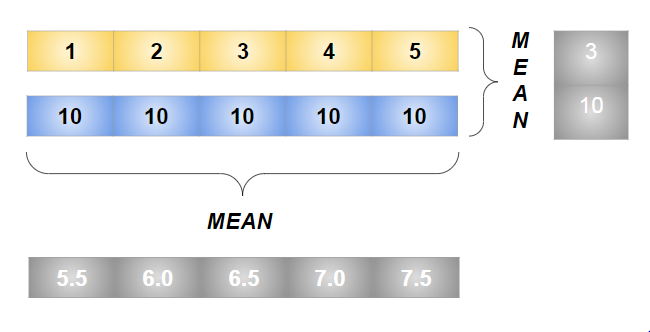

16. 轴的均值

Numpy

# Numpy

a = np.array([[1,2,3,4,5],
               [10,10,10,10,10]])
print(a)

print("Overall flattened mean", a.mean())
print("Sum across Columns",a.mean(axis=0))
print("Sum across Rows",a.mean(axis=1))

############################# OUTPUT ##############################

[[ 1  2  3  4  5]  [10 10 10 10 10]]
Overall flattened mean 6.5
Sum across Columns [5.5 6.  6.5 7.  7.5]
Sum across Rows [ 3. 10.]

Tensorflow

# TensorFlow

b = tf.constant([[1,2,3,4,5],
                 [10,10,10,10,10]])
print(b)

print("Overall flattened mean",tf.math.reduce_mean(b))
print("Sum across Columns",tf.math.reduce_mean(b, axis=0))
print("Sum across Rows",tf.math.reduce_mean(b, axis=1))

############################# OUTPUT ##############################

tf.Tensor( [[ 1  2  3  4  5]  [10 10 10 10 10]], shape=(2, 5), dtype=int32)
Overall flattened mean tf.Tensor(6, shape=(), dtype=int32)
Sum across Columns tf.Tensor([5 6 6 7 7], shape=(5,), dtype=int32) Sum across Rows tf.Tensor([ 3 10], shape=(2,), dtype=int32)

Torch

# Torch

c = torch.tensor([[1,2,3,4,5], [10,10,10,10,10]], dtype=torch.float32)
print(c)

print("Overall flattened mean",torch.mean(c))
print("Sum across Columns",torch.mean(c, axis=0))
print("Sum across Rows",torch.mean(c, axis=1))

############################# OUTPUT ##############################

tensor([[ 1.,  2.,  3.,  4.,  5.],
        [10., 10., 10., 10., 10.]])
Overall flattened mean tensor(6.5000)
Sum across Columns tensor([5.5000, 6.0000, 6.5000, 7.0000, 7.5000])
Sum across Rows tensor([ 3., 10.])

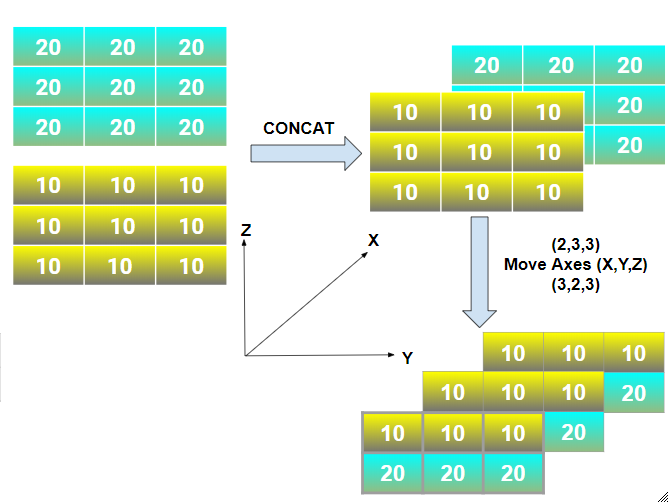

17. 尺寸扩展和移动轴

> Concat and move axes

Numpy

# Numpy

a = np.full((3,3),10.0)
print(a)
print(a.shape)
a = np.expand_dims(a, axis=0)
print(a)
print(a.shape)

b = np.full((3,3),20.0)
print(b)
b = np.expand_dims(b, axis=0)
print(b.shape)

c = np.concatenate((a,b), axis=0)
c = np.moveaxis(c,2,0) # Move 2nd dimension to 0th position
print(c)
print(c.shape)

############################# OUTPUT ##############################

[[10. 10. 10.]
 [10. 10. 10.]
 [10. 10. 10.]]
(3, 3)

[[[10. 10. 10.]
  [10. 10. 10.]
  [10. 10. 10.]]]
(1, 3, 3)

[[20. 20. 20.]
 [20. 20. 20.]
 [20. 20. 20.]]
(1, 3, 3)

[[[10. 10. 10.]   [20. 20. 20.]]
 [[10. 10. 10.]   [20. 20. 20.]]
 [[10. 10. 10.]   [20. 20. 20.]]]
(3, 2, 3)

Tensorflow

# TensorFlow

x = tf.fill((3,3),10.0)
print(x)
print(x.shape)
x = tf.expand_dims(x, axis=0)
print(x.shape)

y = tf.fill((3,3),20.0)
print(y)
print(y.shape)
y = tf.expand_dims(y, axis=0)
print(y.shape)

z = tf.concat((x,y), axis=0)
z = tf.transpose(z, [1, 0, 2])
print(z.shape)

############################# OUTPUT ##############################

tf.Tensor( [[10. 10. 10.]
            [10. 10. 10.]
            [10. 10. 10.]], shape=(3, 3), dtype=float32)
(3, 3)
(1, 3, 3)

tf.Tensor( [[20. 20. 20.]
            [20. 20. 20.]
            [20. 20. 20.]], shape=(3, 3), dtype=float32)

(3, 3)
(1, 3, 3)
(3, 2, 3)

Torch

# Torch

m1 = torch.ones((2,), dtype=torch.int32)
m1 = m1.new_full((3, 3), 10)
m1 = torch.unsqueeze(m1, axis=0)
print(m1)
print(m1.shape)

m2 = torch.ones((2,), dtype=torch.int32)
m2 = m2.new_full((3, 3), 20)
print(m2)
m2 = torch.unsqueeze(m2, axis=0)
print(m2.shape)

m = torch.cat((m1,m2), axis=0)
m = m.permute([1,0,2])
print(m)
print(m.shape)

############################# OUTPUT ##############################

tensor([[[10, 10, 10],
         [10, 10, 10],
         [10, 10, 10]]], dtype=torch.int32)
torch.Size([1, 3, 3])

tensor([[20, 20, 20],
        [20, 20, 20],
        [20, 20, 20]], dtype=torch.int32)
torch.Size([1, 3, 3])

tensor([[[10, 10, 10],
         [20, 20, 20]],

        [[10, 10, 10],
         [20, 20, 20]],

        [[10, 10, 10],
         [20, 20, 20]]], dtype=torch.int32)
torch.Size([3, 2, 3])

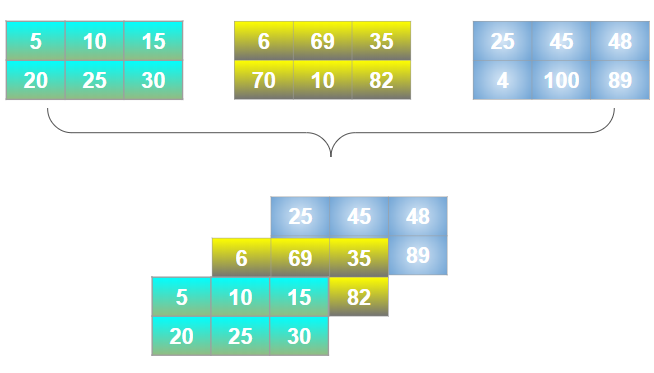

最大最小值

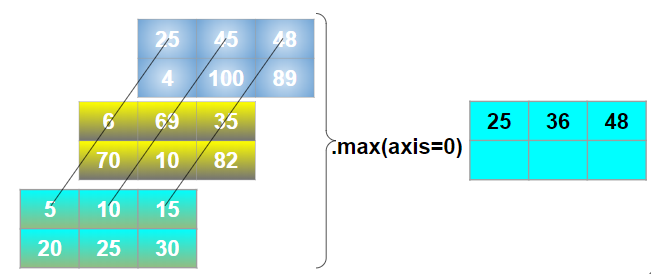

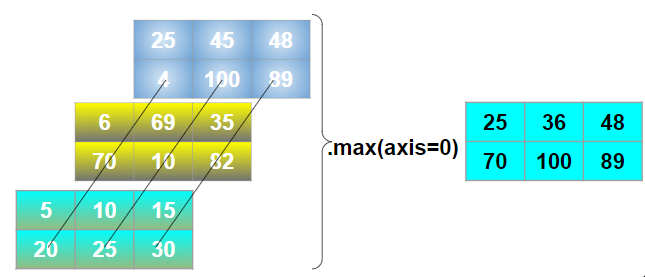

> Max for axis=0

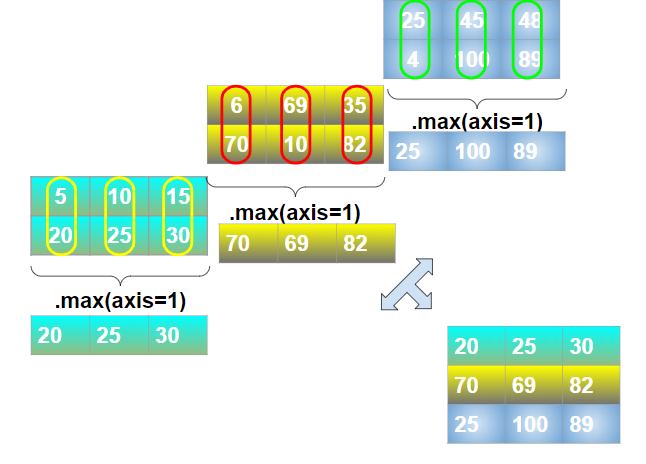

> Max for axis=1

Numpy

# Numpy

a = np.array([[5,10,15],
              [20,25,30]])
b = np.array([[6,69,35],
              [70,10,82]])
c = np.array([[25,45,48],
              [4,100,89]])
print(a)

final = np.zeros((3,2,3))
print(final.shape)
final[0, :, :] = a
final[1, :, :] = b
final[2, :, :] = c
print(final)

print("Overall flattened max", final.max())
print("max across Columns",final.max(axis=0))
print("max across Rows",final.max(axis=1))
print("Index of max value across the flattened max", final.argmax())
print("Index of max value across Columns",final.argmax(axis=0))
print("Index of max value across Rows",final.argmax(axis=1))

############################# OUTPUT ##############################

[[ 5 10 15]
 [20 25 30]]
(3, 2, 3)

[[[  5.  10.  15.]
  [ 20.  25.  30.]]
[[  6.  69.  35.]
 [ 70.  10.  82.]]
[[ 25.  45.  48.]
 [  4. 100.  89.]]]

Overall flattened max 100.0

max across Columns
[[ 25.  69.  48.]
 [ 70. 100.  89.]]

max across Rows
[[ 20.  25.  30.]
 [ 70.  69.  82.]
 [ 25. 100.  89.]]

Index of max value across the flattened max 16
Index of max value across Columns
[[2 1 2]
[1 2 2]]

Index of max value across Rows
[[1 1 1]
 [1 0 1]
 [0 1 1]]

Tensorflow

# Tensorflow

final = tf.constant([[[5,10,15],
                     [20,25,30]],
                     [[6,69,35],
                      [70,10,82]],
                     [[25,45,48],
                      [4,100,89]]])
print(final)

print("Overall flattened max", tf.math.reduce_max(final))
print("max across Columns",tf.math.reduce_max(final,axis=0))
print("max across Rows",tf.math.reduce_max(final, axis=1))
print("Index of max value across the flattened max", tf.math.argmax(final))
print("Index of max value across Columns",tf.math.argmax(final, axis=0))
print("Index of max value across Rows",tf.math.argmax(final, axis=1))

############################# OUTPUT ##############################

tf.Tensor( [[[  5  10  15]
             [ 20  25  30]]
            [[  6  69  35]
             [ 70  10  82]]
            [[ 25  45  48]
             [  4 100  89]]], shape=(3, 2, 3), dtype=int32)

Overall flattened max tf.Tensor(100, shape=(), dtype=int32)
max across Columns
tf.Tensor( [[ 25  69  48]
            [ 70 100  89]], shape=(2, 3), dtype=int32)

max across Rows
tf.Tensor( [[ 20  25  30]
            [ 70  69  82]
            [ 25 100  89]], shape=(3, 3), dtype=int32)

Index of max value across the flattened max
tf.Tensor( [[2 1 2]
           [1 2 2]], shape=(2, 3), dtype=int64)

Index of max value across Columns
tf.Tensor( [[2 1 2]
           [1 2 2]], shape=(2, 3), dtype=int64)

Index of max value across Rows
tf.Tensor( [[1 1 1]
            [1 0 1]
            [0 1 1]], shape=(3, 3), dtype=int64)

Torch

# Torch

final = torch.tensor([[[5,10,15],
                      [20,25,30]],
                     [[6,69,35],
                      [70,10,82]],
                     [[25,45,48],
                      [4,100,89]]])

print(final)
print("Overall flattened max", torch.max(final))
print("max across Columns",torch.max(final,axis=0))
print("max across Rows",torch.max(final, axis=1))
print("Index of max value across the flattened max", torch.argmax(final))
print("Index of max value across Columns",torch.argmax(final, axis=0))
print("Index of max value across Rows",torch.argmax(final, axis=1))

############################# OUTPUT ##############################

tensor([[[  5,  10,  15],
         [ 20,  25,  30]],
        [[  6,  69,  35],
         [ 70,  10,  82]],
        [[ 25,  45,  48],
         [  4, 100,  89]]])

Overall flattened max tensor(100)

max across Columns torch.return_types.max( values=
tensor([[ 25,  69,  48],
        [ 70, 100,  89]]),
indices=tensor([[2, 1, 2],
               [1, 2, 2]]))

max across Rows torch.return_types.max( values=
tensor([[ 20,  25,  30],
        [ 70,  69,  82],
        [ 25, 100,  89]]),
indices=tensor([[1, 1, 1],
                [1, 0, 1],
                [0, 1, 1]]))

Index of max value across the flattened max tensor(16)
Index of max value across Columns
tensor([[2, 1, 2],
        [1, 2, 2]])

Index of max value across Rows
tensor([[1, 1, 1],
        [1, 0, 1],
        [0, 1, 1]])

19. 切片和索引（3D矩阵）

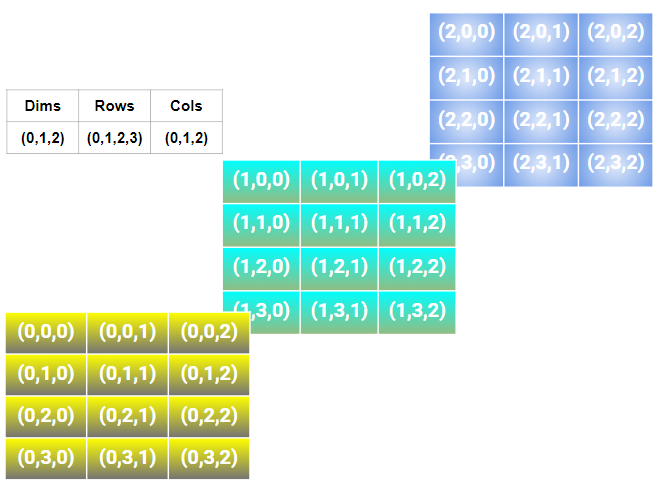

> 3x3 Matrix and its indices

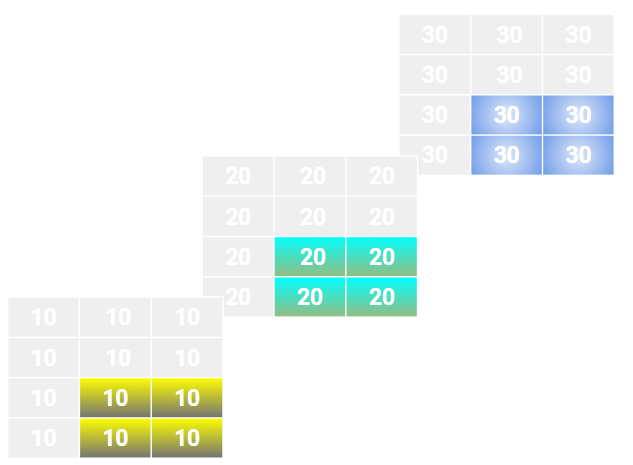

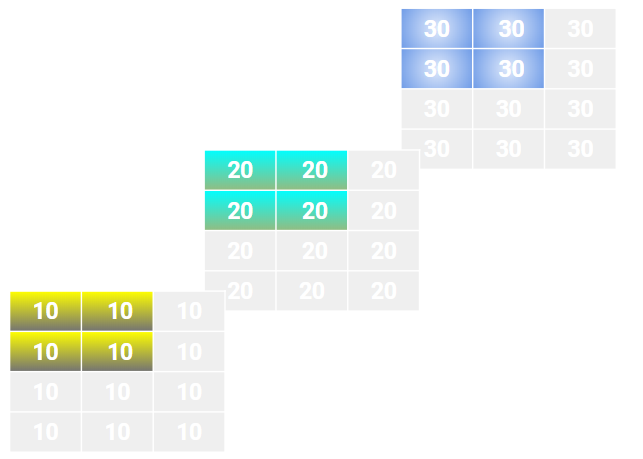

> Upper-Left & Lower-Right

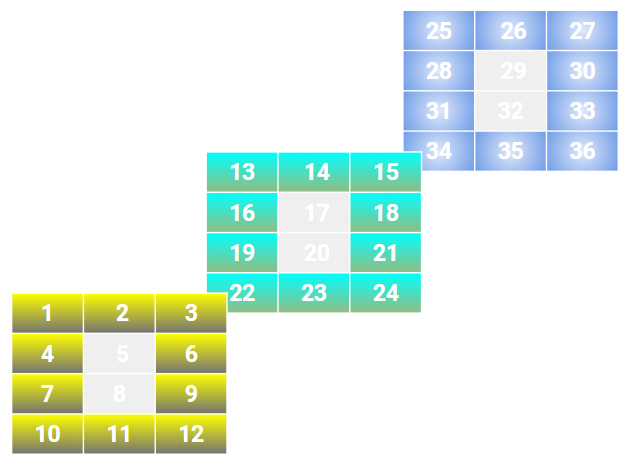

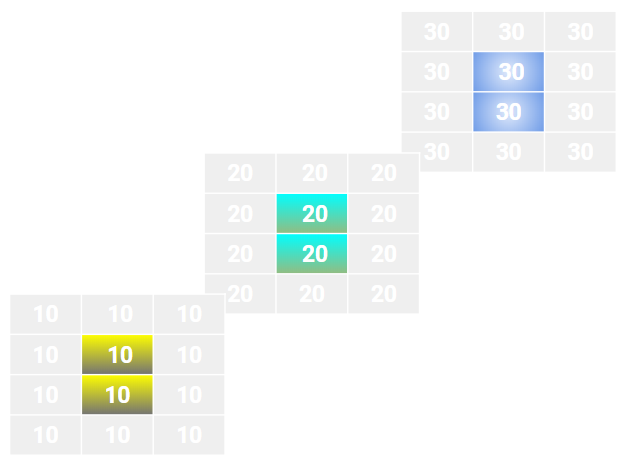

> Middle Elements & Inverse Middle Element

Numpy

# Numpy

a = np.array([[10,10,10],[10,10,10],
              [10,10,10],[10,10,10]])
b = np.array([[20,20,20],[20,20,20],
              [20,20,20],[20,20,20]])
c = np.array([[30,30,30],[30,30,30],
              [30,30,30],[30,30,30]])
final = np.zeros((3,4,3))
final[0, :, :] = a
final[1, :, :] = b
final[2, :, :] = c

print("Upper-Left",final[:, 0:2, 0:2])
print("Lower-Right",final[:, 2:, 1:])
print("Middle Elements",final[:,1:3, 1])

# Ignore Middle Elements
a = np.array([[1,2,3],[4,5,6],[7,8,9],[10,11,12]])
b = np.array([[13,14,15],[16,17,18],[19,20,21],[22,23,24]])
c = np.array([[25,26,27],[28,29,30],[31,32,33],[34,35,36]])

final = np.zeros((3,4,3))
print(final.shape)
final[0, :, :] = a
final[1, :, :] = b
final[2, :, :] = c

# Though may work,but not efficient
print("Ignore Middle",final[:,[0,0,0,1,1,2,2,3,3,3], [0,1,2,0,2,0,2,0,1,2]])

############################# OUTPUT ##############################

Upper-Left [[[10. 10.]
  [10. 10.]]

 [[20. 20.]
  [20. 20.]]

 [[30. 30.]
  [30. 30.]]]

Lower-Right [[[10. 10.]
  [10. 10.]]

 [[20. 20.]
  [20. 20.]]

 [[30. 30.]
  [30. 30.]]]

Middle Elements [[10. 10.]
 [20. 20.]
 [30. 30.]]
(3, 4, 3)

Ignore Middle [[ 1.  2.  3.  4.  6.  7.  9. 10. 11. 12.]
 [13. 14. 15. 16. 18. 19. 21. 22. 23. 24.]
 [25. 26. 27. 28. 30. 31. 33. 34. 35. 36.]]

Tensorflow

# Tensorflow

final = tf.constant([[[10,10,10],[10,10,10],
                  [10,10,10],[10,10,10]],

                  [[20,20,20],[20,20,20],
                  [20,20,20],[20,20,20]],

                  [[30,30,30],[30,30,30],
                  [30,30,30],[30,30,30]]])

print("Upper-Left",final[:, 0:2, 0:2])
print("Lower-Right",final[:, 2:, 1:])
print("Middle Elements",final[:,1:3, 1])

############################# OUTPUT ##############################

Upper-Left tf.Tensor(
[[[10 10]
  [10 10]]

 [[20 20]
  [20 20]]

 [[30 30]
  [30 30]]], shape=(3, 2, 2), dtype=int32)

Lower-Right tf.Tensor(
[[[10 10]
  [10 10]]

 [[20 20]
  [20 20]]

 [[30 30]
  [30 30]]], shape=(3, 2, 2), dtype=int32)

Middle Elements tf.Tensor(
[[10 10]
 [20 20]
 [30 30]], shape=(3, 2), dtype=int32)

Torch

# Torch

a = torch.Tensor([[10,10,10],[10,10,10],
              [10,10,10],[10,10,10]])

b = torch.Tensor([[20,20,20],[20,20,20],
              [20,20,20],[20,20,20]])

c = torch.Tensor([[30,30,30],[30,30,30],
              [30,30,30],[30,30,30]])
final = np.zeros((3,4,3))
final[0, :, :] = a
final[1, :, :] = b
final[2, :, :] = c

print("Upper-Left",final[:, 0:2, 0:2])
print("Lower-Right",final[:, 2:, 1:])
print("Middle Elements",final[:,1:3, 1])

# Ignore Middle Elements
a = torch.Tensor([[1,2,3],[4,5,6],[7,8,9],[10,11,12]])
b = torch.Tensor([[13,14,15],[16,17,18],[19,20,21],[22,23,24]])
c = torch.Tensor([[25,26,27],[28,29,30],[31,32,33],[34,35,36]])

final = np.zeros((3,4,3))
print(final.shape)
final[0, :, :] = a
final[1, :, :] = b
final[2, :, :] = c
# Though may work,but not efficient
print("Ignore Middle",final[:,[0,0,0,1,1,2,2,3,3,3], [0,1,2,0,2,0,2,0,1,2]])

############################# OUTPUT ##############################

Upper-Left [[[10. 10.]
  [10. 10.]]

 [[20. 20.]
  [20. 20.]]

 [[30. 30.]
  [30. 30.]]]

Lower-Right [[[10. 10.]
  [10. 10.]]

 [[20. 20.]
  [20. 20.]]

 [[30. 30.]
  [30. 30.]]]

Middle Elements [[10. 10.]
 [20. 20.]
 [30. 30.]]
(3, 4, 3)

Ignore Middle [[ 1.  2.  3.  4.  6.  7.  9. 10. 11. 12.]
 [13. 14. 15. 16. 18. 19. 21. 22. 23. 24.]
 [25. 26. 27. 28. 30. 31. 33. 34. 35. 36.]]
