先看看这个:https://blog.csdn.net/ym15229994318ym/article/details/107918804
有个大概全貌了解在看这个。
1、aqs
aqs本质就是java1中的AbstractQueuedSynchronizer,这个类是aqs并发包的一个基类,CountDownLatch、ReentrantLock、信号量…都是通过他实现的

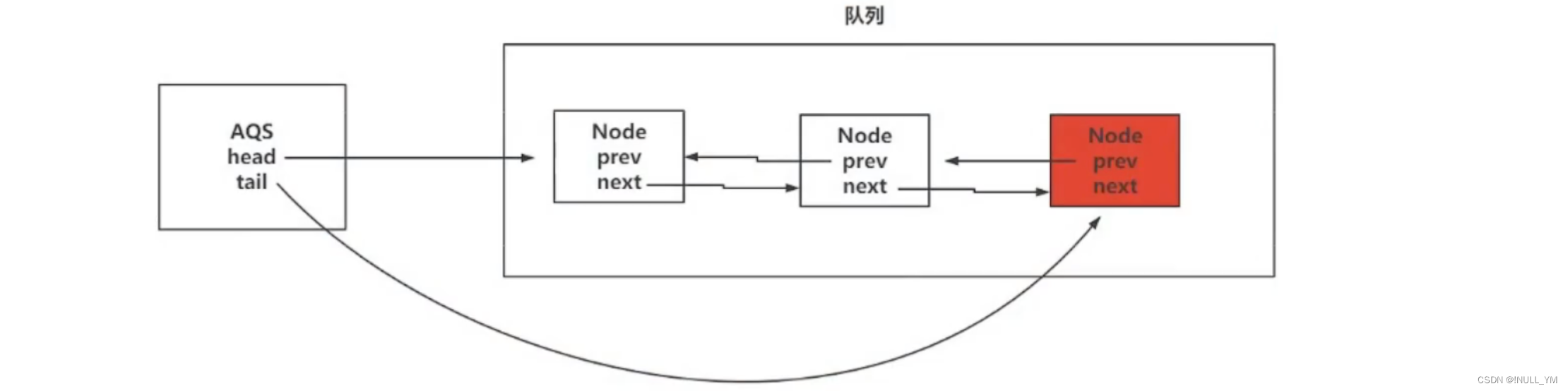

在AbstractQueuedSynchronizer类中,有几个属性和一个(CLH)双向队列
public abstract class AbstractQueuedSynchronizer extends AbstractOwnableSynchronizer implements java.io.Serializable {
private static final long serialVersionUID = 7373984972572414691L;
protected AbstractQueuedSynchronizer() {
}
static final class Node {
//共享锁标识
static final Node SHARED = new Node();
//排他锁标识
static final Node EXCLUSIVE = null;
//如果带有这个标识,证明失效了
static final int CANCELLED = 1;
//具有这个标识,说明后继节点需要被唤醒
static final int SIGNAL = -1;
static final int CONDITION = -2;
static final int PROPAGATE = -3;
// Node对象存储标识的地方
volatile int waitStatus;
volatile Node prev;
volatile Node next;
//当前Node绑定的线程
volatile Thread thread;
Node nextWaiter;
final boolean isShared() {
return nextWaiter == SHARED;
}
// 返回前驱节点
final Node predecessor() throws NullPointerException {
Node p = prev;
if (p == null)
throw new NullPointerException();
else
return p;
}
Node() { // Used to establish initial head or SHARED marker
}
Node(Thread thread, Node mode) { // Used by addWaiter
this.nextWaiter = mode;
this.thread = thread;
}
Node(Thread thread, int waitStatus) { // Used by Condition
this.waitStatus = waitStatus;
this.thread = thread;
}
}
//头结点
private transient volatile Node head;
//尾结点
private transient volatile Node tail;
//当前所状态,(state的值就是获取锁的次数(可重入锁))
private volatile int state;
protected final int getState() {
return state;
}
protected final void setState(int newState) {
state = newState;
}
protected final boolean compareAndSetState(int expect, int update) {
// See below for intrinsics setup to support this
return unsafe.compareAndSwapInt(this, stateOffset, expect, update);
}
static final long spinForTimeoutThreshold = 1000L;
//说明现在没人排队我是第一个或者替换尾结点时cas设置失败,都会调用这个方法往队列(尾)中塞
private Node enq(final Node node) {
//自旋
for (; ; ) {
//重新获取当前tail为t
Node t = tail;
// t = null时,说明队列中没有排队(没头没尾)我是第一个
if (t == null) {
//cas的创建head结点,并将尾指向该head(初始化等待队列)
// 注意:这个new Node()是没有意义的(无参构造),只是为了初始化,此时还没有return,继续自旋直到把node插入队尾
if (compareAndSetHead(new Node()))
tail = head;
// t != null时,说明队列中有排队,往队列(尾)中塞
// 和addWaiter(Node mode)模式一样,只不过放在自旋中了
} else {
node.prev = t;
if (compareAndSetTail(t, node)) {
t.next = node;
return t;
}
}
}
}
//说明获取锁失败,放到等待队列(尾)中等待
private Node addWaiter(Node mode) {
// 创建node节点,节点绑定的线程是当前线程,mode是传过来的锁标识(排他锁、、、)
Node node = new Node(Thread.currentThread(), mode);
//获取aqs等待队列的尾结点
Node pred = tail;
// pred != null时,即说明队列中有排队
if (pred != null) {
// 把刚刚创建的前驱指向尾结点
node.prev = pred;
//cas的方式把tail设置为当前创建的节点
if (compareAndSetTail(pred, node)) {
//将之前的尾结点的next指向当前创建的
pred.next = node;
return node;
}
}
// pred = null时,即说明队列中没有排队
enq(node);
return node;
}
//设置头节点,前驱和绑定线程为null(head节点是没有意义的,相当于无参构造)
private void setHead(Node node) {
head = node;
node.thread = null;
node.prev = null;
}
//已经将node加入到了aqs双向等待队列中了
final boolean acquireQueued(final Node node, int arg) {
boolean failed = true;
try {
boolean interrupted = false;
for (;;) {
//当前的节点的前驱节点
final Node p = node.predecessor();
//如果p是头,说明只有我一个,那就再次尝试获取锁资源
if (p == head && tryAcquire(arg)) {
// 尝试获取锁成功了,那就设置当前节点为header(head节点没有意义 头结点获取锁也成功了,所以没啥意义了)
// 将thread和prev设置为null,获取锁成功,排队和我没有关系
setHead(node);
p.next = null; // 置null帮助GC
failed = false; // 说明成功,注意finally
return interrupted;
}
//p不是head,或者head没拿到锁资源
//shouldParkAfterFailedAcquire():保证上一个节点为有效节点(-1)
//parkAndCheckInterrupt():shouldParkAfterFailedAcquire()返回为true才会执行,将线程阻塞,等待唤醒获取锁资源
//为了保证挂起后的都能被唤醒,所以前一个节点必须是有效的(前面节点有效,后继节点才能被唤醒)
if (shouldParkAfterFailedAcquire(p, node) &&
//基于Unsafe的park()挂起线程
parkAndCheckInterrupt())
//针对fail属性,这里唯一可能出现异常的地方就是jvm内部出现异常,(finally基本不会执行,中断异常)
interrupted = true;
}
} finally {
if (failed)
cancelAcquire(node);
}
}
//p不是head,或者head没拿到锁资源
//pred是前驱节点,node是当前节点
private static boolean shouldParkAfterFailedAcquire(Node pred, Node node) {
// 前一个节点的状态
int ws = pred.waitStatus;
// 如果上一个节点状态为-1 SIGNAL,一切正常
if (ws == Node.SIGNAL)
return true;
// 如果上一个节点状态 > 0,为1,说明已经生效
if (ws > 0) {
do {
node.prev = pred = pred.prev;
} while (pred.waitStatus > 0);
//do...while结束,找到了<=0的节点,即-1的
// 将重新标识好的最近的有效节点的next指向当前节点
pred.next = node;
} else {
//小于等于0,不等于-1,cas将上一个有效节点状态修改为-1
compareAndSetWaitStatus(pred, ws, Node.SIGNAL);
}
return false;
}
//挂起线程,阻塞等待唤醒
private final boolean parkAndCheckInterrupt() {
LockSupport.park(this);
return Thread.interrupted();
}
//取消获取
private void cancelAcquire(Node node) {
if (node == null)
return;
// 将当前node的线程置为null,竞争锁资源和我没关系了
node.thread = null;
//获取当前节点的前驱节点
Node pred = node.prev;
while (pred.waitStatus > 0)
//循环结束,找到前驱中最近的非失效节点
node.prev = pred = pred.prev;
//将第一个不是失效节点的后续节点声明出来
Node predNext = pred.next;
// 将当前节点置为失效节点(给别的node看的,别的node执行时就类似的跳过继续往前找了)
node.waitStatus = Node.CANCELLED;
// 如果当前节点是尾结点,将尾结点设置为最近的有效节点(如果当前节点为尾结点的操作)
if (node == tail && compareAndSetTail(node, pred)) {
//用cas方式将尾节点的next设置为null
compareAndSetNext(pred, predNext, null);
} else {
int ws;
//如果中间节点操作
//如果上一个节点不是头结点
if (pred != head &&
//获取上一个节点状态是否有效
((ws = pred.waitStatus) == Node.SIGNAL || // pred需要唤醒后继节点的
(ws <= 0 && compareAndSetWaitStatus(pred, ws, Node.SIGNAL))) &&
pred.thread != null) {
Node next = node.next;
if (next != null && next.waitStatus <= 0)
compareAndSetNext(pred, predNext, next);//尝试将pred的前驱节点的next指向当前节点得next(必须是有效的next节点)
} else {
//头结点,唤醒后继节点
unparkSuccessor(node);
}
node.next = node; // help GC
}
}
//......
// 获取锁
public final void acquire(int arg) {
//tryAcquire():(子类实现)尝试获取锁,返回true:1、拿到锁资源2、重入成功
//acquireQueued():(tryAcquire()获取锁失败返回false,短路&&)执行增加到aqs等待队列中
if (!tryAcquire(arg) &&
acquireQueued(addWaiter(Node.EXCLUSIVE), arg))
//线程中断
selfInterrupt();
}
// 设置为当前线程,这个属性exclusiveOwnerThread是aqs的父类aos(AbstractOwnableSynchronizer)提供的
protected final void setExclusiveOwnerThread(Thread thread) {
exclusiveOwnerThread = thread;
}
}
2、ReentrantLock
public class ReentrantLock implements Lock, java.io.Serializable {
private static final long serialVersionUID = 7373984872572414699L;
private final Sync sync;
abstract static class Sync extends AbstractQueuedSynchronizer {
private static final long serialVersionUID = -5179523762034025860L;
abstract void lock();
final boolean nonfairTryAcquire(int acquires) {
final Thread current = Thread.currentThread();
int c = getState();
if (c == 0) {
//直接尝试更新锁状态,没有考虑等待队列中的线程(nonfair)
if (compareAndSetState(0, acquires)) {
setExclusiveOwnerThread(current);
return true;
}
}
else if (current == getExclusiveOwnerThread()) {
int nextc = c + acquires;
if (nextc < 0) // overflow
throw new Error("Maximum lock count exceeded");
setState(nextc);
return true;
}
return false;
}
protected final boolean tryRelease(int releases) {
int c = getState() - releases;
if (Thread.currentThread() != getExclusiveOwnerThread())
throw new IllegalMonitorStateException();
boolean free = false;
if (c == 0) {
free = true;
setExclusiveOwnerThread(null);
}
setState(c);
return free;
}
protected final boolean isHeldExclusively() {
// While we must in general read state before owner,
// we don't need to do so to check if current thread is owner
return getExclusiveOwnerThread() == Thread.currentThread();
}
final ConditionObject newCondition() {
return new ConditionObject();
}
// Methods relayed from outer class
final Thread getOwner() {
return getState() == 0 ? null : getExclusiveOwnerThread();
}
final int getHoldCount() {
return isHeldExclusively() ? getState() : 0;
}
final boolean isLocked() {
return getState() != 0;
}
private void readObject(java.io.ObjectInputStream s)
throws java.io.IOException, ClassNotFoundException {
s.defaultReadObject();
setState(0); // reset to unlocked state
}
}
//不公平锁
static final class NonfairSync extends Sync {
private static final long serialVersionUID = 7316153563782823691L;
//上锁直接cas比较锁状态
final void lock() {
if (compareAndSetState(0, 1))
//成功设置拥有锁线程为当前线程
setExclusiveOwnerThread(Thread.currentThread());
else
//获取锁
acquire(1);
}
protected final boolean tryAcquire(int acquires) {
return nonfairTryAcquire(acquires);
}
}
//公平锁
static final class FairSync extends Sync {
private static final long serialVersionUID = -3000897897090466540L;
final void lock() {
acquire(1);
}
protected final boolean tryAcquire(int acquires) {
final Thread current = Thread.currentThread();
//获取当前线程锁状态
int c = getState();
// c==0表示当前无线程占用锁
if (c == 0) {
/**
* hasQueuedPredecessors():(公平锁)去等待队列查询是否有等待线程 返回false说明没有,就cas设置锁状态
* compareAndSetState():cas设置当前状态
*/
if (!hasQueuedPredecessors() &&
compareAndSetState(0, acquires)) {
//等待队列无等待线程,且状态设置成功,就设置当拥有锁的线程为当前线程,返回ture获取锁成功
setExclusiveOwnerThread(current);
return true;
}
}
// c!=0表示当有线程占用锁,去判断当前占用锁的线程是不是当前线程
else if (current == getExclusiveOwnerThread()) {
// 可重入锁,计数器增加
int nextc = c + acquires;
if (nextc < 0)
throw new Error("Maximum lock count exceeded");
//设置锁状态
setState(nextc);
//返回ture获取锁成功
return true;
}
//当前有线程拥有锁,获取失败
return false;
}
}
//默认非公平锁
public ReentrantLock() {
sync = new NonfairSync();
}
public ReentrantLock(boolean fair) {
sync = fair ? new FairSync() : new NonfairSync();
}
public void lock() {
sync.lock();
}
public void lockInterruptibly() throws InterruptedException {
sync.acquireInterruptibly(1);
}
public boolean tryLock() {
return sync.nonfairTryAcquire(1);
}
public boolean tryLock(long timeout, TimeUnit unit)
throws InterruptedException {
return sync.tryAcquireNanos(1, unit.toNanos(timeout));
}
public void unlock() {
sync.release(1);
}
public Condition newCondition() {
return sync.newCondition();
}
public int getHoldCount() {
return sync.getHoldCount();
}
public boolean isHeldByCurrentThread() {
return sync.isHeldExclusively();
}
public boolean isLocked() {
return sync.isLocked();
}
public final boolean isFair() {
return sync instanceof FairSync;
}
protected Thread getOwner() {
return sync.getOwner();
}
public final boolean hasQueuedThreads() {
return sync.hasQueuedThreads();
}
public final boolean hasQueuedThread(Thread thread) {
return sync.isQueued(thread);
}
public final int getQueueLength() {
return sync.getQueueLength();
}
protected Collection<Thread> getQueuedThreads() {
return sync.getQueuedThreads();
}
public boolean hasWaiters(Condition condition) {
if (condition == null)
throw new NullPointerException();
if (!(condition instanceof AbstractQueuedSynchronizer.ConditionObject))
throw new IllegalArgumentException("not owner");
return sync.hasWaiters((AbstractQueuedSynchronizer.ConditionObject)condition);
}
public int getWaitQueueLength(Condition condition) {
if (condition == null)
throw new NullPointerException();
if (!(condition instanceof AbstractQueuedSynchronizer.ConditionObject))
throw new IllegalArgumentException("not owner");
return sync.getWaitQueueLength((AbstractQueuedSynchronizer.ConditionObject)condition);
}
protected Collection<Thread> getWaitingThreads(Condition condition) {
if (condition == null)
throw new NullPointerException();
if (!(condition instanceof AbstractQueuedSynchronizer.ConditionObject))
throw new IllegalArgumentException("not owner");
return sync.getWaitingThreads((AbstractQueuedSynchronizer.ConditionObject)condition);
}
public String toString() {
Thread o = sync.getOwner();
return super.toString() + ((o == null) ?
"[Unlocked]" :
"[Locked by thread " + o.getName() + "]");
}
}
