一、系统休眠唤醒机制
1.1 系统休眠唤醒介绍
一方面，在用户不需要系统工作的时候，系统休眠唤醒机制让系统尽可能进入一个功耗极低的状态，这时外部的设备、芯片内部ip、时钟进入了低功耗状态或关闭电源状态，从而尽可能的减少功耗，增加产品的续航；另一方面，在用户需要系统工作的时候，系统能够快速恢复电源、时钟、芯片内部ip及外部设备的工作，从而不影响用户的使用体验。系统休眠唤醒相比其他的功耗管理，对系统涉及面更广。系统休眠及唤醒过程涉及到pm core框架、device pm框架、用户进程及内核线程或worker，各设备驱动、power domain、cpu管理、process freeze&thaw、wakeup处理、设备suspend&resume、syscore suspend&resume、ddr自刷新等模块。
Linux内核提供了多种休眠（休眠）方式：freeze（idle）、standyby、STR（suspend to ram）和STD（suspend to disk），这些休眠方式通过文件节点/sys/power/state提供给用户操作，在用户空间通过向/sys/power/state文件节点分别写入freeze、standy、mem、disk，系统就会进入相应的状态。这样可以在系统需要进入相应状态的时候，由用户发起相应的休眠。在休眠之前会配置唤醒源，当系统休眠下去后，通过这些唤醒源（比如，按键、RTC、屏幕、USB拔插等）可以在需要的时候唤醒（resume）系统。这样在系统进入了休眠状态后，用户可以选择什么时刻，通过什么方式将系统快速唤醒，即兼顾了功耗低，又兼顾了性能。
1.2 系统休眠唤醒框架
系统休眠唤醒的框架包括三部分：Services、PM core、PM driver。
Services(user space)：由三类service组成，system supend hal service、power manager service及普通的app service。其中，power manager service提供了wakelock锁的create/request/release管理功能，当没有services持有wakelock的话，power manager service会通过调用system supend hal service往文件节点/sys/power/state写mem发起内核的休眠。
PM core：实现power manage的核心逻辑，为上层services提供操作休眠唤醒的相关接口，通过利用底层相关的技术实现休眠唤醒过程中的cpu hotplug、wakup source enable/disable、设备的suspend&resume、freeze&thaw、power domain的关&开等功能或框架。
PM driver：主要实现了设备驱动的suspend&resume实现，架构驱动（gpio、irq、timer等）低功耗相关的操作。

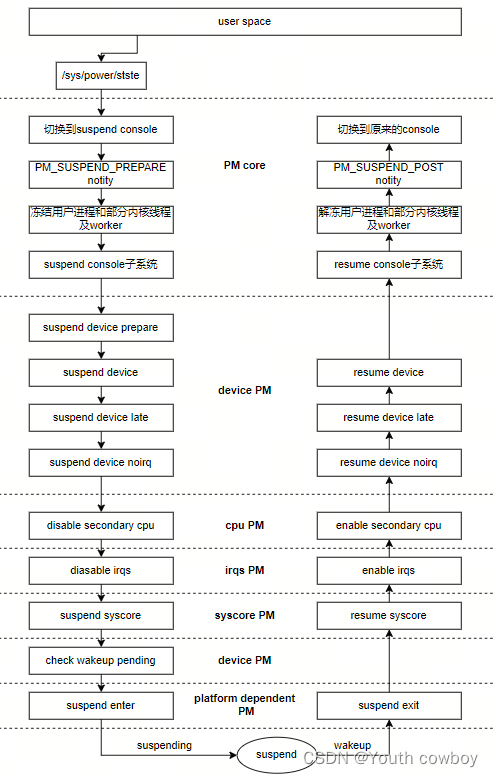

1.3 系统休眠唤醒流程
流程框架左右是supend流程，右边是resume流程。
supend详细代码详解可参考：2.3；resume详细代码详解可参考：3.1
二、系统休眠机制
Suspend to idle、freezer、standby、ram模式，一般都称作系统休眠。用户空间通过写 /sys/power/state文件节点来触发system supend.

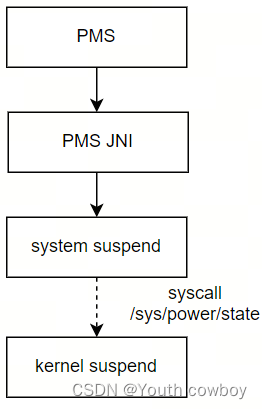

2.1 system suspend框架
详细代码参考：2.3.1、2.3.2、2.3.3、2.3.4

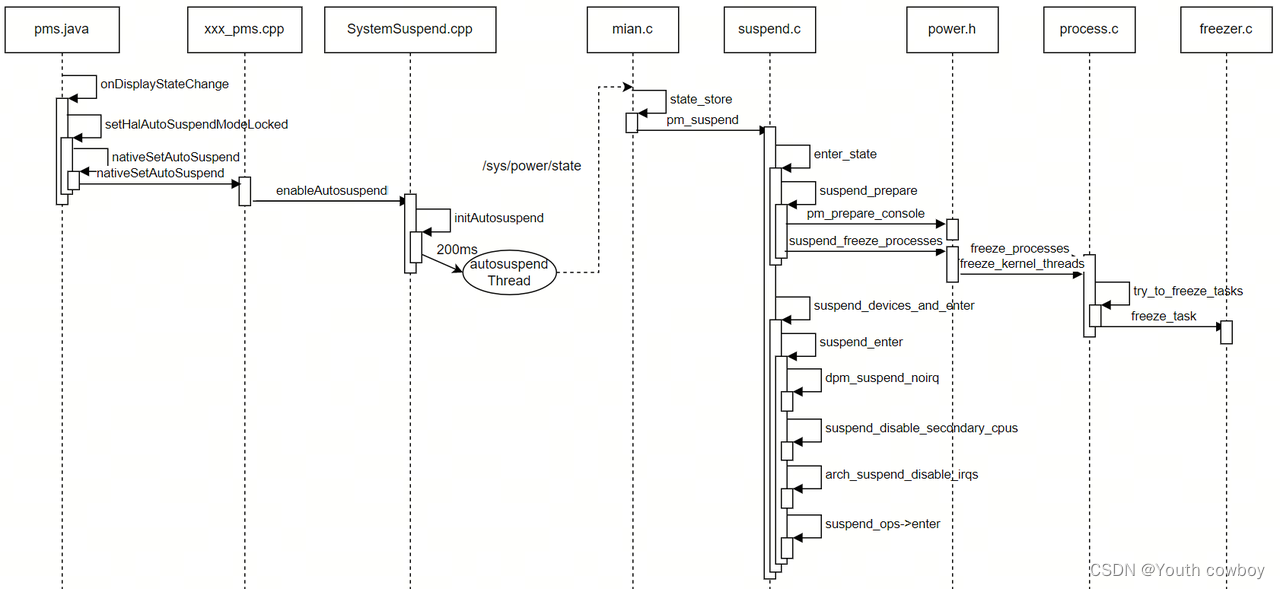

2.2 system suspend代码流程
2.3 system suspend核心代码逻辑
2.3.1 PowerManagerService模块核心代码逻辑
private static native void nativeSetAutoSuspend(boolean enable);
......
public void onDisplayStateChange(boolean allInactive, boolean allOff) {
// This method is only needed to support legacy display blanking behavior// where the display's power state is coupled to suspend or to the power HAL.// The order of operations matters here.synchronized (mLock) {
setPowerModeInternal(MODE_DISPLAY_INACTIVE, allInactive);
// 灭屏状态
if (allOff) {
if (!mDecoupleHalInteractiveModeFromDisplayConfig) {
setHalInteractiveModeLocked(false);
}
if (!mDecoupleHalAutoSuspendModeFromDisplayConfig) {
// 设置系统休眠的模式（mem、disk、standbly），默认为suspend to mem模式
setHalAutoSuspendModeLocked(true);
}
} else {
if (!mDecoupleHalAutoSuspendModeFromDisplayConfig) {
setHalAutoSuspendModeLocked(false);
}
if (!mDecoupleHalInteractiveModeFromDisplayConfig) {
setHalInteractiveModeLocked(true);
}
}
}
}
// 设置系统休眠的模式（mem、disk、standbly）,并进入suspend流程
private void setHalAutoSuspendModeLocked(boolean enable) {
if (enable != mHalAutoSuspendModeEnabled) {
if (DEBUG) {
Slog.d(TAG, "Setting HAL auto-suspend mode to " + enable);
}
mHalAutoSuspendModeEnabled = enable;
Trace.traceBegin(Trace.TRACE_TAG_POWER, "setHalAutoSuspend(" + enable + ")");
try {
// 通过JNI调用native层suspend接口
mNativeWrapper.nativeSetAutoSuspend(enable);
} finally {
Trace.traceEnd(Trace.TRACE_TAG_POWER);
}
}
}
2.3.2 PMS JNI代码逻辑
static void nativeSetAutoSuspend(JNIEnv* /* env */, jclass /* clazz */, jboolean enable) {
// enable为true
if (enable) {
android::base::Timer t;
enableAutoSuspend();
if (t.duration() > 100ms) {
ALOGD("Excessive delay in autosuspend_enable() while turning screen off");
}
} else {
android::base::Timer t;
disableAutoSuspend();
if (t.duration() > 100ms) {
ALOGD("Excessive delay in autosuspend_disable() while turning screen on");
}
}
}
void enableAutoSuspend() {
static bool enabled = false;
if (!enabled) {
// 通过binder通信获取system suspen进程中SuspendControlServiceInternal服务
static sp<IBinder> autosuspendClientToken = new BBinder();
sp<system::suspend::internal::ISuspendControlServiceInternal> suspendControl =
getSuspendControlInternal();
// 调用binder API
suspendControl->enableAutosuspend(autosuspendClientToken, &enabled);
}
{
std::lock_guard<std::mutex> lock(gSuspendMutex);
if (gSuspendBlocker) {
gSuspendBlocker->release();
gSuspendBlocker = nullptr;
}
}
}
// 获取SuspendControlServiceInternal 服务
sp<system::suspend::internal::ISuspendControlServiceInternal> getSuspendControlInternal() { static std::once_flag suspendControlFlag;
std::call_once(suspendControlFlag, []() {
gSuspendControlInternal =
waitForService<system::suspend::internal::ISuspendControlServiceInternal>(
String16("suspend_control_internal"));
LOG_ALWAYS_FATAL_IF(gSuspendControlInternal == nullptr);
});
return gSuspendControlInternal;
}
2.3.3 system suspend
// ISuspendControlServiceInternal.aidl
package android.system.suspend.internal;
import android.system.suspend.internal.SuspendInfo;
import android.system.suspend.internal.WakeLockInfo;
import android.system.suspend.internal.WakeupInfo;
/**
* Interface exposed by the suspend hal that allows framework to toggle the suspend loop and
* monitor native wakelocks.
* @hide
*/interface ISuspendControlServiceInternal {
/**
* Starts automatic system suspension.
*
* @param token token registering automatic system suspension.
* When all registered tokens die automatic system suspension is disabled.
* @return true on success, false otherwise.
*/ boolean enableAutosuspend(IBinder token);
/**
* Suspends the system even if there are wakelocks being held.
*/ boolean forceSuspend();
/**
* Returns a list of wake lock stats.
*/ WakeLockInfo[] getWakeLockStats();
/**
* Returns a list of wakeup stats.
*/ WakeupInfo[] getWakeupStats();
/**
* Returns stats related to suspend.
*/ SuspendInfo getSuspendStats();
}
-----------------------------------------------------------------------------
// ISuspendControlService.aidl
package android.system.suspend;
import android.system.suspend.IWakelockCallback;
import android.system.suspend.ISuspendCallback;
/**
* Interface exposed by the suspend hal that allows framework to toggle the suspend loop and
* monitor native wakelocks.
* @hide
*/interface ISuspendControlService {
/**
* Registers a callback for suspend events. ISuspendControlService must keep track of all
* registered callbacks unless the client process that registered the callback dies.
*
* @param callback the callback to register.
* @return true on success, false otherwise.
*/ boolean registerCallback(ISuspendCallback callback);
/**
* Registers a callback for a wakelock specified by its name.
*
* @param callback the callback to register.
* @param name the name of the wakelock.
* @return true on success, false otherwise.
*/ boolean registerWakelockCallback(IWakelockCallback callback, @utf8InCpp String name);
}
// SuspendControlService.h
#include <android/system/suspend/BnSuspendControlService.h>
#include <android/system/suspend/internal/BnSuspendControlServiceInternal.h>
#include <android/system/suspend/internal/SuspendInfo.h>
#include <android/system/suspend/internal/WakeLockInfo.h>
#include <android/system/suspend/internal/WakeupInfo.h>
using ::android::system::suspend::BnSuspendControlService;
using ::android::system::suspend::ISuspendCallback;
using ::android::system::suspend::IWakelockCallback;
using ::android::system::suspend::internal::BnSuspendControlServiceInternal;
using ::android::system::suspend::internal::SuspendInfo;
using ::android::system::suspend::internal::WakeLockInfo;
using ::android::system::suspend::internal::WakeupInfo;
namespace android {
namespace system {
namespace suspend {
namespace V1_0 {
class SystemSuspend;
class SuspendControlService : public BnSuspendControlService,
public virtual IBinder::DeathRecipient {
public:
SuspendControlService() = default;
~SuspendControlService() override = default;
binder::Status registerCallback(const sp<ISuspendCallback>& callback,
bool* _aidl_return) override;
binder::Status registerWakelockCallback(const sp<IWakelockCallback>& callback,
const std::string& name, bool* _aidl_return) override;
void binderDied(const wp<IBinder>& who) override;
void notifyWakelock(const std::string& name, bool isAcquired);
void notifyWakeup(bool success, std::vector<std::string>& wakeupReasons);
private:
std::map<std::string, std::vector<sp<IWakelockCallback>>> mWakelockCallbacks;
std::mutex mCallbackLock;
std::mutex mWakelockCallbackLock;
std::vector<sp<ISuspendCallback>> mCallbacks;
const std::vector<sp<ISuspendCallback>>::iterator findCb(const wp<IBinder>& cb) { return std::find_if(
mCallbacks.begin(), mCallbacks.end(),
[&cb](const sp<ISuspendCallback>& i) { return cb == IInterface::asBinder(i); });
}
};
class SuspendControlServiceInternal : public BnSuspendControlServiceInternal {
public:
SuspendControlServiceInternal() = default;
~SuspendControlServiceInternal() override = default;
binder::Status enableAutosuspend(const sp<IBinder>& token, bool* _aidl_return) override;
binder::Status forceSuspend(bool* _aidl_return) override;
binder::Status getSuspendStats(SuspendInfo* _aidl_return) override;
binder::Status getWakeLockStats(std::vector<WakeLockInfo>* _aidl_return) override;
binder::Status getWakeupStats(std::vector<WakeupInfo>* _aidl_return) override;
void setSuspendService(const wp<SystemSuspend>& suspend);
status_t dump(int fd, const Vector<String16>& args) override;
private:
wp<SystemSuspend> mSuspend;
};
} // namespace V1_0
} // namespace suspend
} // namespace system
} // namespace android
// SuspendControlService.cpp
binder::Status SuspendControlServiceInternal::enableAutosuspend(const sp<IBinder>& token, bool* _aidl_return) {
const auto suspendService = mSuspend.promote();
return retOk(suspendService != nullptr && suspendService->enableAutosuspend(token),
_aidl_return);
}
// SystemSuspend.h
#include <android-base/result.h>
#include <android-base/thread_annotations.h>
#include <android-base/unique_fd.h>
#include <android/system/suspend/internal/SuspendInfo.h>
#include <utils/RefBase.h>
#include <atomic>
#include <condition_variable>
#include <mutex>
#include <string>
#include "SuspendControlService.h"
#include "WakeLockEntryList.h"
#include "WakeupList.h"
namespace android {
namespace system {
namespace suspend {
namespace V1_0 {
using ::android::base::Result;
using ::android::base::unique_fd;
using ::android::system::suspend::internal::SuspendInfo;
using namespace std::chrono_literals;
class SystemSuspend;
struct SuspendStats {
int success = 0;
int fail = 0;
int failedFreeze = 0;
int failedPrepare = 0;
int failedSuspend = 0;
int failedSuspendLate = 0;
int failedSuspendNoirq = 0;
int failedResume = 0;
int failedResumeEarly = 0;
int failedResumeNoirq = 0;
std::string lastFailedDev;
int lastFailedErrno = 0;
std::string lastFailedStep;
};
struct SleepTimeConfig {
std::chrono::milliseconds baseSleepTime;
std::chrono::milliseconds maxSleepTime;
double sleepTimeScaleFactor;
uint32_t backoffThreshold;
std::chrono::milliseconds shortSuspendThreshold;
bool failedSuspendBackoffEnabled;
bool shortSuspendBackoffEnabled;
};
std::string readFd(int fd);
class SystemSuspend : public RefBase {
public:
SystemSuspend(unique_fd wakeupCountFd, unique_fd stateFd, unique_fd suspendStatsFd,
size_t maxStatsEntries, unique_fd kernelWakelockStatsFd,
unique_fd wakeupReasonsFd, unique_fd suspendTimeFd,
const SleepTimeConfig& sleepTimeConfig,
const sp<SuspendControlService>& controlService,
const sp<SuspendControlServiceInternal>& controlServiceInternal,
bool useSuspendCounter = true);
void incSuspendCounter(const std::string& name);
void decSuspendCounter(const std::string& name);
bool enableAutosuspend(const sp<IBinder>& token);
void disableAutosuspend();
bool forceSuspend();
const WakeupList& getWakeupList() const;
const WakeLockEntryList& getStatsList() const;
void updateWakeLockStatOnAcquire(const std::string& name, int pid);
void updateWakeLockStatOnRelease(const std::string& name, int pid);
void updateStatsNow();
Result<SuspendStats> getSuspendStats();
void getSuspendInfo(SuspendInfo* info);
std::chrono::milliseconds getSleepTime() const;
unique_fd reopenFileUsingFd(const int fd, int permission);
private:
~SystemSuspend(void) override;
std::mutex mAutosuspendClientTokensLock;
std::mutex mAutosuspendLock ACQUIRED_AFTER(mAutosuspendClientTokensLock);
std::mutex mSuspendInfoLock;
void initAutosuspendLocked()
EXCLUSIVE_LOCKS_REQUIRED(mAutosuspendClientTokensLock, mAutosuspendLock);
void disableAutosuspendLocked()
EXCLUSIVE_LOCKS_REQUIRED(mAutosuspendClientTokensLock, mAutosuspendLock);
void checkAutosuspendClientsLivenessLocked()
EXCLUSIVE_LOCKS_REQUIRED(mAutosuspendClientTokensLock);
bool hasAliveAutosuspendTokenLocked() EXCLUSIVE_LOCKS_REQUIRED(mAutosuspendClientTokensLock);
std::condition_variable mAutosuspendCondVar GUARDED_BY(mAutosuspendLock);
uint32_t mSuspendCounter GUARDED_BY(mAutosuspendLock);
std::vector<sp<IBinder>> mAutosuspendClientTokens GUARDED_BY(mAutosuspendClientTokensLock);
std::atomic<bool> mAutosuspendEnabled GUARDED_BY(mAutosuspendLock){false};
std::atomic<bool> mAutosuspendThreadCreated GUARDED_BY(mAutosuspendLock){false};
unique_fd mWakeupCountFd;
unique_fd mStateFd;
unique_fd mSuspendStatsFd;
unique_fd mSuspendTimeFd;
SuspendInfo mSuspendInfo GUARDED_BY(mSuspendInfoLock);
const SleepTimeConfig kSleepTimeConfig;
// Amount of thread sleep time between consecutive iterations of the suspend loopstd::chrono::milliseconds mSleepTime;
int32_t mNumConsecutiveBadSuspends GUARDED_BY(mSuspendInfoLock);
// Updates thread sleep time and suspend stats depending on the result of suspend attemptvoid updateSleepTime(bool success, const struct SuspendTime& suspendTime);
sp<SuspendControlService> mControlService;
sp<SuspendControlServiceInternal> mControlServiceInternal;
WakeLockEntryList mStatsList;
WakeupList mWakeupList;
// If true, use mSuspendCounter to keep track of native wake locks. Otherwise, rely on// /sys/power/wake_lock interface to block suspend.// TODO(b/128923994): remove dependency on /sys/power/wake_lock interface.bool mUseSuspendCounter;
unique_fd mWakeLockFd;
unique_fd mWakeUnlockFd;
unique_fd mWakeupReasonsFd;
};
} // namespace V1_0
} // namespace suspend
} // namespace system
} // namespace android
------------------------------------------------------------------------
// SystemSuspend.cpp
static const char kSleepState[] = "mem";
bool SystemSuspend::enableAutosuspend(const sp<IBinder>& token) { auto tokensLock = std::lock_guard(mAutosuspendClientTokensLock);
auto autosuspendLock = std::lock_guard(mAutosuspendLock);
// Disable zygote kernel wakelock, since explicitly attempting to// enable autosuspend. This should be done even if autosuspend is// already enabled, since it could be the case that the framework// is restarting and connecting to the existing suspend service.if (!WriteStringToFd(kZygoteKernelWakelock, mWakeUnlockFd)) {
PLOG(ERROR) << "error writing " << kZygoteKernelWakelock << " to " << kSysPowerWakeUnlock;
}
bool hasToken = std::find(mAutosuspendClientTokens.begin(), mAutosuspendClientTokens.end(),
token) != mAutosuspendClientTokens.end();
if (!hasToken) {
mAutosuspendClientTokens.push_back(token);
}
if (mAutosuspendEnabled) {
LOG(ERROR) << "Autosuspend already started.";
return false;
}
mAutosuspendEnabled = true;
initAutosuspendLocked();
return true;
}
// 创建auto suspend线程，每隔200ms
void SystemSuspend::initAutosuspendLocked() {
if (mAutosuspendThreadCreated) {
LOG(INFO) << "Autosuspend thread already started.";
return;
}
std::thread autosuspendThread([this] {
auto autosuspendLock = std::unique_lock(mAutosuspendLock);
bool shouldSleep = true;
while (true) {
{
base::ScopedLockAssertion autosuspendLocked(mAutosuspendLock);
if (!mAutosuspendEnabled) {
mAutosuspendThreadCreated = false;
return;
}
// If we got here by a failed write to /sys/power/wakeup_count;
//don't sleep// since we didn't attempt to suspend on the last cycle of this loop.
if (shouldSleep) {
mAutosuspendCondVar.wait_for(
autosuspendLock, mSleepTime,
[this]() REQUIRES(mAutosuspendLock) { return !mAutosuspendEnabled; });
}
if (!mAutosuspendEnabled) continue;
autosuspendLock.unlock();
}
lseek(mWakeupCountFd, 0, SEEK_SET);
string wakeupCount = readFd(mWakeupCountFd);
{
autosuspendLock.lock();
base::ScopedLockAssertion autosuspendLocked(mAutosuspendLock);
if (wakeupCount.empty()) {
PLOG(ERROR) << "error reading from /sys/power/wakeup_count";
continue;
}
// 从/sys/power/wakeup_count节点读取数据，如果为空，则进入suspend失败
shouldSleep = false;
mAutosuspendCondVar.wait(autosuspendLock, [this]() REQUIRES(mAutosuspendLock) {
return mSuspendCounter == 0 || !mAutosuspendEnabled;
});
if (!mAutosuspendEnabled) continue;
autosuspendLock.unlock();
}
bool success;
{
auto tokensLock = std::lock_guard(mAutosuspendClientTokensLock);
// TODO: Clean up client tokens after soaking the new approach// checkAutosuspendClientsLivenessLocked();autosuspendLock.lock();
base::ScopedLockAssertion autosuspendLocked(mAutosuspendLock);
if (!hasAliveAutosuspendTokenLocked()) {
disableAutosuspendLocked();
continue;
}
// Check suspend counter hasn't increased while checking client livenessif (mSuspendCounter > 0) {
continue;
}
// The mutex is locked and *MUST* remain locked until we write to /sys/power/state.// Otherwise, a WakeLock might be acquired after we check mSuspendCounter and before// we write to /sys/power/state.if (!WriteStringToFd(wakeupCount, mWakeupCountFd)) {
PLOG(VERBOSE) << "error writing to /sys/power/wakeup_count";
continue;
}
// 将"men"字符串接入/sys/power/state节点，
// 表示进入suspend to ram模式，调用kernel suspend的state_store函数
success = WriteStringToFd(kSleepState, mStateFd);
shouldSleep = true;
autosuspendLock.unlock();
}
if (!success) {
PLOG(VERBOSE) << "error writing to /sys/power/state";
}
struct SuspendTime suspendTime = readSuspendTime(mSuspendTimeFd);
updateSleepTime(success, suspendTime);
std::vector<std::string> wakeupReasons = readWakeupReasons(mWakeupReasonsFd);
if (wakeupReasons == std::vector<std::string>({kUnknownWakeup})) {
LOG(INFO) << "Unknown/empty wakeup reason. Re-opening wakeup_reason file.";
mWakeupReasonsFd =
std::move(reopenFileUsingFd(mWakeupReasonsFd.get(), O_CLOEXEC | O_RDONLY));
}
mWakeupList.update(wakeupReasons);
mControlService->notifyWakeup(success, wakeupReasons);
// Take the lock before returning to the start of the loopautosuspendLock.lock();
}
});
autosuspendThread.detach();
mAutosuspendThreadCreated = true;
LOG(INFO) << "automatic system suspend enabled";
}
2.3.4 kernel suspend
// mian.c
// state_store是一个syscall调用函数，为进入suspend的入口函数，
// 接收user space传递的"mem"，准备进入suspend to ram模式
static ssize_t state_store(struct kobject *kobj, struct kobj_attribute *attr,
const char *buf, size_t n)
{
suspend_state_t state;
int error;
pr_info("%s:Userspace to kernel, process start write command \"echo mem > /sys/power/state\". The process is \"%s\"(pid %i). The thread is \"%s\"(tid %i).\n",
STR_KERNEL_LOG_ENTER, current->group_leader->comm, current->group_leader->pid, current->comm, current->pid);
error = pm_autosleep_lock();
if (error)
return error;
if (pm_autosleep_state() > PM_SUSPEND_ON) {
error = -EBUSY;
goto out;
}
// "mem"字符串封装到suspend_state_t数据结构
state = decode_state(buf, n);
// 检查user space传递的suspend模式是否符合规定的范围
if (state < PM_SUSPEND_MAX) {
if (state == PM_SUSPEND_MEM)
state = mem_sleep_current;
// 调用suspend.c函数，进入suspend阶段
// 返回值为0表示suspend successed,否则supend failed，常用于suspend debug调试
error = pm_suspend(state);
if (!error) {
pr_info("%s:(( end )), kernel resume end.\n", STR_KERNEL_LOG_EXIT);
} else if (state == PM_SUSPEND_MAX) {
// PM_SUSPEND_MAX为suspend to disk，进入hibernate睡眠模式，走另一条流程
error = hibernate();
} else {
error = -EINVAL;
}
out:
pm_autosleep_unlock();
return error ? error : n;
}
// suspend模式的字符串封装到suspend_state_t，并返回。如果是supend disk模式，则返回PM_SUSPEND_MAX
static suspend_state_t decode_state(const char *buf, size_t n)
{
#ifdef CONFIG_SUSPEND
suspend_state_t state;
#endif
char *p;
int len;
p = memchr(buf, '\n', n);
len = p ? p - buf : n;
/* Check hibernation first. */
// 如果是supend disk模式，则返回PM_SUSPEND_MAX。表示系统进入suspend to disk
if (len == 4 && str_has_prefix(buf, "disk"))
return PM_SUSPEND_MAX;
#ifdef CONFIG_SUSPEND
for (state = PM_SUSPEND_MIN; state < PM_SUSPEND_MAX; state++) {
const char *label = pm_states[state];
if (label && len == strlen(label) && !strncmp(buf, label, len))
return state;
}
#endif
return PM_SUSPEND_ON;
}
// suspend.h
#define PM_SUSPEND_ON ((__force suspend_state_t) 0)
#define PM_SUSPEND_TO_IDLE ((__force suspend_state_t) 1)
#define PM_SUSPEND_STANDBY ((__force suspend_state_t) 2)
#define PM_SUSPEND_MEM ((__force suspend_state_t) 3)
#define PM_SUSPEND_MIN PM_SUSPEND_TO_IDLE
#define PM_SUSPEND_MAX ((__force suspend_state_t) 4)
enum suspend_stat_step {
SUSPEND_FREEZE = 1,
SUSPEND_PREPARE,
SUSPEND_SUSPEND,
SUSPEND_SUSPEND_LATE,
SUSPEND_SUSPEND_NOIRQ,
SUSPEND_RESUME_NOIRQ,
SUSPEND_RESUME_EARLY,
SUSPEND_RESUME
};
struct suspend_stats {
int success;
int fail;
int failed_freeze;
int failed_prepare;
int failed_suspend;
int failed_suspend_late;
int failed_suspend_noirq;
int failed_resume;
int failed_resume_early;
int failed_resume_noirq;
#define REC_FAILED_NUM 2
int last_failed_dev;
char failed_devs[REC_FAILED_NUM][40];
int last_failed_errno;
int errno[REC_FAILED_NUM];
int last_failed_step;
enum suspend_stat_step failed_steps[REC_FAILED_NUM];
};
#define PM_SUSPEND_FLAG_FW_SUSPEND BIT(0)
#define PM_SUSPEND_FLAG_FW_RESUME BIT(1)
#define PM_SUSPEND_FLAG_NO_PLATFORM BIT(2)
/* Suspend-to-idle state machnine. */
enum s2idle_states {
S2IDLE_STATE_NONE, /* Not suspended/suspending. */
S2IDLE_STATE_ENTER, /* Enter suspend-to-idle. */
S2IDLE_STATE_WAKE, /* Wake up from suspend-to-idle. */
};
/* Hibernation and suspend events */
#define PM_HIBERNATION_PREPARE 0x0001 /* Going to hibernate */
#define PM_POST_HIBERNATION 0x0002 /* Hibernation finished */
#define PM_SUSPEND_PREPARE 0x0003 /* Going to suspend the system */
#define PM_POST_SUSPEND 0x0004 /* Suspend finished */
#define PM_RESTORE_PREPARE 0x0005 /* Going to restore a saved image */
#define PM_POST_RESTORE 0x0006 /* Restore failed */
----------------------------------------------------------------------------
// suspend.c
/**
* pm_suspend - Externally visible function for suspending the system.
* @state: System sleep state to enter.
*
* Check if the value of @state represents one of the supported states,
* execute enter_state() and update system suspend statistics.
*/
// 系统进入suspend模式
// 更新系统suspend信息
int pm_suspend(suspend_state_t state)
{
int error;
if (state <= PM_SUSPEND_ON || state >= PM_SUSPEND_MAX)
return -EINVAL;
pr_info("suspend entry (%s)\n", mem_sleep_labels[state]);
// 进入supend
error = enter_state(state);
// 统计suspend 成功与失败次数
if (error) {
suspend_stats.fail++;
dpm_save_failed_errno(error);
} else {
suspend_stats.success++;
}
pr_info("suspend exit\n");
return error;
}
/**
* enter_state - Do common work needed to enter system sleep state.
* @state: System sleep state to enter.
*
* Make sure that no one else is trying to put the system into a sleep state.
* Fail if that's not the case. Otherwise, prepare for system suspend, make the
* system enter the given sleep state and clean up after wakeup.
*/
static int enter_state(suspend_state_t state)
{
int error;
trace_suspend_resume(TPS("suspend_enter"), state, true);
if (state == PM_SUSPEND_TO_IDLE) {
#ifdef CONFIG_PM_DEBUG
if (pm_test_level != TEST_NONE && pm_test_level <= TEST_CPUS) {
pr_warn("Unsupported test mode for suspend to idle, please choose none/freezer/devices/platform.\n");
return -EAGAIN;
}
#endif
} else if (!valid_state(state)) {
return -EINVAL;
}
if (!mutex_trylock(&system_transition_mutex))
return -EBUSY;
// 如果是进入suspend to idle模式，会先调用s2idle_begin函数，将设置s2idle_state = S2IDLE_STATE_NONE
if (state == PM_SUSPEND_TO_IDLE)
s2idle_begin();
if (sync_on_suspend_enabled) {
trace_suspend_resume(TPS("sync_filesystems"), 0, true);
ksys_sync_helper();
trace_suspend_resume(TPS("sync_filesystems"), 0, false);
}
pm_pr_dbg("Preparing system for sleep (%s)\n", mem_sleep_labels[state]);
pm_suspend_clear_flags();
// 1. 进入suspend第一阶段
error = suspend_prepare(state);
if (error)
goto Unlock;
if (suspend_test(TEST_FREEZER))
goto Finish;
trace_suspend_resume(TPS("suspend_enter"), state, false);
pm_pr_dbg("Suspending system (%s)\n", mem_sleep_labels[state]);
pm_restrict_gfp_mask();
pr_info("%s:Suspend_devices.\n", STR_KERNEL_LOG_ENTER);
// 2. 进入suspend的第二阶段
error = suspend_devices_and_enter(state);
pm_restore_gfp_mask();
Finish:
events_check_enabled = false;
pm_pr_dbg("Finishing wakeup.\n");
suspend_finish();
Unlock:
mutex_unlock(&system_transition_mutex);
return error;
}
2.3.4.1 kernel suspend流程的第一阶段 —suspend_prepare
/**
* suspend_prepare - Prepare for entering system sleep state.
*
* Common code run for every system sleep state that can be entered (except for
* hibernation). Run suspend notifiers, allocate the "suspend" console and
* freeze processes.
*/
// suspend idle、standby、mem模式都会走该流程，suspend disk另走hibernate()流程
// 1. suspend流程的第一阶段
static int suspend_prepare(suspend_state_t state)
{
int error;
if (!sleep_state_supported(state))
return -EPERM;
// 1.1 切换控制台，使用suspend下的控制台，重定向到kmsg
pm_prepare_console();
// 1.2 suspend前调用阻塞通知链，通知PM_SUSPEND_PREPARE事件
error = pm_notifier_call_chain_robust(PM_SUSPEND_PREPARE, PM_POST_SUSPEND);
if (error)
goto Restore;
trace_suspend_resume(TPS("freeze_processes"), 0, true);
// 1.3 冻结用户进程和部分内核线程及worker线程
error = suspend_freeze_processes();
trace_suspend_resume(TPS("freeze_processes"), 0, false);
if (!error)
return 0;
log_suspend_abort_reason("One or more tasks refusing to freeze");
suspend_stats.failed_freeze++;
dpm_save_failed_step(SUSPEND_FREEZE);
pm_notifier_call_chain(PM_POST_SUSPEND);
Restore:
pm_restore_console();
return error;
}
// console.c
void pm_prepare_console(void)
{
if (!pm_vt_switch())
return;
// 切换到suspend控制台
orig_fgconsole = vt_move_to_console(SUSPEND_CONSOLE, 1);
if (orig_fgconsole < 0)
return;
// suspend控制台日志重定向到kmsg，方便调试
orig_kmsg = vt_kmsg_redirect(SUSPEND_CONSOLE);
return;
}
--------------------------------------------------------------------------------
// mian.c
int pm_notifier_call_chain_robust(unsigned long val_up, unsigned long val_down)
{
int ret;
ret = blocking_notifier_call_chain_robust(&pm_chain_head, val_up, val_down, NULL);
return notifier_to_errno(ret);
}
--------------------------------------------------------------------------------
// notifier.c
// 调用阻塞通知链，接收suspend prepaer事件，通知注册在该链上的所有回调函数做处理
int blocking_notifier_call_chain_robust(struct blocking_notifier_head *nh,
unsigned long val_up, unsigned long val_down, void *v)
{
int ret = NOTIFY_DONE;
/*
* We check the head outside the lock, but if this access is
* racy then it does not matter what the result of the test
* is, we re-check the list after having taken the lock anyway:
*/
if (rcu_access_pointer(nh->head)) {
down_read(&nh->rwsem);
ret = notifier_call_chain_robust(&nh->head, val_up, val_down, v);
up_read(&nh->rwsem);
}
return ret;
}
--------------------------------------------------------------------------------
// power.h
// 1.3 进程冻结
#ifdef CONFIG_SUSPEND_FREEZER
static inline int suspend_freeze_processes(void)
{
int error;
// 1.3.1 冻结用户进程，如果冻结失败，则直接返回
error = freeze_processes();
/*
* freeze_processes() automatically thaws every task if freezing
* fails. So we need not do anything extra upon error.
*/
if (error)
return error;
// 1.3.2 冻结内核线程，如果冻结失败，则已被冻结的内核线程
error = freeze_kernel_threads();
/*
* freeze_kernel_threads() thaws only kernel threads upon freezing
* failure. So we have to thaw the userspace tasks ourselves.
*/
if (error)
// 如果内核线程冻结失败，则已被冻结的用户进程
thaw_processes();
return error;
}
----------------------------------------------------------------------
// process.c
/**
* freeze_processes - Signal user space processes to enter the refrigerator.
* The current thread will not be frozen. The same process that calls
* freeze_processes must later call thaw_processes.
*
* On success, returns 0. On failure, -errno and system is fully thawed.
*/
// 1.3.1 冻结用户进程
int freeze_processes(void)
{
int error;
error = __usermodehelper_disable(UMH_FREEZING);
if (error)
return error;
/* Make sure this task doesn't get frozen */
current->flags |= PF_SUSPEND_TASK;
if (!pm_freezing)
atomic_inc(&system_freezing_cnt);
pm_wakeup_clear(0);
pr_info("%s:Freezing user space processes ... ", STR_KERNEL_LOG_ENTER);
pm_freezing = true;
// // 参数传入true，表示冻结用户进程
error = try_to_freeze_tasks(true);
if (!error) {
__usermodehelper_set_disable_depth(UMH_DISABLED);
pr_cont("done.");
}
pr_cont("\n");
BUG_ON(in_atomic());
/*
* Now that the whole userspace is frozen we need to disable
* the OOM killer to disallow any further interference with
* killable tasks. There is no guarantee oom victims will
* ever reach a point they go away we have to wait with a timeout.
*/
// 用户进程冻结完后， OOM killer做disable处理，防止对任何对可杀死任务的进一步干扰
if (!error && !oom_killer_disable(msecs_to_jiffies(freeze_timeout_msecs)))
error = -EBUSY;
if (error)
// 如果用户进程冻结失败，则解冻所有已被冻结的用户进程
thaw_processes();
return error;
}
// 解冻所有已被冻结的用户进程
void thaw_processes(void)
{
struct task_struct *g, *p;
struct task_struct *curr = current;
trace_suspend_resume(TPS("thaw_processes"), 0, true);
if (pm_freezing)
atomic_dec(&system_freezing_cnt);
pm_freezing = false;
pm_nosig_freezing = false;
// kernel oom killer重新使能
oom_killer_enable();
pr_info("%s:Restarting tasks ... ", STR_KERNEL_LOG_EXIT);
__usermodehelper_set_disable_depth(UMH_FREEZING);
// 解冻worker线程
thaw_workqueues();
cpuset_wait_for_hotplug();
read_lock(&tasklist_lock);
for_each_process_thread(g, p) {
/* No other threads should have PF_SUSPEND_TASK set */
WARN_ON((p != curr) && (p->flags & PF_SUSPEND_TASK));
__thaw_task(p); // freezer模块提供的解冻函数入口，根据P判断是用户进程还是内核线程
}
read_unlock(&tasklist_lock);
WARN_ON(!(curr->flags & PF_SUSPEND_TASK));
curr->flags &= ~PF_SUSPEND_TASK;
usermodehelper_enable();
schedule();
pr_cont("done.\n");
trace_suspend_resume(TPS("thaw_processes"), 0, false);
}
// 冻结用户进程和内核线程都会走到这个函数；user_only true表示用户进程，false表示内核线程
static int try_to_freeze_tasks(bool user_only)
{
struct task_struct *g, *p;
unsigned long end_time;
unsigned int todo;
bool wq_busy = false;
ktime_t start, end, elapsed;
unsigned int elapsed_msecs;
bool wakeup = false;
int sleep_usecs = USEC_PER_MSEC;
char last_process[TASK_COMM_LEN];
char last_thread[TASK_COMM_LEN];
int last_process_pid;
int last_thread_tid;
start = ktime_get_boottime();
end_time = jiffies + msecs_to_jiffies(freeze_timeout_msecs);
// 如果是内核线程，则先冻结worker线程
if (!user_only)
freeze_workqueues_begin();
while (true) {
todo = 0;
read_lock(&tasklist_lock);
for_each_process_thread(g, p) {
if (p == current || !freeze_task(p)) // 调用cgroup freezer的冻结函数
continue;
if (!freezer_should_skip(p)) {
strcpy(last_process, g->comm);
last_process_pid = g->pid;
strcpy(last_thread, p->comm);
last_thread_tid = p->pid;
todo++;
}
}
read_unlock(&tasklist_lock);
if (!user_only) {
wq_busy = freeze_workqueues_busy();
todo += wq_busy;
}
if (!todo || time_after(jiffies, end_time))
break;
if (pm_wakeup_pending()) {
wakeup = true;
break;
}
/*
* We need to retry, but first give the freezing tasks some
* time to enter the refrigerator. Start with an initial
* 1 ms sleep followed by exponential backoff until 8 ms.
*/
usleep_range(sleep_usecs / 2, sleep_usecs);
if (sleep_usecs < 8 * USEC_PER_MSEC)
sleep_usecs *= 2;
}
end = ktime_get_boottime();
elapsed = ktime_sub(end, start);
elapsed_msecs = ktime_to_ms(elapsed);
if (wakeup) {
pr_cont("\n");
pr_err("Freezing of tasks aborted after %d.%03d seconds",
elapsed_msecs / 1000, elapsed_msecs % 1000);
pr_err("%s:wakeup true. Process is [%s](pid = %d), thread is [%s](tid = %d)!\n", STR_KERNEL_LOG_ENTER_ERR, last_process, last_process_pid, last_thread, last_thread_tid);
} else if (todo) {
pr_cont("\n");
pr_err("Freezing of tasks failed after %d.%03d seconds"
" (%d tasks refusing to freeze, wq_busy=%d):\n",
elapsed_msecs / 1000, elapsed_msecs % 1000,
todo - wq_busy, wq_busy);
pr_err("%s:todo true. Process is [%s](pid = %d), thread is [%s](tid = %d)!\n", STR_KERNEL_LOG_ENTER_ERR, last_process, last_process_pid, last_thread, last_thread_tid);
if (wq_busy)
show_workqueue_state();
if (pm_debug_messages_on) {
read_lock(&tasklist_lock);
for_each_process_thread(g, p) {
if (p != current && !freezer_should_skip(p)
&& freezing(p) && !frozen(p)) {
sched_show_task(p);
trace_android_vh_try_to_freeze_todo_unfrozen(p);
}
}
read_unlock(&tasklist_lock);
}
trace_android_vh_try_to_freeze_todo(todo, elapsed_msecs, wq_busy);
} else {
pr_cont("(elapsed %d.%03d seconds) ", elapsed_msecs / 1000,
elapsed_msecs % 1000);
}
return todo ? -EBUSY : 0;
}
/**
* freeze_kernel_threads - Make freezable kernel threads go to the refrigerator.
*
* On success, returns 0. On failure, -errno and only the kernel threads are
* thawed, so as to give a chance to the caller to do additional cleanups
* (if any) before thawing the userspace tasks. So, it is the responsibility
* of the caller to thaw the userspace tasks, when the time is right.
*/
// 冻结内核线程
int freeze_kernel_threads(void)
{
int error;
pr_info("%s:Freezing remaining freezable tasks ... ", STR_KERNEL_LOG_ENTER);
pm_nosig_freezing = true;
// 参数传入false，表示冻结内核线程
error = try_to_freeze_tasks(false);
if (!error)
pr_cont("done.");
pr_cont("\n");
BUG_ON(in_atomic());
if (error)
// 若内核线程冻结失败，则解冻已被冻结的内核线程
thaw_kernel_threads();
return error;
}
// 解冻内核线程，包括worker线程和其它的内核线程
void thaw_kernel_threads(void)
{
struct task_struct *g, *p;
pm_nosig_freezing = false;
pr_info("%s:Restarting kernel threads ... ", STR_KERNEL_LOG_EXIT);
// 解冻worker线程
thaw_workqueues();
read_lock(&tasklist_lock);
for_each_process_thread(g, p) {
// 对struct p->flags赋值
if (p->flags & (PF_KTHREAD | PF_WQ_WORKER))
// 解冻其它的内核线程，根据P判断是内核线程还是用户进程
__thaw_task(p);
}
read_unlock(&tasklist_lock);
schedule();
pr_cont("done.\n");
}
Linux kernel cgroup freezer模块具体的冻结与解冻策略，另起一篇文章讲述。
小结：
- suspend第一阶段主要做了三个事情
a. 切换控制台，使用suspend下的控制台，重定向到kmsg
b.suspend前调用阻塞通知链，通知PM_SUSPEND_PREPARE事件
c.冻结用户进程和内核worker线程及其它线程 - freezer模块的入口函数
冻结入口函数：freeze_task(struct task_struct *p)
解冻入口函数：__thaw_task(struct task_struct *p)
2.3.4.2 kernel suspend流程的第二阶段 —suspend_devices_and_enter
// suspend.c
/**
* suspend_devices_and_enter - Suspend devices and enter system sleep state.
* @state: System sleep state to enter.
*/
int suspend_devices_and_enter(suspend_state_t state)
{
int error;
bool wakeup = false;
// 如果当前系统不支持该类型的suspend模式，则return
if (!sleep_state_supported(state))
return -ENOSYS;
pm_suspend_target_state = state;
// 若为suspend idle模式
if (state == PM_SUSPEND_TO_IDLE)
pm_set_suspend_no_platform();
// 1. platform suspend
error = platform_suspend_begin(state);
if (error)
goto Close;
// 2. console suspend
suspend_console();
suspend_test_start();
// 3. dpm suspend
error = dpm_suspend_start(PMSG_SUSPEND);
if (error) {
pr_err("Some devices failed to suspend, or early wake event detected\n");
log_suspend_abort_reason(
"Some devices failed to suspend, or early wake event detected");
goto Recover_platform;
}
suspend_test_finish("suspend devices");
if (suspend_test(TEST_DEVICES))
goto Recover_platform;
do {
// 4. system suspend
error = suspend_enter(state, &wakeup);
} while (!error && !wakeup && platform_suspend_again(state));
Resume_devices:
pr_info("%s:Resume_devices start.\n", STR_KERNEL_LOG_EXIT);
suspend_test_start();
dpm_resume_end(PMSG_RESUME);
suspend_test_finish("resume devices");
trace_suspend_resume(TPS("resume_console"), state, true);
resume_console();
trace_suspend_resume(TPS("resume_console"), state, false);
pr_info("%s:Resume_devices end.\n", STR_KERNEL_LOG_EXIT);
Close:
platform_resume_end(state);
pm_suspend_target_state = PM_SUSPEND_ON;
return error;
Recover_platform:
platform_recover(state);
goto Resume_devices;
}
1）platform suspend —platform_suspend_begin
// 1. platform suspend
// suspend.c
static int platform_suspend_begin(suspend_state_t state)
{
if (state == PM_SUSPEND_TO_IDLE && s2idle_ops && s2idle_ops->begin)
return s2idle_ops->begin();
else if (suspend_ops && suspend_ops->begin)
return suspend_ops->begin(state);
else
return 0;
}
2）console suspend —suspend_console
// 2. console suspend
// printk.c
/**
* suspend_console - suspend the console subsystem
*
* This disables printk() while we go into suspend states
*/
void suspend_console(void)
{
if (!console_suspend_enabled)
return;
pr_info("Suspending console(s) (use no_console_suspend to debug)\n");
console_lock();
console_suspended = 1;
up_console_sem();
}
3）dpm suspend —dpm_suspend_start
// 3. dpm suspend
// kernel/drivers/base/power/main.c
/**
* dpm_suspend_start - Prepare devices for PM transition and suspend them.
* @state: PM transition of the system being carried out.
*
* Prepare all non-sysdev devices for system PM transition and execute "suspend"
* callbacks for them.
*/
// 3.系统进入睡眠状态之前对非sysdev设备进行准备并将其挂起
int dpm_suspend_start(pm_message_t state)
{
ktime_t starttime = ktime_get();
int error;
error = dpm_prepare(state);
if (error) {
suspend_stats.failed_prepare++;
dpm_save_failed_step(SUSPEND_PREPARE);
} else
// 非sysdev设备进入suspend
error = dpm_suspend(state);
dpm_show_time(starttime, state, error, "start");
return error;
}
EXPORT_SYMBOL_GPL(dpm_suspend_start);
/**
* dpm_suspend - Execute "suspend" callbacks for all non-sysdev devices.
* @state: PM transition of the system being carried out.
*/
int dpm_suspend(pm_message_t state)
{
ktime_t starttime = ktime_get();
int error = 0;
trace_suspend_resume(TPS("dpm_suspend"), state.event, true);
might_sleep();
// devfreq & cpufreq suspend
// 暂停设备的频率调节
devfreq_suspend();
cpufreq_suspend();
mutex_lock(&dpm_list_mtx);
pm_transition = state;
async_error = 0;
while (!list_empty(&dpm_prepared_list)) {
struct device *dev = to_device(dpm_prepared_list.prev);
get_device(dev);
mutex_unlock(&dpm_list_mtx);
// device进入suspend
error = device_suspend(dev);
mutex_lock(&dpm_list_mtx);
if (error) {
pm_dev_err(dev, state, "", error);
dpm_save_failed_dev(dev_name(dev));
put_device(dev);
break;
}
if (!list_empty(&dev->power.entry))
list_move(&dev->power.entry, &dpm_suspended_list);
put_device(dev);
if (async_error)
break;
}
mutex_unlock(&dpm_list_mtx);
async_synchronize_full();
if (!error)
error = async_error;
if (error) {
suspend_stats.failed_suspend++;
dpm_save_failed_step(SUSPEND_SUSPEND);
}
dpm_show_time(starttime, state, error, NULL);
trace_suspend_resume(TPS("dpm_suspend"), state.event, false);
return error;
}
4）system suspend —suspend_enter
// 4. system suspend
// suspend.c
/**
* suspend_enter - Make the system enter the given sleep state.
* @state: System sleep state to enter.
* @wakeup: Returns information that the sleep state should not be re-entered.
*
* This function should be called after devices have been suspended.
*/
// 4. 系统进入休眠状态
static int suspend_enter(suspend_state_t state, bool *wakeup)
{
int error, last_dev;
// 1) 调用平台的prepare回调函数
error = platform_suspend_prepare(state);
if (error)
goto Platform_finish;
// 2) 执行所有设备的suspend late回调函数
error = dpm_suspend_late(PMSG_SUSPEND);
if (error) {
last_dev = suspend_stats.last_failed_dev + REC_FAILED_NUM - 1;
last_dev %= REC_FAILED_NUM;
pr_err("late suspend of devices failed\n");
log_suspend_abort_reason("late suspend of %s device failed",
suspend_stats.failed_devs[last_dev]);
goto Platform_finish;
}
// 3) 执行s2idle_ops的prepare回调函数
error = platform_suspend_prepare_late(state);
if (error)
goto Devices_early_resume;
// 4) 执行所有设备的noirq回调，暂停cpuidle，关闭中断
error = dpm_suspend_noirq(PMSG_SUSPEND);
if (error) {
last_dev = suspend_stats.last_failed_dev + REC_FAILED_NUM - 1;
last_dev %= REC_FAILED_NUM;
pr_err("noirq suspend of devices failed\n");
log_suspend_abort_reason("noirq suspend of %s device failed",
suspend_stats.failed_devs[last_dev]);
goto Platform_early_resume;
}
// 5) 执行prepare_late回调函数
error = platform_suspend_prepare_noirq(state);
if (error)
goto Platform_wake;
if (suspend_test(TEST_PLATFORM))
goto Platform_wake;
if (state == PM_SUSPEND_TO_IDLE) {
s2idle_loop();
goto Platform_wake;
}
// 6) 关闭non-boot cpu
// "Boot" CPU是系统启动时作为第一个启动的CPU核心，
// 它负责执行引导加载程序（bootloader）的任务，以及进行系统初始化的工作
error = suspend_disable_secondary_cpus();
if (error || suspend_test(TEST_CPUS)) {
log_suspend_abort_reason("Disabling non-boot cpus failed");
goto Enable_cpus;
}
// 7) 关闭本地中断
arch_suspend_disable_irqs();
BUG_ON(!irqs_disabled());
system_state = SYSTEM_SUSPEND;
// 8) 调用syscoe suspend回调函数
error = syscore_suspend();
pr_info("%s:<< end >>, kernel suspend end.\n", STR_KERNEL_LOG_ENTER);
if (!error) {
// 9) 检查系统中是否有wakelock，若存在，则停止suspend
*wakeup = pm_wakeup_pending();
if (!(suspend_test(TEST_CORE) || *wakeup)) {
trace_suspend_resume(TPS("machine_suspend"),
state, true);
// 10) 真正发起系统休眠，有可能通过SMC陷入EL3,经由ATF再通过SCMI告诉其它MCU做系统休眠
error = suspend_ops->enter(state);
trace_suspend_resume(TPS("machine_suspend"),
state, false);
} else if (*wakeup) {
error = -EBUSY;
}
pr_info("%s:(( start )), kernel resume start.\n", STR_KERNEL_LOG_EXIT);
syscore_resume();
}
system_state = SYSTEM_RUNNING;
arch_suspend_enable_irqs();
BUG_ON(irqs_disabled());
pr_info("%s:Enable_cpus start.\n", STR_KERNEL_LOG_EXIT);
Enable_cpus:
suspend_enable_secondary_cpus();
pr_info("%s:Platform_wake start.\n", STR_KERNEL_LOG_EXIT);
Platform_wake:
platform_resume_noirq(state);
dpm_resume_noirq(PMSG_RESUME);
pr_info("%s:Platform_early_resume start.\n", STR_KERNEL_LOG_EXIT);
Platform_early_resume:
platform_resume_early(state);
pr_info("%s:Devices_early_resume start.\n", STR_KERNEL_LOG_EXIT);
Devices_early_resume:
dpm_resume_early(PMSG_RESUME);
pr_info("%s:Platform_finish start.\n", STR_KERNEL_LOG_EXIT);
Platform_finish:
platform_resume_finish(state);
return error;
}
接下来看下pm_wakeup_pending(void)函数，判断系统中是否存在wakeup source。存在，则susepnd失败。
wakeup source在wakelock管理模块中被申请或创建。参考：https://blog.csdn.net/youthcowboy/article/details/134312903?spm=1001.2014.3001.5502 中wakeup_source_register(struct device *dev, const char *name)函数。
// kernel/drivers/base/power/wakeup.c
bool pm_wakeup_pending(void)
{
unsigned long flags;
bool ret = false;
char suspend_abort[MAX_SUSPEND_ABORT_LEN];
raw_spin_lock_irqsave(&events_lock, flags);
if (events_check_enabled) {
unsigned int cnt, inpr;
split_counters(&cnt, &inpr);
ret = (cnt != saved_count || inpr > 0);
events_check_enabled = !ret;
}
raw_spin_unlock_irqrestore(&events_lock, flags);
if (ret) {
pm_pr_dbg("Wakeup pending, aborting suspend\n");
pm_print_active_wakeup_sources();
pm_get_active_wakeup_sources(suspend_abort,
MAX_SUSPEND_ABORT_LEN);
log_suspend_abort_reason(suspend_abort);
pr_info("PM: %s\n", suspend_abort);
}
return ret || atomic_read(&pm_abort_suspend) > 0;
}
void pm_get_active_wakeup_sources(char *pending_wakeup_source, size_t max)
{
struct wakeup_source *ws, *last_active_ws = NULL;
int len = 0;
bool active = false;
rcu_read_lock();
// 遍历wakeup_sources list，判断系统中是否存在wakeup source。存在，则susepnd失败。
// wakeup source在wakelock管理模块中被申请或创建
list_for_each_entry_rcu(ws, &wakeup_sources, entry) {
if (ws->active && len < max) {
if (!active)
len += scnprintf(pending_wakeup_source, max,
"Pending Wakeup Sources: ");
len += scnprintf(pending_wakeup_source + len, max - len,
"%s ", ws->name);
active = true;
} else if (!active &&
(!last_active_ws ||
ktime_to_ns(ws->last_time) >
ktime_to_ns(last_active_ws->last_time))) {
last_active_ws = ws;
}
}
if (!active && last_active_ws) {
scnprintf(pending_wakeup_source, max,
"Last active Wakeup Source: %s",
last_active_ws->name);
}
rcu_read_unlock();
}
// 1) 调用平台的prepare回调函数
// suspend.c
static int platform_suspend_prepare(suspend_state_t state)
{
return state != PM_SUSPEND_TO_IDLE && suspend_ops->prepare ?
suspend_ops->prepare() : 0;
}
// 2) 执行所有设备的suspend late回调函数
// kernel/drivers/base/power/main.c
/**
* dpm_suspend_late - Execute "late suspend" callbacks for all devices.
* @state: PM transition of the system being carried out.
*/
int dpm_suspend_late(pm_message_t state)
{
ktime_t starttime = ktime_get();
int error = 0;
trace_suspend_resume(TPS("dpm_suspend_late"), state.event, true);
mutex_lock(&dpm_list_mtx);
pm_transition = state;
async_error = 0;
// 遍历 apm suspend list
while (!list_empty(&dpm_suspended_list)) {
struct device *dev = to_device(dpm_suspended_list.prev);
get_device(dev);
mutex_unlock(&dpm_list_mtx);
// device进入suspend
error = device_suspend_late(dev);
mutex_lock(&dpm_list_mtx);
if (!list_empty(&dev->power.entry))
list_move(&dev->power.entry, &dpm_late_early_list);
if (error) {
pm_dev_err(dev, state, " late", error);
dpm_save_failed_dev(dev_name(dev));
put_device(dev);
break;
}
put_device(dev);
if (async_error)
break;
}
mutex_unlock(&dpm_list_mtx);
async_synchronize_full();
if (!error)
error = async_error;
if (error) {
suspend_stats.failed_suspend_late++;
dpm_save_failed_step(SUSPEND_SUSPEND_LATE);
dpm_resume_early(resume_event(state));
}
dpm_show_time(starttime, state, error, "late");
trace_suspend_resume(TPS("dpm_suspend_late"), state.event, false);
return error;
}
/**
* __device_suspend_late - Execute a "late suspend" callback for given device.
* @dev: Device to handle.
* @state: PM transition of the system being carried out.
* @async: If true, the device is being suspended asynchronously.
*
* Runtime PM is disabled for @dev while this function is being executed.
*/
// 该函数会让设备进入挂起状态。在执行挂起操作之前，
// 该函数会禁用设备的运行时电源管理，并等待设备的子设备完成挂起操作。
// 然后，该函数通过执行各种挂起回调函数来完成设备的挂起操作。
// 最后，该函数将设置设备的is_late_suspended标志为true，表示设备已经完成晚期挂起操作。
// 这意味着在该函数执行完毕后，设备应该处于挂起状态。
static int __device_suspend_late(struct device *dev, pm_message_t state, bool async)
{
pm_callback_t callback = NULL;
const char *info = NULL;
int error = 0;
TRACE_DEVICE(dev);
TRACE_SUSPEND(0);
// runtme PM disable
__pm_runtime_disable(dev, false);
// 等待设备的子设备完成suspend操作
dpm_wait_for_subordinate(dev, async);
if (async_error)
goto Complete;
if (pm_wakeup_pending()) {
async_error = -EBUSY;
goto Complete;
}
if (dev->power.syscore || dev->power.direct_complete)
goto Complete;
// 检查设备的电源域、设备类型、设备类别和设备总线是否定义了suspend回调函数。
// 如果存在相应的回调函数，则执行suspend回调函数。
if (dev->pm_domain) {
info = "late power domain ";
callback = pm_late_early_op(&dev->pm_domain->ops, state);
} else if (dev->type && dev->type->pm) {
info = "late type ";
callback = pm_late_early_op(dev->type->pm, state);
} else if (dev->class && dev->class->pm) {
info = "late class ";
callback = pm_late_early_op(dev->class->pm, state);
} else if (dev->bus && dev->bus->pm) {
info = "late bus ";
callback = pm_late_early_op(dev->bus->pm, state);
}
if (callback)
goto Run;
if (dev_pm_skip_suspend(dev))
goto Skip;
// 如果设备的驱动程序定义了supend回调函数，也执行该回调函数
if (dev->driver && dev->driver->pm) {
info = "late driver ";
callback = pm_late_early_op(dev->driver->pm, state);
}
Run:
error = dpm_run_callback(callback, dev, state, info);
if (error) {
async_error = error;
log_suspend_abort_reason("Device %s failed to %s late: error %d",
dev_name(dev), pm_verb(state.event), error);
goto Complete;
}
dpm_propagate_wakeup_to_parent(dev);
Skip:
dev->power.is_late_suspended = true;
Complete:
TRACE_SUSPEND(error);
complete_all(&dev->power.completion);
return error;
}
// 3) 执行s2idle_ops的prepare回调函数
static int platform_suspend_prepare_late(suspend_state_t state)
{
return state == PM_SUSPEND_TO_IDLE && s2idle_ops && s2idle_ops->prepare ?
s2idle_ops->prepare() : 0;
}
// 4) 执行所有设备的noirq回调，暂停cpuidle，关闭设备中断
/**
* dpm_suspend_noirq - Execute "noirq suspend" callbacks for all devices.
* @state: PM transition of the system being carried out.
*
* Prevent device drivers' interrupt handlers from being called and invoke
* "noirq" suspend callbacks for all non-sysdev devices.
*/
int dpm_suspend_noirq(pm_message_t state)
{
int ret;
// 暂定空闲的cpu
cpuidle_pause();
// 激活系统所有的唤醒中断，以确保在系统进入挂起状态后能够正常被唤醒
device_wakeup_arm_wake_irqs();
// supend中断程序
suspend_device_irqs();
// 执行设备进入suspend状态的操作
ret = dpm_noirq_suspend_devices(state);
if (ret)
dpm_resume_noirq(resume_event(state));
return ret;
}
// 5) 执行prepare_late回调函数
static int platform_suspend_prepare_noirq(suspend_state_t state)
{
if (state == PM_SUSPEND_TO_IDLE)
return s2idle_ops && s2idle_ops->prepare_late ?
s2idle_ops->prepare_late() : 0;
return suspend_ops->prepare_late ? suspend_ops->prepare_late() : 0;
}
// kernel/drivers/acpi/sleep.c
static const struct platform_s2idle_ops acpi_s2idle_ops = {
.begin = acpi_s2idle_begin,
.prepare = acpi_s2idle_prepare,
.prepare_late = acpi_s2idle_prepare_late,
.wake = acpi_s2idle_wake,
.restore_early = acpi_s2idle_restore_early,
.restore = acpi_s2idle_restore,
.end = acpi_s2idle_end,
};
static int acpi_s2idle_prepare_late(void)
{
if (!lps0_device_handle || sleep_no_lps0)
return 0;
if (pm_debug_messages_on)
lpi_check_constraints();
acpi_sleep_run_lps0_dsm(ACPI_LPS0_SCREEN_OFF);
acpi_sleep_run_lps0_dsm(ACPI_LPS0_ENTRY);
return 0;
}
// 6) 关闭non-boot cpu
// boot cpu ---加载bootloader程序的cpu（cpu 0），其它核cpu均为non-boot
// kernel/include/linux/cpu.h
static inline int suspend_disable_secondary_cpus(void)
{
int cpu = 0;
if (IS_ENABLED(CONFIG_PM_SLEEP_SMP_NONZERO_CPU))
cpu = -1;
return freeze_secondary_cpus(cpu);
}
// kernel/kernel/cpu.c
int freeze_secondary_cpus(int primary) // primary为0，表示cpu 0
{
int cpu, error = 0;
cpu_maps_update_begin();
if (primary == -1) {
primary = cpumask_first(cpu_online_mask);
if (!housekeeping_cpu(primary, HK_FLAG_TIMER))
primary = housekeeping_any_cpu(HK_FLAG_TIMER);
} else {
if (!cpu_online(primary))
primary = cpumask_first(cpu_online_mask);
}
/*
* We take down all of the non-boot CPUs in one shot to avoid races
* with the userspace trying to use the CPU hotplug at the same time
*/
cpumask_clear(frozen_cpus);
pr_info("Disabling non-boot CPUs ...\n");
for_each_online_cpu(cpu) { // 遍历所有cpu核
if (cpu == primary)
continue; // 若为cpu0，则continue
if (pm_wakeup_pending()) { // 默认为false
pr_info("Wakeup pending. Abort CPU freeze\n");
error = -EBUSY;
break;
}
trace_suspend_resume(TPS("CPU_OFF"), cpu, true);
// non-boot cpu suspend
error = _cpu_down(cpu, 1, CPUHP_OFFLINE);
trace_suspend_resume(TPS("CPU_OFF"), cpu, false);
if (!error)
cpumask_set_cpu(cpu, frozen_cpus);
else {
pr_err("Error taking CPU%d down: %d\n", cpu, error);
break;
}
}
if (!error)
BUG_ON(num_online_cpus() > 1);
else
pr_err("Non-boot CPUs are not disabled\n");
/*
* Make sure the CPUs won't be enabled by someone else. We need to do
* this even in case of failure as all freeze_secondary_cpus() users are
* supposed to do thaw_secondary_cpus() on the failure path.
*/
cpu_hotplug_disabled++;
cpu_maps_update_done();
return error;
}
// 7) 关闭本地中断
/* default implementation */
void __weak arch_suspend_disable_irqs(void)
{
local_irq_disable();
}
// kernel/arch/arm64/include/asm/irqflags.h
static inline void arch_local_irq_disable(void)
{
if (system_has_prio_mask_debugging()) {
u32 pmr = read_sysreg_s(SYS_ICC_PMR_EL1);
WARN_ON_ONCE(pmr != GIC_PRIO_IRQON && pmr != GIC_PRIO_IRQOFF);
}
asm volatile(ALTERNATIVE(
"msr daifset, #2 // arch_local_irq_disable",
__msr_s(SYS_ICC_PMR_EL1, "%0"),
ARM64_HAS_IRQ_PRIO_MASKING)
:
: "r" ((unsigned long) GIC_PRIO_IRQOFF)
: "memory");
}
// 8) 调用syscoe suspend回调函数
#ifdef CONFIG_PM_SLEEP
/**
* syscore_suspend - Execute all the registered system core suspend callbacks.
*
* This function is executed with one CPU on-line and disabled interrupts.
*/
// 执行所有的registere到system core的suspend callbacks回调
int syscore_suspend(void)
{
struct syscore_ops *ops;
int ret = 0;
trace_suspend_resume(TPS("syscore_suspend"), 0, true);
pm_pr_dbg("Checking wakeup interrupts\n");
/* Return error code if there are any wakeup interrupts pending. */
if (pm_wakeup_pending())
return -EBUSY;
WARN_ONCE(!irqs_disabled(),
"Interrupts enabled before system core suspend.\n");
list_for_each_entry_reverse(ops, &syscore_ops_list, node)
if (ops->suspend) {
pm_pr_dbg("Calling %pS\n", ops->suspend);
ret = ops->suspend();
if (ret)
goto err_out;
WARN_ONCE(!irqs_disabled(),
"Interrupts enabled after %pS\n", ops->suspend);
}
trace_suspend_resume(TPS("syscore_suspend"), 0, false);
return 0;
err_out:
log_suspend_abort_reason("System core suspend callback %pS failed",
ops->suspend);
pr_err("PM: System core suspend callback %pF failed.\n", ops->suspend);
list_for_each_entry_continue(ops, &syscore_ops_list, node)
if (ops->resume)
ops->resume();
return ret;
}
EXPORT_SYMBOL_GPL(syscore_suspend);
// 9) 检查系统中是否有wakelock，若存在，则停止suspend
pm_wakeup_pending() ---默认return false
// 10) 真正发起系统休眠，有可能通过SMC陷入EL3,经由ATF再通过SCMI告诉其它MCU做系统休眠
suspend_ops->enter(state);
// kernel/drivers/acpi/sleep.c
#ifdef CONFIG_SUSPEND
static u32 acpi_suspend_states[] = {
[PM_SUSPEND_ON] = ACPI_STATE_S0,
[PM_SUSPEND_STANDBY] = ACPI_STATE_S1,
[PM_SUSPEND_MEM] = ACPI_STATE_S3,
[PM_SUSPEND_MAX] = ACPI_STATE_S5
};
static const struct platform_suspend_ops acpi_suspend_ops = {
.valid = acpi_suspend_state_valid,
.begin = acpi_suspend_begin,
.prepare_late = acpi_pm_prepare,
.enter = acpi_suspend_enter,
.wake = acpi_pm_finish,
.end = acpi_pm_end,
};
/**
* acpi_suspend_enter - Actually enter a sleep state.
* @pm_state: ignored
*
* Flush caches and go to sleep. For STR we have to call arch-specific
* assembly, which in turn call acpi_enter_sleep_state().
* It's unfortunate, but it works. Please fix if you're feeling frisky.
*/
// 默认进入ACPI_STATE_S3（suspend to ram），执行acpi_suspend_lowlevel()
// ACPI是“高级配置与电源管理接口”，它是计算机系统中用于配置硬件和管理电源的开放标准
static int acpi_suspend_enter(suspend_state_t pm_state)
{
acpi_status status = AE_OK;
// 状态值在之前的platform_suspend_begin(suspend_state_t state)传进来
u32 acpi_state = acpi_target_sleep_state;
int error;
// 刷新CPU缓存，确保数据已经写回内存
ACPI_FLUSH_CPU_CACHE();
trace_suspend_resume(TPS("acpi_suspend"), acpi_state, true);
switch (acpi_state) {
case ACPI_STATE_S1: // suspend to standby
barrier();
status = acpi_enter_sleep_state(acpi_state);
break;
case ACPI_STATE_S3: // suspend to ram
if (!acpi_suspend_lowlevel)
return -ENOSYS;
error = acpi_suspend_lowlevel();
if (error)
return error;
pr_info(PREFIX "Low-level resume complete\n");
pm_set_resume_via_firmware();
break;
}
trace_suspend_resume(TPS("acpi_suspend"), acpi_state, false);
/* This violates the spec but is required for bug compatibility. */
acpi_write_bit_register(ACPI_BITREG_SCI_ENABLE, 1);
/* Reprogram control registers */
acpi_leave_sleep_state_prep(acpi_state);
/* ACPI 3.0 specs (P62) says that it's the responsibility
* of the OSPM to clear the status bit [ implying that the
* POWER_BUTTON event should not reach userspace ]
*
* However, we do generate a small hint for userspace in the form of
* a wakeup event. We flag this condition for now and generate the
* event later, as we're currently too early in resume to be able to
* generate wakeup events.
*/
if (ACPI_SUCCESS(status) && (acpi_state == ACPI_STATE_S3)) {
acpi_event_status pwr_btn_status = ACPI_EVENT_FLAG_DISABLED;
acpi_get_event_status(ACPI_EVENT_POWER_BUTTON, &pwr_btn_status);
if (pwr_btn_status & ACPI_EVENT_FLAG_STATUS_SET) {
acpi_clear_event(ACPI_EVENT_POWER_BUTTON);
/* Flag for later */
pwr_btn_event_pending = true;
}
}
/*
* Disable and clear GPE status before interrupt is enabled. Some GPEs
* (like wakeup GPE) haven't handler, this can avoid such GPE misfire.
* acpi_leave_sleep_state will reenable specific GPEs later
*/
acpi_disable_all_gpes();
/* Allow EC transactions to happen. */
acpi_ec_unblock_transactions();
suspend_nvs_restore();
return ACPI_SUCCESS(status) ? 0 : -EFAULT;
}
小结：
1）suspend第二阶段做了以下4个步骤
a.platform suspend
b.console suspend，控制台进行suspend
c.dpm suspend，系统进入睡眠状态之前对非sysdev设备进行准备并将其挂起
d.system suspend，系统进入suspend
调用平台的prepare回调函数;
执行所有设备的suspend late回调函数;
执行s2idle_ops的prepare回调函数;
行所有设备的noirq回调，暂停cpuidle，关闭中断;
关闭non-boot cpu;
关闭本地中断；
调用syscoe suspend回调函数；
检查系统中是否有wakelock，若存在，则停止suspend;
真正发起系统休眠，有可能通过SMC陷入EL3，经由ATF再通过SCMI告诉其它MCU做系统休眠；
2.4 系统进入休眠的场景
按键、灭屏等
2.5 系统休眠与睡眠的区别
suspend常见的几种状态模式：idle、standby、mem、disk
休眠模式（Suspend）：当系统进入休眠状态时，它会暂停所有进程的运行，并将系统状态保存到内存中（suspend to ram）。这包括当前的工作以及系统的各种设置和状态。在休眠模式下，计算机会关闭显示器和硬盘，并且减少对其他硬件设备的供电，以节省电量。当用户再次唤醒计算机时，系统会恢复之前的状态，并继续进行未完成的任务。
睡眠模式（Hibernate）：与休眠模式相比，睡眠模式更加节能。当系统进入睡眠状态时，它会将当前的工作和系统状态保存到硬盘上（suspend to disk）的一个特定文件中，然后关闭计算机。在睡眠模式下，计算机几乎不消耗电量，因为所有硬件设备都被关闭。当用户再次启动计算机时，系统会从保存的文件中恢复，并继续之前的工作。（可理解为深度休眠模式）
2.6 system hibernate流程
Suspend to disk模式，一般都称作系统睡眠。
在state_store函数中，休眠模式执行pm_suspend函数，睡眠模式执行hibernate函数。
// mian.c
// state_store是一个syscall调用函数，为进入suspend的入口函数，
// 接收user space传递的"mem"，准备进入suspend to ram模式
static ssize_t state_store(struct kobject *kobj, struct kobj_attribute *attr,
const char *buf, size_t n)
{
suspend_state_t state;
int error;
pr_info("%s:Userspace to kernel, process start write command \"echo mem > /sys/power/state\". The process is \"%s\"(pid %i). The thread is \"%s\"(tid %i).\n",
STR_KERNEL_LOG_ENTER, current->group_leader->comm, current->group_leader->pid, current->comm, current->pid);
error = pm_autosleep_lock();
if (error)
return error;
if (pm_autosleep_state() > PM_SUSPEND_ON) {
error = -EBUSY;
goto out;
}
// "mem"字符串封装到suspend_state_t数据结构
state = decode_state(buf, n);
// 检查user space传递的suspend模式是否符合规定的范围
if (state < PM_SUSPEND_MAX) {
if (state == PM_SUSPEND_MEM)
state = mem_sleep_current;
// 调用suspend.c函数，进入suspend阶段
// 返回值为0表示suspend successed,否则supend failed，常用于suspend debug调试
error = pm_suspend(state);
if (!error) {
pr_info("%s:(( end )), kernel resume end.\n", STR_KERNEL_LOG_EXIT);
} else if (state == PM_SUSPEND_MAX) {
// PM_SUSPEND_MAX为suspend to disk，进入hibernate睡眠模式，走另一条流程
error = hibernate();
} else {
error = -EINVAL;
}
out:
pm_autosleep_unlock();
return error ? error : n;
}
// hibernate.c
/**
* hibernate - Carry out system hibernation, including saving the image.
*/
int hibernate(void)
{
bool snapshot_test = false;
int error;
if (!hibernation_available()) {
pm_pr_dbg("Hibernation not available.\n");
return -EPERM;
}
lock_system_sleep();
/* The snapshot device should not be opened while we're running */
if (!hibernate_acquire()) {
error = -EBUSY;
goto Unlock;
}
pr_info("hibernation entry\n");
pm_prepare_console();
error = pm_notifier_call_chain_robust(PM_HIBERNATION_PREPARE, PM_POST_HIBERNATION);
if (error)
goto Restore;
ksys_sync_helper();
error = freeze_processes();
if (error)
goto Exit;
lock_device_hotplug();
/* Allocate memory management structures */
error = create_basic_memory_bitmaps();
if (error)
goto Thaw;
error = hibernation_snapshot(hibernation_mode == HIBERNATION_PLATFORM);
if (error || freezer_test_done)
goto Free_bitmaps;
if (in_suspend) {
unsigned int flags = 0;
if (hibernation_mode == HIBERNATION_PLATFORM)
flags |= SF_PLATFORM_MODE;
if (nocompress)
flags |= SF_NOCOMPRESS_MODE;
else
flags |= SF_CRC32_MODE;
pm_pr_dbg("Writing hibernation image.\n");
error = swsusp_write(flags);
swsusp_free();
if (!error) {
if (hibernation_mode == HIBERNATION_TEST_RESUME)
snapshot_test = true;
else
power_down();
}
in_suspend = 0;
pm_restore_gfp_mask();
} else {
pm_pr_dbg("Hibernation image restored successfully.\n");
}
Free_bitmaps:
free_basic_memory_bitmaps();
Thaw:
unlock_device_hotplug();
if (snapshot_test) {
pm_pr_dbg("Checking hibernation image\n");
error = swsusp_check();
if (!error)
error = load_image_and_restore();
}
thaw_processes();
/* Don't bother checking whether freezer_test_done is true */
freezer_test_done = false;
Exit:
pm_notifier_call_chain(PM_POST_HIBERNATION);
Restore:
pm_restore_console();
hibernate_release();
Unlock:
unlock_system_sleep();
pr_info("hibernation exit\n");
return error;
}
三、系统唤醒机制
3.1 system resume核心代码逻辑
按照1.3流程框架中resume部分进行模块化介绍.
3.1.1 platform dependent suspend
这部分代码由各平台厂商实现
3.1.2 syscore resume
执行所有的resume register callback函数，并在当前cpu上执行，且关闭当前cpu的中断。
// kernel/drivers/base/syscore.c
/**
* syscore_resume - Execute all the registered system core resume callbacks.
*
* This function is executed with one CPU on-line and disabled interrupts.
*/
void syscore_resume(void)
{
struct syscore_ops *ops;
trace_suspend_resume(TPS("syscore_resume"), 0, true);
WARN_ONCE(!irqs_disabled(),
"Interrupts enabled before system core resume.\n");
// 遍历注册在syscore resume中所有的call list
list_for_each_entry(ops, &syscore_ops_list, node)
if (ops->resume) {
if (initcall_debug)
pr_info("PM: Calling %pS\n", ops->resume);
// 调用各自的resume函数
ops->resume();
// 关闭当前cpu上的本地中断
WARN_ONCE(!irqs_disabled(),
"Interrupts enabled after %pS\n", ops->resume);
}
trace_suspend_resume(TPS("syscore_resume"), 0, false);
}
EXPORT_SYMBOL_GPL(syscore_resume);
3.1.3 irqs PM
// arch/arm64/include/asm/irqflags.h
static inline void arch_local_irq_enable(void)
{
if (system_has_prio_mask_debugging()) {
u32 pmr = read_sysreg_s(SYS_ICC_PMR_EL1);
WARN_ON_ONCE(pmr != GIC_PRIO_IRQON && pmr != GIC_PRIO_IRQOFF);
}
// 使用了ARM64的特定指令(msr daifclr, #3)来清除中断寄存器寄存器的IRQ位，从而启用中断
// 使能（Enabled）状态：IRQ位被设置为"0"; 禁止（Disabled）状态：IRQ位被设置为"1"
asm volatile(ALTERNATIVE(
"msr daifclr, #3 // #3表示要清除中断寄存器中的"I"位和"F"位，即IRQ和FIQ位设置为0
__msr_s(SYS_ICC_PMR_EL1, "%0"),
ARM64_HAS_IRQ_PRIO_MASKING)
:
: "r" ((unsigned long) GIC_PRIO_IRQON)
: "memory");
pmr_sync();
}
3.1.4 cpu PM
打开non-boot cpu.
// kernel/include/linux/cpu.h
static inline void suspend_enable_secondary_cpus(void)
{
return thaw_secondary_cpus();
}
// kernel/cpu.c
void thaw_secondary_cpus(void)
{
int cpu, error;
/* Allow everyone to use the CPU hotplug again */
cpu_maps_update_begin();
__cpu_hotplug_enable();
if (cpumask_empty(frozen_cpus))
goto out;
pr_info("Enabling non-boot CPUs ...\n");
arch_thaw_secondary_cpus_begin();
for_each_cpu(cpu, frozen_cpus) {
trace_suspend_resume(TPS("CPU_ON"), cpu, true);
error = _cpu_up(cpu, 1, CPUHP_ONLINE);
trace_suspend_resume(TPS("CPU_ON"), cpu, false);
if (!error) {
pr_info("CPU%d is up\n", cpu);
continue;
}
pr_warn("Error taking CPU%d up: %d\n", cpu, error);
}
arch_thaw_secondary_cpus_end();
cpumask_clear(frozen_cpus);
out:
cpu_maps_update_done();
}
3.1.5 device PM
// kernel/drivers/base/power/main.c
/**
* dpm_resume_noirq - Execute "noirq resume" callbacks for all devices.
* @state: PM transition of the system being carried out.
*
* Invoke the "noirq" resume callbacks for all devices in dpm_noirq_list and
* allow device drivers' interrupt handlers to be called.
*/
void dpm_resume_noirq(pm_message_t state)
{
// 无IRQ情况下的设备恢复操作
dpm_noirq_resume_devices(state);
// 重新启用设备的IRQ中断
resume_device_irqs();
// 取消设备的唤醒IRQ中断警报
device_wakeup_disarm_wake_irqs();
}
// kernel/irq/pm.c
void resume_device_irqs(void)
{
resume_irqs(false);
}
EXPORT_SYMBOL_GPL(resume_device_irqs);
static void resume_irqs(bool want_early)
{
struct irq_desc *desc;
int irq;
for_each_irq_desc(irq, desc) {
unsigned long flags;
bool is_early = desc->action &&
desc->action->flags & IRQF_EARLY_RESUME;
if (!is_early && want_early)
continue;
if (irq_settings_is_nested_thread(desc))
continue;
raw_spin_lock_irqsave(&desc->lock, flags);
resume_irq(desc);
raw_spin_unlock_irqrestore(&desc->lock, flags);
}
}
3.1.6 PM core
恢复控制台
// kernel/printk/printk.c
void resume_console(void)
{
if (!console_suspend_enabled)
return;
down_console_sem();
console_suspended = 0;
console_unlock();
pr_flush(1000, true);
}
线程解冻
// kernel/power/suspend.c
static void suspend_finish(void)
{
suspend_thaw_processes();
pm_notifier_call_chain(PM_POST_SUSPEND);
pm_restore_console();
}
// kernel/power/power.h
static inline void suspend_thaw_processes(void)
{
// 最终调用到freezer模块进行解冻
thaw_processes();
}
3.4 系统被唤醒的场景
按键、RTC、亮屏、USB拔插等。
扫一扫
2579
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
