华为fusionaccess云桌面AD域虚拟机故障替换

问题描述：华为fa版本为6.5.1，在windows2016安装了两台AD域虚拟机，两台虚拟机都会经常蓝屏，导致云桌面登录不了。重装了一台备域虚拟机，还是会蓝屏，怀疑是系统镜像问题，重新下载2016系统镜像，轮流替换两台AD域虚拟机，后面就不会蓝屏了。

解决思路：先替换备域虚拟机，再把备域升级为主域，在新搭建一台备域。
解决步骤：
文中用到的脚本附件如下

1、在“FusionCompute”系统，关闭故障的备AD/DNS/DHCP服务器。
2、以“Administrator”帐号登录主AD/DNS/DHCP服务器。

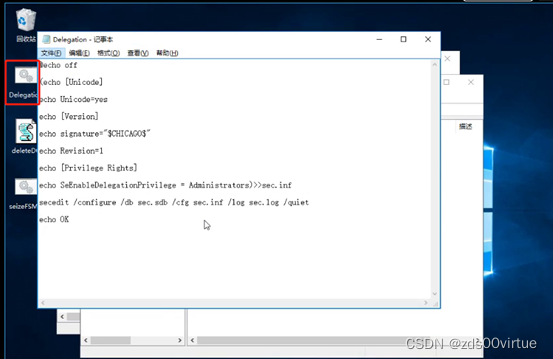

3、把以下内容写到记事本，记事本文件重命名为“Delegation.bat”，拷贝到主AD域虚拟机，双击“Delegation.bat”。

@echo off
(echo [Unicode]
echo Unicode=yes
echo [Version]
echo signature="$CHICAGO$"
echo Revision=1
echo [Privilege Rights]
echo SeEnableDelegationPrivilege = Administrators)>>sec.inf
secedit /configure /db sec.sdb /cfg sec.inf /log sec.log /quiet
echo OK

4、重启主AD/DNS/DHCP服务器。
5、重启AD/DNS/DHCP服务器后，等待约10分钟后在主AD/DNS/DHCP上ping完整域名，如果可以ping通，表示域服务已正常启动，才可进行下一步操作。
6、在主用AD服务器上删除已故障的备AD服务器的数据。
请在https://docs.microsoft.com/zh-cn/中搜索“清理AD DS元数据”，参考找到的清理AD服务器元数据的内容，清除已故障的备AD服务器的数据
7、在主用AD服务器上，选择“Windows管理工具 > Active Directory 用户与计算机”。
8、查看“域名 > Domain Controller”下是否存在故障备AD/DNS/DHCP服务器的记录，如果有，就手动删除
9、新建一台2016虚拟机，ip设置成原来备域的ip，安装AD、DNS等功能，做些基础配置，参照部署备用AD和DNS服务器的安装和配置，变为备域。
10、备域替换完成，接下来替换主域控
11、在“FusionCompute”系统，关闭故障的主AD/DNS/DHCP服务器。
12、以“Administrator”帐号登录备AD/DNS/DHCP服务器。

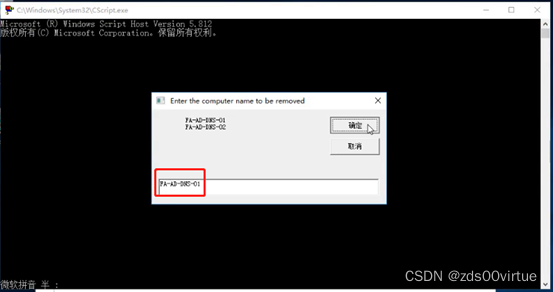

13、运行deleteDC.vbs，删除已故障的主AD/DNS/DHCP服务器的数据，
输入主域控的名称，点击确定

14、在备用AD服务器上，单击，选择“Windows管理工具 > Active Directory 用户与计算机”，查看“域名 > Domain Controller”下是否存在故障AD/DNS/DHCP服务器的记录。
15、如果打开【Active Directory用户和计算机】报错（AD域服务提示找不到命名信息，因为指定的域不存在，或无法联系…）
解决方法：
打开注册表路径：
\HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Netlogon\Parameters
修改该路径下的【SysvolReady】项的数据为【1】

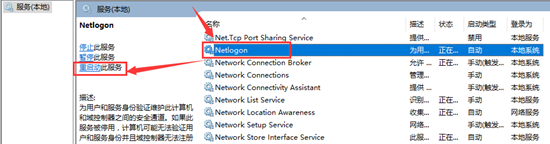

打开服务，重新启动【Netlogon】服务

再重新打开【Active Directory用户和计算机】就正常了。

16、如果存在，请右键单击故障AD/DNS/DHCP服务器的名称，选择“删除”。
17、在本地新建记事本文件，并将记事本文件重命名为“seizeFSMO.bat”，拷贝以下内容到记事本。
ntdsutil roles connection “connect to server localhost” q “Seize naming master” “seize rid master” “seize pdc” “seize infrastructure master” “Seize schema master” q q

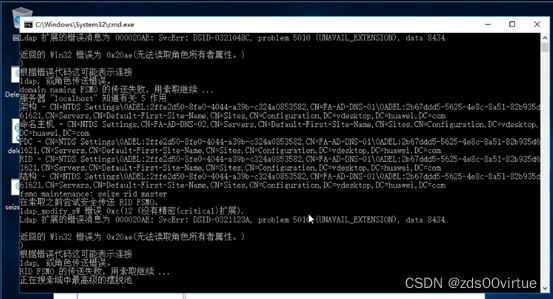

18、拷贝“seizeFSMO.bat”到备AD/DNS/DHCP服务器上，双击运行

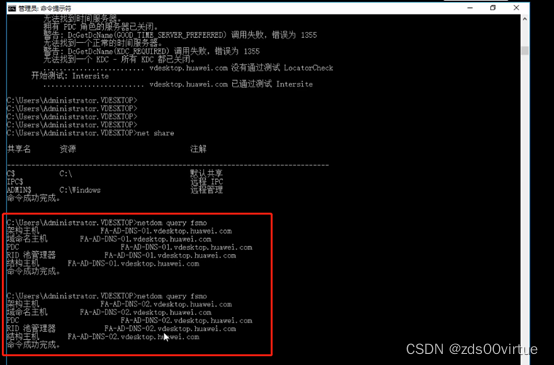

19、在命令提示符窗口中，输入netdom query fsmo，可以看到运行之前是在01上，运行完后，五大角色转移到02上了。五大角色成功转移了，才能进行下一步。

20、双击运行“Delegation.bat”，运行完，重启虚拟机

21、重启后，等待约10分钟后在主AD/DNS/DHCP上ping完整域名，如果可以ping通，表示域服务已正常启动，才可进行下一步操作。此时备域控升级成为了主域控。
22、新建一台2016虚拟机，ip设置成原来主域的ip，安装AD、DNS等功能，做些基础配置，参照部署备用AD和DNS服务器的安装和配置，变为备域。
23、主域、备域轮流关机，测试正不正常。

deleteDC.vbs内容如下：

REM    ==========================================================
REM                GUI Metadata Cleanup Utility
REM             Written By Clay Perrine
REM                          Version 2.5
REM    ==========================================================
REM     This tool is furnished "AS IS". NO warranty is expressed or Implied.

on error resume next
dim objRoot,oDC,sPath,outval,oDCSelect,objConfiguration,objContainer,errval,ODCPath,ckdcPath,myObj,comparename

rem =======This gets the name of the computer that the script is run on ======

Set sh = CreateObject("WScript.Shell")
key= "HKEY_LOCAL_MACHINE"
computerName = sh.RegRead(key & "\SYSTEM\CurrentControlSet\Control\ComputerName\ComputerName\ComputerName")

rem === Get the default naming context of the domain====

set objRoot=GetObject("LDAP://RootDSE")
sPath = "LDAP://OU=Domain Controllers," & objRoot.Get("defaultNamingContext")

rem === Get the list of domain controllers====

Set objConfiguration = GetObject(sPath)
For Each objContainer in objConfiguration
    outval = outval & vbtab &  objContainer.Name & VBCRLF
Next
outval = Replace(outval, "CN=", "")

rem ==Retrieve the name of the broken DC from the user and verify it's not this DC.===

oDCSelect= InputBox (outval," Enter the computer name to be removed","")
comparename = UCase(oDCSelect)

if comparename = computerName then
    msgbox "The Domain Controller you entered is the machine that is running this script." & vbcrlf & _
        "You cannot clean up the metadata for the machine that is running the script!",,"Metadata Cleanup Utility Error."
    wscript.quit
End If

sPath = "LDAP://OU=Domain Controllers," & objRoot.Get("defaultNamingContext")
Set objConfiguration = GetObject(sPath)

For Each objContainer in objConfiguration
    Err.Clear
    ckdcPath = "LDAP://" & "CN=" & oDCSelect & ",OU=Domain Controllers," & objRoot.Get("defaultNamingContext")
    set myObj=GetObject(ckdcPath)
    If err.number <>0 Then
        errval= 1
    End If
Next

If errval = 1 then
    msgbox "The Domain Controller you entered was not found in the Active Directory",,"Metadata Cleanup Utility Error."
    wscript.quit
End If

abort = msgbox ("You are about to remove all metadata for the server " & oDCSelect & "! Are you sure?",4404,"WARNING!!")
if abort <> 6 then
    msgbox "Metadata Cleanup Aborted.",,"Metadata Cleanup Utility Error."
    wscript.quit
end if

oDCSelect = "CN=" & oDCSelect
ODCPath ="LDAP://" & oDCselect & ",OU=Domain Controllers," & objRoot.Get("defaultNamingContext")
sSitelist = "LDAP://CN=Sites,CN=Configuration," & objRoot.Get("defaultNamingContext")
Set objConfiguration = GetObject(sSitelist)
For Each objContainer in objConfiguration
    Err.Clear
    sitePath = "LDAP://" & oDCSelect & ",CN=Servers," &  objContainer.Name & ",CN=Sites,CN=Configuration," & _
        objRoot.Get("defaultNamingContext")
    set myObj=GetObject(sitePath)
    If err.number = 0 Then
        siteval = sitePath
    End If
Next

sFRSSysvolList = "LDAP://CN=Domain System Volume (SYSVOL share),CN=File Replication Service,CN=System," & _
    objRoot.Get("defaultNamingContext")
Set objConfiguration = GetObject(sFRSSysvolList)

For Each objContainer in objConfiguration
    Err.Clear
    SYSVOLPath = "LDAP://" & oDCSelect & ",CN=Domain System Volume (SYSVOL share),CN=File Replication Service,CN=System," & _
        objRoot.Get("defaultNamingContext")
    set myObj=GetObject(SYSVOLPath)
    If err.number = 0 Then
        SYSVOLval = SYSVOLPath
    End If
Next

SiteList = Replace(sSitelist, "LDAP://", "")
VarSitelist = "LDAP://CN=Sites,CN=Configuration," & objRoot.Get("defaultNamingContext")
Set SiteConfiguration = GetObject(VarSitelist)

For Each SiteContainer in SiteConfiguration
    Sitevar = SiteContainer.Name
    VarPath ="LDAP://OU=Domain Controllers," & objRoot.Get("defaultNamingContext")
    Set DCConfiguration = GetObject(VarPath)
    For Each DomContainer in DCConfiguration
        DCVar = DomContainer.Name
        strFromServer = ""
        NTDSPATH =  DCVar & ",CN=Servers," & SiteVar & "," & SiteList
        GuidPath = "LDAP://CN=NTDS Settings,"& NTDSPATH
        Set objCheck = GetObject(NTDSPATH)
        For Each CheckContainer in objCheck
rem ====check for valid site paths =======================
            ldapntdspath = "LDAP://" & NTDSPATH
            Err.Clear
            set exists=GetObject(ldapntdspath)
            If err.number = 0 Then
                Set oGuidGet = GetObject(GuidPath)
                For Each objContainer in oGuidGet
                    oGuid = objContainer.Name
                    oGuidPath = "LDAP://" & oGuid & ",CN=NTDS Settings," & NTDSPATH
                    Set objSitelink = GetObject(oGuidPath)
                    objSiteLink.GetInfo
                    strFromServer = objSiteLink.Get("fromServer")
                    ispresent = Instr(1,strFromServer,oDCSelect,1)

                    if ispresent <> 0 then
                        Set objReplLinkVal = GetObject(oGuidPath)
                        objReplLinkVal.DeleteObject(0)
                    end if
                next

                sitedelval = "CN=" & comparename & ",CN=Servers," & SiteVar & "," & SiteList
                if sitedelval = ntdspath then
                    Set objguidpath = GetObject(guidpath)
                    objguidpath.DeleteObject(0)
                    Set objntdspath = GetObject(ldapntdspath)
                    objntdspath.DeleteObject(0)
                end if
            End If
        next
    next
next
Set AccountObject = GetObject(ckdcPath)
temp=Accountobject.Get ("userAccountControl")
AccountObject.Put "userAccountControl", "4096"
AccountObject.SetInfo
Set objFRSSysvol = GetObject(SYSVOLval)
objFRSSysvol.DeleteObject(0)
Set objComputer = GetObject(ckdcPath)
objComputer.DeleteObject(0)
Set objConfig = GetObject(siteval)
objConfig.DeleteObject(0)
oDCSelect = Replace(oDCSelect, "CN=", "")
msgval = "Metadata Cleanup Completed for " & oDCSelect
msgbox  msgval,,"Notice."
wscript.quit

seizeFSMO.bat内容如下：

ntdsutil roles connection "connect to server localhost" q "Seize naming master" "seize rid master" "seize pdc" "seize infrastructure master" "Seize schema master" q q
