pom.xml

    <!--activiti-->
 <activiti.version>5.22.0</activiti.version>
        <dependency>
            <groupId>org.activiti</groupId>
            <artifactId>activiti-engine</artifactId>
            <version>${activiti.version}</version>
        </dependency>

        <dependency>
            <groupId>org.activiti</groupId>
            <artifactId>activiti-spring</artifactId>
            <version>${activiti.version}</version>
        </dependency>
        <dependency>
            <groupId>org.activiti</groupId>
            <artifactId>activiti-modeler</artifactId>
            <version>${activiti.version}</version>
        </dependency>
        <dependency>
            <groupId>org.activiti</groupId>
            <artifactId>activiti-diagram-rest</artifactId>
            <version>${activiti.version}</version>
        </dependency>

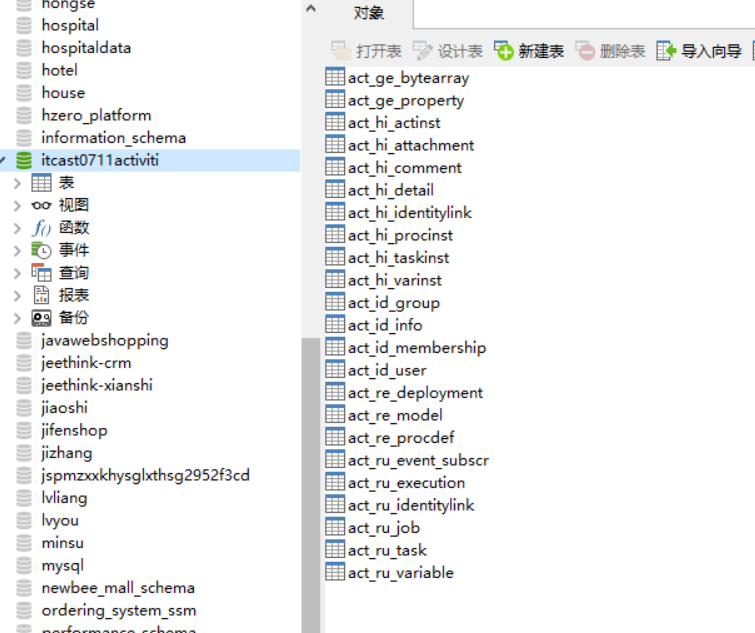

/**使用代码创建工作流需要的23张表*/
	@Test
	public void createTable(){
		ProcessEngineConfiguration processEngineConfiguration = ProcessEngineConfiguration.createStandaloneProcessEngineConfiguration();
		//连接数据库的配置
		processEngineConfiguration.setJdbcDriver("com.mysql.jdbc.Driver");
		processEngineConfiguration.setJdbcUrl("jdbc:mysql://localhost:3306/itcast0711activiti?useUnicode=true&characterEncoding=utf8");
		processEngineConfiguration.setJdbcUsername("root");
		processEngineConfiguration.setJdbcPassword("root");

		/**
		 	public static final String DB_SCHEMA_UPDATE_FALSE = "false";不能自动创建表，需要表存在
  			public static final String DB_SCHEMA_UPDATE_CREATE_DROP = "create-drop";先删除表再创建表
  			public static final String DB_SCHEMA_UPDATE_TRUE = "true";如果表不存在，自动创建表
		 */
		processEngineConfiguration.setDatabaseSchemaUpdate(ProcessEngineConfiguration.DB_SCHEMA_UPDATE_TRUE);
		//工作流的核心对象，ProcessEnginee对象
		ProcessEngine processEngine = processEngineConfiguration.buildProcessEngine();
		System.out.println("processEngine:"+processEngine);
	}

注解需要用到activiti.xfg.xml 吧activiti.xfg.xml放到resources目录下不然processEngine 会报null

ProcessEngine processEngine = ProcessEngines.getDefaultProcessEngine();

activiti.xfg.xml内容

<?xml version="1.0" encoding="UTF-8"?>
<ehcache xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:noNamespaceSchemaLocation="http://ehcache.org/ehcache.xsd"
         updateCheck="false">
    <diskStore path="java.io.tmpdir/Tmp_EhCache"/>
    <defaultCache eternal="false" maxElementsInMemory="1000"
                  overflowToDisk="false" diskPersistent="false" timeToIdleSeconds="0"
                  timeToLiveSeconds="600" memoryStoreEvictionPolicy="LRU"/>
    <cache name="user" eternal="false" maxElementsInMemory="10000"
           overflowToDisk="false" diskPersistent="false" timeToIdleSeconds="0"
           timeToLiveSeconds="0" memoryStoreEvictionPolicy="LFU"/>
</ehcache>

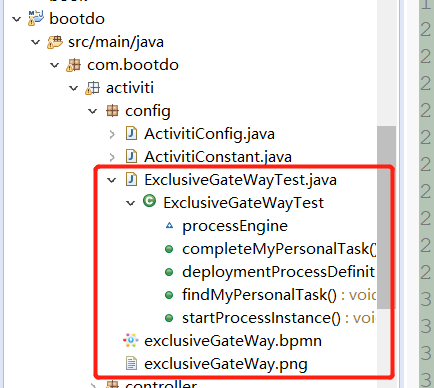

package com.bootdo.activiti.config;

import java.io.InputStream;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import org.activiti.engine.ProcessEngine;
import org.activiti.engine.ProcessEngines;
import org.activiti.engine.repository.Deployment;
import org.activiti.engine.runtime.ProcessInstance;
import org.activiti.engine.task.Task;
import org.junit.Test;

public class ExclusiveGateWayTest {

	ProcessEngine processEngine = ProcessEngines.getDefaultProcessEngine();

	/**部署流程定义（从inputStream）*/
	@Test
	public void deploymentProcessDefinition_inputStream(){
		InputStream inputStreamBpmn = this.getClass().getResourceAsStream("exclusiveGateWay.bpmn");
		InputStream inputStreamPng = this.getClass().getResourceAsStream("exclusiveGateWay.png");
		Deployment deployment = processEngine.getRepositoryService()//与流程定义和部署对象相关的Service
						.createDeployment()//创建一个部署对象
						.name("排他网关")//添加部署的名称
						.addInputStream("exclusiveGateWay.bpmn", inputStreamBpmn)//
						.addInputStream("exclusiveGateWay.png", inputStreamPng)//
						.deploy();//完成部署
		System.out.println("部署ID："+deployment.getId());//
		System.out.println("部署名称："+deployment.getName());//
	}

	/**启动流程实例*/
	@Test
	public void startProcessInstance(){
		//流程定义的key
		String processDefinitionKey = "exclusiveGateWay";
		ProcessInstance pi = processEngine.getRuntimeService()//与正在执行的流程实例和执行对象相关的Service
						.startProcessInstanceByKey(processDefinitionKey);//使用流程定义的key启动流程实例，key对应helloworld.bpmn文件中id的属性值，使用key值启动，默认是按照最新版本的流程定义启动
		System.out.println("流程实例ID:"+pi.getId());//流程实例ID    101
		System.out.println("流程定义ID:"+pi.getProcessDefinitionId());//流程定义ID   helloworld:1:4
	}

	/**查询当前人的个人任务*/
	@Test
	public void findMyPersonalTask(){
		String assignee = "王小五";
		List<Task> list = processEngine.getTaskService()//与正在执行的任务管理相关的Service
						.createTaskQuery()//创建任务查询对象
						/**查询条件（where部分）*/
						.taskAssignee(assignee)//指定个人任务查询，指定办理人
//						.taskCandidateUser(candidateUser)//组任务的办理人查询
//						.processDefinitionId(processDefinitionId)//使用流程定义ID查询
//						.processInstanceId(processInstanceId)//使用流程实例ID查询
//						.executionId(executionId)//使用执行对象ID查询
						/**排序*/
						.orderByTaskCreateTime().asc()//使用创建时间的升序排列
						/**返回结果集*/
//						.singleResult()//返回惟一结果集
//						.count()//返回结果集的数量
//						.listPage(firstResult, maxResults);//分页查询
						.list();//返回列表
		if(list!=null && list.size()>0){
			for(Task task:list){
				System.out.println("任务ID:"+task.getId());
				System.out.println("任务名称:"+task.getName());
				System.out.println("任务的创建时间:"+task.getCreateTime());
				System.out.println("任务的办理人:"+task.getAssignee());
				System.out.println("流程实例ID："+task.getProcessInstanceId());
				System.out.println("执行对象ID:"+task.getExecutionId());
				System.out.println("流程定义ID:"+task.getProcessDefinitionId());
				System.out.println("########################################################");
			}
		}
	}

	/**完成我的任务*/
	@Test
	public void completeMyPersonalTask(){
		//任务ID
        //select * from act_ru_task; --运行时任务节点表id
		String taskId = "304";
		//完成任务的同时，设置流程变量，使用流程变量用来指定完成任务后，下一个连线，对应exclusiveGateWay.bpmn文件中${money>1000}
		Map<String, Object> variables = new HashMap<String, Object>();
		variables.put("money", 200);
		processEngine.getTaskService()//与正在执行的任务管理相关的Service
					.complete(taskId,variables);
		System.out.println("完成任务：任务ID："+taskId);
	}
}

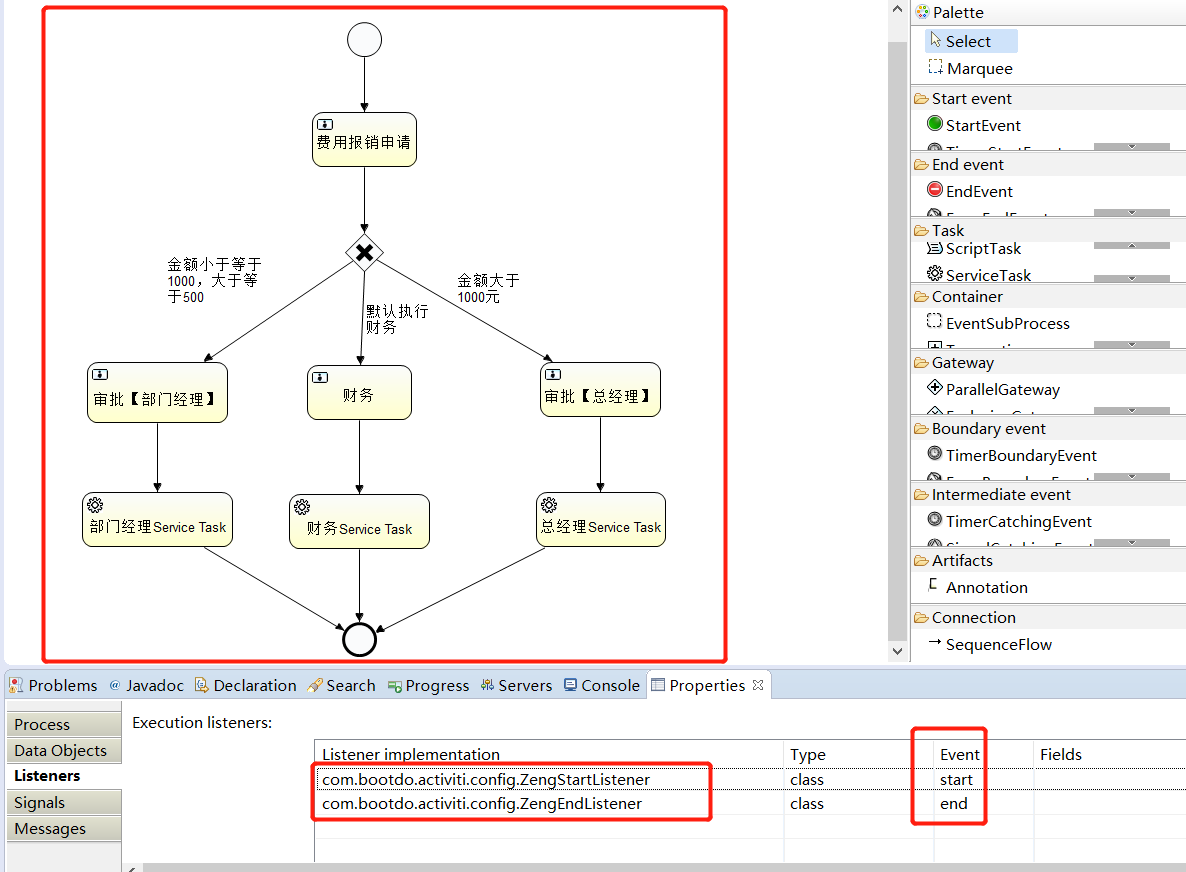

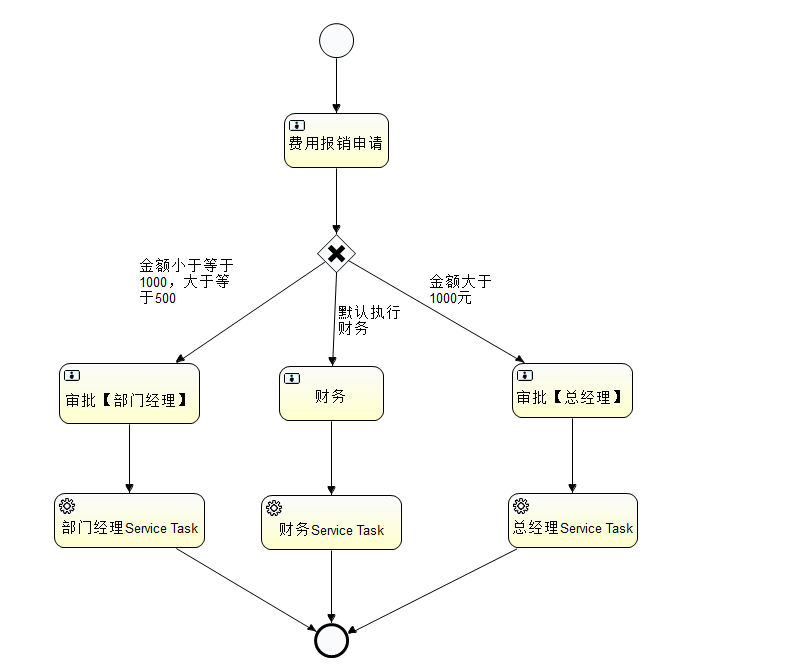

exclusiveGateWay.bpmn

<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:activiti="http://activiti.org/bpmn" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC" xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI" typeLanguage="http://www.w3.org/2001/XMLSchema" expressionLanguage="http://www.w3.org/1999/XPath" targetNamespace="http://www.activiti.org/test">
  <process id="exclusiveGateWay" name="exclusiveGateWayProcess" isExecutable="true">
    <extensionElements>
      <activiti:executionListener event="start" class="com.bootdo.activiti.config.ZengStartListener"></activiti:executionListener>
      <activiti:executionListener event="end" class="com.bootdo.activiti.config.ZengEndListener"></activiti:executionListener>
    </extensionElements>
    <startEvent id="startevent1" name="Start"></startEvent>
    <userTask id="usertask1" name="费用报销申请" activiti:assignee="王小五"></userTask>
    <sequenceFlow id="flow1" sourceRef="startevent1" targetRef="usertask1"></sequenceFlow>
    <userTask id="usertask2" name="审批【部门经理】" activiti:assignee="赵小六"></userTask>
    <userTask id="usertask3" name="财务" activiti:assignee="胡小八"></userTask>
    <userTask id="usertask4" name="审批【总经理】" activiti:assignee="田小七"></userTask>
    <exclusiveGateway id="exclusivegateway1" name="Exclusive Gateway" default="默认执行财务"></exclusiveGateway>
    <sequenceFlow id="flow2" sourceRef="usertask1" targetRef="exclusivegateway1"></sequenceFlow>
    <sequenceFlow id="flow3" name="金额小于等于1000，大于等于500" sourceRef="exclusivegateway1" targetRef="usertask2">
      <conditionExpression xsi:type="tFormalExpression"><![CDATA[${money>=500 && money<=1000}]]></conditionExpression>
    </sequenceFlow>
    <sequenceFlow id="默认执行财务" name="默认执行财务" sourceRef="exclusivegateway1" targetRef="usertask3"></sequenceFlow>
    <sequenceFlow id="flow5" name="金额大于1000元" sourceRef="exclusivegateway1" targetRef="usertask4">
      <conditionExpression xsi:type="tFormalExpression"><![CDATA[${money>1000}]]></conditionExpression>
    </sequenceFlow>
    <endEvent id="endevent1" name="End"></endEvent>
    <sequenceFlow id="flow6" sourceRef="usertask2" targetRef="servicetask2"></sequenceFlow>
    <sequenceFlow id="flow7" sourceRef="usertask3" targetRef="servicetask3"></sequenceFlow>
    <sequenceFlow id="flow8" sourceRef="usertask4" targetRef="servicetask1"></sequenceFlow>
    <serviceTask id="servicetask1" name="总经理Service Task" activiti:class="com.bootdo.activiti.config.ZengServiceListener3"></serviceTask>
    <serviceTask id="servicetask2" name="部门经理Service Task" activiti:class="com.bootdo.activiti.config.ZengServiceListener1"></serviceTask>
    <serviceTask id="servicetask3" name="财务Service Task" activiti:class="com.bootdo.activiti.config.ZengServiceListener2"></serviceTask>
    <sequenceFlow id="flow9" sourceRef="servicetask3" targetRef="endevent1"></sequenceFlow>
    <sequenceFlow id="flow10" sourceRef="servicetask1" targetRef="endevent1"></sequenceFlow>
    <sequenceFlow id="flow11" sourceRef="servicetask2" targetRef="endevent1"></sequenceFlow>
  </process>
  <bpmndi:BPMNDiagram id="BPMNDiagram_exclusiveGateWay">
    <bpmndi:BPMNPlane bpmnElement="exclusiveGateWay" id="BPMNPlane_exclusiveGateWay">
      <bpmndi:BPMNShape bpmnElement="startevent1" id="BPMNShape_startevent1">
        <omgdc:Bounds height="35.0" width="35.0" x="340.0" y="50.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="usertask1" id="BPMNShape_usertask1">
        <omgdc:Bounds height="55.0" width="105.0" x="305.0" y="140.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="usertask2" id="BPMNShape_usertask2">
        <omgdc:Bounds height="61.0" width="141.0" x="80.0" y="390.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="usertask3" id="BPMNShape_usertask3">
        <omgdc:Bounds height="55.0" width="105.0" x="300.0" y="393.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="usertask4" id="BPMNShape_usertask4">
        <omgdc:Bounds height="55.0" width="121.0" x="533.0" y="390.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="exclusivegateway1" id="BPMNShape_exclusivegateway1">
        <omgdc:Bounds height="40.0" width="40.0" x="337.0" y="260.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="endevent1" id="BPMNShape_endevent1">
        <omgdc:Bounds height="35.0" width="35.0" x="335.0" y="650.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="servicetask1" id="BPMNShape_servicetask1">
        <omgdc:Bounds height="55.0" width="130.0" x="529.0" y="520.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="servicetask2" id="BPMNShape_servicetask2">
        <omgdc:Bounds height="55.0" width="151.0" x="75.0" y="520.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="servicetask3" id="BPMNShape_servicetask3">
        <omgdc:Bounds height="55.0" width="141.0" x="282.0" y="522.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNEdge bpmnElement="flow1" id="BPMNEdge_flow1">
        <omgdi:waypoint x="357.0" y="85.0"></omgdi:waypoint>
        <omgdi:waypoint x="357.0" y="140.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow2" id="BPMNEdge_flow2">
        <omgdi:waypoint x="357.0" y="195.0"></omgdi:waypoint>
        <omgdi:waypoint x="357.0" y="260.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow3" id="BPMNEdge_flow3">
        <omgdi:waypoint x="357.0" y="300.0"></omgdi:waypoint>
        <omgdi:waypoint x="150.0" y="390.0"></omgdi:waypoint>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="64.0" width="100.0" x="181.0" y="292.0"></omgdc:Bounds>
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="默认执行财务" id="BPMNEdge_默认执行财务">
        <omgdi:waypoint x="357.0" y="300.0"></omgdi:waypoint>
        <omgdi:waypoint x="352.0" y="393.0"></omgdi:waypoint>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="48.0" width="72.0" x="360.0" y="332.0"></omgdc:Bounds>
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow5" id="BPMNEdge_flow5">
        <omgdi:waypoint x="357.0" y="300.0"></omgdi:waypoint>
        <omgdi:waypoint x="593.0" y="390.0"></omgdi:waypoint>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="48.0" width="84.0" x="430.0" y="310.0"></omgdc:Bounds>
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow6" id="BPMNEdge_flow6">
        <omgdi:waypoint x="150.0" y="451.0"></omgdi:waypoint>
        <omgdi:waypoint x="150.0" y="520.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow7" id="BPMNEdge_flow7">
        <omgdi:waypoint x="352.0" y="448.0"></omgdi:waypoint>
        <omgdi:waypoint x="352.0" y="522.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow8" id="BPMNEdge_flow8">
        <omgdi:waypoint x="593.0" y="445.0"></omgdi:waypoint>
        <omgdi:waypoint x="594.0" y="520.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow9" id="BPMNEdge_flow9">
        <omgdi:waypoint x="352.0" y="577.0"></omgdi:waypoint>
        <omgdi:waypoint x="352.0" y="650.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow10" id="BPMNEdge_flow10">
        <omgdi:waypoint x="594.0" y="575.0"></omgdi:waypoint>
        <omgdi:waypoint x="352.0" y="650.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow11" id="BPMNEdge_flow11">
        <omgdi:waypoint x="150.0" y="575.0"></omgdi:waypoint>
        <omgdi:waypoint x="352.0" y="650.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
    </bpmndi:BPMNPlane>
  </bpmndi:BPMNDiagram>
</definitions>

监听器

开始结束流程监听器

开始流程监听器(启动流程的时候就会进入这个类)

package com.bootdo.activiti.config;

import org.activiti.engine.delegate.DelegateExecution;
import org.activiti.engine.delegate.ExecutionListener;
import org.springframework.stereotype.Service;

@Service("zengStartListener")
public class ZengStartListener implements ExecutionListener {

	@Override
	public void notify(DelegateExecution delegateExecution) throws Exception {
		System.err.println("ZengStartListener =====================>");
		System.err.println("ZengStartListener =====================>");
		System.err.println("ZengStartListener =====================>");

	}


}

结束流程监听器(结束流程的时候就会进入这个类)

package com.bootdo.activiti.config;

import org.activiti.engine.delegate.DelegateExecution;
import org.activiti.engine.delegate.ExecutionListener;
import org.springframework.stereotype.Service;

@Service("zengEndListener")
public class ZengEndListener implements ExecutionListener {

	@Override
	public void notify(DelegateExecution delegateExecution) throws Exception {
		System.err.println("ZengEndListener =====================>");
		System.err.println("ZengEndListener =====================>");
		System.err.println("ZengEndListener =====================>");

	}



}

Service Task监听器(上一个流程结束会自动进入service task监听器类)

package com.bootdo.activiti.config;

import org.activiti.engine.delegate.DelegateExecution;
import org.activiti.engine.delegate.Expression;
import org.activiti.engine.delegate.JavaDelegate;
import org.springframework.stereotype.Service;

@Service("zengServiceListener3")
public class ZengServiceListener3 implements JavaDelegate{

	 //成员变量名称必须和组件中设置的字段名称保持一致
    private Expression expression;
    @Override
    public void execute(DelegateExecution execution) {
        Object o=expression.getValue(execution);
        String text=expression.getExpressionText();
        System.err.println("ZengServiceListener3执行了服务任务===");
        System.out.println(o);
        System.out.println(text);

    }
}
