题目:

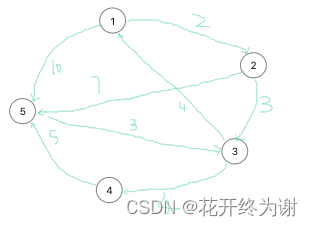

求解两个顶点之间的最短路径,比如如下的一张图:
该图对应的点边权重值:
5 8
1 2 2
1 5 10
2 3 3
2 5 7
3 1 4
3 4 4 c
4 5 5
5 3 3
第一行代表5个点,8个边,后面每一行代表两个顶点的连接,以及该边上的权重值,比如第二行是1,2有一条边,边上的权重是2.

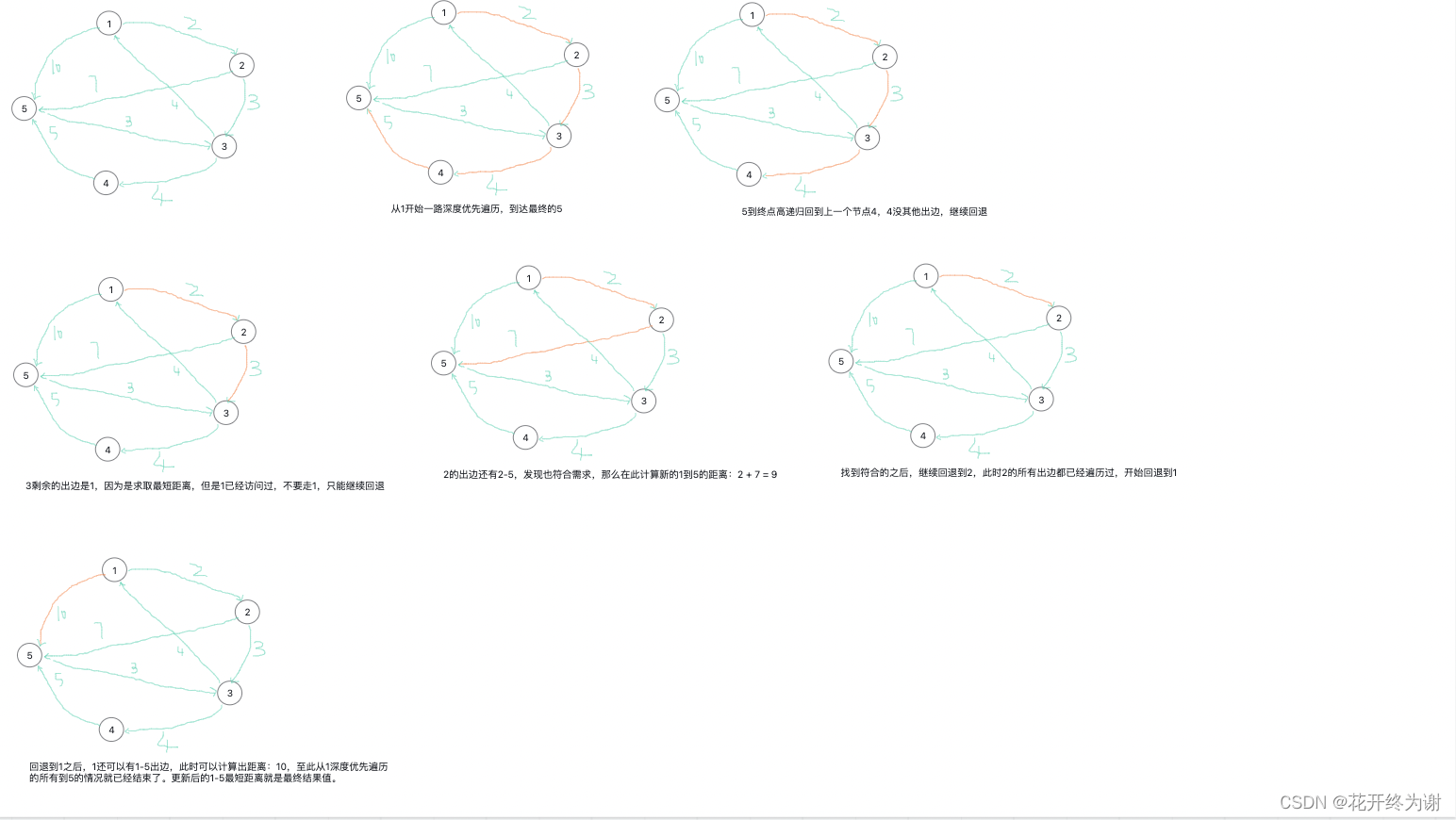

其解题思路是通过改点的深度优先遍历计算到达指定顶点的距离,并通过回退不断更新两点之间的距离取最小值,其过程如下:
Java代码实现如下所示:
package graph.path;
import java.io.BufferedReader;
import java.io.FileNotFoundException;
import java.io.FileReader;
import java.io.IOException;
public class TwoPointShortestPath {
private int[][] matrix;
private int V;
private int E;
private boolean[] visited;
private int shortestPath;
public static void main(String[] args) throws Exception {
TwoPointShortestPath twoPointShortestPath = new TwoPointShortestPath();
twoPointShortestPath.buildGraph();
int shortestPath1 = twoPointShortestPath.findShortestPath(1,5);
System.out.println(shortestPath1);
}
private void buildGraph() throws Exception {
BufferedReader bufferedReader = new BufferedReader(new FileReader("src/main/resources/graph/gpath.txt"));
String s = bufferedReader.readLine();
V = Integer.parseInt(s.trim().split(" ")[0]);
E = Integer.parseInt(s.trim().split(" ")[1]);
matrix = new int[V][V];
visited = new boolean[V];
for (int i = 0; i < V; i++) {
for (int j = 0; j < V; j++) {
matrix[i][j] = i == j ? 0 : Integer.MAX_VALUE;
}
}
while ((s = bufferedReader.readLine()) != null) {
String[] splitStr = s.trim().split(" ");
matrix[Integer.parseInt(splitStr[0]) - 1][Integer.parseInt(splitStr[1]) - 1] = Integer.parseInt(splitStr[2]);
}
}
private int findShortestPath(int start, int end) {
// 初始化
shortestPath = matrix[start-1][end-1];
dfs(start-1, end - 1, 0);
return shortestPath;
}
private void dfs(int start, int end, int path) {
// 特殊处理剪纸,在递归下去只会更大,没意义
if (path > shortestPath) {
return;
}
if (start == end) {
shortestPath = path;
return;
}
for (int i = 0; i < V; i++) {
if (start!= i && matrix[start][i] != Integer.MAX_VALUE && !visited[i]) {
visited[i] = true;
dfs(i, end, path + matrix[start][i]);
visited[i] = false;
}
}
}
}

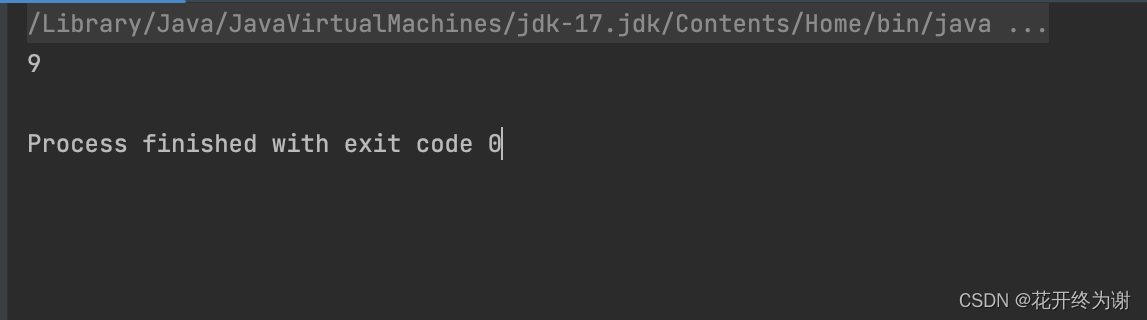

结果如下:
