OpenStack Rocky 版本部署之三——glance部署

四、镜像服务glance

1、向ketstone注册服务

（1）创建glance镜像服务目录:

# openstack service create --name glance \

--description "OpenStack Image" image

（2）创建镜像服务API访问点

# openstack endpoint create --region RegionOne \

image public   http://controller:9292

​

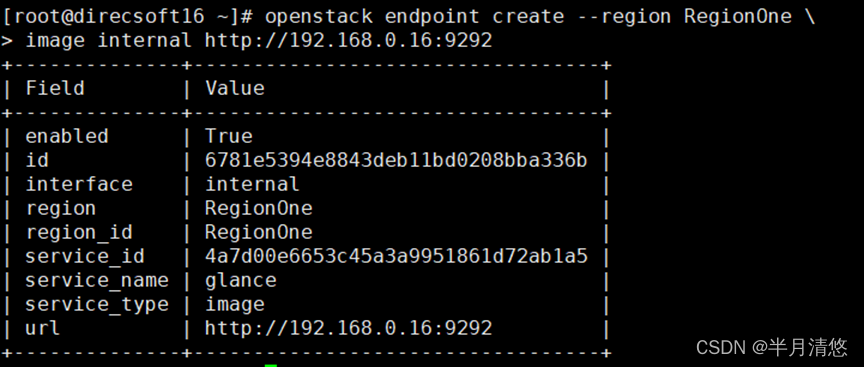

 # openstack endpoint create --region RegionOne \

image internal http://controller:9292

​

# openstack endpoint create --region RegionOne \

image admin http://controller:9292

​

2、修改glance配置文件

（1）修改 /etc/glance/glance-api.conf

#连接DB

[database]

connection = mysql+pymysql://glance:glance@controller/glance

#设置认证方式为keystone

[paste_deploy]

flavor = keystone

#keystone连接方式

[keystone_authtoken]

auth_uri = http://controller:5000

auth_url =controller:5000

memcached_servers = controller:11211

auth_type = password

project_domain_name = Default

user_domain_name = Default

project_name = service

username = glance

password = glance

#上传镜像后，镜像保存的位置

[glance_store]

stores = file

default_store = file

filesystem_store_datadir = /var/lib/glance/images/

（2）修改/etc/glance/glance-registry.conf

#镜像上传完成后，会将镜像信息写入的数据库

[database]

connection = mysql+pymysql://glance:glance@controller/glance

[paste_deploy]

flavor = keystone

[keystone_authtoken]

auth_uri = http://controller:5000

auth_url = http://controller:5000

memcached_servers = controller:11211

auth_type = password

project_domain_name = Default

user_domain_name = Default

project_name = service

username = glance

password = glance

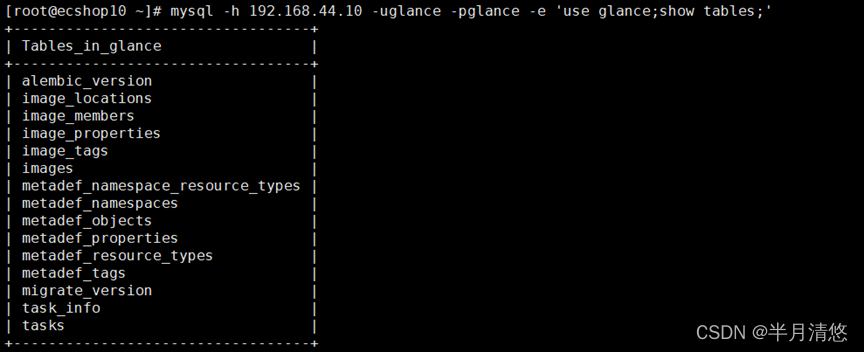

3、同步数据库数据

#glance数据库

# su -s /bin/sh -c "glance-manage db_sync" glance



4、启动并设置开机自启

# systemctl enable openstack-glance-api.service \

openstack-glance-registry.service

# systemctl start openstack-glance-api.service \

openstack-glance-registry.service

5、验证上传镜像

（1）应用admin权限环境变量

# source admin

（2）下载镜像

# wget http://download.cirros-cloud.net/0.4.0/cirros-0.4.0-x86_64-disk.img

（3）查看镜像格式并上传

# openstack image create "cirros" \

--file cirros-0.4.0-x86_64-disk.img \

--disk-format qcow2 --container-format bare \

--public

（4）查看镜像

# openstack image list
