Springboot 基于netty-socketio实现消息推送、聊天功能

基于netty-socketio实现消息推送、聊天功能

首先pom中引入netty-socketio

<dependency>
    <groupId>com.corundumstudio.socketio</groupId>
    <artifactId>netty-socketio</artifactId>
    <version>1.7.11</version>
</dependency>

然后配置socketio的各种参数

# host在本地测试可以设置为localhost或者本机IP
socketio.host=localhost
# 在Linux服务器跑可换成服务器外网IP
socketio.public.host=localhost
socketio.port=9099
# 设置最大每帧处理数据的长度，防止他人利用大数据来攻击服务器
socketio.maxFramePayloadLength=1048576
# 设置http交互最大内容长度
socketio.maxHttpContentLength=1048576
# socket连接数大小（如只监听一个端口boss线程组为1即可）
socketio.bossCount=1
socketio.workCount=100
socketio.allowCustomRequests=true
# 协议升级超时时间（毫秒），默认10秒。HTTP握手升级为ws协议超时时间
socketio.upgradeTimeout=1000000
# Ping消息超时时间（毫秒），默认60秒，这个时间间隔内没有接收到心跳消息就会发送超时事件
socketio.pingTimeout=6000000
# Ping消息间隔（毫秒），默认25秒。客户端向服务器发送一条心跳消息间隔
socketio.pingInterval=25000

写socketio配置类

import com.corundumstudio.socketio.SocketConfig;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import com.corundumstudio.socketio.SocketIOServer;

@Configuration
public class SocketIOConfig {

    @Value("${socketio.host}")
    private String host;

    @Value("${socketio.port}")
    private Integer port;

    @Value("${socketio.bossCount}")
    private int bossCount;

    @Value("${socketio.workCount}")
    private int workCount;

    @Value("${socketio.allowCustomRequests}")
    private boolean allowCustomRequests;

    @Value("${socketio.upgradeTimeout}")
    private int upgradeTimeout;

    @Value("${socketio.pingTimeout}")
    private int pingTimeout;

    @Value("${socketio.pingInterval}")
    private int pingInterval;

    /**
     * 以下配置在上面的application.properties中已经注明
     * @return
     */
    @Bean
    public SocketIOServer socketIOServer() {
        SocketConfig socketConfig = new SocketConfig();
        socketConfig.setTcpNoDelay(true);
        socketConfig.setSoLinger(0);
        com.corundumstudio.socketio.Configuration config = new com.corundumstudio.socketio.Configuration();
        config.setSocketConfig(socketConfig);
        config.setHostname(host);
        config.setPort(port);
        config.setBossThreads(bossCount);
        config.setWorkerThreads(workCount);
        config.setAllowCustomRequests(allowCustomRequests);
        config.setUpgradeTimeout(upgradeTimeout);
        config.setPingTimeout(pingTimeout);
        config.setPingInterval(pingInterval);
        return new SocketIOServer(config);
    }
}

下面写socket的接口以及实现

import com.szcl.verify.socketio.entity.PushMessage;

public interface ISocketIOService {

    /**
     * 推送的事件
     */
    String PUSH_EVENT = "push_event";

    /**
     * 聊天的事件
     */
    String IM_EVENT = "im_event";

    /**
     * 登录的事件
     */
    String LOGIN_EVENT = "login_event";

    /**
     * 启动服务
     */
    void start() throws Exception;

    /**
     * 停止服务
     */
    void stop();

    /**
     * 推送信息
     */
    void pushMessageToUser(PushMessage pushMessage);
}

import java.util.Iterator;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;
import javax.annotation.PostConstruct;
import javax.annotation.PreDestroy;
import org.apache.commons.lang3.StringUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import com.corundumstudio.socketio.SocketIOClient;
import com.corundumstudio.socketio.SocketIOServer;

@Service(value = "socketIOService")
public class SocketIOServiceImpl implements ISocketIOService {
    private Logger logger = LoggerFactory.getLogger(SocketIOServiceImpl.class);
    /**
     * 用来存已连接的客户端
     */
    private static Map<String, SocketIOClient> clientMap = new ConcurrentHashMap<>();

    @Autowired
    private SocketIOServer server;

    /**
     * Spring IoC容器创建之后，在加载SocketIOServiceImpl Bean之后启动
     * @throws Exception
     */
    @PostConstruct
    private void autoStartup() throws Exception {
        start();
    }

    /**
     * Spring IoC容器在销毁SocketIOServiceImpl Bean之前关闭,避免重启项目服务端口占用问题
     * @throws Exception
     */
    @PreDestroy
    private void autoStop() throws Exception  {
        stop();
    }

    @Override
    public void start() {
        // 监听客户端连接
        server.addConnectListener(client -> {
            String clientId = getParamsByClient(client);
            if (clientId != null) {
                clientMap.put(clientId, client);
                logger.info("clientId: {} connected...", clientId);
            }
        });

        // 监听客户端断开连接
        server.addDisconnectListener(client -> {
            String clientId = getParamsByClient(client);
            if (clientId != null) {
                clientMap.remove(clientId);
                client.disconnect();
                logger.info("clientId: {} disconnected...", clientId);
            }
        });

        // 处理自定义的事件，与连接监听类似
        server.addEventListener(PUSH_EVENT, PushMessage.class, (client, data, ackSender) -> {
            logger.info("eventListener data: {}", data);
        });
        server.addEventListener(IM_EVENT, PushMessage.class, (client, data, ackSender) -> {
            logger.info("eventListener data: {}", data);
        });
        server.start();
    }

    @Override
    public void stop() {
        /*Iterator<Map.Entry<String, SocketIOClient>> iterator = clientMap.entrySet().iterator();
        while (iterator.hasNext()) {
            Map.Entry<String, SocketIOClient> node = iterator.next();
            SocketIOClient cl = node.getValue();
            cl.disconnect();
        }*/
        if (server != null) {
            server.stop();
            server = null;
            logger.info("server stop!");
        }
    }

    @Override
    public void pushMessageToUser(PushMessage pushMessage) {
        String clientIds = pushMessage.getClientId();
        if (StringUtils.isNotBlank(clientIds)) {
            for (String clientId : clientIds.split(",")) {
                SocketIOClient client = clientMap.get(clientId);
                if (client != null) {
                    client.sendEvent(pushMessage.getEvent(), pushMessage.getContent());
                    logger.info("push message: {}, toClientId: {}", pushMessage.getContent(), clientId);
                }
            }
        }
    }

    /**
     * 此方法为获取client连接中的参数，可根据需求更改
     * @param client
     * @return
     */
    private String getParamsByClient(SocketIOClient client) {
        // 从请求的连接中拿出参数（这里的clientId必须是唯一标识）
        return client.getHandshakeData().getSingleUrlParam("clientId");
    }
}

import io.swagger.annotations.ApiModelProperty;
public class PushMessage {
    @ApiModelProperty(value = "登录用户编号")
    private String clientId;
		@ApiModelProperty(value = "推送事件")
    private String event;
    @ApiModelProperty(value = "推送内容")
    private String content;

    public PushMessage() {
    }

    public PushMessage(String clientId, String event, String content) {
        this.clientId = clientId;
        this.event = event;
        this.content = content;
    }

    private PushMessage(Builder builder) {
        setClientId(builder.clientId);
        setEvent(builder.event);
        setContent(builder.content);
    }

    public static Builder newBuilder() {
        return new Builder();
    }

    public String getClientId() {
        return clientId;
    }

    public void setClientId(String clientId) {
        this.clientId = clientId;
    }

    public String getEvent() {
        return event;
    }

    public void setEvent(String event) {
        this.event = event;
    }

    public String getContent() {
        return content;
    }

    public void setContent(String content) {
        this.content = content;
    }

    public static final class Builder {
        private String clientId;
        private String event;
        private String content;

        private Builder() {
        }

        public Builder clientId(String val) {
            clientId = val;
            return this;
        }

        public Builder event(String val) {
            event = val;
            return this;
        }

        public Builder content(String val) {
            content = val;
            return this;
        }

        public PushMessage build() {
            return new PushMessage(this);
        }
    }
}

在单一登录控制方法中推送消息通知客户端，账号已经在其他地方登录

/**
 * 单一登录控制
 * @param user
 */
private void checkSingleSingOn(User user) {
    DefaultWebSecurityManager securityManager = (DefaultWebSecurityManager) SecurityUtils.getSecurityManager();
    DefaultWebSessionManager sessionManager = (DefaultWebSessionManager) securityManager.getSessionManager();
    //获取当前已登录的用户session列表
    SessionDAO sessionDAO = sessionManager.getSessionDAO();
    Collection<Session> sessions = sessionDAO.getActiveSessions();
    for (Session session : sessions) {
        //清除该用户以前登录时保存的session
        Object obj = session.getAttribute(DefaultSubjectContext.PRINCIPALS_SESSION_KEY);
        SimplePrincipalCollection coll = (SimplePrincipalCollection) obj;
        if(coll != null){
            User userLogin =  (User)coll.getPrimaryPrincipal();
            if(user.getUsername().equals(userLogin.getUsername())){
                socketIOService.pushMessageToUser(PushMessage.newBuilder()
                        .clientId(session.getId().toString())
                        .event(ISocketIOService.PUSH_EVENT)
                        .content("您的账号已在其他设备登陆，请重新登录或修改密码")
                        .build());
                sessionDAO.delete(session);
            }
        }
    }
}

页面消息推送实现

页面要引入socket.io.js，没有的可以从网上下载或者联系我，这里就不贴源码了。

<script type="text/javascript"  th:src="@{/static/js/socket.io.js}"></script>

var socketUtil = (function () {
    var socketUtil;
    var _socket;
    var _socketAddr;
    var _clientId;

    function constructor() {

        return {
            setSocketAddr: function (addr) {
                _socketAddr = addr;
            },
            setClientId: function (clientId) {
                _clientId = clientId;
            }
        };
    }

    return {
        getInstance: function () {
            if (socketUtil == null) {
                socketUtil = constructor();
            }
            return socketUtil;
        },
        getConnection: function () {
            var opts = {
                query: 'clientId=' + _clientId
            };
            const socket = io.connect(_socketAddr, opts);
            socket.on('connect', function () {
                console.log("连接成功");
            });
            return socket;
        }
    }
})();

socketUtil.getInstance().setSocketAddr([[${session.socketAddr}]]);
socketUtil.getInstance().setClientId([[${session.sessionId}]]);
var socket = socketUtil.getConnection();
listener();

function listener() {
    socket.on('push_event', function (data) {
        layer.open({
            type: 1
            ,title: false //不显示标题栏
            ,closeBtn: false
            ,area: '300px;'
            ,shade: 0.8
            ,id: 'LAY_layuipro' //设定一个id，防止重复弹出
            ,btn: ['确定']
            ,btnAlign: 'c'
            ,moveType: 1 //拖拽模式，0或者1
            ,content:
                '<div style="padding: 50px; line-height: 22px; background-color: #393D49; color: #fff; font-weight: 300;">'+data+'</div>'
            ,success: function(layero){
                var btn = layero.find('.layui-layer-btn');
                btn.find('.layui-layer-btn0').attr({
                    href: '/index' ,target: ''
                });
            }
        });
    });

    socket.on('disconnect', function () {
        console.log('已下线！');
    });
}

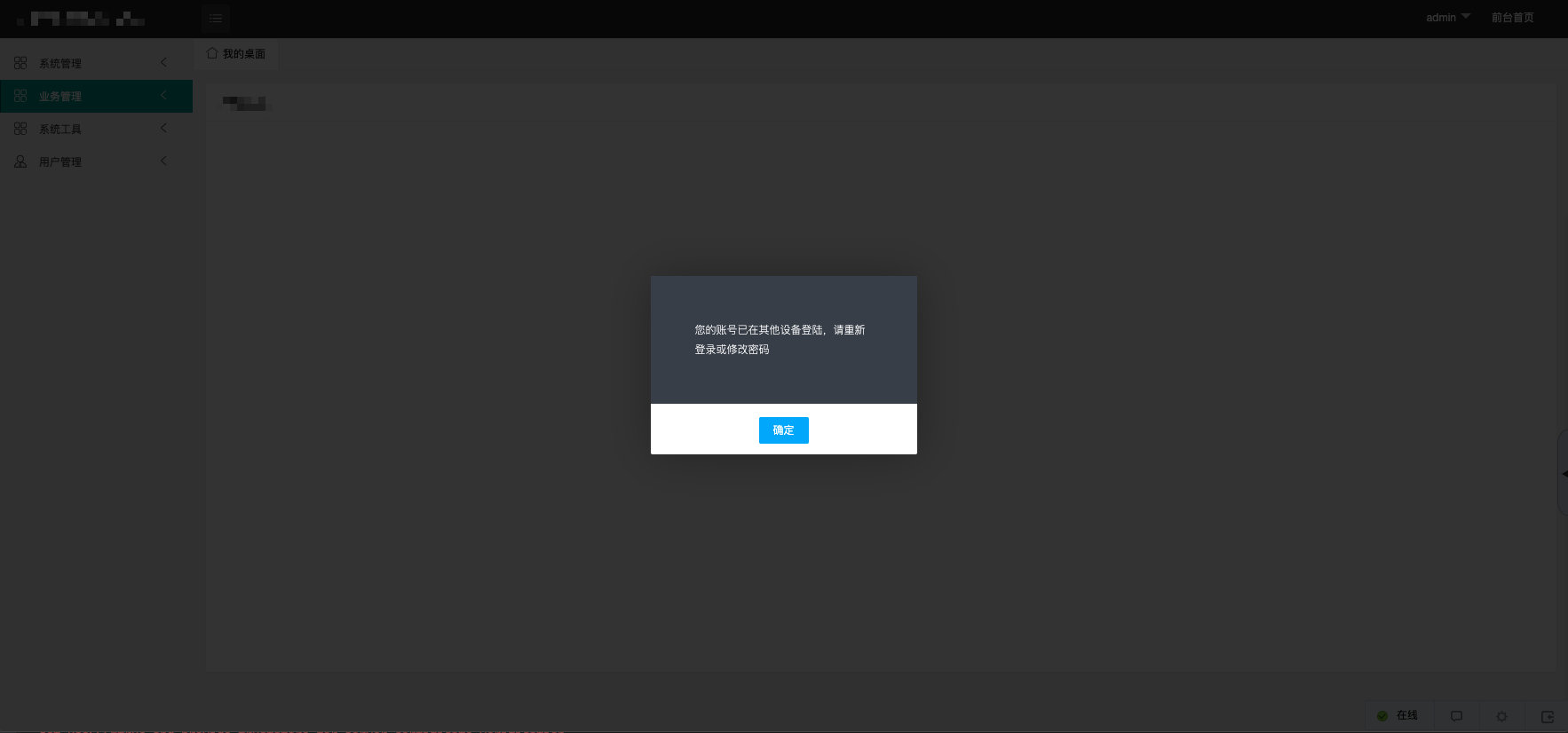

看下效果：

首先用admin用户登录

再用其他浏览器登录admin账户

效果如下：

聊天功能实现

先看效果：

看下聊天的效果：

前端代码:

<script type="text/javascript"  th:src="@{/static/js/socket.io.js}"></script>
<script type="text/javascript"  th:src="@{/static/lib/layui/lay/modules/layer.js}"></script>
<script type="text/javascript"  th:src="@{/static/js/socketio-util.js}"></script>

layim相关：下载layim.zip

服务端获取好友接口：

@RequestMapping("/friend")
@ResponseBody
public String friend(){
    BaseDTO<PageDTO<User>> dto = userService.list(1, 100, null);
    List<User> allUsers = dto.getInfo().getList();
    List<IMFriend> users = new ArrayList<>();
    List<User> loginUsers = ShiroUtils.getLoginUsers();

    loginUsers.forEach(user -> {

        users.add(IMFriend.newBuilder()
            .id(user.getSessionId())
            .face("http://tp2.sinaimg.cn/1971109473/180/5686210542/0")
            .name(user.getNickname()).build());
    });
    IMGroup onlineGroup = IMGroup.newBuilder()
            .id(1)
            .name("在线用户")
            .nums(users.size())
            .item(users)
            .build();
    /*IMGroup offlineGroup = IMGroup.newBuilder()
            .id(1)
            .name("我的好友")
            .nums(0)
            .item(null)
            .build();*/
    IMResponse response = IMResponse.newBuilder()
            .status(1)
            .msg("ok")
            .data(Collections.singletonList(onlineGroup))
            .build();
    return GsonConvertUtil.toJson(response);
}

消息推送接口：

@GetMapping("/im/push")
@ApiOperation( "消息发送" )
@ResponseBody
public BaseDTO<String> pushMessage(@RequestParam String clientId,
                                   @RequestParam String sourceClientId,
                                   @RequestParam String content){
    IMMessage message = IMMessage.newBuilder()
            .clientId(clientId)
            .sourceClientId(sourceClientId)
            .content(content)
            .build();
    socketIOService.pushMessageToUser(PushMessage.newBuilder()
            .clientId(clientId)
            .event(ISocketIOService.IM_EVENT)
            .content(GsonConvertUtil.toJson(message)).build());
    return DtoConvertUtil.toDTO(null, "成功", Constants.CODE_SUCCESS, true);
}
