背景

针对不同的业务平台如消防类、安防类、智慧工地等业务类型。需要接入摄像机来监控人员、环境并进行云台控制，对摄像机设备进行统一管理管控需要一个整体平台进行处理。

云台控制

畅联云平台支持多种设备接入，录像回放、云台控制等功能。根据接口文档需要对接这些接口

获取授权

    public String login() throws Exception {
        String token = redisTemplate.opsForValue().get(VIDEO_CENTER_TOKEN);
        if (!StringUtils.isEmpty(token)) {
            return token;
        }
        String sendUrl = videoConfig.getUrl() + "/api/application/getToken";
        Map<String, String> param = new HashMap<>();
        param.put("appId", videoConfig.getAppId());
        param.put("appSecret", videoConfig.getAppSecret());
        String response = HttpUtils.doPost(sendUrl, param);
        JSONObject responseJson = new JSONObject(response);
        JSONObject data = responseJson.getJSONObject("data");
        token = data.getStr("accessToken");
        redisTemplate.opsForValue().set(VIDEO_CENTER_TOKEN, token, 1L, TimeUnit.DAYS);
        return token;
    }

获取通道列表

public ResultEntity getDeviceChannel(String otherId) {
        try {
            String token = redisTemplate.opsForValue().get(VIDEO_CENTER_TOKEN);
            if (StringUtils.isEmpty(token)) {
                token = login();
            }
            String sendUrl = videoConfig.getUrl() + "/api/deviceChannel/list";
            Map<String, String> param = new HashMap<>();
            param.put("accessToken", token);
            param.put("appId", videoConfig.getAppId());
            param.put("deviceId", otherId);
            String response = HttpUtils.doPost(sendUrl, param);
            JSONObject obj = new JSONObject(response);
            if (obj.getInt("code") == 0) {
                JSONArray data = obj.getJSONArray("data");
                List<JSONObject> list = data.toList(JSONObject.class);
                return ResultEntity.data(list);
            } else {
                return ResultEntity.fail("获取设备通道异常");
            }
        } catch (Exception e) {
            log.error("获取设备通道异常{}", e.getMessage());
            return ResultEntity.fail("获取设备通道异常");
        }

    }

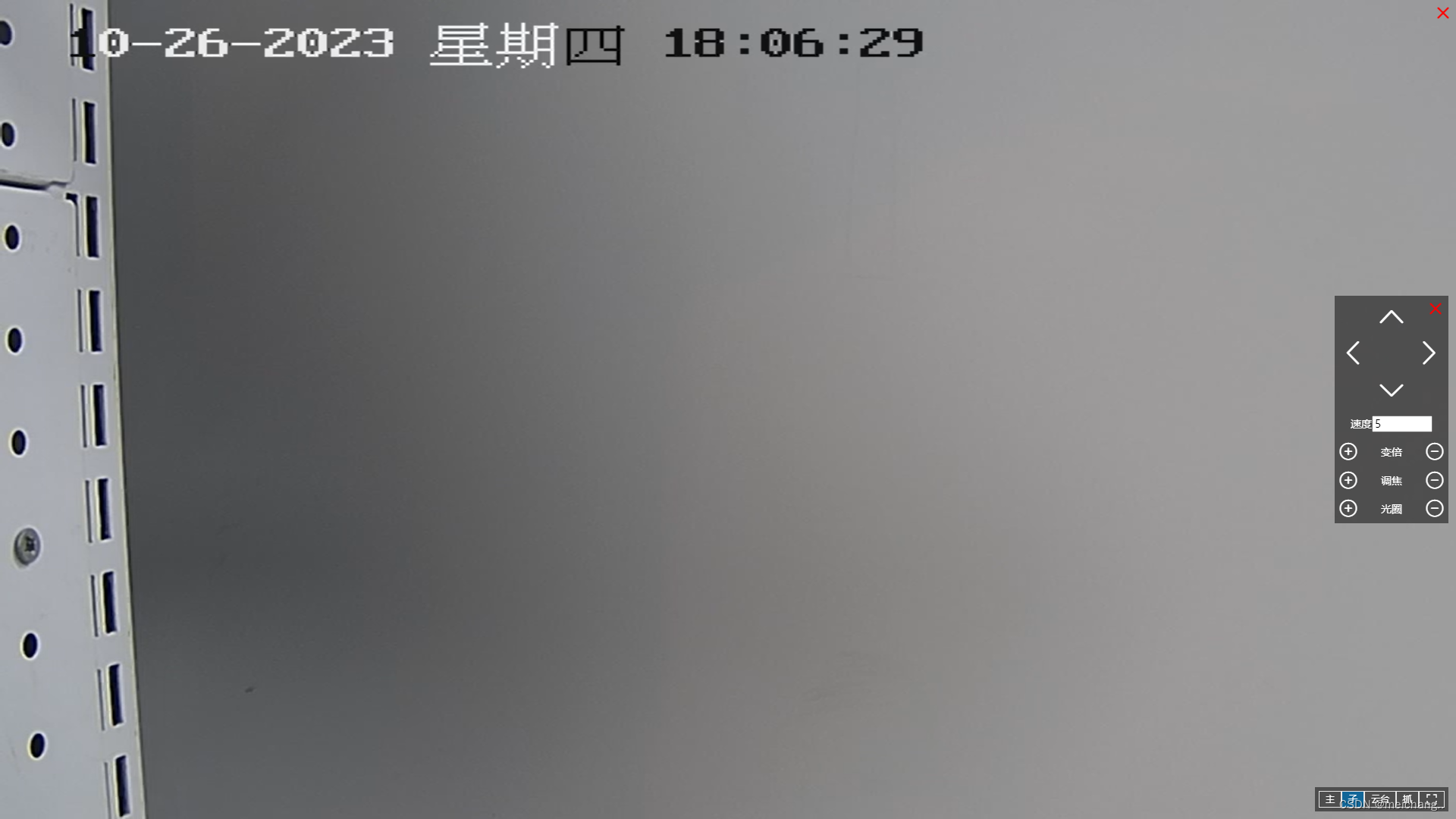

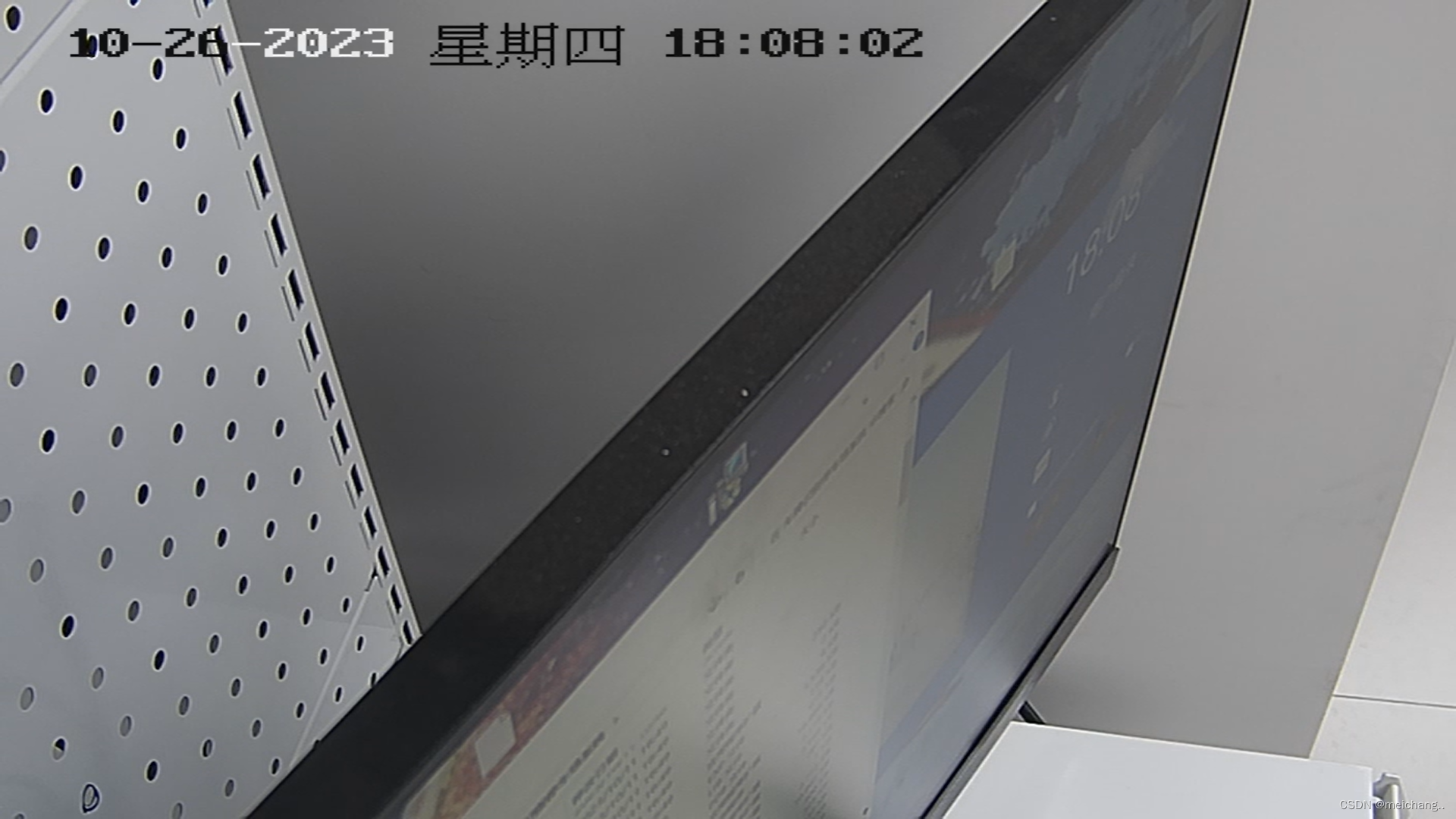

云台控制

public ResultEntity ptzControl(String deviceChannelId, String ptzCommand, String ptzStep, String isStop) {
        try {
            String token = redisTemplate.opsForValue().getVIDEO_CENTER_TOKEN);
            if (StringUtils.isEmpty(token)) {
                token = login();
            }
            String sendUrl = videoConfig.getUrl() + "/api/deviceChannel/ptzControl";
            Map<String, String> param = new HashMap<>();
            param.put("accessToken", token);
            param.put("appId", videoConfig.getAppId());
            param.put("deviceChannelId", deviceChannelId);
            param.put("ptzCommand", ptzCommand);
            param.put("ptzStep", ptzStep);
            param.put("isStop", isStop);
            String response = HttpUtils.doPost(sendUrl, param);
            JSONObject obj = new JSONObject(response);
            return ResultEntity.data(obj.getStr("data"));
        } catch (Exception e) {
            log.error("云台控制异常{}", e.getMessage());
            return ResultEntity.fail("云台控制异常");
        }
    }
