SpringMVC容器初始化篇----ContextLoaderListener


学习学习容器初始化,若有不对的地方,请指出更正,大家共同学习学习。

此篇幅主要围绕着 ContextLoaderListener加载容器,理解其中的原理。

ContextLoaderListener的作用就是启动Web容器时,自动装配ApplicationContext的配置信息。

因为它实现了ServletContextListener这个接口,在web.xml配置这个监听器,启动容器时,就会默认执行它实现的方法。

ContextLoaderListener启动的上下文为根上下文,DispatcherServlet所创建的上下文的的父上下文即为此根上下文,可在FrameworkServlet中的initWebApplicationContext中看出。


通常在web.xml中如下配置:

<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>classpath*:server_spring.xml
		</param-value>
	</context-param>
	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener
		</listener-class>
	</listener>

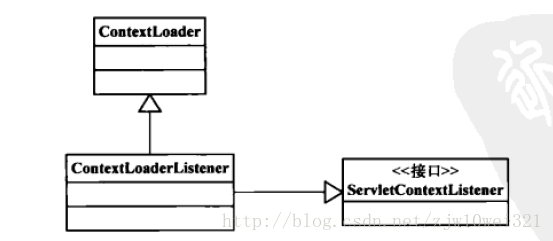

层次结构




ContextLoaderListener继承ContextLoader类实现ServletContextListener接口
其中它的主要功能是在ContextLoader中实现,ServletContextListener接口在package javax.servlet中以为servlet的api,
ServletContextListener又继承EventListener,此乃package java.util;中的接口了。
EventListener接口中无任何方法。
ServletContextListener中含有2方法,一个初始化一个销毁。
/**
     * Receives notification that the web application initialization
     * process is starting.
     *
     * <p>All ServletContextListeners are notified of context
     * initialization before any filters or servlets in the web
     * application are initialized.
     *
     * @param sce the ServletContextEvent containing the ServletContext
     * that is being initialized
     */
    public void contextInitialized(ServletContextEvent sce);

    /**
     * Receives notification that the ServletContext is about to be
     * shut down.
     *
     * <p>All servlets and filters will have been destroyed before any
     * ServletContextListeners are notified of context
     * destruction.
     *
     * @param sce the ServletContextEvent containing the ServletContext
     * that is being destroyed
     */
    public void contextDestroyed(ServletContextEvent sce);


ContextLoaderListener初始化容器时序图


在ContextLoaderListener中的contextInitialized方法
/**
	 * Initialize the root web application context.
	 */
	@Override
	public void contextInitialized(ServletContextEvent event) {
		initWebApplicationContext(event.getServletContext());
	}

初始化root跟web上下文,initWebApplicationContext方法在其父类ContextLoader中提供实现。

ContextLoader中initWebApplicationContext方法初始化根上下文
/**
	 * Initialize Spring's web application context for the given servlet context,
	 * using the application context provided at construction time, or creating a new one
	 * according to the "{@link #CONTEXT_CLASS_PARAM contextClass}" and
	 * "{@link #CONFIG_LOCATION_PARAM contextConfigLocation}" context-params.
	 * @param servletContext current servlet context
	 * @return the new WebApplicationContext
	 * @see #ContextLoader(WebApplicationContext)
	 * @see #CONTEXT_CLASS_PARAM
	 * @see #CONFIG_LOCATION_PARAM
	 */
	public WebApplicationContext initWebApplicationContext(ServletContext servletContext) {
		//这里判断是否在ServletContext中存在上下文,如果有,说明已载入过或配置文件出错,可以从错误信息中看出
		if (servletContext.getAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE) != null) {
			throw new IllegalStateException(
					"Cannot initialize context because there is already a root application context present - " +
					"check whether you have multiple ContextLoader* definitions in your web.xml!");
		}

		Log logger = LogFactory.getLog(ContextLoader.class);
		servletContext.log("Initializing Spring root WebApplicationContext");
		if (logger.isInfoEnabled()) {
			logger.info("Root WebApplicationContext: initialization started");
		}
		long startTime = System.currentTimeMillis();

		try {
			// Store context in local instance variable, to guarantee that
			// it is available on ServletContext shutdown.
			if (this.context == null) {
				this.context = createWebApplicationContext(servletContext);
			}
			if (this.context instanceof ConfigurableWebApplicationContext) {
				ConfigurableWebApplicationContext cwac = (ConfigurableWebApplicationContext) this.context;
				if (!cwac.isActive()) {
					// The context has not yet been refreshed -> provide services such as
					// setting the parent context, setting the application context id, etc
					if (cwac.getParent() == null) {
						// The context instance was injected without an explicit parent ->
						// determine parent for root web application context, if any.
						// 这里载入根上下文的父上下文
						ApplicationContext parent = loadParentContext(servletContext);
						cwac.setParent(parent);
					}
					 //这里从web.xml中取得相关的初始化参数,对WebApplicationContext进行初始化
					configureAndRefreshWebApplicationContext(cwac, servletContext);
				}
			}
			servletContext.setAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE, this.context);

			ClassLoader ccl = Thread.currentThread().getContextClassLoader();
			if (ccl == ContextLoader.class.getClassLoader()) {
				currentContext = this.context;
			}
			else if (ccl != null) {
				currentContextPerThread.put(ccl, this.context);
			}

			if (logger.isDebugEnabled()) {
				logger.debug("Published root WebApplicationContext as ServletContext attribute with name [" +
						WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE + "]");
			}
			if (logger.isInfoEnabled()) {
				long elapsedTime = System.currentTimeMillis() - startTime;
				logger.info("Root WebApplicationContext: initialization completed in " + elapsedTime + " ms");
			}

			return this.context;
		}
		catch (RuntimeException ex) {
			logger.error("Context initialization failed", ex);
			servletContext.setAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE, ex);
			throw ex;
		}
		catch (Error err) {
			logger.error("Context initialization failed", err);
			servletContext.setAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE, err);
			throw err;
		}
	}

根据提供的servlet上下文去初始化Spring的web应用上下文,在构造时使用当前应用上下文或者在web.xml中配置参数contextClass和contextConfigLocation去创建新的上下文。

先判断是否在ServletContext中存在root上下文,如果有,说明已载入过或配置文件出错,可以从错误信息中看出。
通过createWebApplicationContext方法创建web应用上下文,此上下文必定是实现了ConfigurableWebApplicationContext接口,在设置parent for root web application context,在configureAndRefreshWebApplicationContext方法里构造bean工厂和容器里bean的创建,这里就不描述了,下次专门研究这块,最后将跟上下文存入servletContext里,同时根web应用上下文存入到currentContextPerThread,可供后续取出当前上下文,currentContextPerThread = new ConcurrentHashMap<ClassLoader, WebApplicationContext>(1);。

ContextLoader中createWebApplicationContext方法创建根上下文
/**
	 * Instantiate the root WebApplicationContext for this loader, either the
	 * default context class or a custom context class if specified.
	 * <p>This implementation expects custom contexts to implement the
	 * {@link ConfigurableWebApplicationContext} interface.
	 * Can be overridden in subclasses.
	 * <p>In addition, {@link #customizeContext} gets called prior to refreshing the
	 * context, allowing subclasses to perform custom modifications to the context.
	 * @param sc current servlet context
	 * @return the root WebApplicationContext
	 * @see ConfigurableWebApplicationContext
	 */
	protected WebApplicationContext createWebApplicationContext(ServletContext sc) {
		//这里需要确定我们载入的根WebApplication的类型,
		//由在web.xml中配置的contextClass中配置的参数, 如果没有使用默认的。
		Class<?> contextClass = determineContextClass(sc);
		//contextClass必须实现ConfigurableWebApplicationContext,否则抛异常
		if (!ConfigurableWebApplicationContext.class.isAssignableFrom(contextClass)) {
			throw new ApplicationContextException("Custom context class [" + contextClass.getName() +
					"] is not of type [" + ConfigurableWebApplicationContext.class.getName() + "]");
		}
		//初始化WebApplication,强转成ConfigurableWebApplicationContext
		return (ConfigurableWebApplicationContext) BeanUtils.instantiateClass(contextClass);
	}

初始化根上下文,
最后返回值需强转成ConfigurableWebApplicationContext。

ContextLoader中determineContextClass方法找到根上下文的Class类型
/**
	 * Return the WebApplicationContext implementation class to use, either the
	 * default XmlWebApplicationContext or a custom context class if specified.
	 * @param servletContext current servlet context
	 * @return the WebApplicationContext implementation class to use
	 * @see #CONTEXT_CLASS_PARAM
	 * @see org.springframework.web.context.support.XmlWebApplicationContext
	 */
	protected Class<?> determineContextClass(ServletContext servletContext) {
		String contextClassName = servletContext.getInitParameter(CONTEXT_CLASS_PARAM);
		if (contextClassName != null) {
			try {
				return ClassUtils.forName(contextClassName, ClassUtils.getDefaultClassLoader());
			}
			catch (ClassNotFoundException ex) {
				throw new ApplicationContextException(
						"Failed to load custom context class [" + contextClassName + "]", ex);
			}
		}
		else {
			contextClassName = defaultStrategies.getProperty(WebApplicationContext.class.getName());
			try {
				return ClassUtils.forName(contextClassName, ContextLoader.class.getClassLoader());
			}
			catch (ClassNotFoundException ex) {
				throw new ApplicationContextException(
						"Failed to load default context class [" + contextClassName + "]", ex);
			}
		}
	}
Web.xml中配置了contextClass就取其值,但必须是实现ConfigurableWebApplicationContext,
没有的就取默认值XmlWebApplicationContext。

ContextClass默认值和ContextLoader.properties如下:

/**
	 * Name of the class path resource (relative to the ContextLoader class)
	 * that defines ContextLoader's default strategy names.
	 */
	private static final String DEFAULT_STRATEGIES_PATH = "ContextLoader.properties";


	private static final Properties defaultStrategies;

	static {
		// Load default strategy implementations from properties file.
		// This is currently strictly internal and not meant to be customized
		// by application developers.
		try {
			ClassPathResource resource = new ClassPathResource(DEFAULT_STRATEGIES_PATH, ContextLoader.class);
			defaultStrategies = PropertiesLoaderUtils.loadProperties(resource);
		}
		catch (IOException ex) {
			throw new IllegalStateException("Could not load 'ContextLoader.properties': " + ex.getMessage());
		}
	}

# Default WebApplicationContext implementation class for ContextLoader.
# Used as fallback when no explicit context implementation has been specified as context-param.
# Not meant to be customized by application developers.

org.springframework.web.context.WebApplicationContext=org.springframework.web.context.support.XmlWebApplicationContext


其中loadParentContext
/**
	 * Template method with default implementation (which may be overridden by a
	 * subclass), to load or obtain an ApplicationContext instance which will be
	 * used as the parent context of the root WebApplicationContext. If the
	 * return value from the method is null, no parent context is set.
	 * <p>The main reason to load a parent context here is to allow multiple root
	 * web application contexts to all be children of a shared EAR context, or
	 * alternately to also share the same parent context that is visible to
	 * EJBs. For pure web applications, there is usually no need to worry about
	 * having a parent context to the root web application context.
	 * <p>The default implementation uses
	 * {@link org.springframework.context.access.ContextSingletonBeanFactoryLocator},
	 * configured via {@link #LOCATOR_FACTORY_SELECTOR_PARAM} and
	 * {@link #LOCATOR_FACTORY_KEY_PARAM}, to load a parent context
	 * which will be shared by all other users of ContextsingletonBeanFactoryLocator
	 * which also use the same configuration parameters.
	 * @param servletContext current servlet context
	 * @return the parent application context, or {@code null} if none
	 * @see org.springframework.context.access.ContextSingletonBeanFactoryLocator
	 */
	protected ApplicationContext loadParentContext(ServletContext servletContext) {
		ApplicationContext parentContext = null;
		String locatorFactorySelector = servletContext.getInitParameter(LOCATOR_FACTORY_SELECTOR_PARAM);
		String parentContextKey = servletContext.getInitParameter(LOCATOR_FACTORY_KEY_PARAM);

		if (parentContextKey != null) {
			// locatorFactorySelector may be null, indicating the default "classpath*:beanRefContext.xml"
			BeanFactoryLocator locator = ContextSingletonBeanFactoryLocator.getInstance(locatorFactorySelector);
			Log logger = LogFactory.getLog(ContextLoader.class);
			if (logger.isDebugEnabled()) {
				logger.debug("Getting parent context definition: using parent context key of '" +
						parentContextKey + "' with BeanFactoryLocator");
			}
			this.parentContextRef = locator.useBeanFactory(parentContextKey);
			parentContext = (ApplicationContext) this.parentContextRef.getFactory();
		}

		return parentContext;
	}

根据在web.xml中配置的locatorFactorySelector和parentContextKey来给根web应用上下设置父上下文,如果没配置的话,父上下文为空。
加载父上下文的主要原因是允许多重root web application contexts作为可共享的ERA context的子节点,或者对EJB可见的去交替共享同样的父上下文。For pure web applications, there is usually no need to worry about having a parent context to the root web application context。这句话明确告诉我们,对于纯粹的Web应用,通常不用担心root web application context的父上下文,也就是没有,为null。

在应用程序如何获取 WebApplicationContext 有多种方式,最简单的就是

1.WebApplicationContext wac = ContextLoader.getCurrentWebApplicationContext();

当前应用的WebApplicationContext就保存在 ContextLoader的currentContextPerThread属性当中


2.基于ServletContext上下文获取的方式

ServletContext sc = request.getSession().getServletContext();

ApplicationContext ac1 = WebApplicationContextUtils.getRequiredWebApplicationContext(sc);

ApplicationContext ac2 = WebApplicationContextUtils.getWebApplicationContext(sc);

WebApplicationContext wac1 = (WebApplicationContext) sc.getAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE);


3.还有一些更合适的,基于Spring提供的抽象类或者接口,在初始化Bean时注入ApplicationContext

3.1:继承自抽象类ApplicationObjectSupport

说明:抽象类ApplicationObjectSupport提供getApplicationContext()方法,可以方便的获取到ApplicationContext。

Spring初始化时,会通过该抽象类的setApplicationContext(ApplicationContext context)方法将ApplicationContext 对象注入。


3.2:继承自抽象类WebApplicationObjectSupport

说明:类似上面方法,调用getWebApplicationContext()获取WebApplicationContext


3.3:实现接口ApplicationContextAware

说明:实现该接口的setApplicationContext(ApplicationContext context)方法,并保存ApplicationContext 对象。



总结:Context结构复杂,parentContext结构的作用,及如何的去加载bean工厂的逻辑原理。
  • 9
    点赞
  • 39
    收藏
    觉得还不错? 一键收藏
  • 5
    评论
评论 5
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
