128、sku在es中存储模型分析

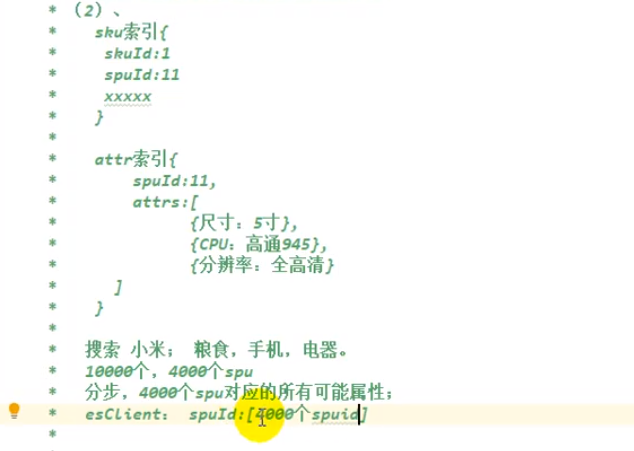

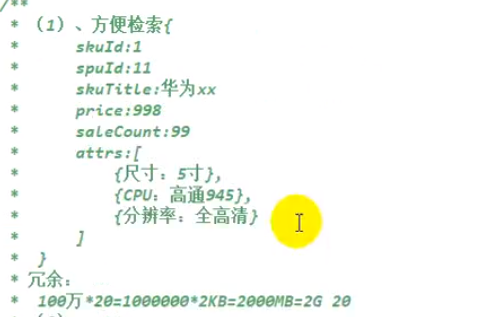

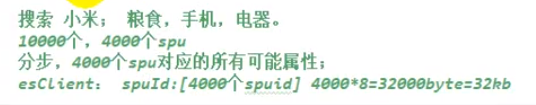

1、分析两种模型
空间和时间不能兼得
PUT product
{
"mappings": {
"properties": {
"skuId": {
"type": "long"
},
"spuId": {
"type": "keyword"
},
"skuTitle": {
"type": "text",
"analyzer": "ik_smart"
},
"skuPrice": {
"type": "keyword"
},
"skuImg": {
"type": "keyword",
"index": false, //不进行索引
"doc_values": false //不进行聚合
},
"saleCount": {
"type": "long"
},
"hasStock": {
"type": "boolean"
},
"hotScore": {
"type": "long"
},
"brandId": {
"type": "long"
},
"catelogId": {
"type": "long"
},
"brandName": {
"type": "keyword",
"index": false,
"doc_values": false
},
"brandImg": {
"type": "keyword",
"index": false,
"doc_values": false
},
"catelogName": {
"type": "keyword",
"index": false,
"doc_values": false
},
"attrs": {
"type": "nested",
"properties": {
"attrId": {
"type": "long"
},
"attrName": {
"type": "keyword",
"index": false,
"doc_values": false
},
"attrValue": {
"type": "keyword"
}
}
}
}
}
}
2.ES的两个重要作用
全文检索
日志的存储和分析
129、nested数据类型场景
如果不加nested会出现如下问题：
- 添加索引
PUT my-index-000001/_doc/1
{
"group" : "fans",
"user" : [
{
"first" : "John",
"last" : "Smith"
},
{
"first" : "Alice",
"last" : "White"
}
]
}
- 由于数据扁平化处理
{
"group" : "fans",
"user.first" : [ "alice", "john" ],
"user.last" : [ "smith", "white" ]
}
- 导致在执行下面查询时，会查到
GET my-index-000001/_search
{
"query": {
"bool": {
"must": [
{ "match": { "user.first": "Alice" }},
{ "match": { "user.last": "Smith" }}
]
}
}
}
- 删除索引
GET my-index-000001
解决方法使用nested
- 创建映射，并将对象设置为nested
- 添加数据
- 查询数据，为0条数据，符合预期
PUT my-index-000001
{
"mappings": {
"properties": {
"user": {
"type": "nested"
}
}
}
}
PUT my-index-000001/_doc/1
{
"group" : "fans",
"user" : [
{
"first" : "John",
"last" : "Smith"
},
{
"first" : "Alice",
"last" : "White"
}
]
}
GET my-index-000001/_search
{
"query": {
"nested": {
"path": "user",
"query": {
"bool": {
"must": [
{ "match": { "user.first": "Alice" }},
{ "match": { "user.last": "Smith" }}
]
}
}
}
}
}
GET my-index-000001/_search
{
"query": {
"nested": {
"path": "user",
"query": {
"bool": {
"must": [
{ "match": { "user.first": "Alice" }},
{ "match": { "user.last": "White" }}
]
}
},
"inner_hits": {
"highlight": {
"fields": {
"user.first": {}
}
}
}
}
}
}
130、构造基本数据
- SpuInfoController
//商品上架
///product/spuinfo/{spuId}/up
@PostMapping(value = "/{spuId}/up")
public R spuUp(@PathVariable("spuId") Long spuId) {
spuInfoService.up(spuId);
return R.ok();
}
- SkuEsModel
Data
public class SkuEsModel {
private Long skuId;
private Long spuId;
private String skuTitle;
private BigDecimal skuPrice;
private String skuImg;
private Long saleCount;
private Boolean hasStock;
private Long hotScore;
private Long brandId;
private Long catalogId;
private String brandName;
private String brandImg;
private String catalogName;
private List<Attrs> attrs;
@Data
public static class Attrs {
private Long attrId;
private String attrName;
private String attrValue;
}
}
131、构造sku检索属性
思路
- 根据商品id去属性值表查询此商品所有属性值，并取出id集合
- 根据id集合去属性表查询，这些属性可以检索的id的集合
代码
- SpuInfoServiceImpl
@GlobalTransactional(rollbackFor = Exception.class)
// @Transactional(rollbackFor = Exception.class)
@Override
public void up(Long spuId) {
//1、查出当前spuId对应的所有sku信息,品牌的名字
List<SkuInfoEntity> skuInfoEntities = skuInfoService.getSkusBySpuId(spuId);
//TODO 4、查出当前sku的所有可以被用来检索的规格属性
List<ProductAttrValueEntity> baseAttrs = productAttrValueService.baseAttrListforspu(spuId);
List<Long> attrIds = baseAttrs.stream().map(attr -> {
return attr.getAttrId();
}).collect(Collectors.toList());
List<Long> searchAttrIds = attrService.selectSearchAttrs(attrIds);
//转换为Set集合
Set<Long> idSet = searchAttrIds.stream().collect(Collectors.toSet());
List<SkuEsModel.Attrs> attrsList = baseAttrs.stream().filter(item -> {
return idSet.contains(item.getAttrId());
}).map(item -> {
SkuEsModel.Attrs attrs = new SkuEsModel.Attrs();
BeanUtils.copyProperties(item, attrs);
return attrs;
}).collect(Collectors.toList());
List<Long> skuIdList = skuInfoEntities.stream()
.map(SkuInfoEntity::getSkuId)
.collect(Collectors.toList());
//TODO 1、发送远程调用，库存系统查询是否有库存
Map<Long, Boolean> stockMap = null;
try {
R skuHasStock = wareFeignService.getSkuHasStock(skuIdList);
//
TypeReference<List<SkuHasStockVo>> typeReference = new TypeReference<List<SkuHasStockVo>>() {};
stockMap = skuHasStock.getData(typeReference).stream()
.collect(Collectors.toMap(SkuHasStockVo::getSkuId, item -> item.getHasStock()));
} catch (Exception e) {
log.error("库存服务查询异常：原因{}",e);
}
//2、封装每个sku的信息
Map<Long, Boolean> finalStockMap = stockMap;
List<SkuEsModel> collect = skuInfoEntities.stream().map(sku -> {
//组装需要的数据
SkuEsModel esModel = new SkuEsModel();
esModel.setSkuPrice(sku.getPrice());
esModel.setSkuImg(sku.getSkuDefaultImg());
//设置库存信息
if (finalStockMap == null) {
esModel.setHasStock(true);
} else {
esModel.setHasStock(finalStockMap.get(sku.getSkuId()));
}
//TODO 2、热度评分。0
esModel.setHotScore(0L);
//TODO 3、查询品牌和分类的名字信息
BrandEntity brandEntity = brandService.getById(sku.getBrandId());
esModel.setBrandName(brandEntity.getName());
esModel.setBrandId(brandEntity.getBrandId());
esModel.setBrandImg(brandEntity.getLogo());
CategoryEntity categoryEntity = categoryService.getById(sku.getCatalogId());
esModel.setCatalogId(categoryEntity.getCatId());
esModel.setCatalogName(categoryEntity.getName());
//设置检索属性
esModel.setAttrs(attrsList);
BeanUtils.copyProperties(sku,esModel);
return esModel;
}).collect(Collectors.toList());
//TODO 5、将数据发给es进行保存：gulimall-search
R r = searchFeignService.productStatusUp(collect);
if (r.getCode() == 0) {
//远程调用成功
//TODO 6、修改当前spu的状态
this.baseMapper.updaSpuStatus(spuId, ProductConstant.ProductStatusEnum.SPU_UP.getCode());
} else {
//远程调用失败
//TODO 7、重复调用？接口幂等性:重试机制
}
}
- AttrServiceImpl
public List<Long> selectSearchAttrs(List<Long> attrIds) {
List<Long> searchAttrIds = this.baseMapper.selectSearchAttrIds(attrIds);
return searchAttrIds;
}
- AttrDao.xml
<select id="selectSearchAttrIds" resultType="java.lang.Long">
SELECT attr_id FROM pms_attr WHERE attr_id IN
<foreach collection="attrIds" item="id" separator="," open="(" close=")">
#{id}
</foreach>
AND search_type = 1
</select>
132、远程查询库存&泛型结果封装
如果每个skuid都要远程调用，这样影响性能，先收集skuid的集合，调用库存服务，一次查询所有的库存信息，并定义vo对象，返回需要的值
133、远程上架接口
- ElasticSaveController
/**
* 上架商品
* @param skuEsModels
* @return
*/
@PostMapping(value = "/product")
public R productStatusUp(@RequestBody List<SkuEsModel> skuEsModels) {
boolean status=false;
try {
status = productSaveService.productStatusUp(skuEsModels);
} catch (IOException e) {
//log.error("商品上架错误{}",e);
return R.error(BizCodeEnum.PRODUCT_UP_EXCEPTION.getCode(),BizCodeEnum.PRODUCT_UP_EXCEPTION.getMessage());
}
if(status){
return R.error(BizCodeEnum.PRODUCT_UP_EXCEPTION.getCode(),BizCodeEnum.PRODUCT_UP_EXCEPTION.getMessage());
}else {
return R.ok();
}
}
- ProductSaveServiceImpl
public boolean productStatusUp(List<SkuEsModel> skuEsModels) throws IOException {
//1.在es中建立索引，建立号映射关系（doc/json/product-mapping.json）
//2. 在ES中保存这些数据
BulkRequest bulkRequest = new BulkRequest();
for (SkuEsModel skuEsModel : skuEsModels) {
//构造保存请求
IndexRequest indexRequest = new IndexRequest(EsConstant.PRODUCT_INDEX);
indexRequest.id(skuEsModel.getSkuId().toString());
String jsonString = JSON.toJSONString(skuEsModel);
indexRequest.source(jsonString, XContentType.JSON);
bulkRequest.add(indexRequest);
}
BulkResponse bulk = esRestClient.bulk(bulkRequest, GulimallElasticSearchConfig.COMMON_OPTIONS);
//TODO 如果批量错误
boolean hasFailures = bulk.hasFailures();
List<String> collect = Arrays.asList(bulk.getItems()).stream().map(item -> {
return item.getId();
}).collect(Collectors.toList());
log.info("商品上架完成：{}",collect);
return hasFailures;
}

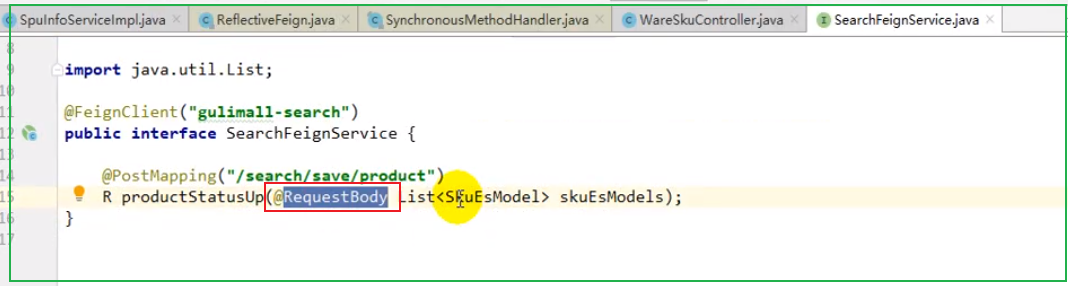

134、上架接口调试&feign源码

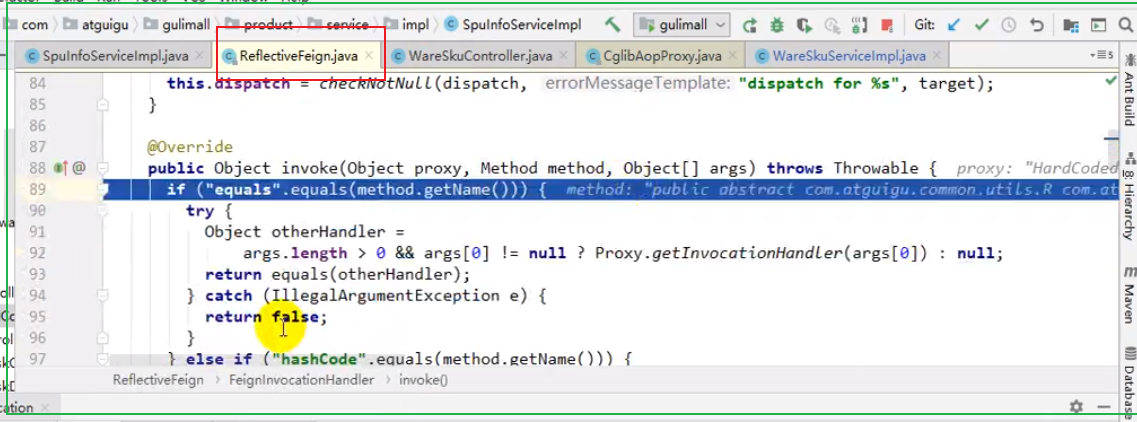

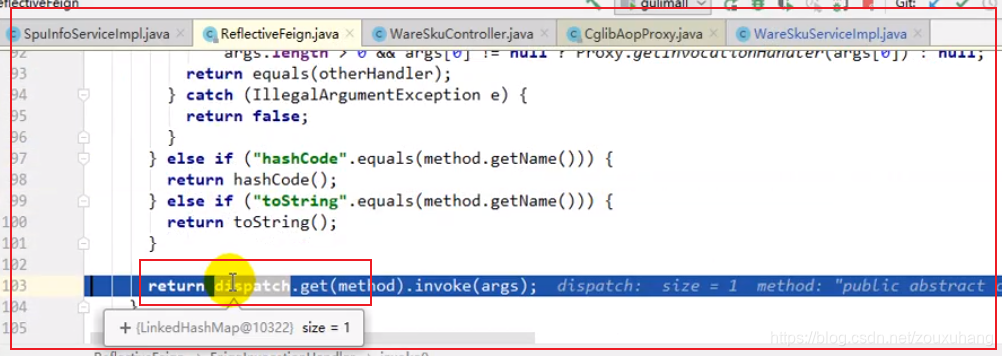

判断是否是equals、toString等方法，如果不是进入

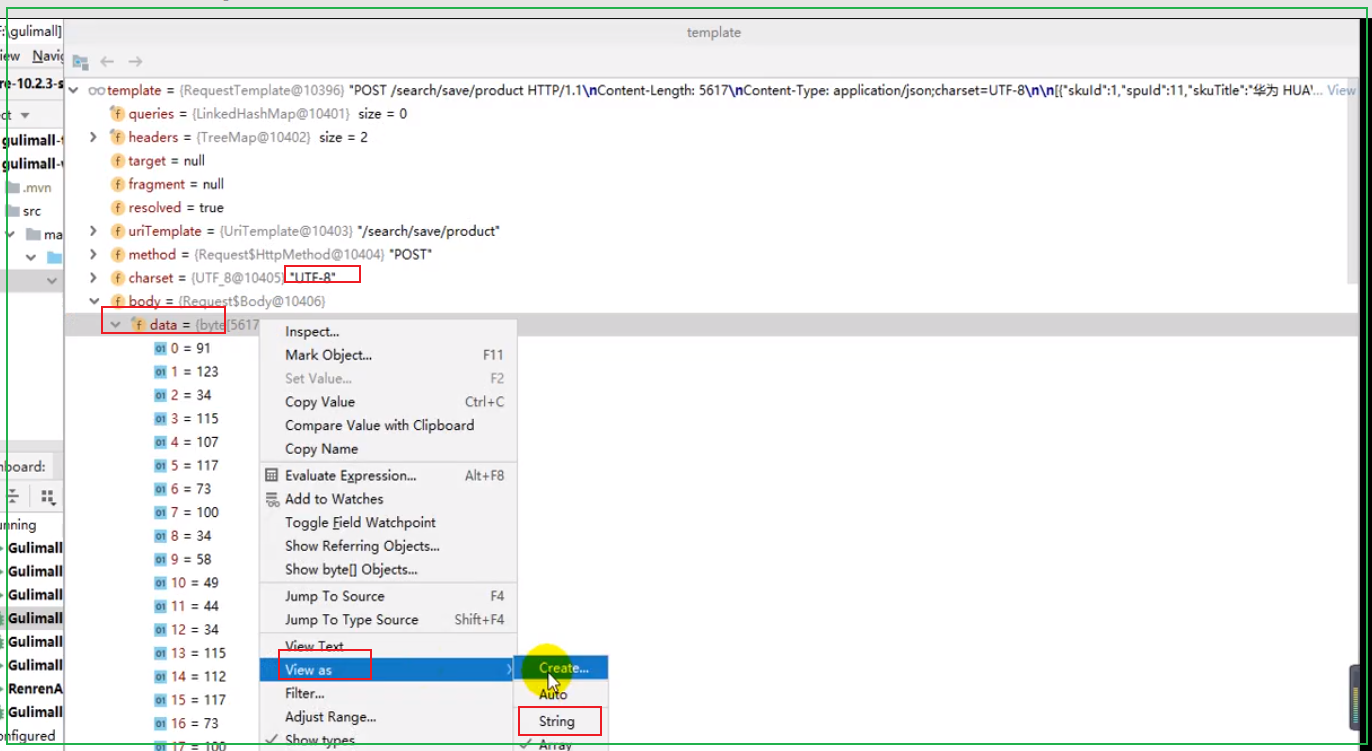

可以看到用json编码了数据，说明Feign在底层会将对象转为json
135、抽取响应结果&上架测试完成
有R对象继承了Map，导致setData后，看不到data属性
去掉data属性，修改setData方法，将data数据put到map
获取时，传递类型，先将对象转为json字符串，再将json字符串根据类型转换为指定的对象
