摘要

本工程为XX小区供热管网及换热站设计。小区内所有建筑物均为民用住宅，还有幼儿园和办公楼。小区占地面积约为21万㎡，建筑面积约为21万m2。供暖热负荷0.97×107W，总循环水量333.91t/h。

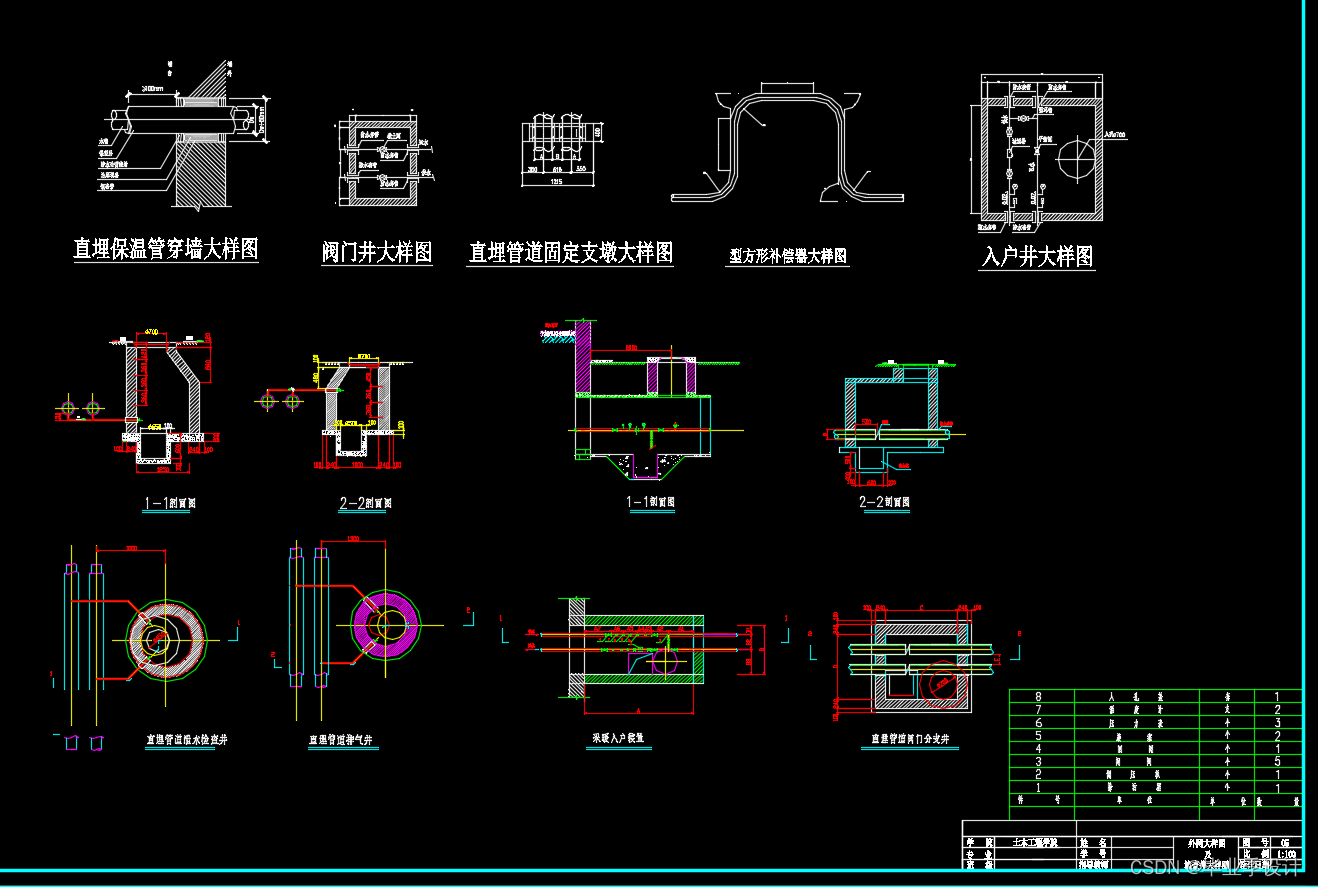

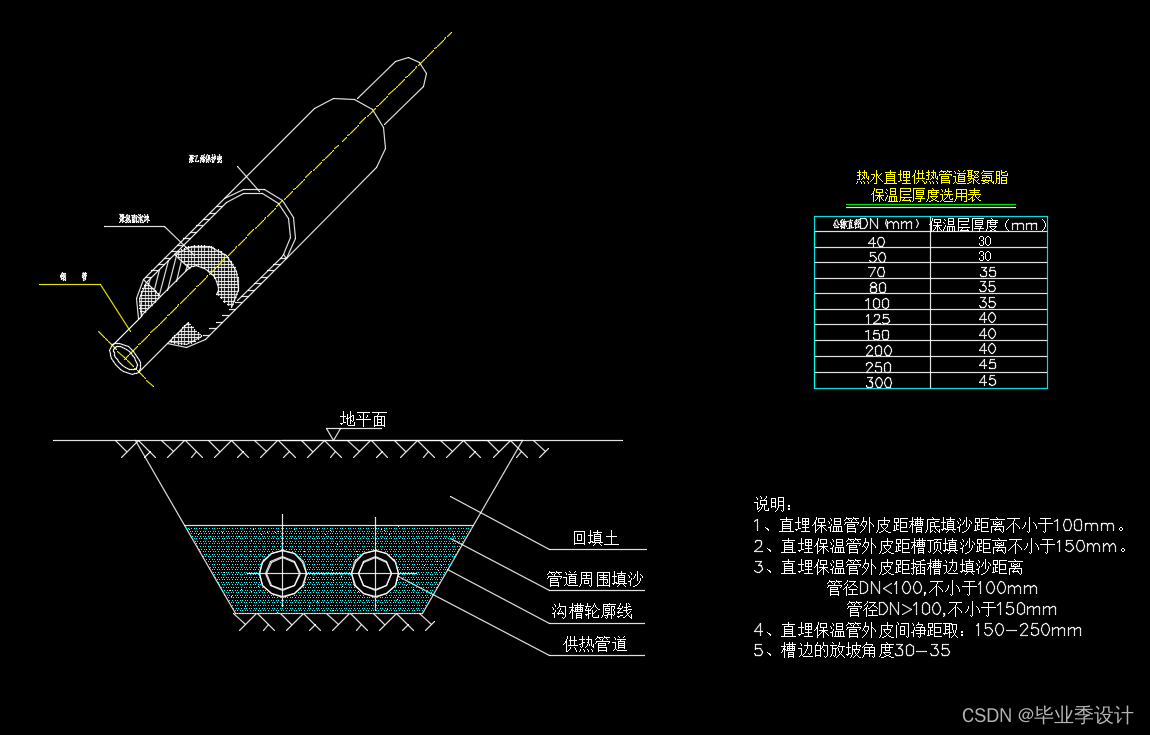

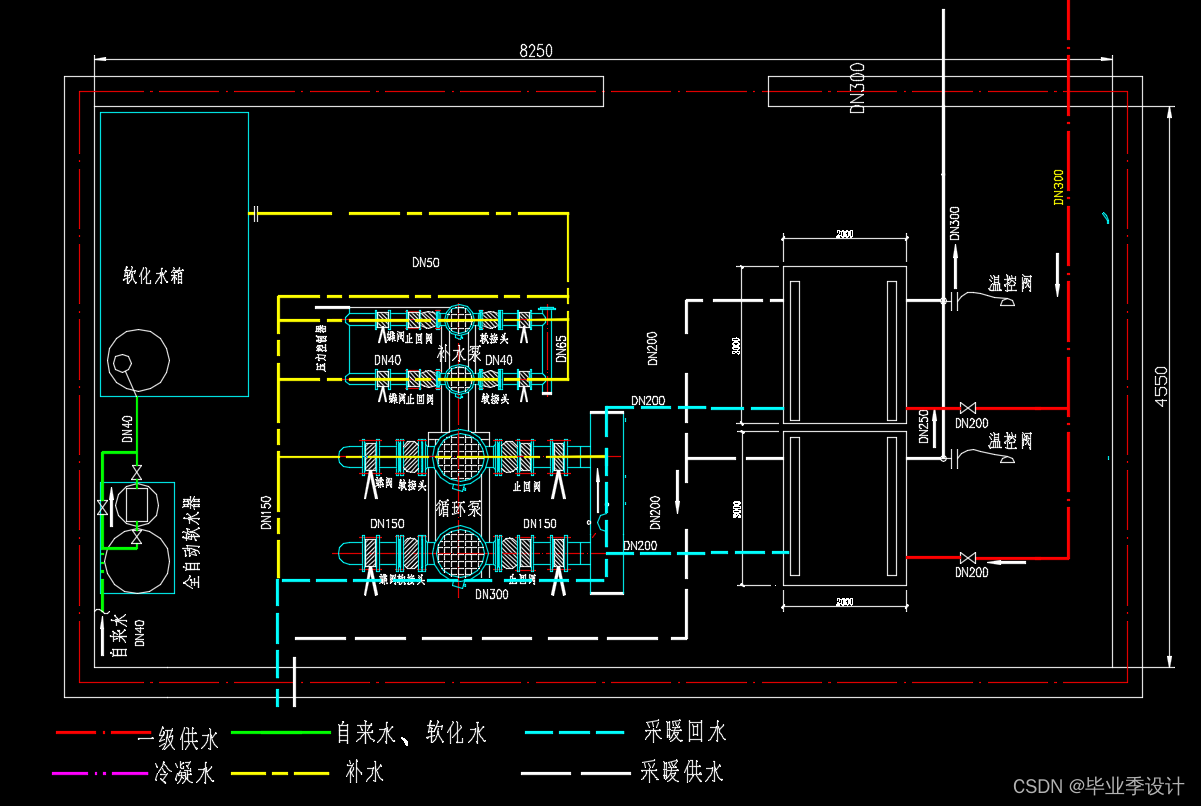

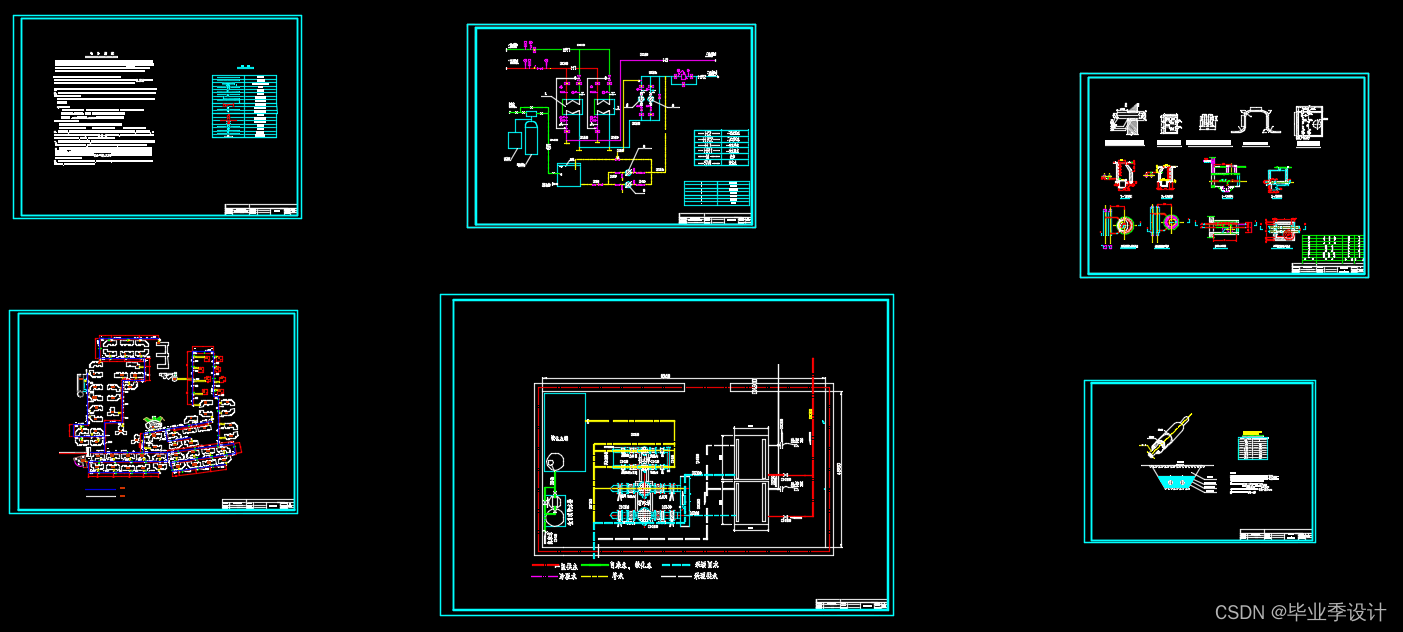

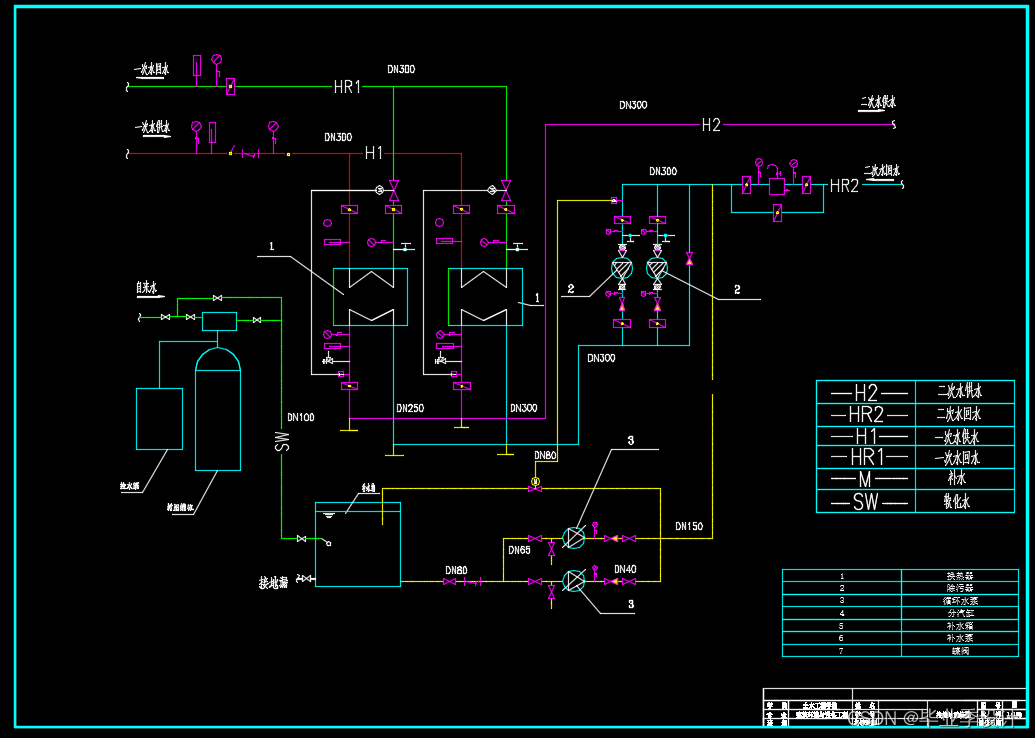

小区一次水供回水温130℃/80℃，二次水供回水温95℃/70℃。管网布置为闭式双管异程式系统，枝状形式。采用补水泵定压方式，系统运行时，采用质调节调节方式，以适应热负荷的变化。整个管道均为直埋敷设，所有管段采用预制保温管，保温材料为聚氨酯，保护层为聚乙烯，由国家标准设计图集《管道及设备保温》98R418确定其保温层厚度，通过水力计算确定管径。小区设一个独立换热站，要对换热站内部进行水力计算以求得各种管路的管径。内设2台型号BR0.5板式换热器，2台型号为ISW200-400(I)的热水循环泵（一备一用），2台型号为ISW-50-300的补水泵（一备一用），卧式直通除污器。由整个网路由绘制的水压图可知网路压力工况均满足技术要求。

关键词：热负荷；水压图；换热站; 水力计算；

Abstract

This project designed the heat supply pipe network and heat—exchanging station of a district in Nanyang .Most of the buildings in this district are for residential use. There is a kindergarten and an office building.Area covers approximately 210,000 ㎡ and a building area of about 210,000 ㎡. Heating load 0.68 × 107W, with a total circulation stood 333.91t/h.

Once water provides to return to water temperature 130 ℃/80 ℃, two waters provide to return to water temperature 95 ℃/70 ℃ Adopt the way of patch water pump fix press.The pipe network is designed as seamless two-pipe system with tree-shaped. When the system is functioning, it adopt the quality flux regulates, in order to adapt to the changes of heat-load.The whole pipe is directly buried and self-compensated, the entire pipe sections are insulating constructive, (heat preservation material is polymer of ammonia and ester, protect layer is polyethylene). Design standards by the State Atlas "piping and equipment insulation" 98R418 its insulating layer thickness, through hydraulic calculation to determine diameter. We establish one independent heat-exchanging station. In this station, there are two platform board type exchange heat organ, their model is BR0.5, there are two platform cycle pump, ISW200-400(I), (with a prepared one) and there are two platform patch water pump，their model is ISW-50-300(with a prepared one). Drawing from the entire network of hydraulic pressure on the network map known conditions are met technical requirements .

Key words：heat-load；hydraulic plot；heat transfer station；hydraulic calculation；
