2020最新版LaTeX软件教程---Tex live 2020的安装与使用

2020最新版LaTeX软件---Tex live 2020安装教程

1.首先打开网址：https://mirrors.cqu.edu.cn/CTAN/systems/texlive/Images/ ，直接下载tex live安装包的ISO文件（文件有点大，耐心等待下载）。

2. 将下载好的texlive2020.iso文件放在英文路径下（不含中文，空格），解压。

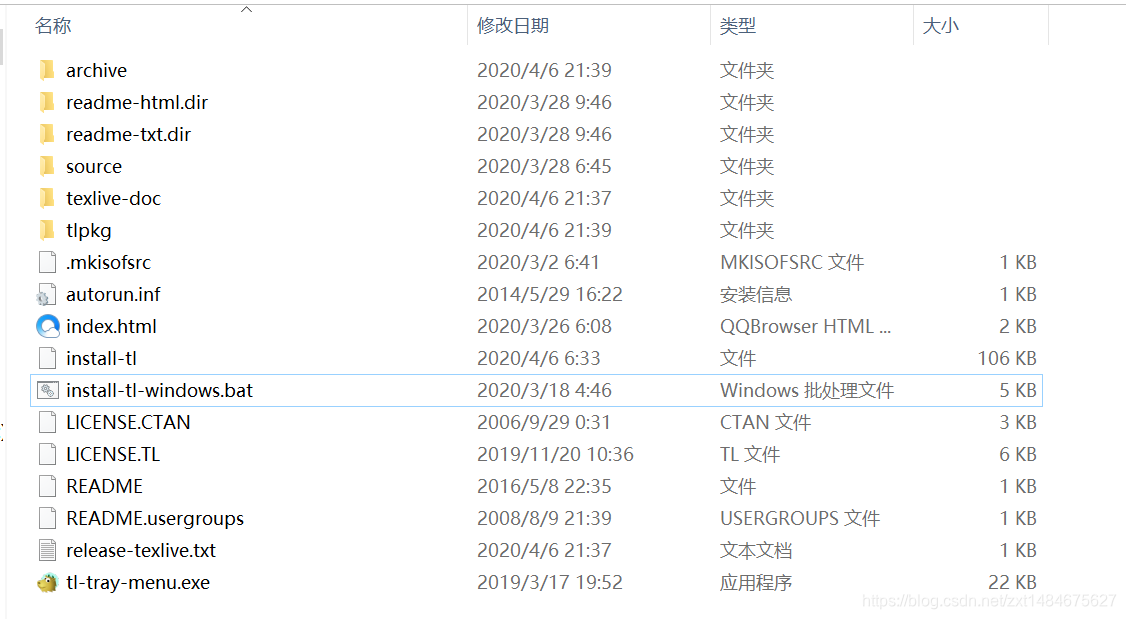

3.选择点击解压后文件中的install-tl-windows.bat批处理文件，出现安装界面。

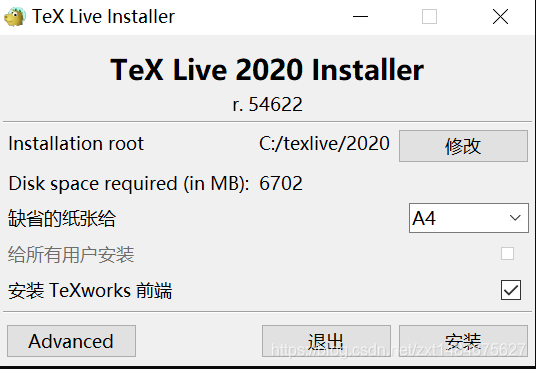

4.点击修改软件安装目录，这儿我选择安装在D盘（自己可以任意选择安装地址，但不可以是中文路径）

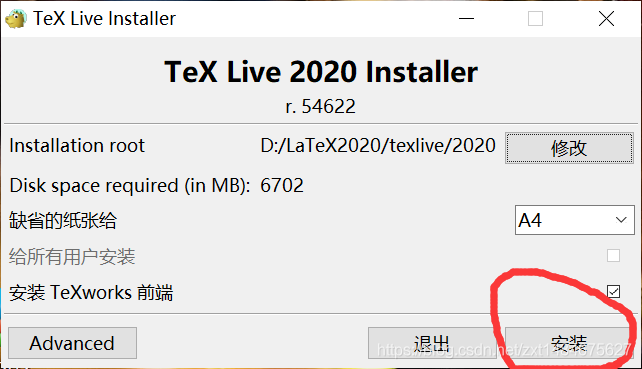

5.点击“安装”，耐心等待安装完成（3968个小过程，安装时间可能会长一点）。

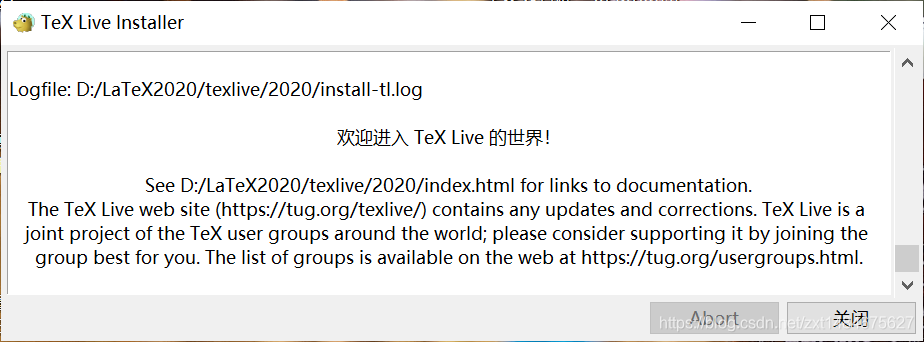

6.“TeX Live 2020”安装完成。



注意：软件安装后，ISO文件和解压文件均可删除。



-----------------------------------------------------------------------分割线--------------------------------------------------------------------------------



2020最新版LaTeX软件---Tex live 2020使用教程

1.在电脑中找到并打开TeXworks editor应用程序，复制下面的IEEE trans模板到软件页面上，然后保存tex文件（必须是英文路径）。

\documentclass[journal]{IEEEtran}
\ifCLASSINFOpdf
\else
\fi
\hyphenation{op-tical net-works semi-conduc-tor}
\begin{document}
\title{Bare Demo of IEEEtran.cls\\ for IEEE Journals}
\author{Michael~Shell,~\IEEEmembership{Member,~IEEE,}
        John~Doe,~\IEEEmembership{Fellow,~OSA,}
        and~Jane~Doe,~\IEEEmembership{Life~Fellow,~IEEE}% <-this % stops a space
\thanks{M. Shell was with the Department
of Electrical and Computer Engineering, Georgia Institute of Technology, Atlanta,
GA, 30332 USA e-mail: (see http://www.michaelshell.org/contact.html).}% <-this % stops a space
\thanks{J. Doe and J. Doe are with Anonymous University.}% <-this % stops a space
\thanks{Manuscript received April 19, 2005; revised August 26, 2015.}}
\markboth{Journal of \LaTeX\ Class Files,~Vol.~14, No.~8, August~2015}%
{Shell \MakeLowercase{\textit{et al.}}: Bare Demo of IEEEtran.cls for IEEE Journals}

\maketitle
\begin{abstract}
The abstract goes here.
\end{abstract}

% Note that keywords are not normally used for peerreview papers.
\begin{IEEEkeywords}
IEEE, IEEEtran, journal, \LaTeX, paper, template.
\end{IEEEkeywords}
\IEEEpeerreviewmaketitle

\section{Introduction}
\IEEEPARstart{T}{his} demo file is intended to serve as a ``starter file''
for IEEE journal papers produced under \LaTeX\ using
IEEEtran.cls version 1.8b and later.
I wish you the best of success.

\hfill mds

\hfill August 26, 2015

\subsection{Subsection Heading Here}
Subsection text here.
\subsubsection{Subsubsection Heading Here}
Subsubsection text here.

\section{Conclusion}
The conclusion goes here.
\appendices
\section{Proof of the First Zonklar Equation}
Appendix one text goes here.

% you can choose not to have a title for an appendix
% if you want by leaving the argument blank
\section{}
Appendix two text goes here.


% use section* for acknowledgment
\section*{Acknowledgment}


The authors would like to thank...

\ifCLASSOPTIONcaptionsoff
  \newpage
\fi

\begin{thebibliography}{1}

\bibitem{IEEEhowto:kopka}
H.~Kopka and P.~W. Daly, \emph{A Guide to \LaTeX}, 3rd~ed.\hskip 1em plus
  0.5em minus 0.4em\relax Harlow, England: Addison-Wesley, 1999.

\end{thebibliography}

\begin{IEEEbiography}{Michael Shell}
Biography text here.
\end{IEEEbiography}

% if you will not have a photo at all:
\begin{IEEEbiographynophoto}{John Doe}
Biography text here.
\end{IEEEbiographynophoto}

% insert where needed to balance the two columns on the last page with
% biographies
%\newpage

\begin{IEEEbiographynophoto}{Jane Doe}
Biography text here.
\end{IEEEbiographynophoto}

\end{document}

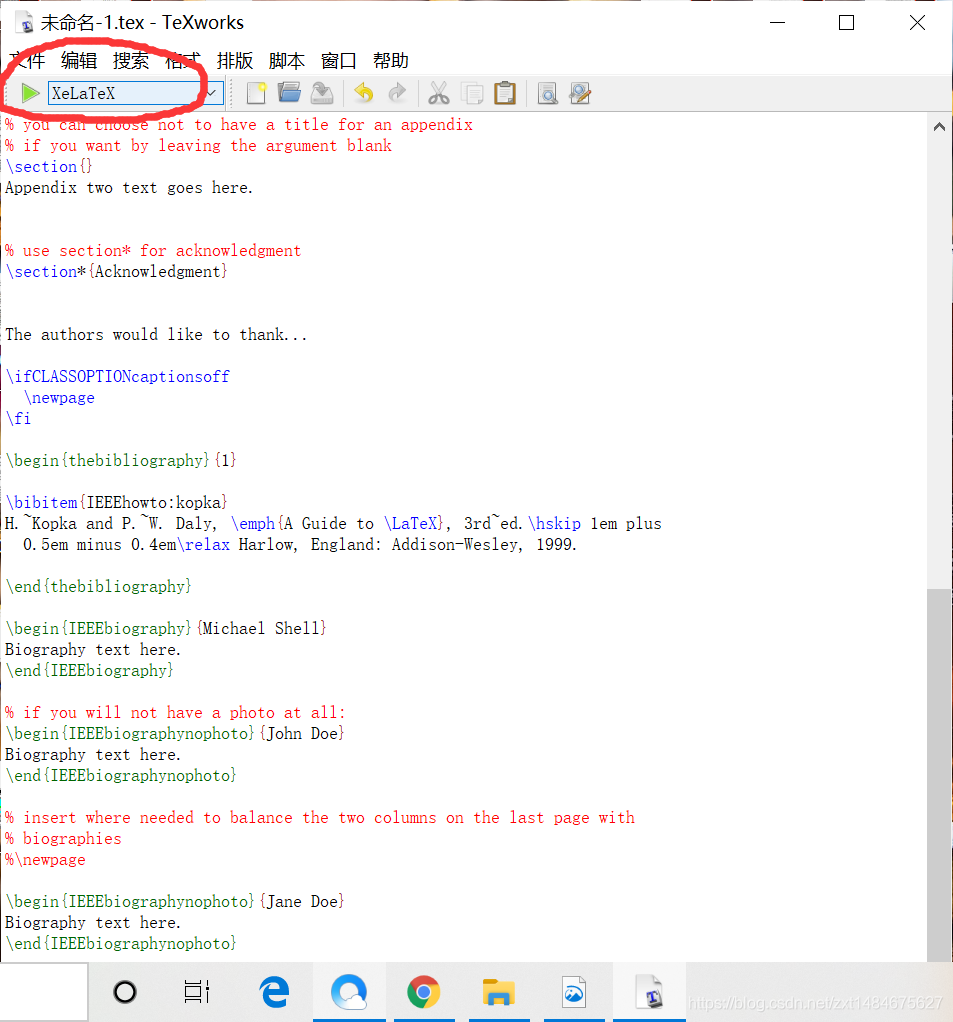

2.然后选择：XeLaTex，点击左边的小绿色三角按钮，就出现了编译后的结果。

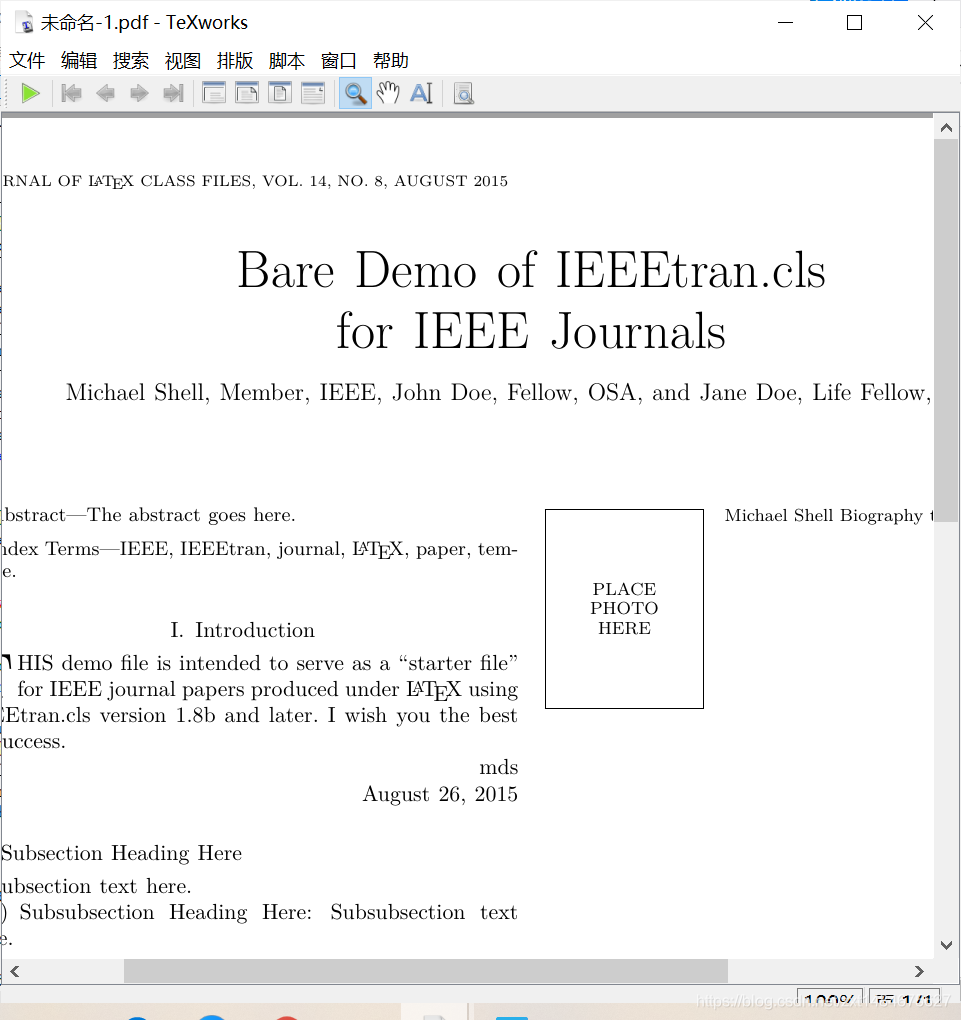

3.编译完成，成功获得PDF文件。
