本文指导如何在龙蜥OS7.9环境下安装DataEasev1.18.18，并配置Zabbix6.0，包括软件包管理、安装脚本执行、WebUI登录、Zabbix数据源设置、仪表盘创建、数据集和告警统计等步骤。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

1、环境介绍
操作系统：龙蜥os 7.9
软件：dataease v1.18.18
zabbix： 6.0

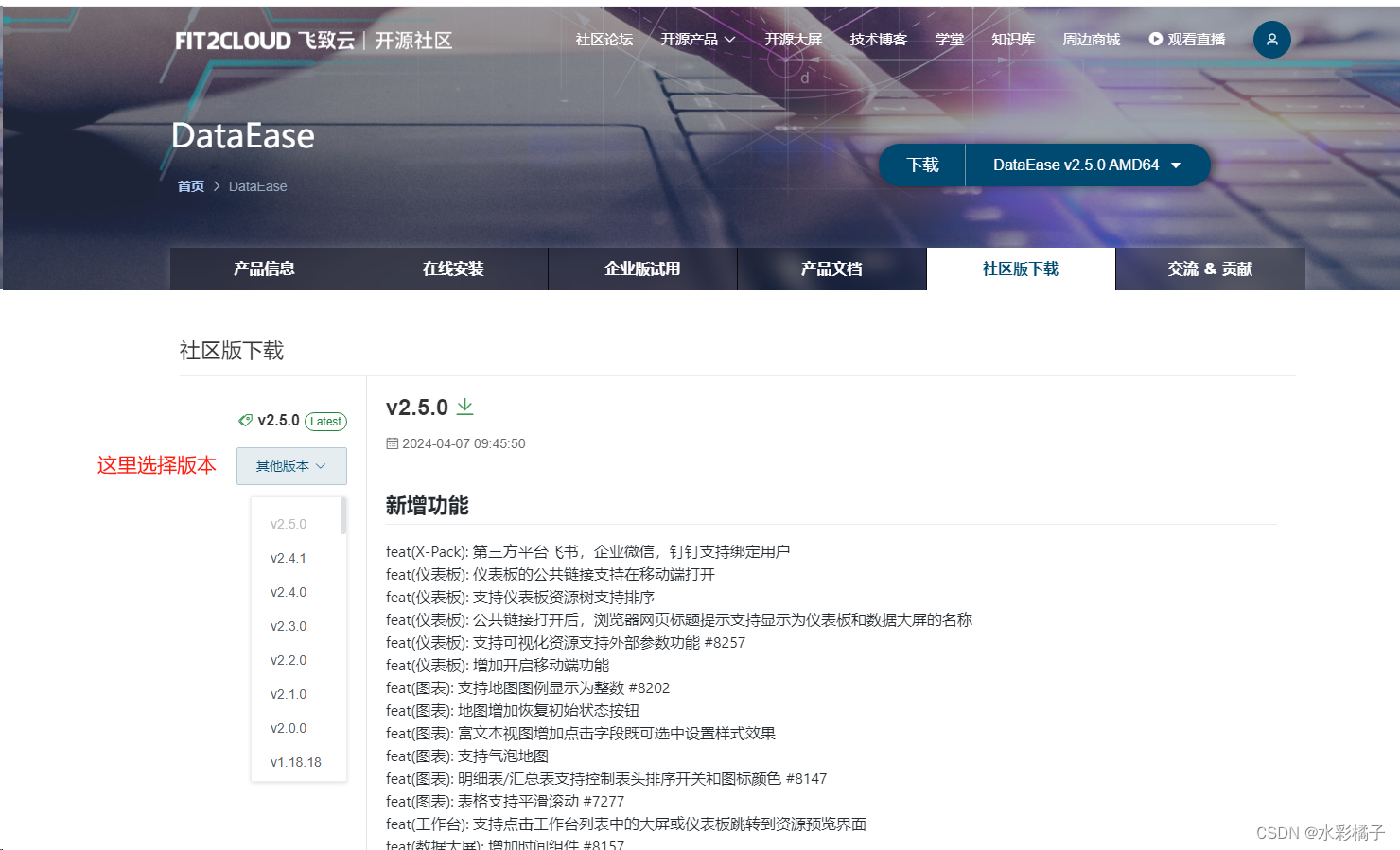

2、软件下载
https://community.fit2cloud.com/#/products/dataease/downloads
在这里插入图片描述

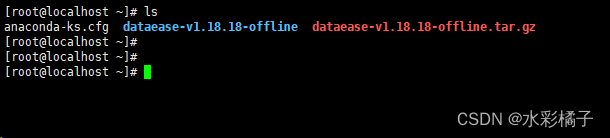

3、将软件包上传到服务器并解压缩

tar -xvf dataease-v1.18.18-offline.tar.gz

在这里插入图片描述
4、修改安装配置

根据自己需求修改配置

5、执行安装脚本
在这里插入图片描述

sh install.sh

在这里插入图片描述

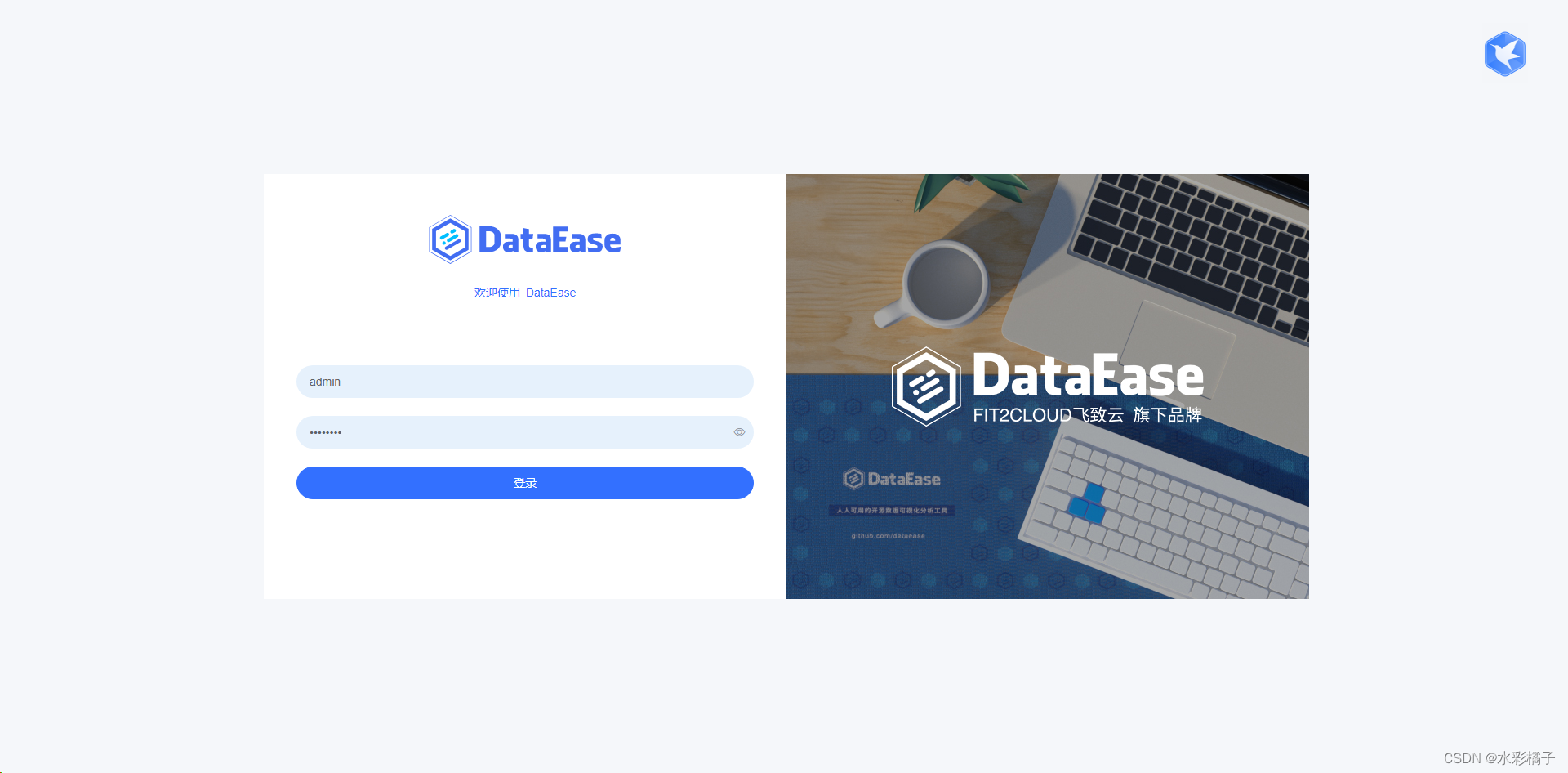

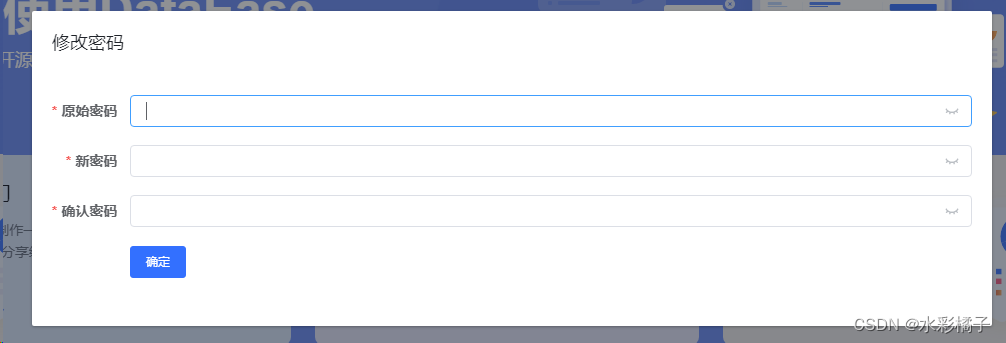

6、登录web ui并修改登录密码
注意：上一步安装成功后会输出默认用户名密码admin dataease

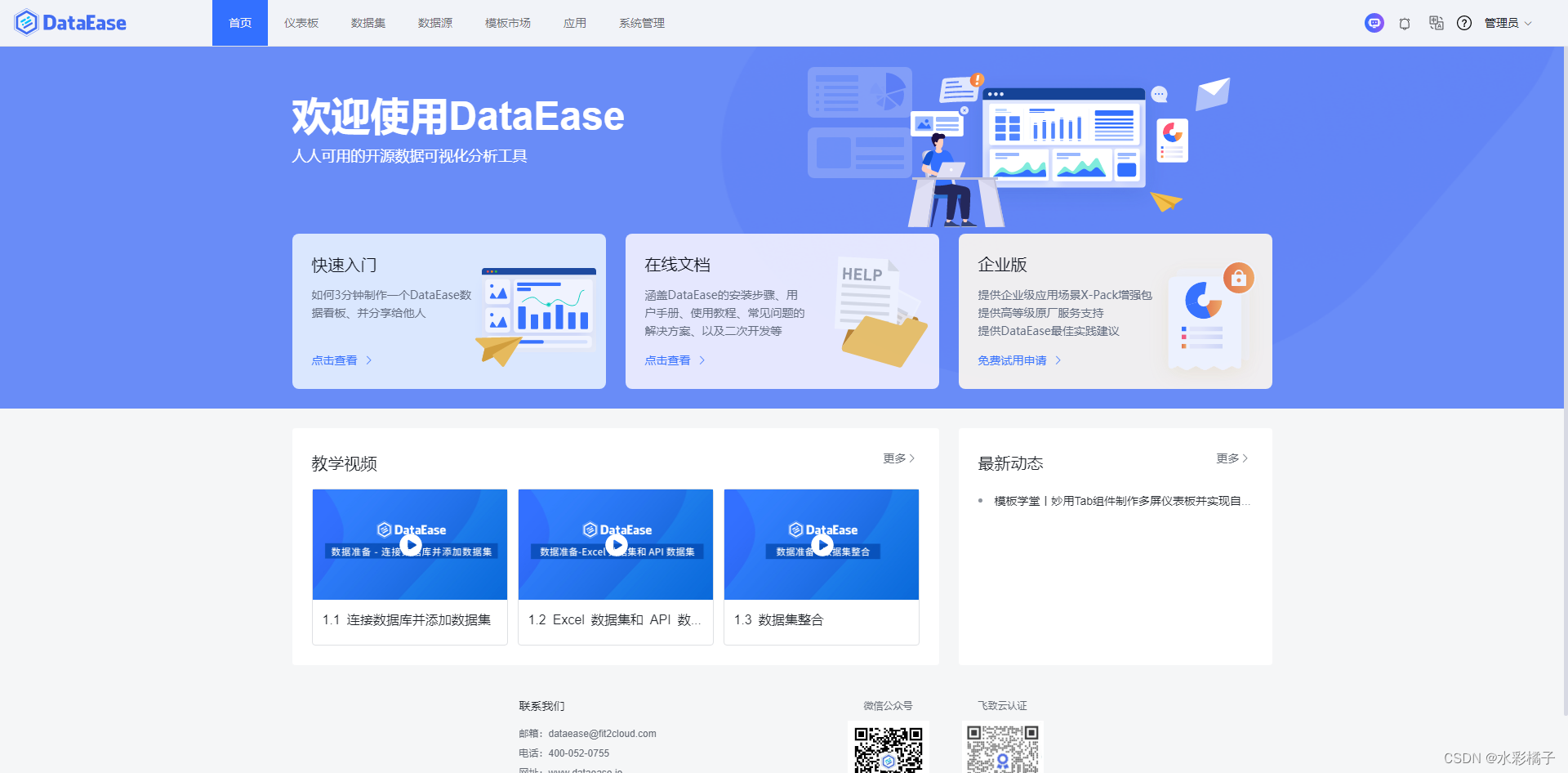

登录成功后这样（这是1.0版本，2.0版本整洁比较，但是模版不如1.0版本多）

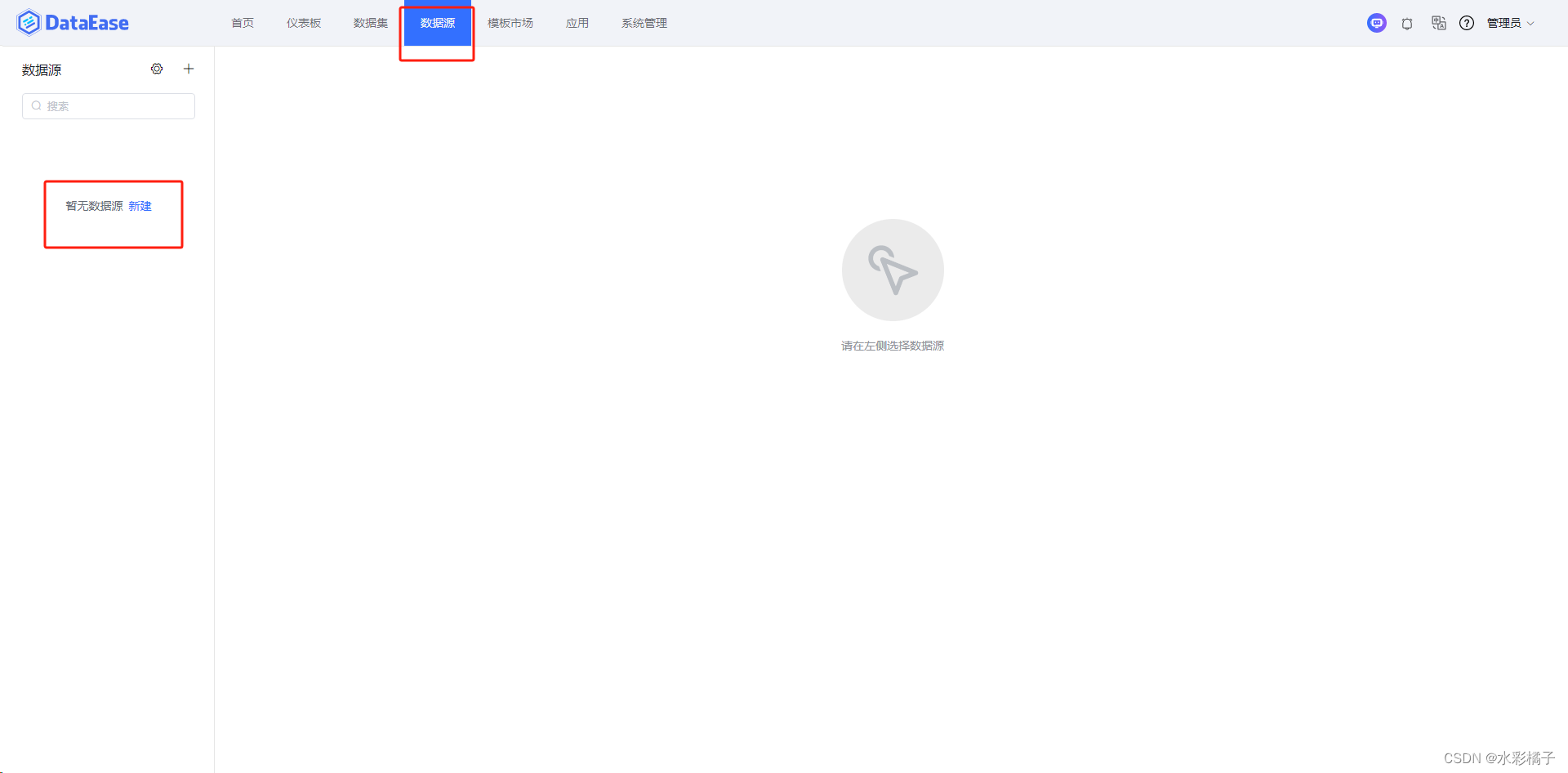

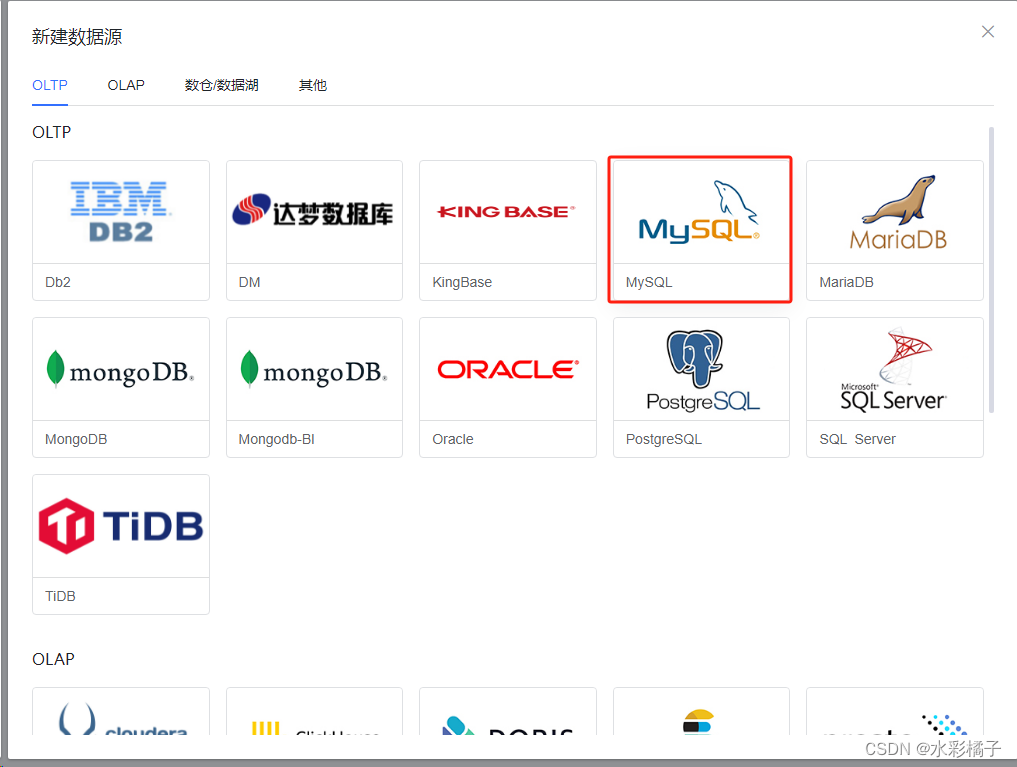

7、添加zabbix数据源（以下数据源、模版、官方展示数据屏全部删除了）
在这里插入图片描述
这里根据自己的zabbix 数据库版本选择，我这里是mysql

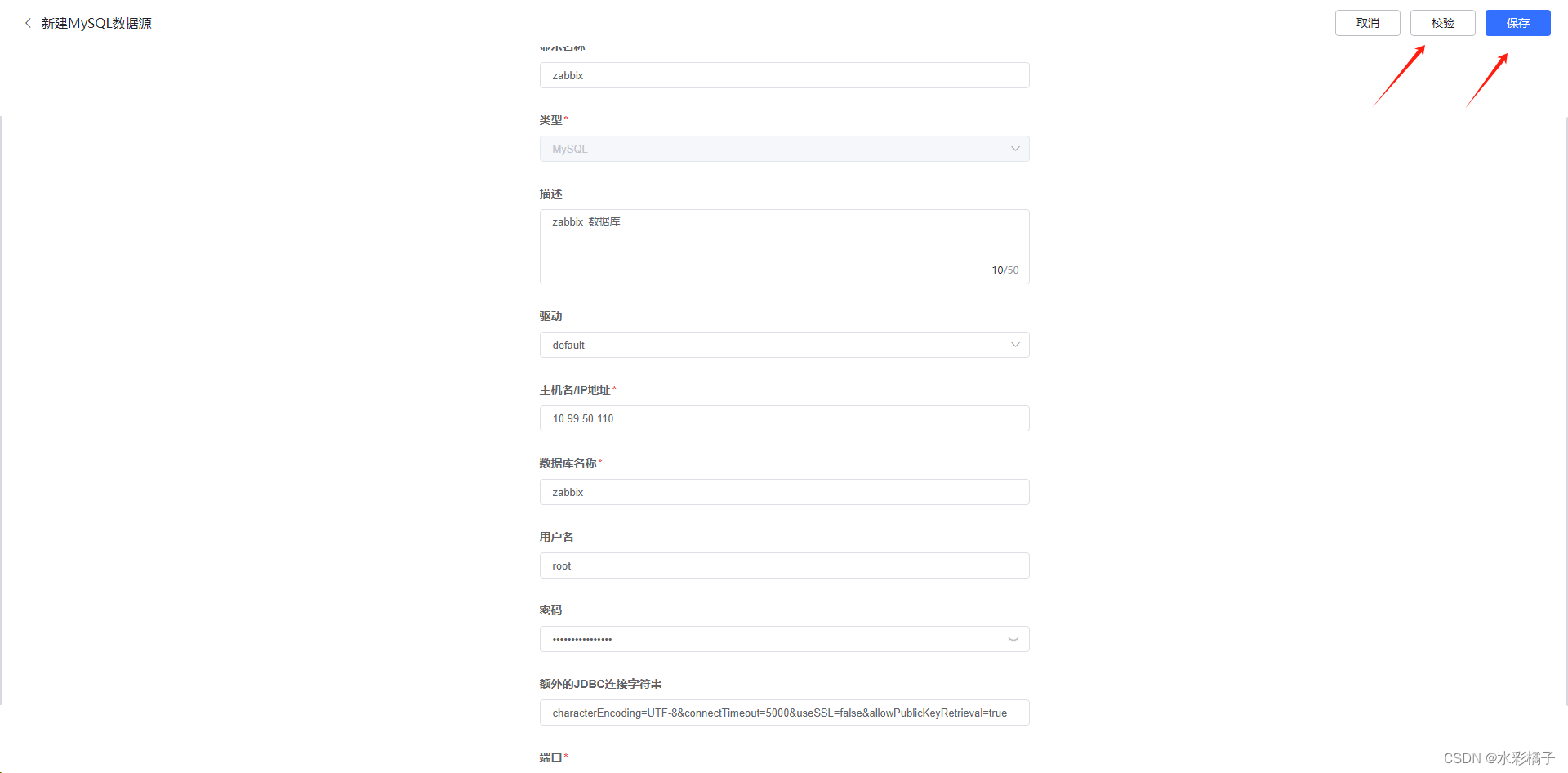

填写数据库信息，验证成功后保存

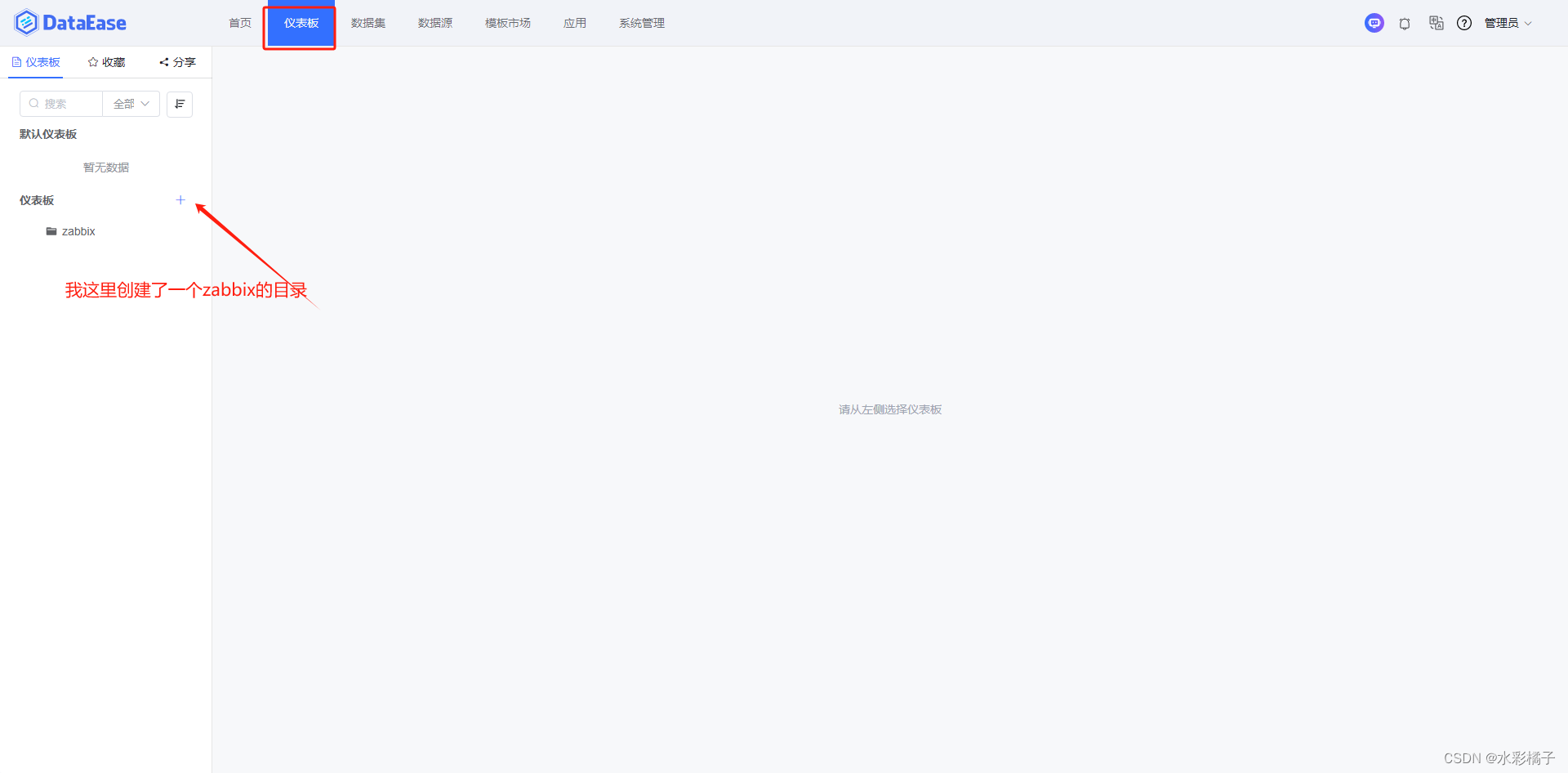

8、创建zabbix仪表盘目录

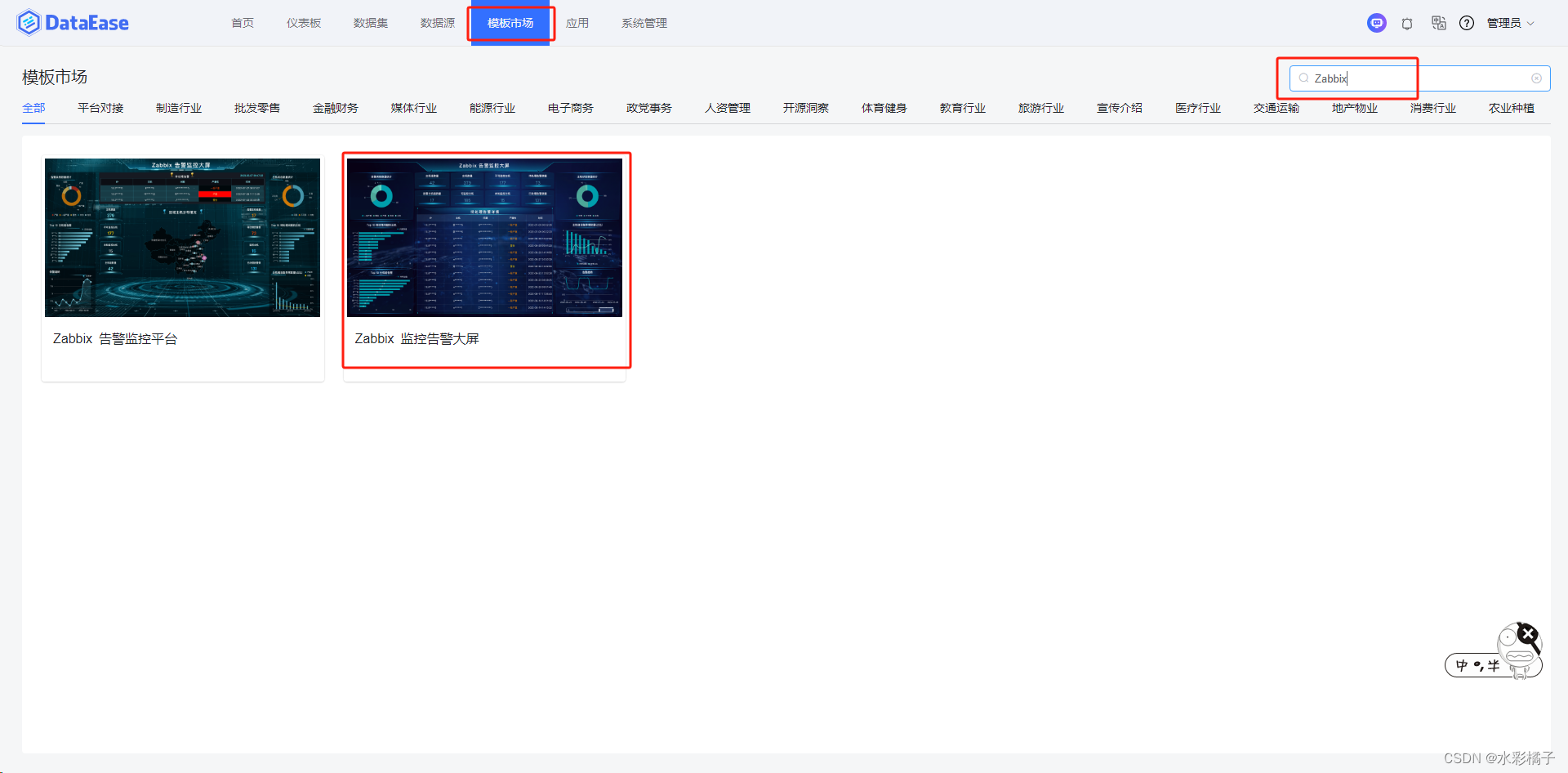

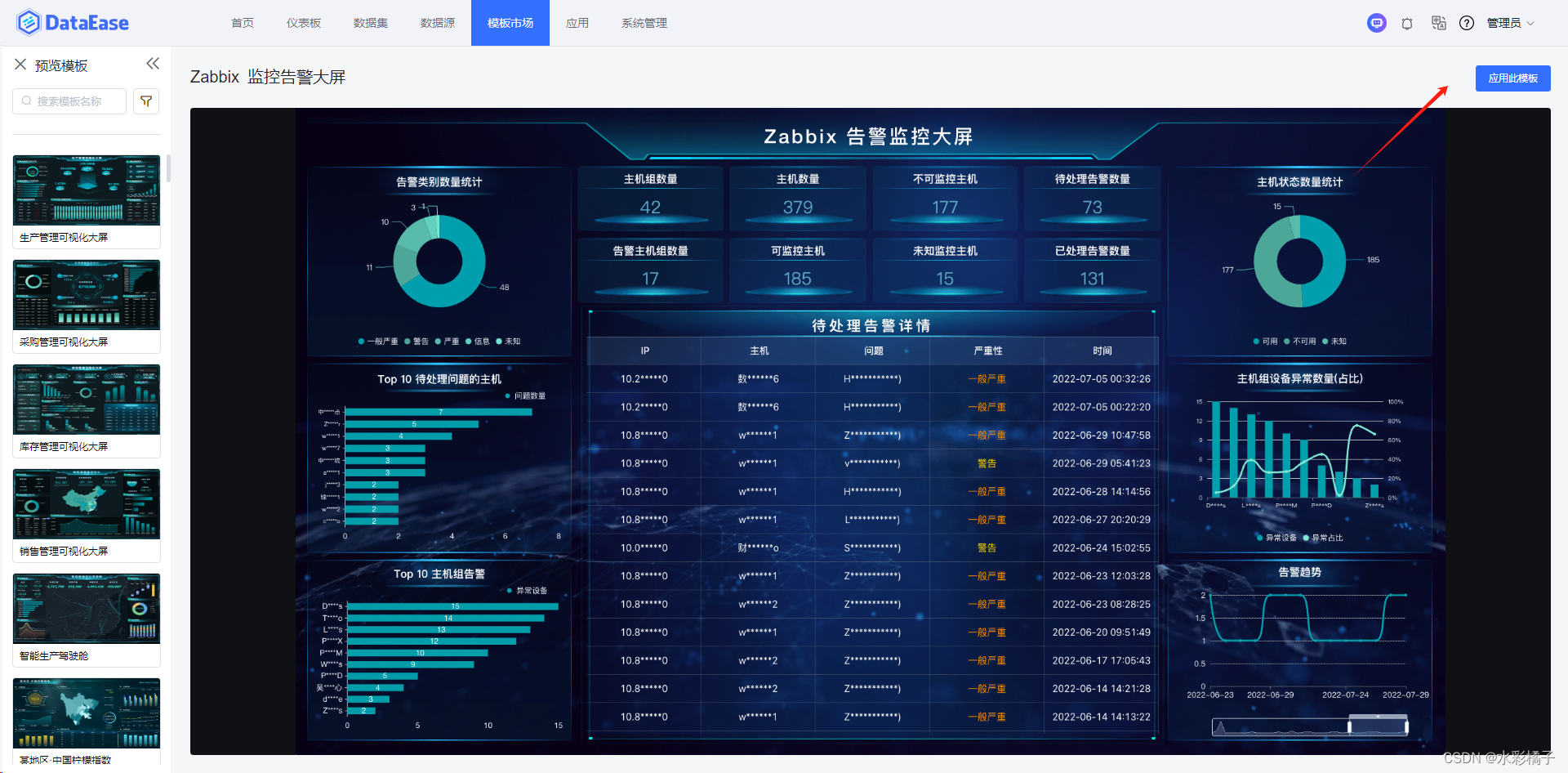

9、选择zabbix模版
在这里插入图片描述

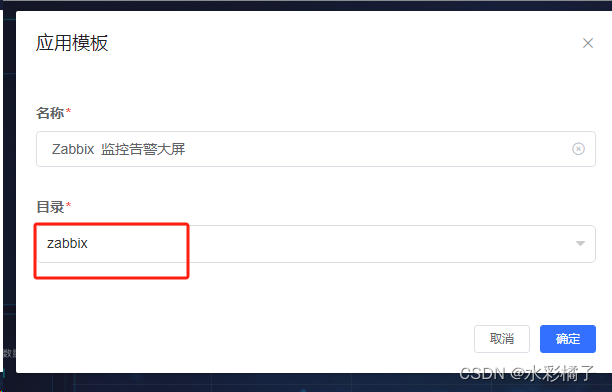

选择上一步建立的目录zabbix

10、创建数据集（这里只写一个示例，最后我将记录全部使用的数据集，sql如果有出入自行修改，没啥字段说明，只能自己看数据库）

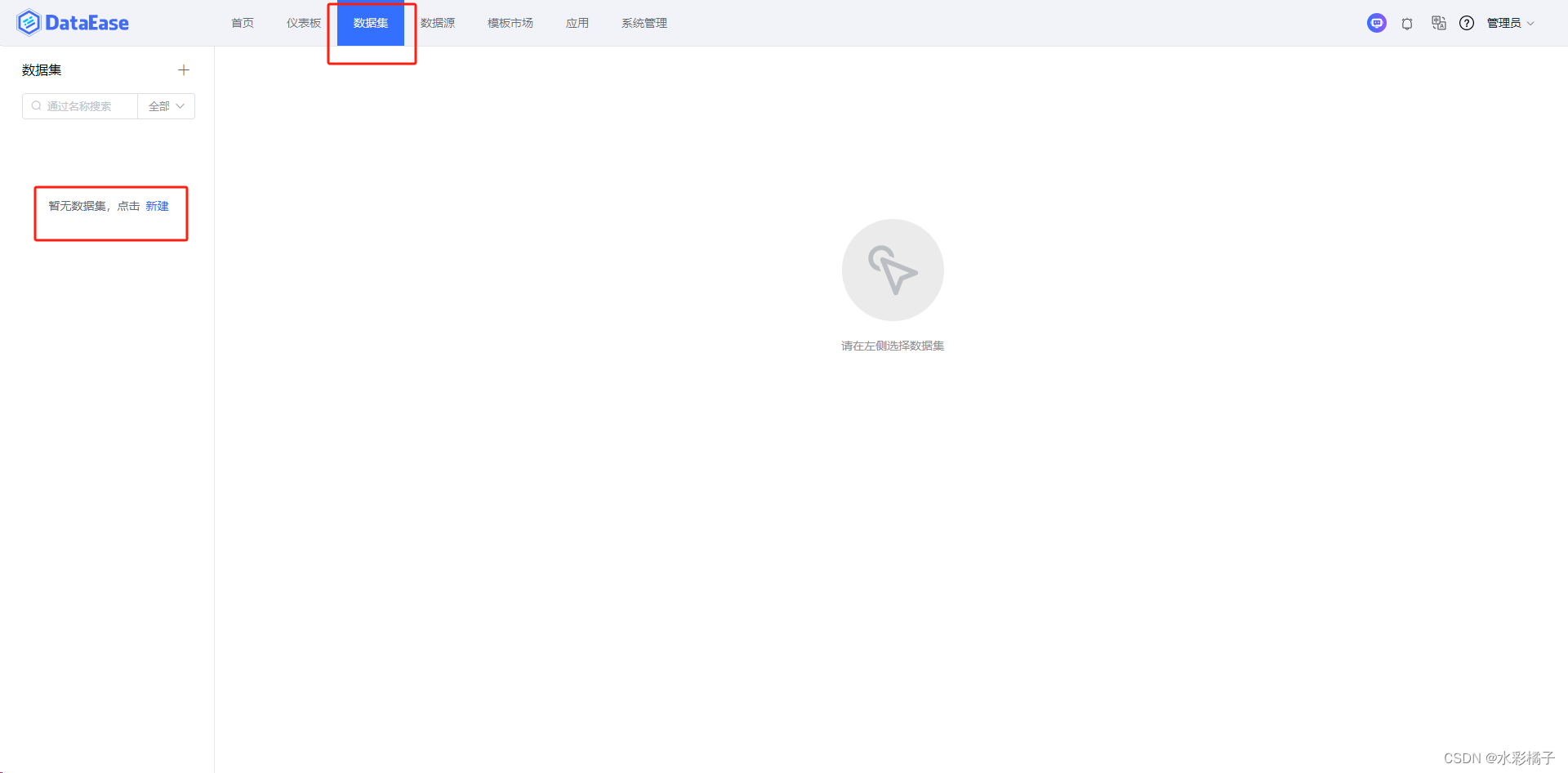

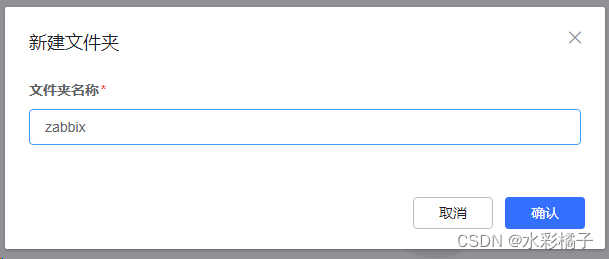

提示建立一个文件夹

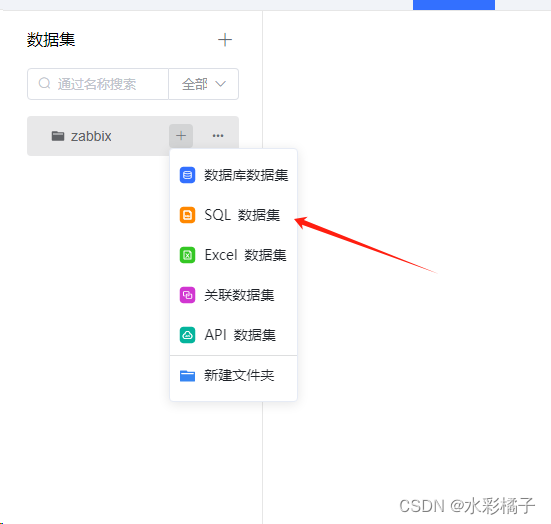

点加号建立数据集，这里选择sql
在这里插入图片描述

SELECT
    CASE
        WHEN p.severity = '0' THEN '未分类'
        WHEN p.severity = '1' THEN '信息'
        WHEN p.severity = '2' THEN '警告'
        WHEN p.severity = '3' THEN '一般严重'
        WHEN p.severity = '4' THEN '严重'
        WHEN p.severity = '5' THEN '灾难级'
    END AS severity_name,
    COUNT(*) AS num
FROM problem p
JOIN (
    SELECT triggerid, MIN(itemid) AS itemid
    FROM functions
    GROUP BY triggerid
) f ON p.objectid=f.triggerid
JOIN items i ON f.itemid=i.itemid
JOIN hosts h ON i.hostid=h.hostid
LEFT JOIN interface inf ON inf.hostid=h.hostid AND inf.main=1
WHERE p.r_clock=0
  AND h.status IN (0,1)
  AND i.status=0
  AND (inf.ip IS NULL OR inf.ip <> '127.0.0.1')
GROUP BY
    CASE
        WHEN p.severity = '0' THEN '未分类'
        WHEN p.severity = '1' THEN '信息'
        WHEN p.severity = '2' THEN '警告'
        WHEN p.severity = '3' THEN '一般严重'
        WHEN p.severity = '4' THEN '严重'
        WHEN p.severity = '5' THEN '灾难级'
    END,
    p.severity
ORDER BY CAST(p.severity AS SIGNED) DESC;

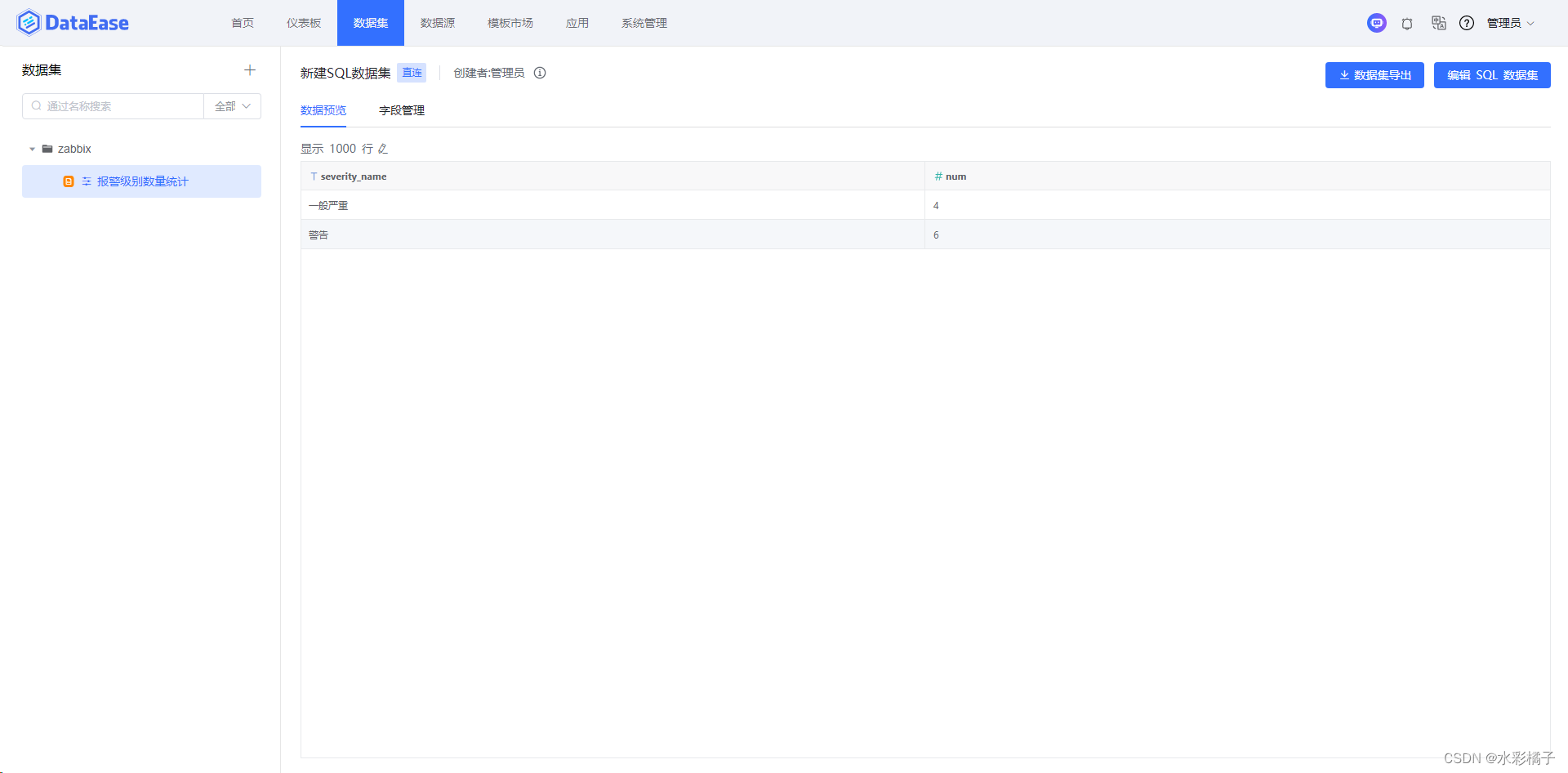

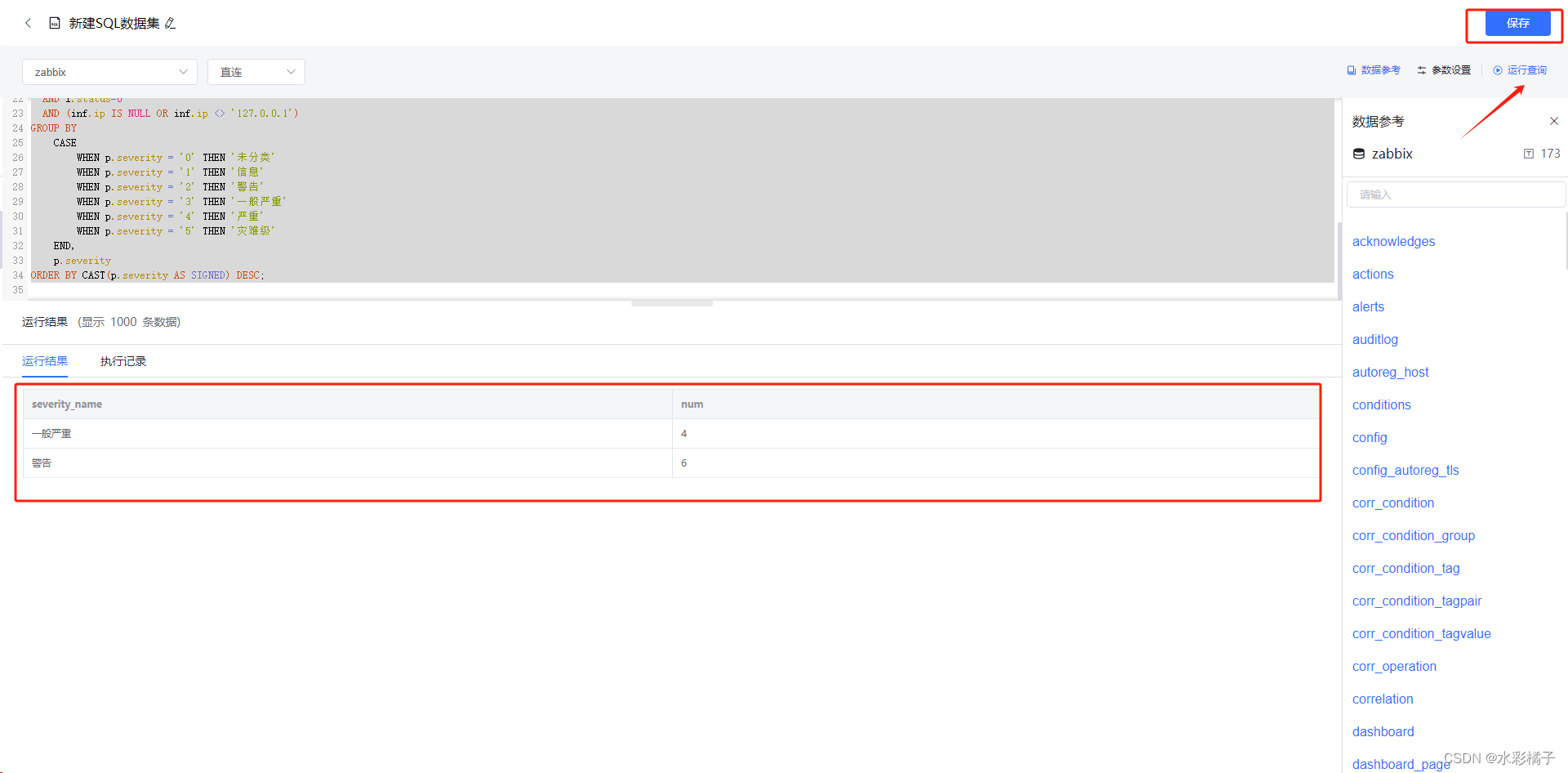

点击运行检查成功出数据后，保存
在这里插入图片描述

11、将数据集应用到模版

在这里插入图片描述

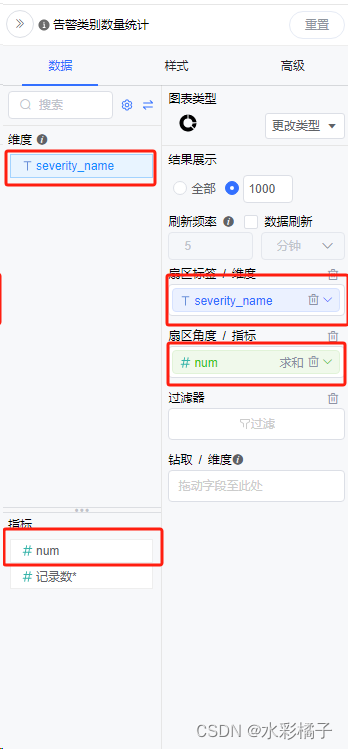

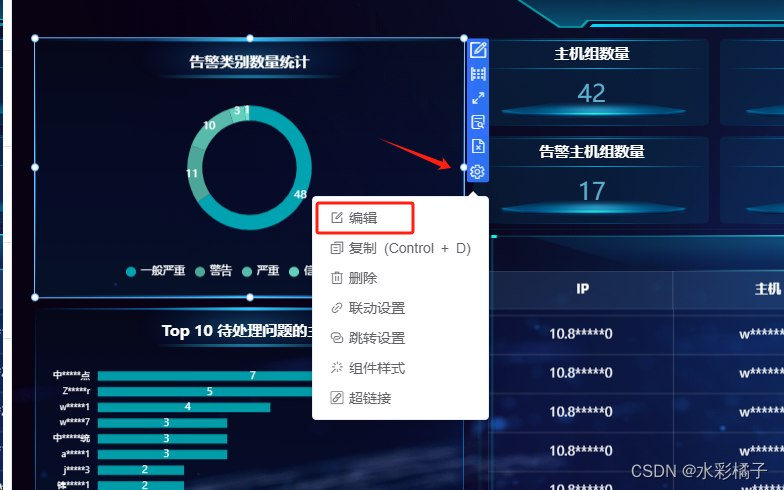

点击更换数据集，拖动数据到维度和指标（维度就是表头，指标就是数，如果维度和指标不对就在数据集中更改，或者转换）

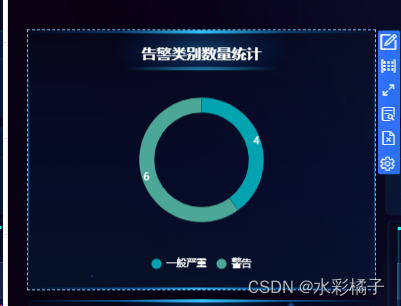

填好后这里数据就变了这就是一个区域弄好了，按照这个思路完善其他区域即可（如有需求这里可以编辑图标的样式）
在这里插入图片描述
12、补充数据集（自行调整，有不对的欢迎留言）
主机组数量统计

SELECT COUNT(*) as 主机组数量
FROM hstgrp;

主机数量统计

SELECT
    COUNT(DISTINCT h.hostid) AS 主机数量
FROM
    hstgrp hg
JOIN
    hosts_groups hgh ON hg.groupid = hgh.groupid
JOIN
    hosts h ON hgh.hostid = h.hostid
WHERE
    h.status = 0;

可监控主机数量统计

SELECT
    COUNT(DISTINCT h.hostid) AS 可监控主机
FROM
    hstgrp hg
JOIN
    hosts_groups hgh ON hg.groupid = hgh.groupid
JOIN
    hosts h ON hgh.hostid = h.hostid
JOIN
    interface i ON h.hostid = i.hostid
WHERE
    h.status = 0
    AND i.available = 1;

不可监控主机数量统计

SELECT
    COUNT(DISTINCT h.hostid) AS 不可监控主机
FROM
    hstgrp hg
JOIN
    hosts_groups hgh ON hg.groupid = hgh.groupid
JOIN
    hosts h ON hgh.hostid = h.hostid
JOIN
    interface i ON h.hostid = i.hostid
WHERE
    h.status = 0
    AND i.available = 2;

未知监控主机数量统计

SELECT
    COUNT(DISTINCT h.hostid) AS 未知监控主机
FROM
    hstgrp hg
JOIN
    hosts_groups hgh ON hg.groupid = hgh.groupid
JOIN
    hosts h ON hgh.hostid = h.hostid
JOIN
    interface i ON h.hostid = i.hostid
WHERE
    h.status = 0
    AND i.available = 0;

告警主机数量统计

SELECT
    COUNT(DISTINCT h.hostid) AS 告警主机数量
FROM
    triggers t
JOIN
    problem p ON t.triggerid = p.objectid
JOIN
    functions f ON t.triggerid = f.triggerid
JOIN
    items it ON f.itemid = it.itemid
JOIN
    hosts h ON it.hostid = h.hostid
WHERE
    p.r_eventid IS NULL
    AND h.status = 0;

待处理警告数量统计

SELECT COUNT(DISTINCT p.eventid) AS 待处理警告数
FROM problem p
JOIN triggers t ON p.objectid = t.triggerid
JOIN functions f ON t.triggerid = f.triggerid
JOIN items i ON f.itemid = i.itemid
JOIN hosts h ON i.hostid = h.hostid
WHERE p.r_eventid IS NULL
AND p.acknowledged = 0;

已处理警告数量统计

SELECT COUNT(*) AS 已处理警告数量
FROM (
    SELECT eventid
    FROM problem
    WHERE acknowledged = 1
    UNION ALL
    SELECT eventid
    FROM events
    WHERE severity = 0
) AS resolved_warnings;

主机状态数量统计

SELECT
    '可监控主机' AS 主机状态,
    COUNT(DISTINCT CASE WHEN i.available = 1 THEN h.hostid END) AS 数量
FROM
    hstgrp hg
JOIN
    hosts_groups hgh ON hg.groupid = hgh.groupid
JOIN
    hosts h ON hgh.hostid = h.hostid
JOIN
    interface i ON h.hostid = i.hostid
WHERE
    h.status = 0

UNION ALL

SELECT
    '不可监控主机' AS 主机状态,
    COUNT(DISTINCT CASE WHEN i.available = 2 THEN h.hostid END) AS 数量
FROM
    hstgrp hg
JOIN
    hosts_groups hgh ON hg.groupid = hgh.groupid
JOIN
    hosts h ON hgh.hostid = h.hostid
JOIN
    interface i ON h.hostid = i.hostid
WHERE
    h.status = 0

UNION ALL

SELECT
    '未知监控主机' AS 主机状态,
    COUNT(DISTINCT CASE WHEN i.available = 0 THEN h.hostid END) AS 数量
FROM
    hstgrp hg
JOIN
    hosts_groups hgh ON hg.groupid = hgh.groupid
JOIN
    hosts h ON hgh.hostid = h.hostid
JOIN
    interface i ON h.hostid = i.hostid
WHERE
    h.status = 0;

top 10 待处理问题数

SELECT
    h.name AS 主机名称,
    COUNT(p.eventid) AS 问题数
FROM
    problem p
LEFT JOIN (
    SELECT
        s1.triggerid,
        (
            SELECT
                s2.itemid
            FROM
                functions s2
            WHERE
                s2.triggerid = s1.triggerid
            LIMIT 1
        ) AS itemid
    FROM
        functions s1
    GROUP BY
        s1.triggerid
) AS f ON f.triggerid = p.objectid
LEFT JOIN `items` AS i ON i.itemid = f.itemid
LEFT JOIN `hosts` AS h ON h.hostid = i.hostid
LEFT JOIN `interface` AS inf ON inf.hostid = h.hostid
WHERE
    p.r_eventid IS NULL
    AND h.status = 0
    AND i.status = 0
GROUP BY
    h.hostid, h.host
ORDER BY
    问题数 DESC
LIMIT 10;

top 10 主机组告警数

SELECT
    total_problems.主机组名,
    SUM(total_problems.num_problems) AS 问题数
FROM (
    SELECT
        hs.NAME AS 主机组名,
        COUNT(DISTINCT p.eventid) AS num_problems
    FROM
        problem p
    LEFT JOIN (
        SELECT
            s1.triggerid,
            (
                SELECT
                    s2.itemid
                FROM
                    functions s2
                WHERE
                    s2.triggerid = s1.triggerid
                LIMIT 1
            ) AS itemid
        FROM
            functions s1
        GROUP BY
            s1.triggerid
    ) AS f ON f.triggerid = p.objectid
    LEFT JOIN `items` AS i ON i.itemid = f.itemid
    LEFT JOIN `hosts` AS h ON h.hostid = i.hostid
    LEFT JOIN hosts_groups AS hg ON hg.hostid = h.hostid
    LEFT JOIN hstgrp AS hs ON hs.groupid = hg.groupid
    WHERE
        ISNULL(p.r_eventid)
        AND h.STATUS = 0
        AND i.`status` = 0
    GROUP BY
        hs.NAME
) AS total_problems
GROUP BY
    total_problems.主机组名
ORDER BY
    问题数 DESC
LIMIT 10;

主机组异常设备占比

SELECT
    hg.groupid AS '组ID',
    COALESCE(hs.name, '无') AS '组名',
    COUNT(DISTINCT CASE WHEN p.eventid IS NOT NULL THEN h.hostid END) AS '异常主机数量',
    COUNT(DISTINCT h.hostid) AS '总主机数量',
    CONCAT(ROUND(COUNT(DISTINCT CASE WHEN p.eventid IS NOT NULL THEN h.hostid END) / COUNT(DISTINCT h.hostid) * 100, 2), '%') AS '异常主机占比'
FROM
    hosts_groups hg
LEFT JOIN hosts h ON hg.hostid = h.hostid
LEFT JOIN hstgrp hs ON hg.groupid = hs.groupid
LEFT JOIN (
    SELECT
        i.hostid,
        p.eventid
    FROM
        problem p
    JOIN functions f ON p.objectid = f.triggerid
    JOIN items i ON f.itemid = i.itemid
    WHERE
        p.r_eventid IS NULL
) AS p ON h.hostid = p.hostid
WHERE
    h.status = 0
GROUP BY
    hg.groupid, hs.name
ORDER BY
    hg.groupid;

告警信息详细

SELECT DISTINCT
    e.clock,
    FROM_UNIXTIME(e.clock) AS '告警时间',
    e.name AS '告警名称',
    e.severity AS '严重程度',
    CASE e.severity
        WHEN '0' THEN '未定义'
        WHEN '1' THEN '信息'
        WHEN '2' THEN '警告'
        WHEN '3' THEN '一般严重'
        WHEN '4' THEN '严重'
        WHEN '5' THEN '灾难'
        ELSE '未知'
    END AS '严重程度名称',
    h.host AS '主机名',
    h.name_upper AS '主机名显示',
    i.ip AS 'IP地址'
FROM
    events e
LEFT JOIN
    triggers t ON e.objectid = t.triggerid
LEFT JOIN
    functions f ON t.triggerid = f.triggerid
LEFT JOIN
    items it ON f.itemid = it.itemid
LEFT JOIN
    hosts h ON it.hostid = h.hostid
LEFT JOIN
    interface i ON h.hostid = i.hostid
WHERE
    e.source = 0
    AND e.value = 1
ORDER BY
    e.clock DESC;

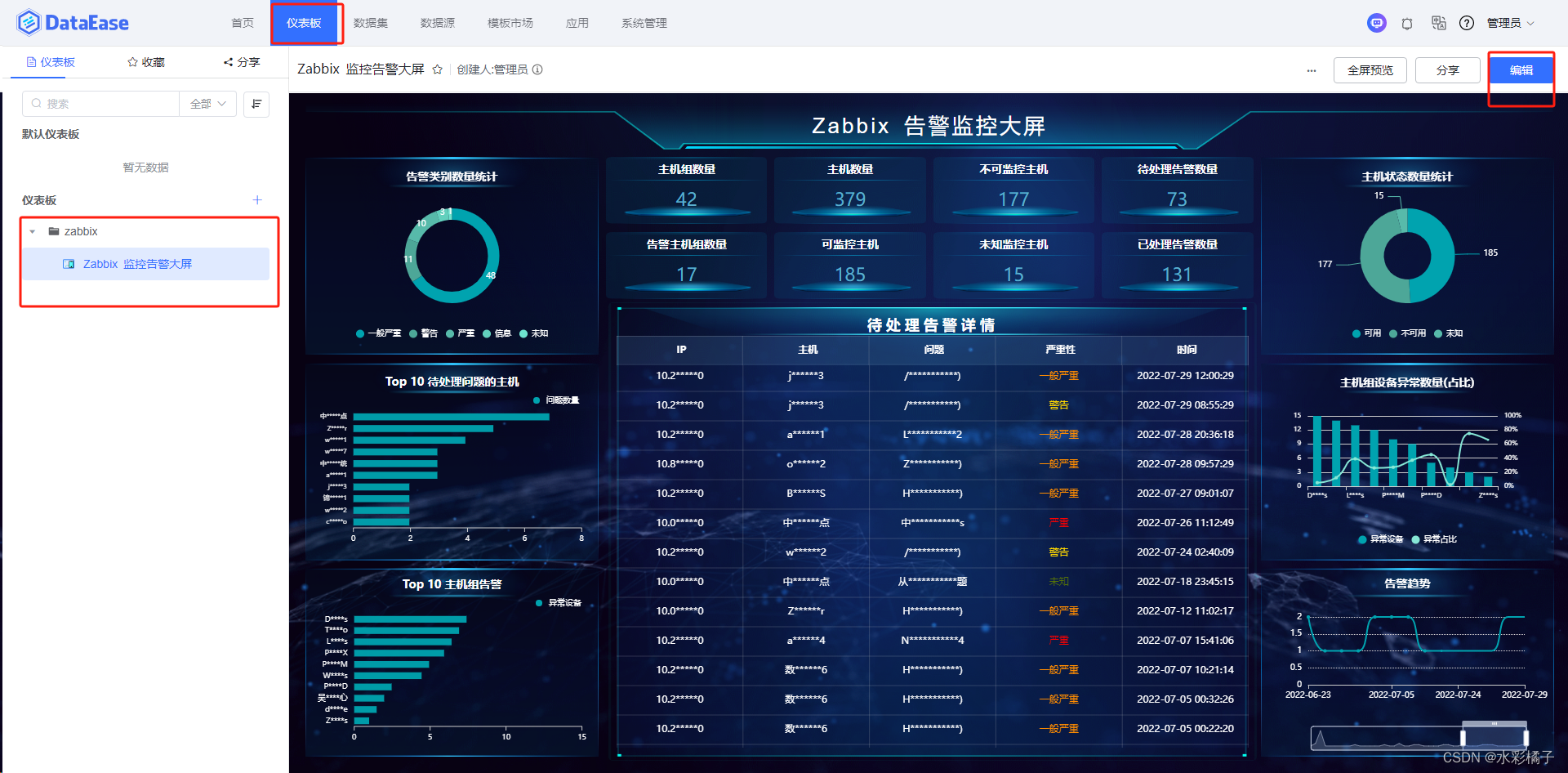

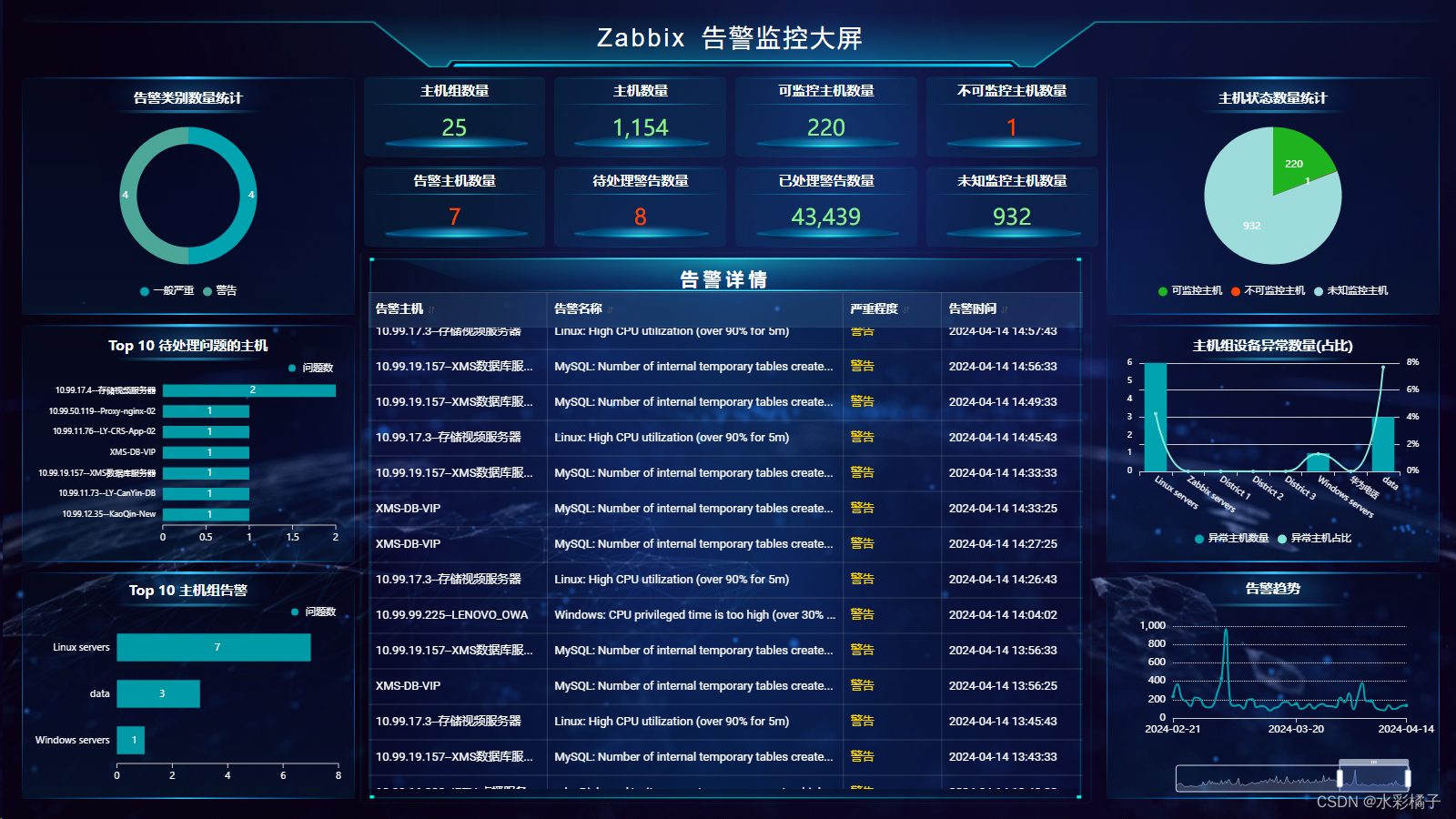

最终效果
在这里插入图片描述
