Android_异步加载2

原创 2016年06月03日 15:50:18


         接着这篇博客写http://blog.csdn.net/two_water/article/details/51477206

        异步加载1这篇博客在最后暴露出了一个问题,就是只在ListView的最后一个Item的ImageView刷新图片,解决问题的方案也提出来了,需要让url和对应的ImageView进行下配对!

ImageLoader的代码把showImageByThread方法里面的判断是否有缓存图片的代码注释了,改到在Adapter那里进行判断,判断是否有缓存图片,如果有显示缓存的图片,如果没有就先显示默认加载的图片,然后再去加载网络图片,并添加缓存!

package com.liangdianshui.asynchronouslyload;

import android.content.Context;
import android.graphics.Bitmap;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.TextView;

import java.util.List;

/**
 * Created by 两点水 on 2016/5/12.
 */
public class MyAdapter extends BaseAdapter {

	private Context context;
	private List<DataBean> list;
	private ViewHolder mHolder;
	private ImageLoader mImaeLoader;

	public MyAdapter(Context context, List<DataBean> list) {
		this.context = context;
		this.list = list;
		mImaeLoader = new ImageLoader();  //因为创建了缓存空间,所以放在构造方法,只创建一次
	}

	@Override
	public int getCount() {
		return list.size();
	}

	@Override
	public Object getItem(int position) {
		return list.get(position);
	}

	@Override
	public long getItemId(int position) {
		return position;
	}

	@Override
	public View getView(int position, View convertView, ViewGroup parent) {
		if (convertView == null) {
			convertView = LayoutInflater.from(context).inflate(R.layout.item_layout, null);
			mHolder = new ViewHolder();
			mHolder.tvTitle = (TextView) convertView.findViewById(R.id.tv_title);
			mHolder.tvContent = (TextView) convertView.findViewById(R.id.tv_content);
			mHolder.ivIcon = (ImageView) convertView.findViewById(R.id.iv_icon);
			convertView.setTag(mHolder);
		} else {
			mHolder = (ViewHolder) convertView.getTag();
		}
//		mHolder.ivIcon.setImageResource(R.mipmap.ic_launcher);//默认加载的图片
		String url = list.get(position).getDataIconUrl();
		mHolder.ivIcon.setTag(url);//为防止listview显示的图片错乱,重复,闪烁
//		new ImageLoader().showImageByThread(mHolder.ivIcon, url);
		Bitmap bitmapFromCache = mImaeLoader.getBitmapFromCache(url);
		if (bitmapFromCache != null) {
			mHolder.ivIcon.setImageBitmap(bitmapFromCache);
		}else{
			mHolder.ivIcon.setImageResource(R.mipmap.ic_launcher);
			mImaeLoader.showImageByThread(mHolder.ivIcon, url);
		}
		mHolder.tvTitle.setText(list.get(position).getDataTitle());
		mHolder.tvContent.setText(list.get(position).getDataContent());
		return convertView;
	}

	class ViewHolder {
		private TextView tvTitle;
		private TextView tvContent;
		private ImageView ivIcon;
	}
}
ImageLoader的代码:

package com.liangdianshui.asynchronouslyload;

import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.os.Handler;
import android.os.Message;
import android.util.LruCache;
import android.widget.ImageView;

import java.io.BufferedInputStream;
import java.io.IOException;
import java.io.InputStream;
import java.net.HttpURLConnection;
import java.net.MalformedURLException;
import java.net.URL;

/**
 * Created by 两点水 on 2016/5/22.
 */
public class ImageLoader {

	private ImageView mImageView;
	private String mUrl;
	private final int URL_BITMAP = 0;
	private LruCache<String, Bitmap> mCache;   //使用Lru缓存(使用的Lru算法:近期最少使用算法)

	/**
	 * 使用缓存肯定要先声明缓存空间,因此在构造方法中声明缓存空间
	 */
	public ImageLoader() {
		//获取程序最大使用的内存
		int maxMemory = (int) Runtime.getRuntime().maxMemory();
		int cacheSize = maxMemory / 4;  //缓存大小为最大缓存的四分之一
		//创建缓存,把缓存大小传进去
		mCache = new LruCache<String, Bitmap>(cacheSize) {
			@Override
			protected int sizeOf(String key, Bitmap value) {
				//每次存入缓存的时候都会调用这个方法,因此我们把图片的大小放进去
				return value.getByteCount();
			}
		};
	}

	/**
	 * 把图片加入到缓存
	 *
	 * @param url
	 * @param bitmap
	 */
	public void addBitmapToCache(String url, Bitmap bitmap) {
		//LruCache好比是一个map,采用键值对的形式去保存图片
		if (getBitmapFromCache(url) == null) {
			//如果缓存中没有这个Bitmap,就把bitmap放进缓存
			mCache.put(url, bitmap);
		}
	}

	/**
	 * 从缓存中获取图片
	 *
	 * @param url
	 */
	public Bitmap getBitmapFromCache(String url) {
		return mCache.get(url); //根据url获取图片
	}

	Handler mHandler = new Handler() {

		@Override
		public void handleMessage(Message msg) {
			super.handleMessage(msg);
			switch (msg.what) {
				case URL_BITMAP:
//					if (mImageView.getTag().equals(mUrl)) {
//						mImageView.setImageBitmap((Bitmap) msg.obj);
//					}
					//因为传过来的对象更改了,这里也要跟着更改
					ImgHolder holder = (ImgHolder) msg.obj;
					if (holder.imageView.getTag().equals(holder.url)) {
						holder.imageView.setImageBitmap(holder.bitmap);
					}
					break;
			}
		}
	};


	/**
	 * 多线程加载图片(Thread+Handler)
	 * 根据url获取的itmap显示在ImageView中
	 *
	 * @param imageView
	 * @param url
	 */
	public void showImageByThread(final ImageView imageView, final String url) {
		mImageView = imageView;
		mUrl = url;

		//从缓存中取出图片
//		Bitmap bitmap = getBitmapFromCache(url);
		//判断缓存中是否含有这张图片,没有的话去网络下载图片
//		if (bitmap == null) {
			new Thread(new Runnable() {
				@Override
				public void run() {
					Bitmap bitmap = getBitmapFromURL(url);
					//把下载下来的图片加到缓存中
					if (bitmap != null) {
						addBitmapToCache(url, bitmap);
					}
					Message message = new Message();
//					message.obj = bitmap;
					//为了保证ImageView与这时候传递过来的图像一一对应的关系
					message.obj = new ImgHolder(imageView, bitmap, url);
					message.what = URL_BITMAP;
					mHandler.sendMessage(message);
				}
			}).start();  //记得start();
//		} else {
//			Message message = new Message();
//			message.obj = bitmap;
			//为了保证ImageView与这时候传递过来的图像一一对应的关系
//			message.obj = new ImgHolder(imageView, bitmap, url);
//			message.what = URL_BITMAP;
//			mHandler.sendMessage(message);
//		}
	}

	/**
	 * 根据rul获取bitmap
	 *
	 * @param url
	 * @return
	 */

	private Bitmap getBitmapFromURL(String url) {
		InputStream inputStream = null;
		try {
			URL urlBitmap = new URL(url);
			HttpURLConnection urlConnection = (HttpURLConnection) urlBitmap.openConnection();
			inputStream = new BufferedInputStream(urlConnection.getInputStream());
			Bitmap bitmap = BitmapFactory.decodeStream(inputStream);
			Thread.sleep(1000); //模拟网速慢的情况,为了更好的显示ImageView刷新多次的情况
			urlConnection.disconnect(); //关闭http连接
			return bitmap;
		} catch (MalformedURLException e) {
			e.printStackTrace();
		} catch (IOException e) {
			e.printStackTrace();
		} catch (InterruptedException e) {
			e.printStackTrace();
		} finally {
			try {
				inputStream.close(); //关闭流
			} catch (IOException e) {
				e.printStackTrace();
			}
		}
		return null;
	}

	/**
	 * 新建一个类,记录ImageView,bitmap和url
	 */
	private class ImgHolder {
		public Bitmap bitmap;
		public ImageView imageView;
		public String url;

		public ImgHolder(ImageView iv, Bitmap bm, String url) {
			this.imageView = iv;
			this.bitmap = bm;
			this.url = url;
		}
	}


}

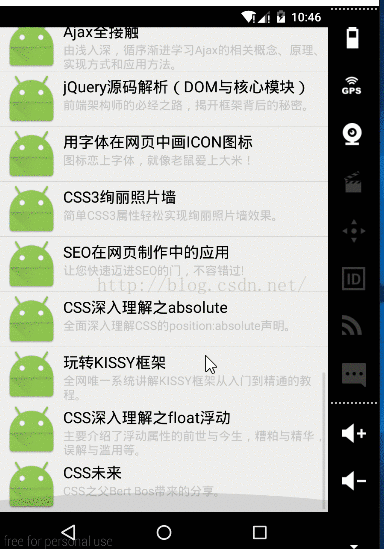

效果图:


        使用AsyncTask实现上面的效果,其实AsyncTask也是根据多线程来实现的,因此基本的实现方式是一样的,直接贴代码:

package com.liangdianshui.asynchronouslyload;

import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.os.AsyncTask;
import android.os.Handler;
import android.os.Message;
import android.util.LruCache;
import android.widget.ImageView;

import java.io.BufferedInputStream;
import java.io.IOException;
import java.io.InputStream;
import java.net.HttpURLConnection;
import java.net.MalformedURLException;
import java.net.URL;

/**
 * Created by 两点水 on 2016/5/22.
 */
public class ImageLoader {

	private ImageView mImageView;
	private String mUrl;
	private final int URL_BITMAP = 0;
	private LruCache<String, Bitmap> mCache;   //使用Lru缓存(使用的Lru算法:近期最少使用算法)

	/**
	 * 使用缓存肯定要先声明缓存空间,因此在构造方法中声明缓存空间
	 */
	public ImageLoader() {
		//获取程序最大使用的内存
		int maxMemory = (int) Runtime.getRuntime().maxMemory();
		int cacheSize = maxMemory / 4;  //缓存大小为最大缓存的四分之一
		//创建缓存,把缓存大小传进去
		mCache = new LruCache<String, Bitmap>(cacheSize) {
			@Override
			protected int sizeOf(String key, Bitmap value) {
				//每次存入缓存的时候都会调用这个方法,因此我们把图片的大小放进去
				return value.getByteCount();
			}
		};
	}

	/**
	 * 把图片加入到缓存
	 *
	 * @param url
	 * @param bitmap
	 */
	public void addBitmapToCache(String url, Bitmap bitmap) {
		//LruCache好比是一个map,采用键值对的形式去保存图片
		if (getBitmapFromCache(url) == null) {
			//如果缓存中没有这个Bitmap,就把bitmap放进缓存
			mCache.put(url, bitmap);
		}
	}

	/**
	 * 从缓存中获取图片
	 *
	 * @param url
	 */
	public Bitmap getBitmapFromCache(String url) {
		return mCache.get(url); //根据url获取图片
	}

	Handler mHandler = new Handler() {

		@Override
		public void handleMessage(Message msg) {
			super.handleMessage(msg);
			switch (msg.what) {
				case URL_BITMAP:
//					if (mImageView.getTag().equals(mUrl)) {
//						mImageView.setImageBitmap((Bitmap) msg.obj);
//					}
					//因为传过来的对象更改了,这里也要跟着更改
					ImgHolder holder = (ImgHolder) msg.obj;
					if (holder.imageView.getTag().equals(holder.url)) {
						holder.imageView.setImageBitmap(holder.bitmap);
					}
					break;
			}
		}
	};


	/**
	 * 多线程加载图片(Thread+Handler)
	 * 根据url获取的itmap显示在ImageView中
	 *
	 * @param imageView
	 * @param url
	 */
	public void showImageByThread(final ImageView imageView, final String url) {
		mImageView = imageView;
		mUrl = url;

		//从缓存中取出图片
//		Bitmap bitmap = getBitmapFromCache(url);
		//判断缓存中是否含有这张图片,没有的话去网络下载图片
//		if (bitmap == null) {
		new Thread(new Runnable() {
			@Override
			public void run() {
				Bitmap bitmap = getBitmapFromURL(url);
				//把下载下来的图片加到缓存中
				if (bitmap != null) {
					addBitmapToCache(url, bitmap);
				}
				Message message = new Message();
//					message.obj = bitmap;
				//为了保证ImageView与这时候传递过来的图像一一对应的关系
				message.obj = new ImgHolder(imageView, bitmap, url);
				message.what = URL_BITMAP;
				mHandler.sendMessage(message);
			}
		}).start();  //记得start();
//		} else {
//			Message message = new Message();
//			message.obj = bitmap;
		//为了保证ImageView与这时候传递过来的图像一一对应的关系
//			message.obj = new ImgHolder(imageView, bitmap, url);
//			message.what = URL_BITMAP;
//			mHandler.sendMessage(message);
//		}
	}

	/**
	 * 根据rul获取bitmap
	 *
	 * @param url
	 * @return
	 */

	private Bitmap getBitmapFromURL(String url) {
		InputStream inputStream = null;
		try {
			URL urlBitmap = new URL(url);
			HttpURLConnection urlConnection = (HttpURLConnection) urlBitmap.openConnection();
			inputStream = new BufferedInputStream(urlConnection.getInputStream());
			Bitmap bitmap = BitmapFactory.decodeStream(inputStream);
//			Thread.sleep(1000); //模拟网速慢的情况,为了更好的显示ImageView刷新多次的情况
			urlConnection.disconnect(); //关闭http连接
			return bitmap;
		} catch (MalformedURLException e) {
			e.printStackTrace();
		} catch (IOException e) {
			e.printStackTrace();
		} finally {
			try {
				inputStream.close(); //关闭流
			} catch (IOException e) {
				e.printStackTrace();
			}
		}
		return null;
	}

	/**
	 * 新建一个类,记录ImageView,bitmap和url
	 */
	private class ImgHolder {
		public Bitmap bitmap;
		public ImageView imageView;
		public String url;

		public ImgHolder(ImageView iv, Bitmap bm, String url) {
			this.imageView = iv;
			this.bitmap = bm;
			this.url = url;
		}
	}


	/**
	 * 通过AsyncTask异步加载图片显示到ImageView
	 *
	 * @param imageView
	 * @param url
	 */
	public void showImageByAsyncTask(ImageView imageView, String url) {
		Bitmap bitmap = getBitmapFromCache(url);
		if (bitmap == null) {  //判断缓存是否有对应的图片
			new MyAsyncTask(imageView, url).execute(url);
		} else {
			imageView.setImageBitmap(bitmap);
		}
	}

	/**
	 * 创建MyAsyncTask内部类
	 * 通过AsyncTask异步加载图片
	 */
	private class MyAsyncTask extends AsyncTask<String, Void, Bitmap> {

		private ImageView mImageView;
		private String mUrl;

		/**
		 * 创建构造方法初始化ImagaeView
		 */
		public MyAsyncTask(ImageView imageView, String url) {
			mImageView = imageView;
			mUrl = url;
		}

		@Override
		protected void onPreExecute() {
			super.onPreExecute();
		}

		@Override
		protected Bitmap doInBackground(String... params) {
			String url = params[0];
			Bitmap bitmap = getBitmapFromURL(url);
			if (bitmap != null) {
				addBitmapToCache(url, bitmap); //增叫图片到缓存
			}
			return bitmap;
		}

		@Override
		protected void onPostExecute(Bitmap bitmap) {
			super.onPostExecute(bitmap);
			if (mImageView.getTag().equals(mUrl)) {
				mImageView.setImageBitmap(bitmap);
			}
		}
	}

}
Adapter的代码:

package com.liangdianshui.asynchronouslyload;

import android.content.Context;
import android.graphics.Bitmap;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.TextView;

import java.util.List;

/**
 * Created by 两点水 on 2016/5/12.
 */
public class MyAdapter extends BaseAdapter {

	private Context context;
	private List<DataBean> list;
	private ViewHolder mHolder;
	private ImageLoader mImaeLoader;

	public MyAdapter(Context context, List<DataBean> list) {
		this.context = context;
		this.list = list;
		mImaeLoader = new ImageLoader();  //因为创建了缓存空间,所以放在构造方法,只创建一次
	}

	@Override
	public int getCount() {
		return list.size();
	}

	@Override
	public Object getItem(int position) {
		return list.get(position);
	}

	@Override
	public long getItemId(int position) {
		return position;
	}

	@Override
	public View getView(int position, View convertView, ViewGroup parent) {
		if (convertView == null) {
			convertView = LayoutInflater.from(context).inflate(R.layout.item_layout, null);
			mHolder = new ViewHolder();
			mHolder.tvTitle = (TextView) convertView.findViewById(R.id.tv_title);
			mHolder.tvContent = (TextView) convertView.findViewById(R.id.tv_content);
			mHolder.ivIcon = (ImageView) convertView.findViewById(R.id.iv_icon);
			convertView.setTag(mHolder);
		} else {
			mHolder = (ViewHolder) convertView.getTag();
		}
//		mHolder.ivIcon.setImageResource(R.mipmap.ic_launcher);//默认加载的图片
		String url = list.get(position).getDataIconUrl();
		mHolder.ivIcon.setTag(url);//为防止listview显示的图片错乱,重复,闪烁
//		new ImageLoader().showImageByThread(mHolder.ivIcon, url);
		/**
		 * 注释多线程异步加载图片的代码
		 */
//		Bitmap bitmapFromCache = mImaeLoader.getBitmapFromCache(url);
//		if (bitmapFromCache != null) {
//			mHolder.ivIcon.setImageBitmap(bitmapFromCache);
//		} else {
//			mHolder.ivIcon.setImageResource(R.mipmap.ic_launcher);
//			mImaeLoader.showImageByThread(mHolder.ivIcon, url);
//		}

		/**
		 *使用AsyncTask的方式实现多线程
		 */
		mHolder.ivIcon.setImageResource(R.mipmap.ic_launcher);//默认加载的图片
		mImaeLoader.showImageByAsyncTask(mHolder.ivIcon, url);

		mHolder.tvTitle.setText(list.get(position).getDataTitle());
		mHolder.tvContent.setText(list.get(position).getDataContent());
		return convertView;
	}

	class ViewHolder {
		private TextView tvTitle;
		private TextView tvContent;
		private ImageView ivIcon;
	}
}

       效果图跟上面多线程实现的效果图是一样的!
ListView滚动时的高效优化:
           为什么要进行ListView滚动时的优化呢?当Item的界面很复杂的时候,我们的做法是一边滚动时还在加载图片的,加载完成后在主线程中更新ImageView,如果刚好在滚动的时候,更新ImageVIew,因为都是在主线程工作,这时候可能会有卡顿的现象!
       为了解决这种卡顿的现象,我们可以在用户滚动ListView的时候不更新ImageVeiw,只有当用户停止滚动的时候才更新,这样就不卡顿了!
       因此Adapter首先要监听滑动事件,在第一次加载的时候进行加载更新可见项item的视图,之后都是在ListView滑动停止的时候才更新加载图片,其余情况不加载图片!

package com.liangdianshui.asynchronouslyload;

import android.content.Context;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AbsListView;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;

import java.util.List;

/**
 * Created by 两点水 on 2016/5/12.
 */
public class MyAdapter extends BaseAdapter implements AbsListView.OnScrollListener {

    private Context context;
    private List<DataBean> list;
    private ViewHolder mHolder;
    private ImageLoader mImaeLoader;
    private int mStart, mEnd;//当前可见项的起始位置
    public static String URLS[];//用于保存所有的图片URL地址
    private boolean mFirstIn;//用于判断是否首次启动预加载

    public MyAdapter(Context context, List<DataBean> list, ListView listView) {
        this.context = context;
        this.list = list;
        mFirstIn = true;
        mImaeLoader = new ImageLoader(listView);  //因为创建了缓存空间,所以放在构造方法,只创建一次
        //保存所有的图片URL地址
        URLS = new String[list.size()];
        for (int i = 0; i < URLS.length; i++) {
            URLS[i] = list.get(i).getDataIconUrl();
        }
        //实现listview滑动监听接口
        listView.setOnScrollListener(this);
    }

    @Override
    public int getCount() {
        return list.size();
    }

    @Override
    public Object getItem(int position) {
        return list.get(position);
    }

    @Override
    public long getItemId(int position) {
        return position;
    }

    @Override
    public View getView(int position, View convertView, ViewGroup parent) {
        if (convertView == null) {
            convertView = LayoutInflater.from(context).inflate(R.layout.item_layout, null);
            mHolder = new ViewHolder();
            mHolder.tvTitle = (TextView) convertView.findViewById(R.id.tv_title);
            mHolder.tvContent = (TextView) convertView.findViewById(R.id.tv_content);
            mHolder.ivIcon = (ImageView) convertView.findViewById(R.id.iv_icon);
            convertView.setTag(mHolder);
        } else {
            mHolder = (ViewHolder) convertView.getTag();
        }
//		mHolder.ivIcon.setImageResource(R.mipmap.ic_launcher);//默认加载的图片
        String url = list.get(position).getDataIconUrl();
        mHolder.ivIcon.setTag(url);//为防止listview显示的图片错乱,重复,闪烁

//		new ImageLoader().showImageByThread(mHolder.ivIcon, url);
        /**
         * 多线程异步加载图片
         */
//		Bitmap bitmapFromCache = mImaeLoader.getBitmapFromCache(url);
//		if (bitmapFromCache != null) {
//			mHolder.ivIcon.setImageBitmap(bitmapFromCache);
//		} else {
//			mHolder.ivIcon.setImageResource(R.mipmap.ic_launcher);
//			mImaeLoader.showImageByThread(mHolder.ivIcon, url);
//		}

        /**
         *使用AsyncTask的方式实现多线程
         */
//        mHolder.ivIcon.setImageResource(R.mipmap.ic_launcher);//默认加载的图片
        mImaeLoader.showImageByAsyncTask(mHolder.ivIcon, url);
        mHolder.tvTitle.setText(list.get(position).getDataTitle());
        mHolder.tvContent.setText(list.get(position).getDataContent());
        return convertView;
    }

    @Override
    public void onScrollStateChanged(AbsListView view, int scrollState) {
        //滚动状态为停止时,加载当前可见的数据项
        if (scrollState == SCROLL_STATE_IDLE) {
            mImaeLoader.loadPartImageView(mStart, mEnd);
        } else {//滑动没有停止时,停止任务
            mImaeLoader.CancelAllTask();
        }
    }

    @Override
    public void onScroll(AbsListView view, int firstVisibleItem, int visibleItemCount, int totalItemCount) {
        mStart = firstVisibleItem;
        mEnd = firstVisibleItem + visibleItemCount;
        //首次启动预加载
        if (mFirstIn && visibleItemCount > 0) {
            mImaeLoader.loadPartImageView(mStart, mEnd);
            mFirstIn = false;
        }
    }

    class ViewHolder {
        private TextView tvTitle;
        private TextView tvContent;
        private ImageView ivIcon;
    }
}
ImageLoader中写一个加载可见项视图Item的方法,然后修改下异步加载图片的方法:

package com.liangdianshui.asynchronouslyload;

import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.os.AsyncTask;
import android.os.Handler;
import android.os.Message;
import android.util.LruCache;
import android.widget.ImageView;
import android.widget.ListView;

import java.io.BufferedInputStream;
import java.io.IOException;
import java.io.InputStream;
import java.net.HttpURLConnection;
import java.net.MalformedURLException;
import java.net.URL;
import java.util.HashSet;
import java.util.Set;

/**
 * Created by 两点水 on 2016/5/22.
 */
public class ImageLoader {

    private ImageView mImageView;
    private String mUrl;
    private final int URL_BITMAP = 0;
    private LruCache<String, Bitmap> mCache;   //使用Lru缓存(使用的Lru算法:近期最少使用算法)
    private ListView mlistView;
    private Set<MyAsyncTask> mTasks;

    /**
     * 使用缓存肯定要先声明缓存空间,因此在构造方法中声明缓存空间
     */
    public ImageLoader(ListView listView) {
        this.mlistView = listView;
        mTasks = new HashSet<>();
        //获取程序最大使用的内存
        int maxMemory = (int) Runtime.getRuntime().maxMemory();
        int cacheSize = maxMemory / 4;  //缓存大小为最大缓存的四分之一
        //创建缓存,把缓存大小传进去
        mCache = new LruCache<String, Bitmap>(cacheSize) {
            @Override
            protected int sizeOf(String key, Bitmap value) {
                //每次存入缓存的时候都会调用这个方法,因此我们把图片的大小放进去
                return value.getByteCount();
            }
        };
    }

    /**
     * 把图片加入到缓存
     *
     * @param url
     * @param bitmap
     */
    public void addBitmapToCache(String url, Bitmap bitmap) {
        //LruCache好比是一个map,采用键值对的形式去保存图片
        if (getBitmapFromCache(url) == null) {
            //如果缓存中没有这个Bitmap,就把bitmap放进缓存
            mCache.put(url, bitmap);
        }
    }

    /**
     * 从缓存中获取图片
     *
     * @param url
     */
    public Bitmap getBitmapFromCache(String url) {
        return mCache.get(url); //根据url获取图片
    }

    Handler mHandler = new Handler() {

        @Override
        public void handleMessage(Message msg) {
            super.handleMessage(msg);
            switch (msg.what) {
                case URL_BITMAP:
//					if (mImageView.getTag().equals(mUrl)) {
//						mImageView.setImageBitmap((Bitmap) msg.obj);
//					}
                    //因为传过来的对象更改了,这里也要跟着更改
                    ImgHolder holder = (ImgHolder) msg.obj;
                    if (holder.imageView.getTag().equals(holder.url)) {
                        holder.imageView.setImageBitmap(holder.bitmap);
                    }
                    break;
            }
        }
    };


    /**
     * 多线程加载图片(Thread+Handler)
     * 根据url获取的itmap显示在ImageView中
     *
     * @param imageView
     * @param url
     */
    public void showImageByThread(final ImageView imageView, final String url) {
        mImageView = imageView;
        mUrl = url;

        //从缓存中取出图片
//		Bitmap bitmap = getBitmapFromCache(url);
        //判断缓存中是否含有这张图片,没有的话去网络下载图片
//		if (bitmap == null) {
        new Thread(new Runnable() {
            @Override
            public void run() {
                Bitmap bitmap = getBitmapFromURL(url);
                //把下载下来的图片加到缓存中
                if (bitmap != null) {
                    addBitmapToCache(url, bitmap);
                }
                Message message = new Message();
//					message.obj = bitmap;
                //为了保证ImageView与这时候传递过来的图像一一对应的关系
                message.obj = new ImgHolder(imageView, bitmap, url);
                message.what = URL_BITMAP;
                mHandler.sendMessage(message);
            }
        }).start();  //记得start();
//		} else {
//			Message message = new Message();
//			message.obj = bitmap;
        //为了保证ImageView与这时候传递过来的图像一一对应的关系
//			message.obj = new ImgHolder(imageView, bitmap, url);
//			message.what = URL_BITMAP;
//			mHandler.sendMessage(message);
//		}
    }

    /**
     * 根据rul获取bitmap
     *
     * @param url
     * @return
     */
    private Bitmap getBitmapFromURL(String url) {
        InputStream inputStream = null;
        try {
            URL urlBitmap = new URL(url);
            HttpURLConnection urlConnection = (HttpURLConnection) urlBitmap.openConnection();
            inputStream = new BufferedInputStream(urlConnection.getInputStream());
            Bitmap bitmap = BitmapFactory.decodeStream(inputStream);
//			Thread.sleep(1000); //模拟网速慢的情况,为了更好的显示ImageView刷新多次的情况
            urlConnection.disconnect(); //关闭http连接
            return bitmap;
        } catch (MalformedURLException e) {
            e.printStackTrace();
        } catch (IOException e) {
            e.printStackTrace();
        } finally {
            try {
                inputStream.close(); //关闭流
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
        return null;
    }

    /**
     * 新建一个类,记录ImageView,bitmap和url
     */
    private class ImgHolder {
        public Bitmap bitmap;
        public ImageView imageView;
        public String url;

        public ImgHolder(ImageView iv, Bitmap bm, String url) {
            this.imageView = iv;
            this.bitmap = bm;
            this.url = url;
        }
    }


    /**
     * 通过AsyncTask异步加载图片显示到ImageView
     *
     * @param imageView
     * @param url
     */
    public void showImageByAsyncTask(ImageView imageView, String url) {
        Bitmap bitmap = getBitmapFromCache(url);
        if (bitmap == null) {  //判断缓存是否有对应的图片
//            new MyAsyncTask(imageView, url).execute(url);
            imageView.setImageResource(R.mipmap.ic_launcher);
        } else {
            imageView.setImageBitmap(bitmap);
        }
    }

    /**
     * 创建MyAsyncTask内部类
     * 通过AsyncTask异步加载图片
     */
    private class MyAsyncTask extends AsyncTask<String, Void, Bitmap> {

        private ImageView mImageView;
        private String mUrl;

        /**
         * 创建构造方法初始化ImagaeView
         */
        public MyAsyncTask(ImageView imageView, String url) {
            mImageView = imageView;
            mUrl = url;
        }

        public MyAsyncTask(String url) {
            mUrl = url;
        }


        @Override
        protected void onPreExecute() {
            super.onPreExecute();
        }

        @Override
        protected Bitmap doInBackground(String... params) {
            String url = params[0];
            Bitmap bitmap = getBitmapFromURL(url);
            if (bitmap != null) {
                addBitmapToCache(url, bitmap); //增叫图片到缓存
            }
            return bitmap;
        }

        @Override
        protected void onPostExecute(Bitmap bitmap) {
            super.onPostExecute(bitmap);
//            if (mImageView.getTag().equals(mUrl)) {
//                mImageView.setImageBitmap(bitmap);
//            }
            //从ListView中获取Imageview
            ImageView imageView = (ImageView) mlistView.findViewWithTag(mUrl);
            if (imageView != null && bitmap != null) {
                imageView.setImageBitmap(bitmap);
            }
        }
    }

    /**
     * 加载部分可见的图片
     */
    public void loadPartImageView(int start, int end) {
        for (int i = start; i < end; i++) {
            String url = MyAdapter.URLS[i];//得到可见项目起始中的各个url
            //得到缓存中的Bitmap
            Bitmap bitmap = getBitmapFromCache(url);
            //bitmap为空就下载,非空就直接使用
            if (bitmap == null) {
                MyAsyncTask task = new MyAsyncTask(url);
                task.execute(url);
                mTasks.add(task);
            } else {
                //从ListView中获取Imageview
                ImageView imageView = (ImageView) mlistView.findViewWithTag(url);
                imageView.setImageBitmap(bitmap);
            }
        }
    }

    /**
     * 取消当前正在运行的所有任务
     */
    public void CancelAllTask() {
        if (mTasks != null) {
            for (MyAsyncTask task :
                    mTasks) {
                task.cancel(true);
            }
        }
    }

}
Demo地址:http://download.csdn.net/detail/two_water/9540297




版权声明:本文为博主原创文章,未经博主允许不得转载。

相关文章推荐

Android异步加载图像小结(2)

Android异步加载图像小结(2)

android图片异步加载

  • 2014-09-25 14:41
  • 1.28MB
  • 下载

【玩转cocos2d-x之二十三】多线程和同步03-图片异步加载

转自http://cocos2d.cocoachina.com/bbs/forum.php?mod=viewthread&tid=775&extra=page%3D1(内容重点: CCSprite, ...

android 异步加载图像jar

  • 2016-02-09 00:24
  • 251KB
  • 下载

Cocos2d-x教程(36)-多线程与异步加载

Cocos2d-x 多线程与异步加载

异步加载android

  • 2013-07-18 14:11
  • 428KB
  • 下载

Android异步图片加载

  • 2013-05-24 17:28
  • 2.85MB
  • 下载

cocos2dx 资源 异步加载

本文转自:http://cn.cocos2d-x.org/tutorial/show?id=1277,感谢作者分享! 目前我代码中需要异步加载的资源一共有四类: 1.png,单个png的情...
内容举报
返回顶部
收藏助手
不良信息举报
您举报文章:深度学习:神经网络中的前向传播和反向传播算法推导
举报原因:
原因补充:

(最多只允许输入30个字)
