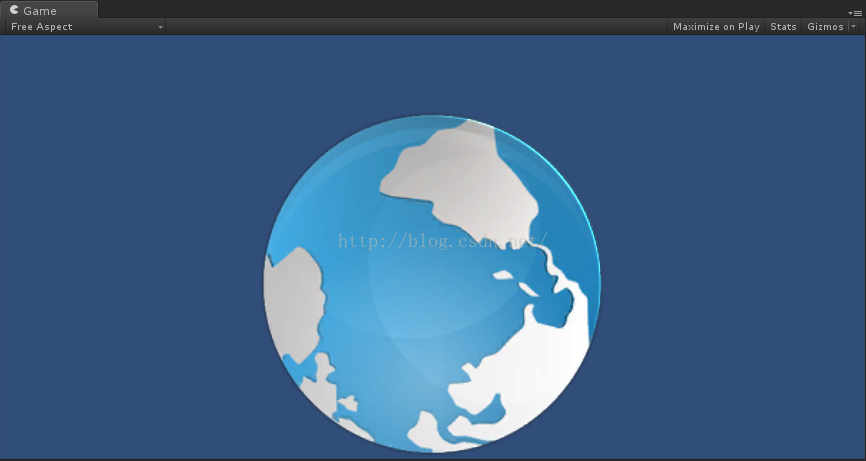

(高光在左上)

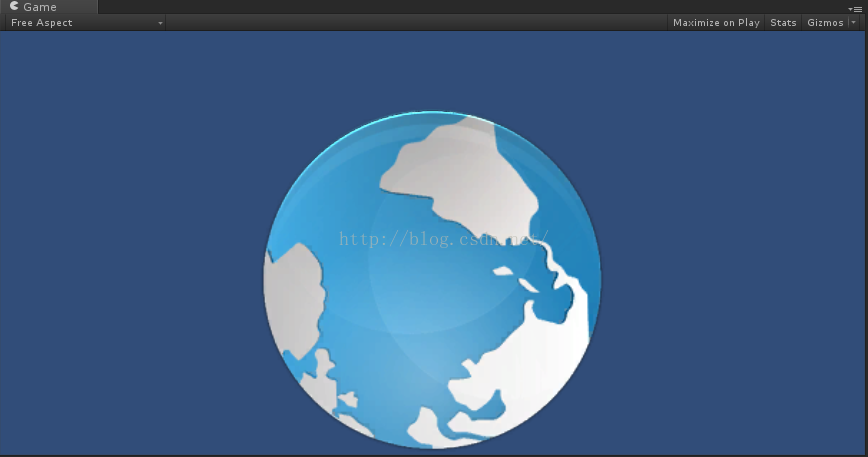

(高光在右上)
源码说明
源代码的shader部分是由NGUI所提供的Unlit/Transparent Colored修改的,你可以看到几乎一模一样的顶点着色器
Shader "Custom/Rimlight"
{
Properties
{
_MainTex ("Base (RGB), Alpha (A)", 2D) = "black" {}
_angle("angle" , Range(0, 1)) = 0 //高光角度
_RimLightColor("Rim Light Color",Color) = (1,1,1,0)//高光颜色
}
SubShader
{
LOD 200
Tags
{
"Queue" = "Transparent"
"IgnoreProjector" = "True"
"RenderType" = "Transparent"
}
Pass
{
Cull Off
Lighting Off
ZWrite Off
Fog { Mode Off }
Offset -1, -1
Blend SrcAlpha OneMinusSrcAlpha
CGPROGRAM
#pragma vertex vert
#pragma fragment frag
#include "UnityCG.cginc"
sampler2D _MainTex;
float4 _MainTex_ST;
half4 _MainTex_TexelSize;
fixed _angle;
half4 _RimLightColor;
struct appdata_t
{
float4 vertex : POSITION;
float2 texcoord : TEXCOORD0;
fixed4 color : COLOR;
};
struct v2f
{
float4 vertex : SV_POSITION;
half2 texcoord : TEXCOORD0;
fixed4 color : COLOR;
};
v2f o;
v2f vert (appdata_t v)
{
o.vertex = mul(UNITY_MATRIX_MVP, v.vertex);
o.texcoord = v.texcoord;
o.color = v.color;
return o;
}
fixed4 frag (v2f IN) : COLOR
{
fixed4 c = tex2D(_MainTex, IN.texcoord);
fixed2 TexOffset = _MainTex_TexelSize.xy;
c = c * IN.color;
//================遮罩部分============================
//坐标运算转为屏幕中心做二维坐标原点
float2 uv = IN.texcoord - float2(0.5,0.5);
// 遮罩角度
_angle = 6.284*(_angle-0.5);
//反算出像素点角度的Tan值
float TanAngle = atan2(uv.y, uv.x);
//角度与高光角度的差距
float AngleDis = 1-saturate(abs(_angle - TanAngle));
AngleDis += 1-saturate(abs(_angle - TanAngle-6.284));
AngleDis += 1-saturate(abs(_angle - TanAngle+6.284));
//寻找图片的边缘值,即alpha的边缘
fixed a0 = tex2D(_MainTex, IN.texcoord + TexOffset ).a;
fixed a1 = tex2D(_MainTex, IN.texcoord + TexOffset * fixed2 ( 1 , -1 ) ).a;
fixed a2 = tex2D(_MainTex, IN.texcoord + TexOffset * fixed2 ( -1 , 1 ) ).a;
fixed a3 = tex2D(_MainTex, IN.texcoord + TexOffset * fixed2 ( -1 , -1 ) ).a;
fixed finala = abs(c.a * 4 - ( a0 + a1 + a2 + a3 ));
AngleDis *= finala;
// 打高光
c += fixed4(_RimLightColor.rgb*AngleDis, 0);
return c;
}
ENDCG
}
}
SubShader
{
LOD 100
Tags
{
"Queue" = "Transparent"
"IgnoreProjector" = "True"
"RenderType" = "Transparent"
}
Pass
{
Cull Off
Lighting Off
ZWrite Off
Fog { Mode Off }
Offset -1, -1
ColorMask RGB
Blend SrcAlpha OneMinusSrcAlpha
ColorMaterial AmbientAndDiffuse
SetTexture [_MainTex]
{
Combine Texture * Primary
}
}
}
}
最后附上控制高光打转的代码
using UnityEngine;
using System.Collections;
public class ControlAngle : MonoBehaviour {
public Material mat;//带有高光的材质球
public float Rate = 0;//运转速率
float NextTime = 0;//下一次轮回时间
float angle;//运转角度
// Use this for initialization
void Start ()
{
}
// Update is called once per frame
void Update ()
{
if (NextTime <= Time.time)
{
NextTime = Time.time + Rate;
angle = 0;
}
else
{
angle = (NextTime - Time.time)/Rate;
}
mat.SetFloat ("_angle",angle);
}
}
最后的最后附上上述的源码 http://download.csdn.net/detail/blinkseed/9100731
